Early report on HWS cameral control

Camilla, TJ, Dave:

Last Thursday 26th June 2025 alog85373 I restarted the HWS camera control code. We hoped this would improve the 2Hz noise comb in DARM. Initial results for F-Scan (observing) suggest it has not made much, if any difference.

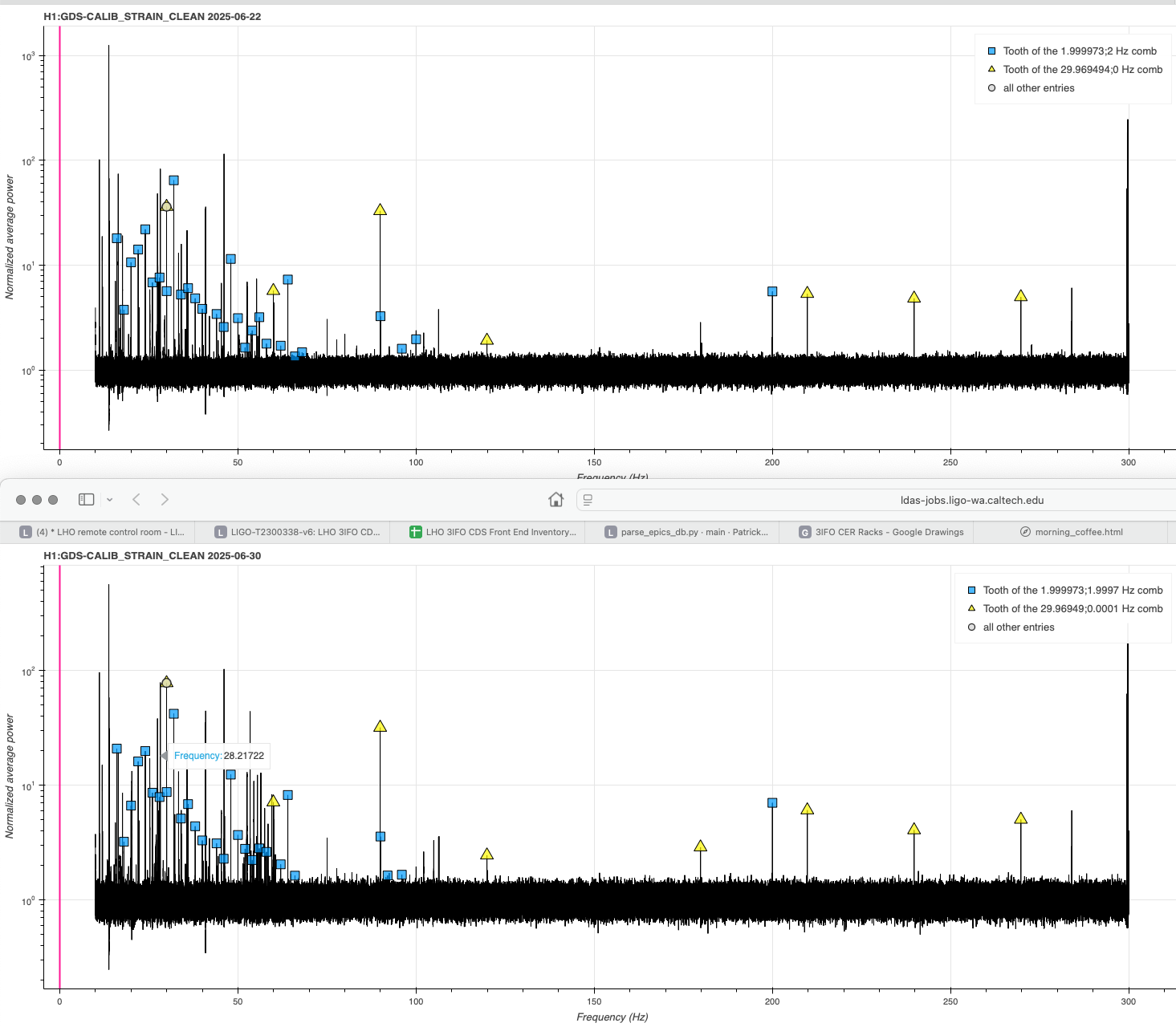

Attached F-Scans show the spectra on sun22jun2025 and mon30jun2025. The 2Hz comb (blue squares) look unchanged.

More investigation is needed to verfiy we are indeed disabling the frame aquisition on all HWS cameras when H1 is in observation.

CDS Maintenance Summary: Tuesday 1st July 2025

WP12649 Add h1ascimc WFS_B_DC chans to DAQ

Elenna, Dave:

A new h1ascimc model was installed which adds two 16kHz versions of the WFS_B_DC channels to the DAQ. The new channels are

H1:IMC-WFS_B_DC_[PIT,YAW]_OUT_16K_DQ

A DAQ restart was required.

WP12635 VACSTAT HAM1 update

Dave:

A new H1EPICS_VACSTAT.ini was generated. This removes the temporary H1-PT100B VACSTAT gauge and adds the new HAM1 PT100_MOD2 gauge to the DAQ. After the EDC+DAQ restart, VACSTAT was restarted sans H1-PT100B now it is longer needed by EDC.

WP12637 HWS Camera Control

Dave

As part of getting the HWS camera control system running again, its new IOC was added to the EDC via H1EPICS_HWSCAMCTRL.ini. EDC+DAQ restart was needed

DAQ Restart

Dave, Jonathan, Erik

DAQ was restarted for four changes:

1) New H1ASCIMC.ini, adding two new fast DQ channels.

2) New H1EPICS_VACSTAT.ini, removing obsolete VACSTAT chans associated with H1-PT100B

3) Removed H1EPICS_VACHAM1.ini, which was trending the temporary H1 version ot PT100B

4) Added new H1EPICS_HWSCAMCTRL, new HWS camera control's IOC non-string channels.

This was a very messy restart.

After restarting the h1ascimc model, the 0-leg was restarted. A second restart of GDS0 was needed.

After writing two full frames, FW0 crashed and restarted itself.

Once FW0 was back, the 1-leg was restarted. GDS1 needed a second restart.

About 10 minutes later, FW0 had a second crash. This is not unheard of, but very rare.

In the course of investigating it was discovered that FW1 had an unused 1TB Seagate HDD (sda) which has been generating errors over the past month. We decided to remove this from h1daqfw1 since it served no purpose.

Following the DAQ restart, item 2) removal means I can stop running the temporary EPICS IOC vac_ham1_pressure_converter_ioc. This code no longer runs on opslogin0 in a tmux session.

WP12651 Replace h1seih23 IO Chassis +24VDC power supply

Fil, Marc, Erik, Dave:

h1seih23 was fenced and powered down. The IO Chassis was then powered down and its +24VDC supply was replaced (bad fan bearing). System was powered back up with no issues.





Removed a failed unused disk from h1daqfw1

We noticed a failed drive on h1daqfw1.  As we were in maintenance we powered down the system and removed the disk.  This was a 1TB spinning disk.  It was most likely put in to allow us to have large storage if we needed to write frames locally and then move then over the network, this was a very real posibility at point.  However we never ended up doing that.

The system was taken down at around 13:38 local time.

Removed odd cabling from h1brsey and connected it to the KVM switch

WP 12613.
ALOG: 84928.

"Remove the cabling described in https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=84928 from h1brsey and the network switch. Use the video port on h1brsey currently occupied by that cabling to connect to the kvm in the rack instead. Jim noted that "It might have been some sort of kvm or display extension set up Carlos tried for me. The rdp for beckhoff had too much lag to rebalance the BRS, so we had looked at some more direct remote display options, but I don't remember the details." and "the remote adjuster just installed means we don't need it, if that is what it is." Work to be done during any target of opportunity."

This work has been completed.

Updated scripts used to copy files on some vacuum machines

WP 12641.

"Install git and clone the vacuum repos on the vacuum machines where it has not yet been done. Update the scripts used to copy the channel lists from each of the Beckhoff vacuum machines to CDS to additionally copy the EPICS database files. Run the scripts on each of the vacuum machines. No expected downtime or impacts."

I have completed the work on h0vaclx, h0vacly and h0vacmr and copied the auto generated EPICS IOC database files over. These did not need git to be installed. I did not do the remaining machines since I do not believe they are running out of the git repos and I was getting nervous.

A couple of small issues. On h0vaclx I accidentally committed the change to the copy script before pulling changes from the remote repo. On h0vacmr more changes came down in the pull from the remote repo than I was expecting.

h0vaclx:

$ git pull
remote: Enumerating objects: 15, done.
remote: Counting objects: 100% (7/7), done.
remote: Compressing objects: 100% (5/5), done.
remote: Total 15 (delta 2), reused 2 (delta 2), pack-reused 8 (from 1)
Unpacking objects: 100% (15/15), 3.90 KiB | 124.00 KiB/s, done.
From https://git.ligo.org/cds/ifo/beckhoff/lho-vacuum
   d27c3eb..0faf5c4  main       -> origin/main
Merge made by the 'ort' strategy.
 Source/Scripts/h0vacly_create_target.ps1 | 6 ++++--
 Target/H0VACLY/scp.bat                   | 2 +-
 2 files changed, 5 insertions(+), 3 deletions(-)


$ git log
commit 4bc3d2a5267797ae947c596e1f5007183cf3cfd4 (HEAD -> main)
Merge: f217076 0faf5c4
Author: Patrick Thomas
Date:   Tue Jul 1 10:34:45 2025 -0700

    Merge branch 'main' of https://git.ligo.org/cds/ifo/beckhoff/lho-vacuum

commit f2170760b6c51d68eb4a1d8b32466f044a882303
Author: Patrick Thomas
Date:   Tue Jul 1 10:33:23 2025 -0700

    Added the EPICS database file to the list of files to copy over.

commit 0faf5c4aeb5c61116a5abf0573cb3d09ffdc9e7c (origin/main, origin/HEAD)
Author: Patrick Thomas
Date:   Tue Jun 24 11:46:18 2025 -0700

    Updated host name.


h0vacmr:

$ git pull
remote: Enumerating objects: 303, done.
remote: Counting objects: 100% (75/75), done.
remote: Compressing objects: 100% (31/31), done.
remote: Total 303 (delta 59), reused 44 (delta 44), pack-reused 228 (from 1)
Receiving objects: 100% (303/303), 7.56 MiB | 8.56 MiB/s, done.
Resolving deltas: 100% (89/89), completed with 11 local objects.
From https://git.ligo.org/cds/ifo/beckhoff/lho-vacuum
   3687c4f..4c1c97d  main       -> origin/main
Updating 3687c4f..4c1c97d
Fast-forward
 Library/2010/Vacuum/Vacuum.project.~u              |    4 +
 Library/2010/Vacuum/Vacuum.sln                     |   44 +
 Library/2010/Vacuum/Vacuum.suo                     |  Bin 0 -> 19968 bytes
 Library/2010/Vacuum/Vacuum.tsproj                  |   13 +
 Library/2010/Vacuum/Vacuum.tsproj.bak              |    4 +
 .../2010/Vacuum/Vacuum/DUTs/SmoothStateEnum.TcDUT  |   12 +
 .../Controls/ColdCathodeGaugePowerControlFB.TcPOU  |   41 +
 .../Vacuum/POUs/Controls/PIControllerFB.TcPOU      |   96 +
 .../Controls/RegenHeaterTemperatureControlFB.TcPOU |  160 +
 .../AnnulusIonPumpMilliAmpsToLogMilliAmpsFun.TcPOU |   23 +
 .../AnnulusIonPumpMilliAmpsToTorrFun.TcPOU         |   33 +
 .../AnnulusIonPumpVoltsToMilliAmpsFun.TcPOU        |   19 +
 .../POUs/Conversions/CC10/CC10VoltsToTorrFun.TcPOU |   31 +
 .../ColdCathodeGaugeTorrToLogTorrFun.TcPOU         |   23 +
 .../ColdCathodeGaugeVoltsToTorrFun.TcPOU           |   23 +
 .../CryopumpMilliAmpsToPercentFullFun.TcPOU        |   27 +
 ...evelControlValvePercentOpenToMilliAmpsFun.TcPOU |   27 +
 .../Dewar/DewarMilliAmpsToPercentFullFun.TcPOU     |   27 +
 .../Dewar/DewarPercentFullToGallonsFun.TcPOU       |   20 +
 ...ineMilliAmpsToPoundsPerSquareInchGaugeFun.TcPOU |   27 +
 ...eLineMilliAmpsToStandardLitrePerMinuteFun.TcPOU |   27 +
 ...FanVibrationMilliAmpsToInchesPerSecondFun.TcPOU |   27 +
 ...GateValveLimitSwitchesToPositionNumberFun.TcPOU |   33 +
 ...teValvePositionNumberToAnimationNumberFun.TcPOU |   32 +
 ...ateValvePositionNumberToPositionStringFun.TcPOU |   29 +
 .../GaugeControllerMKS937VoltsToTorrFun.TcPOU      |   21 +
 .../Conversions/IO/EL3004CountsToVoltsFun.TcPOU    |   27 +
 .../IO/EL3024CountsToMilliAmpsFun.TcPOU            |   27 +
 .../IO/EL3314CountsToDegreesCelsiusFun.TcPOU       |   19 +
 .../IO/EL4024MilliAmpsToCountsFun.TcPOU            |   32 +
 .../Inficon/InficonBPG402TorrToLogTorrFun.TcPOU    |   23 +
 .../Inficon/InficonBPG402VoltsToTorrFun.TcPOU      |   19 +
 ...mentAirVoltsToPoundsPerSquareInchGaugeFun.TcPOU |   27 +
 .../IonPumpControllerDualVacTorrToStatusFun.TcPOU  |   23 +
 ...nPumpControllerDualVacVoltsToKiloVoltsFun.TcPOU |   34 +
 .../IonPumpControllerDualVacVoltsToTorrFun.TcPOU   |   25 +
 .../IonPumpControllerGammaAmpsToTorrFun.TcPOU      |   21 +
 .../IonPumpControllerGammaTorrToStatusFun.TcPOU    |   23 +
 .../IonPumpControllerGammaVoltsToAmpsFun.TcPOU     |   19 +
 ...IonPumpControllerGammaVoltsToKiloVoltsFun.TcPOU |   34 +
 .../IonPumpControllerIPCMiniAmpsToTorrFun.TcPOU    |   31 +
 .../IonPumpControllerIPCMiniTorrToStatusFun.TcPOU  |   23 +
 .../IonPumpControllerIPCMiniVoltsToAmpsFun.TcPOU   |   27 +
 ...nPumpControllerIPCMiniVoltsToKiloVoltsFun.TcPOU |   34 +
 .../IonPumpControllerMiniVacAmpsToTorrFun.TcPOU    |   31 +
 .../IonPumpControllerMiniVacTorrToStatusFun.TcPOU  |   23 +
 .../IonPumpControllerMiniVacVoltsToAmpsFun.TcPOU   |   27 +
 ...nPumpControllerMiniVacVoltsToKiloVoltsFun.TcPOU |   34 +
 .../IonPumpControllerMultiVacTorrToStatusFun.TcPOU |   23 +
 ...PumpControllerMultiVacVoltsToKiloVoltsFun.TcPOU |   34 +
 .../IonPumpControllerMultiVacVoltsToTorrFun.TcPOU  |   25 +
 .../POUs/Conversions/LinearConversionFun.TcPOU     |   31 +
 .../PiraniGauge/PiraniGaugeVoltsToTorrFun.TcPOU    |   55 +
 .../RegenHeaterDegreesCelsiusToMilliAmpsFun.TcPOU  |   27 +
 ...aterPressureVoltsToPoundsPerSquareInchFun.TcPOU |   27 +
 .../Vacuum/Vacuum/POUs/Filters/DeadBandFB.TcPOU    |   30 +
 .../2010/Vacuum/Vacuum/POUs/Filters/SmoothFB.TcPOU |   41 +
 Library/2010/Vacuum/Vacuum/Vacuum.plcproj          |  430 ++
 .../3.3.0.0/tc2_standard.compiled-library          |  Bin 0 -> 40065 bytes
 .../3.3.10.0/tc2_system.compiled-library           |  Bin 0 -> 145473 bytes
 .../3.3.10.0/tc2_utilities.compiled-library        |  Bin 0 -> 453424 bytes
 .../3.3.0.0/tc3_interfaces.compiled-library        |  Bin 0 -> 20041 bytes
 .../tc3_module/3.3.6.0/tc3_module.compiled-library |  Bin 0 -> 62830 bytes
 .../3.5.4.0/unitconversion_itfs.compiled-library   |  Bin 0 -> 159574 bytes
 .../3.5.2.0/base_itfs.compiled-library             |  Bin 0 -> 14669 bytes
 .../system/cmpapp/3.5.6.0/cmpapp.compiled-library  |  Bin 0 -> 43807 bytes
 .../3.5.5.0/cmpbitmappool.compiled-library         |  Bin 0 -> 10128 bytes
 .../3.5.3.50/cmpdynamictext.compiled-library       |  Bin 0 -> 20559 bytes
 .../3.5.5.0/cmperrors2_itfs.compiled-library       |  Bin 0 -> 12708 bytes
 .../3.5.5.0/cmpeventmgr.compiled-library           |  Bin 0 -> 24277 bytes
 .../system/cmplog/3.5.5.0/cmplog.compiled-library  |  Bin 0 -> 17125 bytes
 .../3.5.5.0/cmpschedule.compiled-library           |  Bin 0 -> 15643 bytes
 .../3.5.5.0/cmptargetvisu.compiled-library         |  Bin 0 -> 12556 bytes
 .../3.5.6.0/cmpvisuhandler.compiled-library        |  Bin 0 -> 30874 bytes
 .../component manager/3.5.5.0/cm.compiled-library  |  Bin 0 -> 40088 bytes
 .../3.5.2.0/dataserver_itfs.compiled-library       |  Bin 0 -> 76219 bytes
 .../3.5.2.0/monitoringdata_itfs.compiled-library   |  Bin 0 -> 39335 bytes
 .../3.5.6.0/stringutils.compiled-library           |  Bin 0 -> 126454 bytes
 .../sysfile/3.5.6.0/sysfile.compiled-library       |  Bin 0 -> 23653 bytes
 .../system/sysmem/3.5.5.0/sysmem.compiled-library  |  Bin 0 -> 18005 bytes
 .../sysprocess/3.5.5.0/sysprocess.compiled-library |  Bin 0 -> 17317 bytes
 .../system/sysshm/3.5.5.0/sysshm.compiled-library  |  Bin 0 -> 14973 bytes
 .../systarget/3.5.5.0/systarget.compiled-library   |  Bin 0 -> 21297 bytes
 .../systime/3.5.5.0/systime.compiled-library       |  Bin 0 -> 8455 bytes
 .../3.5.5.0/systimecore.compiled-library           |  Bin 0 -> 11600 bytes
 .../systimertc/3.5.5.0/systimertc.compiled-library |  Bin 0 -> 24315 bytes
 .../3.5.2.0/systypes_itfs.compiled-library         |  Bin 0 -> 11482 bytes
 .../3.5.4.0/systypes_itfs.compiled-library         |  Bin 0 -> 12416 bytes
 .../3.5.5.0/visu_itfs.compiled-library             |  Bin 0 -> 27620 bytes
 .../3.5.6.0/visuelembase.compiled-library          |  Bin 0 -> 1743684 bytes
 .../3.5.6.0/visuelemmeter.compiled-library         |  Bin 0 -> 2483904 bytes
 .../visuelems/3.5.6.10/visuelems.compiled-library  |  Bin 0 -> 424922 bytes
 .../visuelemsspecialcontrols.compiled-library      |  Bin 0 -> 2146422 bytes
 .../3.5.6.0/visuelemswincontrols.compiled-library  |  Bin 0 -> 845827 bytes
 .../3.5.6.0/visuelemtexteditor.compiled-library    |  Bin 0 -> 390796 bytes
 .../visuinputs/3.5.6.0/visuinputs.compiled-library |  Bin 0 -> 85394 bytes
 .../3.5.6.0/visunativecontrol.compiled-library     |  Bin 0 -> 83866 bytes
 Library/Vacuum/Vacuum/Vacuum.xml                   | 7520 ++++++++++++++++++++
 Source/Scripts/h0vaclx.ps1                         |   22 +-
 Source/Scripts/h0vaclx_create_target.ps1           |   15 +-
 Source/Scripts/h0vacly.ps1                         |   20 +-
 Source/Scripts/h0vacly_create_target.ps1           |    6 +-
 Source/Scripts/macro_functions.ps1                 |  226 +
 Source/h0vaclx_create_target.cs                    |    4 +-
 Target/H0VACEX/scp.bat                             |    2 +-
 Target/H0VACEY/scp.bat                             |    2 +-
 Target/H0VACLX/h0vaclx.cmd                         |    8 +-
 Target/H0VACLX/h0vaclx_start_ioc.bat               |    2 +-
 Target/H0VACLX/scp.bat                             |    2 +-
 Target/H0VACLY/scp.bat                             |    2 +-
 Target/H0VACMR/scp.bat                             |    2 +-
 Target/H0VACMX/scp.bat                             |    2 +-
 Target/H0VACMY/scp.bat                             |    2 +-
 113 files changed, 9928 insertions(+), 38 deletions(-)
 create mode 100644 Library/2010/Vacuum/Vacuum.project.~u
 create mode 100644 Library/2010/Vacuum/Vacuum.sln
 create mode 100644 Library/2010/Vacuum/Vacuum.suo
 create mode 100644 Library/2010/Vacuum/Vacuum.tsproj
 create mode 100644 Library/2010/Vacuum/Vacuum.tsproj.bak
 create mode 100644 Library/2010/Vacuum/Vacuum/DUTs/SmoothStateEnum.TcDUT
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Controls/ColdCathodeGaugePowerControlFB.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Controls/PIControllerFB.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Controls/RegenHeaterTemperatureControlFB.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/AnnulusIonPump/AnnulusIonPumpMilliAmpsToLogMilliAmpsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/AnnulusIonPump/AnnulusIonPumpMilliAmpsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/AnnulusIonPump/AnnulusIonPumpVoltsToMilliAmpsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/CC10/CC10VoltsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/ColdCathodeGauge/ColdCathodeGaugeTorrToLogTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/ColdCathodeGauge/ColdCathodeGaugeVoltsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/Cryopump/CryopumpMilliAmpsToPercentFullFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/CryopumpLiquidLevelControlValve/CryopumpLiquidLevelControlValvePercentOpenToMilliAmpsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/Dewar/DewarMilliAmpsToPercentFullFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/Dewar/DewarPercentFullToGallonsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/DischargeLine/DischargeLineMilliAmpsToPoundsPerSquareInchGaugeFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/DischargeLine/DischargeLineMilliAmpsToStandardLitrePerMinuteFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/FanVibration/FanVibrationMilliAmpsToInchesPerSecondFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/GateValve/GateValveLimitSwitchesToPositionNumberFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/GateValve/GateValvePositionNumberToAnimationNumberFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/GateValve/GateValvePositionNumberToPositionStringFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/GaugeControllerMKS937/GaugeControllerMKS937VoltsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IO/EL3004CountsToVoltsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IO/EL3024CountsToMilliAmpsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IO/EL3314CountsToDegreesCelsiusFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IO/EL4024MilliAmpsToCountsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/Inficon/InficonBPG402TorrToLogTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/Inficon/InficonBPG402VoltsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/InstrumentAir/InstrumentAirVoltsToPoundsPerSquareInchGaugeFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerDualVac/IonPumpControllerDualVacTorrToStatusFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerDualVac/IonPumpControllerDualVacVoltsToKiloVoltsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerDualVac/IonPumpControllerDualVacVoltsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerGamma/IonPumpControllerGammaAmpsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerGamma/IonPumpControllerGammaTorrToStatusFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerGamma/IonPumpControllerGammaVoltsToAmpsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerGamma/IonPumpControllerGammaVoltsToKiloVoltsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerIPCMini/IonPumpControllerIPCMiniAmpsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerIPCMini/IonPumpControllerIPCMiniTorrToStatusFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerIPCMini/IonPumpControllerIPCMiniVoltsToAmpsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerIPCMini/IonPumpControllerIPCMiniVoltsToKiloVoltsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerMiniVac/IonPumpControllerMiniVacAmpsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerMiniVac/IonPumpControllerMiniVacTorrToStatusFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerMiniVac/IonPumpControllerMiniVacVoltsToAmpsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerMiniVac/IonPumpControllerMiniVacVoltsToKiloVoltsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerMultiVac/IonPumpControllerMultiVacTorrToStatusFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerMultiVac/IonPumpControllerMultiVacVoltsToKiloVoltsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/IonPumpControllerMultiVac/IonPumpControllerMultiVacVoltsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/LinearConversionFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/PiraniGauge/PiraniGaugeVoltsToTorrFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/RegenHeater/RegenHeaterDegreesCelsiusToMilliAmpsFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Conversions/WaterPressure/WaterPressureVoltsToPoundsPerSquareInchFun.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Filters/DeadBandFB.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/POUs/Filters/SmoothFB.TcPOU
 create mode 100644 Library/2010/Vacuum/Vacuum/Vacuum.plcproj
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/beckhoff automation gmbh/tc2_standard/3.3.0.0/tc2_standard.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/beckhoff automation gmbh/tc2_system/3.3.10.0/tc2_system.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/beckhoff automation gmbh/tc2_utilities/3.3.10.0/tc2_utilities.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/beckhoff automation gmbh/tc3_interfaces/3.3.0.0/tc3_interfaces.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/beckhoff automation gmbh/tc3_module/3.3.6.0/tc3_module.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/intern/unit conversion interfaces/3.5.4.0/unitconversion_itfs.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/base interfaces/3.5.2.0/base_itfs.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/cmpapp/3.5.6.0/cmpapp.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/cmpbitmappool/3.5.5.0/cmpbitmappool.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/cmpdynamictext/3.5.3.50/cmpdynamictext.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/cmperrors2 interfaces/3.5.5.0/cmperrors2_itfs.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/cmpeventmgr/3.5.5.0/cmpeventmgr.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/cmplog/3.5.5.0/cmplog.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/cmpschedule/3.5.5.0/cmpschedule.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/cmptargetvisu/3.5.5.0/cmptargetvisu.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/cmpvisuhandler/3.5.6.0/cmpvisuhandler.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/component manager/3.5.5.0/cm.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/data server interfaces/3.5.2.0/dataserver_itfs.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/monitoring data interfaces/3.5.2.0/monitoringdata_itfs.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/stringutils/3.5.6.0/stringutils.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/sysfile/3.5.6.0/sysfile.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/sysmem/3.5.5.0/sysmem.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/sysprocess/3.5.5.0/sysprocess.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/sysshm/3.5.5.0/sysshm.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/systarget/3.5.5.0/systarget.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/systime/3.5.5.0/systime.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/systimecore/3.5.5.0/systimecore.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/systimertc/3.5.5.0/systimertc.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/systypes interfaces/3.5.2.0/systypes_itfs.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/systypes2 interfaces/3.5.4.0/systypes_itfs.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/visu interfaces/3.5.5.0/visu_itfs.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/visuelembase/3.5.6.0/visuelembase.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/visuelemmeter/3.5.6.0/visuelemmeter.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/visuelems/3.5.6.10/visuelems.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/visuelemsspecialcontrols/3.5.6.0/visuelemsspecialcontrols.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/visuelemswincontrols/3.5.6.0/visuelemswincontrols.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/visuelemtexteditor/3.5.6.0/visuelemtexteditor.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/visuinputs/3.5.6.0/visuinputs.compiled-library
 create mode 100644 Library/2010/Vacuum/Vacuum/_Libraries/system/visunativecontrol/3.5.6.0/visunativecontrol.compiled-library
 create mode 100644 Library/Vacuum/Vacuum/Vacuum.xml

Administrator@h0vacmr MINGW32 ~/Desktop/lho-vacuum (main)

Workstations updated

Workstations updated and rebooted. This was an os-packages update.  Conda packages were not updated.

Restarted the daqd and nds processes on h1daqnds0

The h1daqnds0 system stopped accepting connections on its main nds1 port (8088).  We restarted the rts-nds and rts-daqd services around 2:59pm localtime.

There were no log messages or dmesg output.

Update on camera num-open-files issue following Pylon upgrade last Tuesday

FRS34130

Upgrading Pylon on h1digivideo[4,5,6] has fixed the problem whereby camera processes continued to open files until they eventually reached the OS num_files limit and the camera crashed (new files were opened each time connection to the camera was restored, old files were not cleaned up).

Since the upgrade Tuesday 24 June 2025 the number of files open per process has remained static. Details in FRS, this ticket has been closed.

HWS camera control code running, EPICS monitoring via MEDM

WP12637 Install HWS Camera Controls

TJ, Camilla, Dave:

I made a slight change to my original Dec 2023 hws_camera_control.py code to use the python epics module to do the cagets directly, and to also use this to add caputs which will try, in a non-blocking way, to send the camera's status to a central EPICS IOC.

The central IOC code is hws_camera_status_ioc.py which runs on cdsioc1 under puppet control.

The camera control code runs every minute in an infinite loop. Each loop it checks the status of H1 using Guardian ISC_LOCK (greater or equal to 600 denotes H1 LOCK). If H1 is locked and the camera is on, it turns the camera off. If H1 is not locked and the camera is off, it turns the camera on.

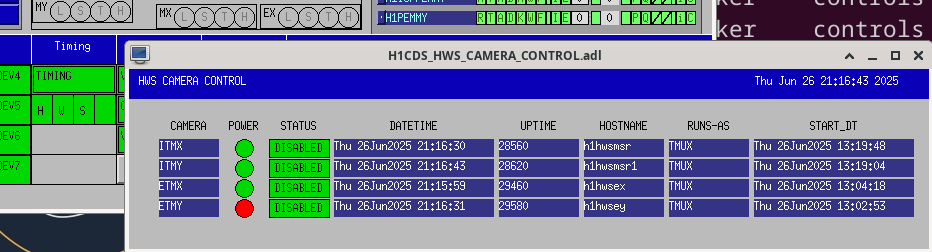

A mini-overview of the 4 HWS cameras (ITMX, ITMY, ETMX, ETMY) is available on the CDS Overview screen. The block is divided into 4 segments, each camera is shown either in SKYBLUE (camera is enabled, images are being taken) or GREEN (camera is disabled, no noise being created).

Note that the color scheme relates to what is nominal for OBSERVE. Green indicates the cameras have power, but their frame acquisition has been disabled.

Clicking on the HWS block on the CDS Overview opens a detailed screen (see attachment). For each camera this shows if the camera is powered (ETMY is the only one powered down) and if the camera is enabled. The control code also reports its current time, its uptime, its start time and details of where and how it is running.

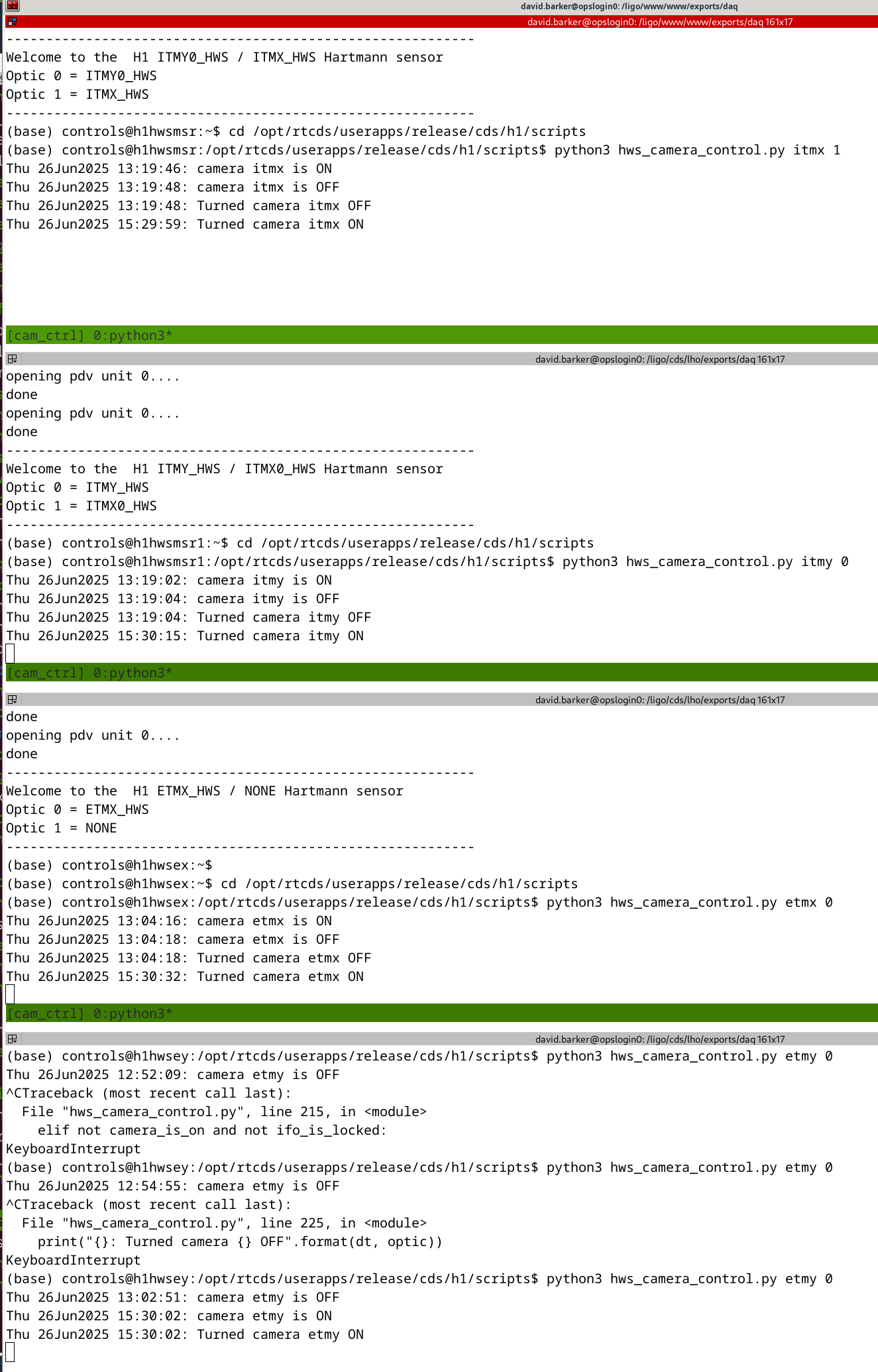

Second attachment shows the four tmux sessions running the control code, and the arguments used.

Update Vacuum MEDM and VACSTAT following yesterday's vacuum changes

MEDM

Confusingly we have been running with two separate copies of the vacuum overview MEDM.

CDS_OVERVIEW has been using /ligo/lho/h0/ve/medm/beckhoff/H0_VAC_SITE_OVERVIEW_CUSTOM.adl (not under any version control)

SITEMAP has been using /opt/rtcds/userapps/release/vacuum/h0/medm/Target/H0_VAC_SITE_OVERVIEW_CUSTOM.adl (under git version control)

It is the second one, which is git controlled, which should be used. I took the opportunity when fixing the MEDMs to remove use of the /ligo files and move CDS_OVERVIEW over to using the Target file.

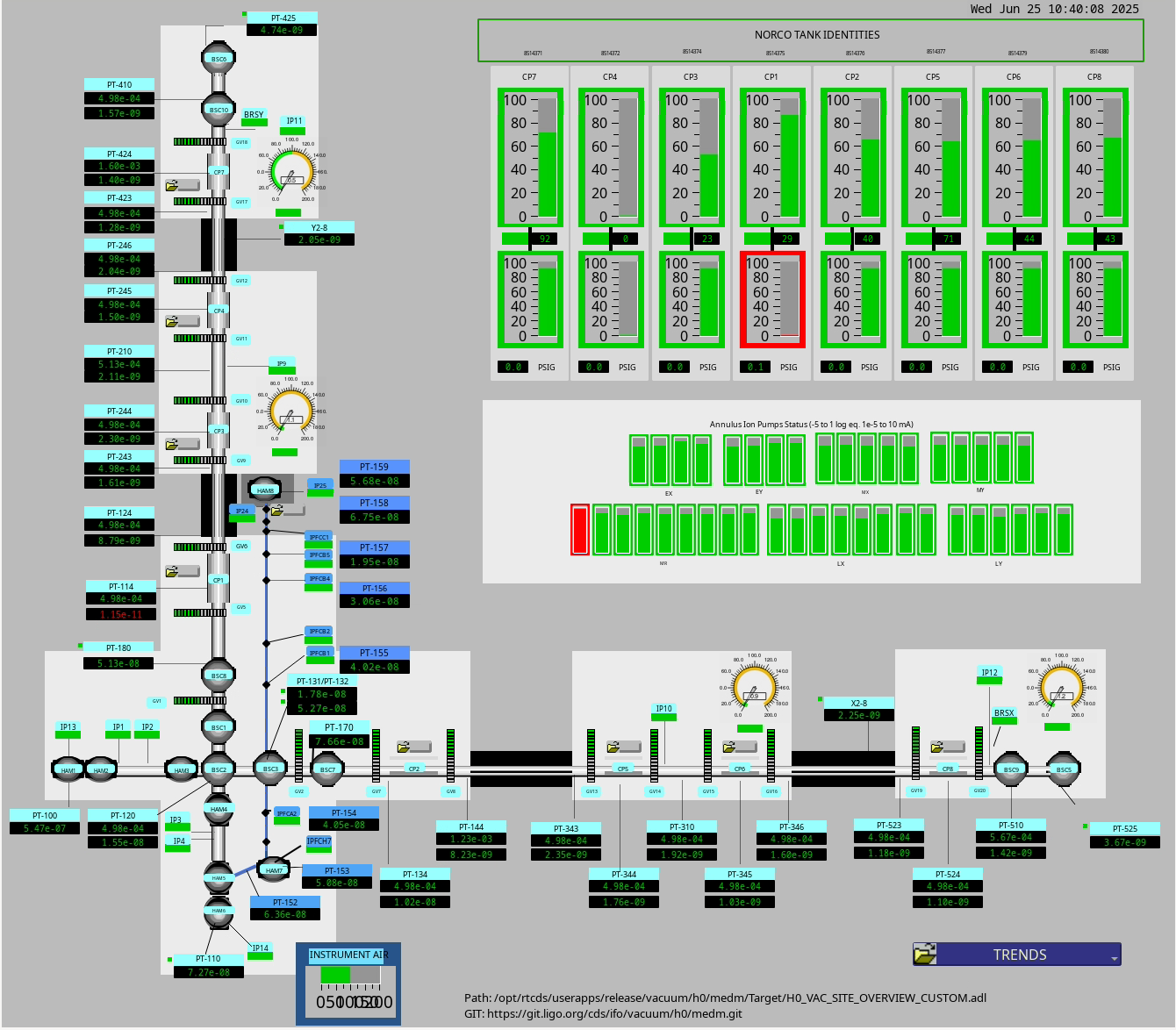

Changes made to the site overview and committed to git (see attachment) are:

RED - HAM1 now only shows the new PT100_MOD2 gauge

YELLOW - IP24,IP25 have new names

PURPLE - text to show the local git working directory and git repo information

VACSTAT

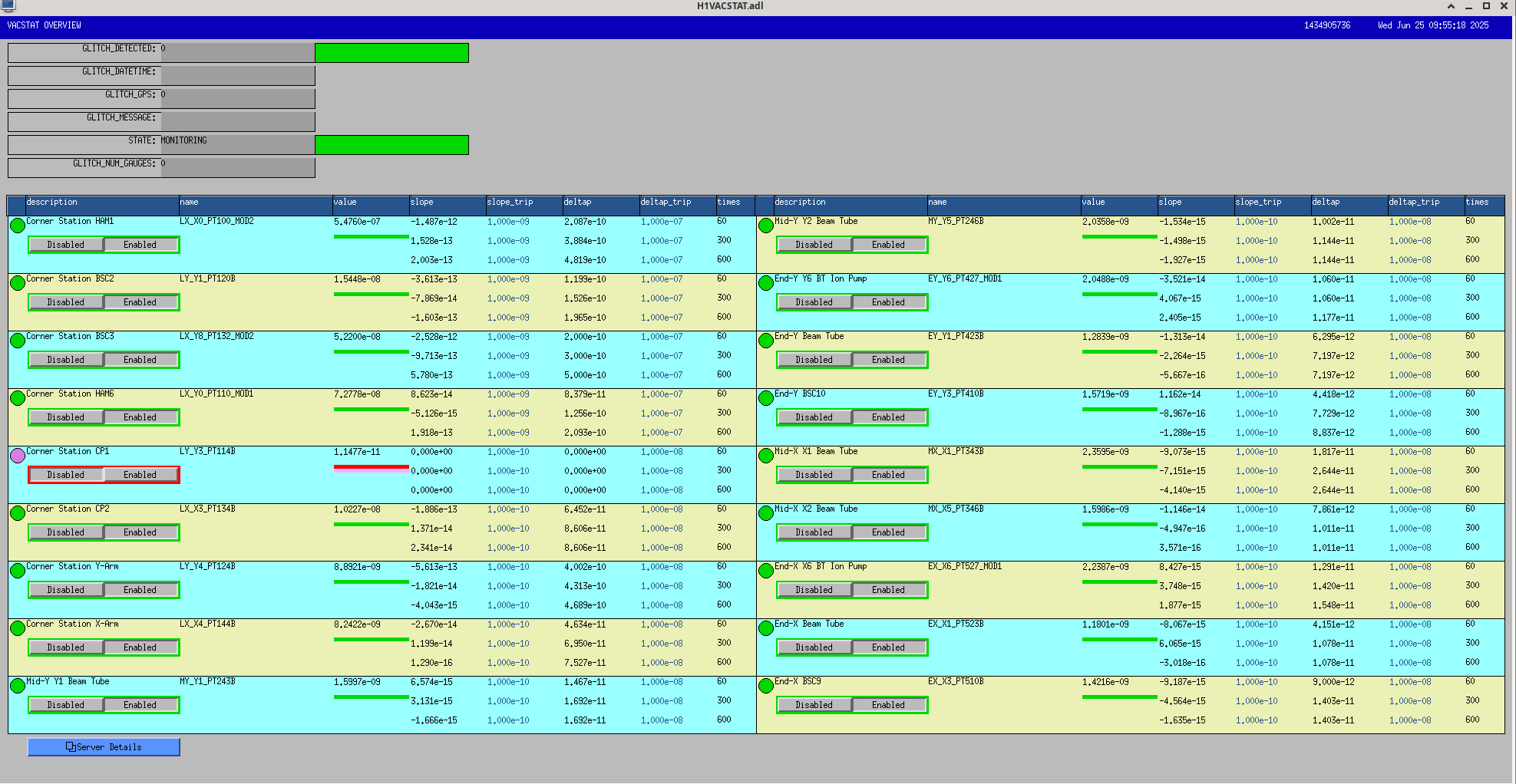

I added the new HAM1 PT100_MOD2 gauge to VACSTAT last night. Initially I also removed the temporary H1 PT100B gauge, but then remembered this has channels in H1EPICS_VACSTAT.ini which caused EDC disconnects.

So for now VACSTAT has the new H0 PT100_MOD2 (not in DAQ) and the old H1 PT100B (in DAQ, but needs to be removed)

Trip levels were returned to pre-vent values.



Vacuum burt-restore script

Following the restart of any vacuum Beckhoff controller it is necessary to burt-restore the settings back to what they were prior to the restart (e.g. CP PID settings). We are using the slow controls Vacuum SDF to display which settings need to be restored, but the SDF cannot do the revert itself since it runs on a non-authorized server (h1ecatmon0) which does not have write access to the vacuum system.

Previously I had written a script in user vacuum's home directory on zotvac0 to do this restore for h0vaclx, today I made the script generic, taking the system to be restored as an argument.

The restoration process following a restart of a vacuum system is now:

On any CDS workstation open the vacuum SDF window showing the differences list, we will use this to verifty the restore worked correctly

As user vacuum on zotvac0 (restricted access to vacuum team, CDS and OPS) run the ./burt_restore_vac.bsh script with no arguments to get the usage:

vacuum@zotvac0:~$ ./burt_restore_vac.bsh
Incorrect arguments given

Usage:
    burt_restore_vac.bsh SYS
    where SYS is one of:
    lx ly ex ey mx my mr

This morning I ran the script with argument = ly which correctly restored the h0vacly settings to those in h1vacuumsdf's safe.snap file***

CDS Maintenance Summary: Tuesday 24th June 2025

WP12623 h1asc add fast channels to DAQ

Elenna, Dave:

A new h1asc model was rev-locked and installed. Four new fast DQ channels were added to the DAQ (channel, rate):

> H1:ASC-DC6_P_IN1_DQ, 256
> H1:ASC-DC6_P_OUT_DQ, 512
> H1:ASC-DC6_Y_IN1_DQ, 256
> H1:ASC-DC6_Y_OUT_DQ, 512

DAQ restart needed.

WP12570 Restart Digivideo Cameras with latest pylon

Patrick, Jonathan, Dave:

Jonathan updated pylon on h1digivideo[4,5,6] and restarted all the camera servers on these machines. This should fix the bug of stuck open files accumulating when the camera connection is interrupted.

No DAQ restart needed.

Add PID SMOO channels to vacuum SDF

Dave:

Prior to today's h0vacly restart I added the missing CP PID-control SMOO channels to the vacuum SDF monitor.req and safe.snap files. SDF was restarted 08:29. No DAQ restart needed.

WP12577, 12608, 12615 Upgrade LY Vacuum Controls

Janos, Gerardo, Patrick, Jonathan, Erik, Dave:

Patrick installed a new h0vacly system this morning. Main items are:

• Renaming of FCES Ion pump channels
• Removal of old PT100 channels

Pleae see Patrick's alog for details.

A extended DAQ restart was required, renaming Ion Pump raw minute trend files for uninterrupted lookback and construcing new PT100 (HAM1) raw minute trends following the upgrade of h0vaclx last Tuesday (17th June 2025).

DAQ Restart

Jonathan, Erik, Patrick, Dave:

Immediately following the restart of h1asc at 11:52, the DAQ was restarted using the following procedure:

1. both trend writers were turned off, allowing raw minute trend file changes on a static system
2. ip_copy_scripts.bsh was ran on both TWs, for each Ion Pump channel which is being renamed, this copied the old file into the correct directory for the new file, preserving recent lookbacks.
3. Erik ran his script to merge the previous HAM1 PT100 data sets into the new channel name.
4. A new H0EPICS_VACLY.ini was generated
5. 0-leg was restarted, followed by a EDC restart on h1susauxb123
6. 1-leg was restarted, requiring a second restart of GDS1.

It was at this late point that I remembered that the temporary H1 version of PT100B is no longer needed, and indeed this channel has no data following the removal of the PT100B Volts channel from h0vacly. However since it is still in the EDC, we need to continue running the temporary IOC until the next DAQ restart. I've removed it from edcumaster.txt as a reminder.

GPS Leap Seconds Updates

Jonathan, Erik, Dave:

Erik's FAMIS task reminded us that the leapseonds files expiration date of 30 June 2025 is rapidly approaching. Although no leap seconds are to be applied, the files need to be updated to reset their expiration dates. Please see Erik and Jonathan's alog for more details.

DNS testing

Erik:

ns1 (backup DNS server) was used by Erik to see if we can reproduce the error whereby loss of connection to GC caused internal CDS name resolution issues. It did not.

odd cabling on h1brsey

I went down to end Y to retrieve the usb stick that I remotely copied the c:\slowcontrols directory on h1brsey to, and also to try to connect h1brsey to the kvm switch in the rack. I eventually realized that what I thought was a vga port on the back of h1brsey was probably not, and instead I found this odd seeming wiring connected from what I am guessing is a hdmi or dvi port on the back of h1brsey, to some kind of converter device, then to a usb port on a network switch. I'm not sure what this is about, so I am attaching pictures.

A work permit has been filed to remove this cabling and put h1brsey on the kvm switch in the rack.

This has been completed.
