H1 SEI
arnaud.pele@LIGO.ORG - posted 18:51, Tuesday 16 June 2015 - last comment - 15:14, Wednesday 17 June 2015(19187)
BSC-ISI models modified and restarted

I modified and restarted the BSC-ISI models to close ECR E1500245, E1500253 and E1500270. The changes are listed below, and described in details in the attached pdf.

* removed sts blrms calculation from the sensor correction of stage 1. The calculation is now done at the top level. A list of the new channel names is provided in the attached text files

* Added a pick off of stage 1 CPS X and Y signals to feed the LSC model through PCIE senders on BS ITMX and ITMY

* Added a path from sus to the error point of the stage 1 controls to use for tidal feedback (mainly for LLO).

Non-image files attached to this report
gnd_blrms_chan_names.txt
summary_model_changes.pdf
Comments related to this report
arnaud.pele@LIGO.ORG - 15:14, Wednesday 17 June 2015 (19199)
Link

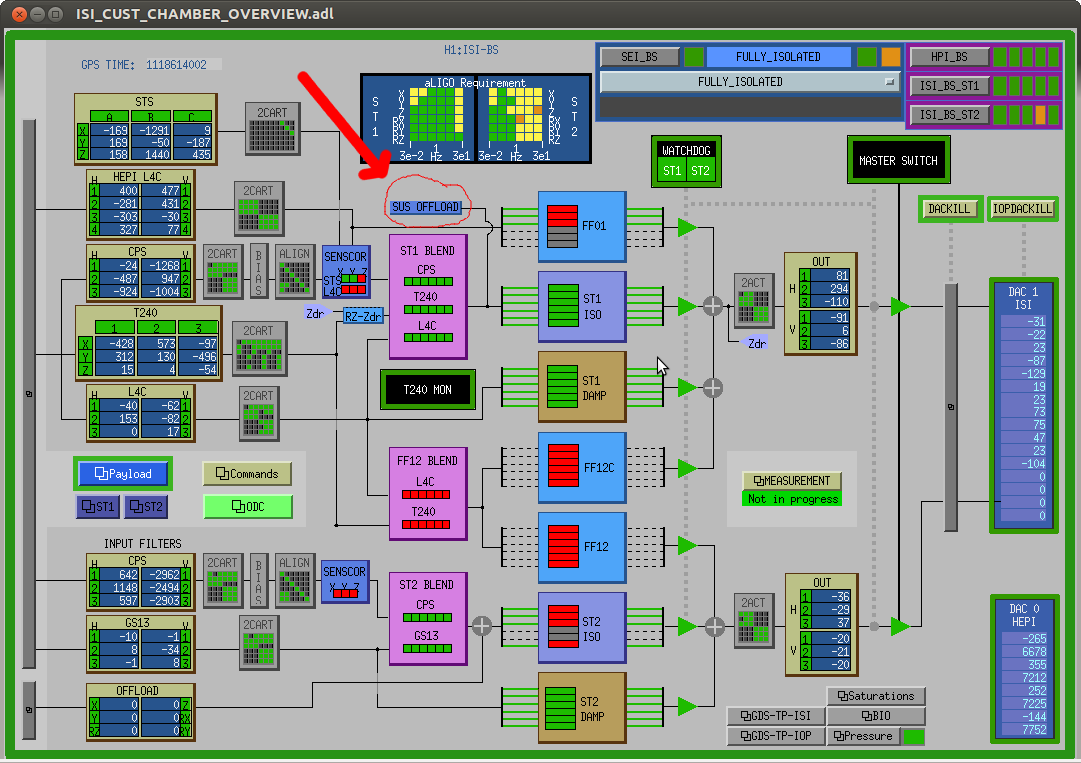

I added a SUS OFFLOAD link to the BSC overview screen, which pops up the filtering window.

The modified medm and model files listed below have been commited to the svn.

arnaud.pele@opsws7:/opt/rtcds/userapps/release/isi/h1/models$ svn st

M       h1isietmx.mdl
M       h1isietmy.mdl
M       h1isiitmx.mdl
M       h1isiitmy.mdl
M       h1isibs.mdl

arnaud.pele@opsws7:/opt/rtcds/userapps/release/isi/common/models$ svn st
M       gnd_sts_library_EX.mdl
M       gnd_sts_library_EY.mdl
M       isi2stagemaster.mdl
M       gnd_sts_library_IY.mdl


arnaud.pele@opsws7:/opt/rtcds/userapps/release/isi/common/medm/bscisi$ svn st

?       ISI_CUST_CHAMBER_ST1_SUSINF_ALL.adl
M       ISI_CUST_CHAMBER_ST2_SUSINF_ALL.adl
M       ISI_CUST_CHAMBER_OVERVIEW.adl
Images attached to this comment
