H1 General (CDS, SUS)
stuart.aston@LIGO.ORG - posted 15:54, Tuesday 25 October 2016 - last comment - 16:03, Tuesday 25 October 2016(30861)
h1susauxb123 LV ESD Monitoring ADC Channel Discrepancy
[Stuart A, Jeff K]

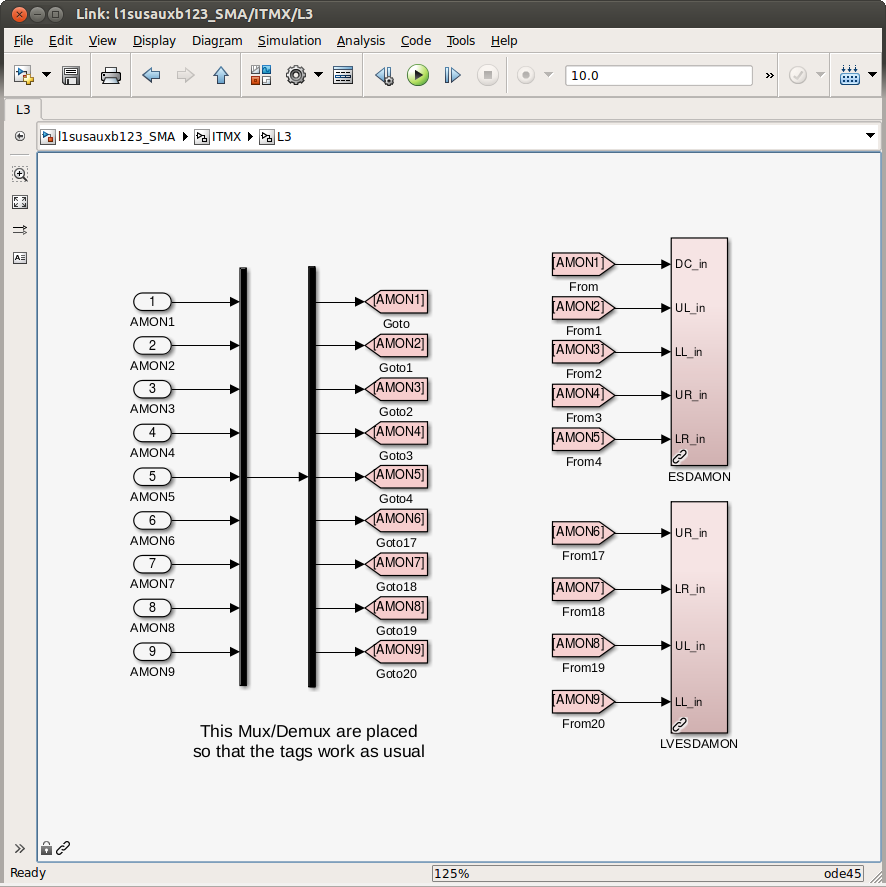

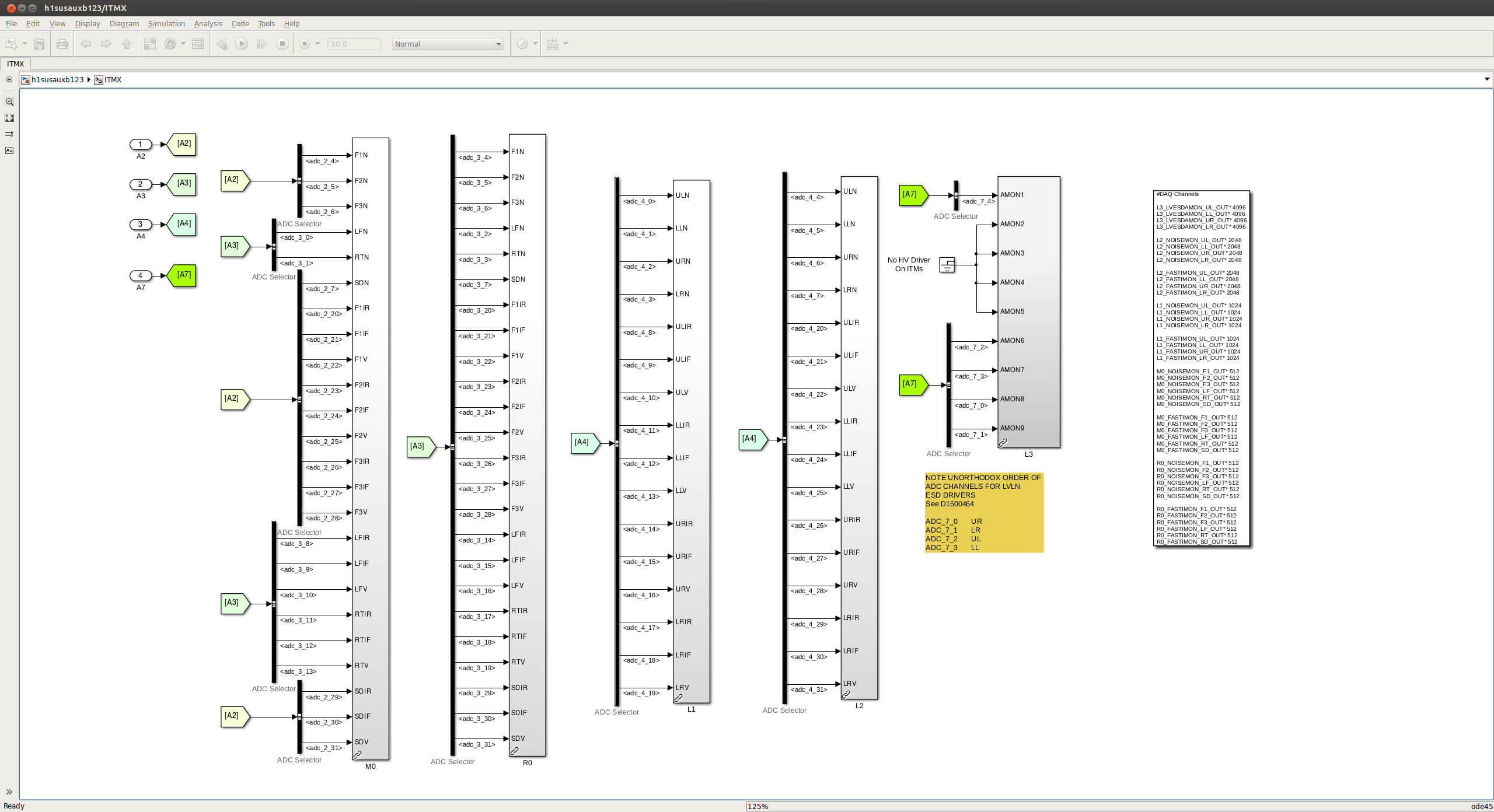

While debugging and commissioning the LLO ITM LV ESD monitoring I noticed that there is an ADC channel discrepancy in the h1susauxb123 model (see below, just ITMX shown). It is noted that there is an unorthodox convention for the order of the LV ESD monitor channels (as given in D1500464), which is already taken account of in the library LVESD_STAGE_MONITOR_MASTER part (see below).

However, in h1susauxb123, the ordering for the ESD quadrants assigned to ADC_7 mistakenly switch the order n.b. this occurs for both ITMX and ITMY LV ESD monitoring.

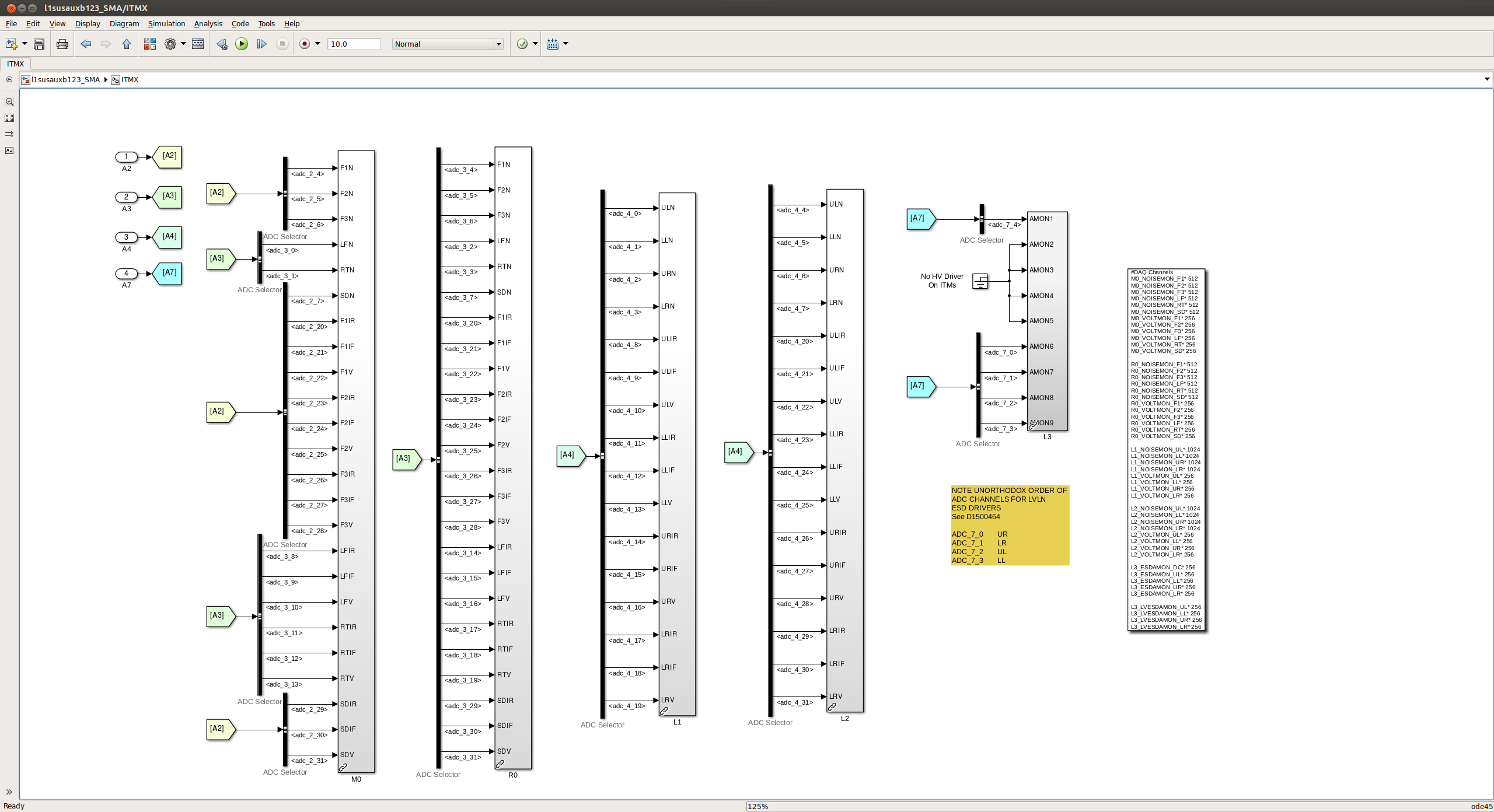

Therefore, I've made the correction to the l1susauxb123 model (see below, just ITMX shown), and LLO shall rebuild, reinstall and restart the model at the next opportunity.
Images attached to this report
Comments related to this report
stuart.aston@LIGO.ORG - 16:03, Tuesday 25 October 2016 (30866)
Ticket open in FRS: #6511.
