edmond.merilh@LIGO.ORG - posted 14:10, Thursday 01 December 2016 (32071)
H1 ISI CPS Sensor Noise Spectra Check - Weekly FAMIS#6874

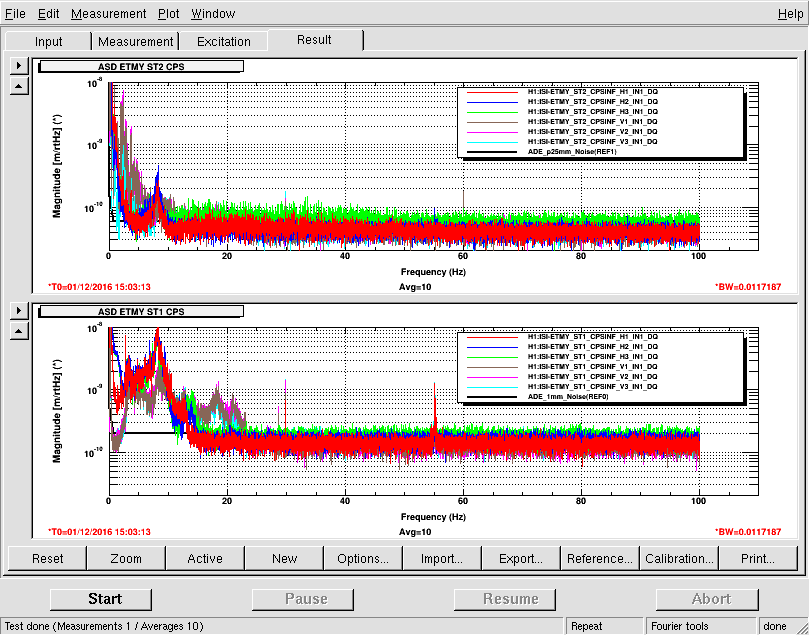

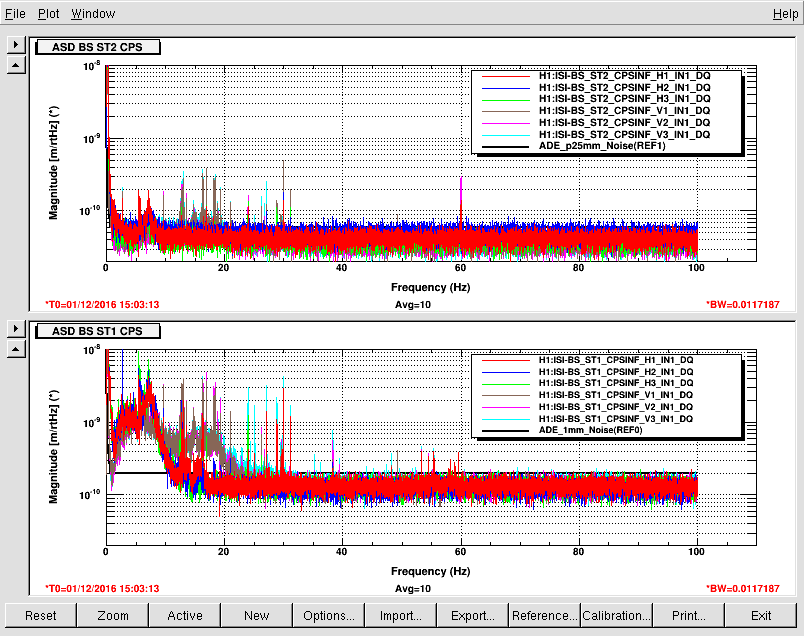

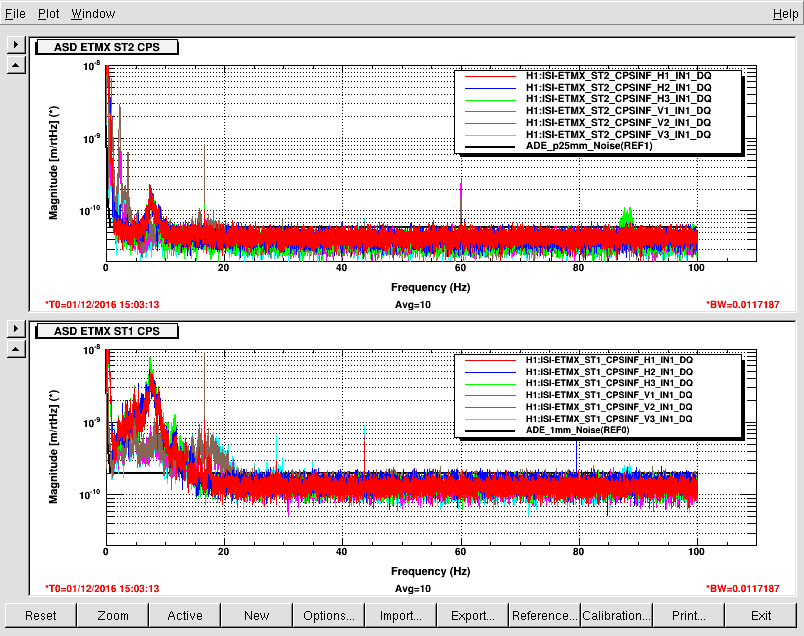

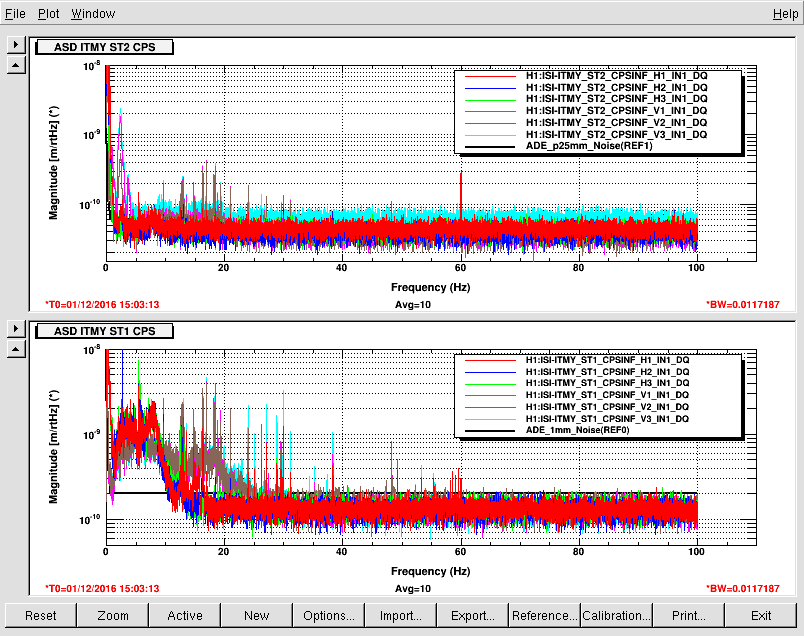

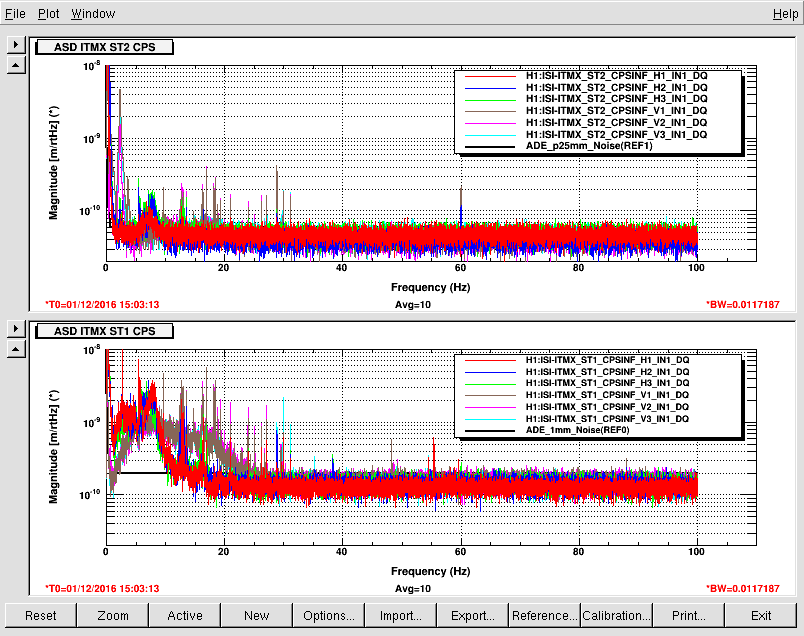

All BSC spectra looks pretty normal. Noise below 20 Hz is due to different platforms behaving differently.

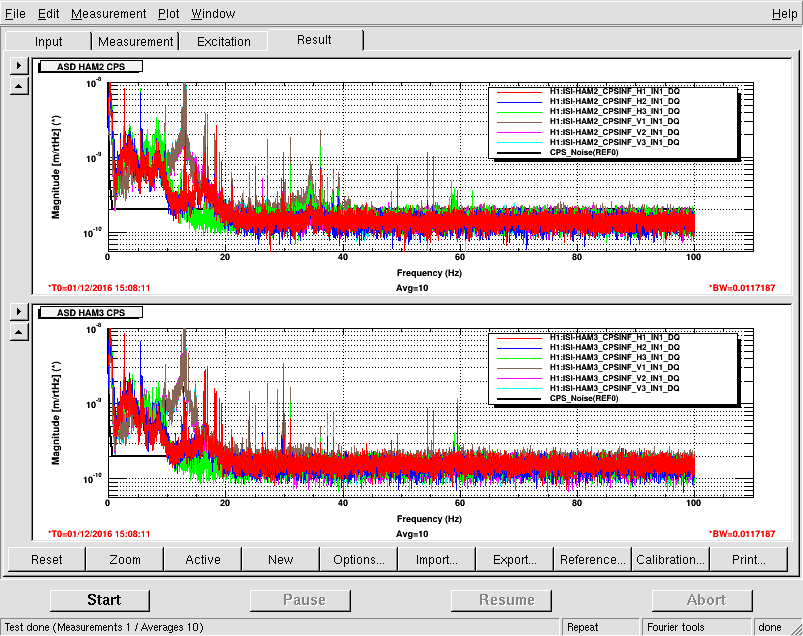

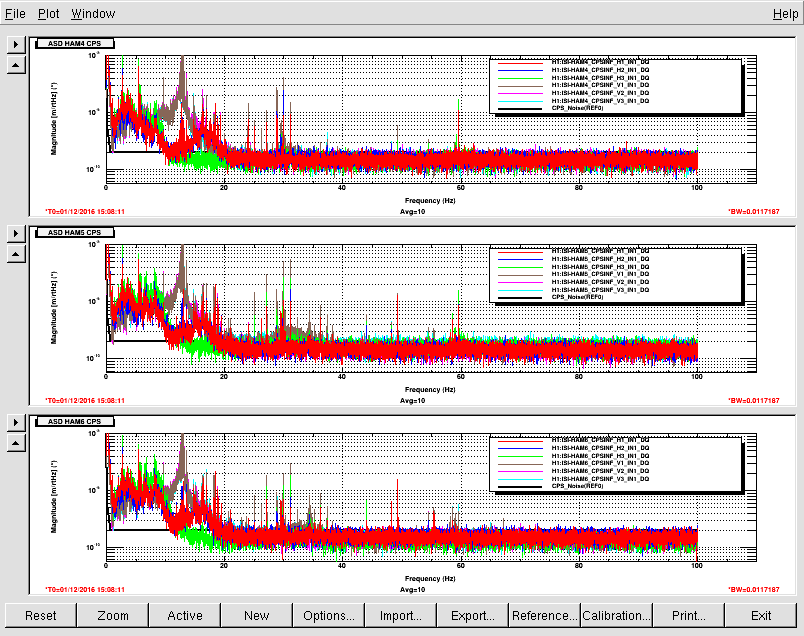

HAM spectra looks fine above 20Hz except for some non-consequential bumps between 20 and 40Hz in HAMs 2&5.
Images attached to this report
