H1 ISC
gabriele.vajente@LIGO.ORG - posted 16:18, Sunday 14 October 2018 (44542)
A2L tuning

I used the new script described in 44532 and notches at 30 Hz in the HARD loops as described in 44538 to measure and tune the angle to length decoupling.

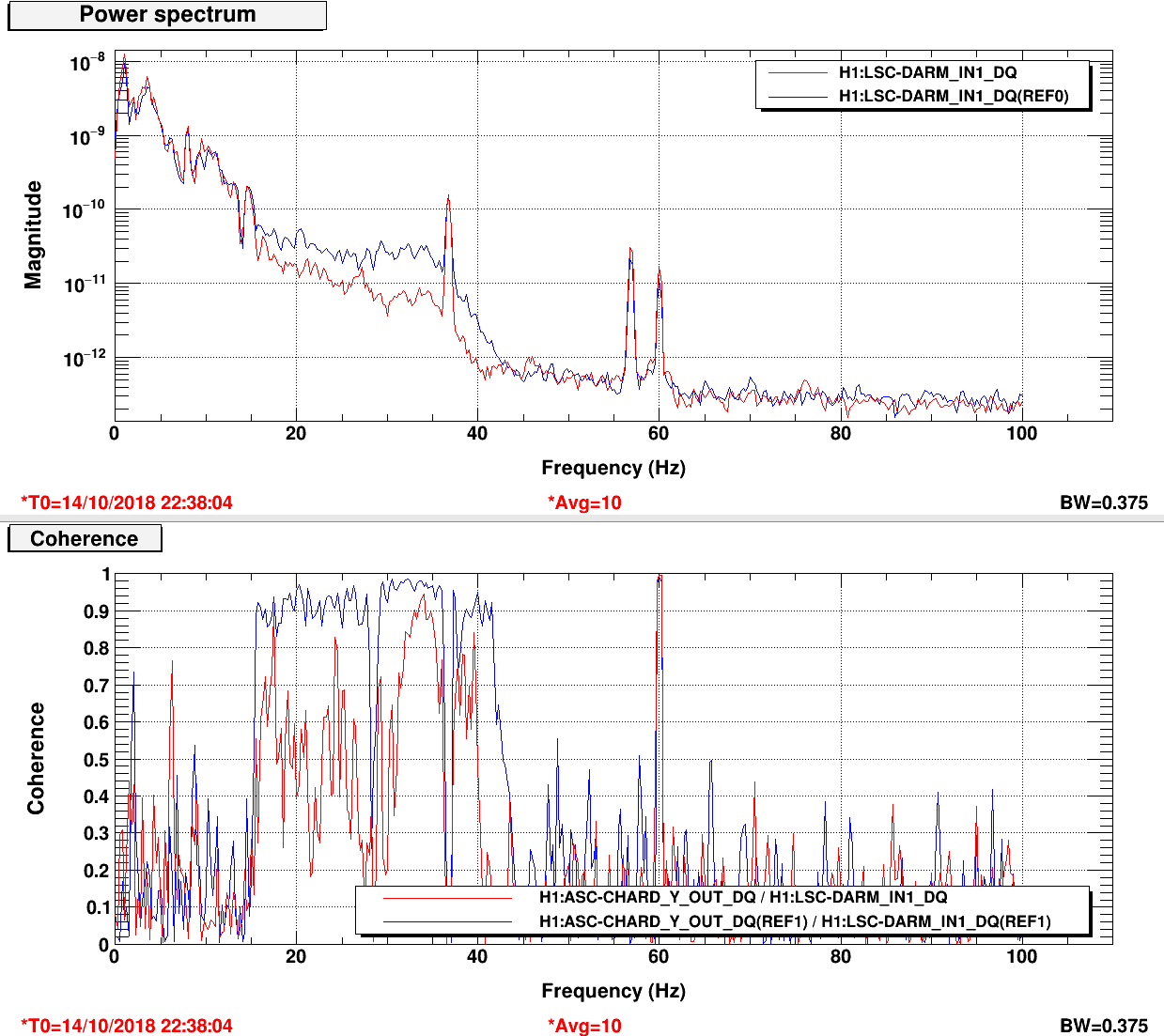

A first set of yaw to length decoupling further improved the low frequency sensitivity and reduced the coherence of CHARD_Y with DARM.

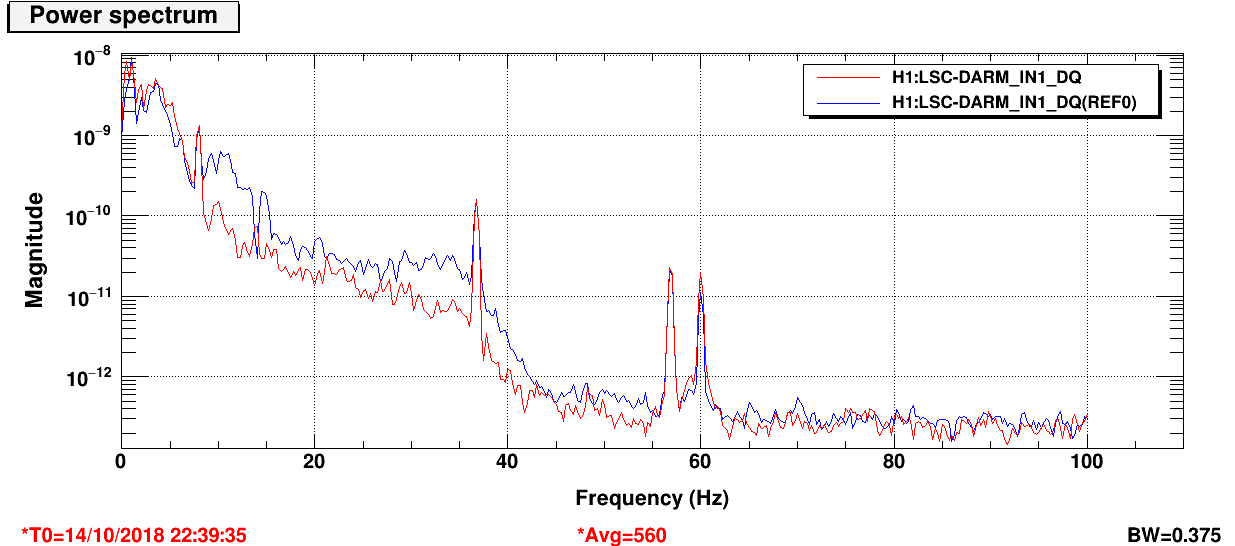

Running the pitch to length decoupling improved the sensitivity below 15 Hz:

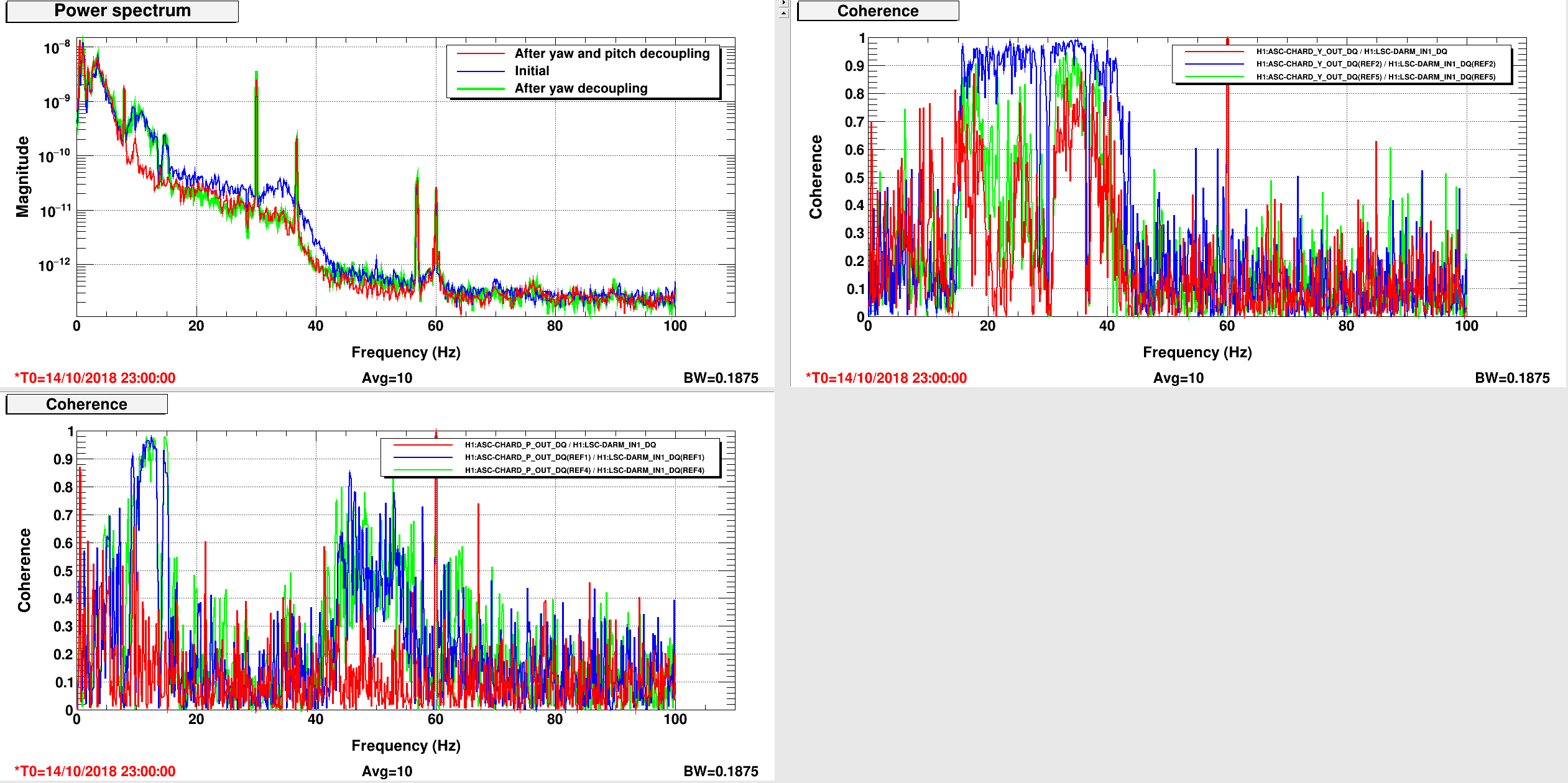

The plot below summarizes the improvements in the two steps of decoupling:



Attached a log of the script output.

Images attached to this report
Non-image files attached to this report
