As outlined in LHO alog 44418,  front end CAL model changes included change in Pcal model to include the in vacuum optical loss  measurements carried out during the vent (LHO alog 40894).

New Simulink model and MEDM screens were generated  (shown in LHO alog 45559) based on the equations outlined in document T1800046.

Upon review, we found some mistakes in the new changes. The attached screenshots show the correction needed to reflect the scheme described in T1800046.

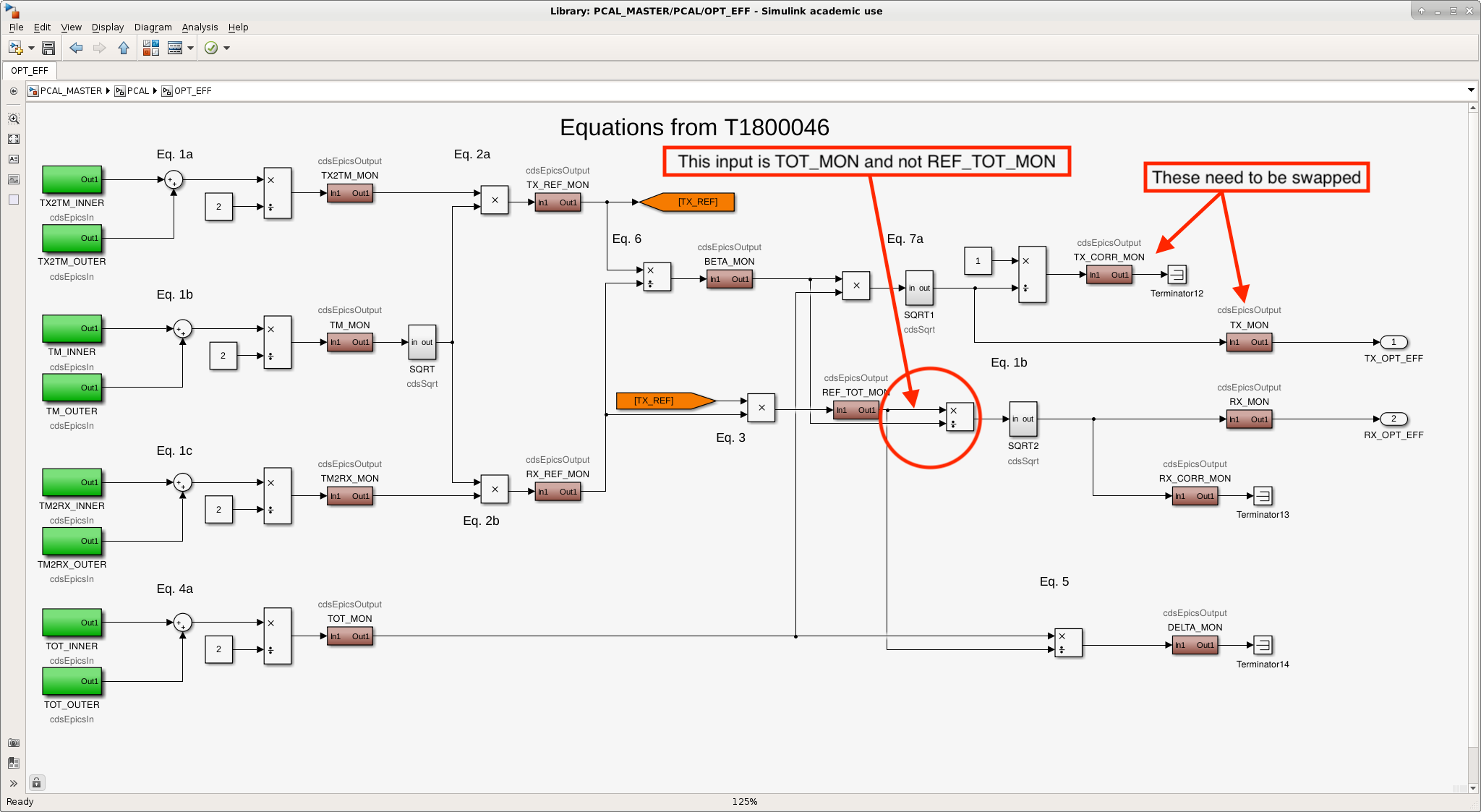

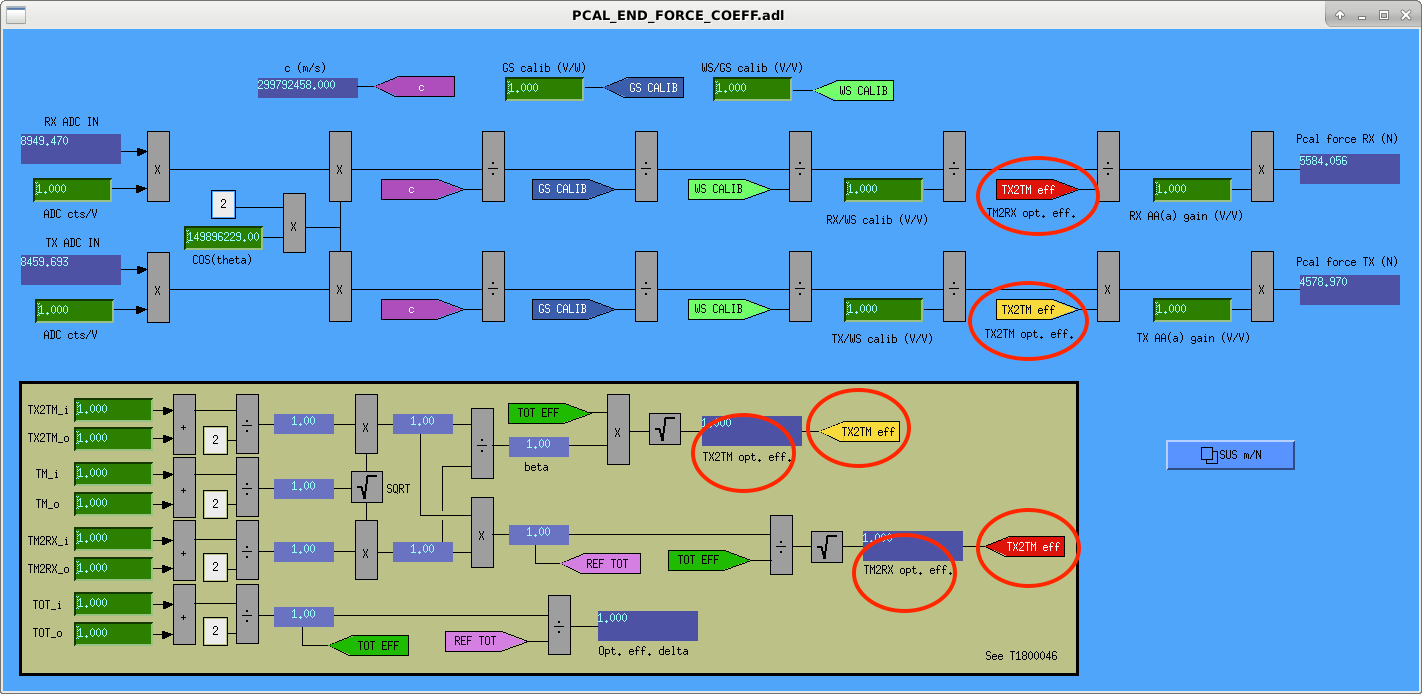

The first attachment is the corrections required in Simulink model and those corrections need to be propagated to the MEDM screen as well. The second attachment highlights the naming inconsistencies in the MEDM screen.
