LHO VE (VE)
gerardo.moreno@LIGO.ORG - posted 17:44, Wednesday 15 January 2020 (54535)
Y-Mid Pressure Fluctuations Due to VEA Temperature

Kyle noted some minor changes on the beam tube pressure at Y-Mid, upon closer inspection it was determined that today's VEA temperature increase caused the discrepancy.

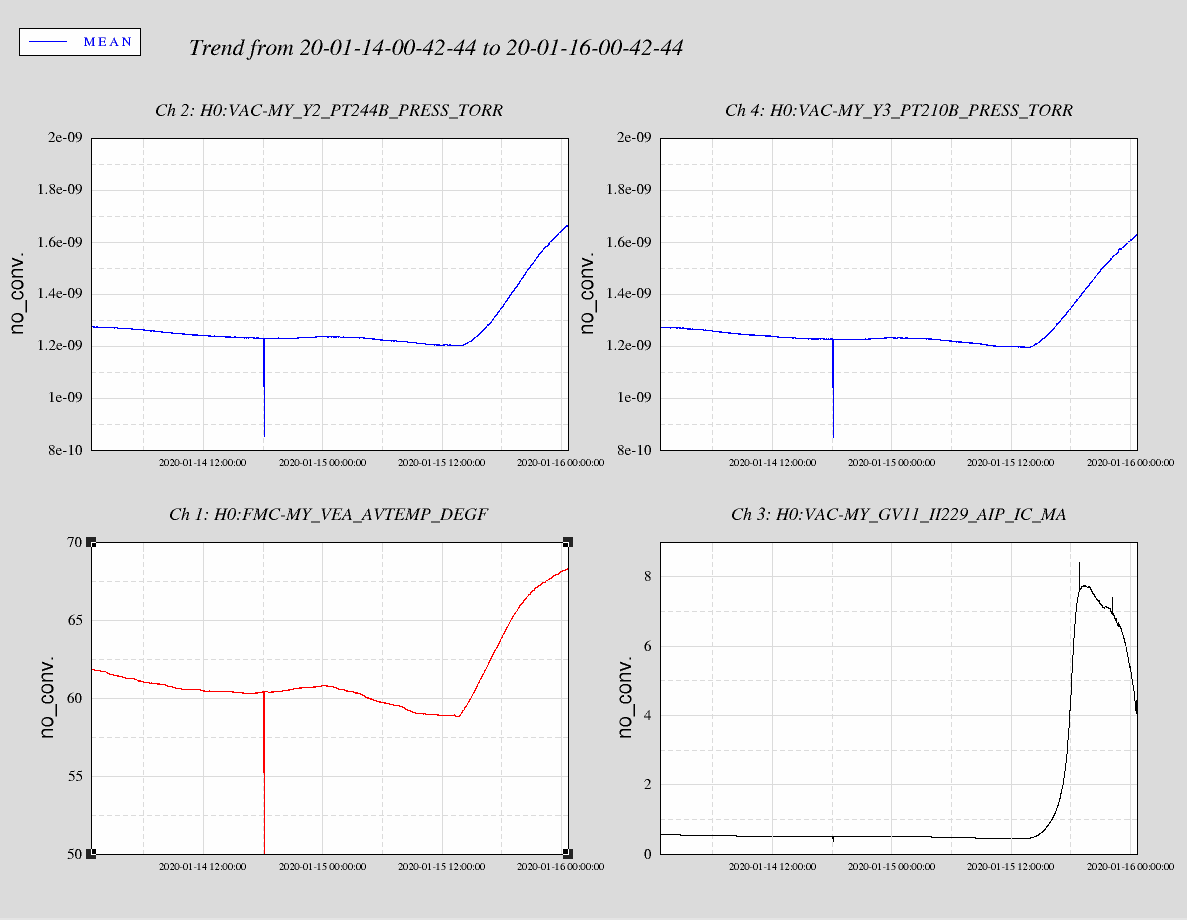

Something to note, gate valve annulus ion pump controllers will rail and cause alarms at 10 mA, plot shows GV11 AIP system going up to 7.7 mA from 0.43 mA, with a glitch up to 8.40 mA.

Images attached to this report
