HAM7 photos

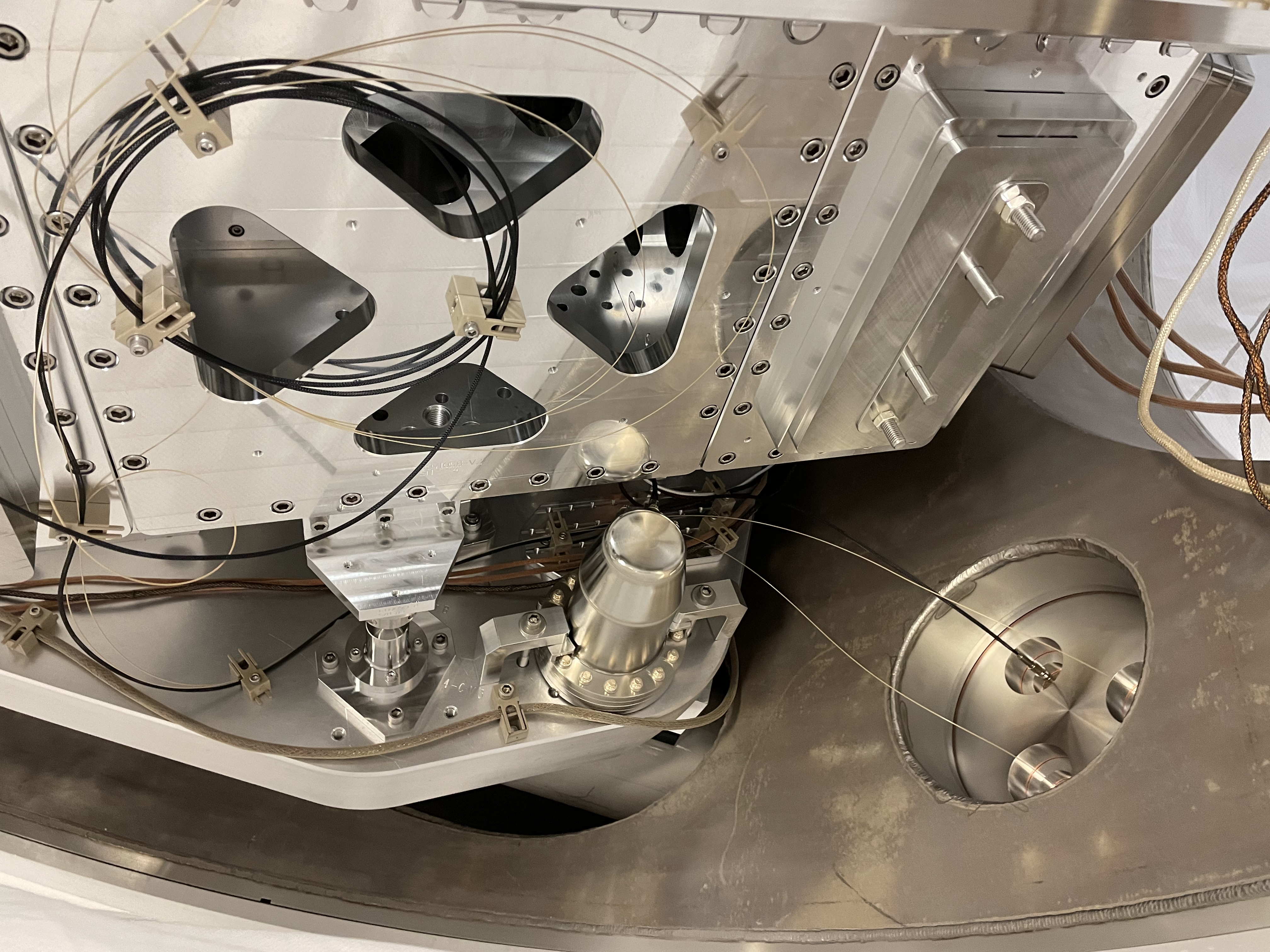

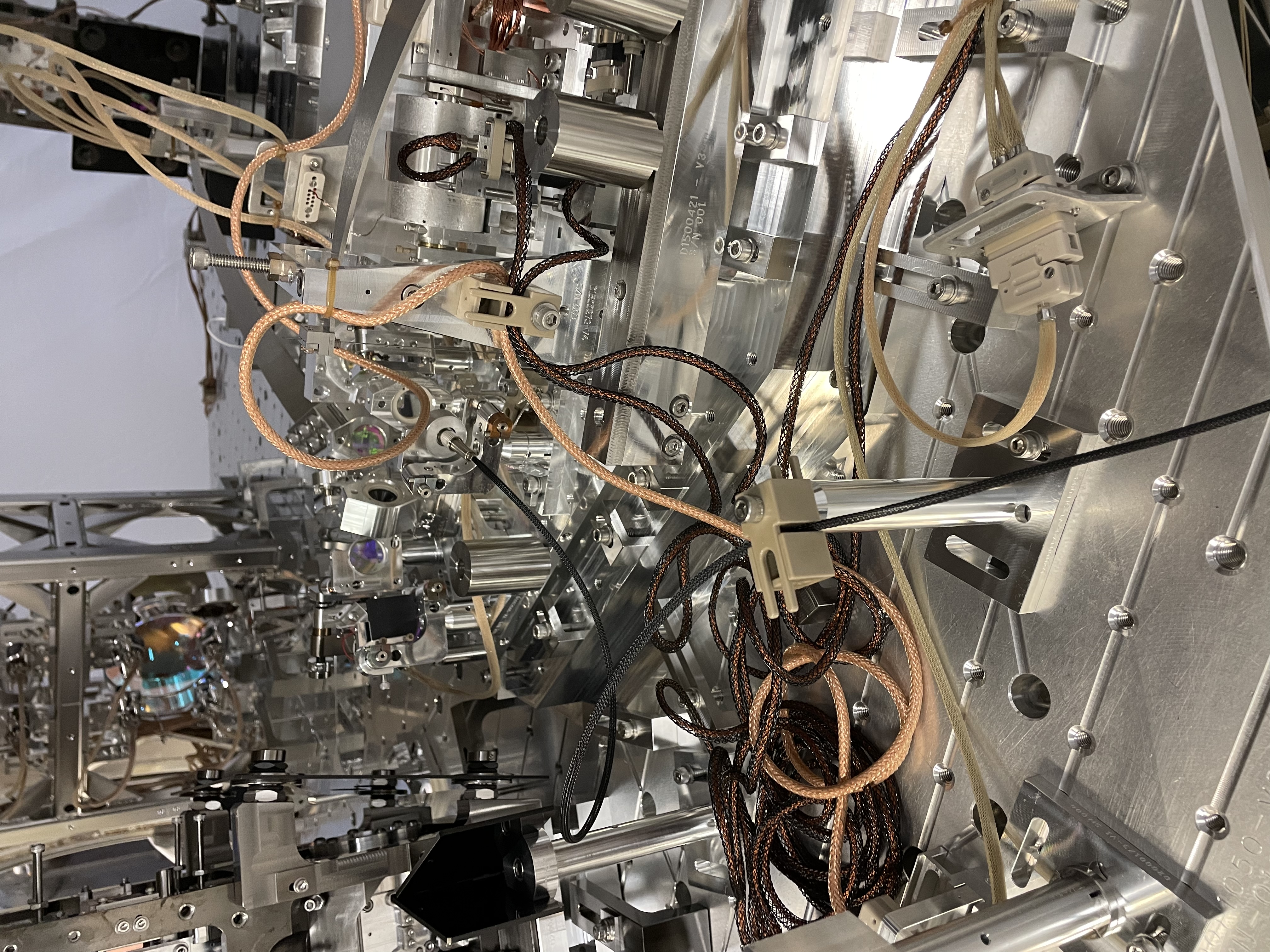

These are some photos of how fibers are routed in HAM7.  I will continue with other photos of the chamber as it is now in comments.

Images attached to this report
Comments related to this report
sheila.dwyer@LIGO.ORG - 12:13, Monday 07 February 2022 (61635)
Link

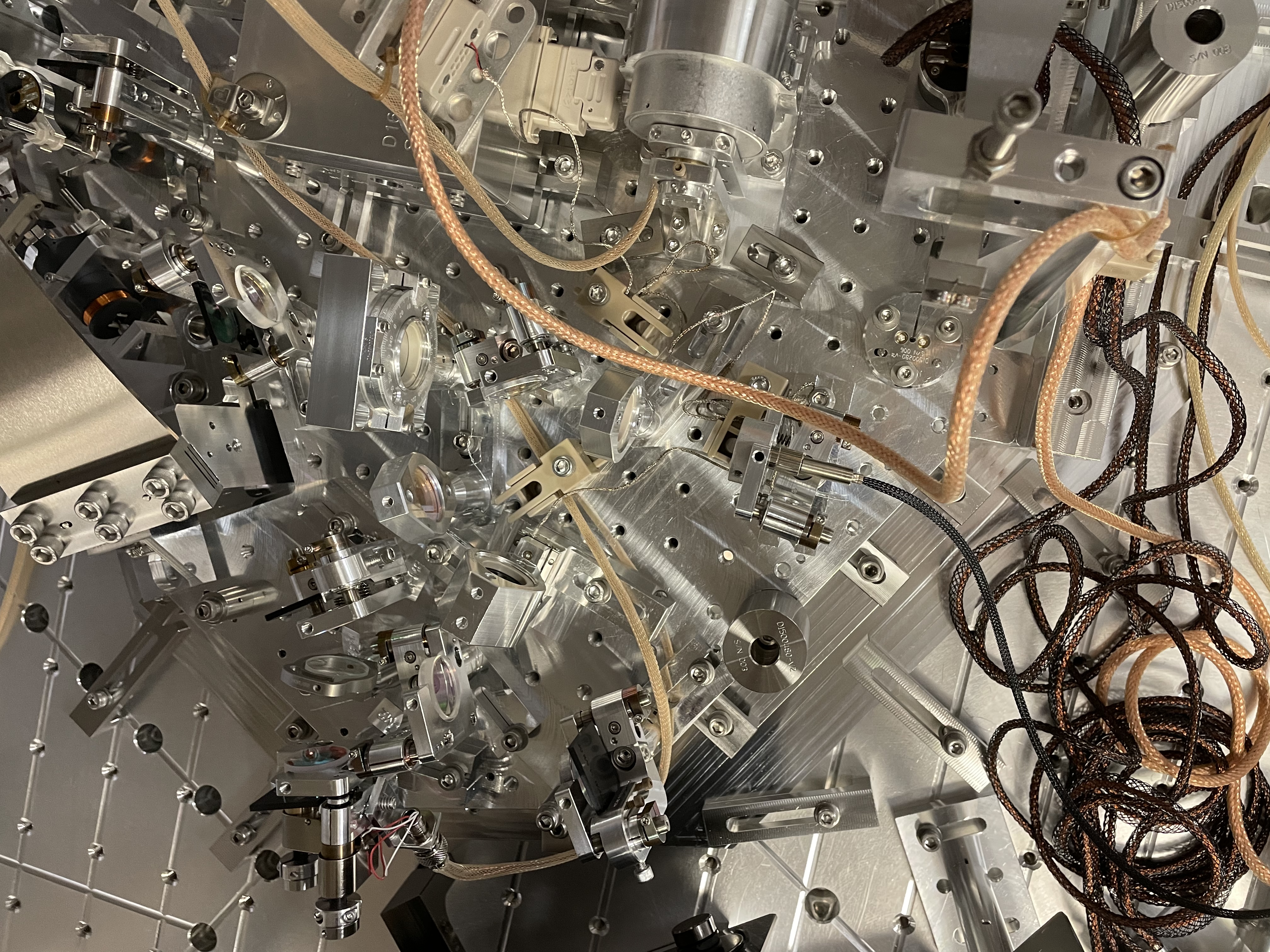

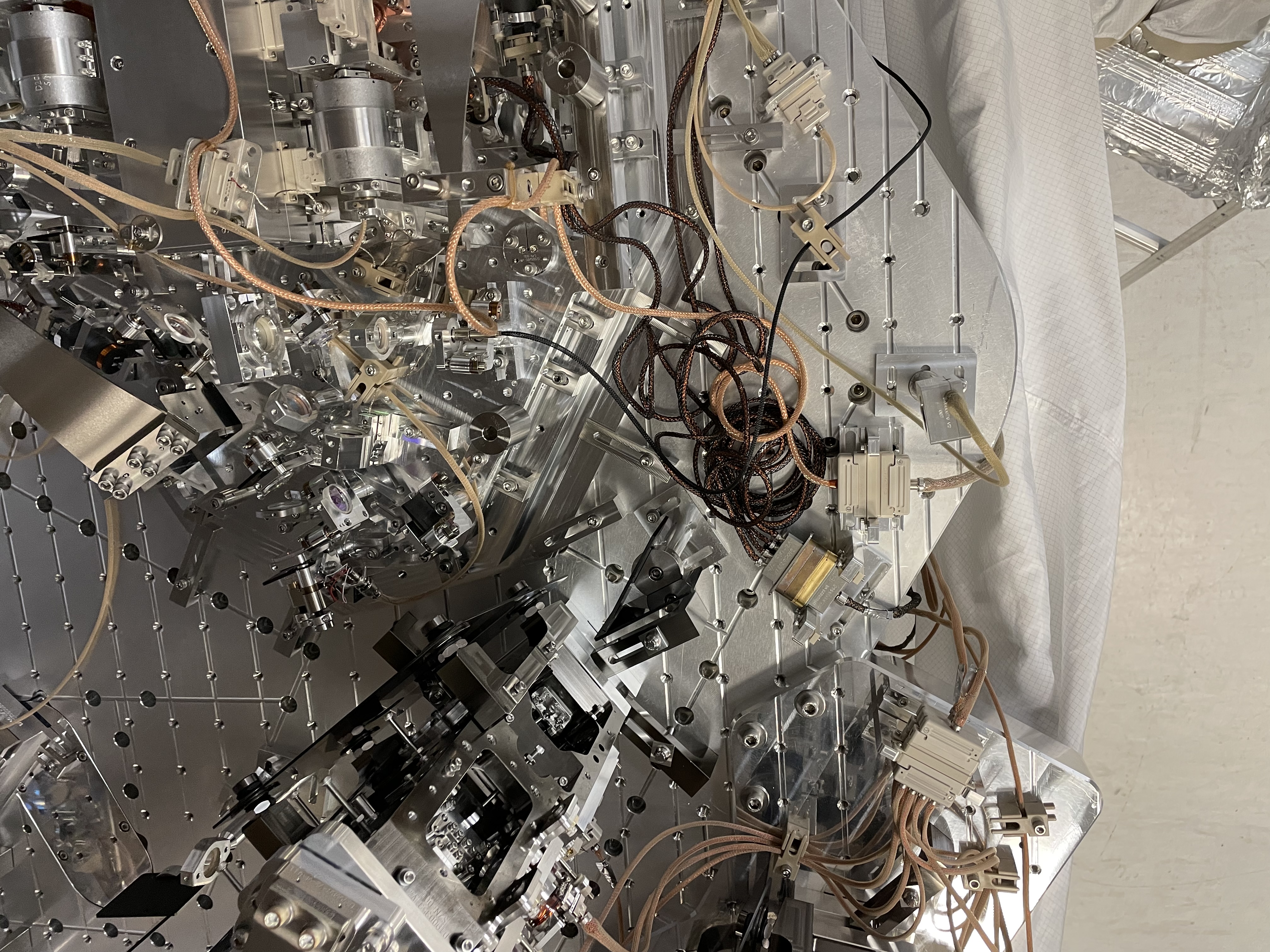

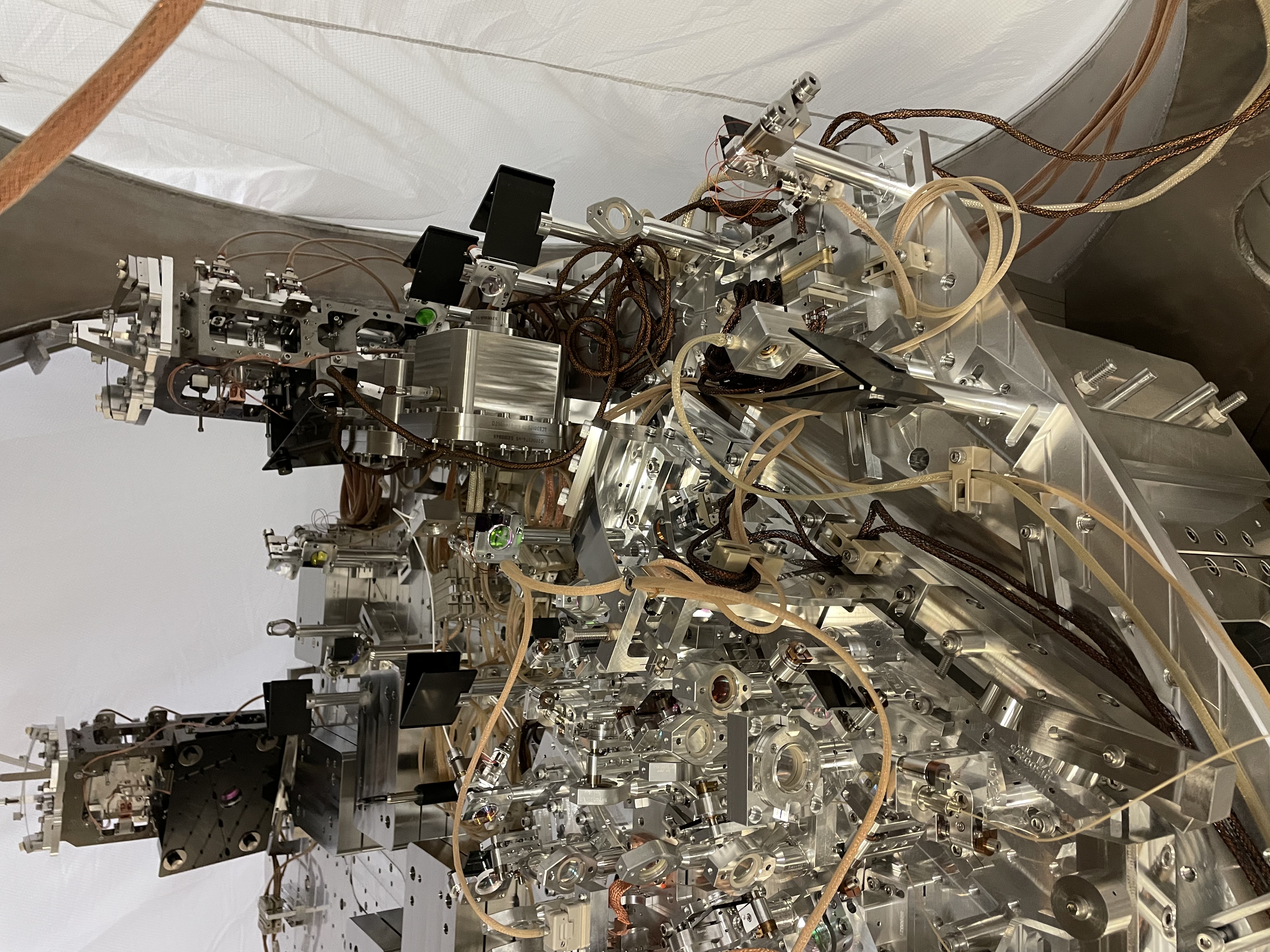

Overhead shots of VIP

Images attached to this comment
sheila.dwyer@LIGO.ORG - 12:58, Monday 07 February 2022 (61636)
Link

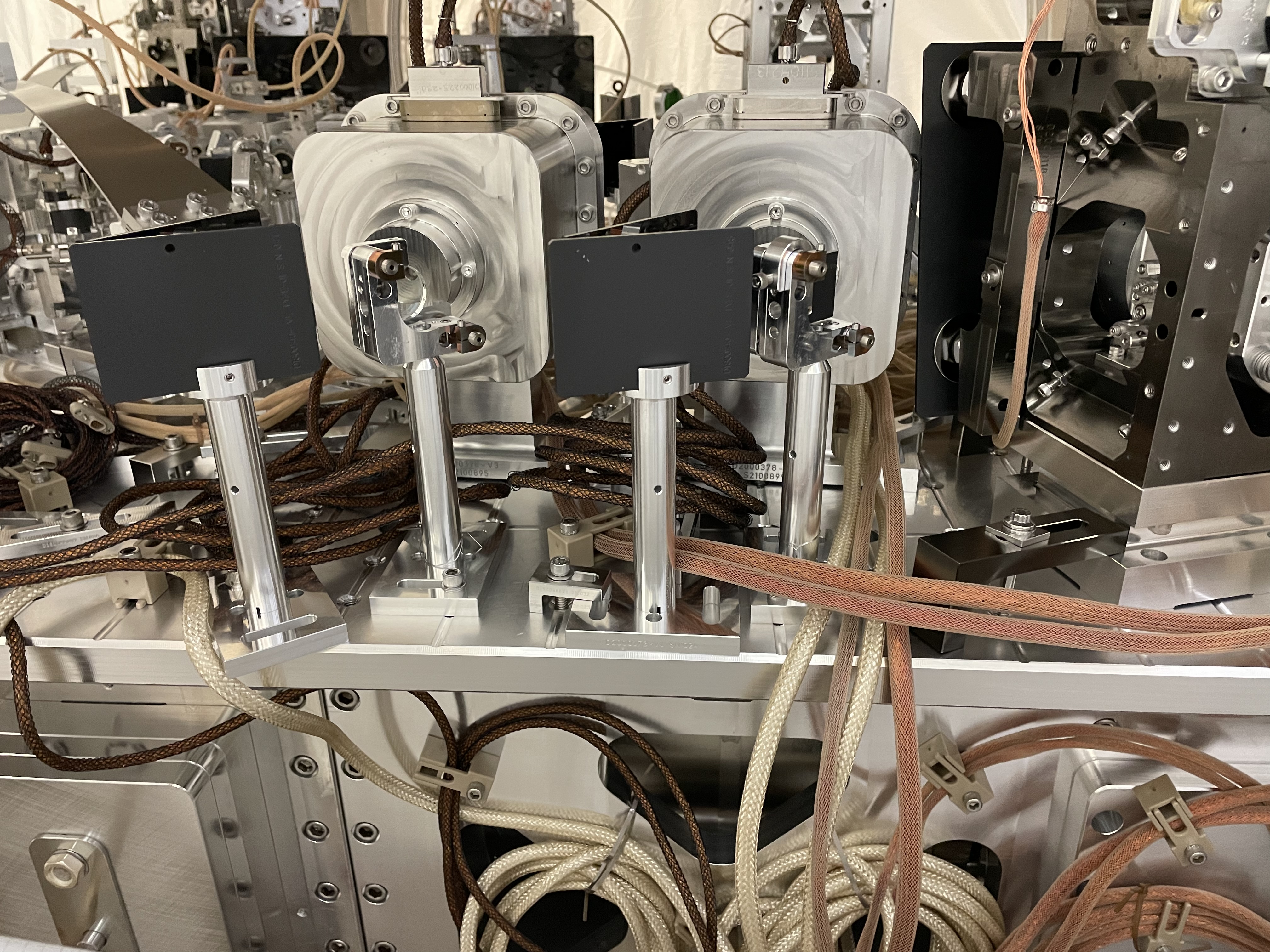

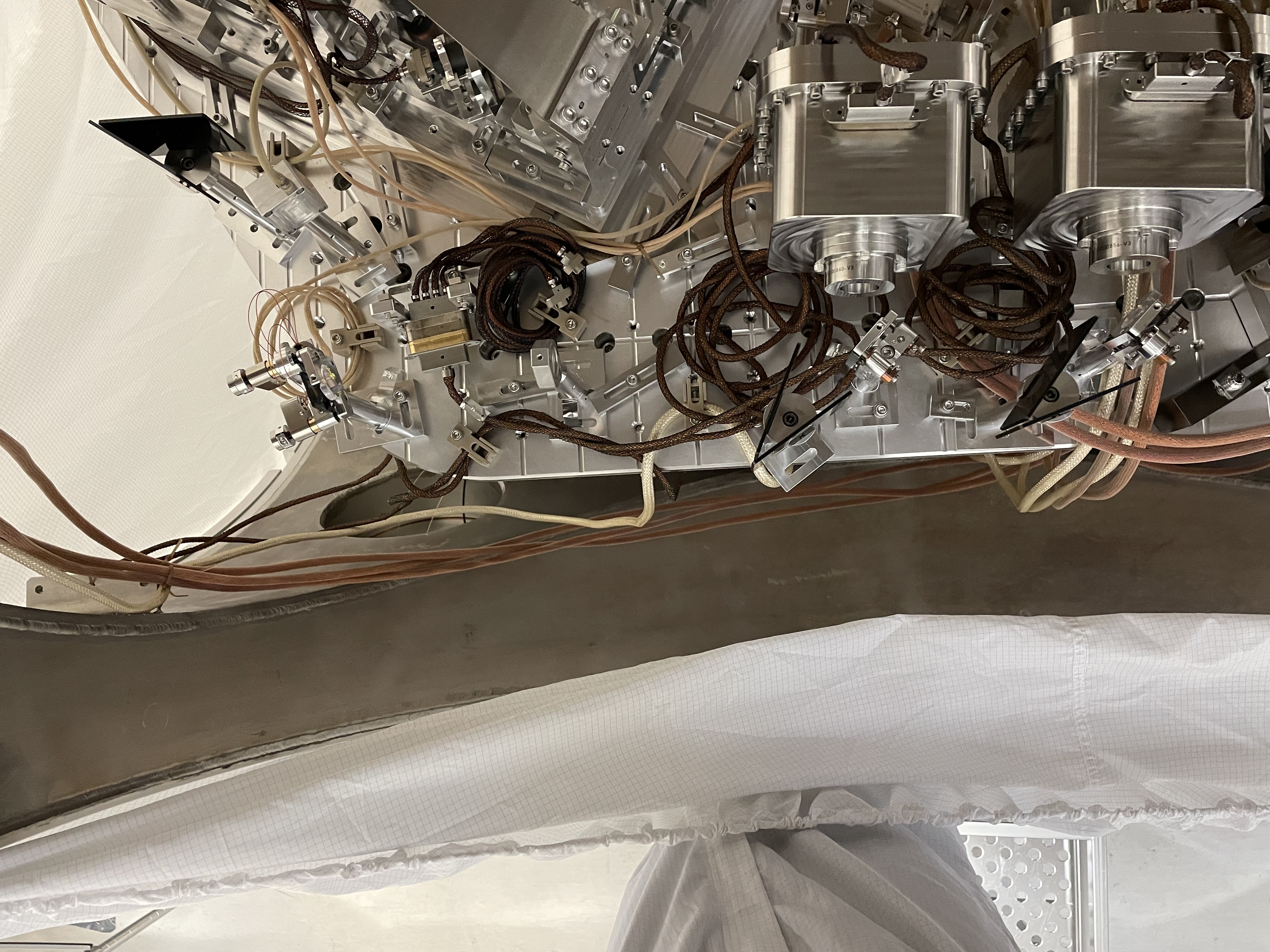

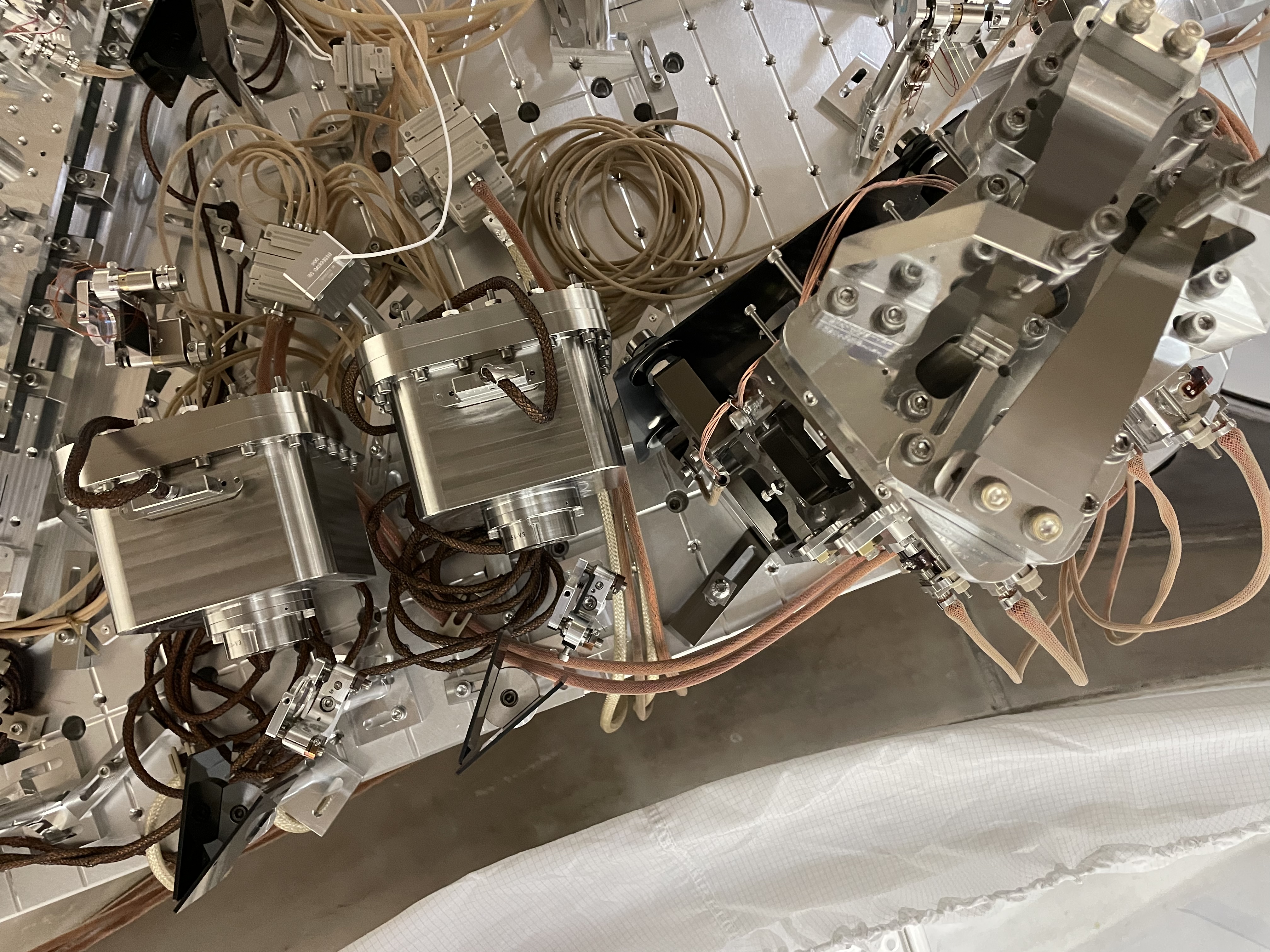

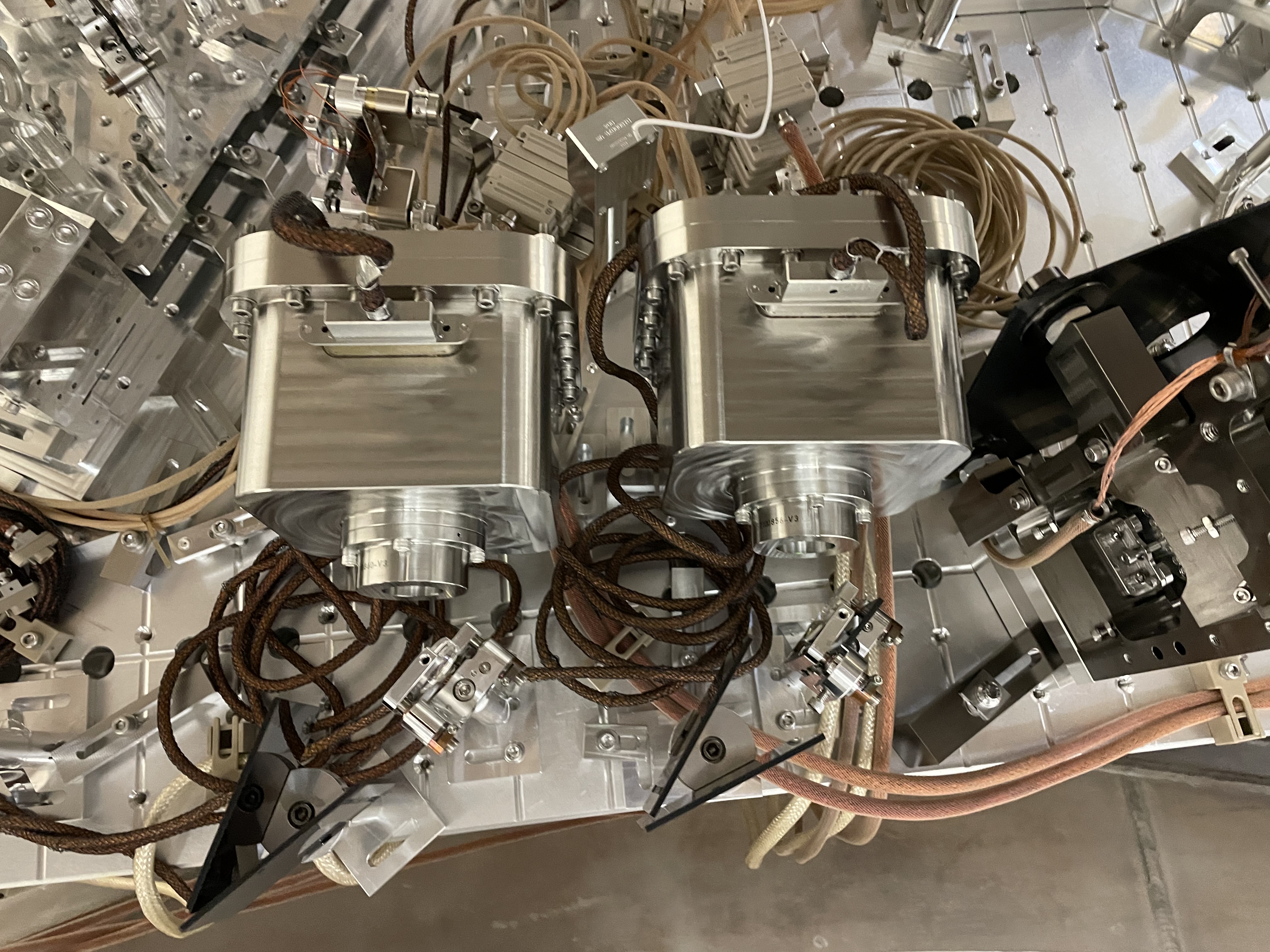

DCPDs and their beam dumps, missing an image of H:PD1

Images attached to this comment
sheila.dwyer@LIGO.ORG - 12:23, Monday 07 February 2022 (61637)
Link

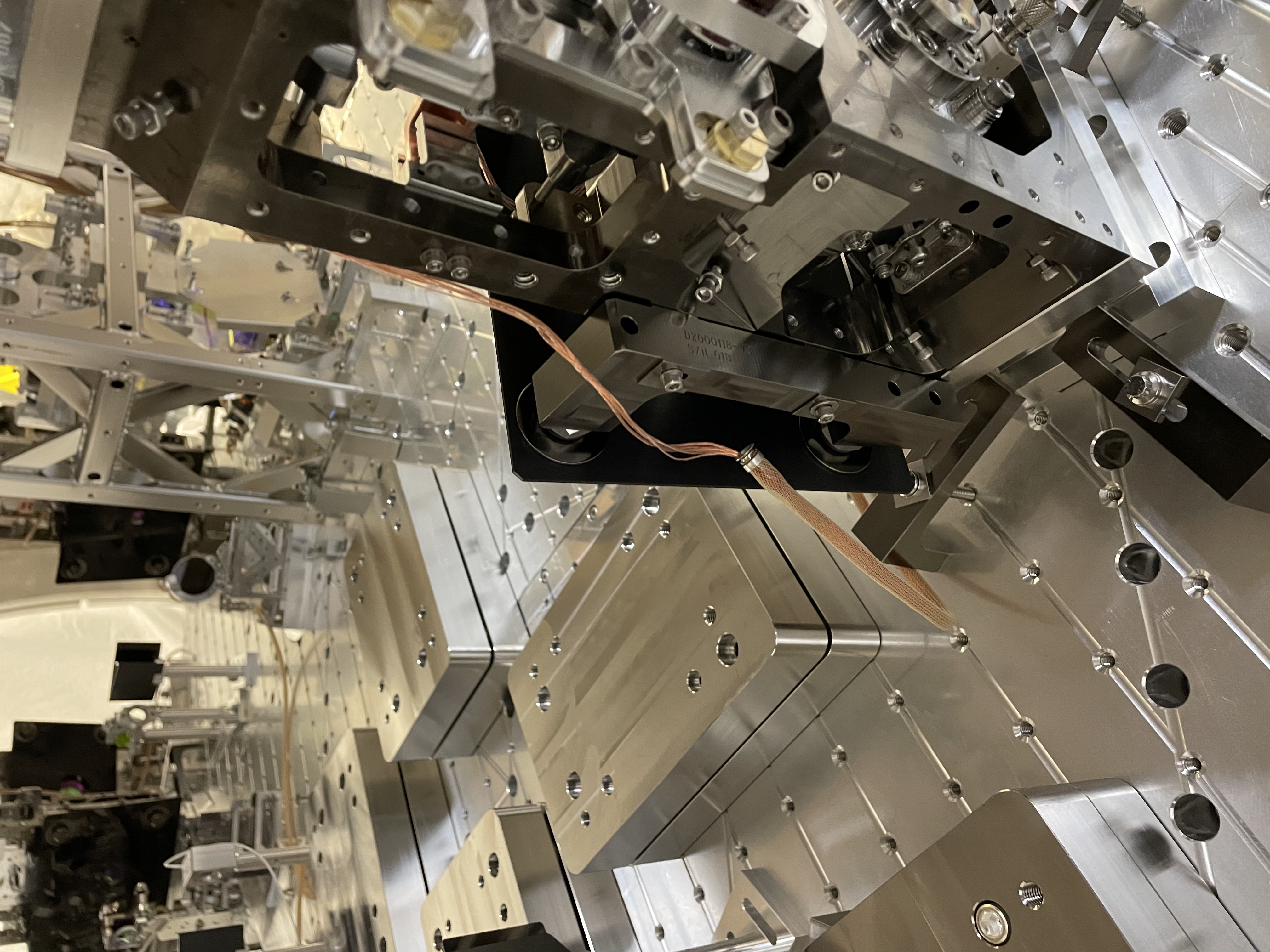

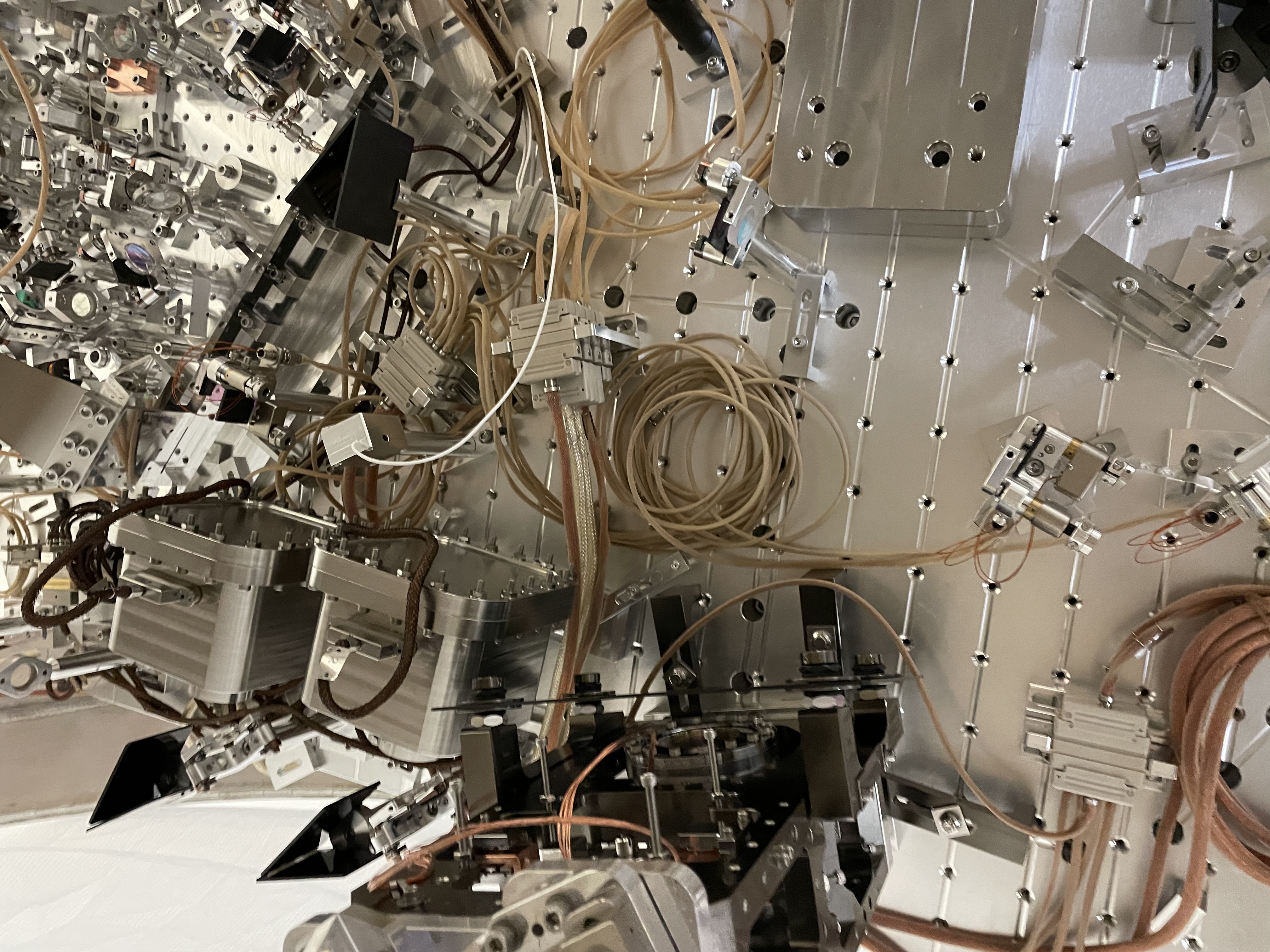

QPD path (D path)

Images attached to this comment
sheila.dwyer@LIGO.ORG - 12:28, Monday 07 February 2022 (61639)
Link

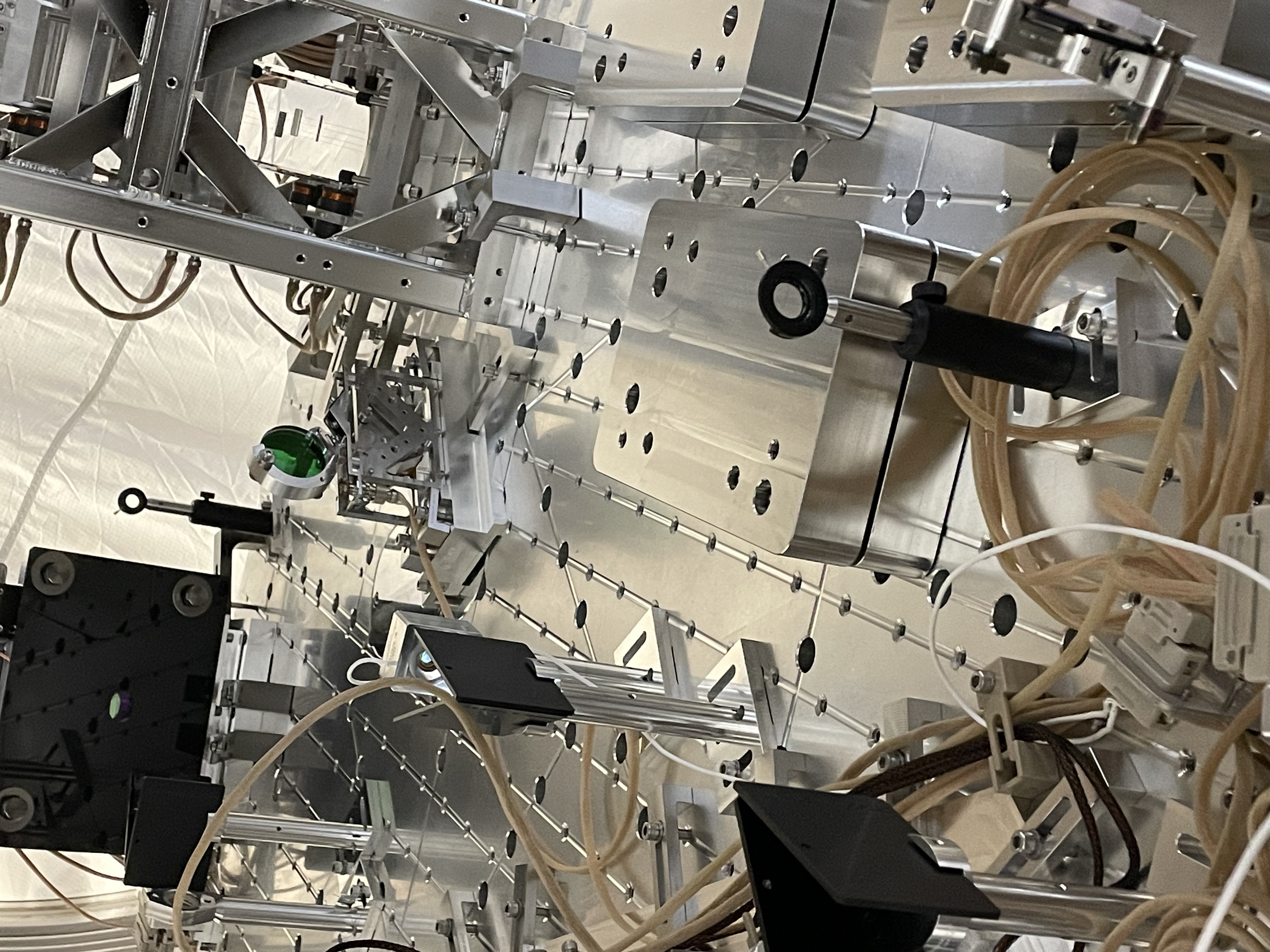

Iris locations, these are marking our alignment through HAM5, and will be removed for ISI balancing.

Images attached to this comment
sheila.dwyer@LIGO.ORG - 12:35, Monday 07 February 2022 (61640)
Link

Green path (SK)

Images attached to this comment
jeffrey.kissel@LIGO.ORG - 12:43, Monday 07 February 2022 (61641)EPO
Link

Sweet photos! Tagging EPO!
sheila.dwyer@LIGO.ORG - 12:53, Monday 07 February 2022 (61642)
Link

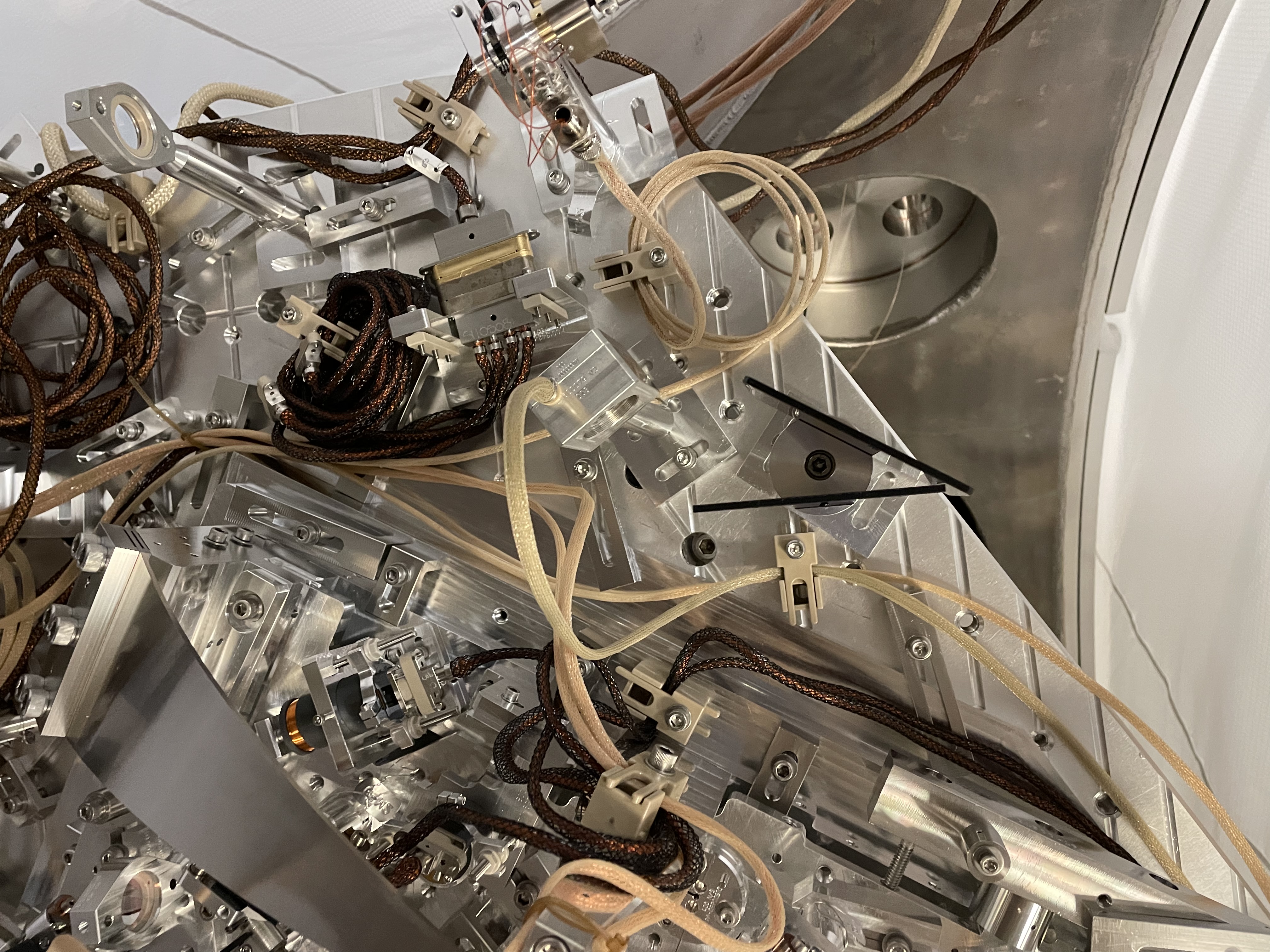

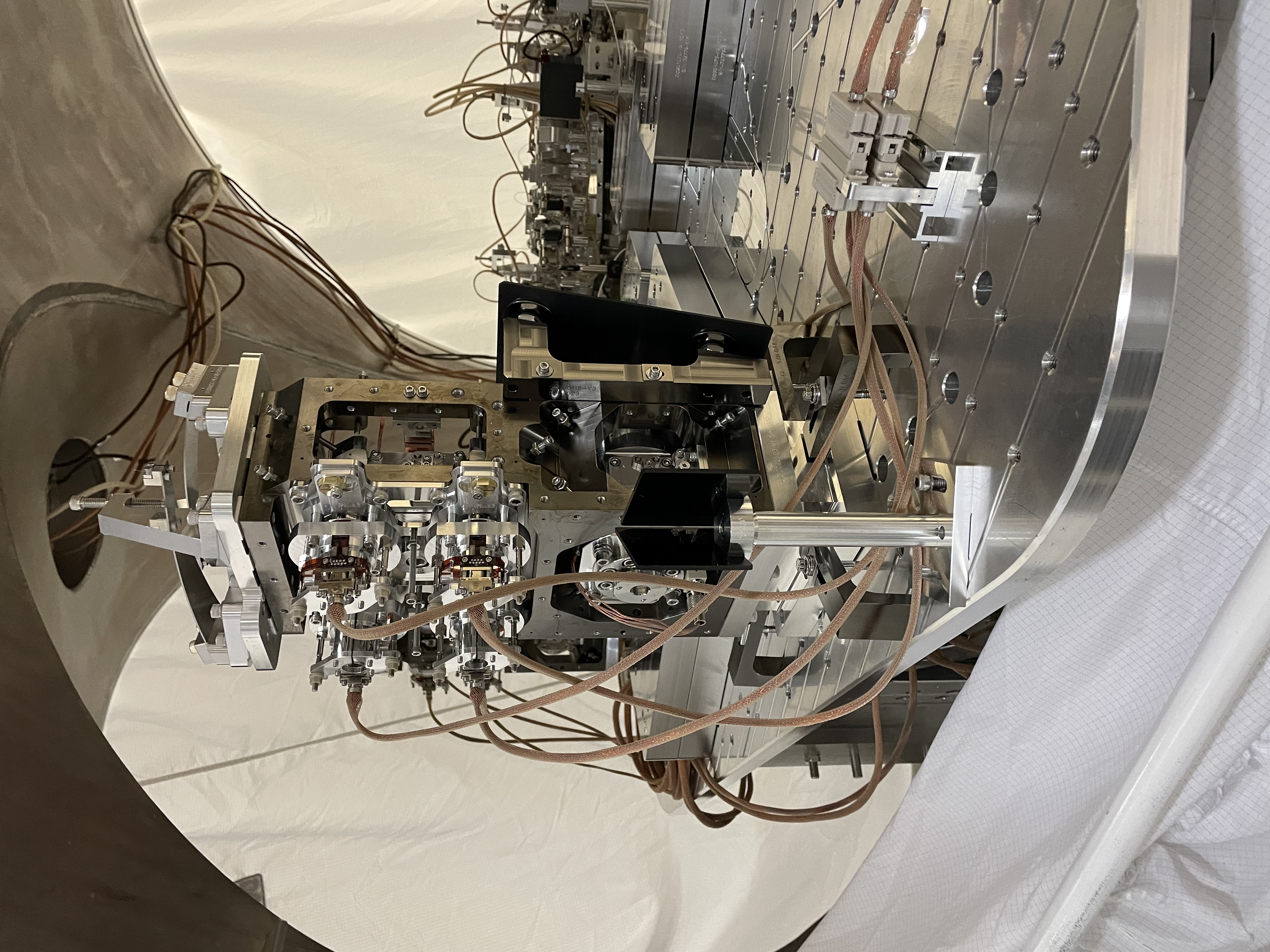

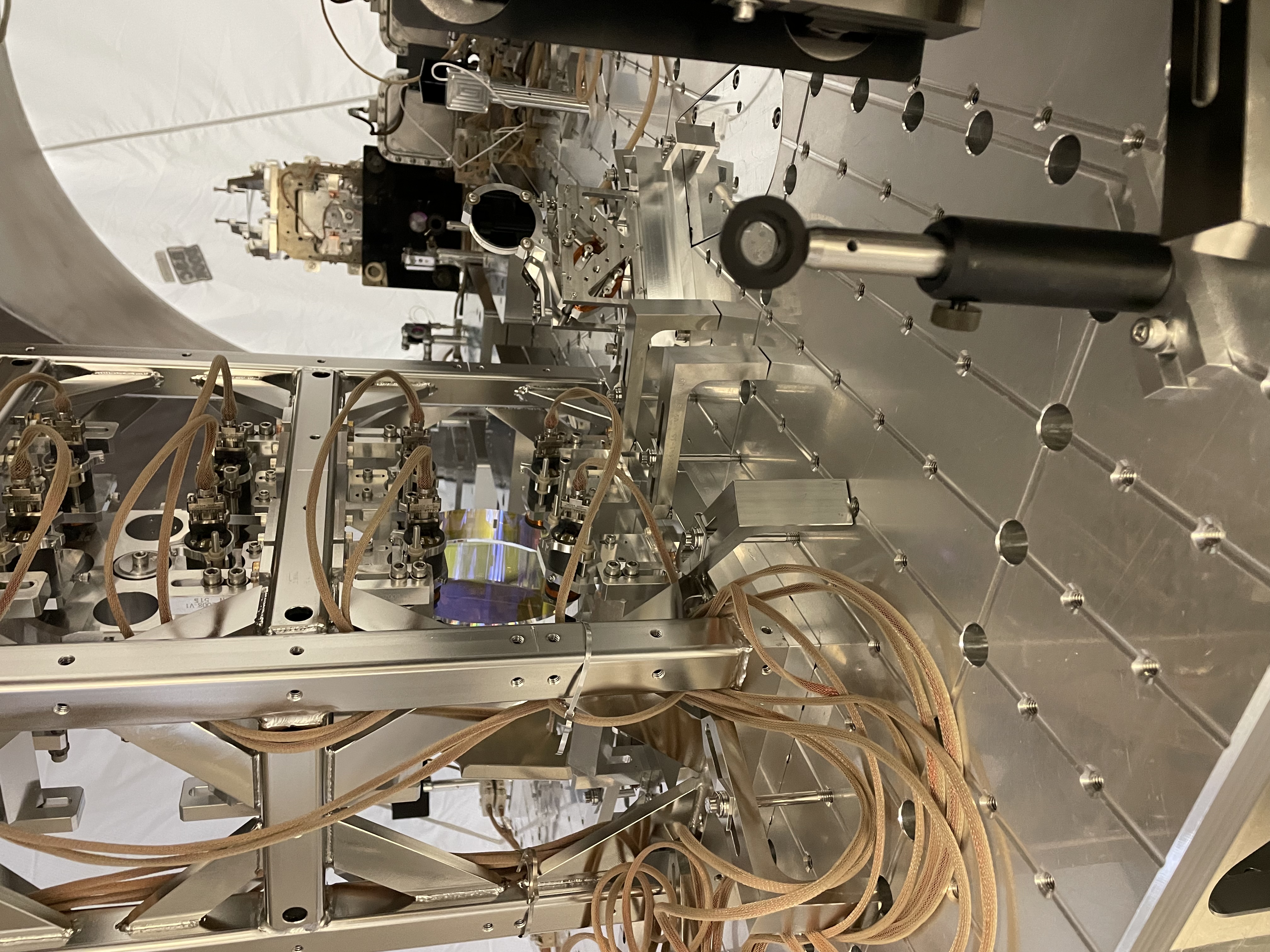

New beam diverter location, CLF refl path ( also new location), and CLF refl viewport reflection beam dump.

Images attached to this comment
sheila.dwyer@LIGO.ORG - 12:56, Monday 07 February 2022 (61643)
Link

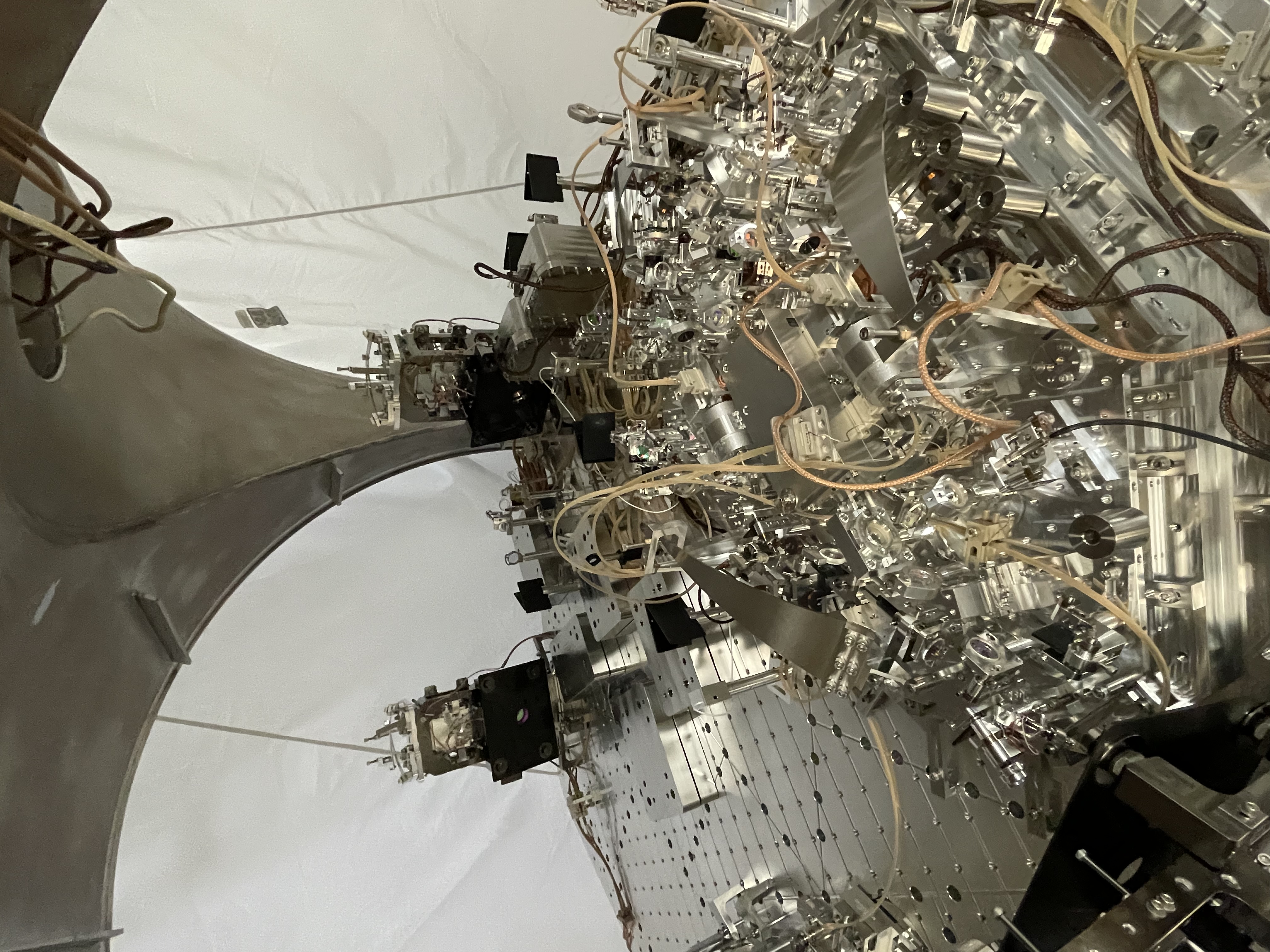

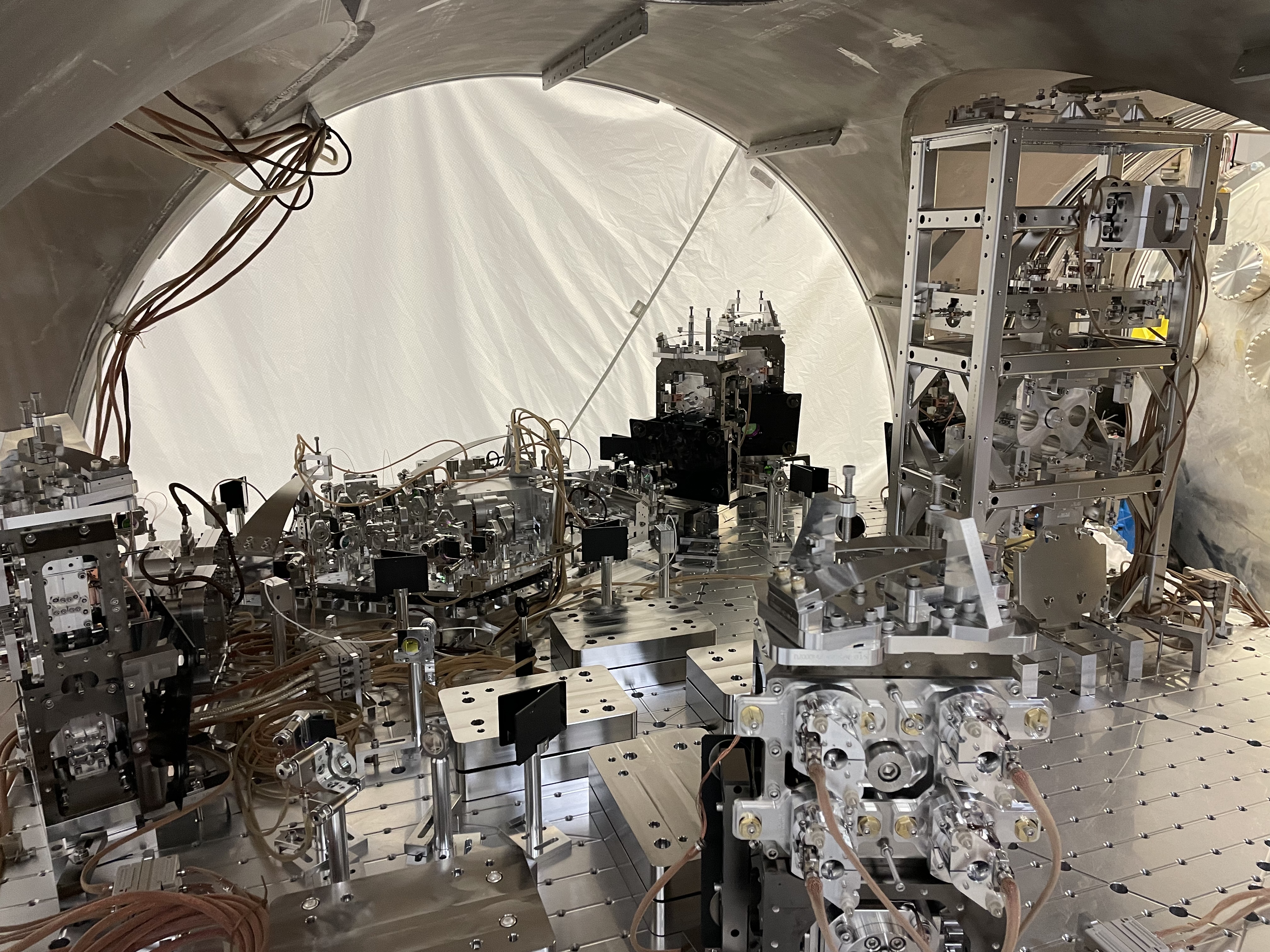

Overall views of the chamber

Images attached to this comment
camilla.compton@LIGO.ORG - 13:33, Monday 07 February 2022 (61644)
Link

These are great, thank you Sheila! I've added a link to these in the HAM7 and VIP ICS assemblies.
