WP 10788

Dave, Filiberto, Gerardo, Patrick

The IO configuration and PLC code for h0vacly and h0vacmr has been updated for the addition of the filter cavity equipment.
They are now at git commit hash eca8799b82a5013403bf6b14c6246812217bbd44 of https://git.ligo.org/cds/ifo/beckhoff/lho-vacuum.

Updated WinSCP on both h0vacly and h0vacmy in order to connect to opslogin0.

Installed Visual Studio 2019 and TwinCAT 3.1.4042.29 on h0vacmr to match h0vacly.

Installed the Visual Studio ".NET desktop development" workload to match h0vacly.

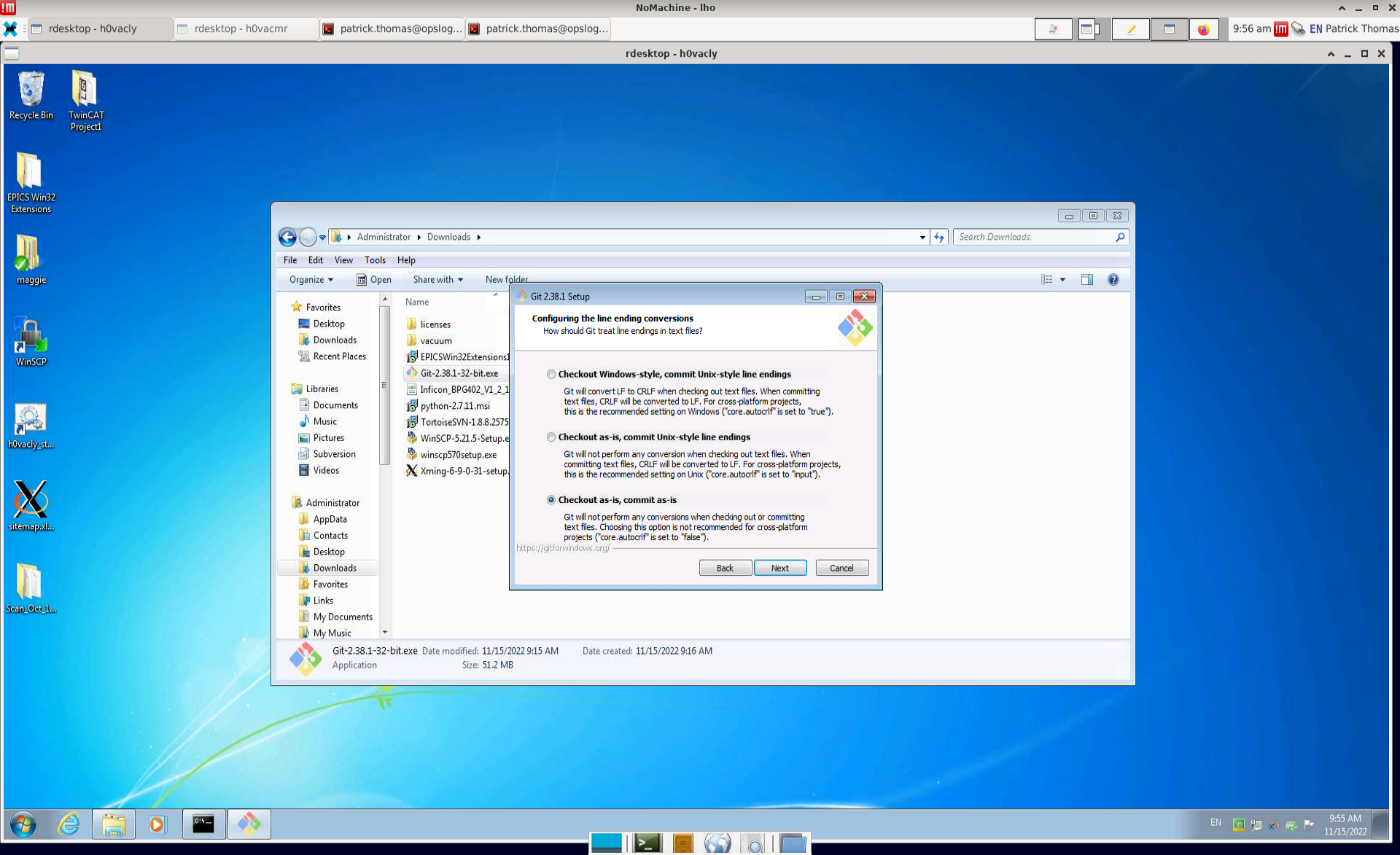

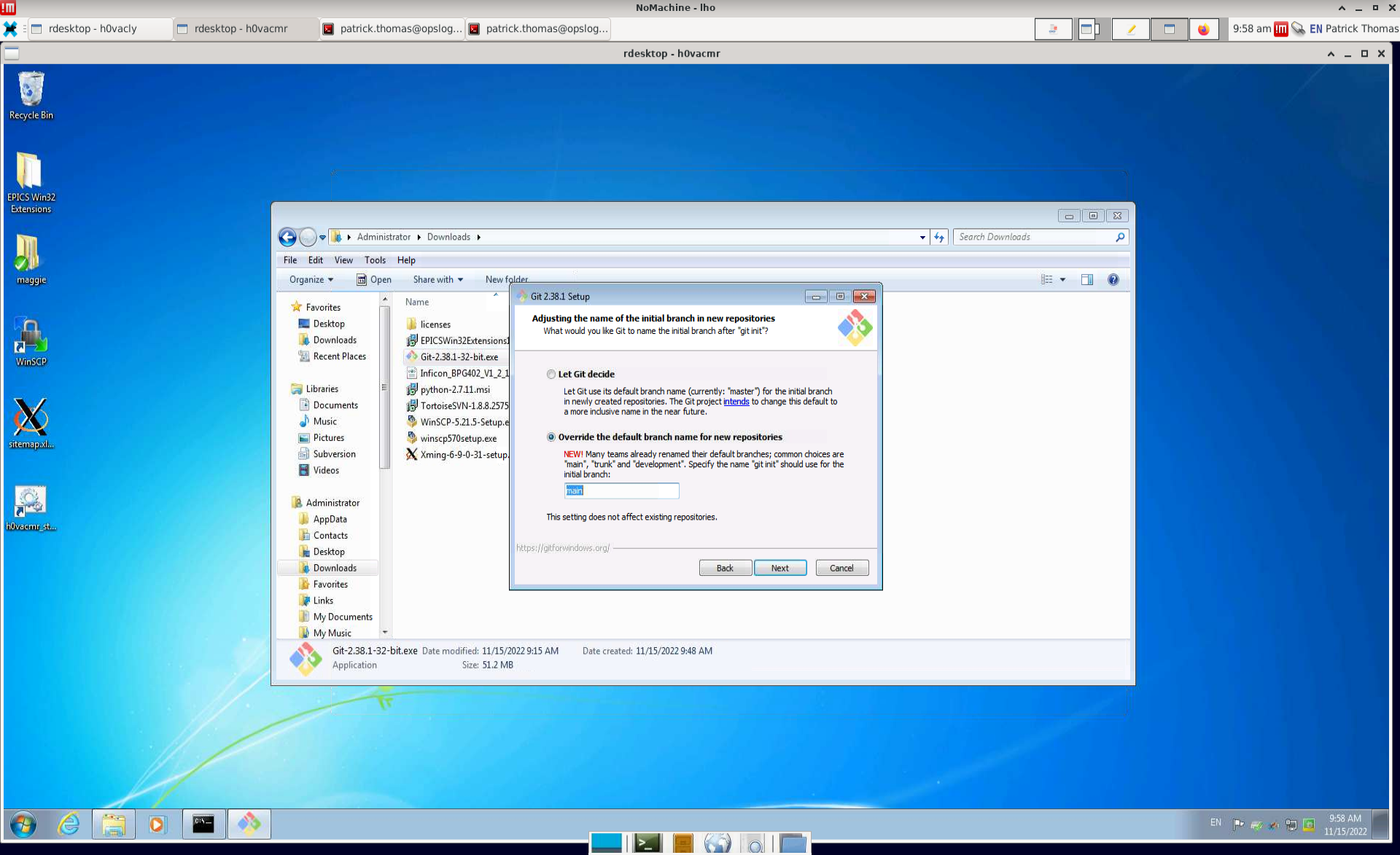

Installed git on both h0vacly and h0vacmr. Accepted all the defaults in the install except for two. The choices I selected for those two are in the attached screenshots.

Cloned https://git.ligo.org/cds/ifo/beckhoff/lho-vacuum to the Desktop of both h0vacly and h0vacmr.

Generated the TwinCAT 3 solutions from the power shell scripts after some fixes.

Dave is adding the new channels to the DAQ.
