Reports until 10:05, Tuesday 13 June 2023
H1 CDS
david.barker@LIGO.ORG - posted 10:05, Tuesday 13 June 2023 - last comment - 14:10, Tuesday 13 June 2023(70405)
WP11256 EY Beckhoff HEPI Pump Ctrl Install

The EY Beckhoff controller has the temporary name h1hpipumpctrley1 (10.105.0.64/24) and I have enabled port 14 of the EY VEA vacuum rack switch (sw-ey-aux) for this computer.

Comments related to this report
david.barker@LIGO.ORG - 11:22, Tuesday 13 June 2023 (70412)
Link

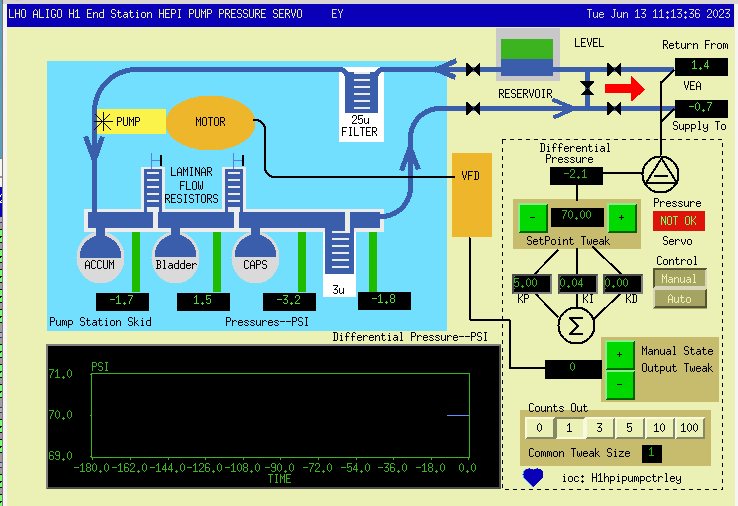

For archive: here are the original EY HEPI Pump Controller Settings.

Images attached to this comment
david.barker@LIGO.ORG - 14:10, Tuesday 13 June 2023 (70421)
Link

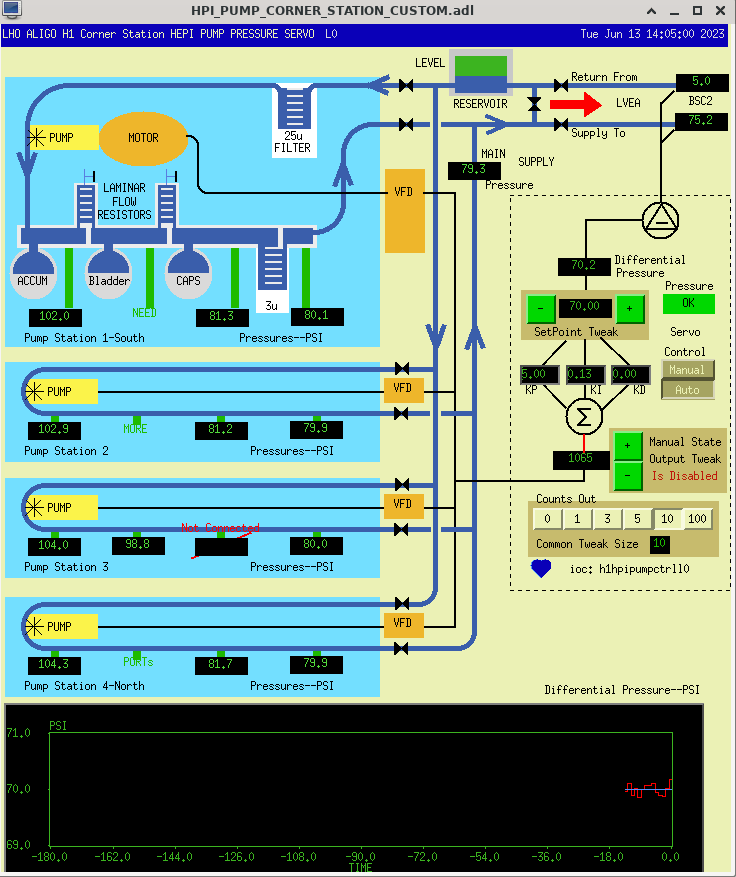

and here are the CS settings for completeness



Images attached to this comment
