DetChar safety injections completed

Since LLO was briefly out of lock, and the DetChar safety injections are way overdue, and those don't need to be done in coincidence with LLO, I ran them.

I used the instructions in 69723, and ran hwinj detchar safety --run.  I specifically did not set a gps time, so that it would just go at 10 sec after I hit Enter, and it automatically avoided beginning on an integer second.  Sidd notes that there is a Google doc with instructions, although the script should take care of most of it, including the output switch.  These filter modules and the gain that are noted in the first section of the document are the same that are needed for the stochastic injections, so should already be SDFed on at both sites after last Friday.

The first time I ran this, initializing took a few seconds longer than I think the developers anticipated, so I got an error about 'Block time is already past'.  I just re-ran it, and it initialized faster the second time, and worked as expected.  Git issue started here.

Once the injections were complete, RyanC noticed that PCALx (used for these injections) had its OFS servo saturating.  RyanC toggled it on and off, and it is happy again.  I wonder if the amplitudes were tuned at a time when the now-always-on PCALx lines were not yet on.  It sounds like the amplitude tuning happened at LLO and at that time they were well away from the saturation limits, so it could also be an issue of we've got a sligthly different set of things going on with our PCALx. Git issue started here.

Comments related to this report
jenne.driggers@LIGO.ORG - 10:26, Monday 26 June 2023 (70822)

Restarted, but this time in NLN_CAL_MEAS.  1371835071.45 is the approx start time.

This seems to have solved the saturation issue.

siddharth.soni@LIGO.ORG - 10:47, Monday 26 June 2023 (70824)

The gpstime of first waveform:

first set of injection: 1371831717.24

second set of injection: 1371835081.45

The injection parameters and gracedb id etc can be found here https://git.ligo.org/siddharth.soni/hardware_injections/-/tree/main/data

geoffrey.mo@LIGO.ORG - 11:54, Monday 26 June 2023 (70826)

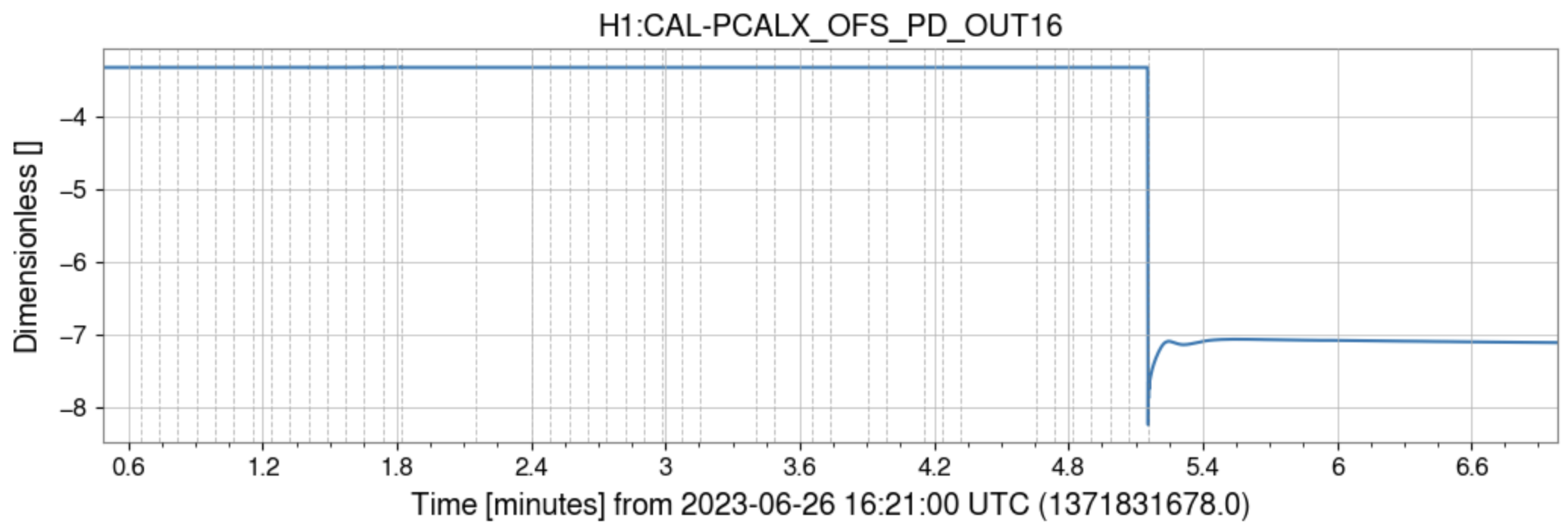

Attached in below.png is H1:CAL-PCALX_OFS_PD_OUT16, with the injections that were picked up by kleineWelle in the vertical lines, for the first set of injections before the calibration lines were turned off. Seems like the PCAL changes right before the injections stop being picked up (they should last more or less the entire duration of the plot).

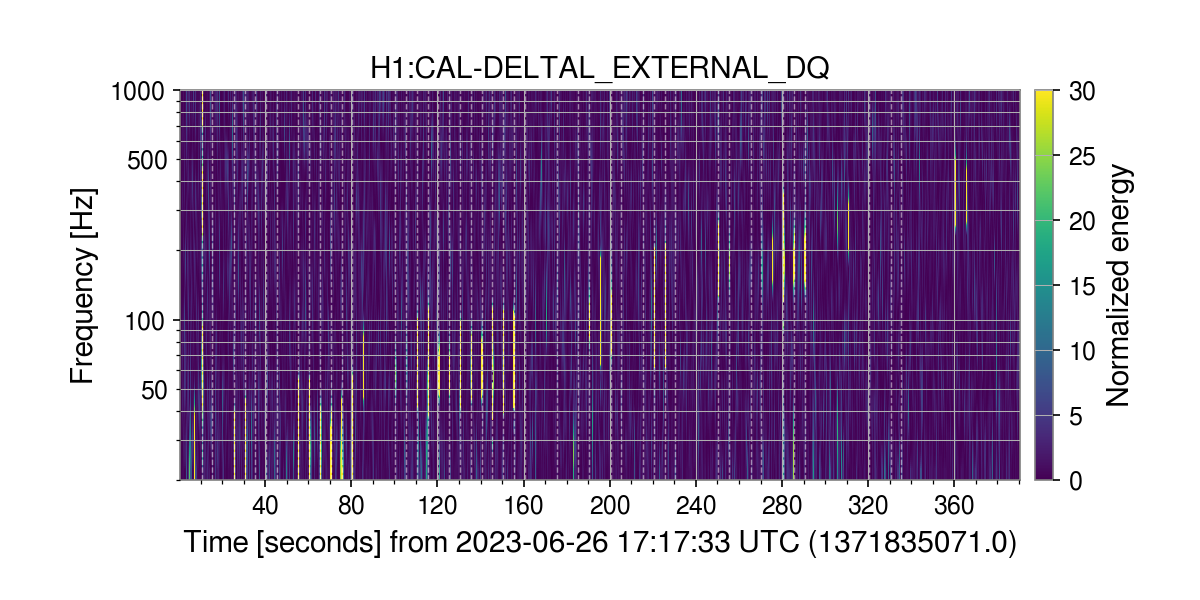

The same channel for the second set of injections (after the calibration lines were turned off) is shown in after.png, and looks better behaved. after_omegacan.png also shows that we recover what we expect. We'll add to the hwinj instructions to turn off calibration lines before performing safety injections in the future.
Images attached to this comment
siddharth.soni@LIGO.ORG - 12:01, Monday 26 June 2023 (70827)

We have updated the google document to check for turning off the PCAL x lines before peforming the injections.
