JoeB and I picked a time, and we're running /opt/rtcds/userapps/release/pem/h1/scripts$ python inject_mag_10to40.py (attached here with the current gps time we used).
I also made sure that our amplifiers were on (I think / hope) via the medm screen, which I've also attached.
In case it's helpful, here's the state of the filter bank.
Injection was succesfull.

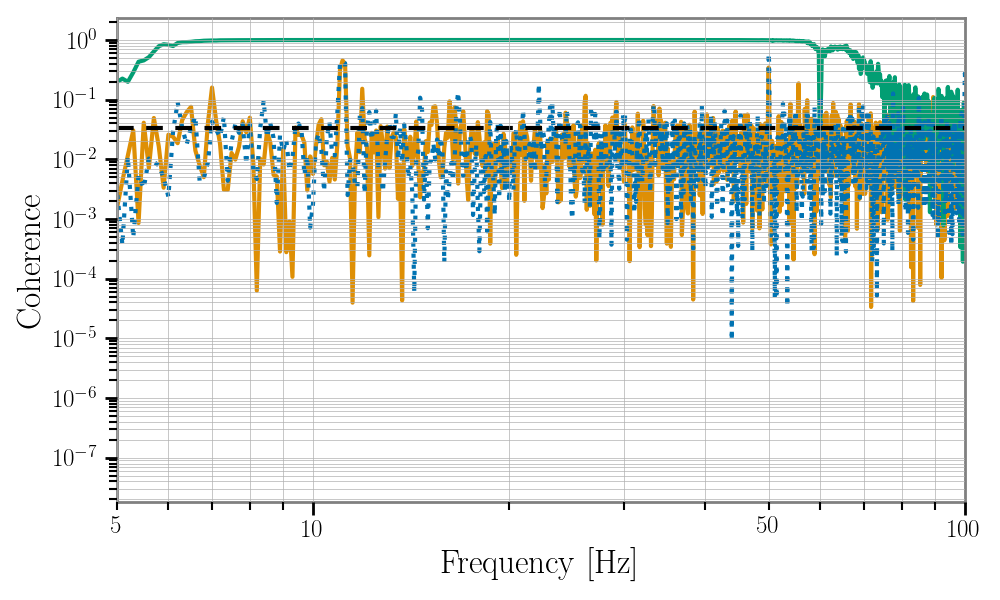

Fig1 &2: Hx magnetometer - Lx magnetometer: Coherence/CSD, before, during and after injection

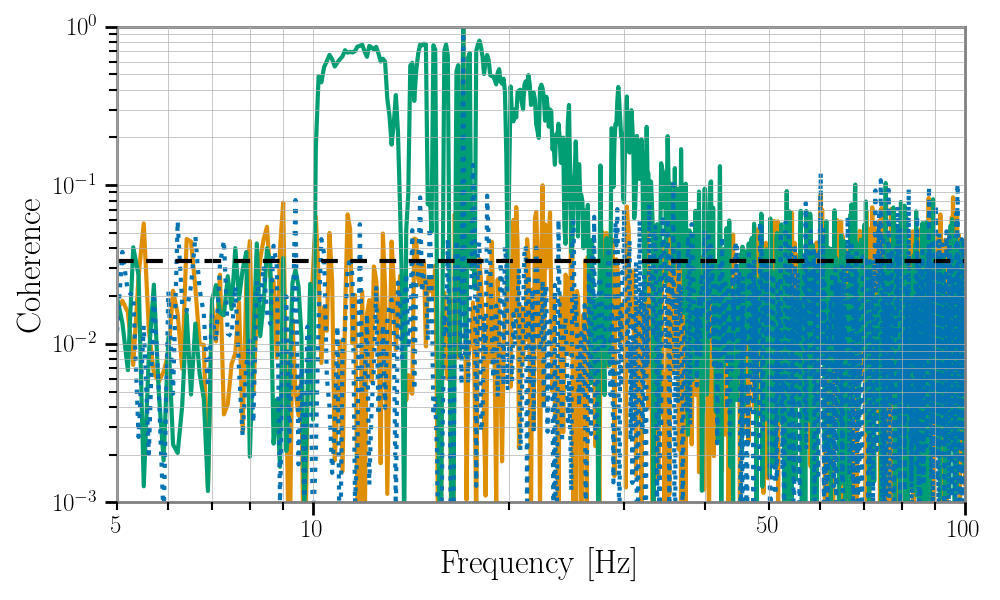

Fig3 &4: H strain - Lstrain: Coherence/CSD, before, during and after injection
Channels used:
Hx mag = H1:PEM-CS_MAG_LVEA_VERTEX_X_DQ
Lx mag = L1:PEM-CS_MAG_LVEA_VERTEX_X_DQ
H strain =H1:GDS-CALIB_STRAIN
L strain = L1:GDS-CALIB_STRAIN
Times used:
Before: start: 900sec before injection - duration: 300 sec, 10 sec fft, 50% overlap
Injection: start gps = 1372010416 (June 28 - 17:59:58 UTC) - duration: 300 sec, 10 sec fft, 50% overlap
After: start: 600sec after injection - duration: 300 sec, 10 sec fft, 50% overlap
