I've added a new "TCS TRENDS" button on the sitemap > OPS > WEEKLIES  medm.  This opens up two monthly ndscope trends  (from /opt/rtcds/userapps/release/tcs/h1/templates/ndscope/famis), one for CO2 and the other for HWS. Explanation of the channels plotted below.

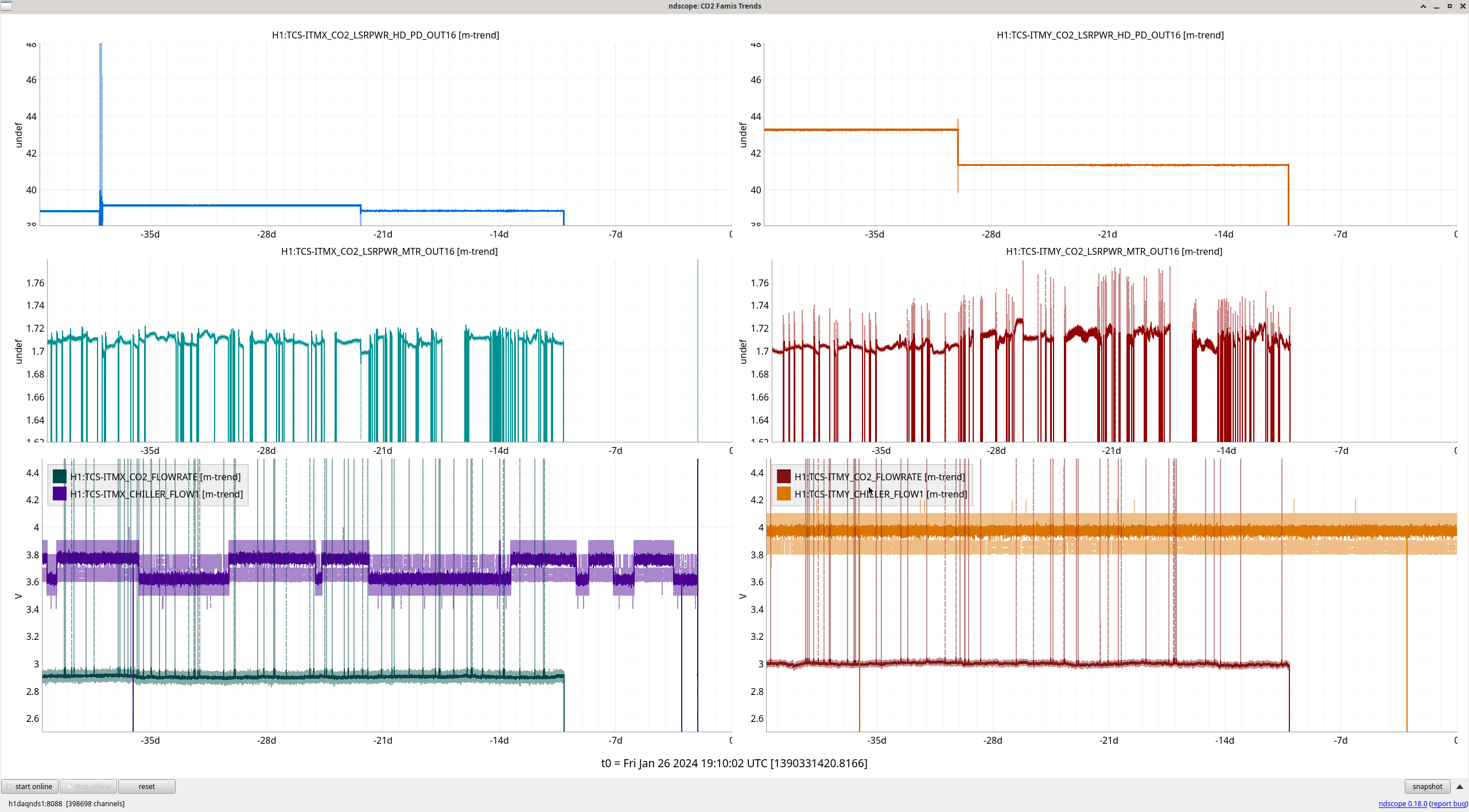

• Example of CO2 attached:
  • Top trends H1:TCS-ITM{X,Y}_CO2_LSRPWR_HD_PD_OUTPUT are the power out of the laser head. Expect it to be steady and above 35W.
  • Middle trends H1:TCS-ITM{X,Y}_CO2_LSRPWR_MTR_OUTPUT are the power injected into the vacuum. Expect it to stay +/- 0.03W of 1.7W
  • Bottom trends are the cooling lines flowrate, H1:TCS-ITM{X,Y}_CHILLER_FLOW1 is reported at the chiller and H1:TCS-ITM{X,Y}_CO2_FLOWRATE in the LVEA under the beamtube (will only report when the laser chassis is powered on). Expect them to be steady and >2.8 GPM.

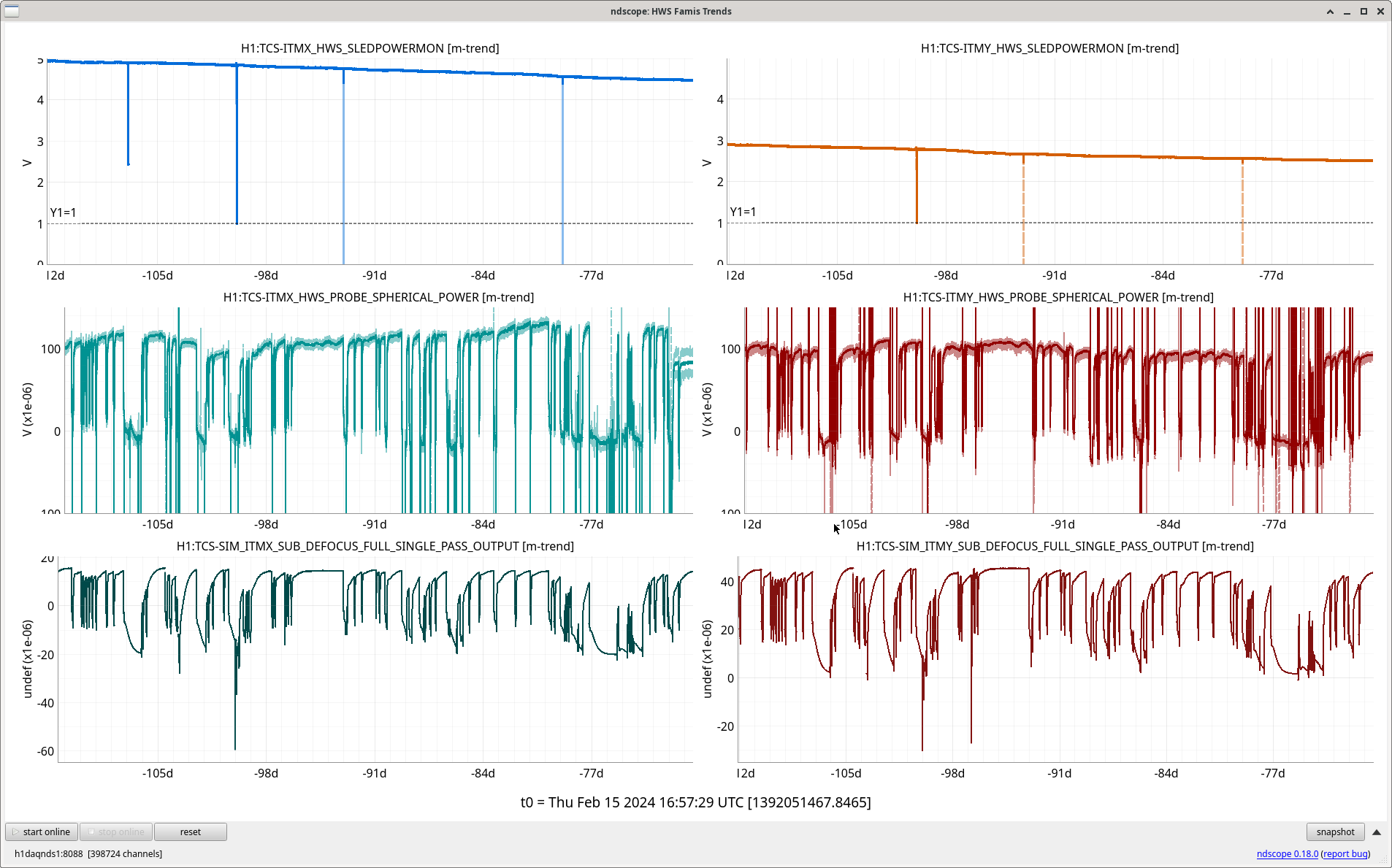

• Example of HWS attached:
  • Top trends H1:TCS-ITM{X,Y}_HWS_SLEDPOWERMON are the power of the HWS SLED, should be >1mW  otherwise we should note this and replace the SLED.
  • Middle trends H1:TCS-ITM{X,Y}_HWS_PROBE_SPHERICAL_POWER is the measured change in lensing of the ITM.
  • Bottom trends H1:TCS-SIM_ITM{X,Y}_SUB_DEFOCUS_FULL_SINGLE_PASS_OUTPUT are the simulated change in lensing of the ITM.
    • Expect these measrured and simulated trends to be a similar shape.
