DCPA Anti-TIA (Anti-Transimpedance Amplifier Filters) show small missmatch

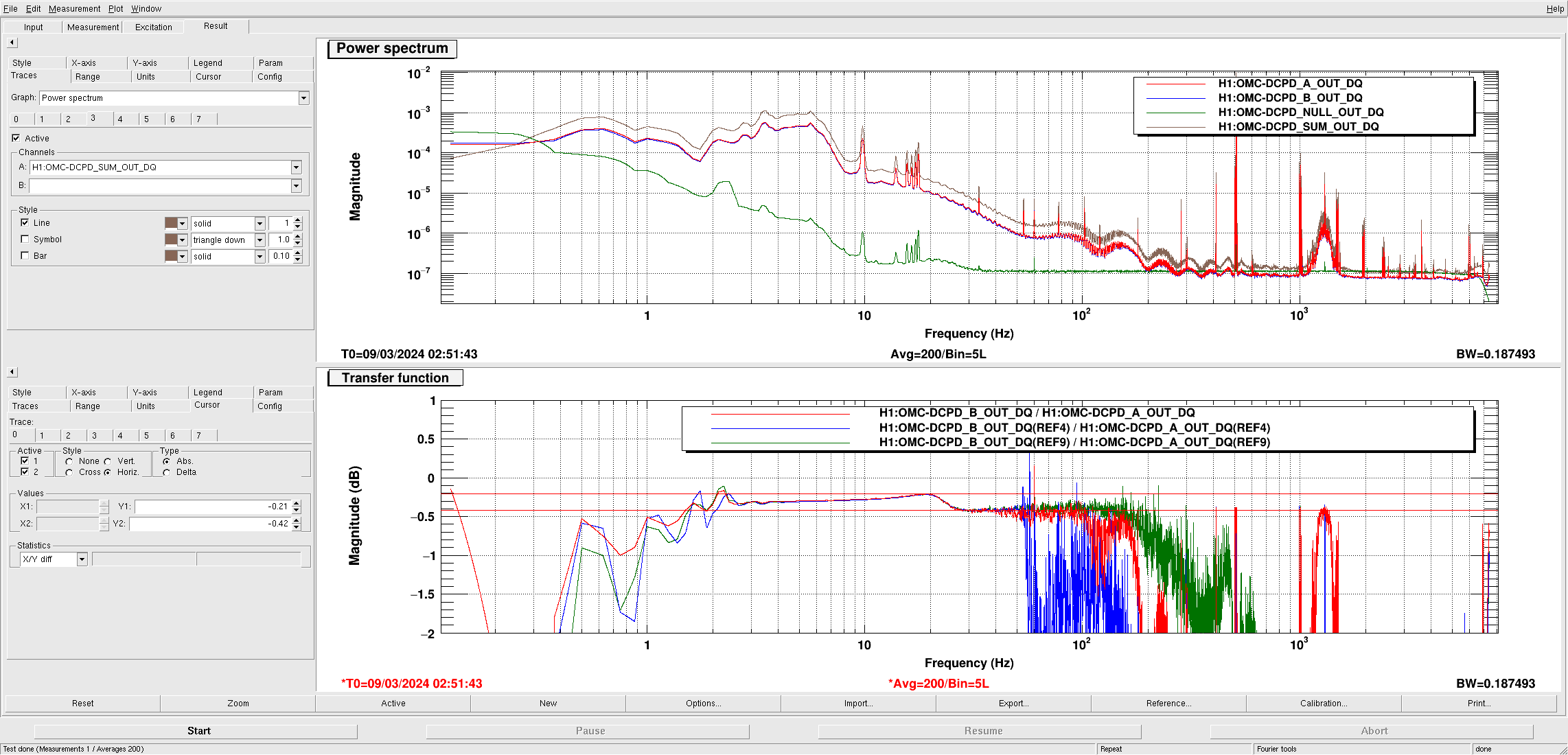

Meashured the transfer function between DCPD_A and DCPD_B usinng a broadband injection. There is a slight frequency-dependent disagreement (0.2dB) between the two diodes, right around 25Hz, where the TIA has its complex poles.
It looks like one or both Anti-TIA filters are slightly mismateched. We won't tweak it today because we don't know with one is the culprit.
Images attached to this report
Comments related to this report
this looks to be related to the TIA response drift reported in LHO:75986.
The template used for this measurement can be found here:

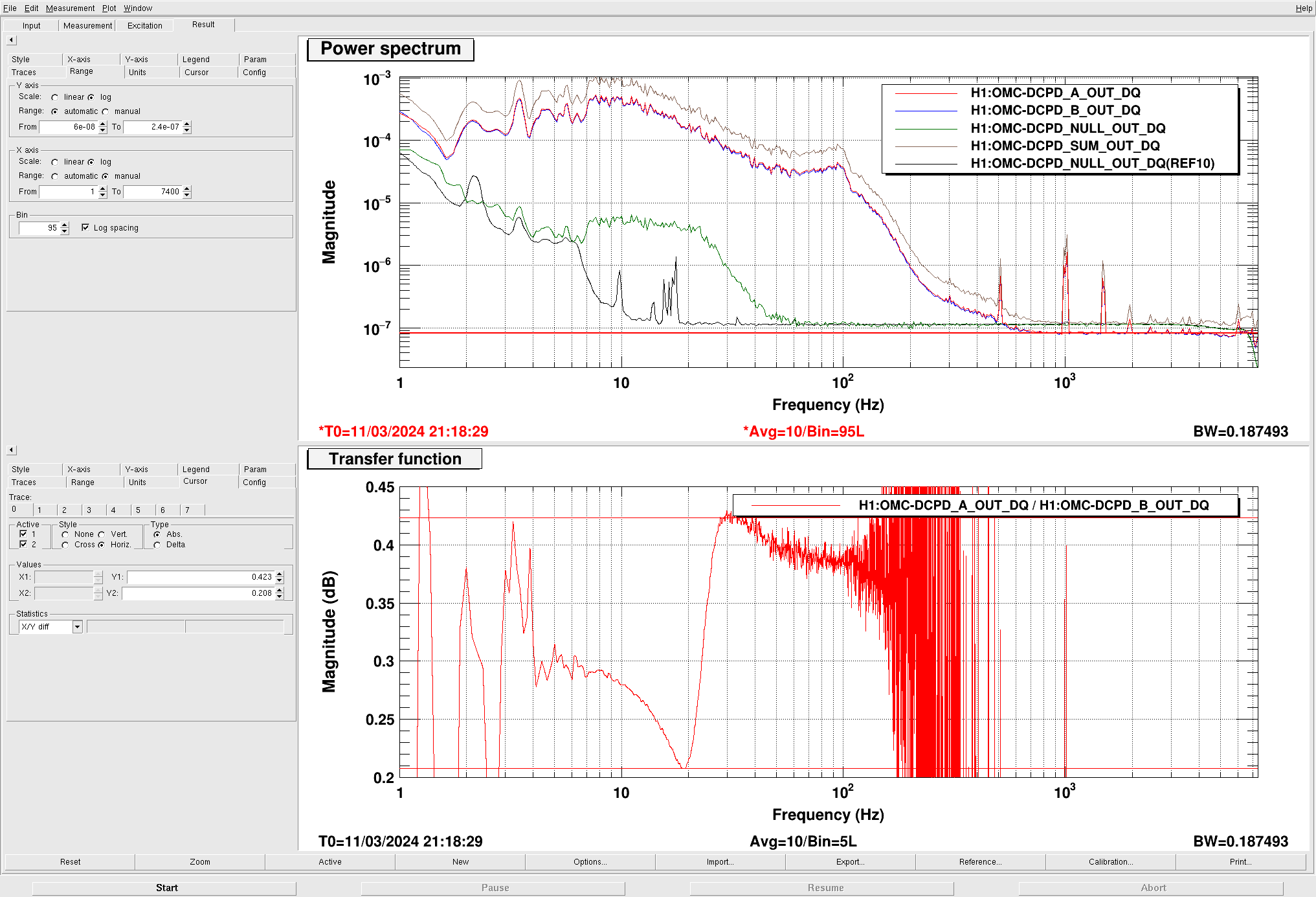

/ligo/home/controls/sballmer/20240311/AoverBmeasurement.xml
Note: the max peak-peak deviation between DCPD_A and DCPD_B is 2.5%.
