camilla.compton@LIGO.ORG - posted 16:56, Monday 21 October 2024 (80803)
SQZ FC detuning adjusted from -28Hz to -30Hz
Vicky, Camilla

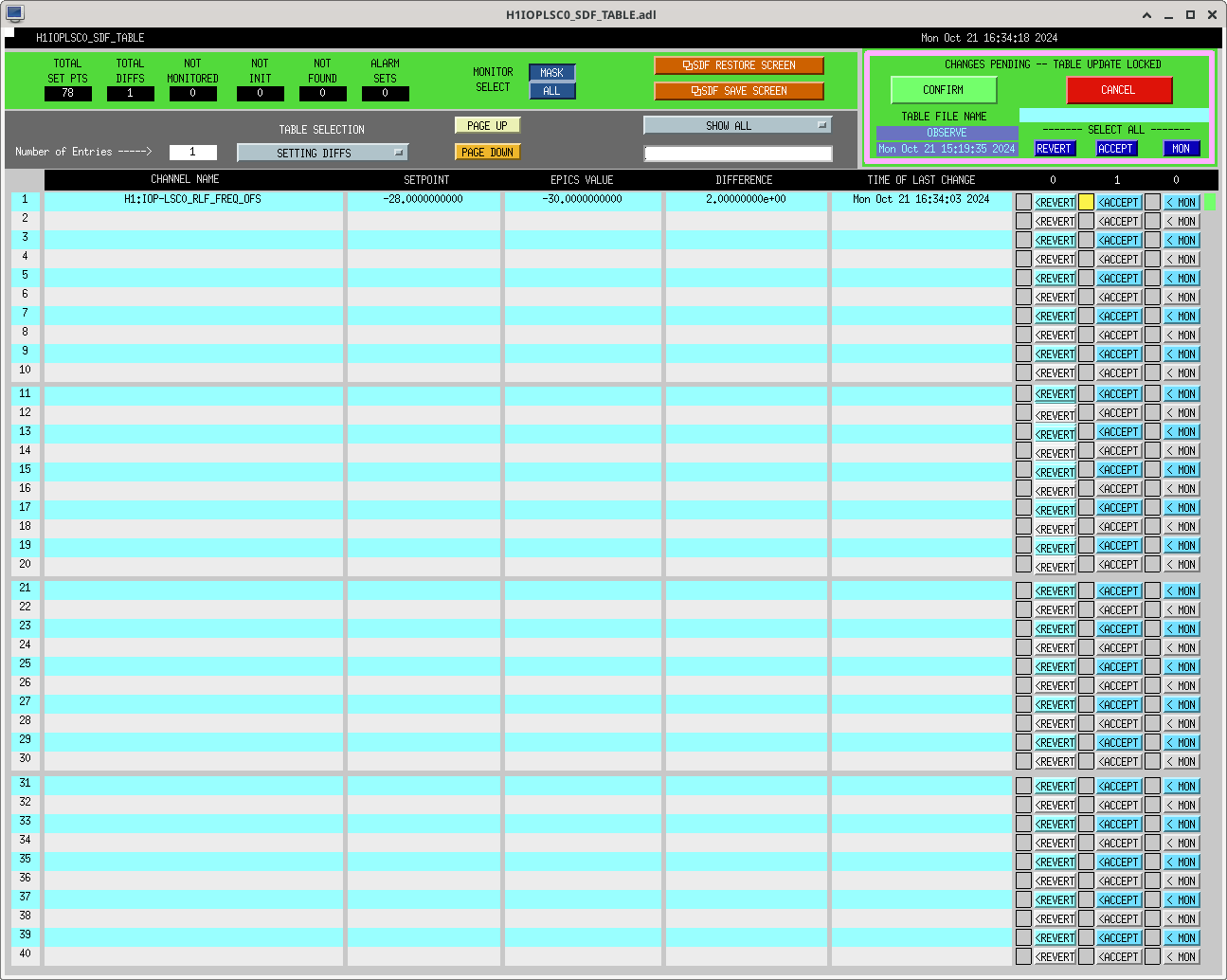

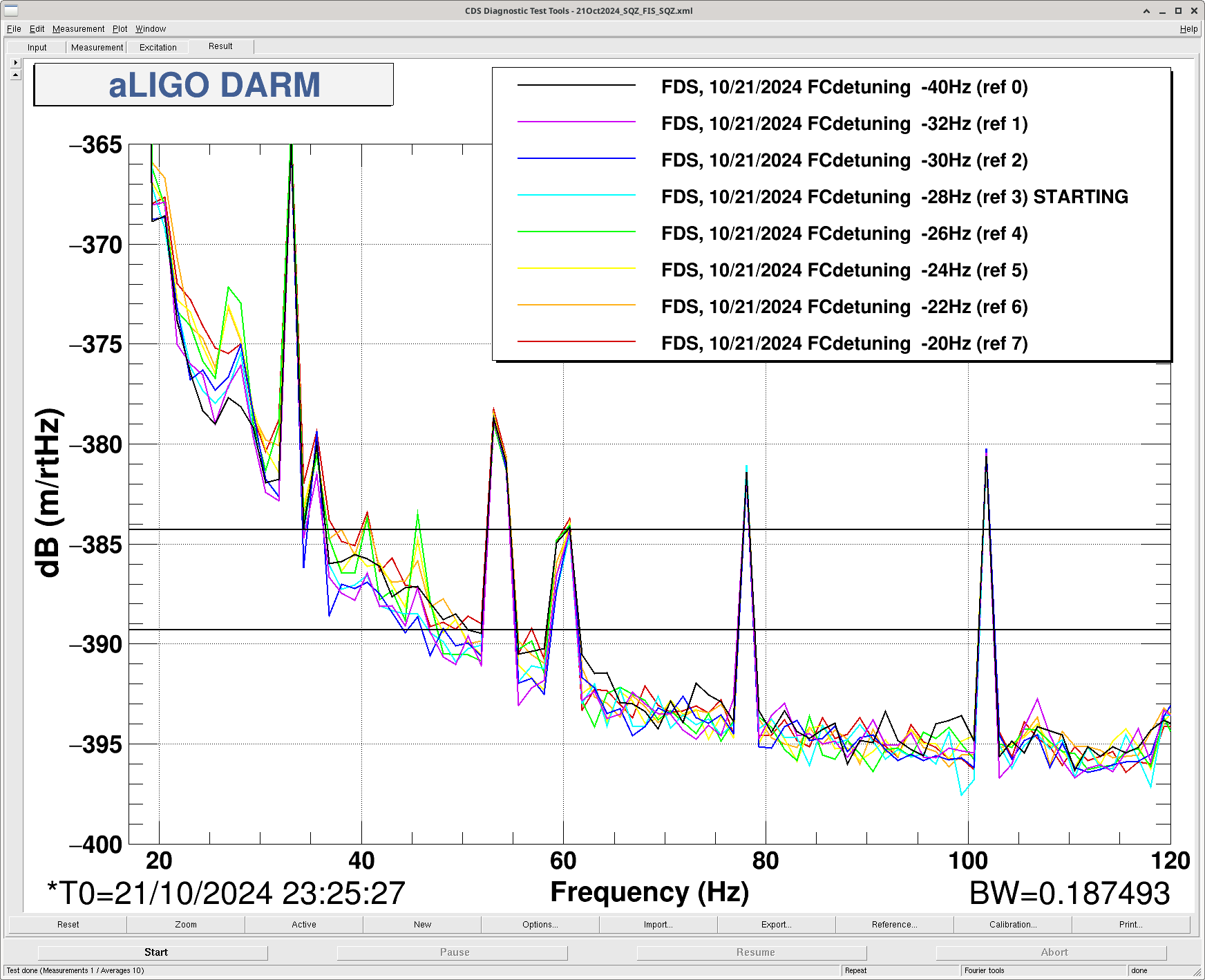

We adjusted the SQZ FC de-tuning from -40Hz to -20Hz, nominal -28Hz. See attached plot. The best was between -32 and -28Hz (purple, dark blue, light blue) so we set it to -30Hz and accepted in sdf.
Images attached to this report
