rahul.kumar@LIGO.ORG - posted 13:15, Friday 21 February 2025 - last comment - 10:38, Monday 24 February 2025(82963)
New settings for ITMY mode 05/06

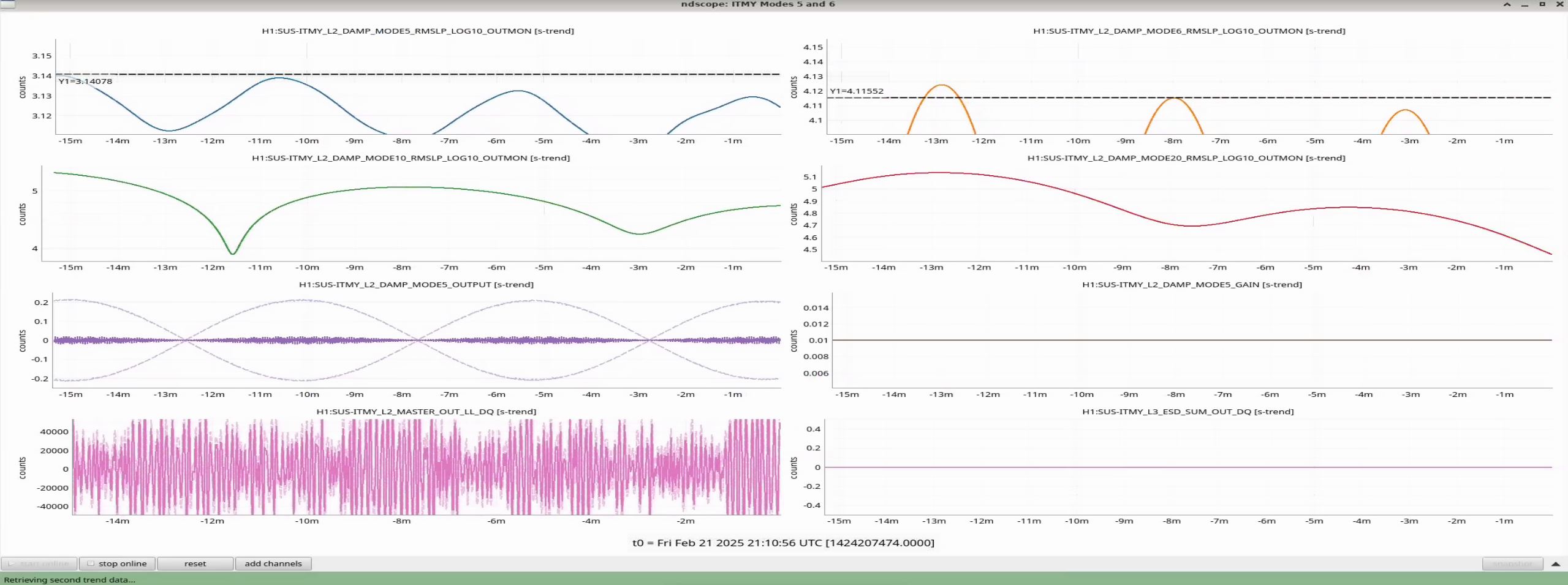

FM6 + FM8 + FM10 Gain +0.01 (+30deg phase) looks to be working for now - see attached screenshot.
The other settings which I tried and it didn't work are listed below,
zero phase Gain 0.01 (IY05 increasing, IY06 decreasing).
-30deg phase gain 0.01 (IY05 increasing, IY06 decreasing).
Images attached to this report
Comments related to this report
We lost lock and then during the next lock Corey applied the above settings (in bold fonts) and it seems to be working fine. Hence, I will continue with this for the next few lock stretches. Not committing it to lscparams yet since things can still change.
FM6 + FM8 + FM10 Gain +0.01 (+30deg phase) have been committed to lscparams for ITMY mode 05/06.
