Jeff, Oli

WP 12370

ECR E1700228

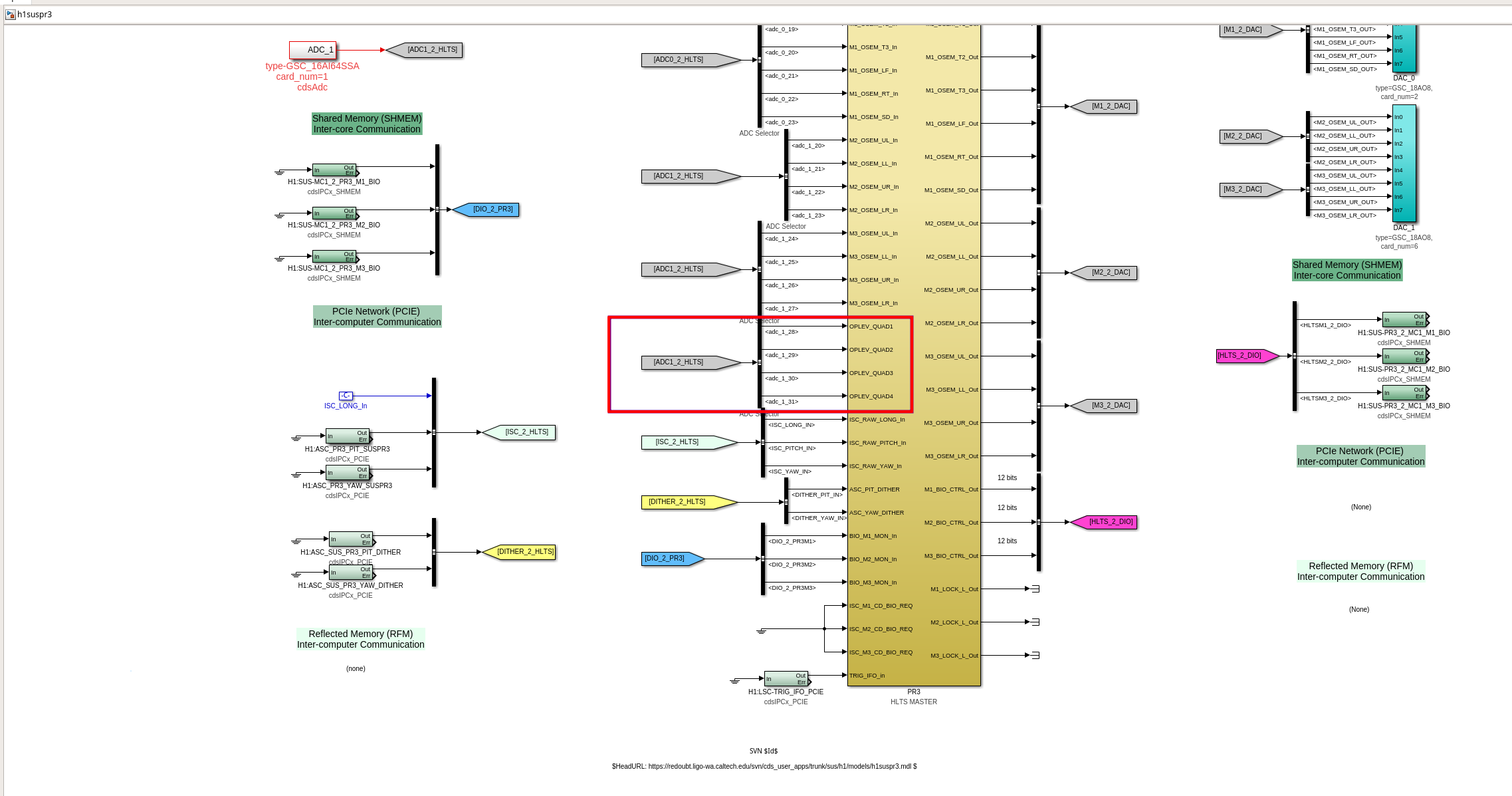

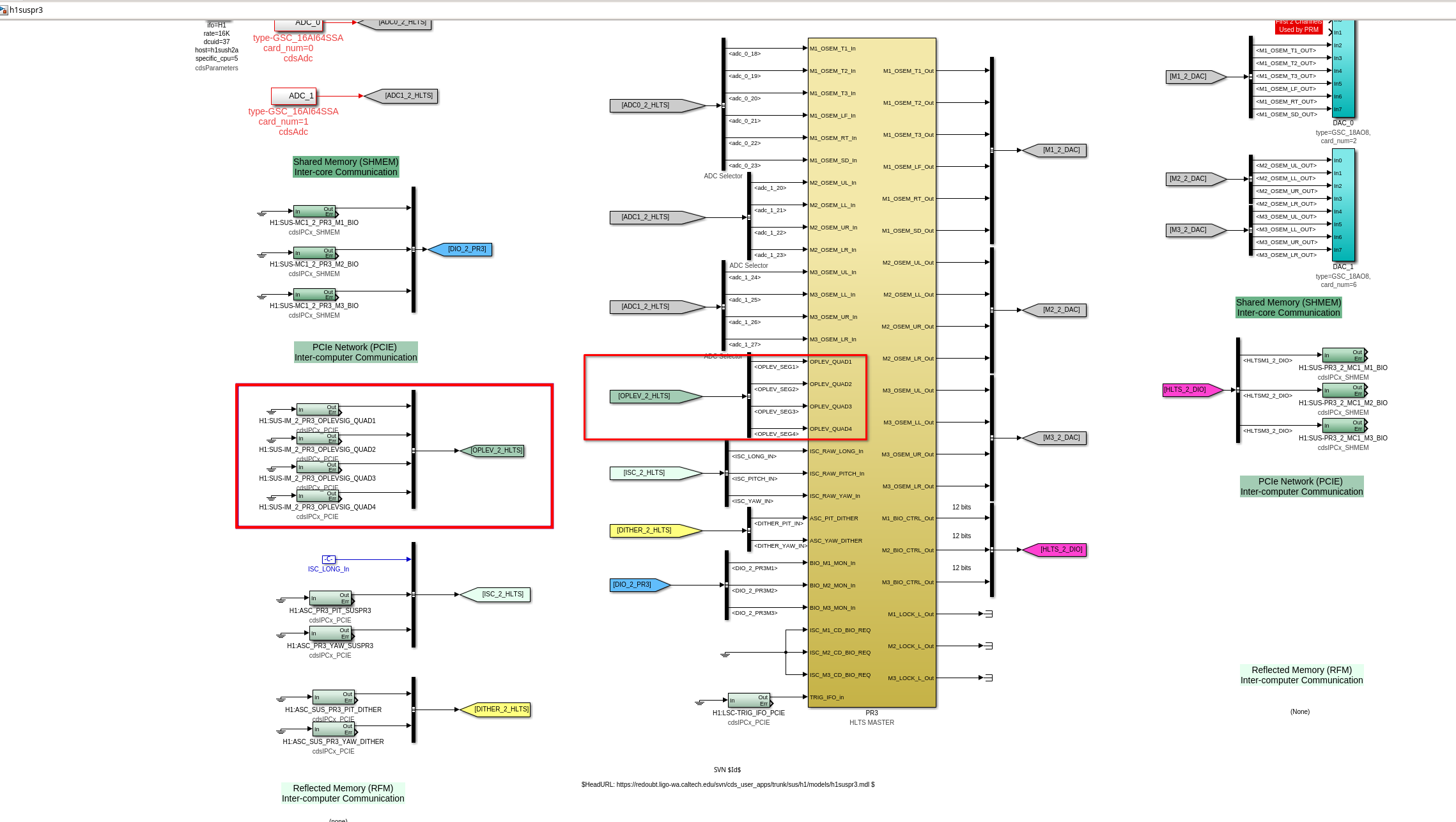

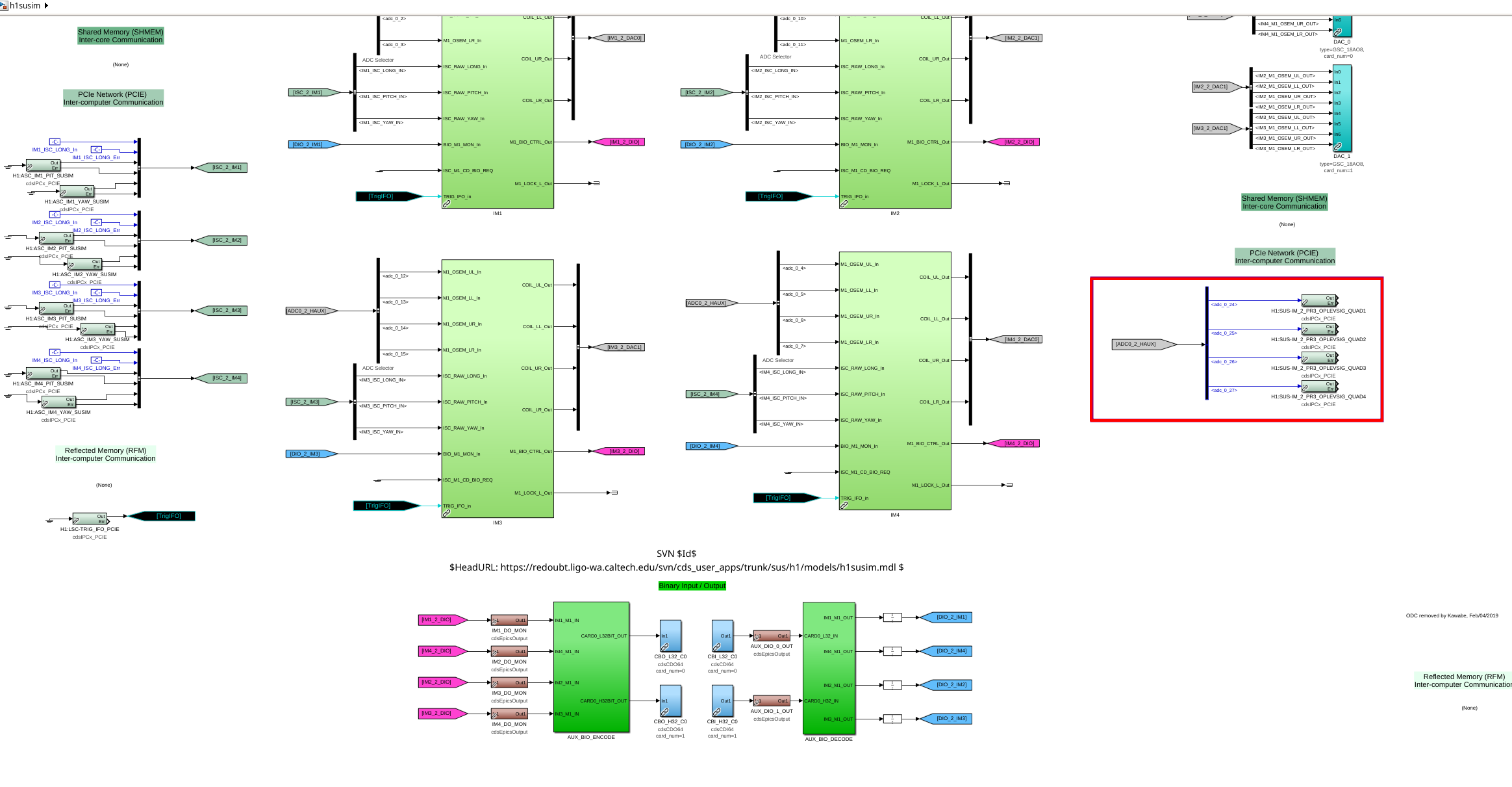

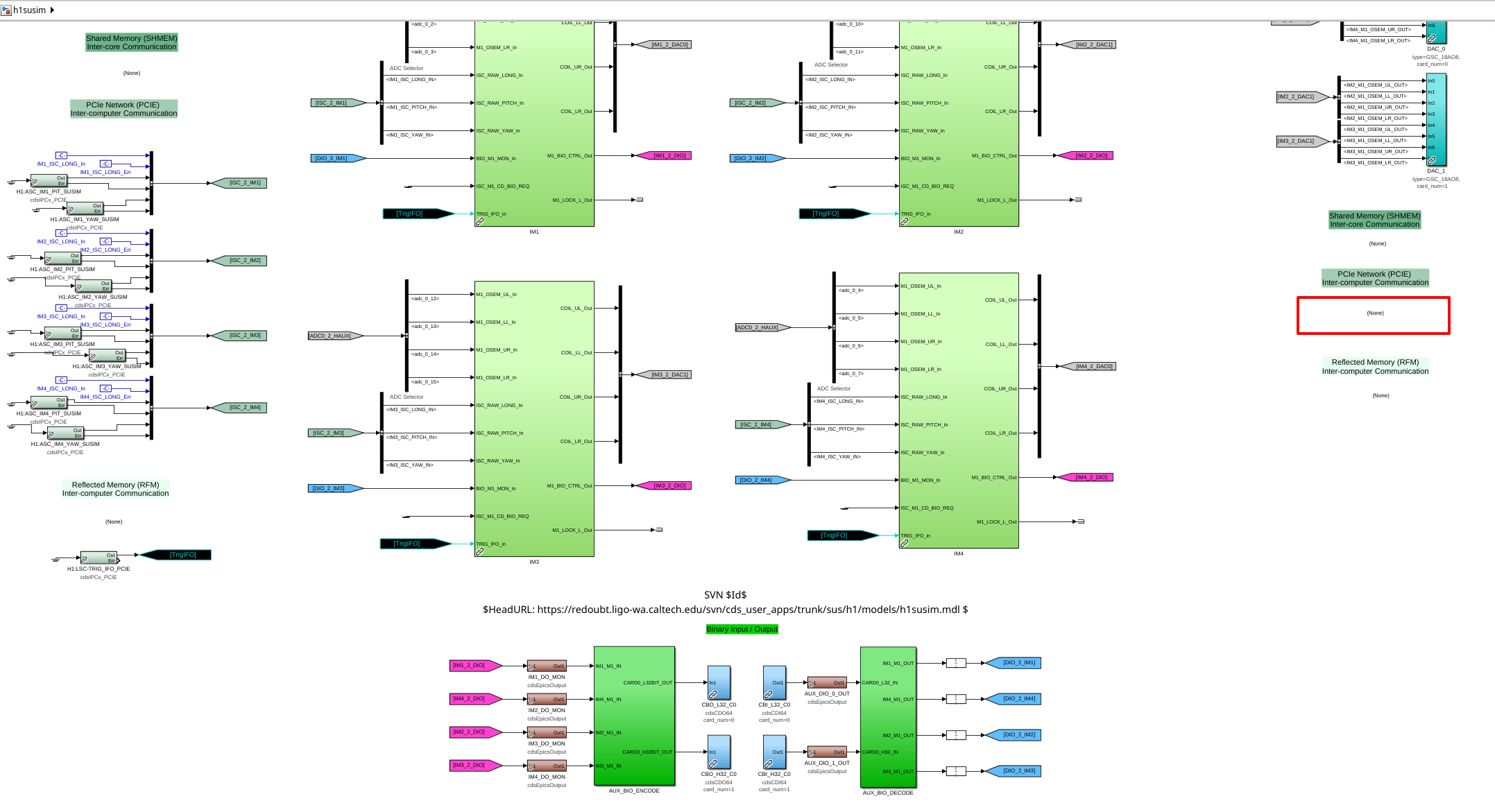

In a continuation of preparing for the addition of PM1 (83168), Jeff and I have made the necessary model changes for the PR3 OpLev. As outlined in 83168, the stuff that needed to be changed in the model (to match with the physical changes) was to move the PR3 OpLev channels. They were originally located in the top level of h1susim.mdl and sent via IPC to PR3, but we moved them over to the h1suspr3.mdl model. This means that the outgoing IPC connection from h1susim going into h1suspr3 has been removed(h1susim before, h1susim after), and the PR3 oplev channels have been directly connected from ADC1(h1suspr3 before, h1suspr3 after).

Both models were compiled successfully but  have not yet been installed.

Model files can be found in /opt/rtcds/userapps/release/sus/h1/models/, and changes to h1susim.mdl and h1suspr3.mdl have been committed to the svn as revision 30905.
