camilla.compton@LIGO.ORG - posted 16:25, Friday 09 May 2025 - last comment - 13:37, Wednesday 14 May 2025(84321)
Beamdumps on HAM1
Betsy, Camilla, Keita
We have started checking beams are sufficiently dumped on the HAM1 beamdumps by checking main beam is easily in the dump and first bounce of the dumped beam if it's visible.
Progress below. Names as per D1000313 Cartoon.
| Name | Path | Beam being dumped | Checked? |
|
BD1
|
POP
|
LSC POP_A Reflection
|
|
|
BD2
|
POP
|
ASC POP_A WFS Reflection
|
|
|
BD3
|
POP
|
RM3 Transmission
|
|
|
BD4
|
POP
|
BDV2 Reflection
|
|
|
BD5
|
REFL
|
BDV1 Reflection
|
|
|
BD6a
|
REFL
|
M7 Ghost
|
|
|
BD6b
|
REFL
|
M7 Ghost
|
|
|
BD7
|
REFL
|
Unknown, beam from upstream of M2
|
|
|

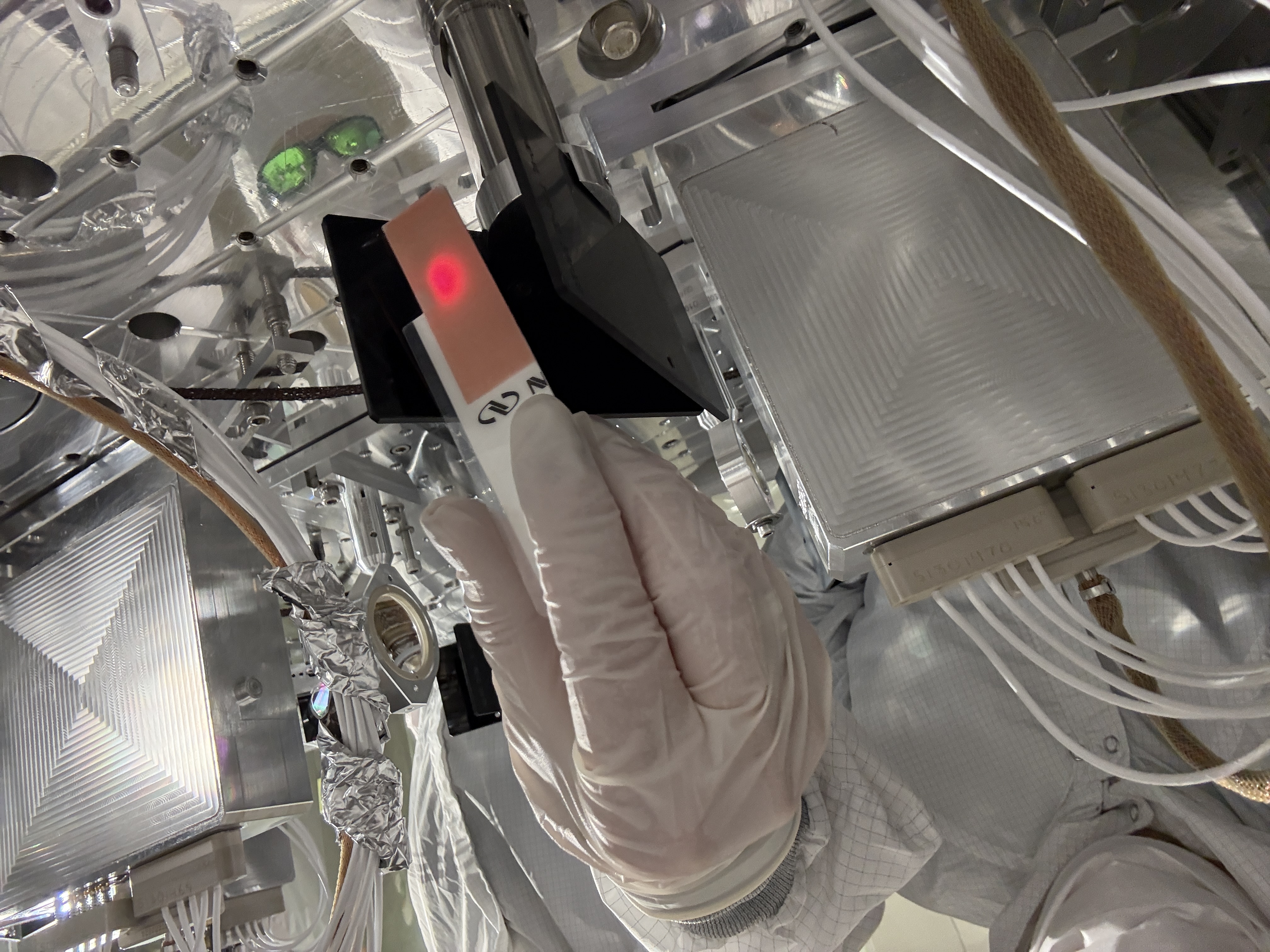

BD8
|
REFL
|
M2 Transmission
|
YES: photo
|
|
BD9
|
REFL
|
Unknown, beam from upstream of M2
|
|
|

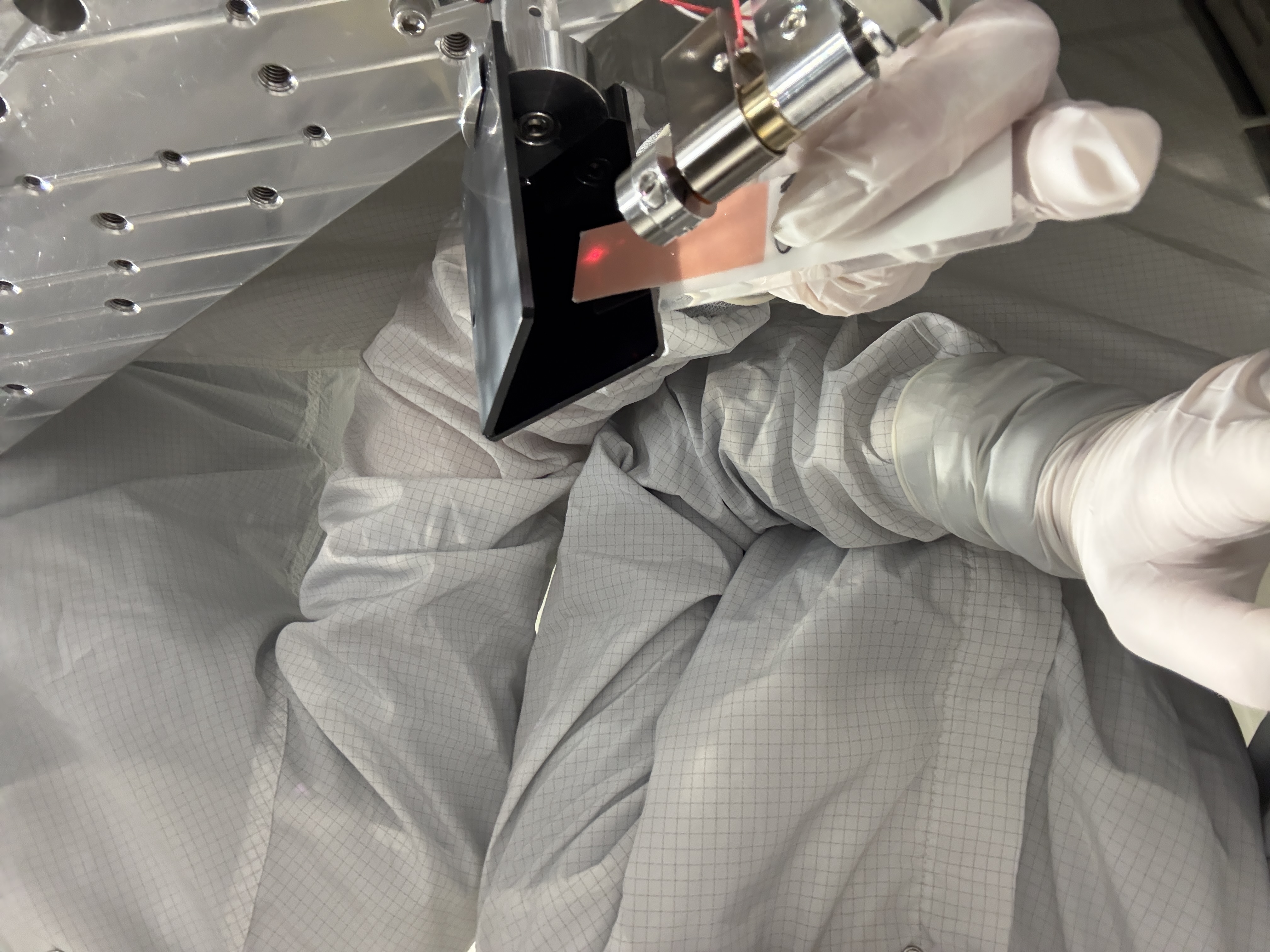

BD10
|
REFL
|
ASC REFL_A Reflection
|
YES: photo
|
|

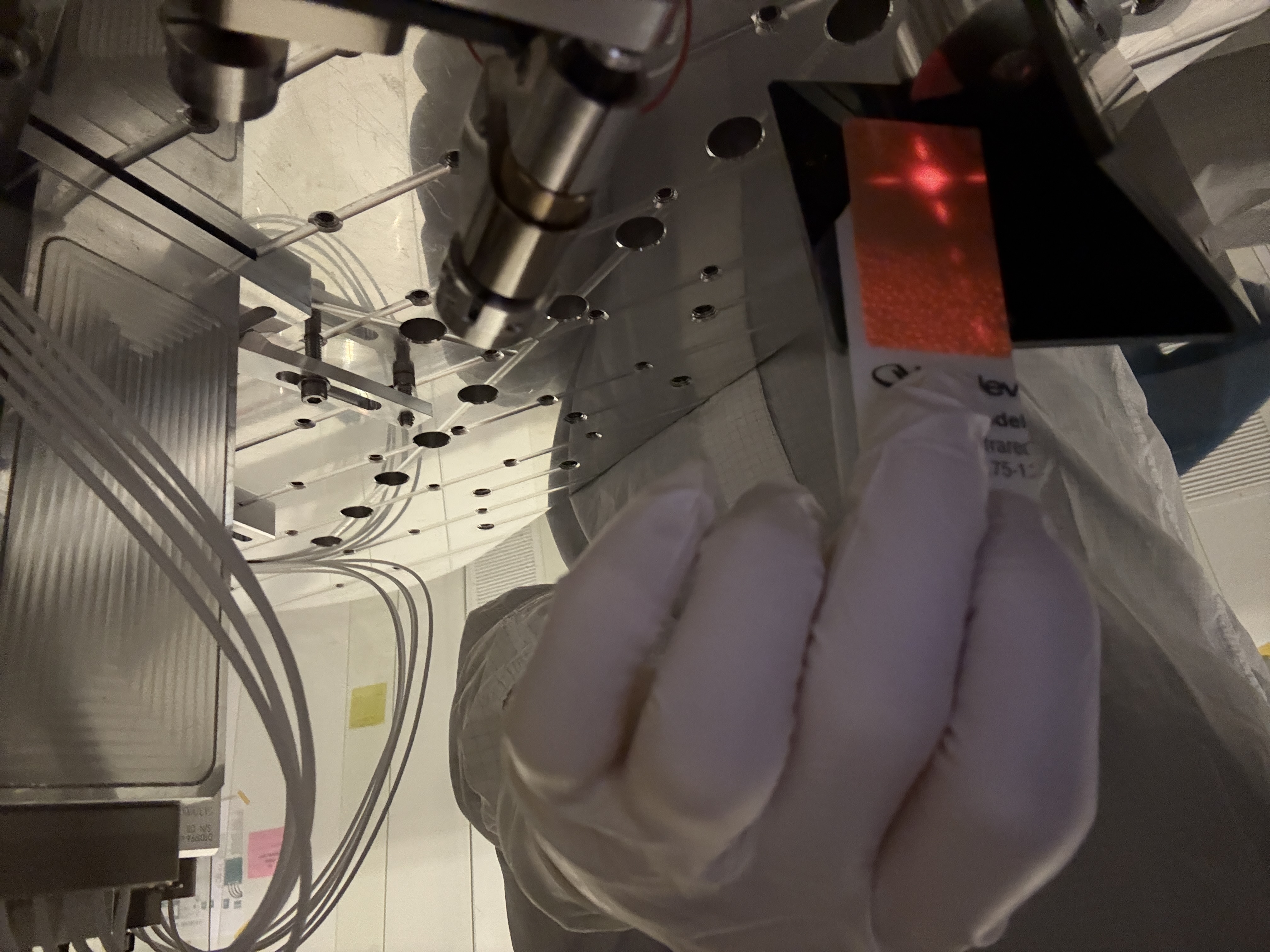

BD11
|
REFL
|
ASC REFL_B Reflection
|
YES: photo
|
|

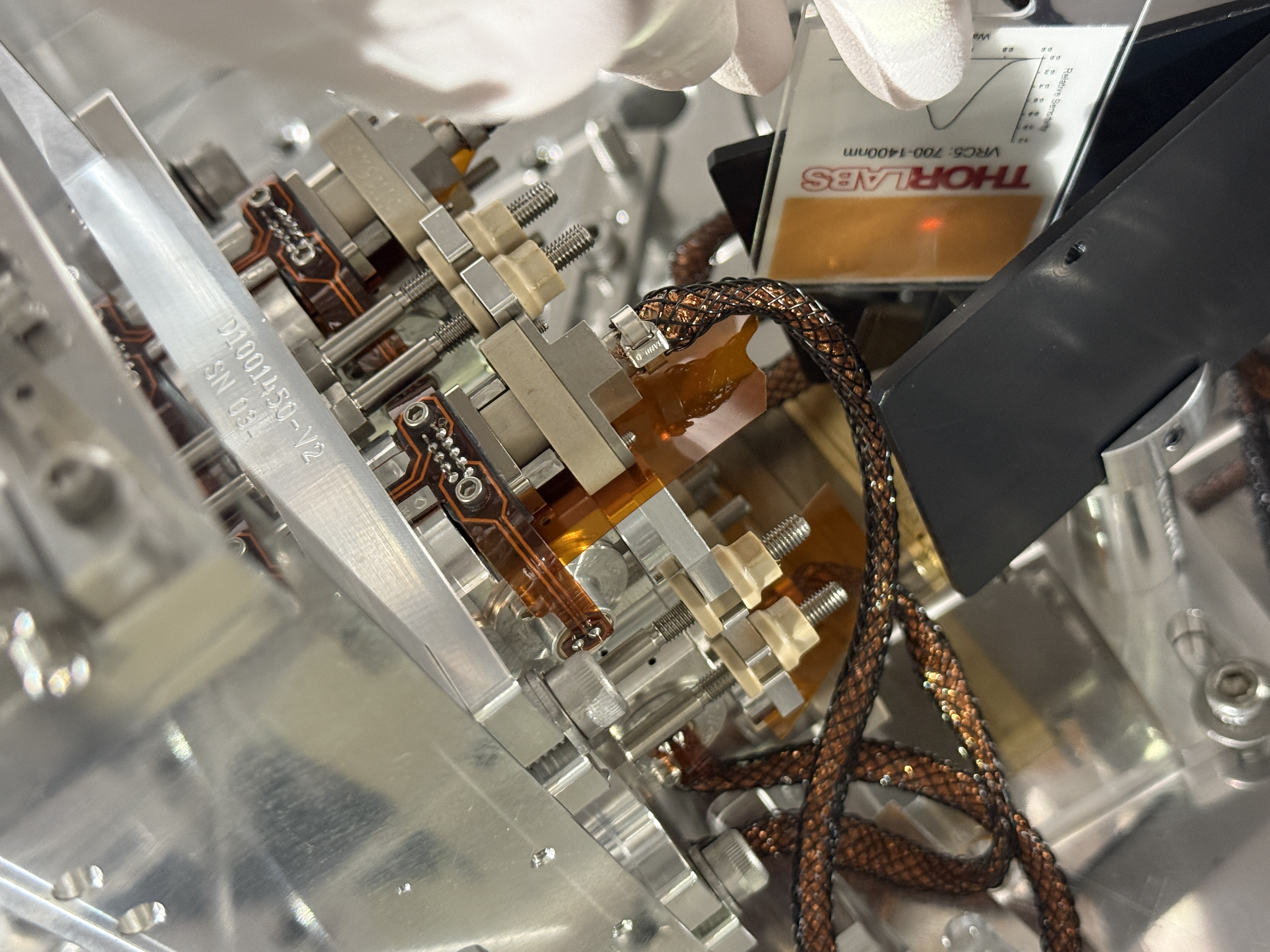

BD12
|
REFL
|
RM2 Transmission
|
YES: photo
|
|

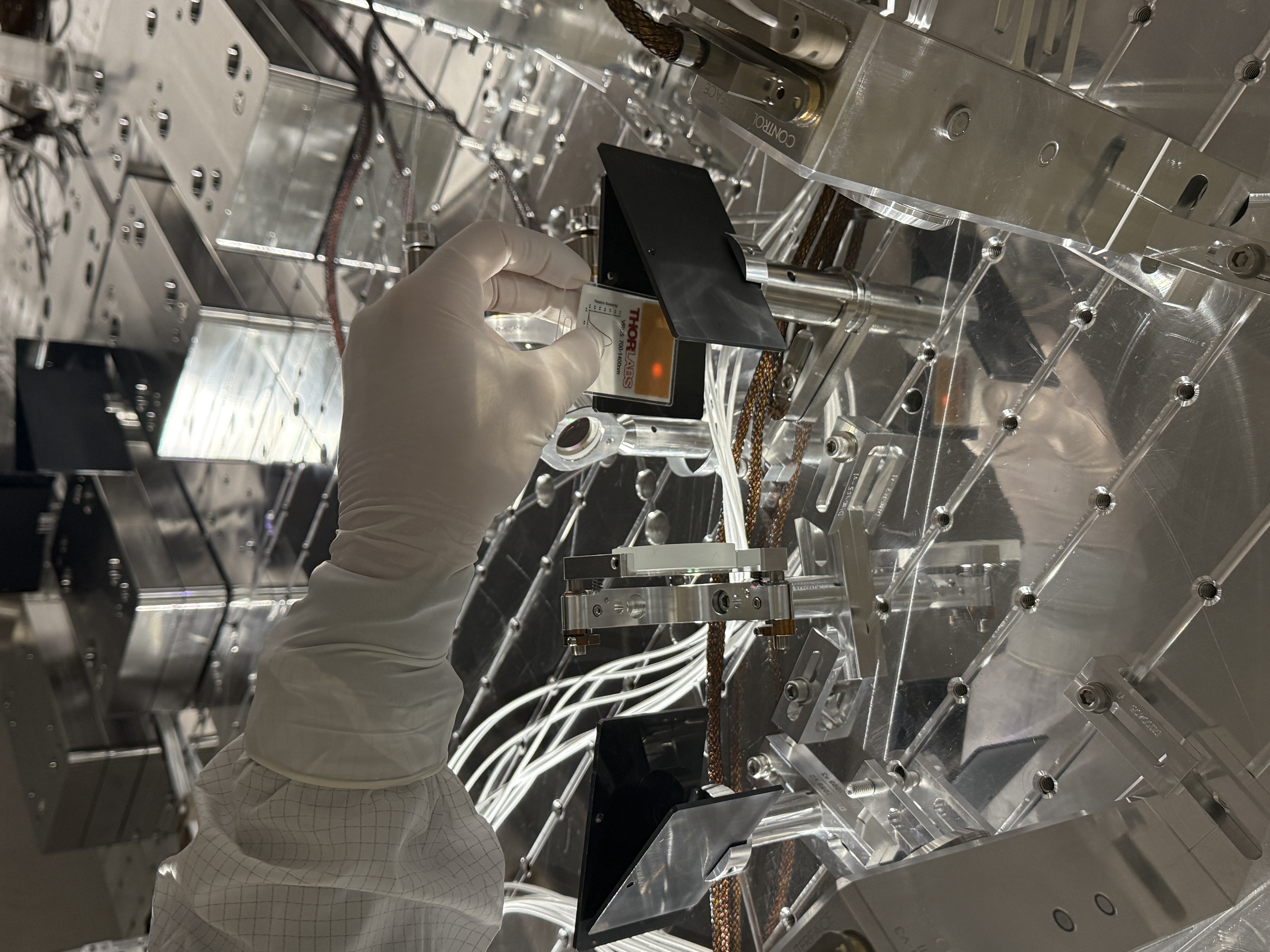

BD13
|
REFL
|
LSC REFL_A Reflection
|
YES: photo
|
|

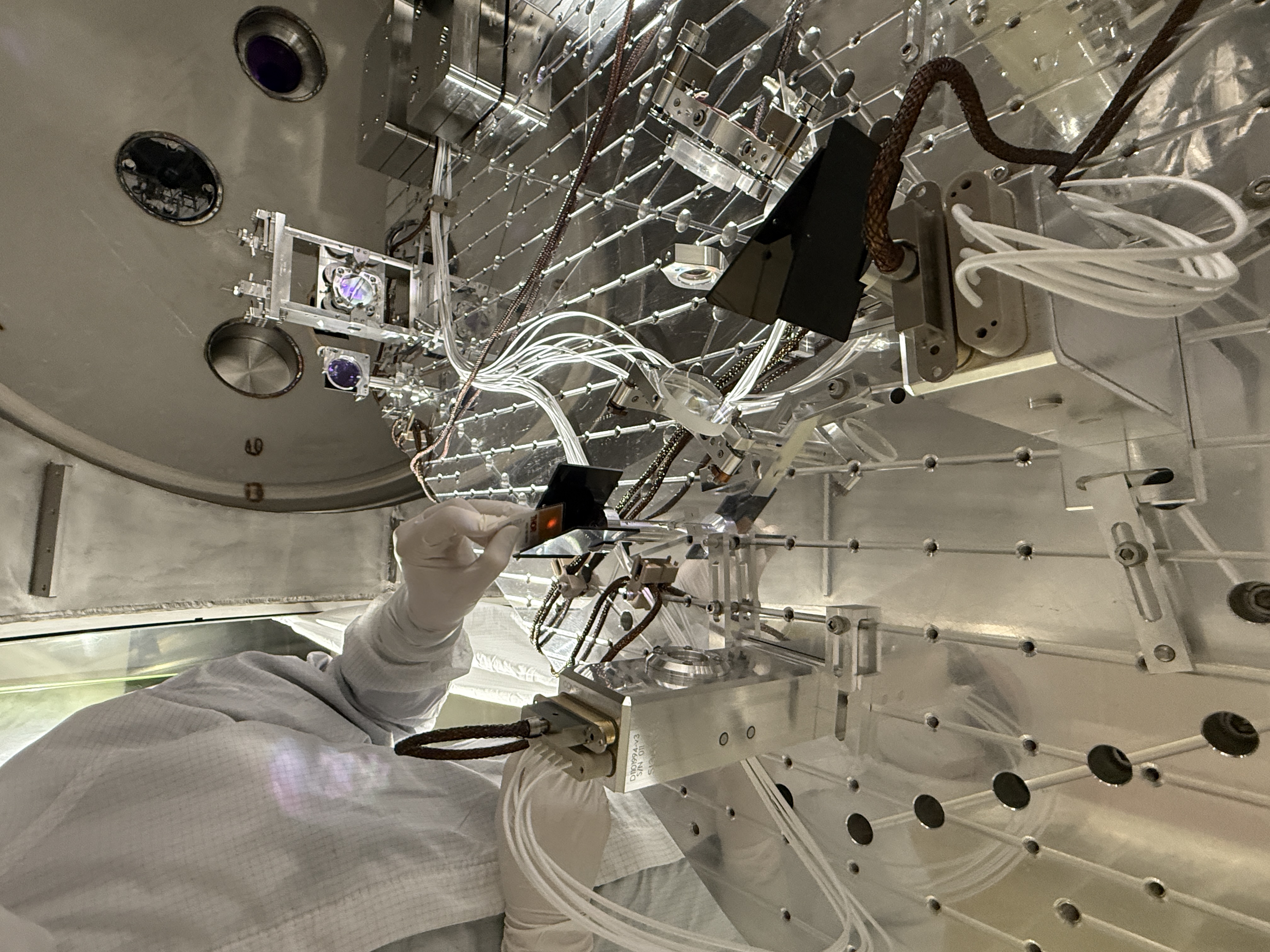

BD14
|
REFL
|
LSC REFL_B Reflection
|
YES: photo
|
|

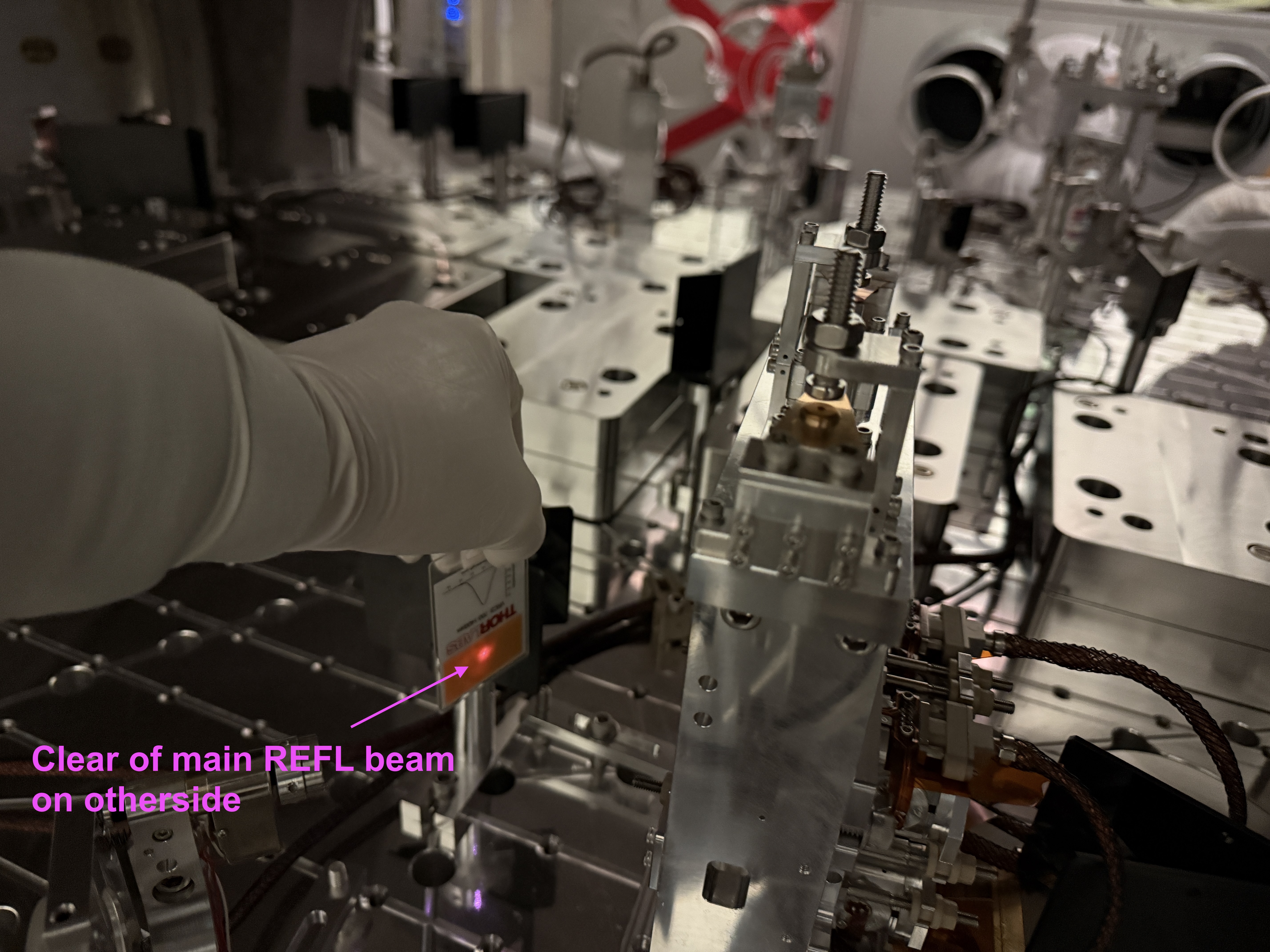

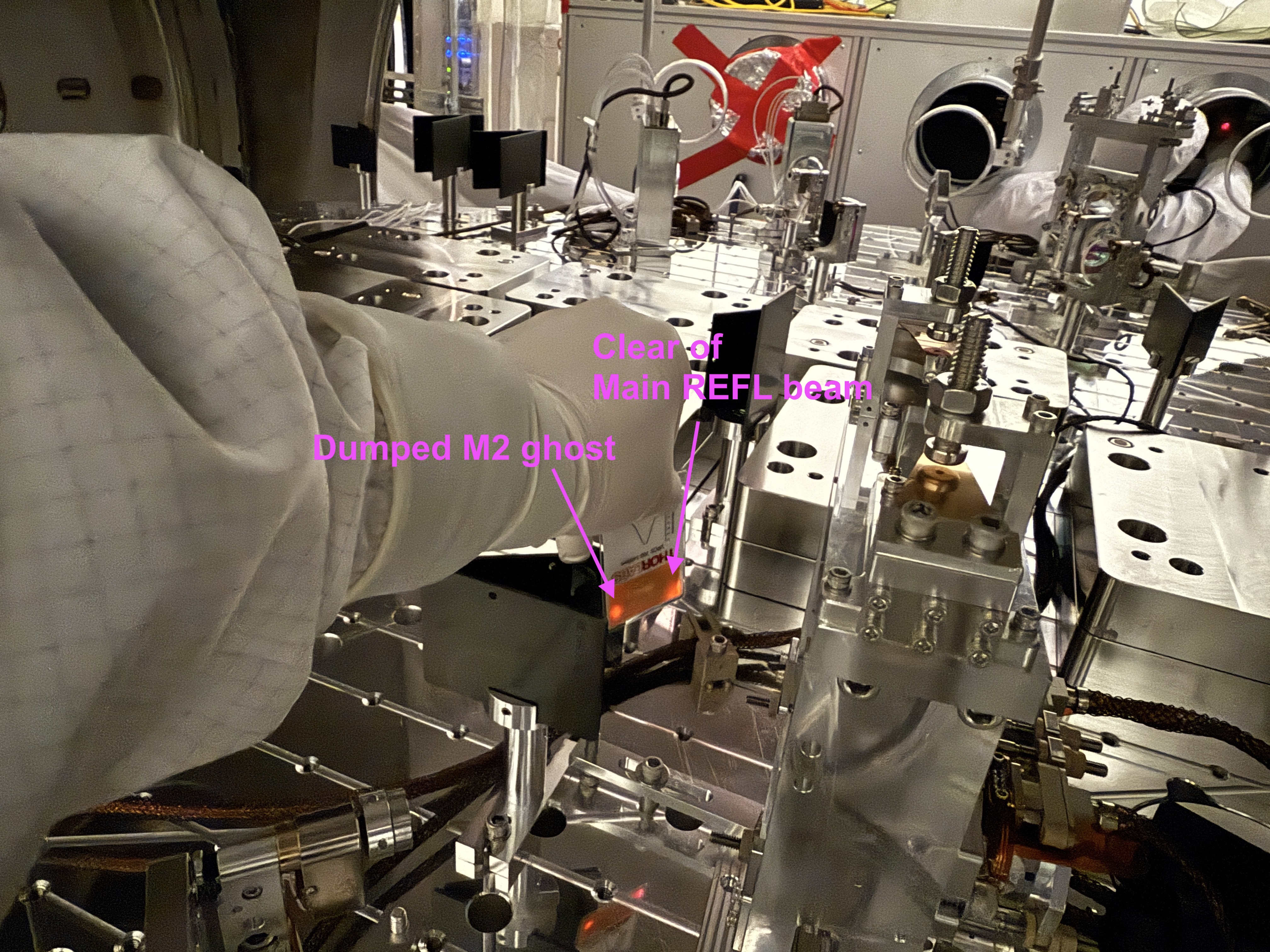

BD15
|
REFL
|
M2 Ghost (photo showing distance from main beam)
|
YES: photo
|
|

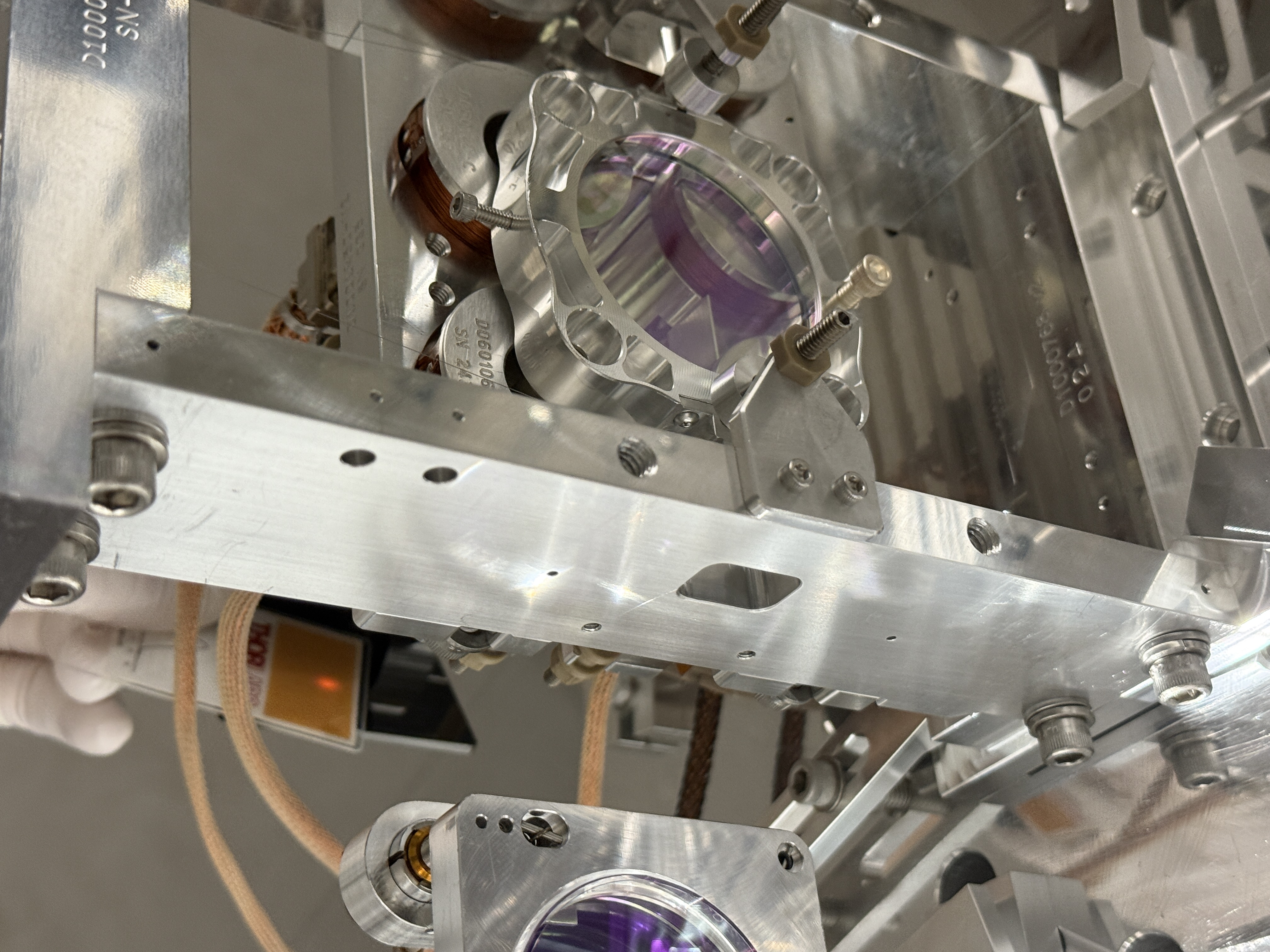

BD16
|
REFL
|
RM1 Transmission
|
YES: photo
|
|
BD17
|
PSL
|
Nozzle Baffle on PSL-HAM1 VP
|
YES: photo
|
|

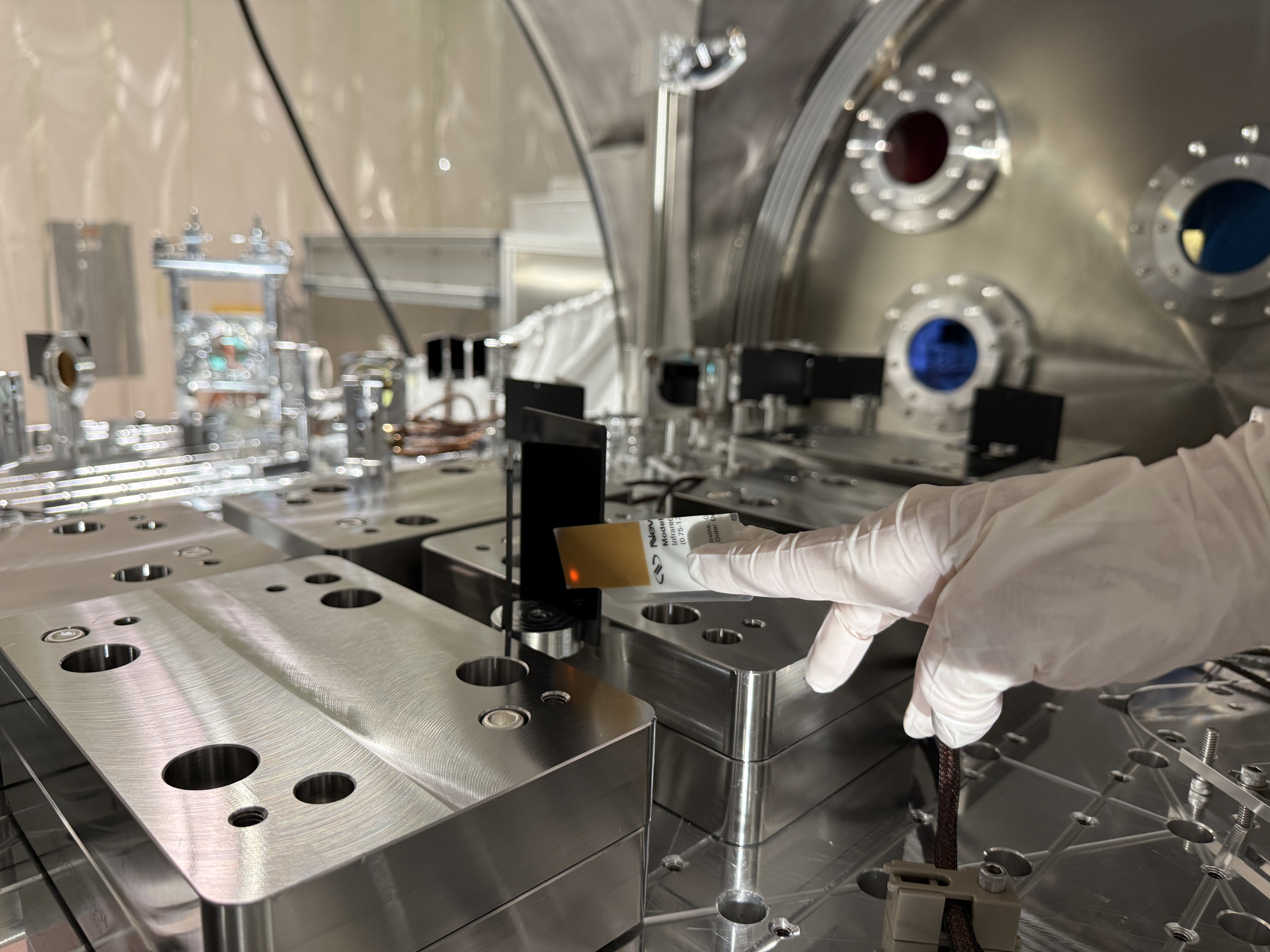

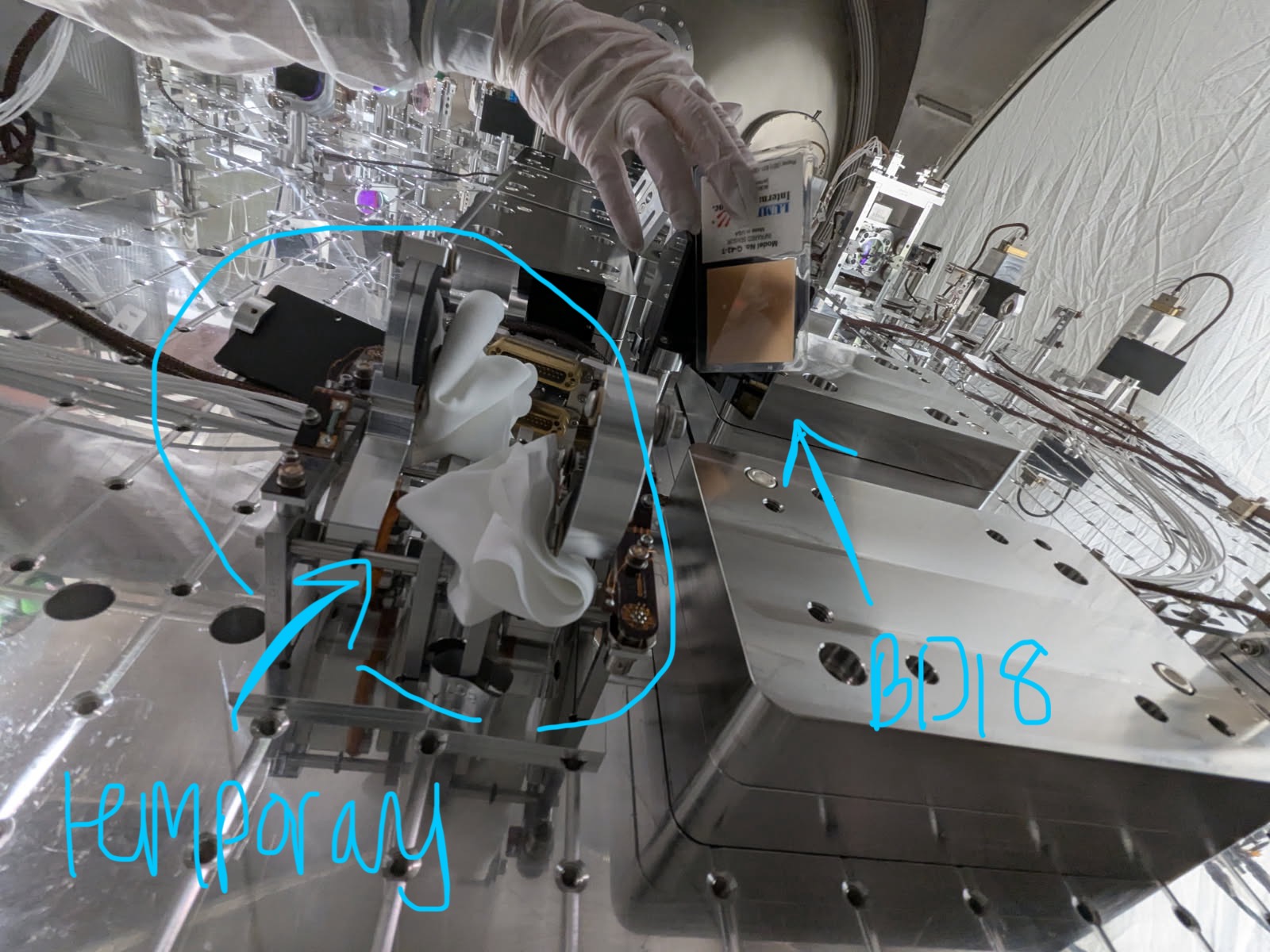

BD18
|
PSL
|
Nozzle Baffle on PSL-HAM1 VP
|
YES: photo
|
Images attached to this report
Comments related to this report
Camilla, Betsy, Jenne
All beam dumps are now placed and checked as of this morning 84375, beams were confirmed in each BD apart from BD3 (PM1 transmission) as the beam is too faint to see.
All beam dumps are now placed and checked as of this morning 84375, beams were confirmed in each BD apart from BD3 (PM1 transmission) as the beam is too faint to see.
Names as per D1000313 Cartoon, some edits to locations, details of new locations will be in other alog.
|
Name
|
Path
|
Beam being dumped
|
Checked?
|
|

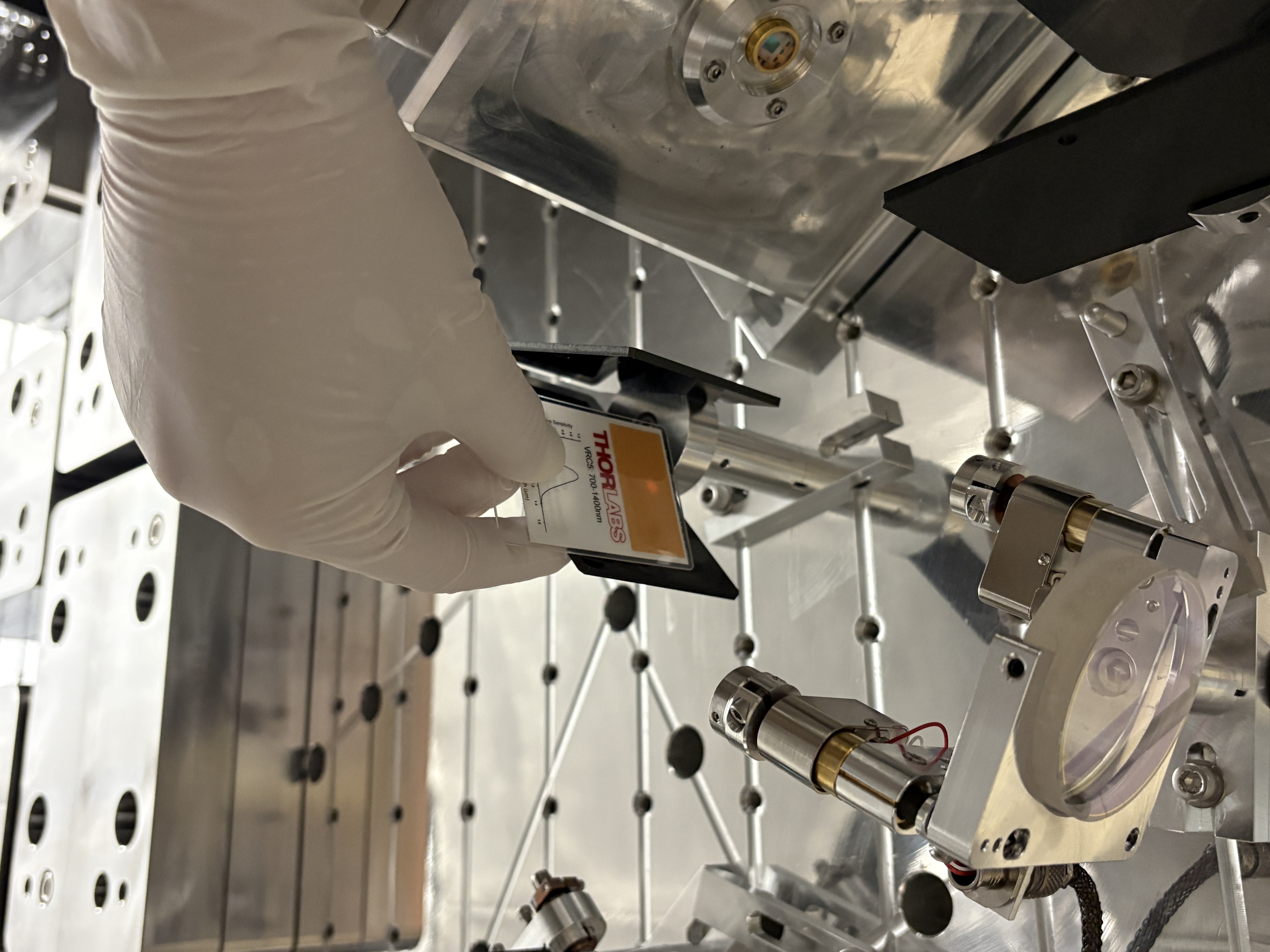

BD1
|
POP
|
LSC POP_A Reflection
|
YES: photo
|
|

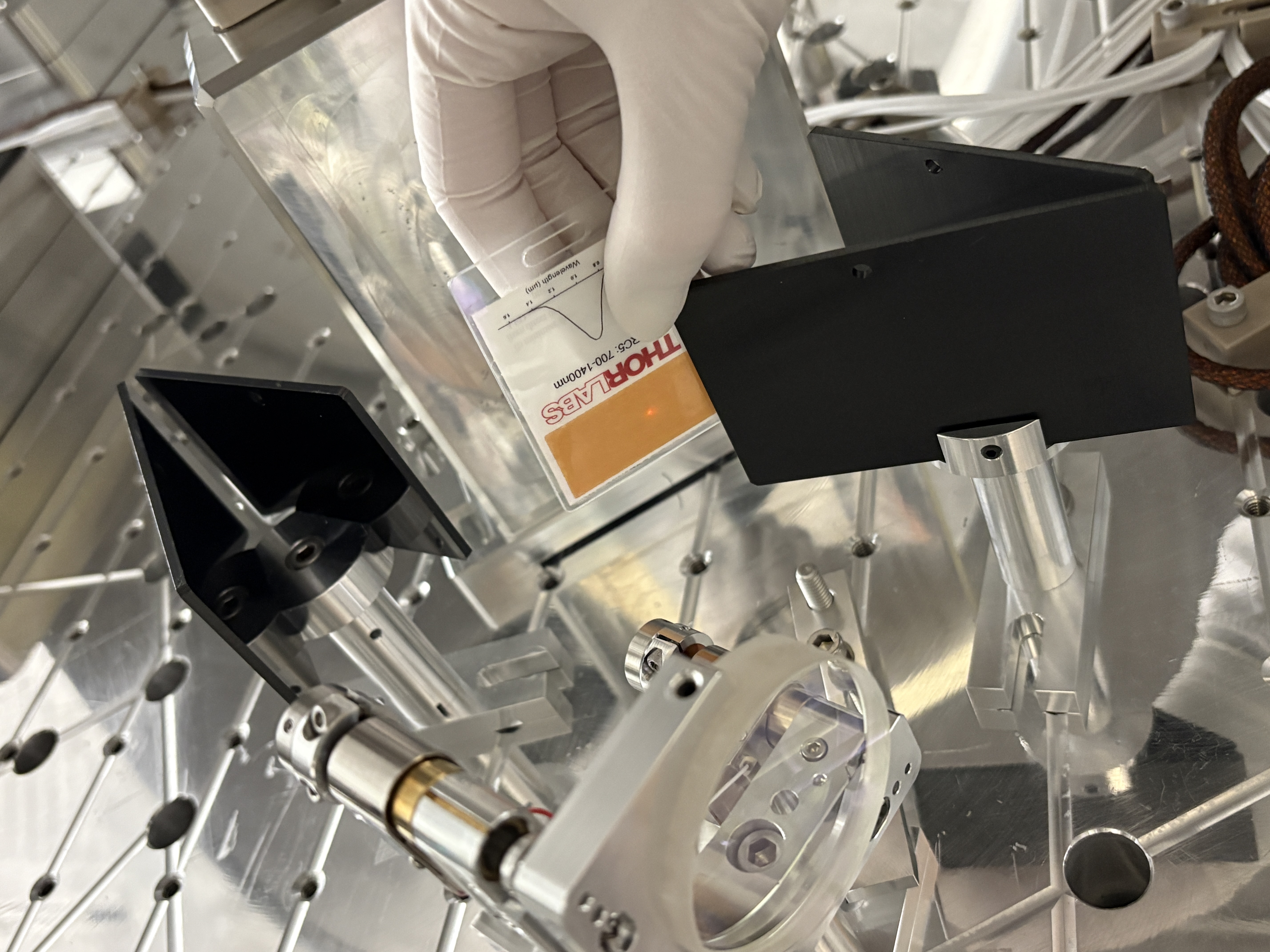

BD2
|
POP
|

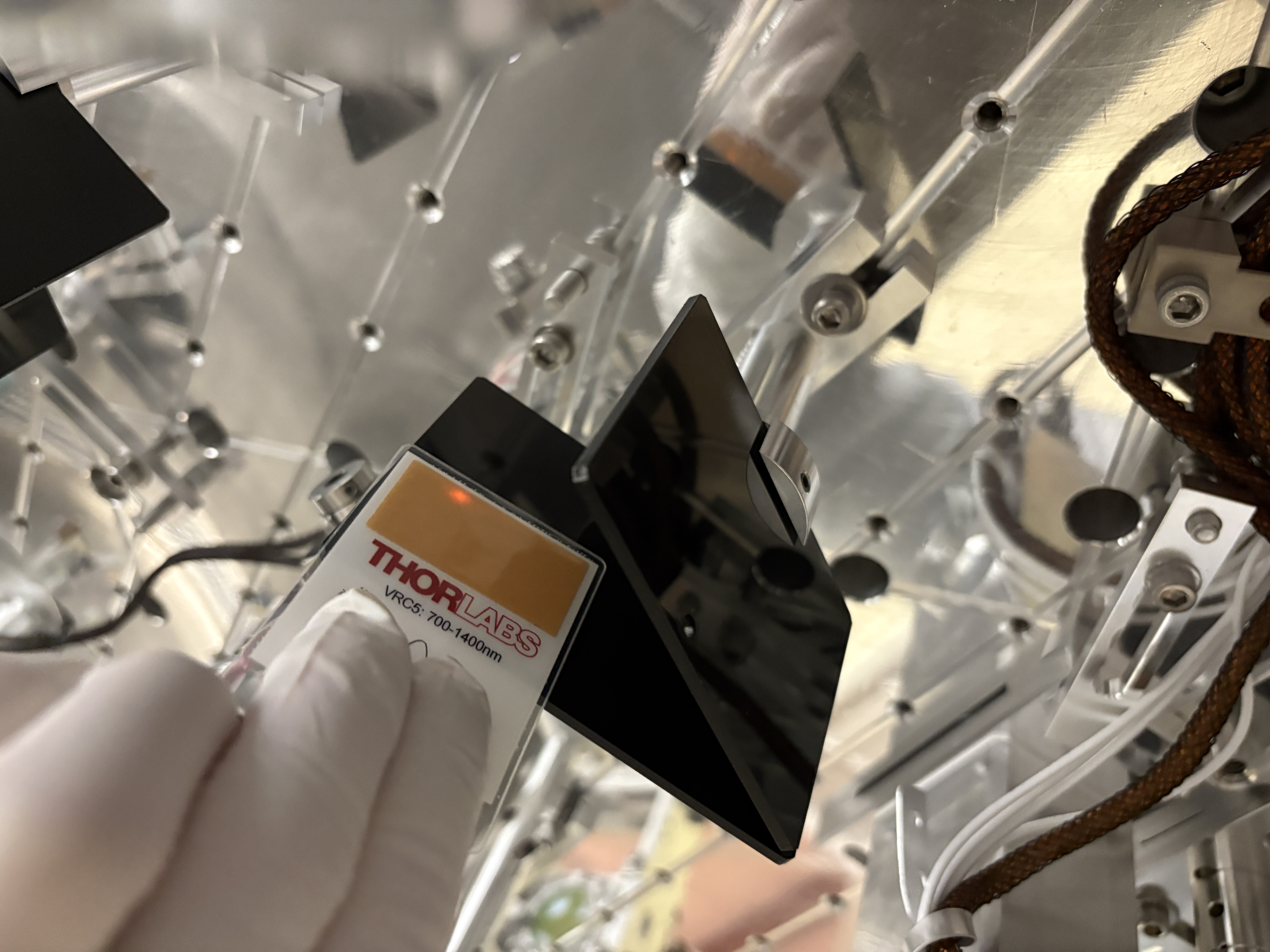

ASC POP_A WFS Reflection, beam clears by ~15mm, photo
|
YES: photo
|
|
BD3
|
POP
|

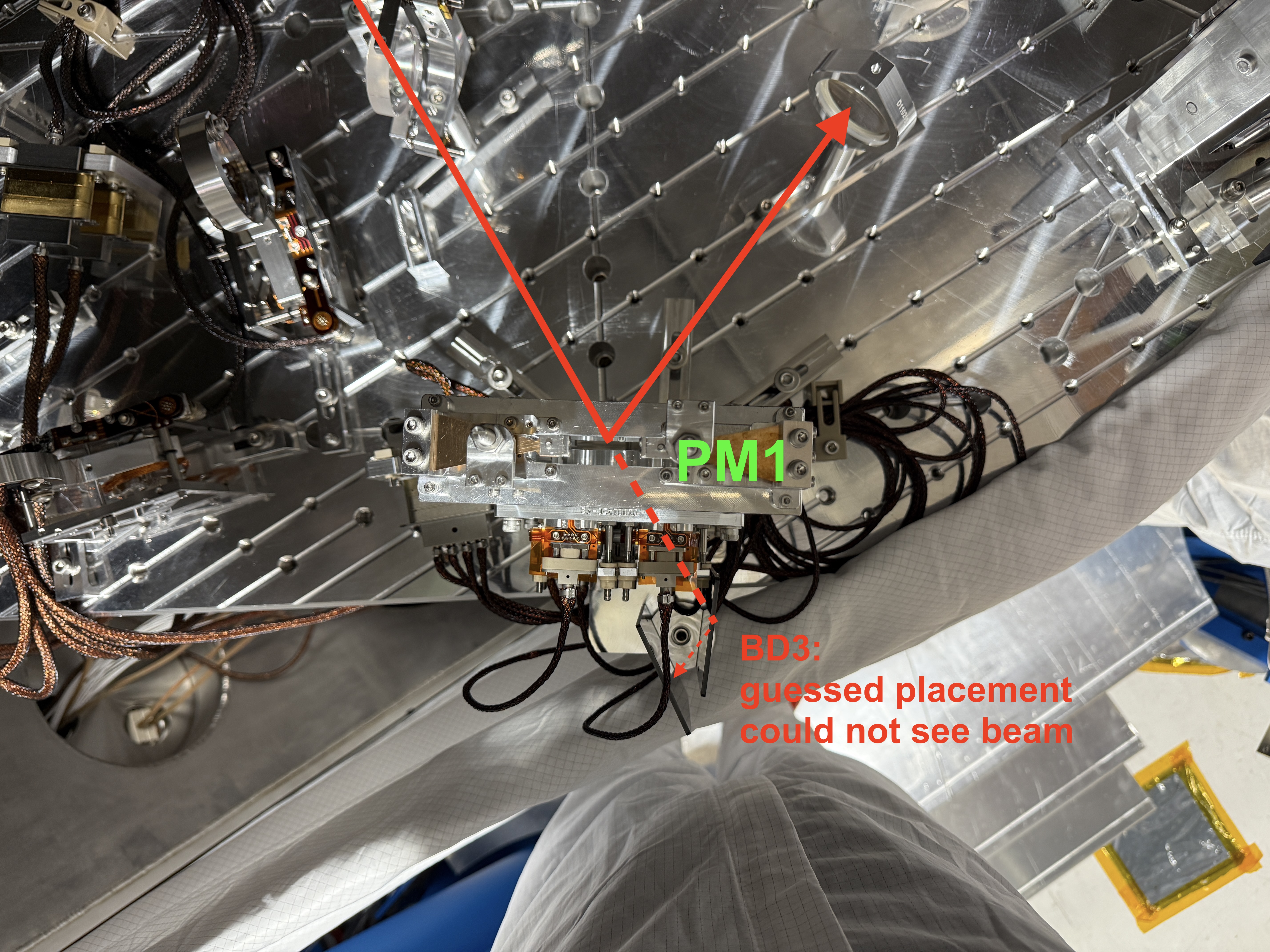

RM3 Transmission (Beam too weak, estimated placement)
|
Estimated: photo
|
|

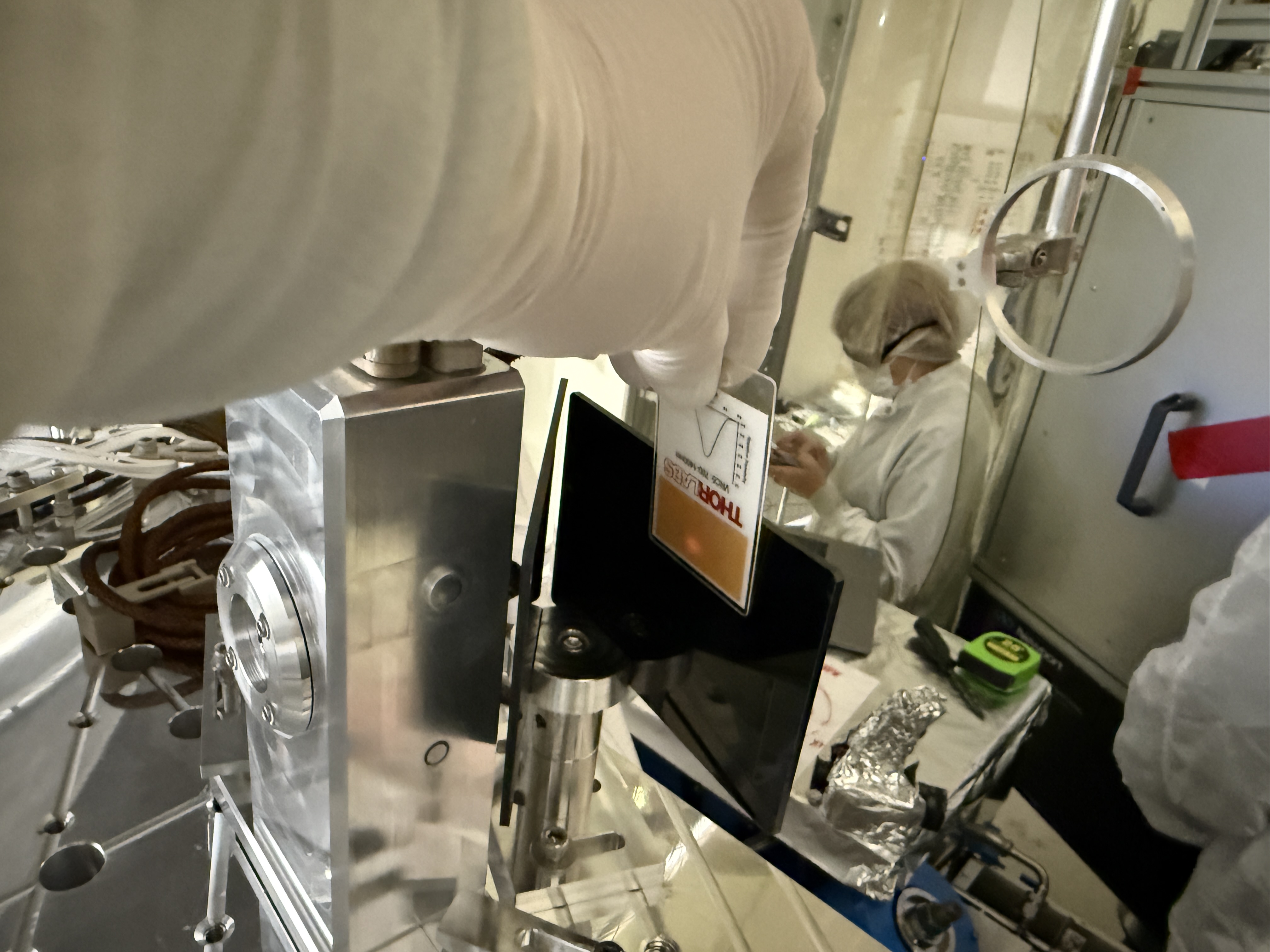

BD4
|
POP
|
BDV2 Reflection MOVED LOCATIONS
|
YES: photo
|
|
BD5
|
REFL
|

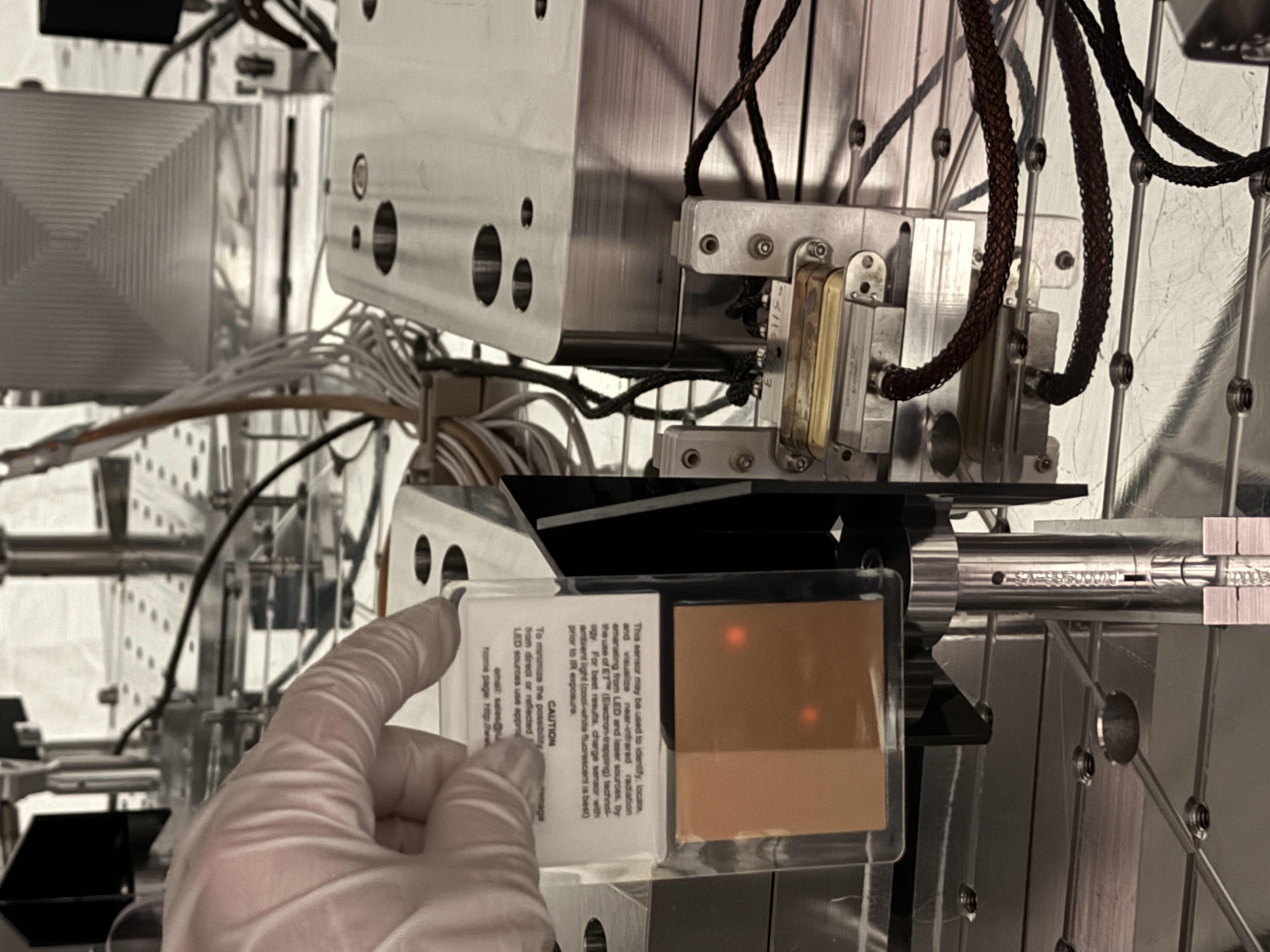

BDV1 Reflection, alos catching 2 ghost beams, photo
|
YES: photo
|
|
BD6a
|
REFL
|
M14 Ghost MOVED LOCATIONS
|
YES, see BD6b.
|
|
BD6b
|
REFL
|
M14 Ghost
|
YES: photo
|
|

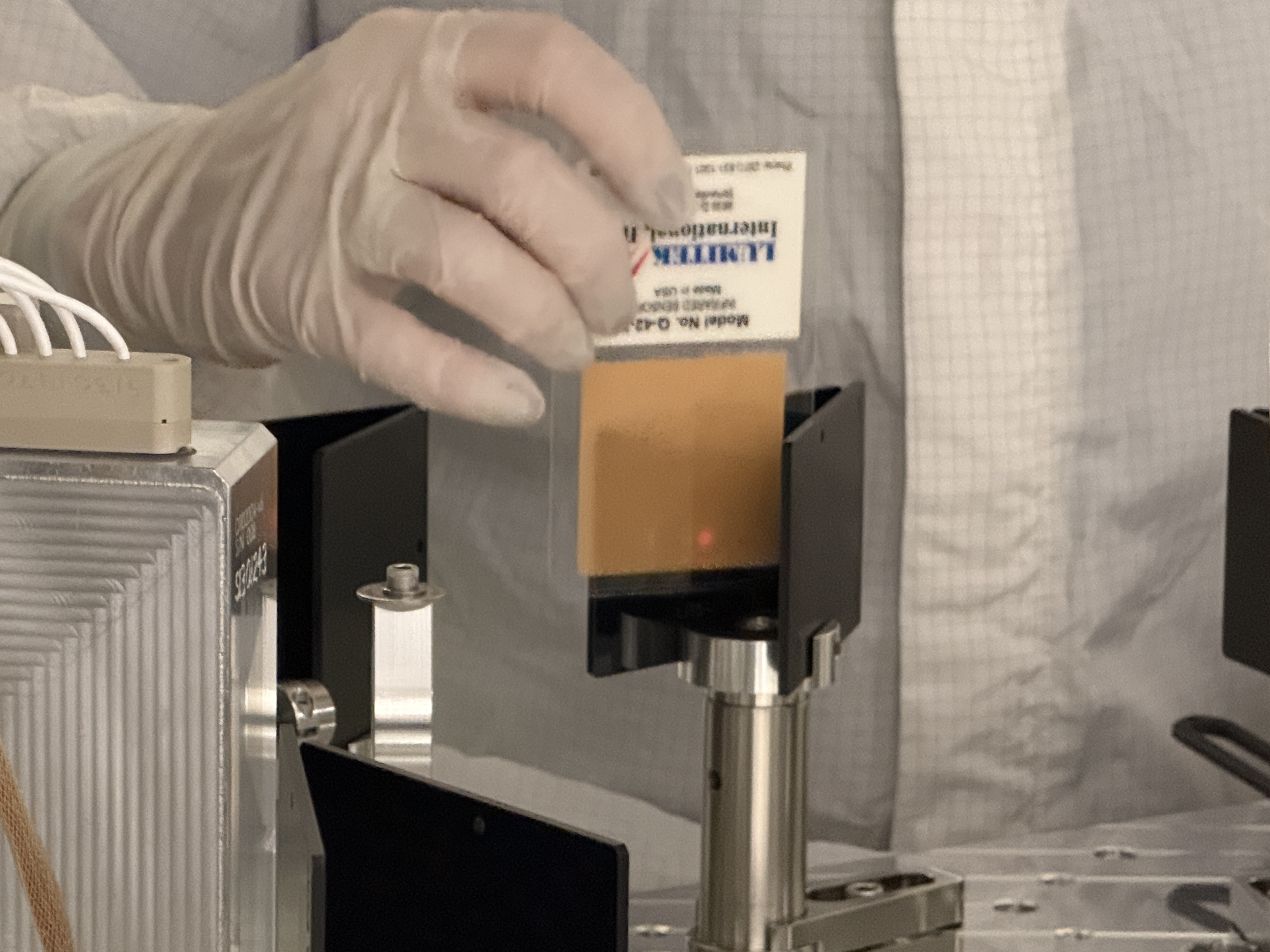

BD7
|
REFL
|
Unknown, beam from upstream of M2, MOVED LOCATIONS
|
YES: photo
|
|

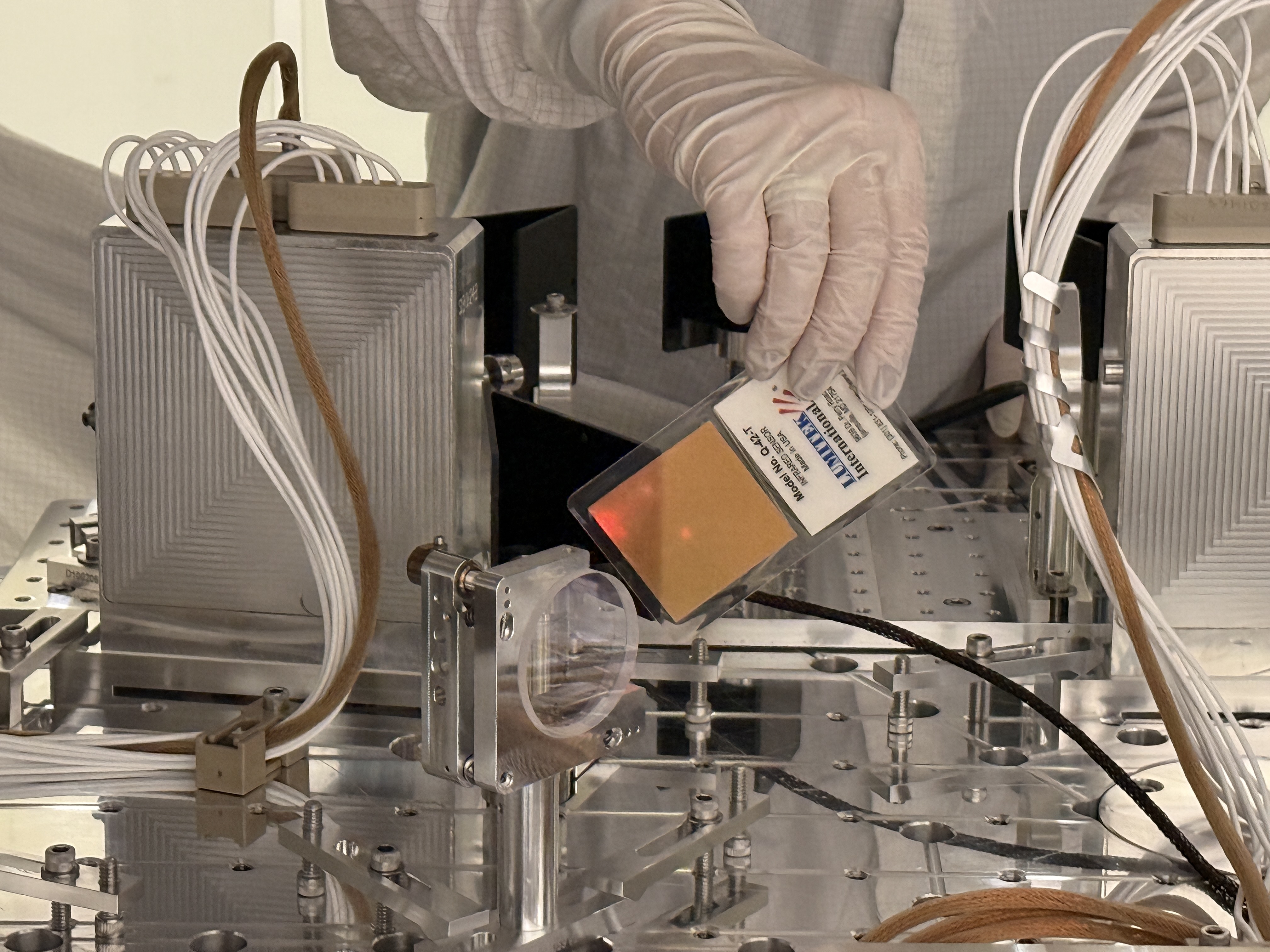

BD8
|
REFL
|
M2 Transmission
|
YES: photo
|
|
|
|
|
Not using, dumped by BD8
|
|

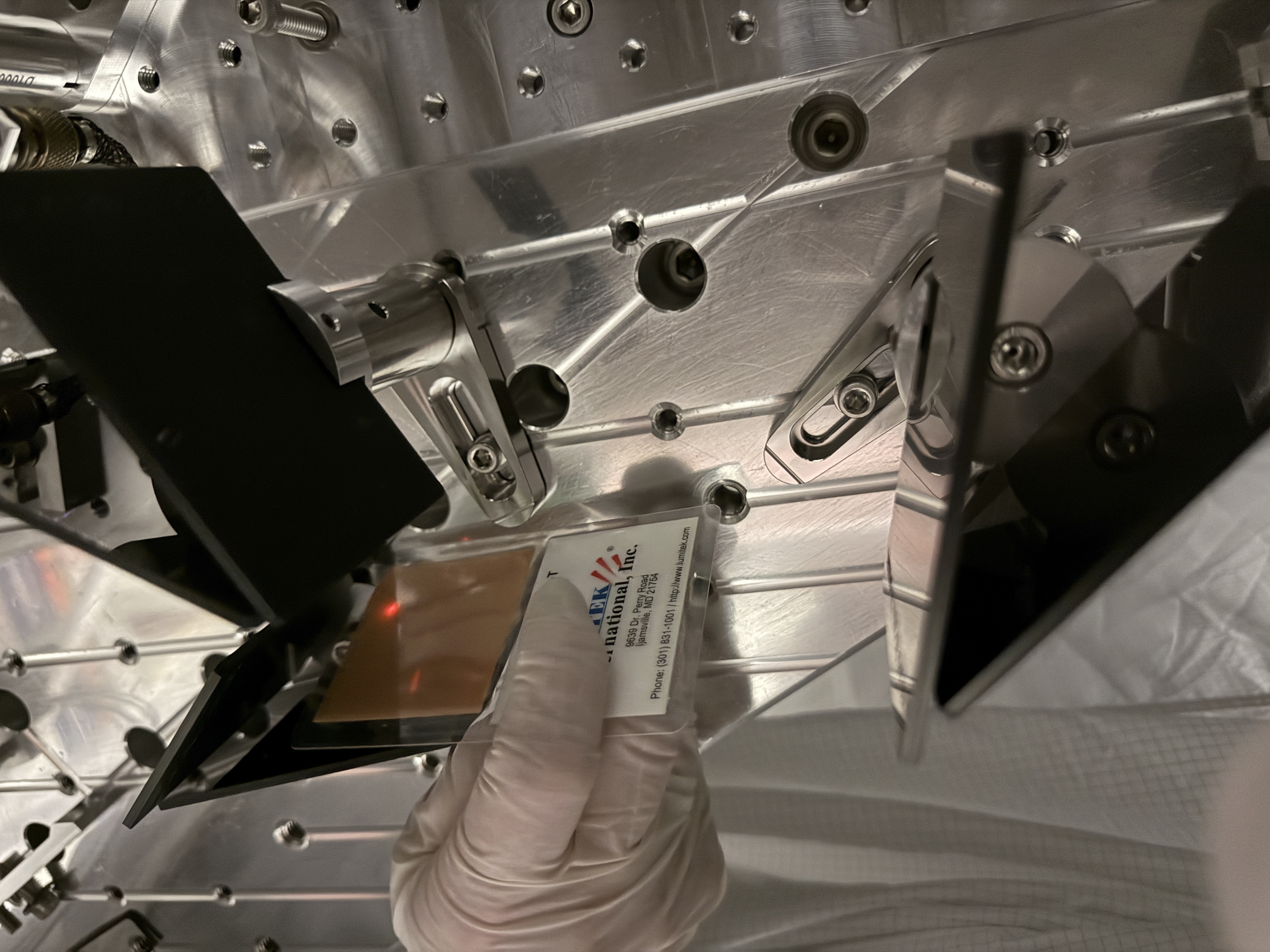

NewBD
(BD9)
|
REFL
|

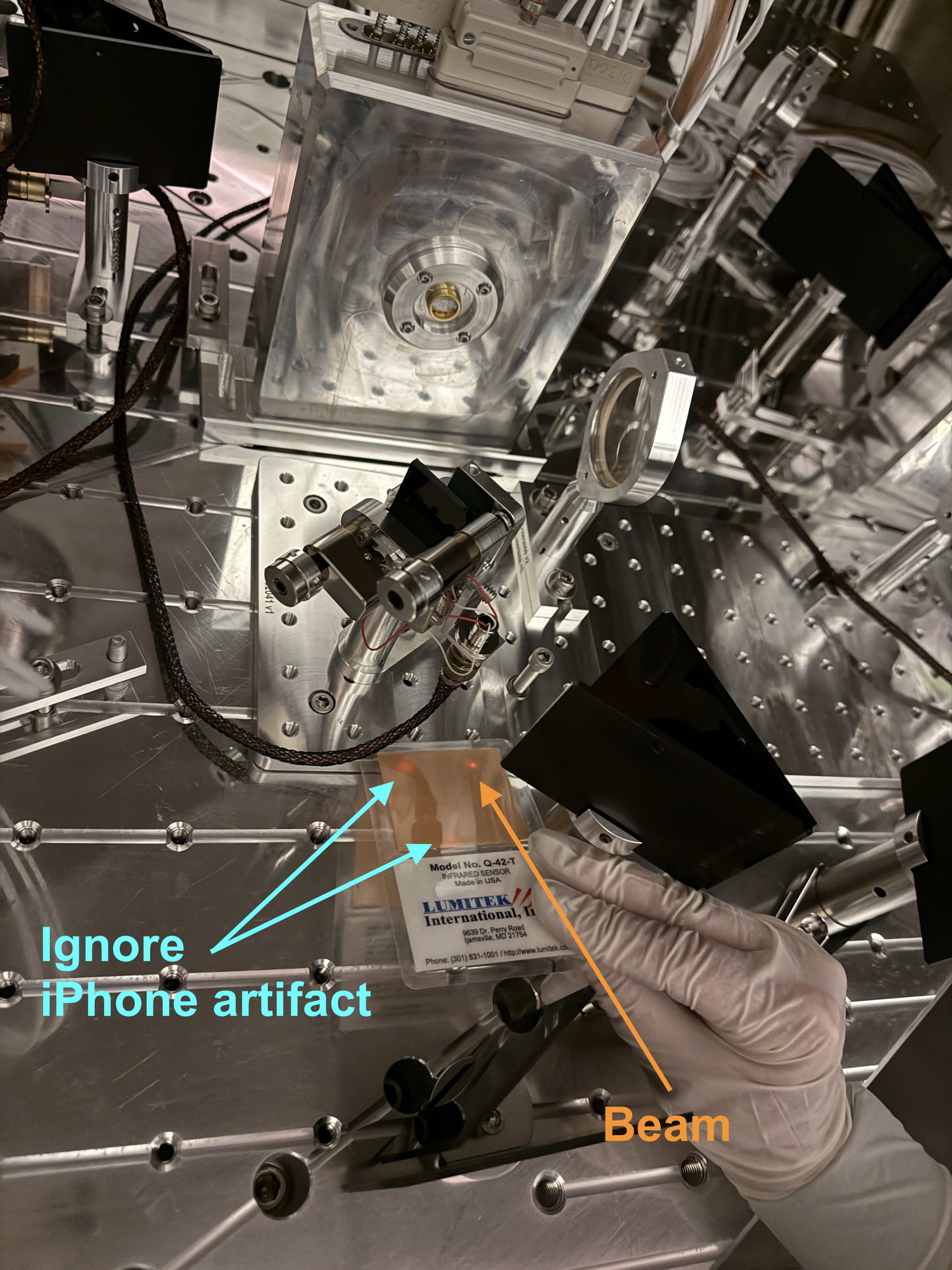

REFL ASC A low reflection, beam bounces off ISI, photo
Call this new beamdump BD9 as now not using BD9. |
YES: photo
|
|
BD10
|
REFL
|
ASC REFL_A Reflection
|
YES: photo
|
|
BD11
|
REFL
|
ASC REFL_B Reflection
|
YES: photo
|
|
BD12
|
REFL
|
RM2 Transmission
|
YES: photo
|
|
BD13
|
REFL
|
LSC REFL_A Reflection
|
YES: photo
|
|
BD14
|
REFL
|
LSC REFL_B Reflection
|
YES: photo
|
|
BD15
|
REFL
|
M2 Ghost (photo showing distance from main beam)
|
YES: photo
|
|
BD16
|
REFL
|
RM1 Transmission
|
YES: photo
|
|
BD17
|
PSL
|
Nozzle Baffle on PSL-HAM1 VP
|
YES: photo
|
|
BD18
|
PSL
|
Nozzle Baffle on PSL-HAM1 VP
|
YES: photo
|
|

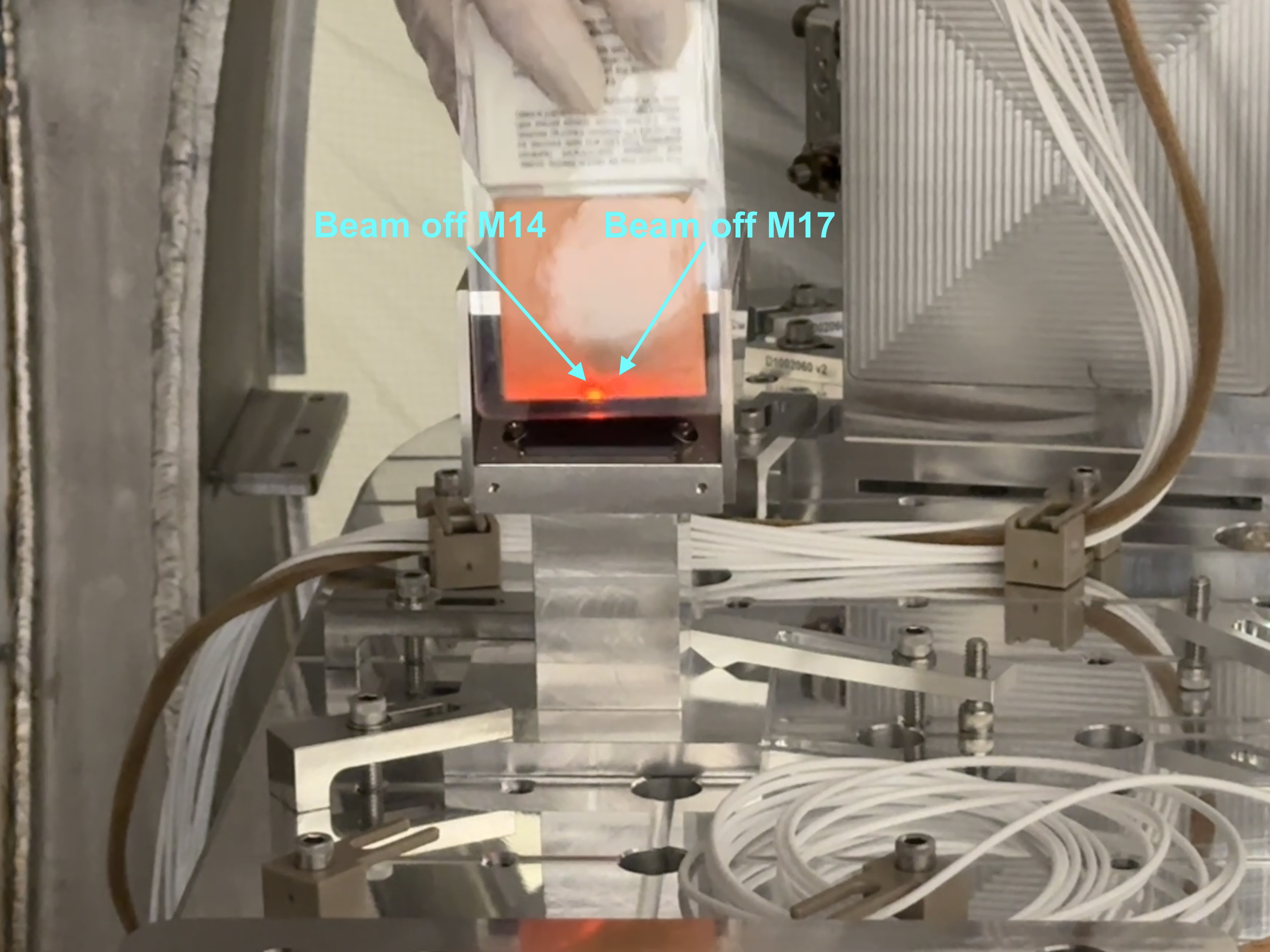

HiPWR
|
REFL
|
M14 and M17 Reflection
|
YES: photo
|
Images attached to this comment
EPO tag for pics of laser safety in practice.
