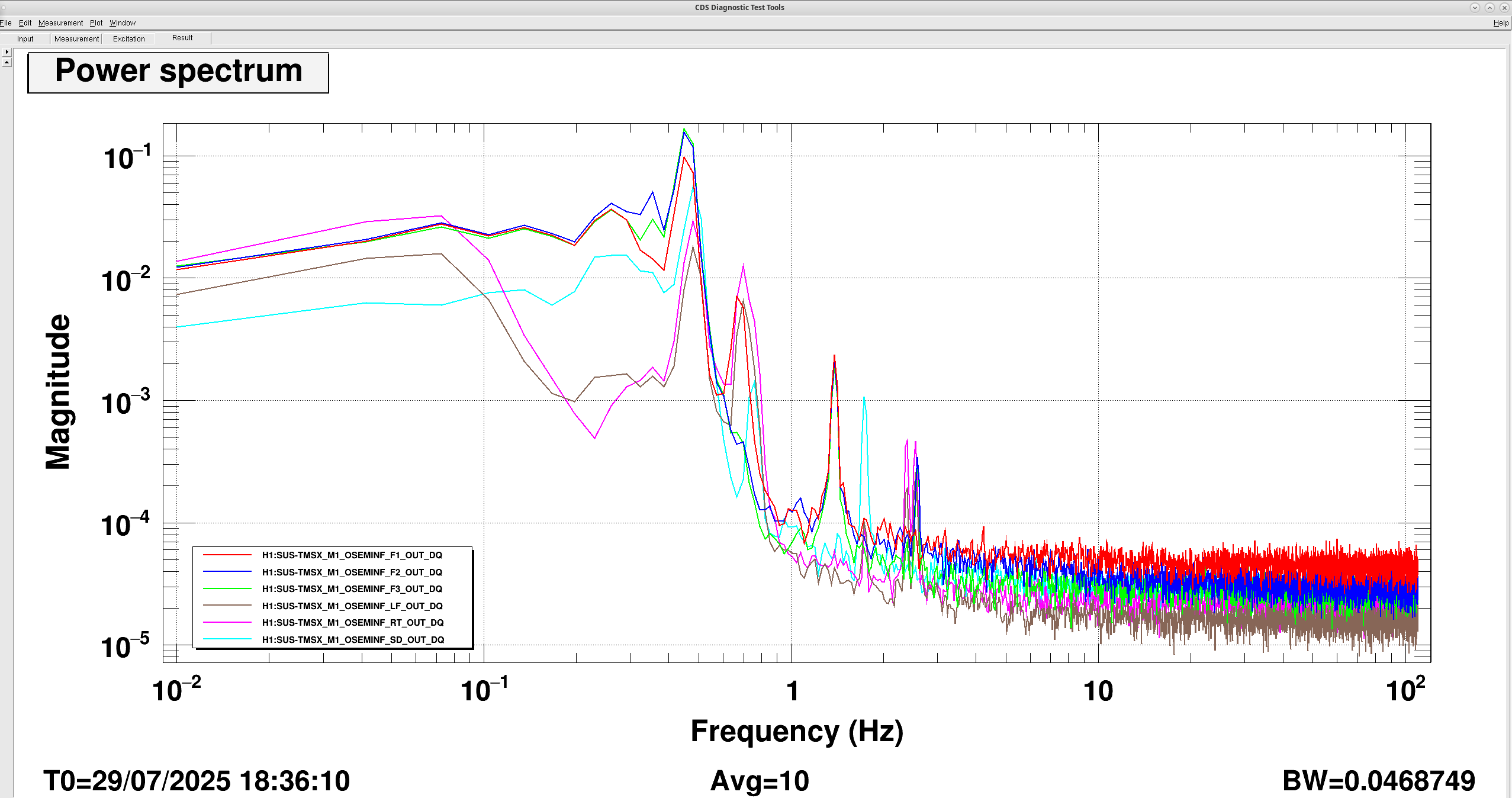

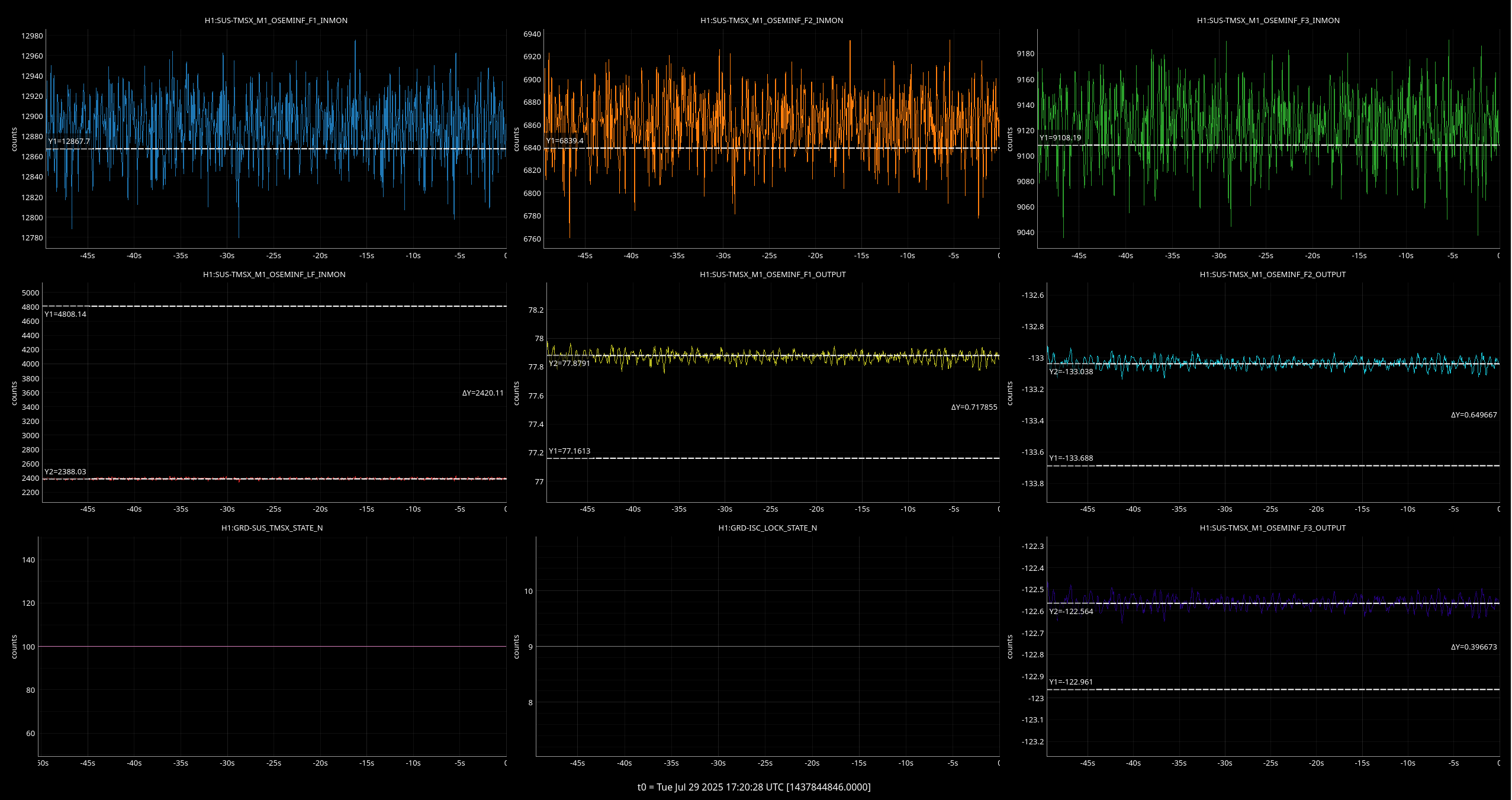

After Richard swapped the TMSX coil driver chassis I took a look at the raw OSEM counts for the TMSX (F1, F2, F3, LF) comparing to a time earlier when TMSX and ISC_LOCK were both in the same state (ALIGNED, DOWN). I see that LFs counts are ~2500 counts lower post swap. I'm not sure if there are any other checks to run.
