jeffrey.kissel@LIGO.ORG - posted 15:41, Thursday 21 August 2025 (86503)
H1 SUS SR3 M1 Pitch and Yaw Estimator: Local Performance Metrics

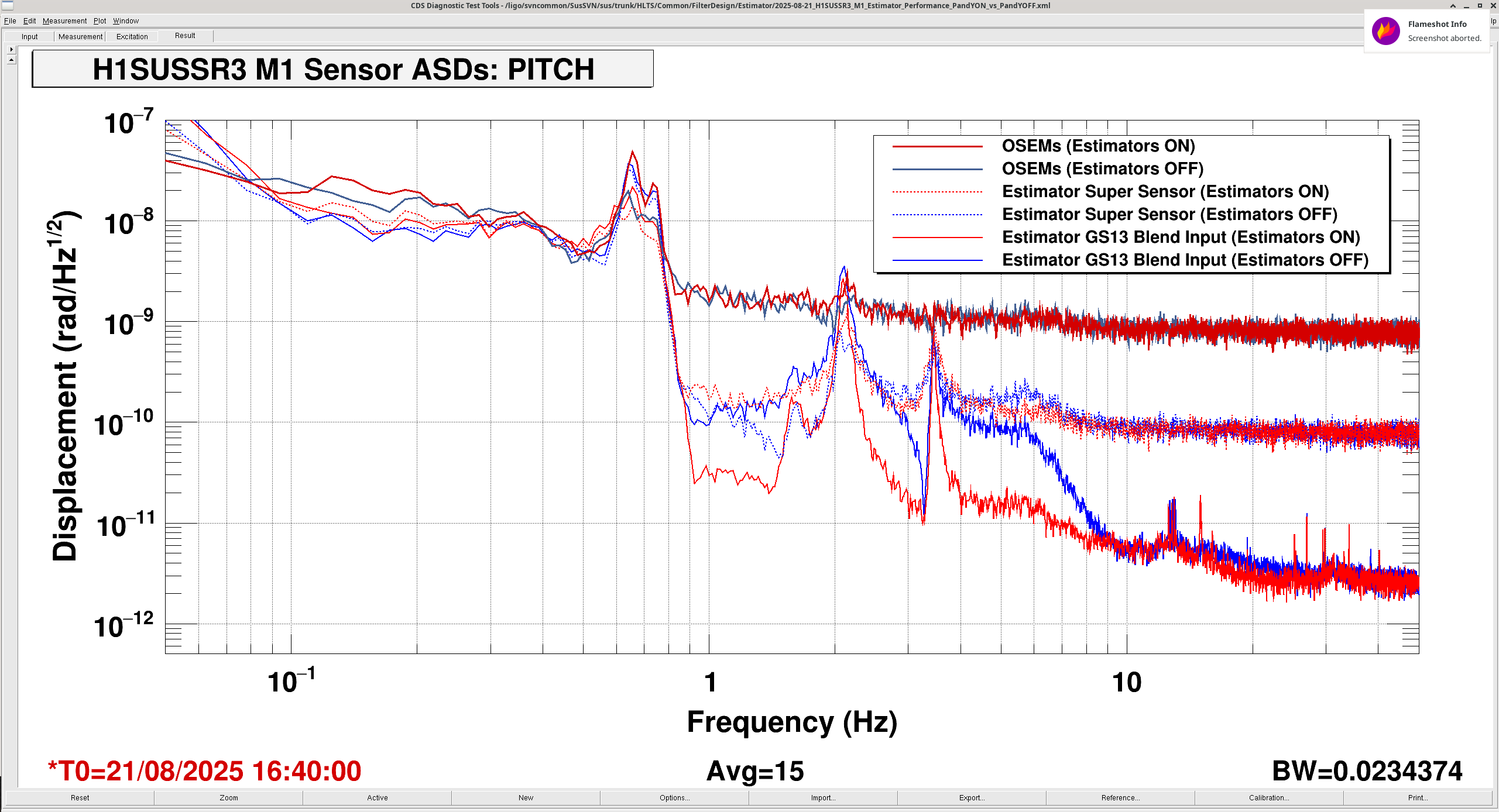

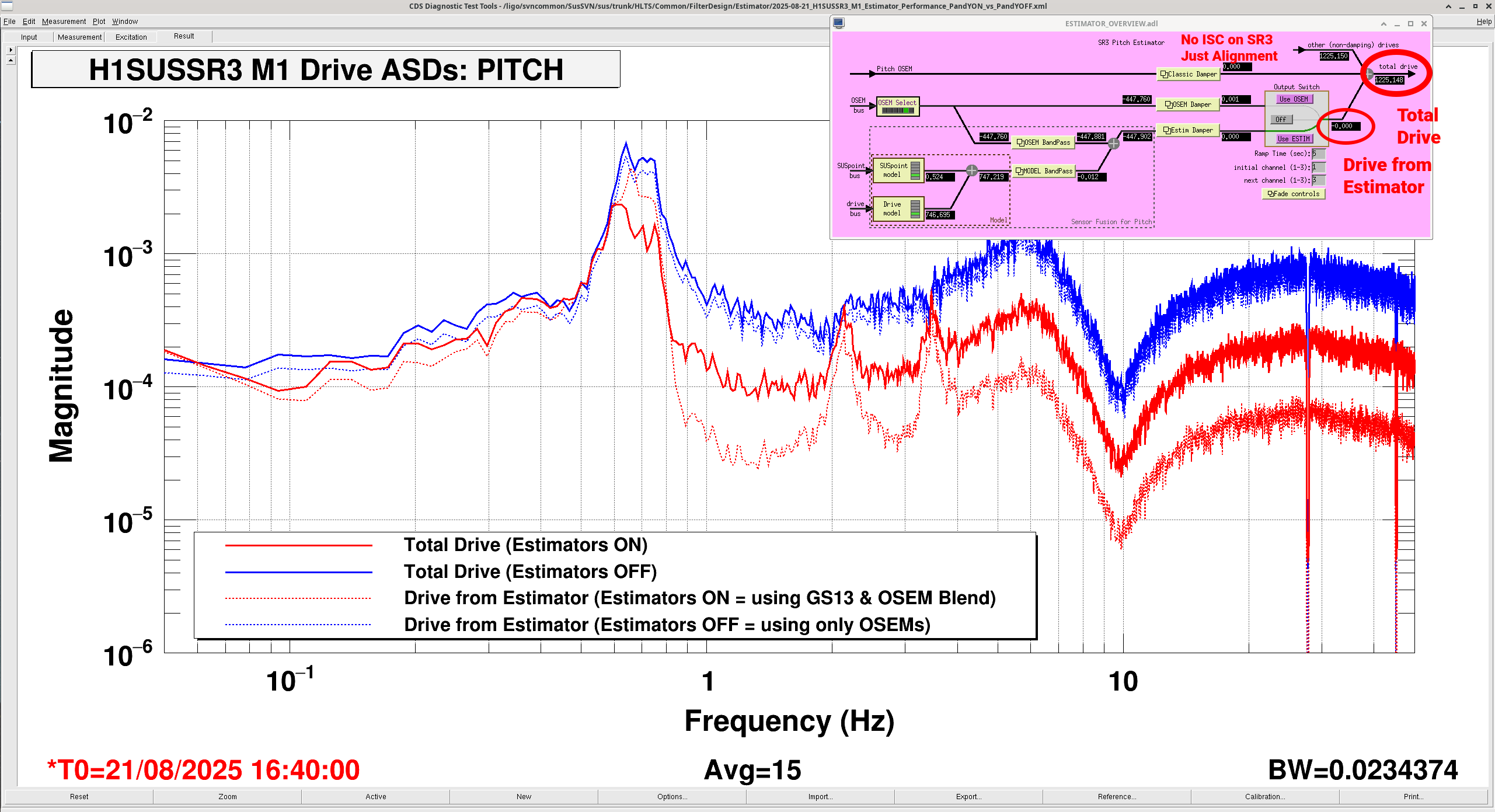

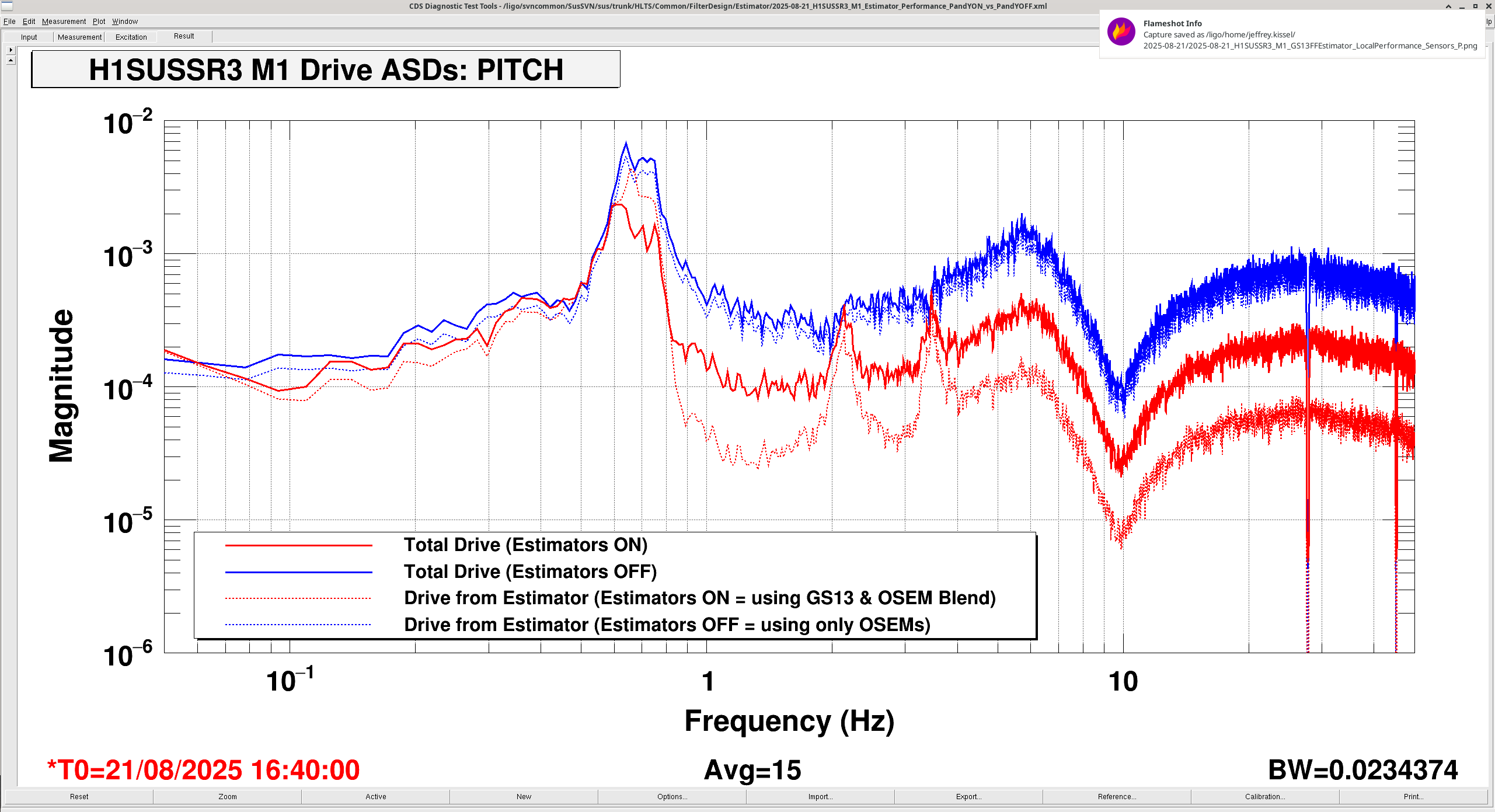

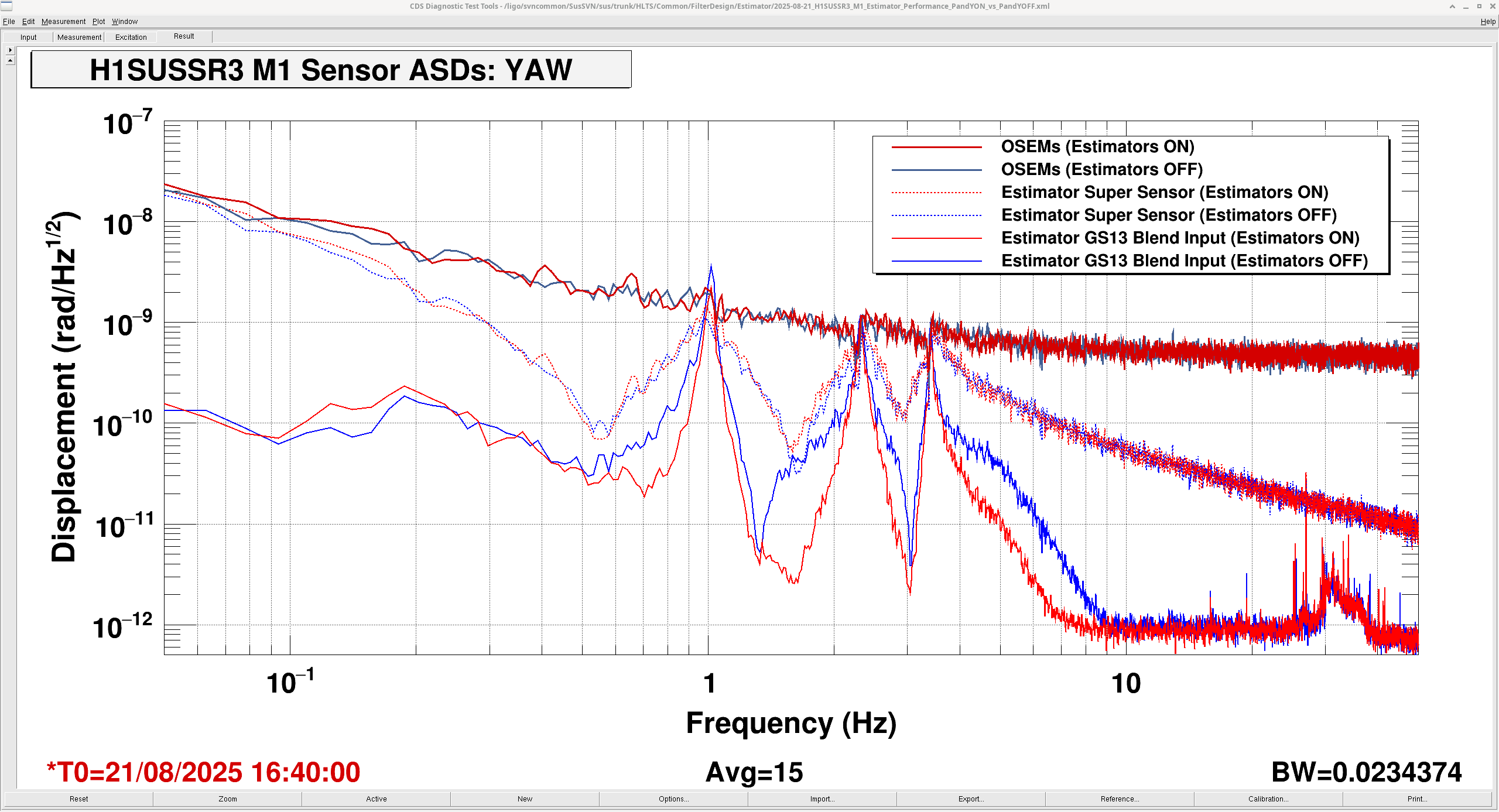

J. Kissel, O. Patane We tested both the P and Y GS13 state-space estimator's sensor correction to the OSEM damping loops for the M1 stage of H1SUSSR3 this morning. See LHO:86491. Here're some of the local metrics showcasing the performance differences between "P and Y estimators OFF" and "P and Y estimators ON."
Images attached to this report
