H1 SUS (SUS)
corey.gray@LIGO.ORG - posted 08:35, Friday 03 October 2025 (87272)
Weekly In-Lock SUS Charge Measurement - FAMIS 28425

Had issues with FAMIS, so was not able to check this until today.  Looks like the SUS Charge measurements ran this past Tuesday morning.

(A procedure note:  when I ran the printing command, it would generate the ETMx plot, but that was it.....until I saved the plot to the desktop and then closed the generated .png plot.  Then it would continue with the other plots (one at a time)---took me a bit to figure that out!)

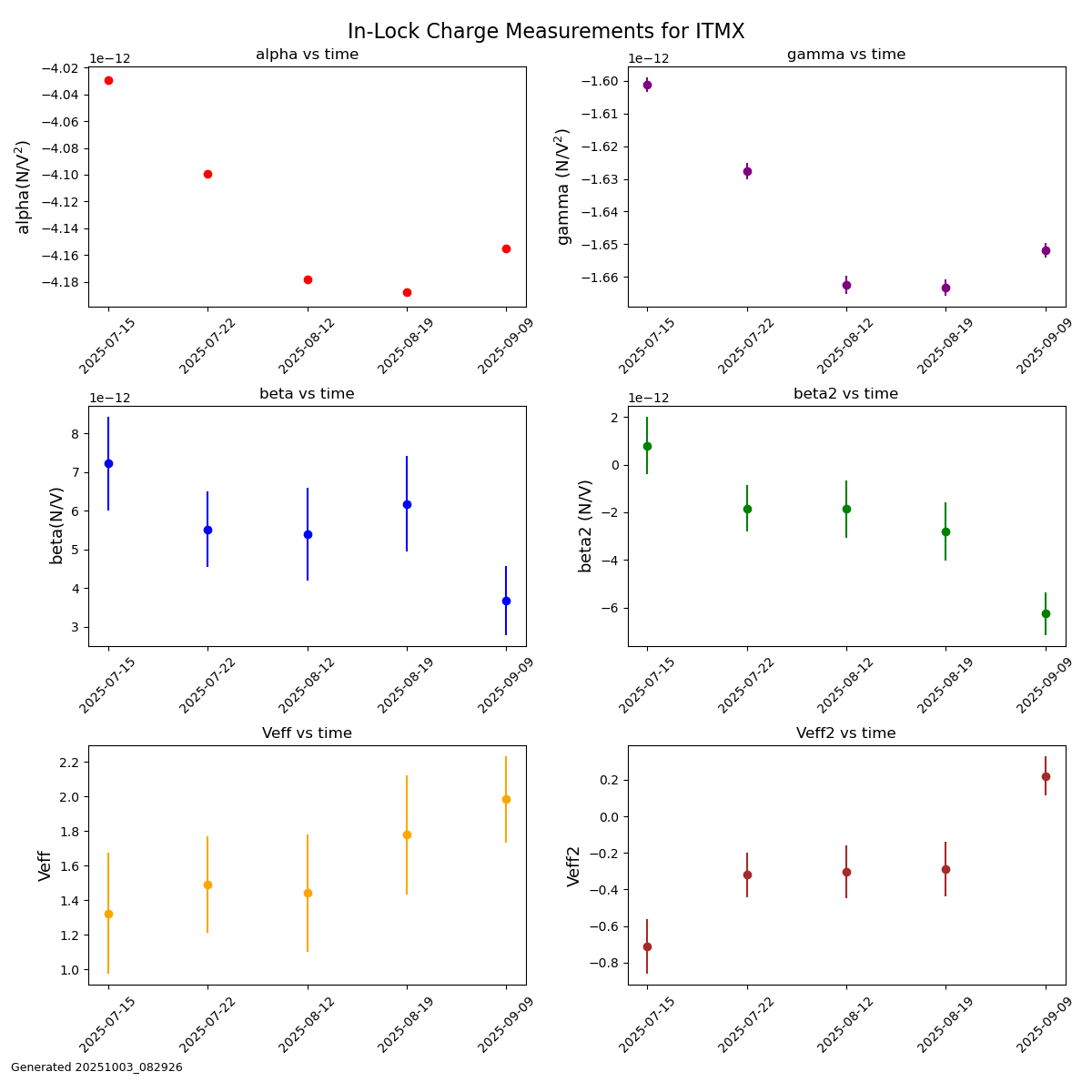

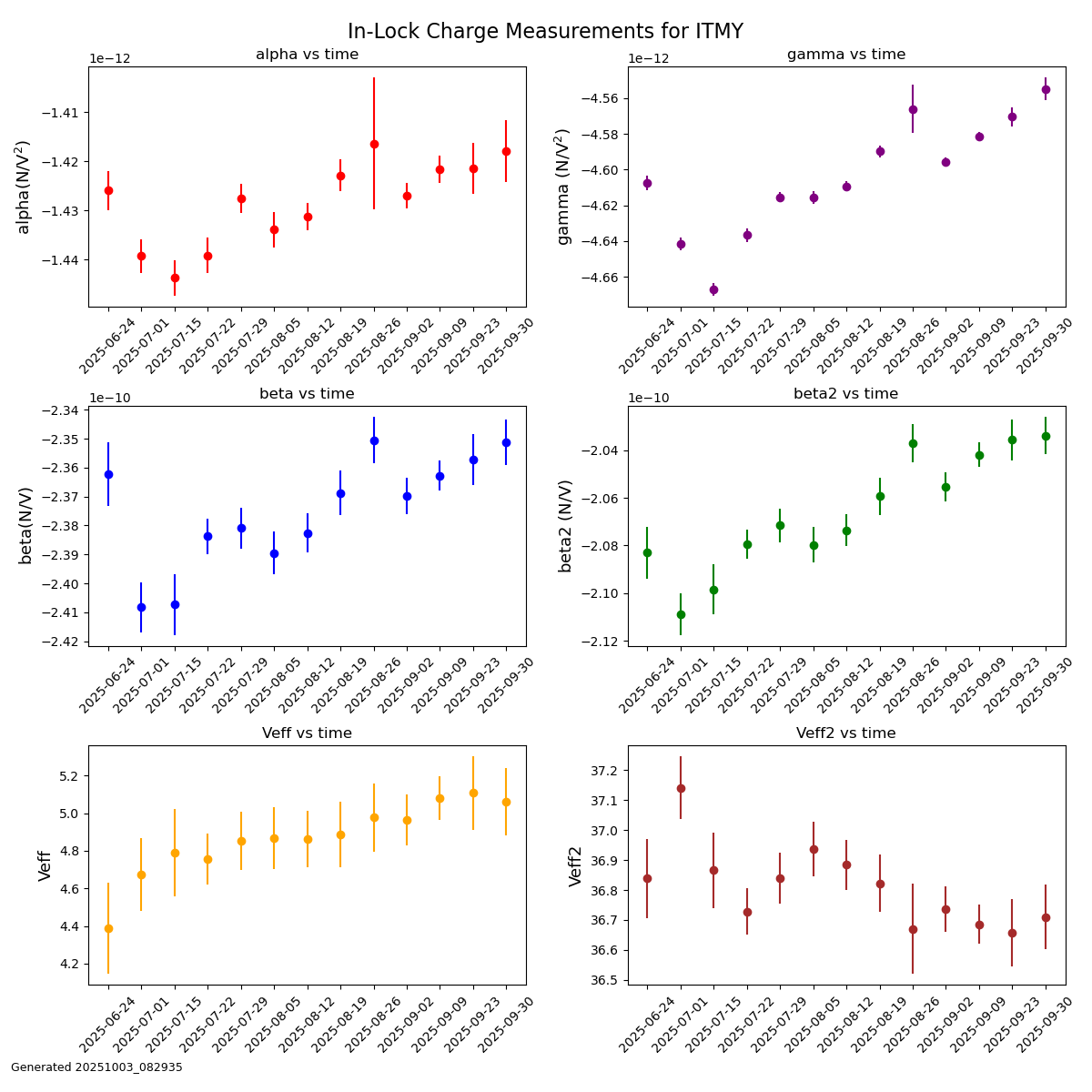

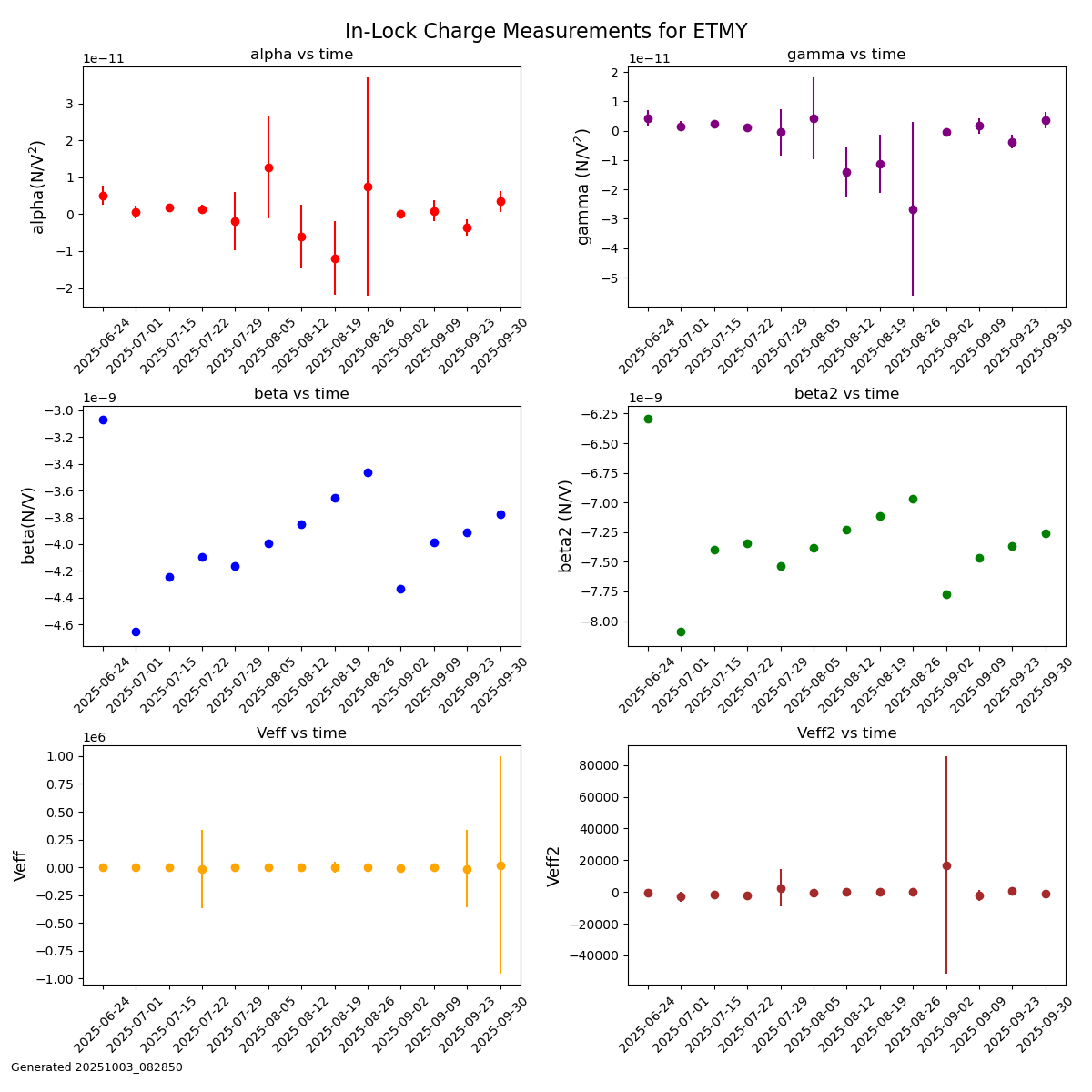

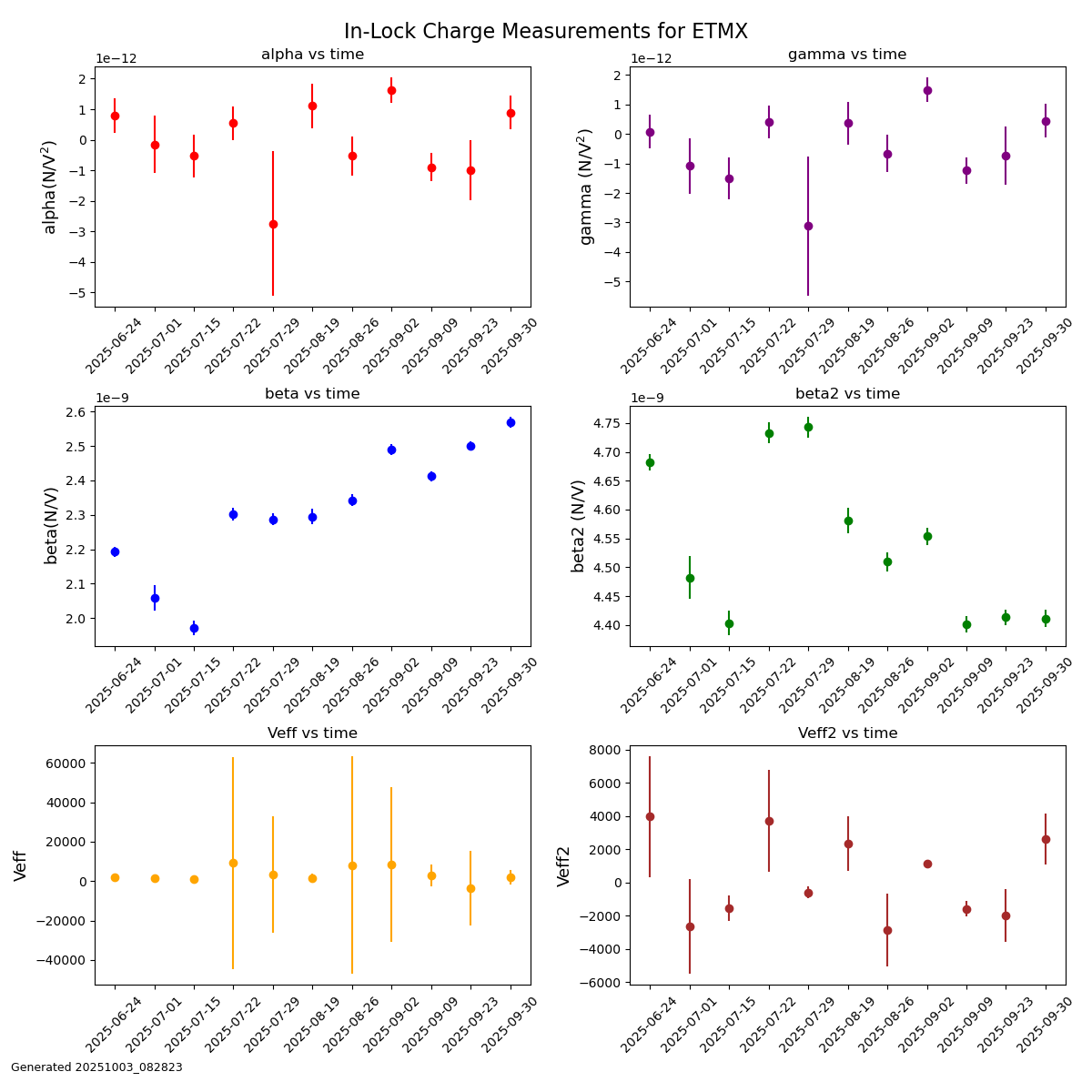

Attached are the plots for all four Test Masses.  Closing FAMIS 28425.

Images attached to this report
