H1 SUS (SUS)
edgard.bonilla@LIGO.ORG - posted 00:09, Tuesday 21 October 2025 (87596)
PR3 OSEM estimator blends updated

Follow up on the comissioning of the Length/Pitch OSEM estimator for PR3.

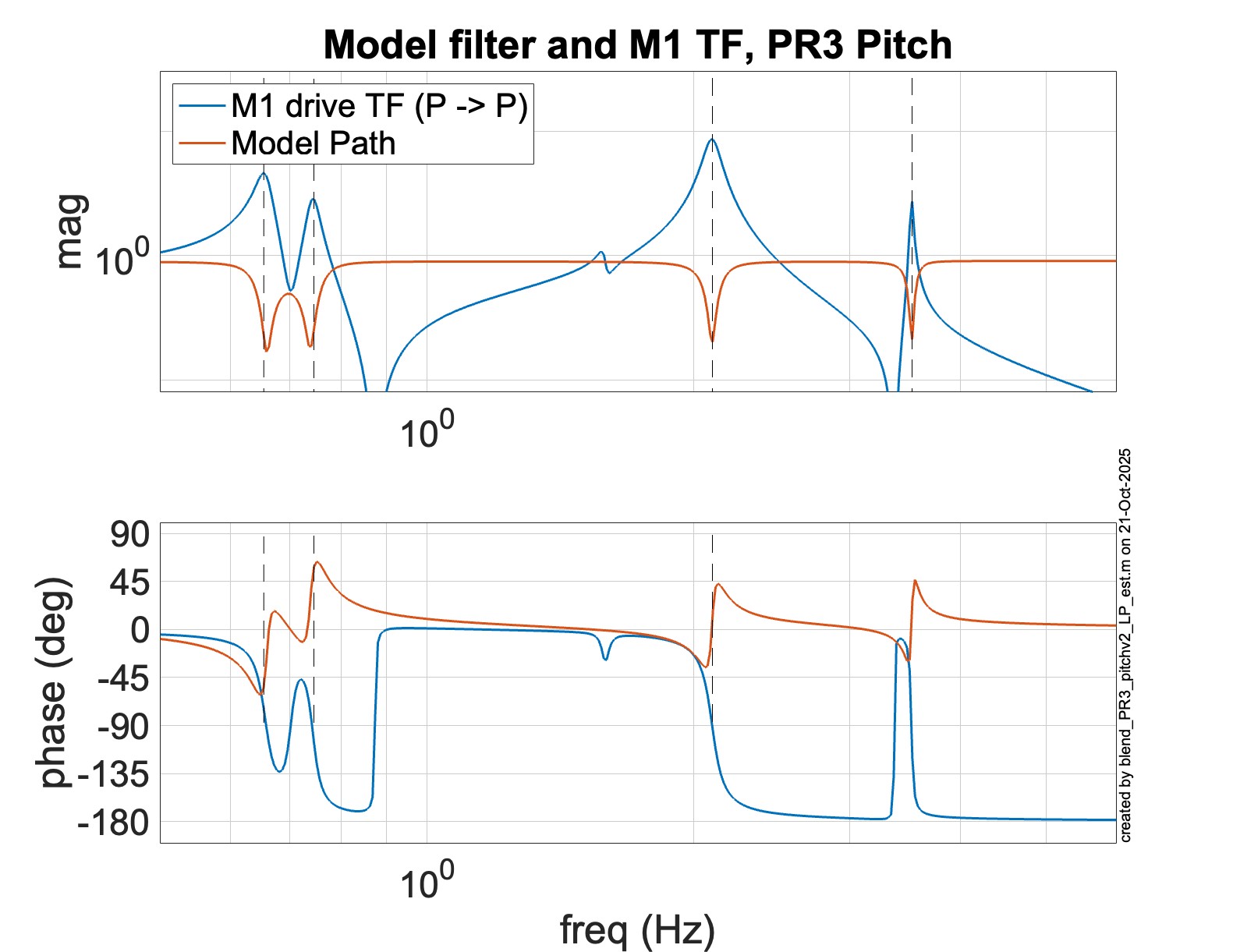

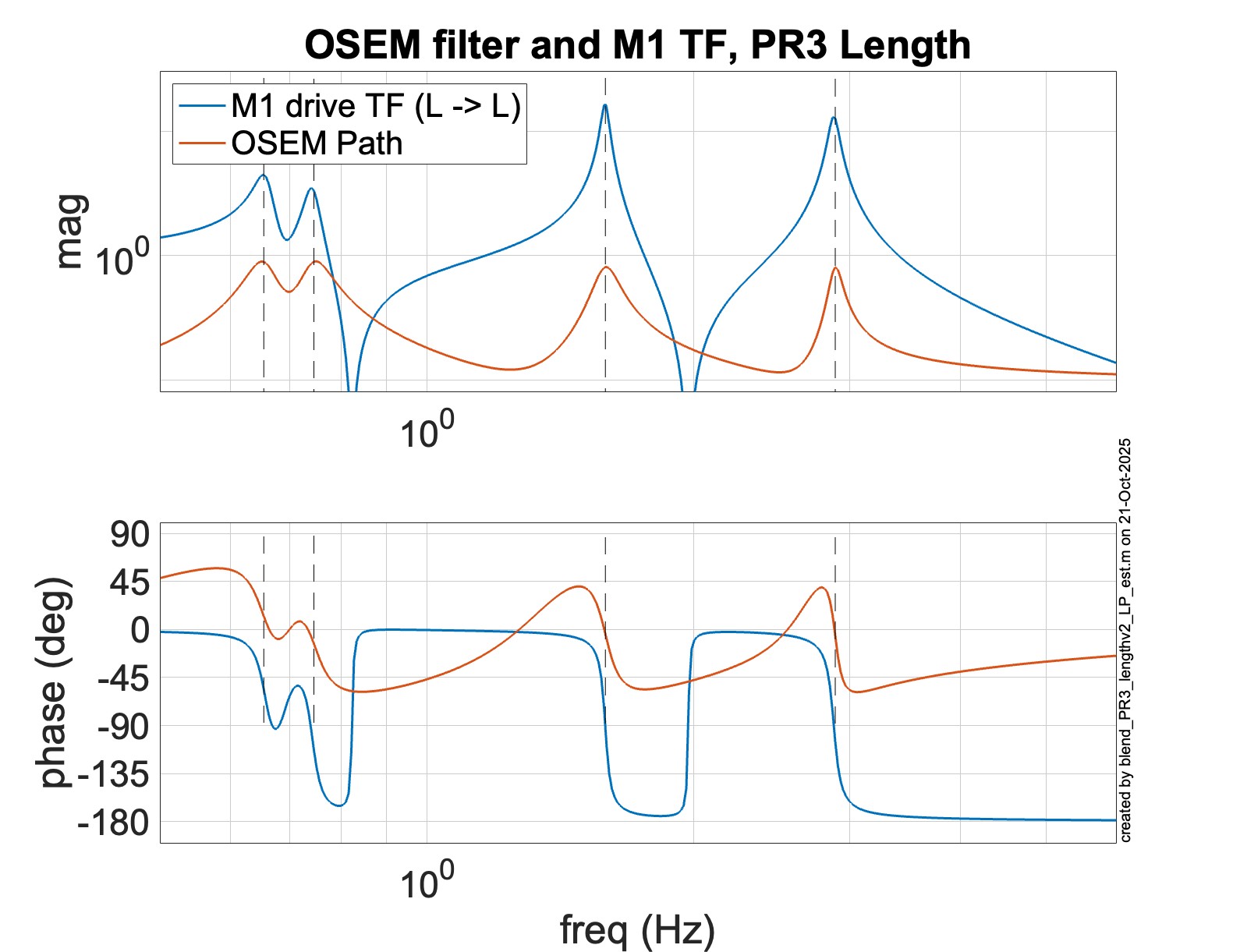

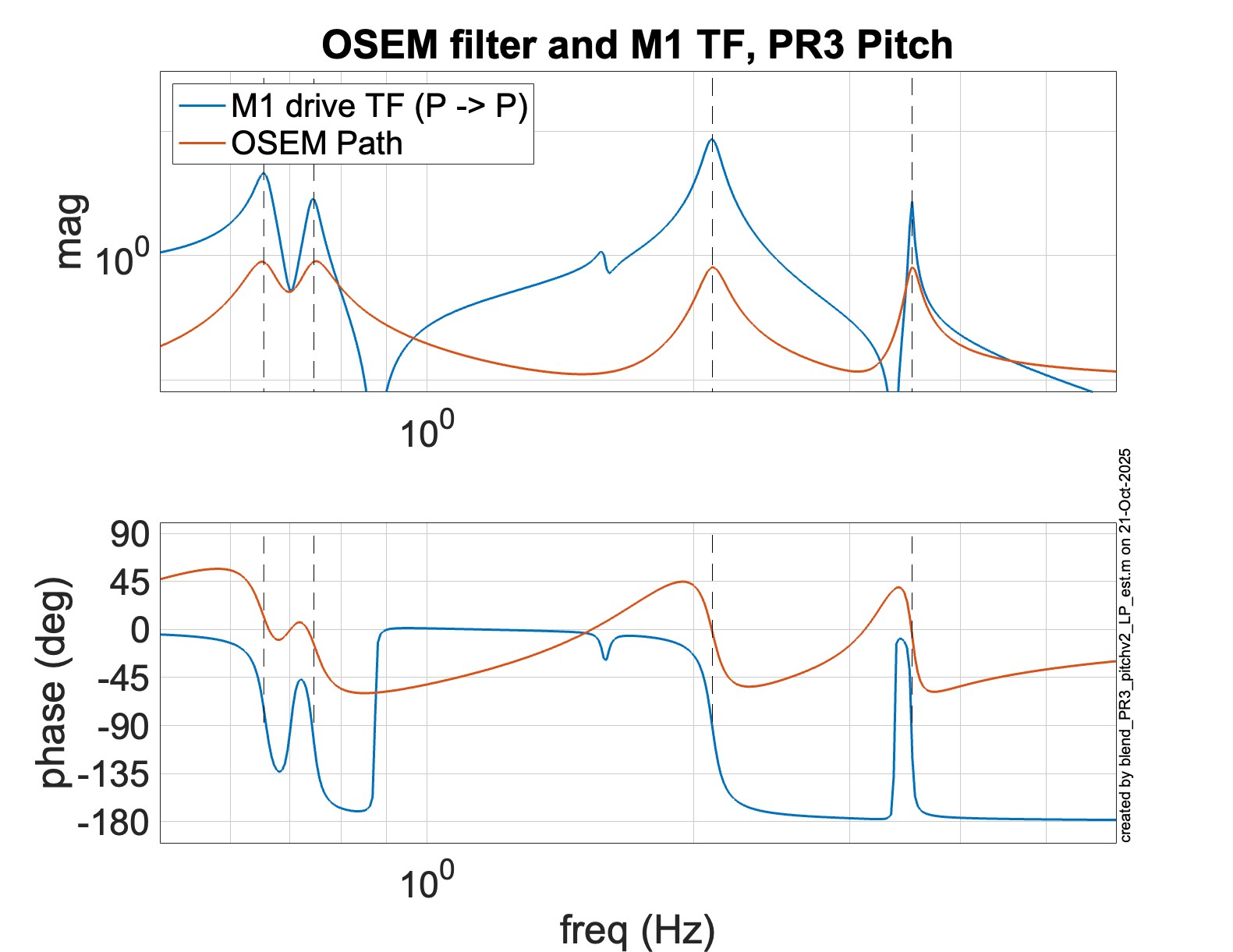

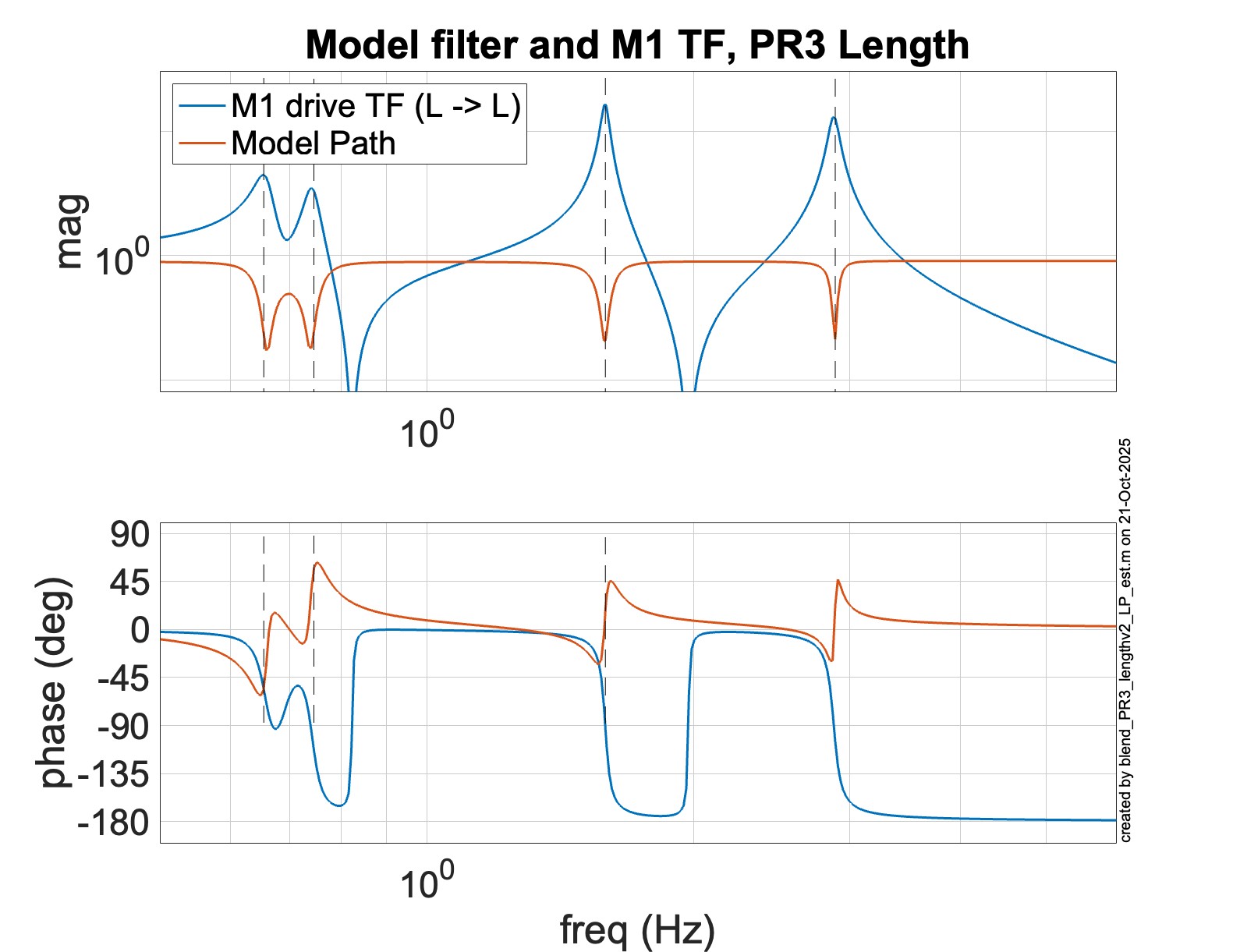

I tuned up the pitch OSEM / Model filters and created some equivalent model filters for length. The functions that make the model and osem filters live in:
       blend_PR3_lengthv2_LP_est.m
       blend_PR3_pitchv2_LP_est.m

The files were committed to the SVN at (svnRoot)/sus/trunk/HLTS/Common/FilterDesign/Estimator/ under revision 12735.

I saw that there is a new make_EST_blends function that will work nicely with these functions, so I will recommend using that one for getting these onto the real-time model.

Images attached to this report
