sheila.dwyer@LIGO.ORG - posted 13:54, Friday 07 November 2025 - last comment - 14:05, Friday 07 November 2025(87920)
slow move of OFI temperature
| OFI temp [C] | OFI PD A power [uW] | AS_C_NSUM [W] |
| 37.5 | 26.5 | 0.676 |
| 33 | 24.5 | 0.672 |
| 31 | 24.1 | 0.672 |
| 29 | 23.8 | 0.672 |
| 25 | 23.8 | 0.672 |
| 35* | 24.9 | 0.678 |

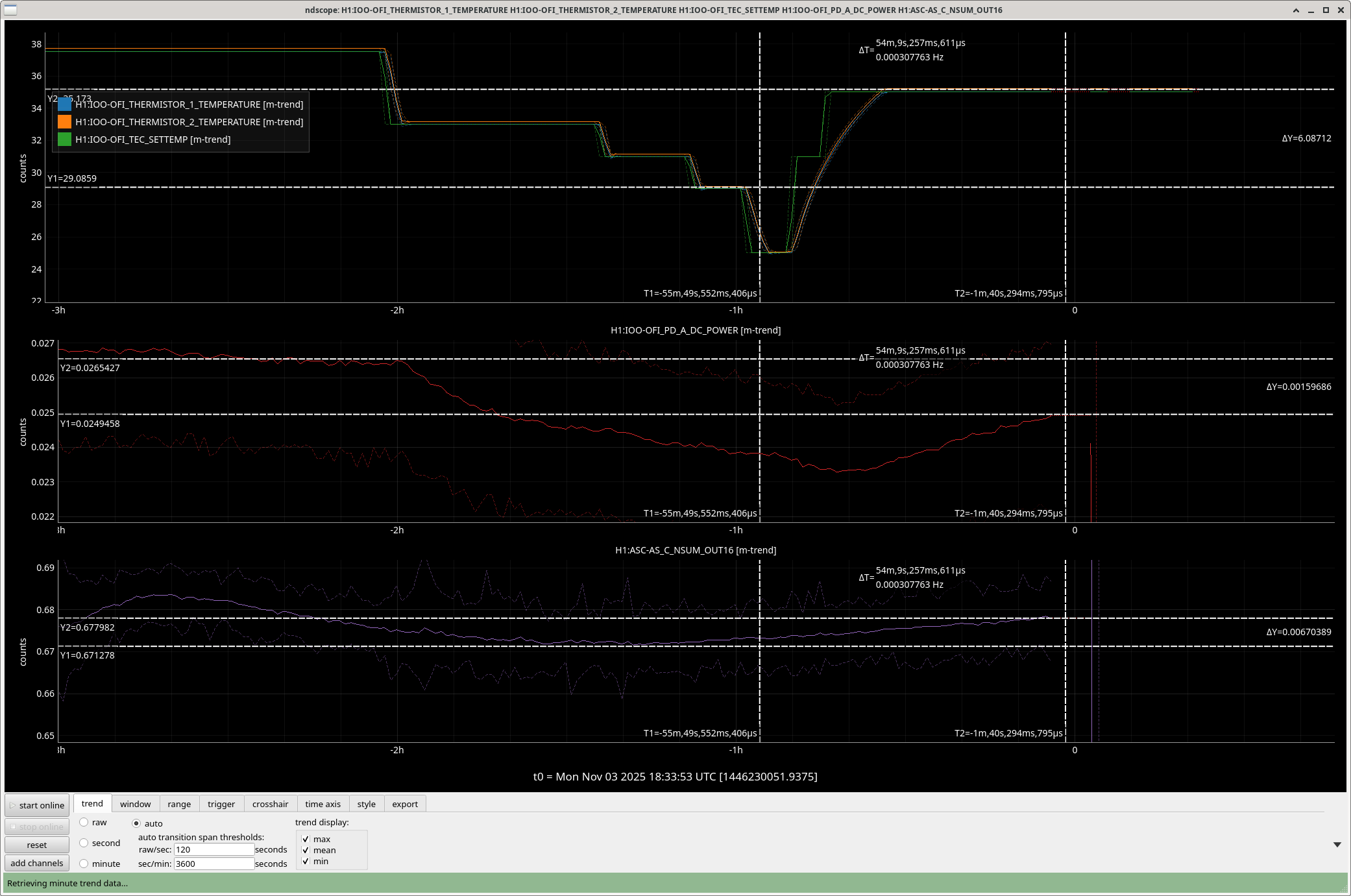

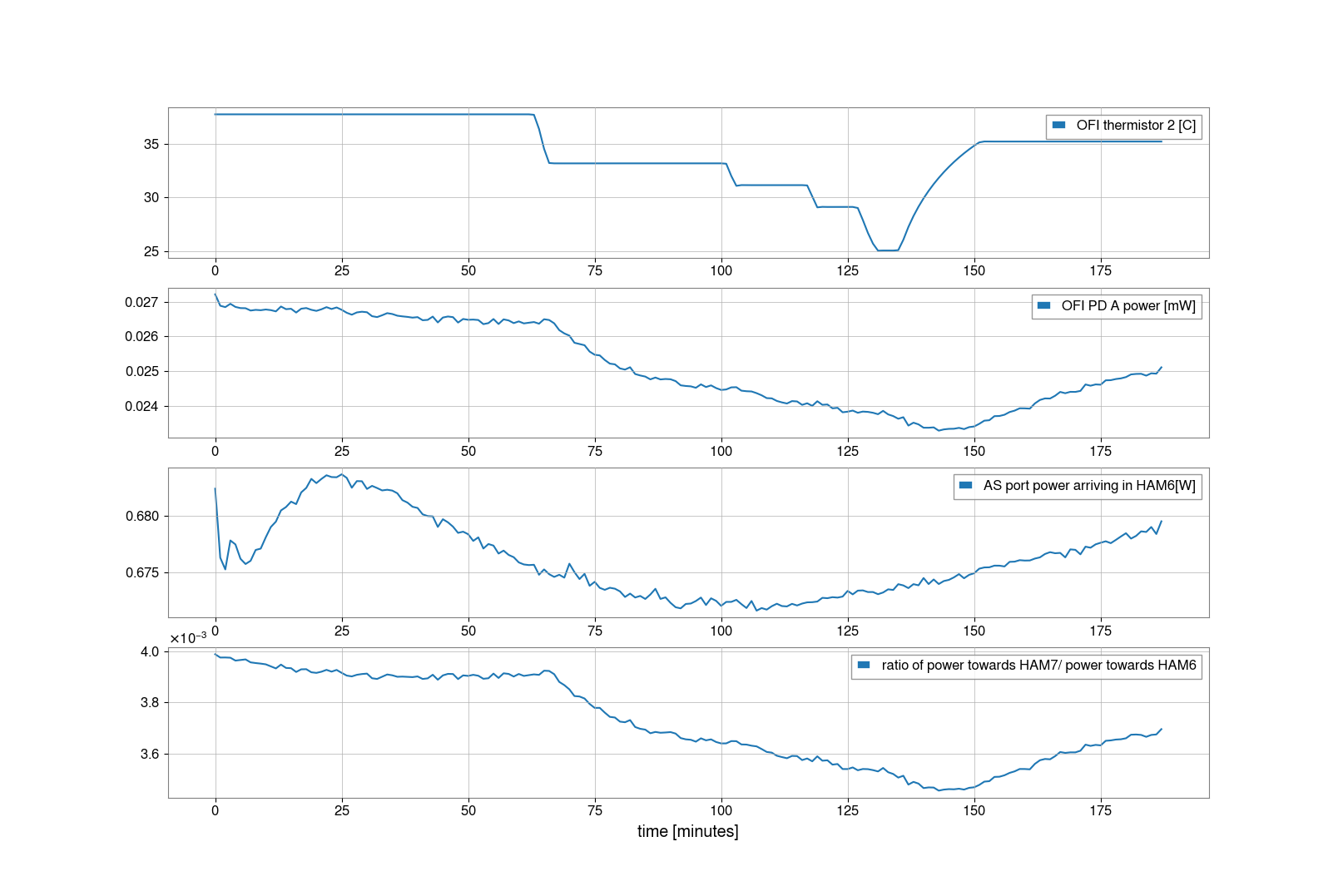

I changed the OFI temperature slowly while Robert and Matt were doing other commissoning. We had only been locked for a bit over an hour when I started, so there is still some thermalization causing a downward drift in AS power, the steps related to OFI temp seem large enough to distinguish.
For the last point, the thermistor had been at 35C for 30 minutes but temperatures were still moving when we lost lock.
Images attached to this report
Non-image files attached to this report
Comments related to this report
I've added a script in /ligo/gitcommon/labutils/beam_spot_raster/OFI_temp_stepper.py that would do some temperature steps once an hour.
