H1 SUS (SUS)
rahul.kumar@LIGO.ORG - posted 14:20, Monday 01 June 2026 (90419)
SUS alignment sliders for HAM1_2_3 restored to Friday evening (6.30pm) values

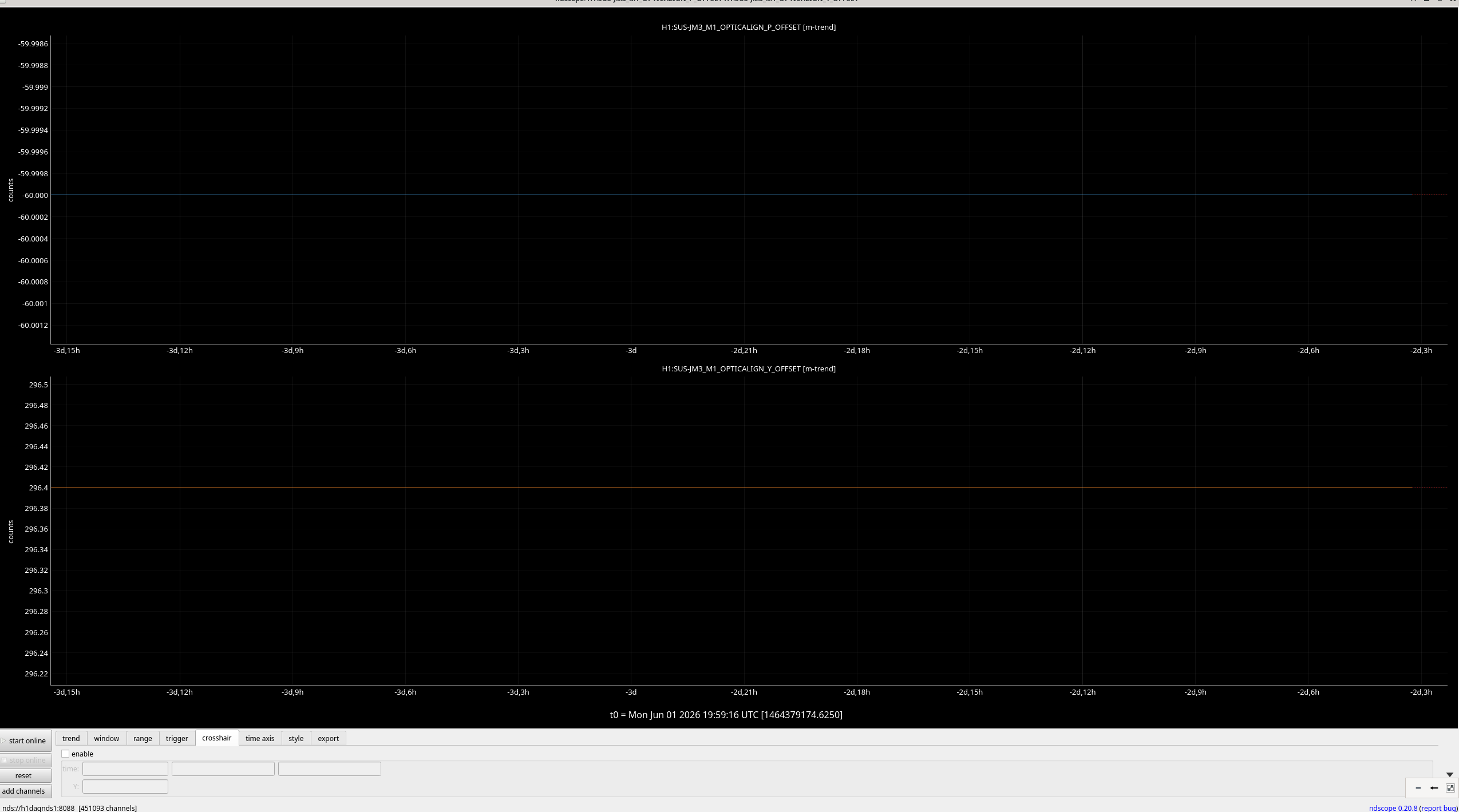

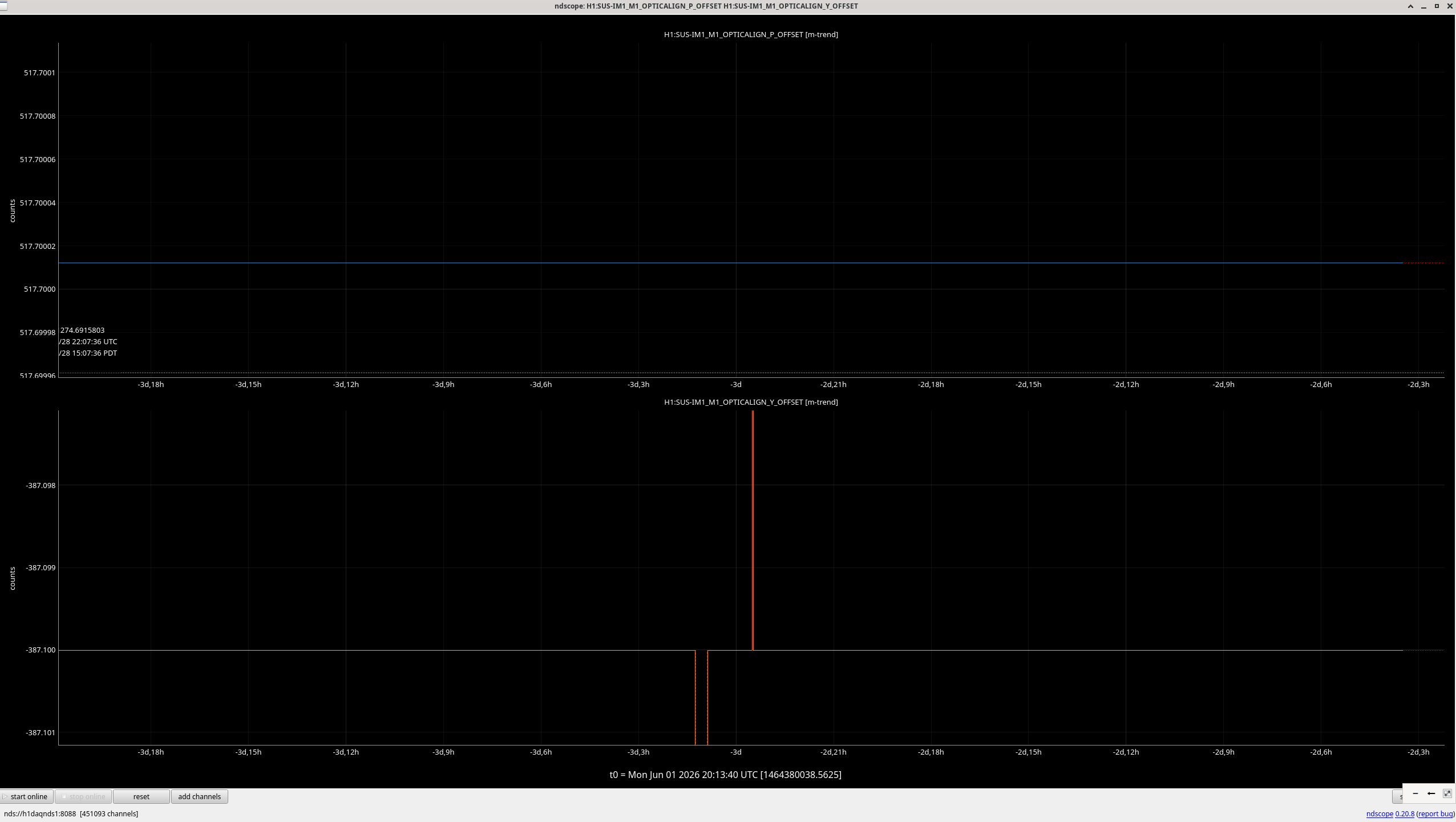

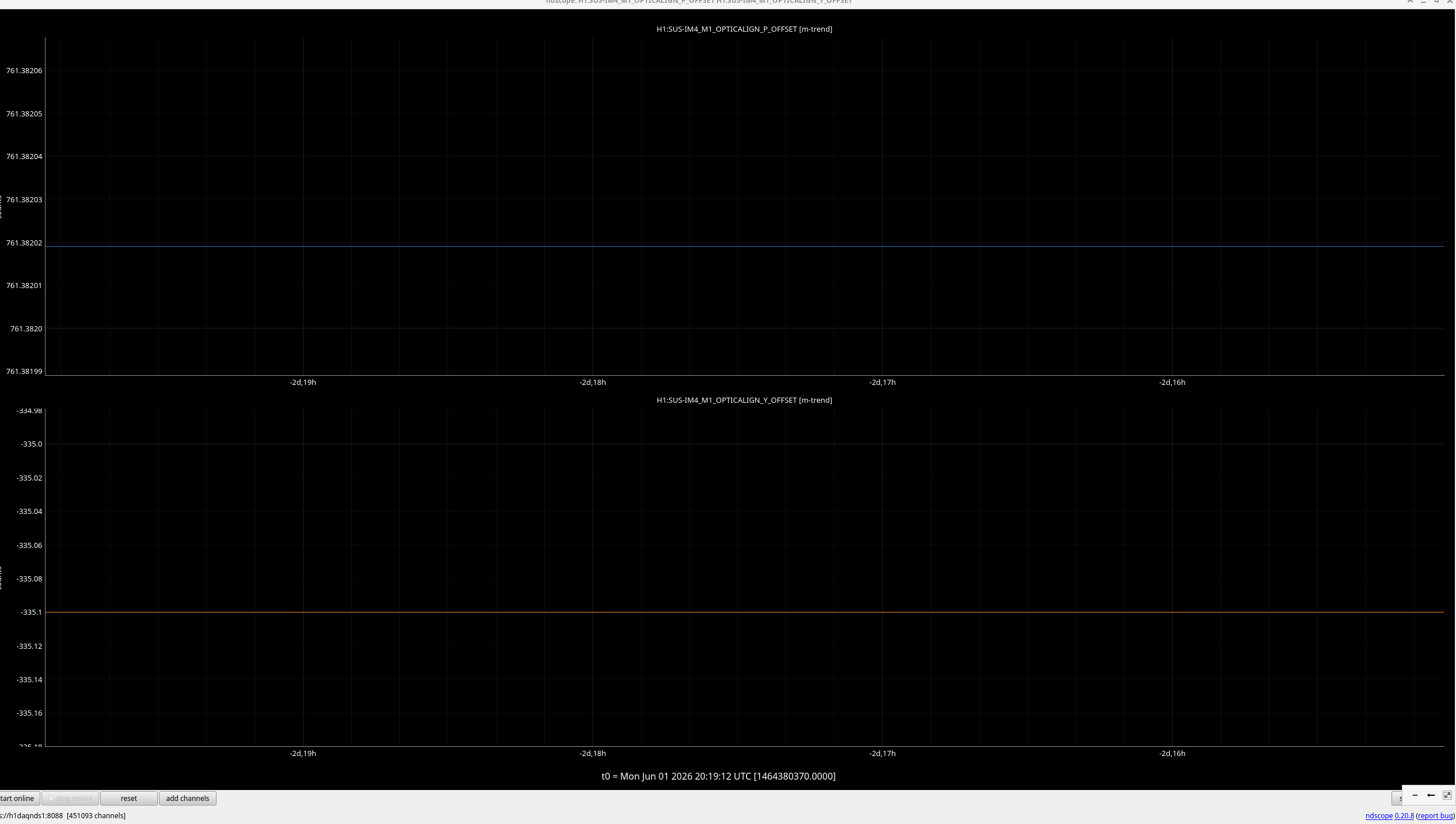

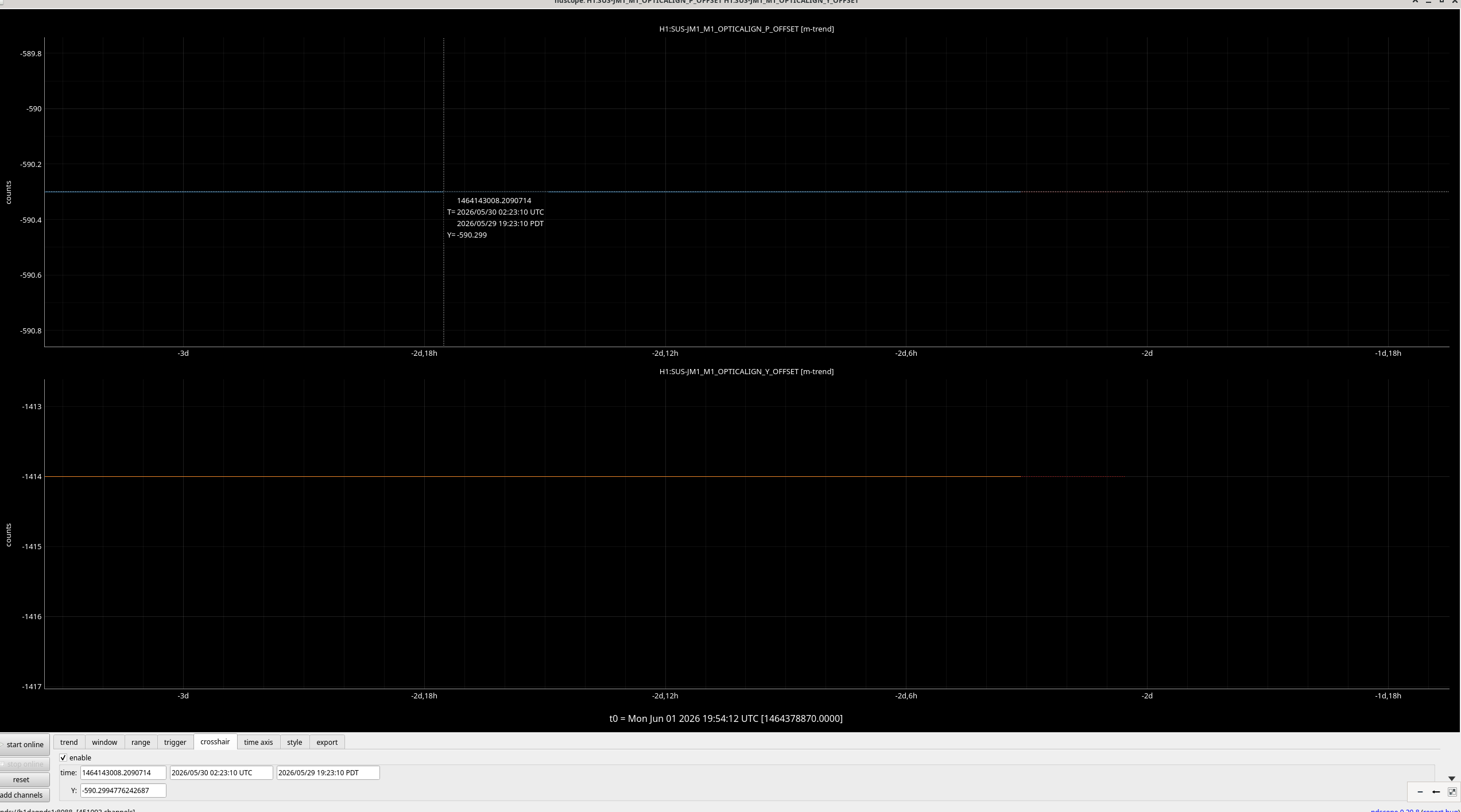

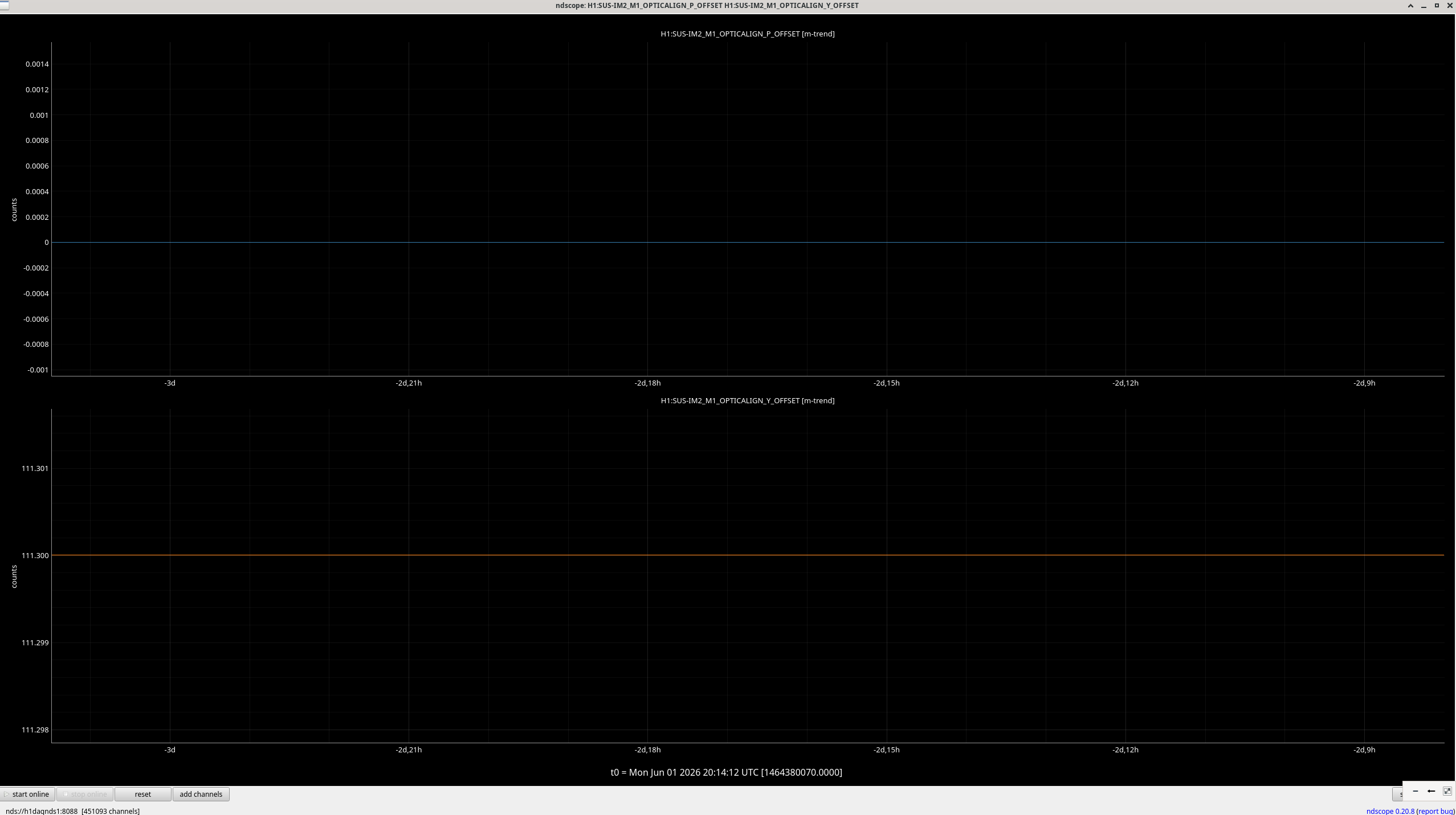

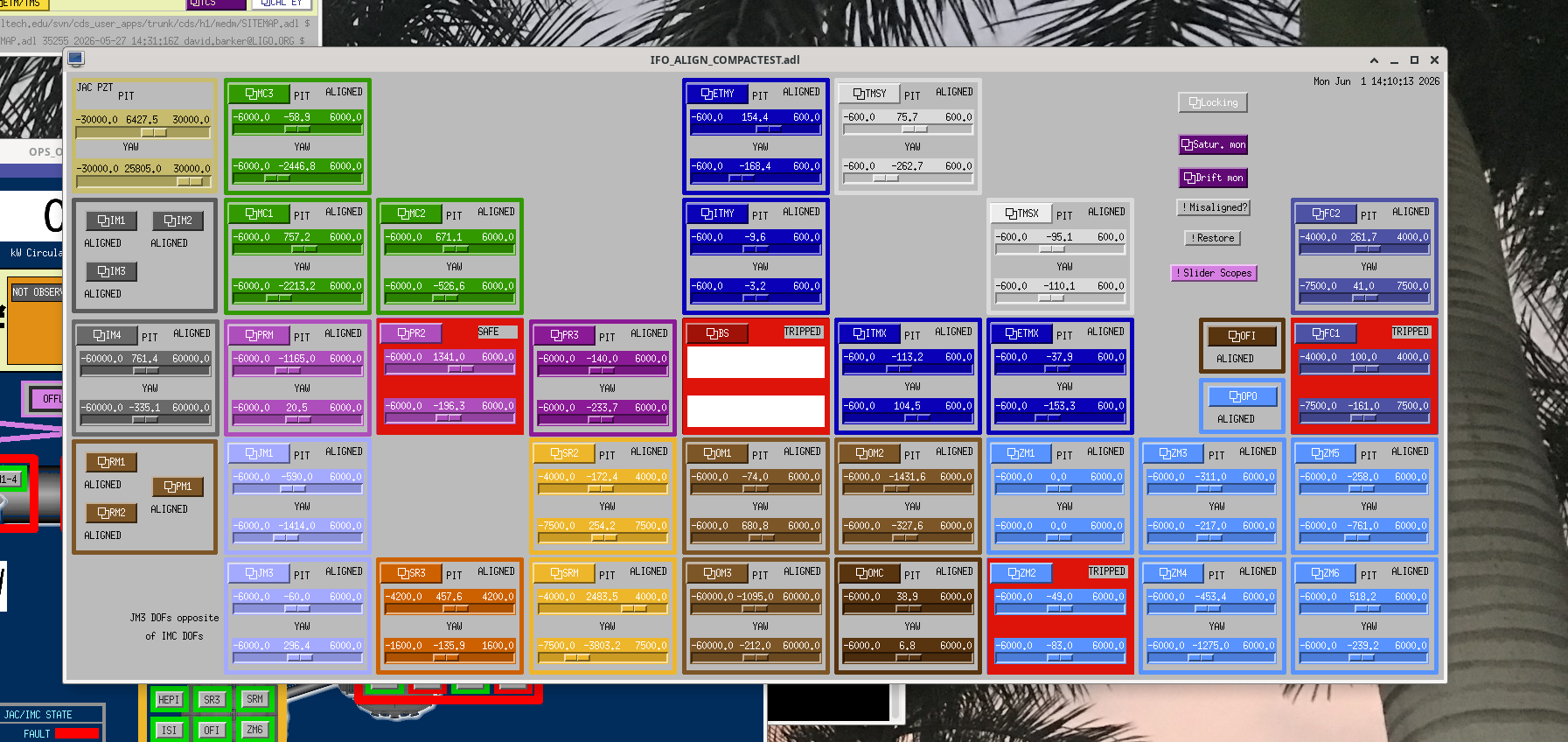

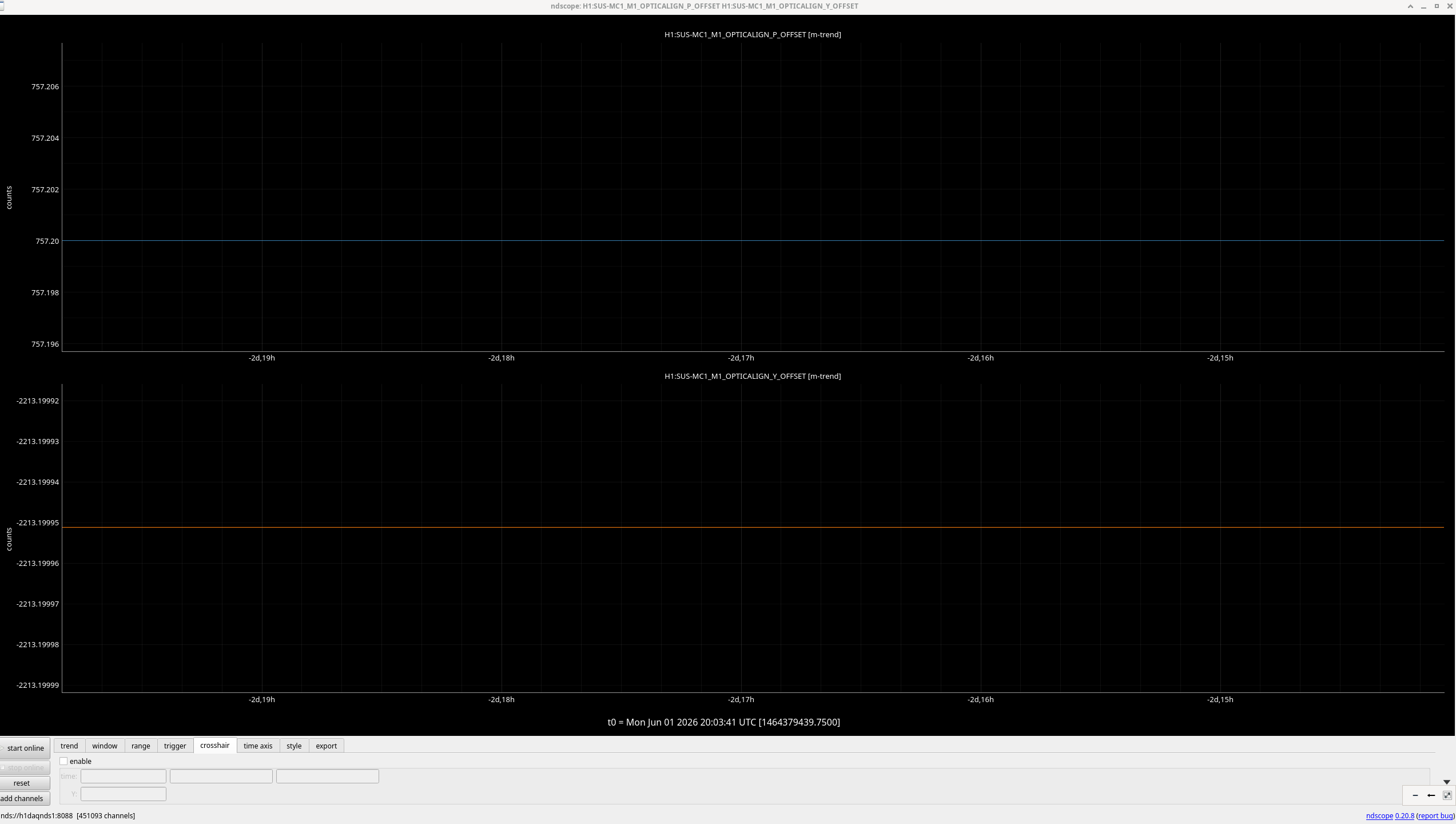

I have restored the SUS alignment slider values (P/Y) for all the suspensions in HAM1, 2 and 3 chambers (i.e JM1, JM3, MC1, MC2,, IM1, IM2, IM3, IM4) which had changed after the Saturday site power outage. I trended the pitch and yaw slider values for all of the suspensions in these three chambers and restored the ones which I found have changed. I selected Friday evening (29 May 2026, 6.30 PM when Keita et al were done with moving the suspensions).

Images attached to this report
