I swept the LVEA following the conclusion of most maintenance activities, the last group in will double check their area and get the lights on their way out. Nothing really of note.
WP 12366
Started installation of the required electronics (ISI Interface/AA/AA/ISI Coil Drivers/Binary Chassis) for the HAM1 ISI upgrade. IO chassis will need to be updated.
All existing electronics need to be powered down to move power cables to lower ports on the ±18V DC power strip. New electronics are installed in the upper U slots of the rack and standard power cables are not long enough. Work will be coordinated with the IO chassis upgrade.
Waiting on the in-rack and field cables to be delivered onsite.
J. Kissel, F. Clara I'm yak shaving, but at the end of today's kLog series you'll understand how to execute Daniel's implicit plan in D0902810-v10 for moving cables around to make room for an incoming tip-tilt, aka HTTS, to eventually be named "PM1," i.e. Pop wfs steering Mirror 1. In this kLog: I've labeled the U heights of SUS-R1. SUS-R1 is an old iLIGO rack that was never labelled, but repurposed in aLIGO to house (mostly) HAM2 SUS satellite amps, i.e. the triples MC1, MC3, PRM, PR3, and the singles IM1, IM2, IM3, and IM4. (It also houses a CDS network switch, a PEM test panel, and a deprecated / never used HAM2 and HAM3 ISI optical lever whitening chassis.) In aLIGO, all U-slots in U42-ish height racks were "converted" to being labeled by industry standard with the top being U42, and the bottom being U1. These iLIGO racks don't have enough slots to populate all 42 U-height slots, so the compromise is to *draw* 42 U-heights, but "never use" U1. The last bit of the story: the drawing that governs the content of these racks is D0902810. However, when the aLIGO field racks were populated with stuff, (a) The sites made a custom non-standard 3.25-ish U-height "craddle" to hold the non-rack-mountable UK satamps. (b) that drawing did not cover the layout of the field racks, so each sites kinda "did what they wanted." The issue (b) was been rectified by 2023 as Louis Sanchez and I brought D0902810 up to -v9, see IIET:5097. So, that's why the U-height labels don't awesomely line up with the chassis that are installed. See - Screenshot of depiction of the rack in page 13 D0902810-v10, with the rack labeled "top down" from U42 at the top and U41 at the bottom (even though the H1 "as-built" version of this design doesn't have a U1). - single "before" picture - The rest of the attachment: pictures of the labels.
In order to help narrow the cause of on-going but rare timing comparator discrepency with the CNS clock at EY, I installed a rubidium clock on port 4 of the same comparitor.
The clock is on the floor under the computer rack. A BNC cable runs from the clock under the roll up door, and over the racks in the CER to the comparator.
Port 7 of the comparator didn't work.
LVEA WAP is now working. When either the LVEA WAP or the CER WAP is toggled on or off, the toggled WAP must be pinged from the 'wap-control' server before it will reconnect and show up on MEDMs.
Other WAPs are working normally. This seems to be a networking issue and not a problem with the WAPs themselves.
I talked to Sheila this morning about turning on the ETMX glitch limiters from this alog, so I've edited ISC_LOCK to turn this back on. This will cause SDF diffs on ETMX when we get to NLN, but otherwise shouldn't interfere with locking. If it's necessary to turn this off, just comment out lines 5462-5464:
log('turning on esd limits to reduce ETMX glitches')
for limits in ['UL','UR','LL','LR']:
ezca.get_LIGOFilter('SUS-ETMX_L3_ESD_%s'%limits).switch_on('LIMIT')
Still unclear if this is helping, but we turned it off ~Feb 12 after running it for almost 2 weeks.
[Erik v.R., Dave]
h1susex models were re-built with the same version of the RCG as h1omc models.
git tag is 'H1_rollback_2025_01_14'
Dolphin started reporting errors while shutting down the models. We tried to reboot the front end, but it crashed, so we hard reset it.
Following T2500040-v1 the phase delays were measured for LSC REFL_A, LSC POP_A, ASC REFL_A, ASC REFL_B, and ASC POP_X. Results in the attached pdf.
TDR Measurements attached (Marc, Daniel)
After replacing the chiller pump seal, I switched the lead unit to enable to chiller to run, but it failed on water flow. After troubleshooting the chiller, I found that the wiring harness for the flow switch had been chewed on by an animal. I will see about splicing the damaged wiring back together, but until that is done we are down one chiller at End X.
This has been repaired and the chiller is now running.

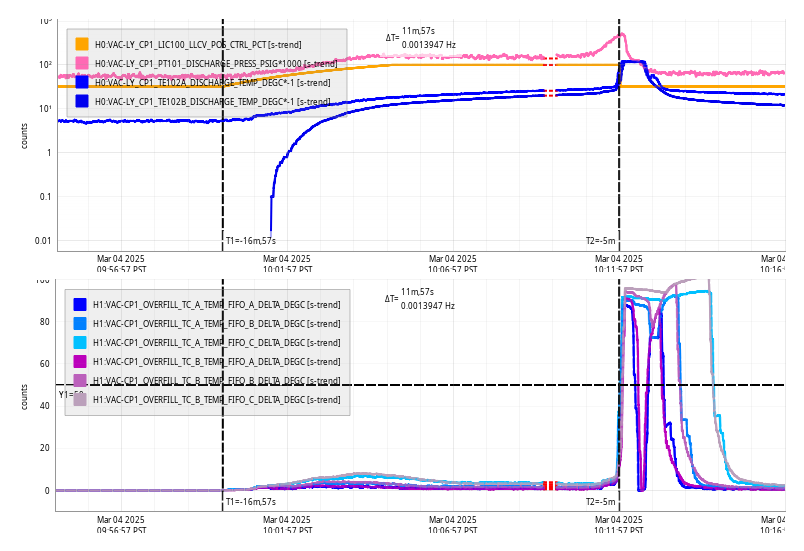

Tue Mar 04 10:11:57 2025 INFO: Fill completed in 11min 54secs
FAMIS 24832
pH of PSL chiller water was measured to be between 10.0 and 10.5 according to the color of the test strip.
WP 12364
The battery for the LY Vacuum Rack UPS system was replaced this morning. Unit stayed powered on during the battery replacement. Nothing had to be powered down. Noted a low memory pop window on the h0valy machine. Patrick logged in and closed visual studio and medm.
All vacuum rack UPS systems have batteries with an install date of March 2021. Manufacturer recommends batteries be replaced. Replacement batteries will be ordered.
F. Clara, G. Moreno
FAMIS 31075

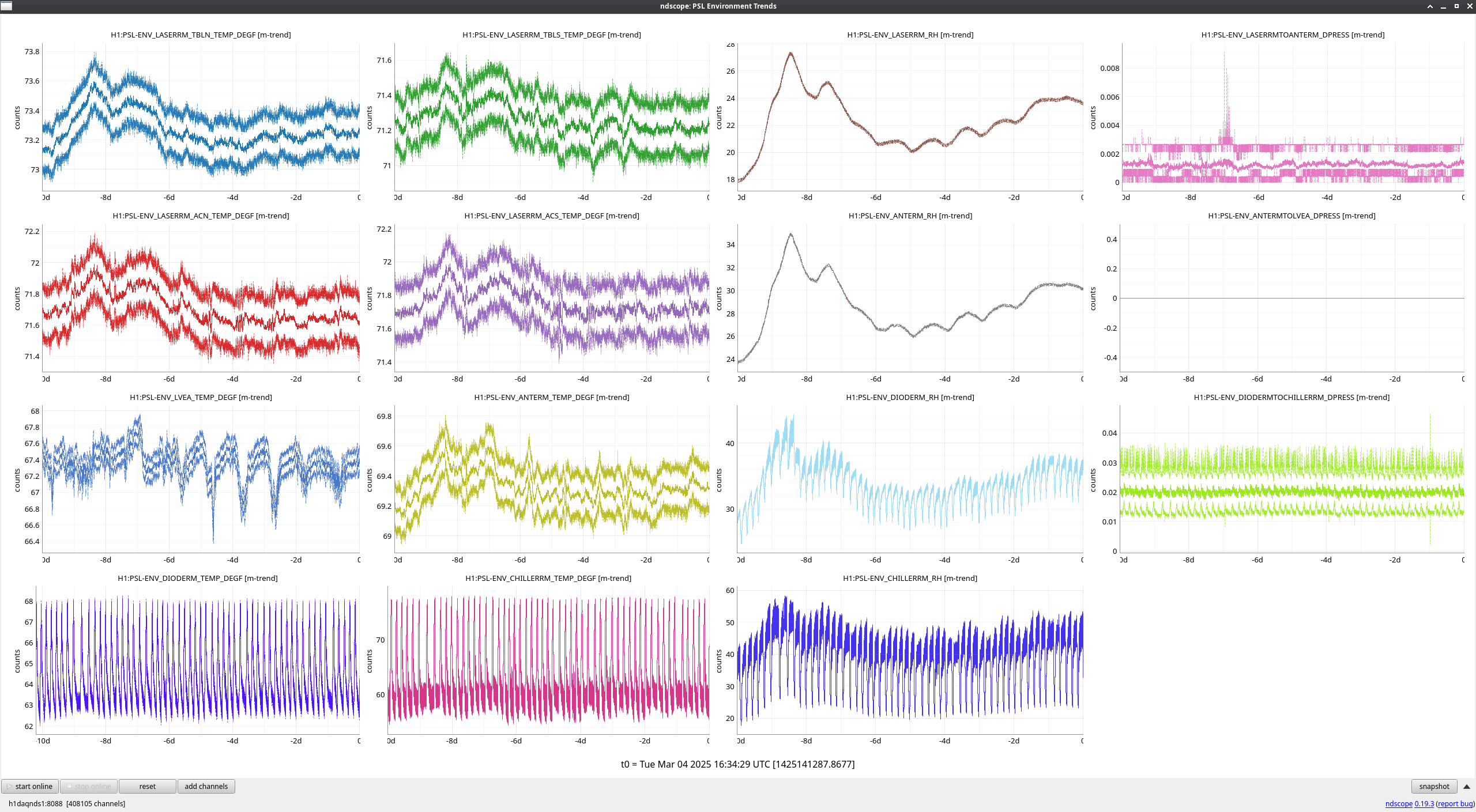

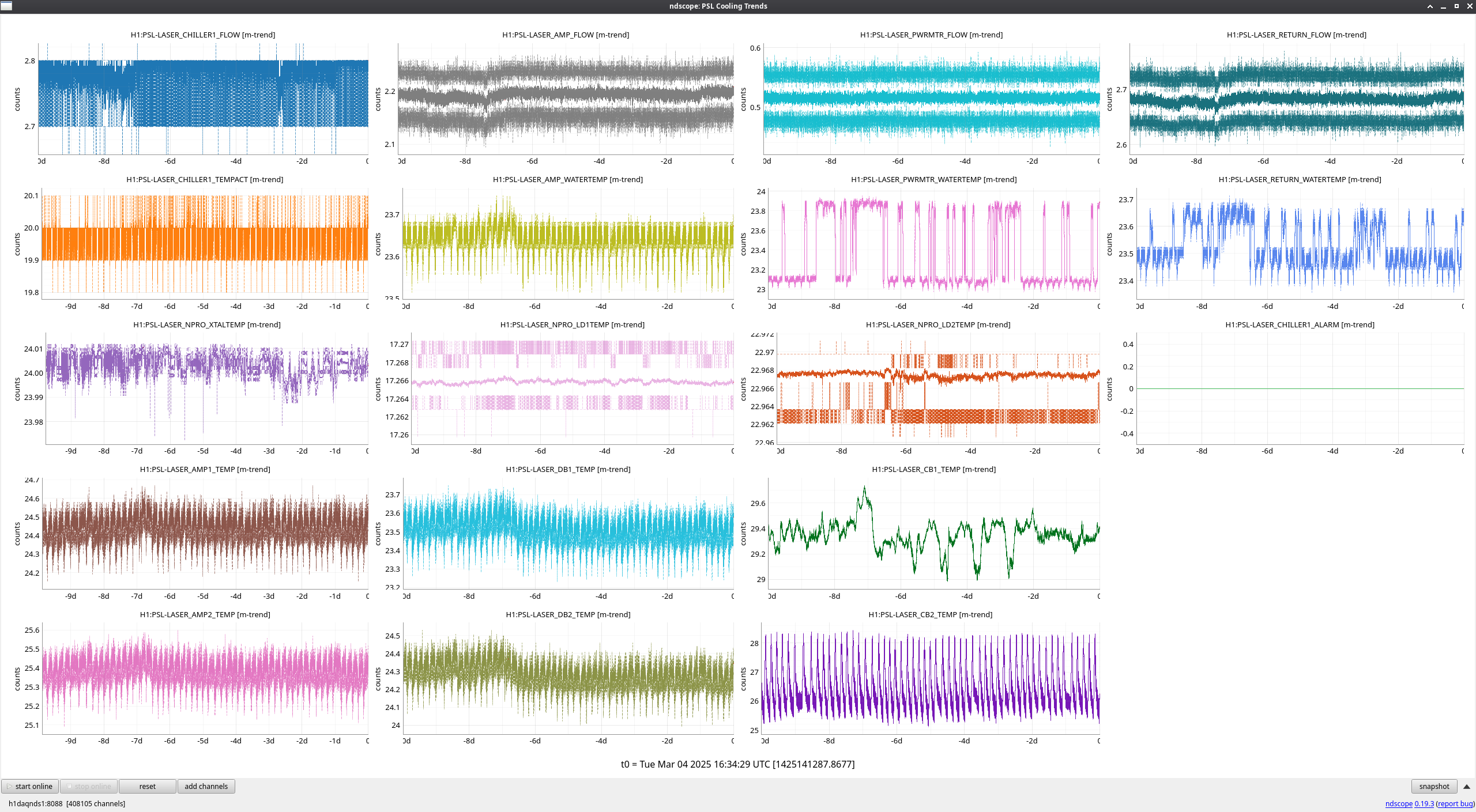

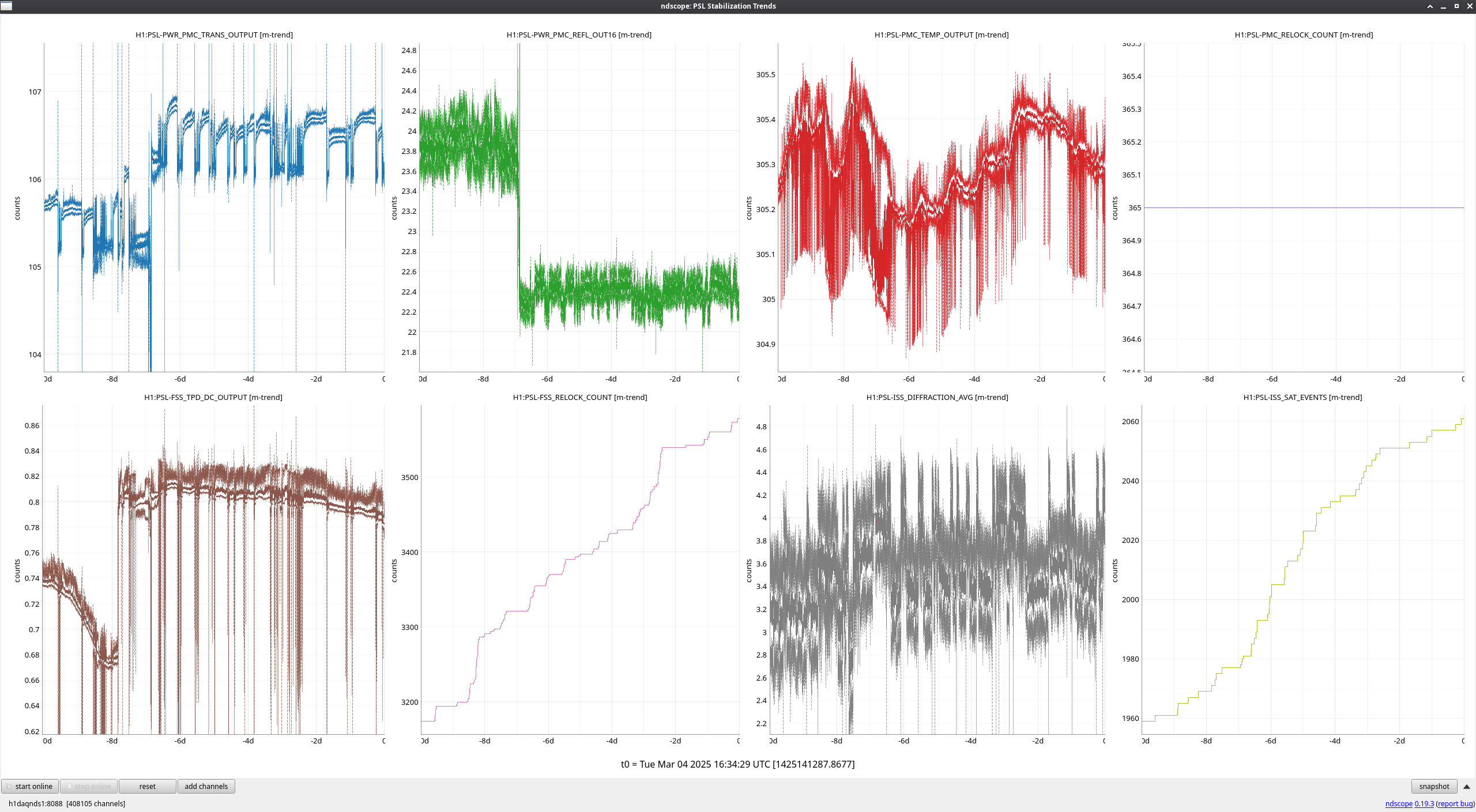

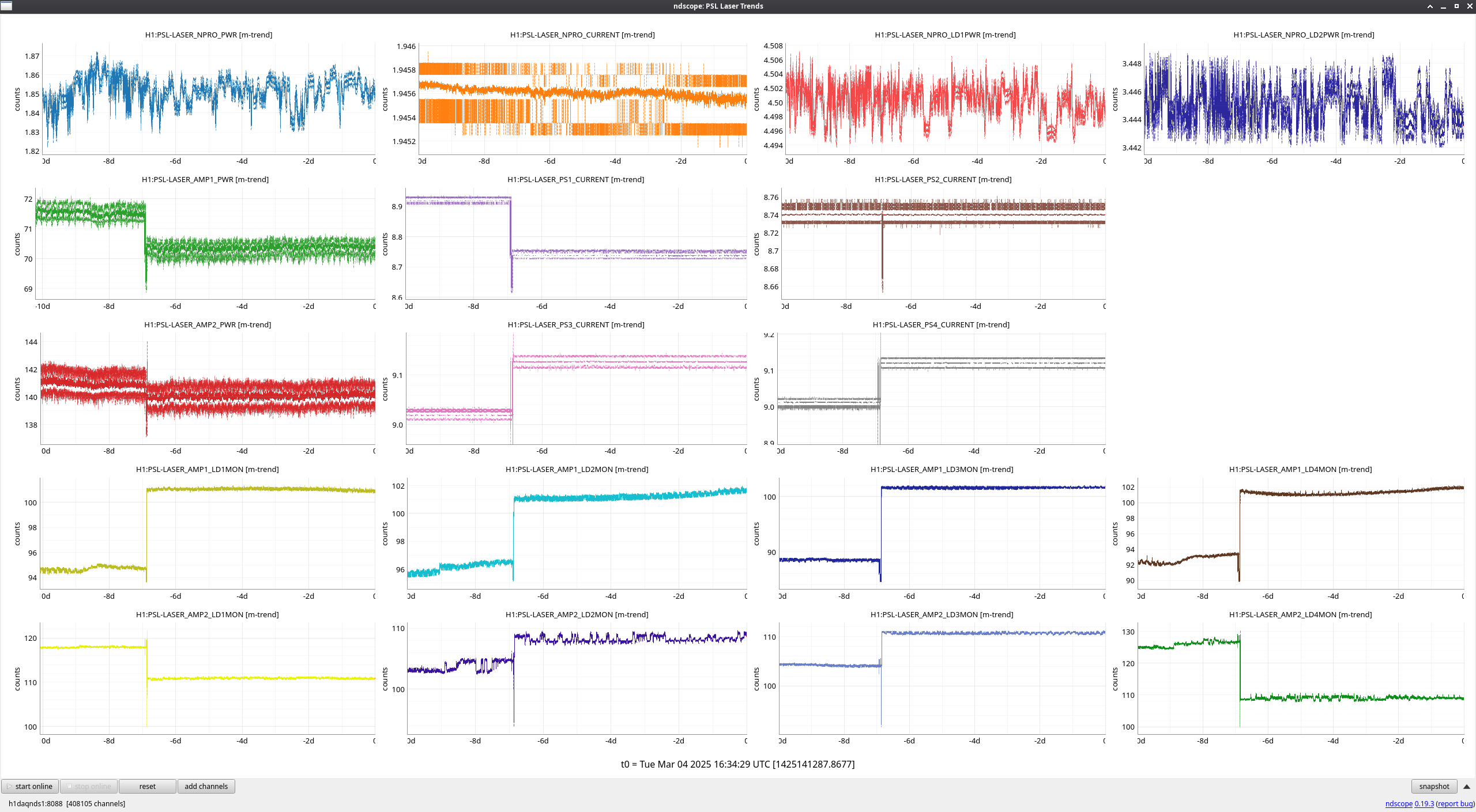

Jason made a few tweaks last Tuesday, including a PMC alignment tweak and recalibration of amplifier pump diode monitors (alog83035), which is clearly seen in trends here. Since then, things have looked quite stable.
TITLE: 03/04 Eve Shift: 0030-0600 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Lock Acquisition
OUTGOING OPERATOR: Oli
CURRENT ENVIRONMENT:
SEI_ENV state: USEISM
Wind: 5mph Gusts, 2mph 3min avg
Primary useism: 0.02 μm/s
Secondary useism: 0.41 μm/s
QUICK SUMMARY:
Workstations were updated and rebooted. This was an os packages update. Conda packages were not updated.

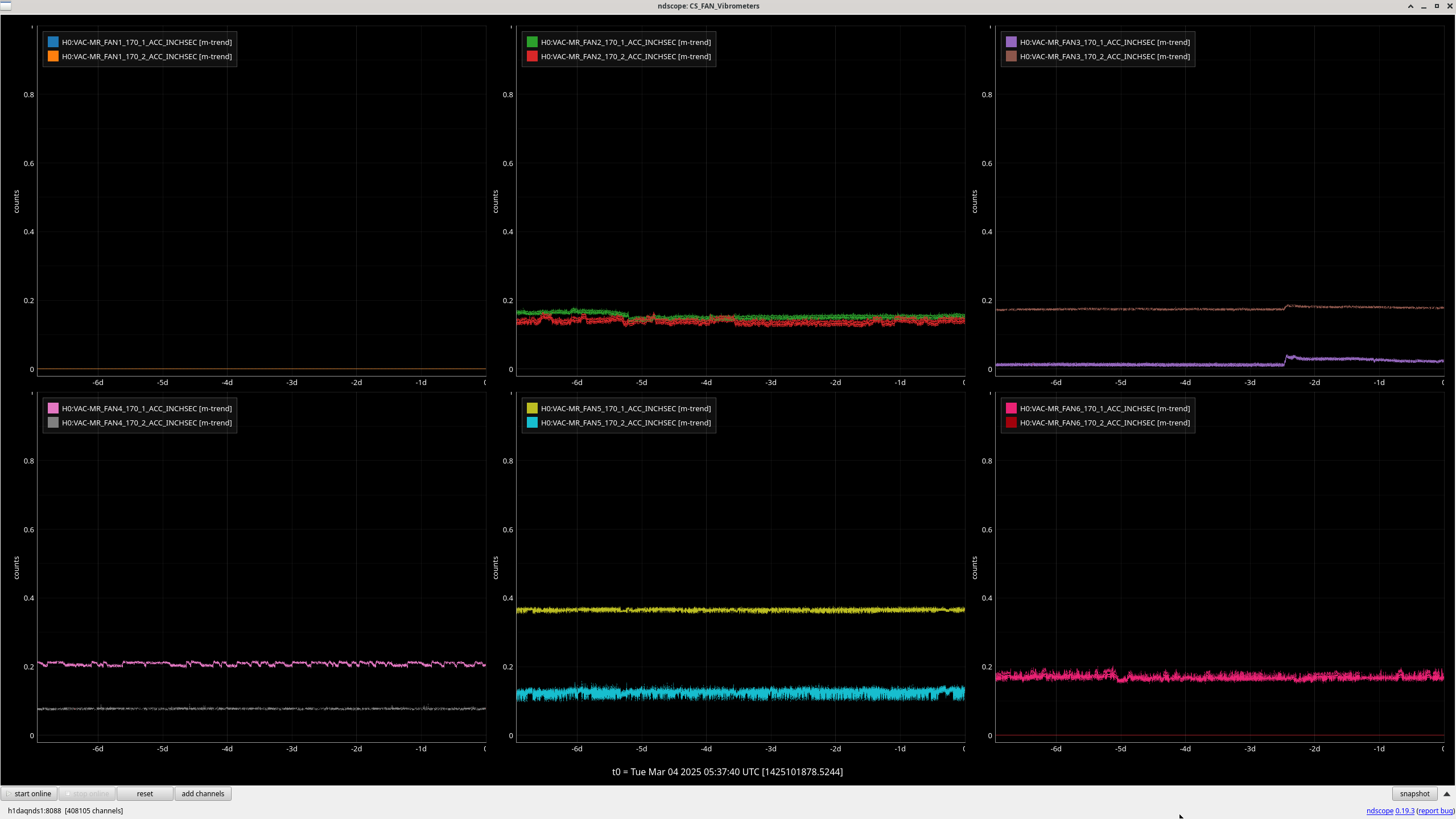

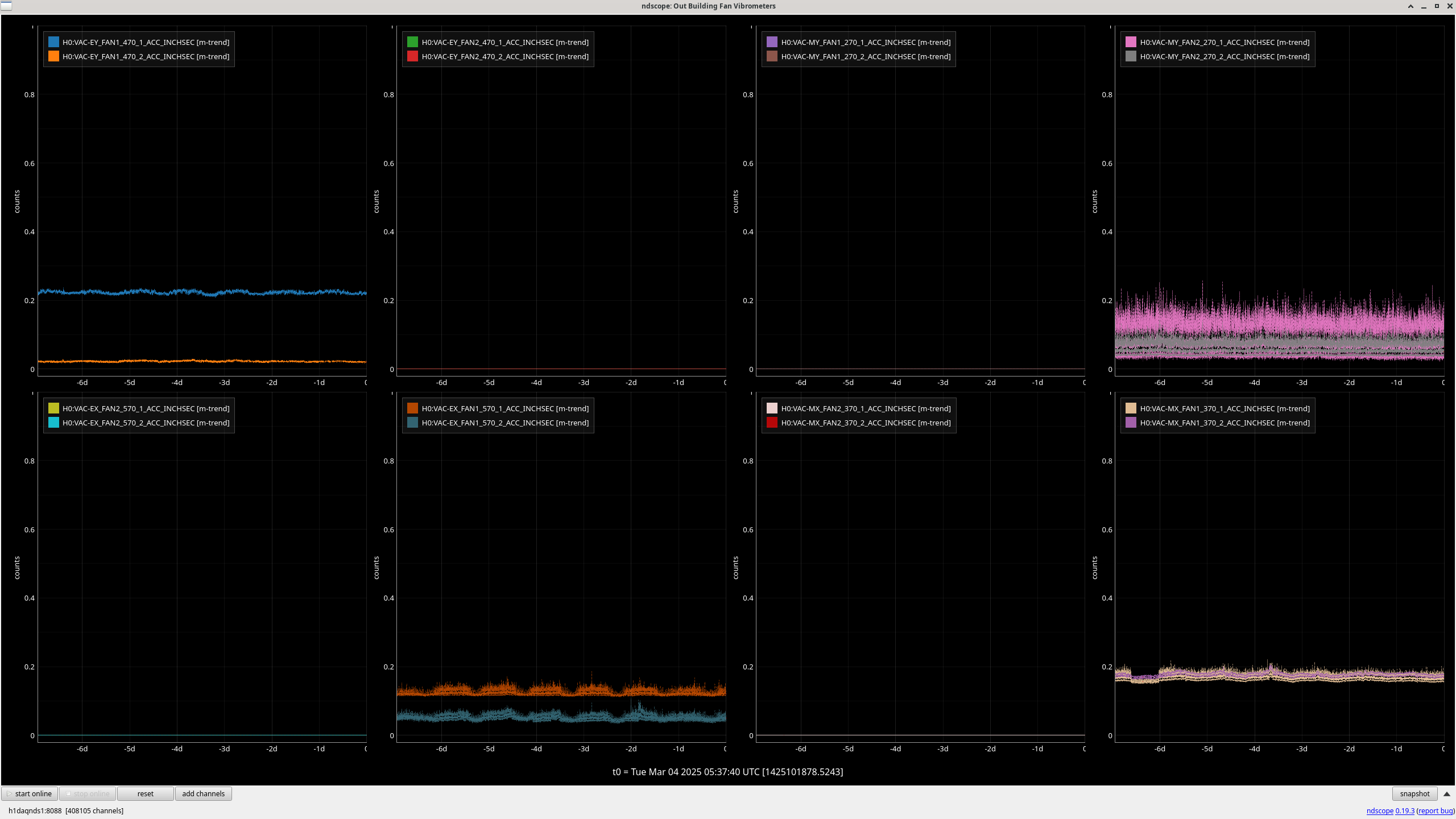

Fan Vibrometer trends.
There was a small bump in the MR_FAN_3_170 about 2 and a half days ago.
TITLE: 03/04 Eve Shift: 0030-0600 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Observing at 149Mpc
OUTGOING OPERATOR: Corey
CURRENT ENVIRONMENT:
SEI_ENV state: CALM
Wind: 13mph Gusts, 9mph 3min avg
Primary useism: 0.03 μm/s
Secondary useism: 0.20 μm/s
QUICK SUMMARY:
H1 Has been Locked for 5 Hours and 45 minutes.
All Systems seem to be running smoothly with the Exception of the LVEA WAP.
Our range is lower than usual, and it appears that the overall DARM noise changed somewhat coincident with the calibration update (see log 83088). The calibration update has improved the calibration accuracy at some frequencies and worsened it in others, namely, calibration error below 40 Hz has reduced from +-4% to within 1%, but calibration error above 50 Hz has increased from within 1% to 2-3% (I am eyeballing these values off the plot in the linked alog).
I took Jeff's calibration transfer functions from the linked alog and I applied them to the GDS-CALIB_STRAIN_NOLINES channel from a time just before the calibration update and a time after. I used our new range difference calculation method to compare the range from before the calibration change to the range after.
Method:
I chose a "before" time, when the GDS CLEAN range appeared to be around 160 Mpc and an "after" time from this past weekend. I used times that started after 3 hours of lock to ensure we were thermalized. I was careful to look for times with no large glitches, and used median averaging to calculate the PSDs.
before time = 1423272193 (Feb 10 12:22:55 PST)
after time = 142495718 (Mar 2 05:26:08 PST)

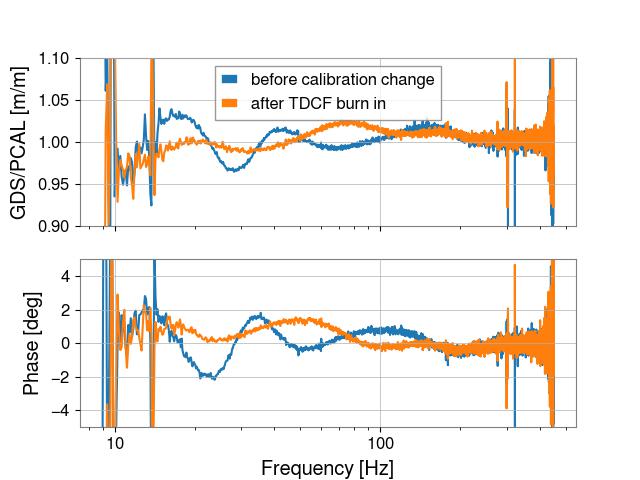

I exported the transfer functions shown in this plot (**when exporting, I noticed that the refs used for the phase got mixed up, I believe the blue phase trace corresponds to the black magnitude trace and vice versa**). For the "before" time, I used the black trace labeled "Pre-calibration change" and for the "after" time I used the red trace labeled "Post GDS TDCF Burn-in".
I pulled 30 minutes of data from the times listed above, and used GDS-CALIB_STRAIN_NOLINES for my calculations.
The "uncorrected" data is simply GDS-CALIB_STRAIN_NOLINES * 4000 m (that is, calibrated strain converted into meters with no Pcal correction)
The "corrected" data is (GDS-CALIB_STRAIN_NOLINES * 4000 m) / pcal transfer function, where the pcal transfer function is the R_model / R_true exported from the DTT template above.
The PCAL transfer function is only well-measured from about 9 Hz to 450 Hz, so I cropped the PSDs to those frequencies. Finally, I used the normalized range difference method to calculate the cumulative range difference between the before and after calibration update times for both the "uncorrected" and "corrected" data.
Results:

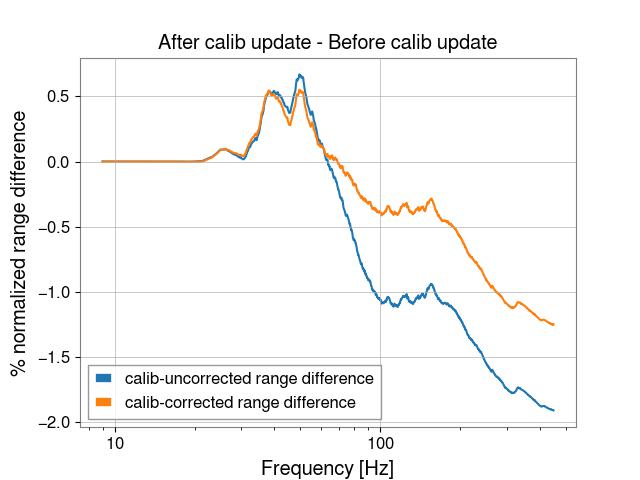

I believe these results indicate that there is excess noise present in DARM that is unrelated to the calibration change, see first attached plot. I converted the result into a percent difference, because the overall Mpc units refer to the integrated range from only 9-450 Hz, so it's not really comparable with our sensemon range calculation. This plot shows that the range increased about 0.5% between 30-50 Hz, which is present in both the uncorrected and corrected calibrated strain. However, above 50 Hz, the range is worse, and it's here where the difference in the old and new calibration is also evident. Without applying the pcal correction, the range is lower is by nearly 2%, but only about 1% with the pcal correction.
Since this is a frequency dependent effect, it is difficult to say what our overall sensmon range would be if we still had the old calibration and/or we didn't have this excess noise. However, I think it is fair to say that our excess noise has reduced our range by about 1% and the new calibration by another 1%.

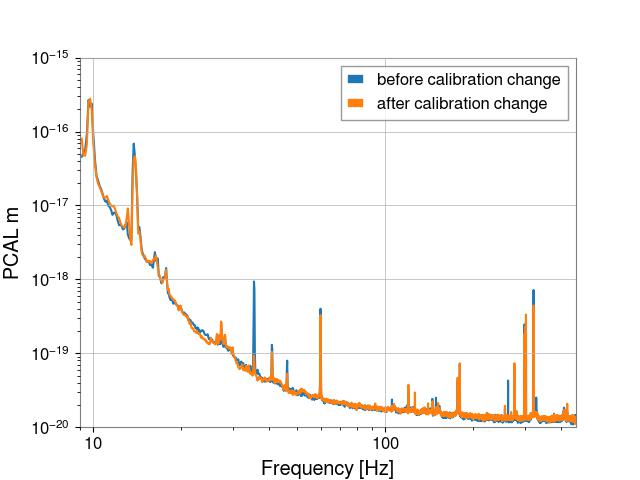

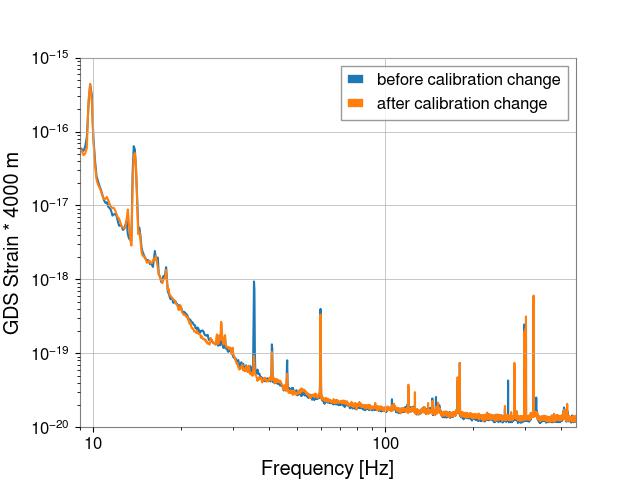

I also added a plot that compares these two times, the first is GDS-CALIB_STRAIN_NOLINES * 4000 m and the second is (GDS-CALIB_STRAIN_NOLINES * 4000 m) / pcal transfer function.
TITLE: 03/03 Day Shift: 1530-0030 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Observing at 148Mpc
INCOMING OPERATOR: Tony
SHIFT SUMMARY:
H1 started the day Observing and then transitioned for Commissioning, but the thermalized H1 only lasted 21min of Commissioning before a lockloss.
Relocking was surprisingly not trivial with mainly the DRMI causing grief, but after a second Initial Alignment was run, DRMI managed to lock. Still seems unhealthy (even with our quieiter microseism.
LOG:
Jennie Siva Keita Mayank
Following our previous attempt here . We opened a new ISS PD array (S.N. 1202965).
This unit is in great condition. i.e.
1) No sign of contamination.
2) All the optics are intact (No chipping)
We tried interfacing the QPD-cable S1203257 with the QPD but it turned out that they are not compatible.
We will look for the updated version of the QPD cable.
More photos I took of the unboxed unit,
Keita holding part of QPD connector that connects to cable,
zoom in of part of prisms close to PD array to show they don't look damaged like the previous one we unboxed,
dcc and serial number of baseplate (this is different part for each observatory due to differing beam heights).
Keita explaining the QPD cable clamp to Shiva (right) and Mayank (left).
View of optics with periscope upper mirror on the left.
View of part of prisms close to periscope.
View of back of array and strain relief.
plus a picture of an packaged coptic that was sitting on top of this capsule while it was in the storage cupboard.
For future reference all the ISS arrays and there serial numbers are listed in the dcc entry for the assembly drawing LIGO-D1101059-v5.
[Matthew Mayank Siva Keita]
On Friday (2025-02-28) we moved the optics onto taller posts so that we did not have to pitch the beam up to much (in hind-sight, we probably would've been okay doing this) when we align the beam into the input port of the ISS array. We have not aligned the beam yet and most likely should re-profile it(may not need to) to ensure that the planned lens position is correct.
We also spent some time checking the electronics box for proper connections and polarity; then we tested the upper row of PDs (4 top ones) by plugging in each cathode/anode to the respective port. The output DSUB we used a breakout board and threw each channel onto an oscilloscope -- it seems that all four of the top row of PDs are functioning as anticipated.
Important Note:
Keita and I looked at the "blue glass" plates that serve as beam dumps, but just looking at the ISS array we do not know how to mount them properly. We think there may be some component missing that clamps them to the array. So we repackaged the blue-glass in its excessive lens paper.
