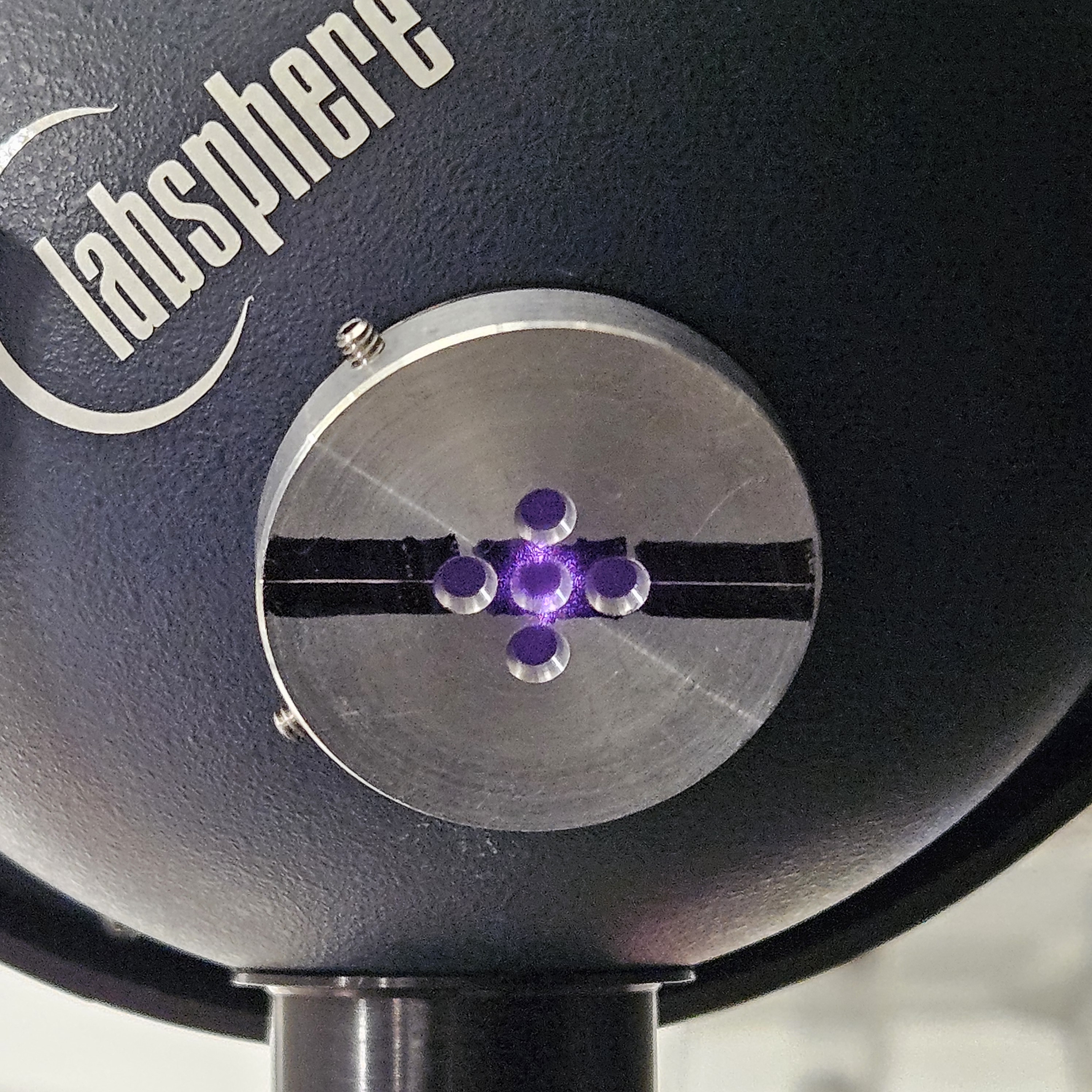

Saw Corey's note re: "ISS Diffracted Power Low," so I took the opportunity provided by the recent lockloss to adjust the ISS RefSignal. The RefSignal changed from -1.90 V to -1.88 V, which brought the diffracted power % to ~4% from just below 3%. The diffracted power % changed due to the enclosure slowly returning to thermal equlibrium after yesterday's FSS tune up, which changed the amount of power transmitted through the PMC.

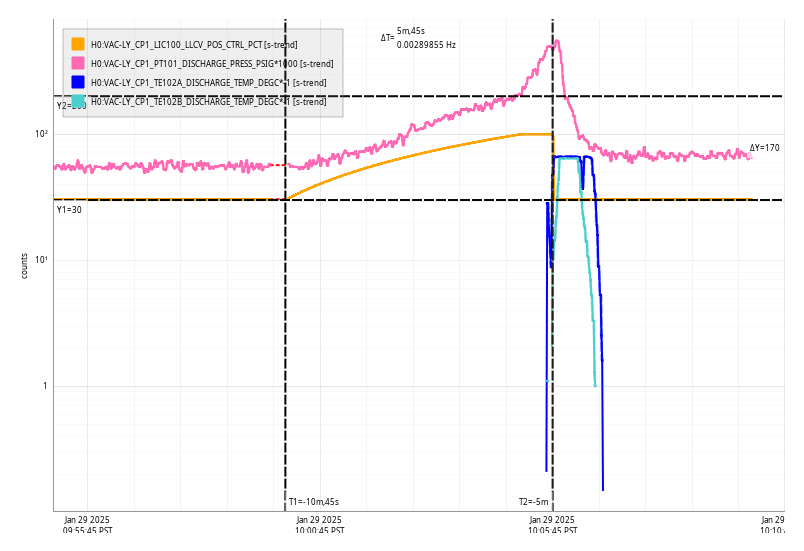

Wed Jan 29 10:05:45 2025 INFO: Fill completed in 5min 42secs
TCmins[-66C, -65C] OAT (-3C, 27F) DetaTempTime 10:05:47. TC-B is nominal again.
If you are trending slow channels which are acquired by the EDC spanning the time of the EDC+DAQ restart yesterday (11:30 Tue 28 Jan 2025) and you are using the default NDS (h1daqnds1) you may see outlier data for a period of about 10 minutes. This is because we staggered the DAQ restart to preserve front-end data, starting with the 0-leg and EDC first, and then the 1-leg later after fw0 was back to writing frames.
The EDC change yesterday was to add/remove mechanical room vacuum channels, and the vacuum systems are at the beginning of the EDC DAQ configuration file. The result of this is that after h1edc was restarted at 11:28, from h1daqfw1's perspective almost all the EDC channels moved relative to each other (channel hop), meaning that for each channel nearby channel data was being written instead for about 10 minutes.
h1daqfw0 does not have this issue because h1edc was restarted while it was down, such that when it started writing frames again it was running with the new h1edc configuration. Ditto for raw minute trends on h1daqtw0.

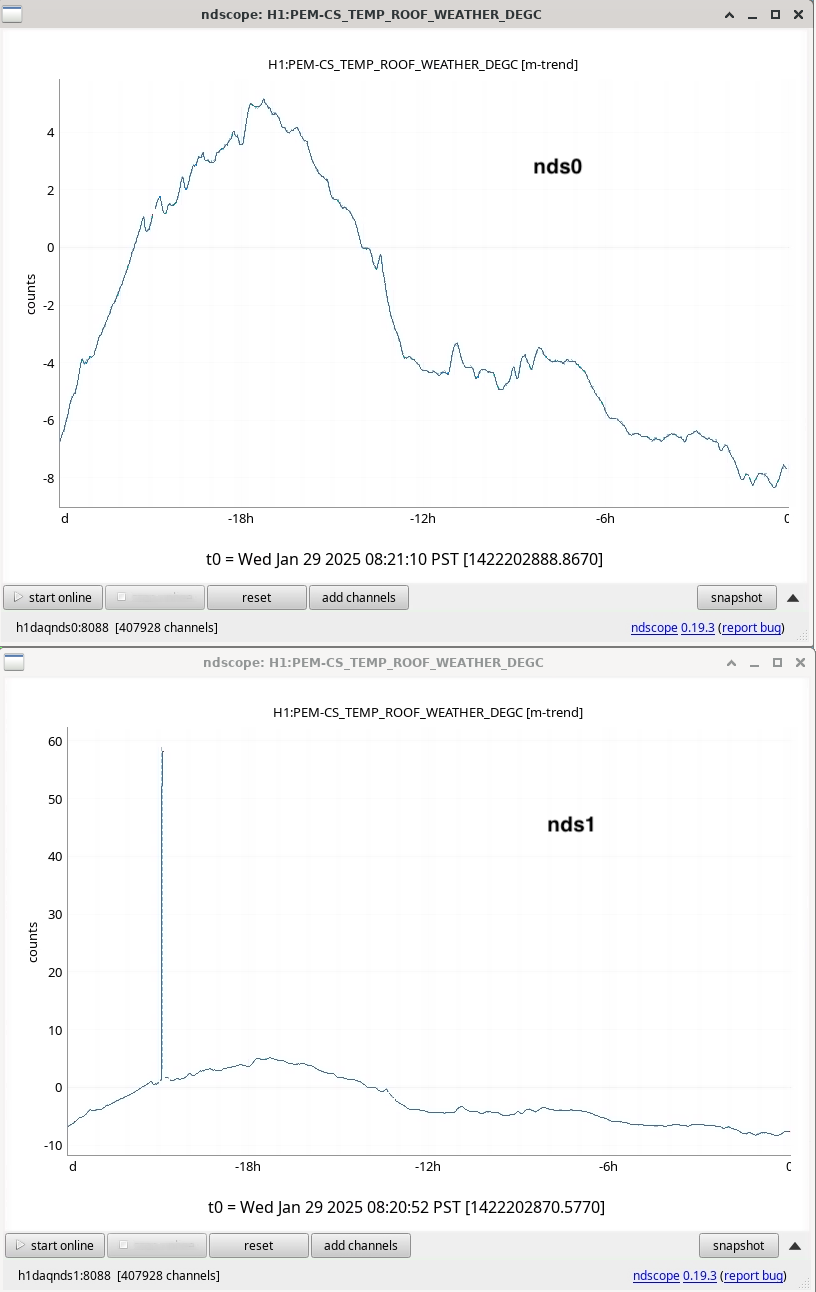

Switching your NDS from the default h1daqnds1 to h1daqnds0 removes this issue. The attached plots show a 24 hour trend of the outside temperature in degC obtained from nds1 and nds0. The nds1 command is:
ndscope --light -t "24 hours ago" -t now H1:PEM-CS_TEMP_ROOF_WEATHER_DEGC
and the nds0 command is
ndscope --nds h1daqnds0:8088 --light -t "24 hours ago" -t now H1:PEM-CS_TEMP_ROOF_WEATHER_DEGC
Ran the dust monitor check this morning and noticed LAB2 had this note: Error: data set contains 'not-a-number' (NaN) entries
Dave mentioned this dust monitor has been down since christmas time and giving odd data (vs showing signs of being "dead"/offline). The plan was to get it replaced; so this is a known issue. Not sure where it is (Optics Lab or Vacuum Prep?).
The dust monitor is located in the Vacuum prep area, which is adjacent to the PCAL lab past the garb room. I've power cycled it, restarted the IOC and unplugged and replugged it from its network switch. It probably needs to be swapped but I don't have any internally pumped spares left right now, only pumpless spares that hook up to vacumm pumps. There is a internally pumped DMed in the LVEA that is unused currently, it's turned off during observing (LVEA dust monitor 5) as its pump is noisy, that I could potentially swap it for.
TITLE: 01/29 Day Shift: 1530-0030 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Observing at 161Mpc
OUTGOING OPERATOR: TJ
CURRENT ENVIRONMENT:
SEI_ENV state: CALM
Wind: 4mph Gusts, 2mph 3min avg
Primary useism: 0.02 μm/s
Secondary useism: 0.19 μm/s
QUICK SUMMARY:
H1's been locked 9.5hrs and even stayed locked through a local M4.2 eq off the WA/BC coast. H1 was dropped out of Observing from 1053-1055 due to PI24.
Getting some ISS Diffracted Low Power messages ever few seconds and have some EX glitches from Verbal over the last 4hrs.
Looking like the EX temperature drop & recovery returned to normal at around 12hrs ago (300utc) and it's a balmy 17degF (-8degC) out!
TITLE: 01/29 Eve Shift: 0030-0600 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Observing at 156Mpc
INCOMING OPERATOR: TJ
SHIFT SUMMARY: Just started Observing a few minutes ago after relocking. Relocking went relatively well. Two locklosses during my shift and the only problem with relocking both times was waiting for ALSY and ALSX to calm down so we could lock them. ALSX has an excuse because of the temperature excursion at EX (which is now not too bad - the heating overshot a bit but is coming back down and the rate at which the temperature is changing isn't too bad anymore). However, ALSY doesn't have a good excuse and was also causing issues. We noticed this started happening around January 22nd or 23rd. Almost every lockloss, ALSY does this thing (ndscope) where it will be okay, then gets worse and unlocks, then goes back to being okay, and repeat. A few days ago we checked if it was being caused by the WFS, but the WFS seemed fine and turning them off doesn't stop ALSY from acting strange. Tagging ISC
LOG:
01:00 Lockloss

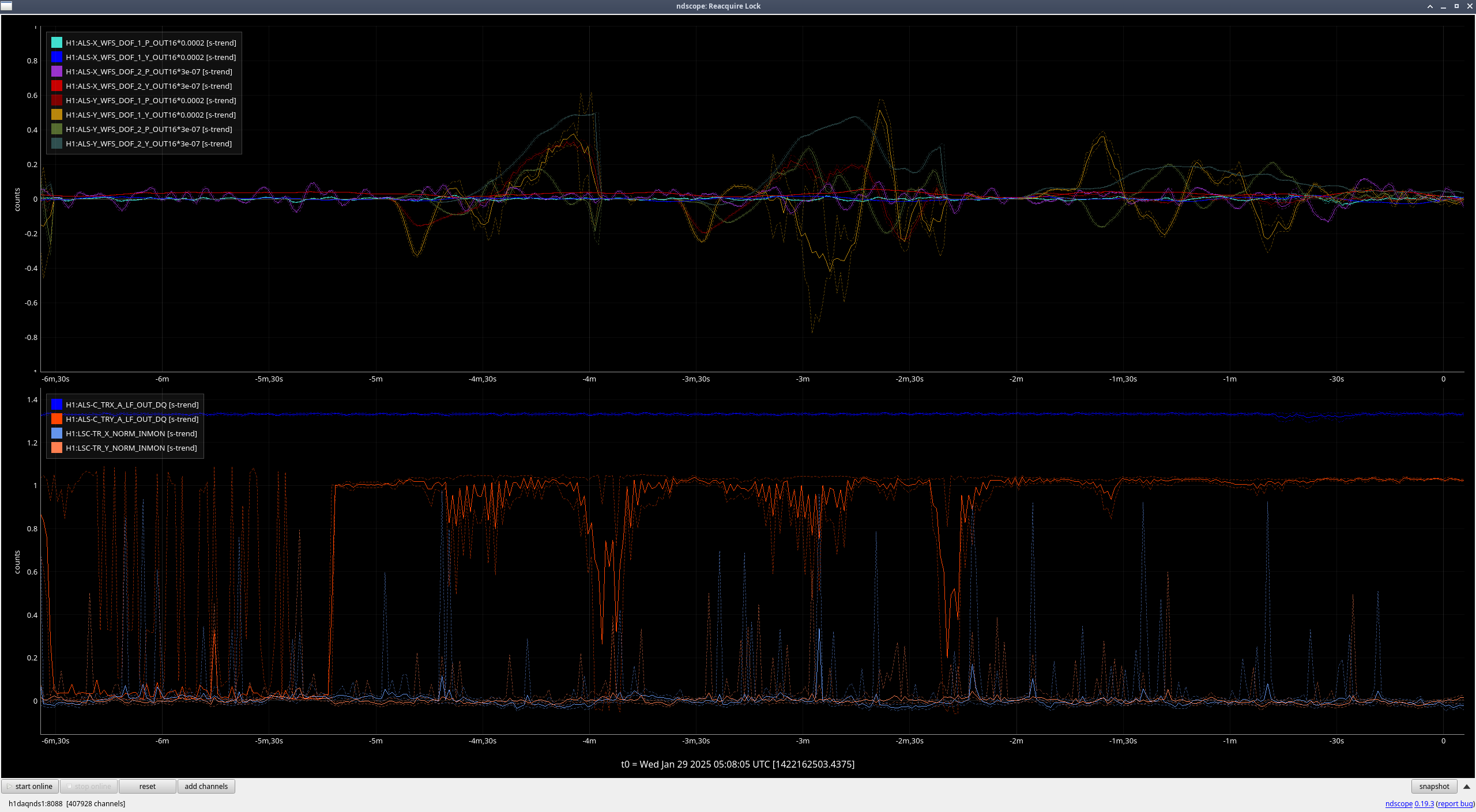

- ALSX kept losing lock (probably due to temperature changes at EX)
- Let ALS lock and WFS converge more before continuing
- Stuck doing MICH so ran an initial alignment
02:59 NOMINAL_LOW_NOISE
03:02 Observing
04:45 Lockloss
- ALSX and ALSY kept losing lock
- Let ALS lock and WFS converge more before continuing
05:56 NOMINAL_LOW_NOISE
05:59 Observing
Start Time | System | Name | Location | Lazer_Haz | Task | Time End |
---|---|---|---|---|---|---|
22:41 | FAC | eric | EX | - | checking on temperature drop | 00:11 |
23:11 | FAC | tyler | MechRoom.Mids.EY | - | spare heater coil search | 00:35 |
Lockloss @ 01/29 04:44 UTC after 1.75 hours locked
05:59 Observing
Today Francisco and I went down to the EX End station to do a End Station measurement using PS4.
We followed our trusty T1500062 Procedure until aalmost the end, Because Francisco needed to do a beam movement After the ES measurement.
The PS4/PS5 lab measurement used for this was made on 2024-12-10. I did make a PS4/PS5 measurement yesterday, but that was done using the new Lab method. This means this Lab measurement is not availible on the master branch in the form required for the ES measurement analysis tools to use it properly.
python generate_measurement_data.py --WS "PS4" --date '2024-12-10'
Reading in config file from python file in scripts
../../../Common/O4PSparams.yaml
PS4 rho, kappa, u_rel on 2024-12-10 corrected to ES temperature 299.6 K :
-4.702394808525094 -0.0002694340454223 4.3277259408925024e-05
Copying the scripts into tD directory...
Connected to nds.ligo-wa.caltech.edu
martel run
reading data at start_time: 1422121080
reading data at start_time: 1422121480
reading data at start_time: 1422121800
reading data at start_time: 1422122150
reading data at start_time: 1422122510
reading data at start_time: 1422122865
reading data at start_time: 1422122980
reading data at start_time: 1422123840
reading data at start_time: 1422124200
Ratios: -0.4589607901775236 -0.4689807789761762
writing nds2 data to files
finishing writing
Background Values:
bg1 = 9.269796; Background of TX when WS is at TX
bg2 = 5.192082; Background of WS when WS is at TX
bg3 = 9.119009; Background of TX when WS is at RX
bg4 = 5.361966; Background of WS when WS is at RX
bg5 = 9.037959; Background of TX
bg6 = 0.508605; Background of RX
The uncertainty reported below are Relative Standard Deviation in percent
Intermediate Ratios
RatioWS_TX_it = -0.458961;
RatioWS_TX_ot = -0.468981;
RatioWS_TX_ir = -0.453407;
RatioWS_TX_or = -0.464488;
RatioWS_TX_it_unc = 0.085535;
RatioWS_TX_ot_unc = 0.091457;
RatioWS_TX_ir_unc = 0.089022;
RatioWS_TX_or_unc = 0.094409;
Optical Efficiency
OE_Inner_beam = 0.988084;
OE_Outer_beam = 0.990574;
Weighted_Optical_Efficiency = 0.989329;
OE_Inner_beam_unc = 0.057445;
OE_Outer_beam_unc = 0.061558;
Weighted_Optical_Efficiency_unc = 0.084198;
Martel Voltage fit:
Gradient = 1636.809688;
Intercept = 0.225736;
Power Imbalance = 0.978635;
Endstation Power sensors to WS ratios::
Ratio_WS_TX = -1.077654;
Ratio_WS_RX = -1.392043;
Ratio_WS_TX_unc = 0.053955;
Ratio_WS_RX_unc = 0.041453;
=============================================================
============= Values for Force Coefficients =================
=============================================================
Key Pcal Values :
GS = -5.135100; Gold Standard Value in (V/W)
WS = -4.702395; Working Standard Value
costheta = 0.988362; Angle of incidence
c = 299792458.000000; Speed of Light
End Station Values :
TXWS = -1.077654; Tx to WS Rel responsivity (V/V)
sigma_TXWS = 0.000581; Uncertainity of Tx to WS Rel responsivity (V/V)
RXWS = -1.392043; Rx to WS Rel responsivity (V/V)
sigma_RXWS = 0.000577; Uncertainity of Rx to WS Rel responsivity (V/V)
e = 0.989329; Optical Efficiency
sigma_e = 0.000833; Uncertainity in Optical Efficiency
Martel Voltage fit :
Martel_gradient = 1636.809688; Martel to output channel (C/V)
Martel_intercept = 0.225736; Intercept of fit of Martel to output (C/V)
Power Loss Apportion :
beta = 0.998895; Ratio between input and output (Beta)
E_T = 0.994100; TX Optical efficiency
sigma_E_T = 0.000419; Uncertainity in TX Optical efficiency
E_R = 0.995201; RX Optical Efficiency
sigma_E_R = 0.000419; Uncertainity in RX Optical efficiency
Force Coefficients :
FC_TxPD = 7.902395e-13; TxPD Force Coefficient
FC_RxPD = 6.183646e-13; RxPD Force Coefficient
sigma_FC_TxPD = 5.429896e-16; TxPD Force Coefficient
sigma_FC_RxPD = 3.673209e-16; RxPD Force Coefficient
data written to ../../measurements/LHO_EndX/tD20250128/
Martel measurement
WS in the Transmitter module.
WS in the Rx module
WS in the Rx module with Both Beams
PCAL ES trends pdf.
More data can be found here: https://git.ligo.org/Calibration/pcal/-/tree/master/O4/ES/measurements/LHO_EndX/tD20250128?ref_type=heads
Lockloss @ 01/29 01:00 UTC
03:02 Observing
TITLE: 01/28 Day Shift: 1530-0030 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Preventive Maintenance
INCOMING OPERATOR: Oli
SHIFT SUMMARY:
Maintenance Day roughly ended at noon followed by locking and getting locked fairly smoothly with no issues worth noting.
There has been a temperature drop at EX from this morning due to a heater coil failure. Tyler gave Oli and I a summary of the status of EX's recovery. The Reheat temperature is now up at 80degF (it had been hovering at 60 for the last 7hrs)---it will now oscillate a bit until it returns to normal operations. Tyler said to keep an eye on it and contact him if we loose our Reheat air again.
LOG:
TITLE: 01/29 Eve Shift: 0030-0600 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Observing at 159Mpc
OUTGOING OPERATOR: Corey
CURRENT ENVIRONMENT:
SEI_ENV state: CALM
Wind: 3mph Gusts, 1mph 3min avg
Primary useism: 0.01 μm/s
Secondary useism: 0.11 μm/s
QUICK SUMMARY:
Currently Observing at 159Mpc and have been Locked for 3.5 hours now. The work to fix the fan heating coil at EX just finished and the coils are running, just not with full capability. We have been doing okay even with the temperatures there still fluctuating. The average VEA temps had gone down 2.5°F over the past 7 hours, but now it's slowly going back up.
Ryan Crouch, Rahul Kumar
The assembly, balancing and testing of all 12 HRTS (Ham Relay Triple Suspension) for O5 is now complete. Currently all 12 HRTS has dummy optic installed at the bottom stage and once the mirrors are ready (with prisms bonded) then it will be replaced (later this year). I am attaching several pictures from the lab which shows all 12 HRTS staged on the optical bench. Later, six of the suspensions will be transported to LLO.
This plot compares the of transfer function performance of all 12 HRTS for all 6 degrees of freedom. We are still analyzing this data and there is scope for improving a couple of them (especially highlighted in green trace). Sometimes, it is as simple as adjusting the flag position wrt to LED/PD in bosems, and other times further fine tuning the balance and alignment of the blade springs.
The final two HRTS which were assembled by us are of OM0 configuration. This has bottom mass (M3 stage) actuation using AOSEM standoff assembly (as per D2300180_v2) as shows in the picture over here. The magnets used at M3 stage is 2.0 mm D x 0.5 mm T, SmCo. The transfer function results for both the OM0 configurations are as follows - attachment01 and attachment02. Both of them look healthy, when compared with the model.
Given below are the OLC, offsets and gains of the bosems attached to OM0 sn02,
s/n 622 31669 | 15834 | 0.947 |
s/n 639 32414 | 16207 | 0.925 |
s/n 637 28430 | 14215 | 1.055 |
s/n 632 27399 | 13699 | 1.094 |
s/n 684 26138 | 13069 | 1.147 |
s/n 698 32767 | 16383 | 0.915 |
I remeasured the associated suspension with the lime green trace (2024-9-16), a suspended version of the HRTS with structure s/n 012. Through adjusting the flags centering and position I was able to improve the measurement results, especially the verticle DOF, yaw also looks better. Previous measurement vs new measurement.
J. Kissel With today's new infrastructure, which down-samples the output of the 524 kHz test banks to 16 kHz in the same way as the primary GW channel, we confirm that last week's addition of an extra 65 to 16 kHz AA filter improves the GW data stream by reducing several down-converted line features. Using the infrastructure configured as shown in the 1st attached screenshot, I compare a ~17 average, 64 sec FFT (~0.02 Hz bindwidth), ASD of - RED The 524 kHz version of the A1 path, which has NO anti-aliasing. - BLUE The 16 kHz version of the primary GW path, which now has 1x 65k and 2x 16k AA filters - GREEN The 16 kHz version of the A2 path, which has the 1x 65k and 1x 16k AA filter configuration used prior to 2025-01-23 - BROWN The 16 kHz version of the A1 path, which has NO anti-aliasing and See 2nd attachment, focusing on the region where I see the most improvement between 400 and 1500 Hz. The The 3rd attachment shows the identical data set, but without DTT binning adjecent FFT bins that we normally used to aesthetically clean up the broad-band noise floor. One can see GREEN features that are not there in RED and also no in the improved BLUE that line up with features in the unfiltered, but down-sampled BROWN. More, fruitful, data to come from this infrastructure, I'm sure. I'm also sure that the CW group and DetChar must be happy with last week's change!
The (single precision) DTT session for this data set lives here: /ligo/svncommon/CalSVN/aligocalibration/trunk/Common/Electronics/H1/SensingFunction/OMCA/Data/ 2025-01-28_OMC_DCPD_AA_Filtering_Comparison.xml 2025-01-28_OMC_DCPD_AA_Filtering_Comparison_w16kHzData.xml where I've saved the session with the time-series in case we want to corroborate this study with offline down-sampling to better understand the front-end algorithm.
WP12302 New h1iopomc0, h1omc and IPC
Jeff, Jonathan, Erik, EJ, Dave:
New h1iopomc0 and h1omc models were installed. A DAQ restart (the first of two) was performed soon afterwards due to INI changes for both models.
h1omc0 uses a custom RCG for duo-tone frequency selection and in the past, filter ramp switching. The models had been built on h1build using the modifed RTS_VERSION and RCG_SRC vars, but the h1iopomc0 model would not start because h1build has a different kernel version to h1omc's boot server (h1vmboot0). The models were rebuilt and installed using h1vmboot0 which fixed the problem.
export RTS_VERSION=5.3.0~~dual_tone_frequency
export RCG_SRC=/opt/rtcds/rtscore/advligorts-5.3.1_ramp
WP12283 Add Locklossalert slow channels to DAQ
Dave:
A new H1EPICS_LLA.ini file was generated containing all the non-string PVs hosted by the locklossalert IOC. This was added to the edcumaster.txt
These channels were added to the DAQ on the second DAQ restart.
WP12296 Vacuum Ion Pump IOC changes
Patrick, Gerardo, Dave:
Patrick made code changes on h0vacmr which resulted in some EPICS channels being removed, some being renamed and some being added.
For those being renamed, their minute trend data using the old name is being referenced using the new names.
Following list shows the oldname/newname mapping.
DAQ Restarts
Jonathan, Dave:
The DAQ was restarted for the first time soon after the new h1iopomc0 and h1omc models were installed. This was an unremarkable restart except that gds0 had to be restarted twice before their channel lists synced up.
The DAQ was restarted a second time towards the end of maintenance once PCAL was done and the new h0vacmr IOC had been running for a while.
This restart followed a different procedure to permit renaming of the raw minute trend files while the trend writer was inactive (see above listing).
1. Restart 0-leg, except keep tw0 down
2. Restart EDC on h1susauxb123
3. Rename vacuum raw chan files
4. Start tw0
5. Restart gds0 if needed
5 Repeat above for the 1-leg, except EDC restart is not needed a second time.
All went well except I had a copy-paste error in my raw minute trend renaming script, which required me to go onto the trendwriters afterwards and fix a file naming issue.
Tue28Jan2025
LOC TIME HOSTNAME MODEL/REBOOT
08:24:20 h1omc0 h1iopomc0 <<< slow restart of h1iopomc0, it had to be rebuilt on h1vmboot0
08:25:00 h1omc0 h1omc
08:25:40 h1omc0 h1omcpi
08:31:21 h1daqdc0 [DAQ] <<< DAQ restart for OMC model changes
08:31:34 h1daqfw0 [DAQ]
08:31:34 h1daqtw0 [DAQ]
08:31:35 h1daqnds0 [DAQ]
08:31:42 h1daqgds0 [DAQ]
08:32:11 h1daqgds0 [DAQ] <<< gds0 restart
08:32:40 h1daqgds0 [DAQ] <<< gds0 needed a second restart
08:36:36 h1daqdc1 [DAQ]
08:36:48 h1daqfw1 [DAQ]
08:36:49 h1daqtw1 [DAQ]
08:36:50 h1daqnds1 [DAQ]
08:36:57 h1daqgds1 [DAQ]
08:37:30 h1daqgds1 [DAQ] <<< gds1 restart
11:27:24 h1daqdc0 [DAQ] <<< 0-leg restart keeping tw0 down
11:27:39 h1daqfw0 [DAQ]
11:27:40 h1daqnds0 [DAQ]
11:27:46 h1daqgds0 [DAQ]
11:28:26 h1susauxb123 h1edc[DAQ] <<< EDC restart, new VAC MR chans, added LLA chans
11:30:29 h1daqtw0 [DAQ] <<< delayed tw0 start following file renaming
11:31:53 h1daqgds0 [DAQ] <<< gds0 restart
11:33:43 h1daqdc1 [DAQ] <<< 1-leg restart keeping tw1 down
11:33:55 h1daqfw1 [DAQ]
11:33:55 h1daqnds1 [DAQ]
11:34:04 h1daqgds1 [DAQ]
11:35:48 h1daqtw1 [DAQ] <<< delayed tw1 start following file renaming
11:36:36 h1daqgds1 [DAQ] <<< gds1 restart
DAQ changes. left chevron=removed, right chevron=added
