• 08:11 Squeezer kicked us out of observing for 1m30sec. It relocked itself no problem. tagging SQZ
• 09:33 Reverted the ETMY violin damping gains as described in alog 54961
• 13:10 Plane heard in CR

Ops Shift Transition: 02/07/2020, Day Shift 16:00–00:00 (08:00-16:00) - UTC (PT)

State of H1: Locked

Intent Bit: Observing

Weather: 0-15 mph wind

Primary 0.03 – 0.1Hz: 0.01 um/s

Secondary 0.1 – 0.3Hz: 0.2 um/s

Outgoing Operator: Camilla

Quick Summary: Locked and Observing for 13 hours, range has been decreasing for about 4 hours (maybe SQZ related).

Locked 9 hours. Quiet shift so far.

TITLE: 02/07 Owl Shift: 08:00-16:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Observing at 120Mpc
OUTGOING OPERATOR: Patrick
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 4mph Gusts, 2mph 5min avg
    Primary useism: 0.02 μm/s
    Secondary useism: 0.21 μm/s
QUICK SUMMARY: Locked 5 hours.

1. corrected ITMX mode 9 monitor filter, was watching 504.1786Hz, peak that is being damped is at 504.16Hz (medm to be updated)

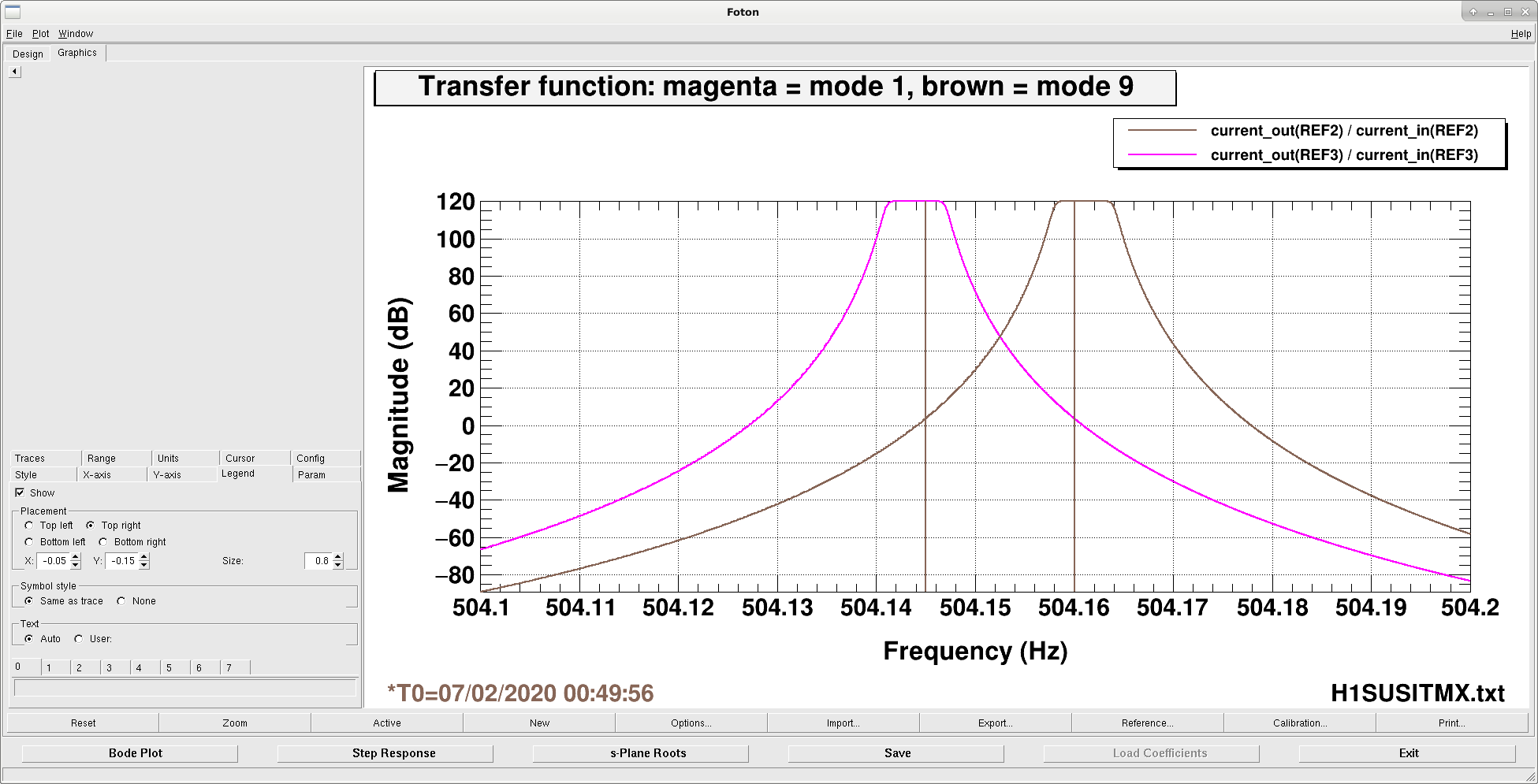

2. adjusted ITMX modes 1 and 9 monitor filters to reduce overlap (snapshots of new and old attached)
   1. old mode 1 monitor filter
   2. butter("BandPass",8,504.135,504.155)gain(120,"dB")
   3. old mode 9 monitor filter
   4. butter("BandPass",8,504.169,504.189)gain(120,"dB")
   5. new mode 1 monitor filter
   6. butter("BandPass",8,504.130,504.150)gain(120,"dB")
   7. new mode 9 monitor filter
   8. butter("BandPass",8,504.155,504.175)gain(120,"dB")

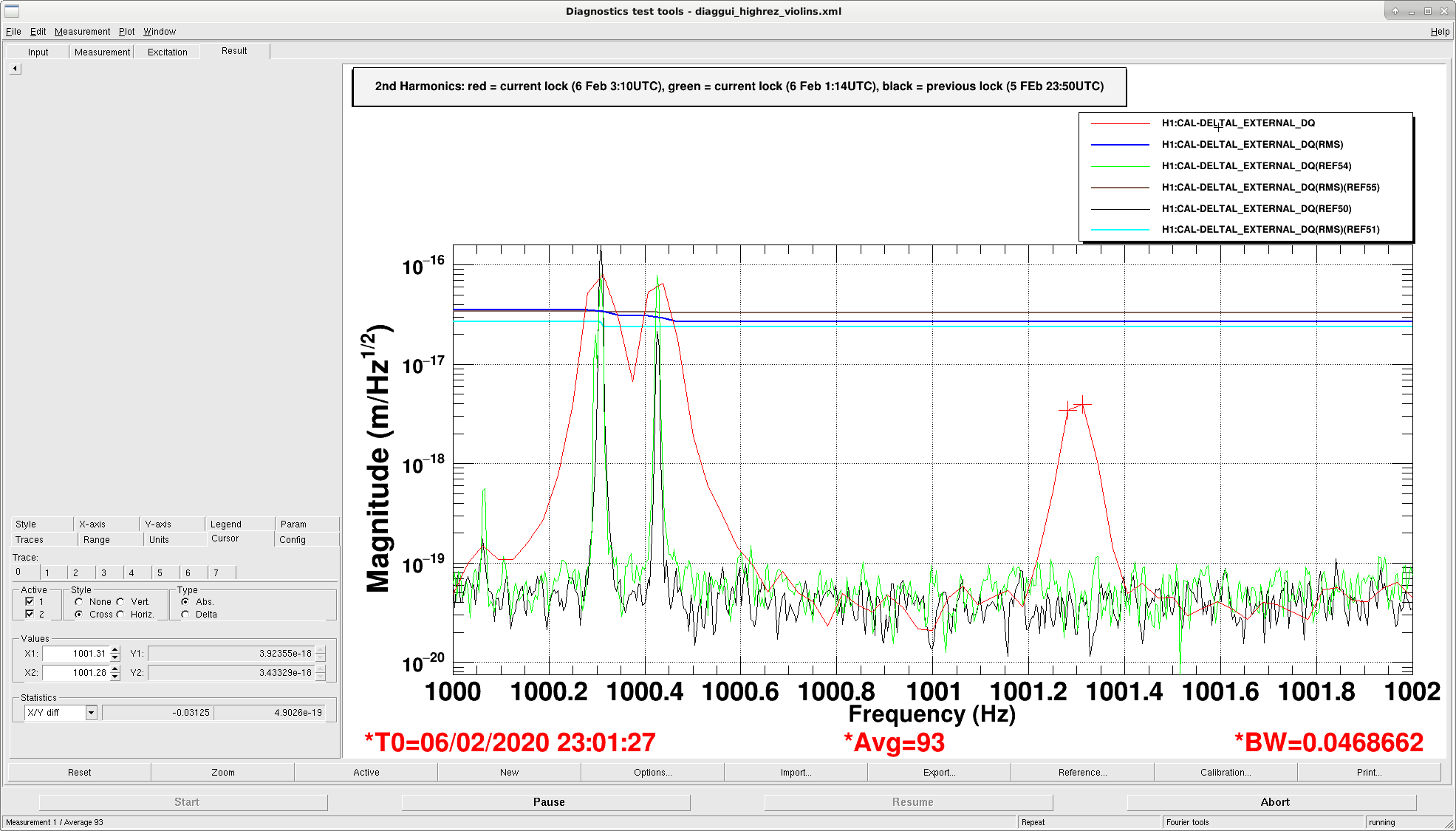

3. created a monitor filter for a newly identified peak at 1001.31Hz
   1. so it's been in DARM before, but not rung up recently
   2. talked with Rahul and Robert, and it's not confirmed as a violin, but likely is a voilin at that frequency
   3. I put the new monitor filter in the ITMX mode 20 monitor filter
   4. ITMX has 8 modes, so mode 20 would be it's 9th, a clue that this is a mode that is not yet identified
   5. medm still says 998.82 (Hz) in red, this will be updated shortly
   6. Patrick verified 4 SDF changes that were a result of creating this filter and entering gains, etc, and accepted them in SDF, alog 54953
4. damping gains adjusted during this current lock for:
   1. ITMX modes 9, 17, and 19
   2. ITMY modes 7, 18
   3. ETMX mode 3
   4. ETMY modes 1, 5, 6, 7, 8, 12, 18, 20
      1. modes 7 and 8 are restored to nominal
      2. mode 20 is running on the previously tested new damping filter, FM7
      3. using the FM7 to damp mode 20, mode 18 damping needs to be off, gain set to zero, and mode 12 gain is lowered to 0.2
      4. mode 20 gain is at 2.0, and I'd like to set the TRAMP time for mode 20 to 20 seconds, up from 10 seconds, after discovering tonight that mode 20 does not react well to changes in gain larger than 0.2-ish, so a longer TRAMP would be helpful for this mode
      5. since mode 20 is damping well, though slowly, I'm leaving the damping in this configurations, and am asking the Owl OPS to keep watch
         1. keeping watch means monitoring modes 12, 18, and 20, both the drive (which should be decreasing for modes 12 and 20), and the RMSLP_LOG10_OUTMON channels for all 3 modes, which should be holding steady, or decreasing
         2. plot attached shows this state for all 3 modes

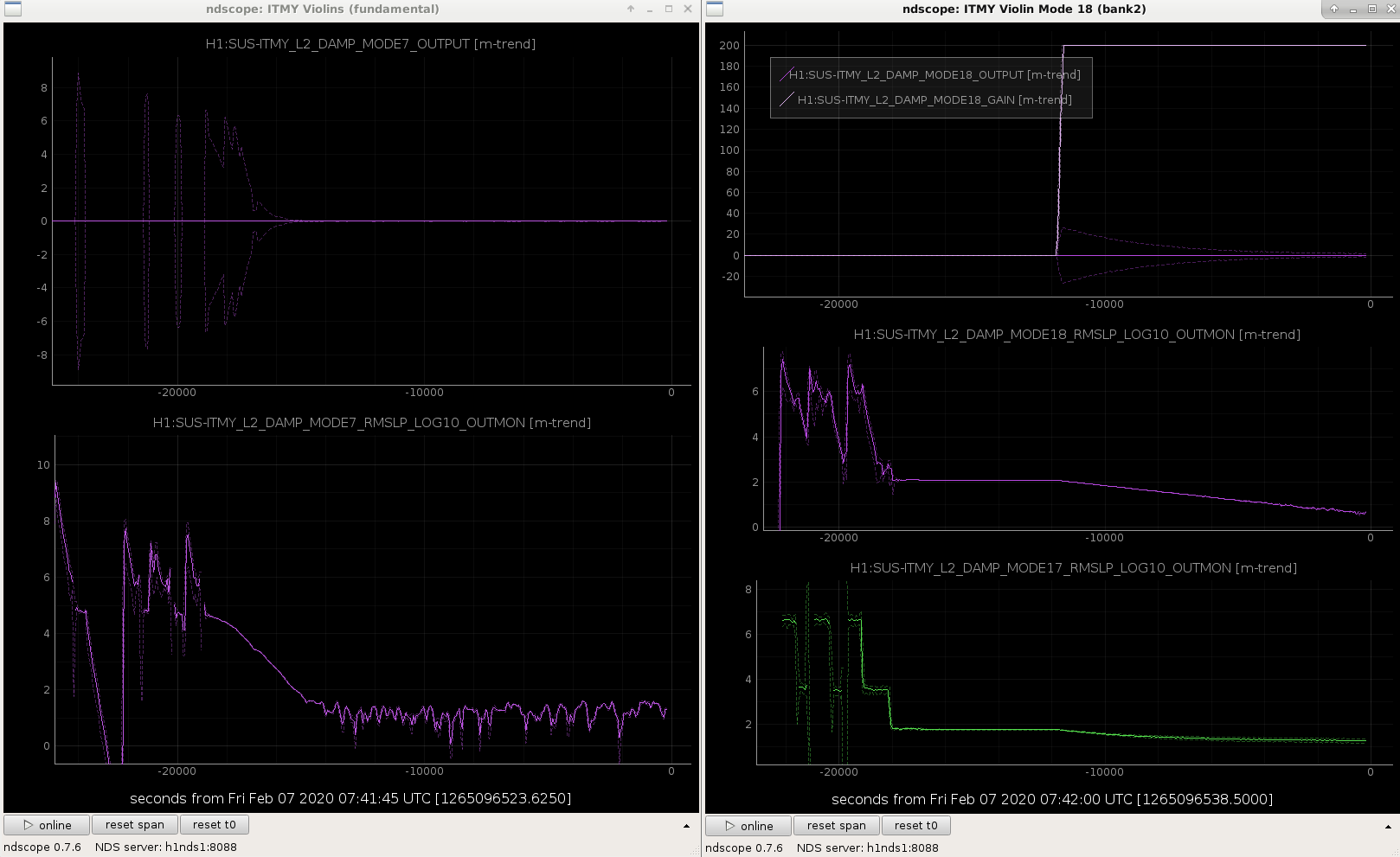

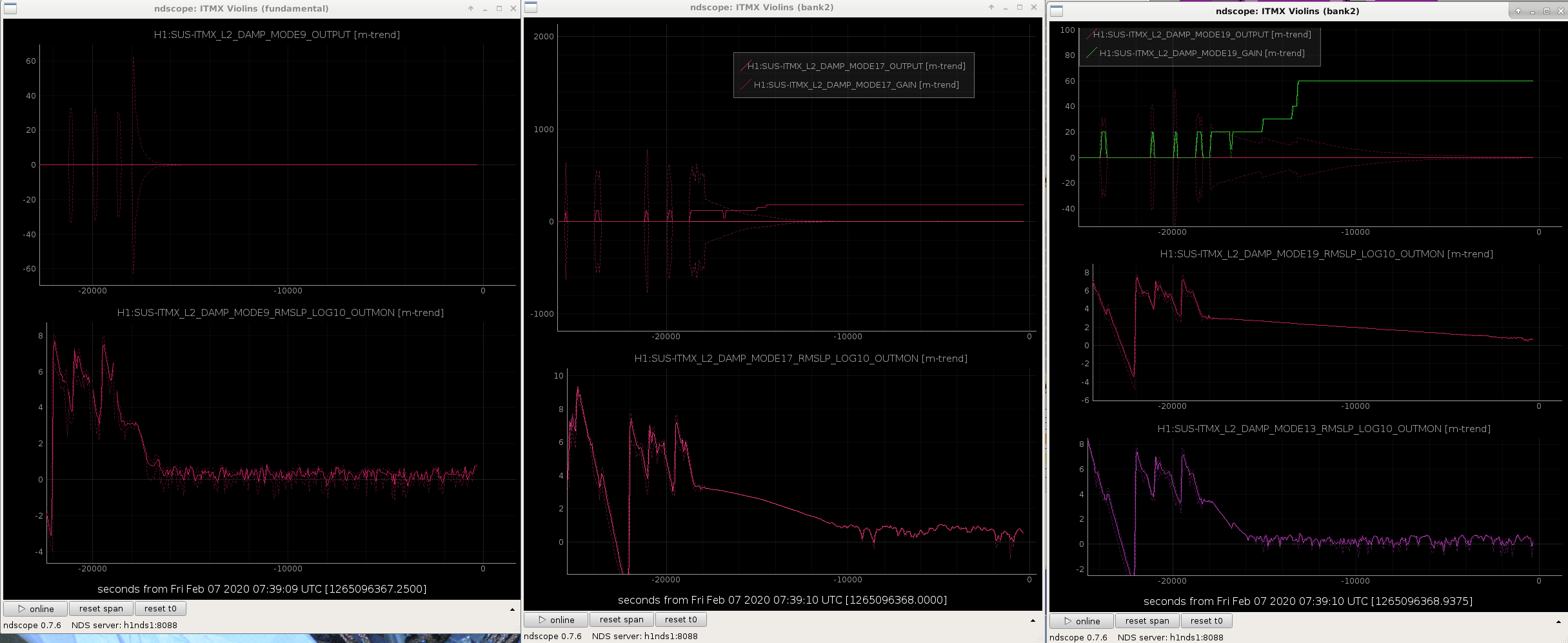

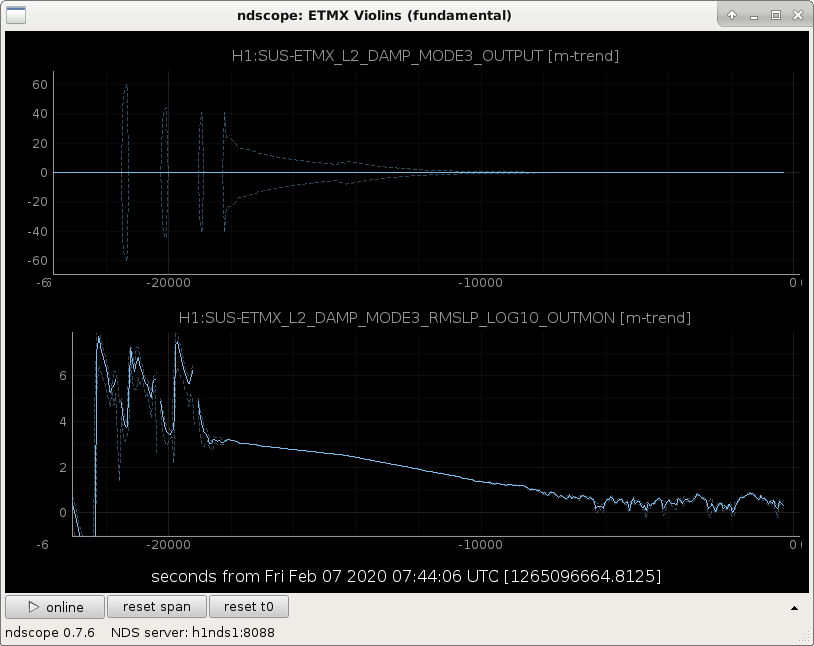

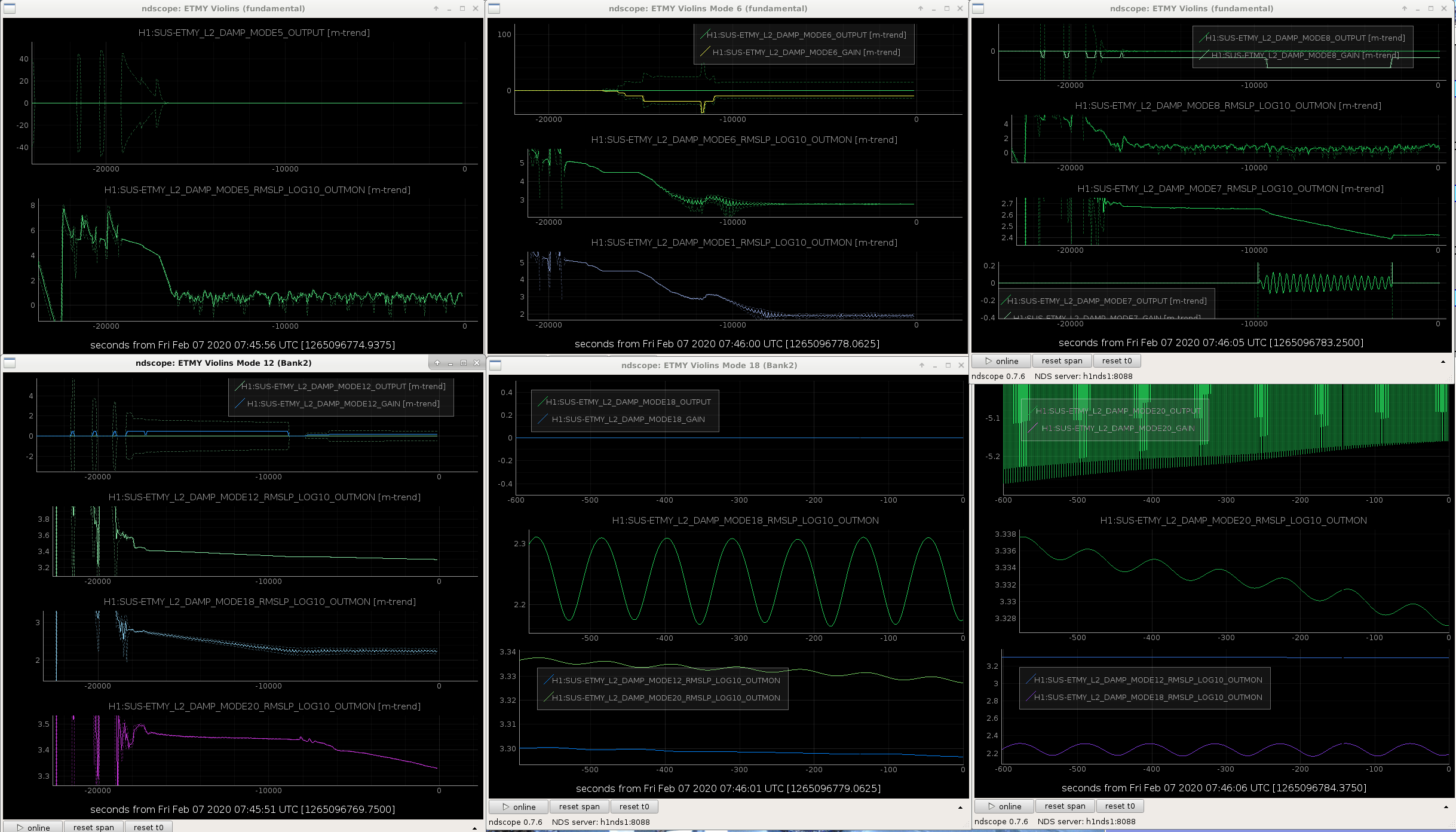

   5. snapshots of all changed modes are attached
      1. all can be reverted to nominal damping gains at any time, EXCEPT ETMY mode 20, which would also need the damping filter changed back to FM1 (while the gain on that mode is zero)
      2. all nominal gains can be identified using the "Print lsc params" button on the violin mode medm

TITLE: 02/06 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 120Mpc
INCOMING OPERATOR: Camilla
SHIFT SUMMARY: Had some difficulty reacquiring lock from the lock loss at the beginning of the shift. No issues since.
LOG:

Lost lock at 23:45 UTC. Relocking.
00:16 UTC Lock loss from MOVE_SPOTS.
00:36 UTC Lock loss from ENGAGE_SOFT_LOOPS.
00:41 UTC Lock loss from ACQUIRE_DRMI_1F.
00:45 UTC Lock loss from LOCKING_ALS.
01:05 UTC Lock loss from POWER_10W. Starting initial alignment.
01:23 UTC GRB-Short E363135 Ignoring (not locked).
01:29 UTC Initial alignment complete. No problems. Relocking.
01:44 UTC Lock loss from ENGAGE_ASC_FOR_FULL_IFO.
02:11 UTC Lock loss from PREP_DC_READOUT_TRANSITION.
02:25 UTC Pausing at ENGAGE_RF_VIOLINS.
02:26 UTC Pausing at PREP_ASC_FOR_FULL_IFO.
02:27 UTC Pausing at ENGAGE_ASC_FOR_FULL_IFO.
02:35 UTC Pausing at ENGAGE_SOFT_LOOPS.
02:40 UTC Pausing at ENGAGE_DC_VIOLINS.
02:42 UTC Pausing at POWER_10W.
02:45 UTC Pausing at MOVE_SPOTS.
02:53 UTC Requesting NLN.
03:02 UTC NLN.
03:06 UTC Accepted SDF differences. Observing.

03:16 UTC GRB-Short E363145
INJ_TRANS set to INJECT_KILL
Swift
Trigger duration	1.024
Stand Down
04:32 UTC INJ_TRANS set back to INJECT_SUCCESS.

Jim, Patrick

The earthquake response plot linked from seismon has been changed to update as new earthquakes are detected. So instead of opening a plot each time there is an earthquake notification, you can just leave it open and it should update as needed.

The new script is at '/opt/rtcds/userapps/release/isi/h1/scripts/animated_eq_plot.py'. This is what the button links to now.

Had some difficulty reacquiring lock from the lock loss at the beginning of the shift. The cause is not immediately clear. Currently standing down for a GRB at 03:16 UTC.

03:06 UTC Cheryl verified that I could accept the attached SDF differences.

Yesterday afternoon I installed the latest version of the Lock Loss Alert system. The main new feature is the ability to send repeat alerts with a separate delay time to that of the single alert. I also redesigned the MEDM screens to make them less cluttered (see attachment). The system is documented in DCC-T2000061

While watching the lock acquisition, I was surprised at how long we were in the state MOVE_SPOTS before the A2L gains are actually changed.  Looking at the code, it is because there are some sleep statements in there for initializing the TMS centering servo that don't need to be in there.

Recall that we use a servo (that Craig implemented over the October break) to move the TMSs such that we are centered on the IR trans QPDs, and maintain that centering as we engage ASC and change the IFO alignment.  The first time the servo is used in ENGAGE_SOFT_LOOPS, we are careful to zero the offsets of the TMS TEST filter banks carefully, if they were somehow left on (they get turned off in DOWN).  Then a cds.servo is used, and when we leave the state we leave the TMS in its new pointing.

The servos are started up again when we go to MOVE_SPOTS.  But, we seem to be resetting the pointing of the TMS before starting the servos up.  The way the reset code was written, it waits 30 seconds to ramp off each TMS offset, but it does it in series, for a total of 2 minutes of sleeping.  We shouldn't be resetting the offsets here, because that erases the centering that was done earlier, so I commented out this whole section which also removed the sleeps.

It's possible that the IFO liked this 2 min wait to get some time for convergence and thermalization after going up to 10W.  If there are problems at this state, please uncomment lines 3611-3621 in ISC_LOCK to put these sleeps back in (if this is needed, I'll fix them on ~Tuesday so that they are timers and not sleeps, since we're not checking for lockloss during each of these 30 sec sleeps).

Separately, we should probably be resetting the A2L gains to their centered locations in PREP_FOR_LOCKING, rather than waiting until PREP_ASC_FOR_FULL_IFO, since we engage DHARD before prep_asc_for_full_IFO.  Seems to not be a big deal, but we are jerking that around on poor DHARD when we set them to their centered values just before turning on the dither lines, so we're changing the amount of DHARD noise injected to DARM.

TITLE: 02/06 Day Shift 16:00 – 00:00 (08:00-16:00), all times posted in UTC

STATE of H1: Locking

INCOMING OPERATOR: Patrick

SHIFT SUMMARY: Three fast locklosses over the course of the shift, not sure as to the cause.Currently re-locking at ACQUIRE_DRMI_1F.

LOG:

16:57 (08:57) GRB 363095 -- trigger duration too long

17:08 (09:08) Ed to Optics Lab

17:19 (09:19) Ed out of Optics Lab

18:04 (10:04) Fast lockloss

18:34 (10:34) Tyler processing tumbleweeds on X-arm

19:55 (11:55) At NLN, going to Observing

21:41 (13:41) Going out of Observing for 0.5-1 hour of commissioning

21:49 (13:49) Tumbleweed work done for the day

22:07 (14:07) Fast lockloss

22:55 (14:55) At NLN, going to Observing

23:45 (15:45) Fast lockloss

TITLE: 02/06 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Lock Acquisition
OUTGOING OPERATOR: Niko
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 7mph Gusts, 6mph 5min avg
    Primary useism: 0.02 μm/s
    Secondary useism: 0.26 μm/s
QUICK SUMMARY: Lost lock at 23:45 UTC. Relocking.

I haven't found any particular pattern yet of why this is happening, but sometimes we make it through ENGAGE_SOFT_LOOPS the first time around, and sometimes we lose lock there, and then make it up to NomLowNoise the next time. I noticed this because we get to ~300 kPc and then lose lock, which shows up as a small blip up in the range plot during acquisition.

If an on-shift operator has some time, it might be interesting to try to understand why this is happening, so that we can fix it.  On several of the times that we make it through on the first time, we are back locked extremely quickly!

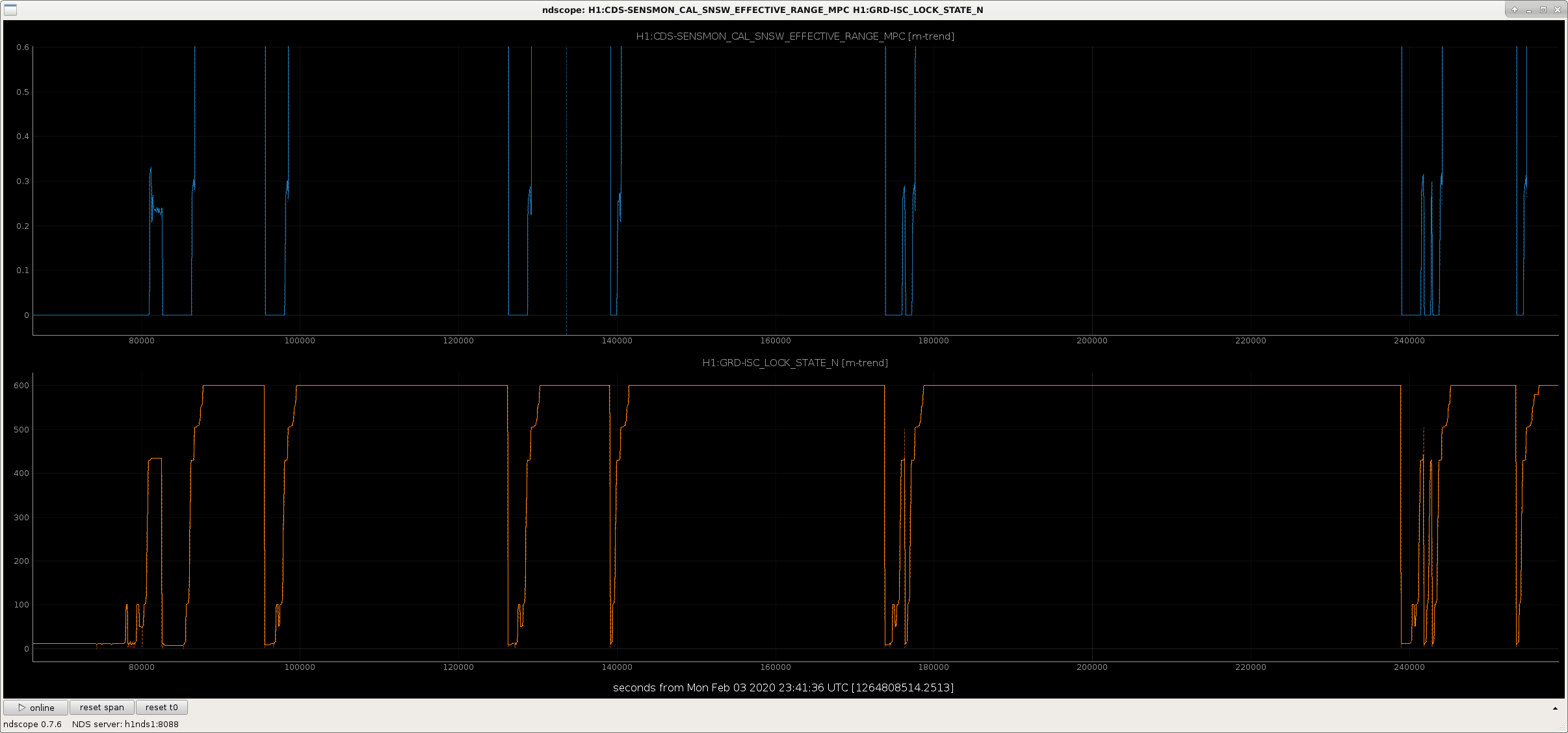

The attached screenshot is 3 days of range and guardian state, just showing that sometimes we lose lock there, and sometimes we make it through.
