TITLE: 12/29 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 113Mpc
OUTGOING OPERATOR: Jim
CURRENT ENVIRONMENT:
SEI_CONF state: USEISM
Wind: 7mph Gusts, 5mph 5min avg
Primary useism: 0.04 μm/s
Secondary useism: 0.41 μm/s
QUICK SUMMARY: Locked 14hours. All calm, have had some wind but decreasing now. Will change SEI_CONF back to WINDY as useism has reduced.
TITLE: 12/30 Day Shift: 16:00-00:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 112Mpc
INCOMING OPERATOR: Camilla
SHIFT SUMMARY: Quiet shift
LOG:
16:30-17:30 I was doing site walk thru
RickS was here working, JeffB came by to check on some stuff

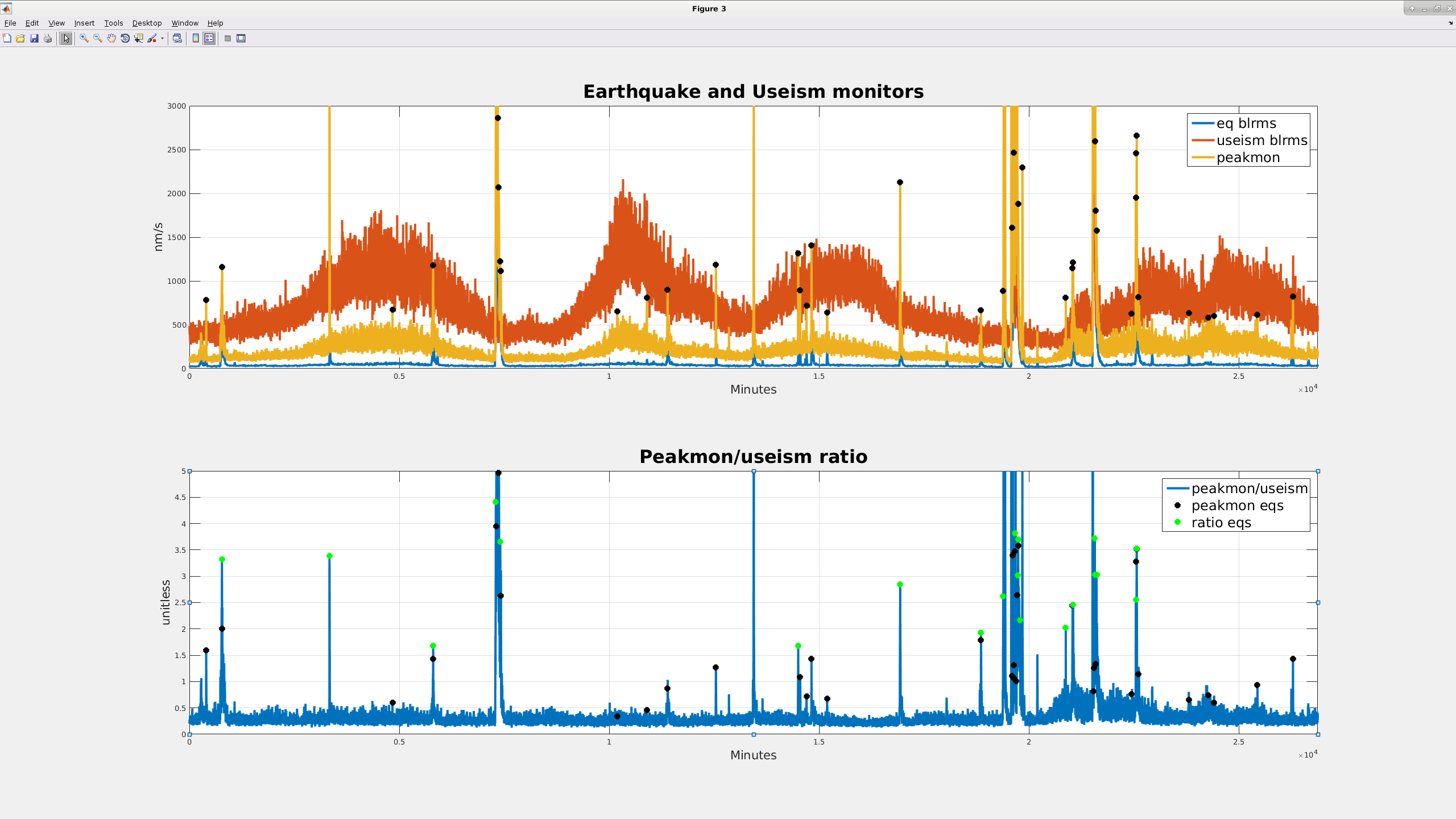

Looking at some data over the past month or so, and the higher microseism definitely complicates looking at local sensors for earthquakes. It looks like the fast PEAKMON channel kind of scales with the microseism. The first attach plot shows ~2 weeks of trends for the ITMY .03-.1hz z grnd blrms, the .1-3hz z grnd blrms and peakmon on the top plot. When the .1-.3hz background goes up the peakmon channel generally follows. Not suprising since peakmon is partially a bandpass that overlaps with the microseism some. This complicates using peakmon as a trigger for earthquake transitions. Looking at this data, 700 nm/s looks like a good peakmon threshold for the STAT_ENVs local earthquake threshold. This generally avoids falsely triggering on high microseism, but is low enough to trigger on earthquakes we care about.
The bottom plot shows the ratio of peakmon over the useism blrms. This ratio is a little more consistent outside of earthquake times, staying below about .5, but frequently goes above 1 when there is actually an earthquake, even for relatively small earthquakes. However, there are couple instances where this ratio briefly touches 1 that are not clearly earthquakes, generally only during higher microseism periods. I've been talking to TJ about adding a microseism state to STAT_ENV, maybe part of that state could include an different earthquake threshold for higher microseism times, using either peakmon alone, or the peakmon/useism threshold. The difficulty for that is useism state for that guardian should probably be monitoring hours long averages, and have some kind of sleep during earthquakes.
I did this looking at minute trends, but it would be good to examince full data for some of the corner cases here, to make sure this holds together using actual 16hz data.
Walkthrough done. Went out of observing, checked VEAs, all out buildings, except mids, and inspected dewar exhausts. No issues found.
The one issue I did find, I happened across an alog where Niko found (and accepted) SDF diffs on all the BSCs, where the digital gains were engaged on the St1 L4Cs, which puts the L4Cs in a less sensitive, low analog gain state, so I used the opportunity to go out of commissioning and fix it. I didn't see Niko's log because he only tagged it for sus, so I didn't get an email and I haven't been following the logbook very closely.
This was probably caused by Corey pushing the big red button for the flurry of earthquakes a few days ago. One of the steps that script does is turn all the analog gains for the seismometers to low. Corey said he didn't think the EQ script ended up doing anything (can't test that now, and I think he said a bunch of platforms tripped anyway from the eq), and he probably didn't use the green Recover EQ button, which returns everything to it's nominal state. Probably not a huge issue for the IFO, but also easy to fix. I thought I had actually removed the gain switch from the EQ script, but maybe didn't check it in to the svn? That I can fix right now.
TITLE: 12/29 Owl Shift: 08:00-16:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Observing at 112Mpc
INCOMING OPERATOR: Jim
SHIFT SUMMARY: One lock loss with an automated recovery.
LOG:
No initial alignment, no operator intervention at all. It lost lock a few times at different places, but it made it up on the 3rd attempt.
No obvious cause for lock loss.
TITLE: 12/29 Owl Shift: 08:00-16:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Observing at 110Mpc
OUTGOING OPERATOR: Camilla
CURRENT ENVIRONMENT:
SEI_CONF state: USEISM
Wind: 3mph Gusts, 2mph 5min avg
Primary useism: 0.05 μm/s
Secondary useism: 0.67 μm/s
QUICK SUMMARY: 15 hour lock, useism heading back up.
TITLE: 12/29 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 110Mpc
INCOMING OPERATOR: TJ
SHIFT SUMMARY: Quiet night. Locked 14h55.
LOG:

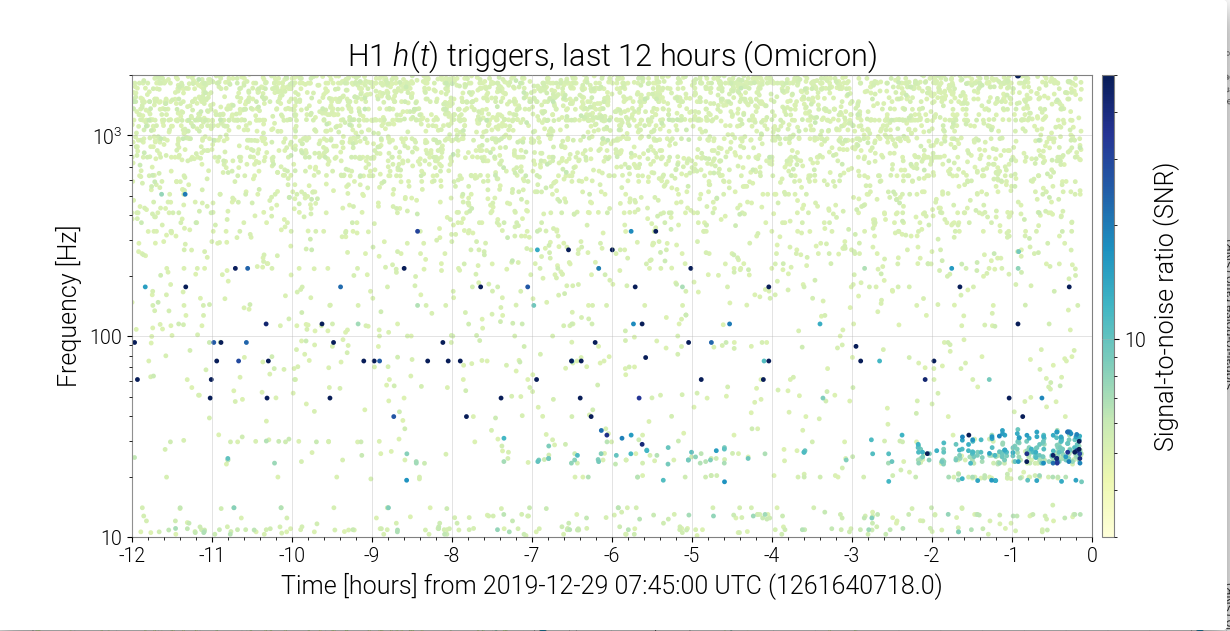

Quiet shift so far. Microseism is on the rise (0.55-0.62μm/s) but not many glitches. Thinking of changing to the USEISM state.
TITLE: 12/29 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 111Mpc
OUTGOING OPERATOR: Jim
CURRENT ENVIRONMENT:
SEI_CONF state: WINDY
Wind: 7mph Gusts, 6mph 5min avg
Primary useism: 0.03 μm/s
Secondary useism: 0.42 μm/s
QUICK SUMMARY: Locked 7hours
TITLE: 12/29 Day Shift: 16:00-00:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 109Mpc
INCOMING OPERATOR: Camilla
SHIFT SUMMARY: Quiet shift
LOG:
TJ was relocking when I arrived. I didn't have to do anything. IFO locked on its own. Observing at 17:00
TITLE: 12/28 Owl Shift: 08:00-16:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Lock Acquisition
INCOMING OPERATOR: Jim
SHIFT SUMMARY: Two losses, the first was a nearby quake and the second I have no idea.
LOG:
Very sudden, no signs of a struggle.
No initial alignment, made it to Increase_Power then lost lock. All the way up the second time around.
No SDFs
Smaller nearby quake took us out. Too close for a seismon warning, and nothing on USGS yet.
TITLE: 12/28 Owl Shift: 08:00-16:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Observing at 113Mpc
OUTGOING OPERATOR: Camilla
CURRENT ENVIRONMENT:
SEI_CONF state: USEISM
Wind: 7mph Gusts, 5mph 5min avg
Primary useism: 0.04 μm/s
Secondary useism: 0.45 μm/s
QUICK SUMMARY: Quiet 16 hour lock.
Remain locked and observing at 113Mpc.
TITLE: 12/28 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 110Mpc
OUTGOING OPERATOR: Corey
CURRENT ENVIRONMENT:
SEI_CONF state: USEISM
Wind: 8mph Gusts, 5mph 5min avg
Primary useism: 0.04 μm/s
Secondary useism: 0.50 μm/s
QUICK SUMMARY: Locked 8h25. Microseism a little high.
