H1 lost lock, and relocked with the old ETMY violin mode damping gains, which, after 10 hours, were ringing up modes 18 and 20.

I currently have the ETMY violin mode gains to these values:

• mode 11: was 150, now 50
• mode 12, was 2, now 0.5
• mode 18, was 0, now -10
• mode 20, was 1.0, now 0.5
• these gains have been stable for around an hour

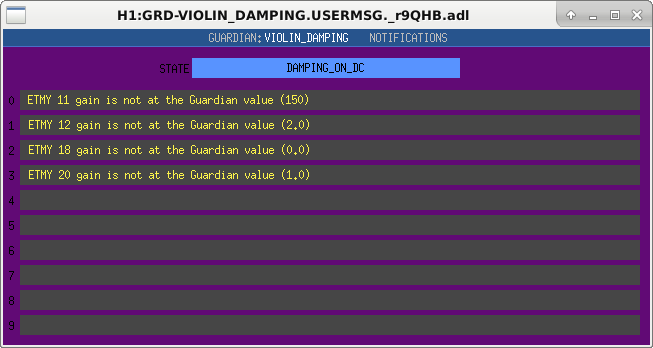

I changed lscparams to use the above gains if H1 loses lock

• in lscparams
  • mode 11: was 150, now 50
  • mode 12, was 2, now 0.5
  • mode 18, was 0, now 10, plus I engaged the filter FM6, which flips the sign
    • this combination matches the -10 gain I'm using in the current lock
  • mode 20, was 1.0, now 0.5
• violin guardian reload needed, if H1 loses lock

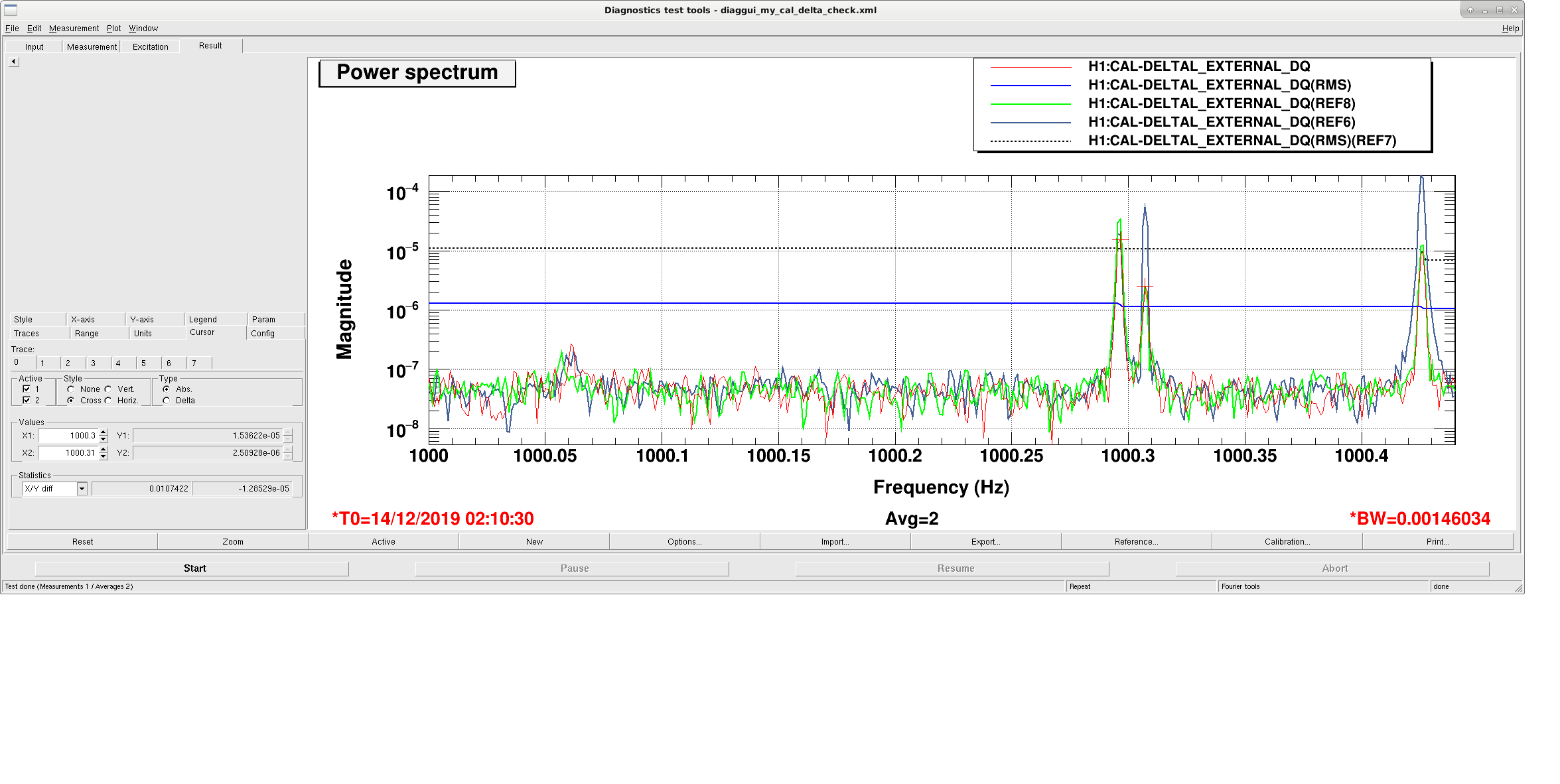

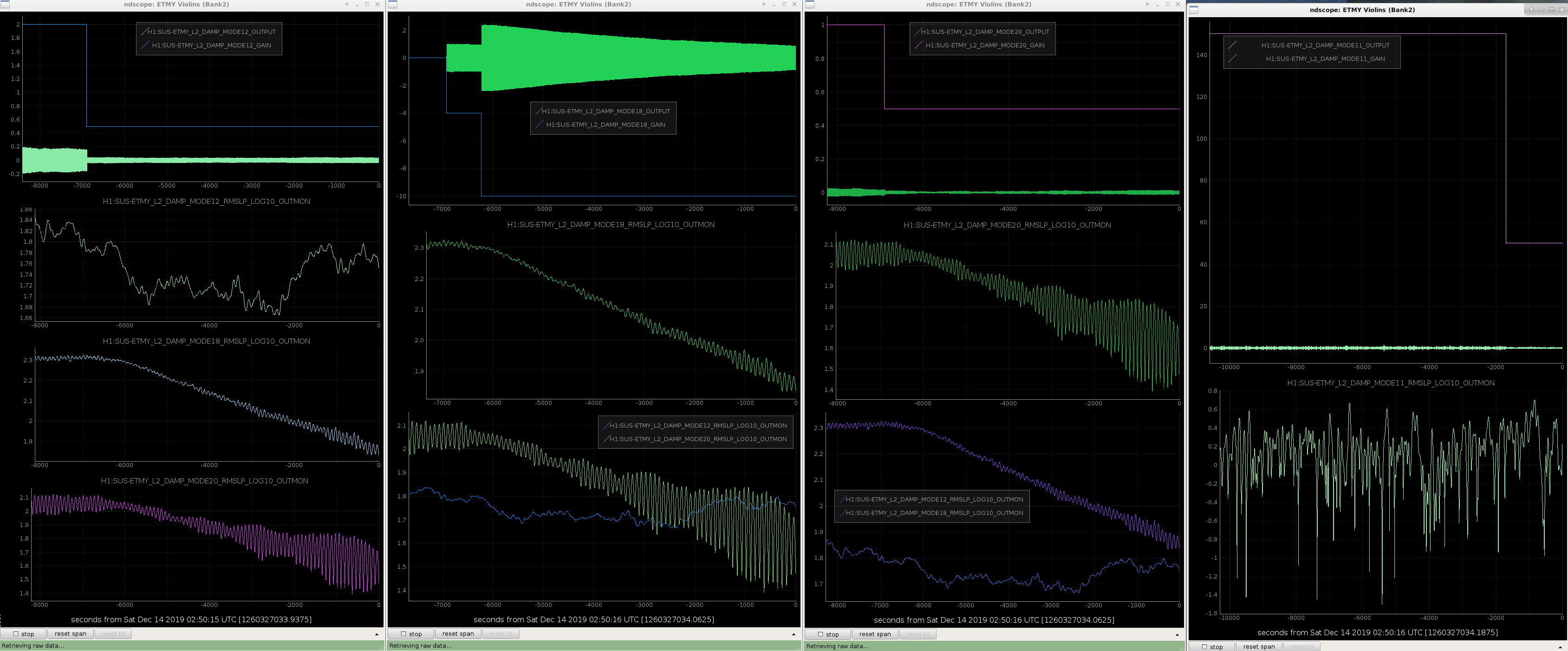

Plots attached show the damping done tonight.

I still have to land the ground wires to the pressure switches and solenoid valve but otherwise am ready to test this out on Monday.  When enabled, this modification should reduce the CS instrument air compressor duty cycle significantly.

I noticed that the MEDM RED/YELLOW/GREEN field associated with CP4's dewar level had changed today from the nominal RED (CP4 is empty - decommissioned) to YELLOW and 1.3% full up from the nominal ~0% full -> I think that this is a bogus indication and should be ignored.

Last week, I asked operators to begin using a new online survey to record lock acquisition attempts, rather than type out their attempts and manual interventions in the alog.  We've now had 4 locklosses / reacquisitions since then, so we're starting to get some data (thank you Operators!).  The point of this survey is to get information regarding manual interventions required, to help us identify where we need to work on the interferometer's relocking automation.  Operators have been giving us this information in their alogs (again, thank you!), but this online form should streamline responses and hopefully save everyone time.

The online google form outputs to a google sheets spreadsheet that everyone (who has ligo.org credentials) can look at.  I'm starting to put some digestion of the data on other tabs in that sheets document; I'm hopeful that we'll be able to get some useful information out of the digested data, rather than every person having to individually read through the entirety of the spreadsheet, but that component is still a work in progress.

Everyone is welcome to click through the survey.  However, if you are not actively filling it out for a lockloss, please choose the name "Test / DeleteMe" so that if the response gets submitted, we can excise that row.  Also, please feel free to look at the results spreadsheet.  However, note that the spreadsheet is not archived, so please do not edit the responses (so that we don't lose any).

The form and spreadsheet should be accessible to everyone with ligo.org credentials.

Form: https://tinyurl.com/LHO-Lock-Acq-Questionnaire (hover for the actual link; I made a tinyurl that is easier to type)

Results: https://tinyurl.com/LHO-Lock-Acq-Responses (again, hover for the actual link)

Attached is a flow chart (also laminated at the operator station) describing the flow of the survey, as well as screenshots of some of the questions.  Note that there have been some updates to the questions and text since I made this pdf, as a result of excellent feedback from operators, but the gist of them should be similar.

J.Kissel, T.Mistry

Here are some 'Money Plots' for the NCAL Sweep that was taken on the 04-Dec-2019.

Figure 1 :: A move/animation of the sweep as seen in the control room DARM spectrum.
Figure 2 :: ASD of the DARM plot with labelled frequencies from 5 to 600Hz.
Figure 3 :: ASD of the DARM plot with tagged frequencies from 5 to 40Hz.
Figure 4 :: Spectrogram of the NCAL Sweep from 0 to 50 Hz.
Figure 5 :: Spectrogram of the NCAL Sweep from 0 to 1000 Hz.
Figure 6 :: IWAVE line tracking of the Optical encoder as the NCAL changes velocity.

All the figures are also available in DCC G1902340.

An interesting feature to see is that when the NCAL is settling to a new frequency, making what appears to be sidebands. This is due to the NCAL slightly overshooting the requested frequency before settling down to the desired velocity. This is an expected results as a result of the NCAL motor behaviour due to the internal motor parameters. It is possible to configure the motor parameters to reduce the overshoot however, the current implementation is a trade off between time taken to accelerate to a given frequency and the stresses on the motor.

Below is a timeline of the NCAL sweep. The values in red are not visable due to the lack of SNR at low frequency. A longer intergration time would be required to see the lines below 5Hz.

NOTE: to create a movie and upload it to the alog I did the following onn the LHO control room machines:

• In the main menu of the PC navigate to Multimedia>RecordMyDesktop
• Press the select window button and click on the DTT window (a black outline will appear to confirm this window is selected as well as the preview in RecordMyDesktop will show the highlighted window).
• Press Record and then started the DTT file
• Once the DTT file was done, I used CRTL+ALT+S to stop the recording.
• A file called out.ogv is made in my home folder.
• Converted out.ogv to a .mpy using:

ffmpeg -i out.ogv MyFile.mp4

• Uploaded .mp4 file to the alog in the same way one would attach an image (Using  'UPLOAD / MANAGE FILES')

TITLE: 12/14 Day Shift: 16:00-00:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 107Mpc
INCOMING OPERATOR: Niko
SHIFT SUMMARY:
LOG:

Ops Shift Transition: 12/13/2019, Eve Shift 00:00–08:00 (16:00-00:00) - UTC (PT)

State of H1: Locked

Intent Bit: Observing

Weather: 0-10 mph wind

Primary 0.03 – 0.1Hz: 0.01 um/s

Secondary 0.1 – 0.3Hz: 1.0 um/s

Outgoing Operator: Ed

Quick Summary: Locked and Observing for 8.5 hours. Microseism still high

TITLE: 12/13 Day Shift: 16:00-00:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 117Mpc
OUTGOING OPERATOR: Camilla
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 8mph Gusts, 5mph 5min avg
    Primary useism: 0.05 μm/s
    Secondary useism: 0.74 μm/s
QUICK SUMMARY:

oops! forgot to post.

• Superevent 191213ai being discussed on TS
•

TITLE: 12/13 Owl Shift: 08:00-16:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Observing at 112Mpc
INCOMING OPERATOR: Ed
SHIFT SUMMARY: Lockloss, cause unknown.
LOG:

• 14:05 Lockloss no obvious reason why, but the microseism is very high and we had 20mph wind.
  • Used the Lock Acquisition tool to record the 5 locking attempts- locklosses seem caused by microseism, ASC and tidal signals have had wobbles like we have had an earthquake all night.
  • TJ's INCREASE_FLASHES did very well starting from no Y arm signal!!
• 15:34 NLN and Observing

Cheryl's violin settings for ETMY seemed to work well all night, but I have not yet reset them, that could be done using Cheryl's alog 53875.

Remain locked and observing through this high microseism, where secondary useism: 0.92 μm/s

On December 3rd I moved the HAM2 East door camera to a new port, and pointed the camera to look at AOE2, the beam dump for Calcite Wedge 2's forward rejected beam, the steering mirror for that beam, and the HWP baffle in the IO FI.

The camera view is rotated counterclockwise by 90 degrees, so the top of the image is to the right in HAM2.  The focus is a bit farther back than intended, with the best focus being on the IO FI HWP baffle aperature, near the top of the image (to the right of AOE2).

Using HAM2 coordinates, the first component fromt the left is the IO beam dump.  This has a beam coming from the left, and hitting the outside of the beam dump.  The beam dump frame, that holds the SiC plates, is illuminated on the left and along the top, and here is where one can see the best example of the changing illumination from IR light.  Inside the beam dump, on the right, there is a beam which appears to e hitting the right of the beam dump, on the inside, which appears to be dumped directly on the metal side plate.

From center and to th right, is the back of AOE2.  The metal frame is visible, and the aperture in the front SiC baffle is surrounded by IR light.

To the far right one can see most of the IO FI HWP baffle aperture, meaning that the top and sides of the aperture are clear, but the bottom of the aperture is not, and that is because it's blocked by the steering mirror that sends the forward rejected beam to the beam dump.

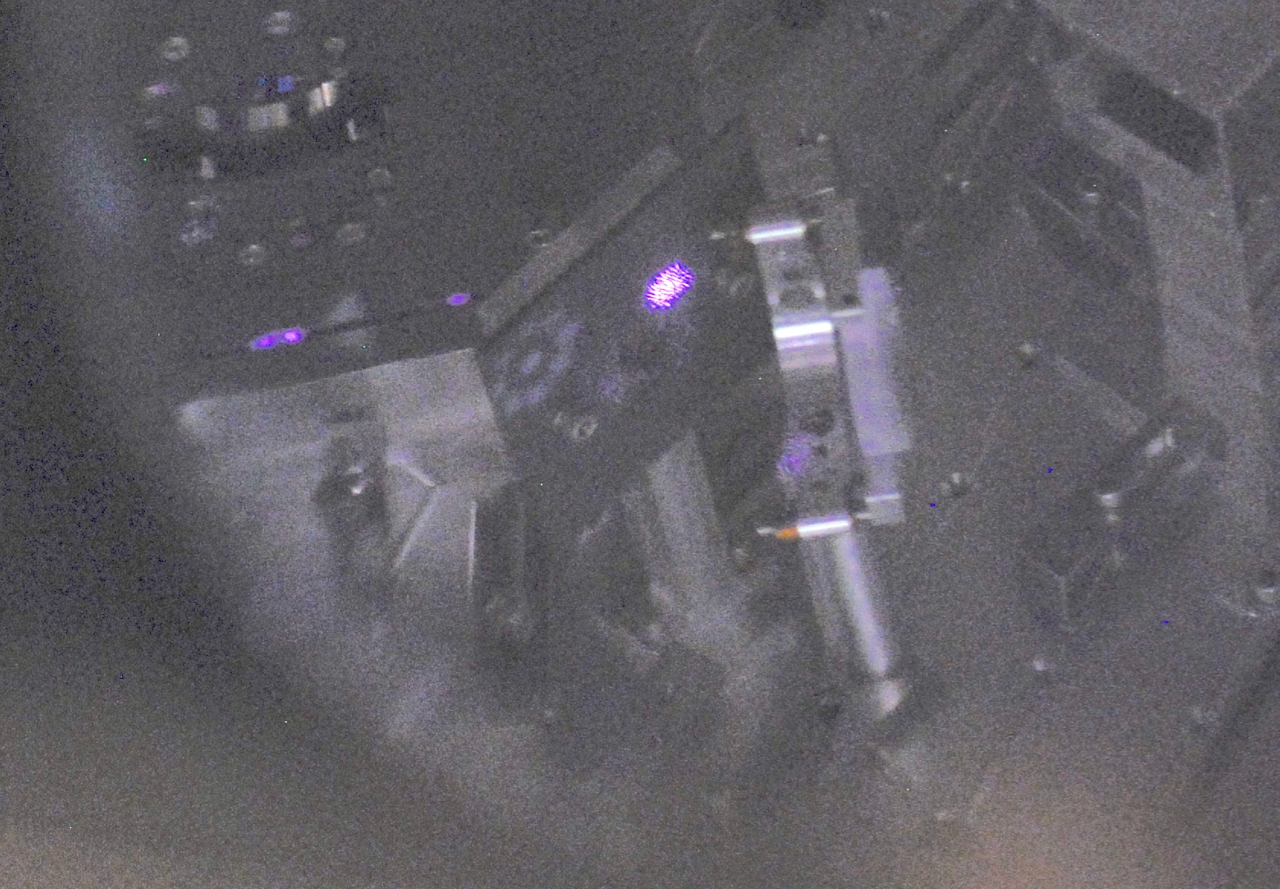

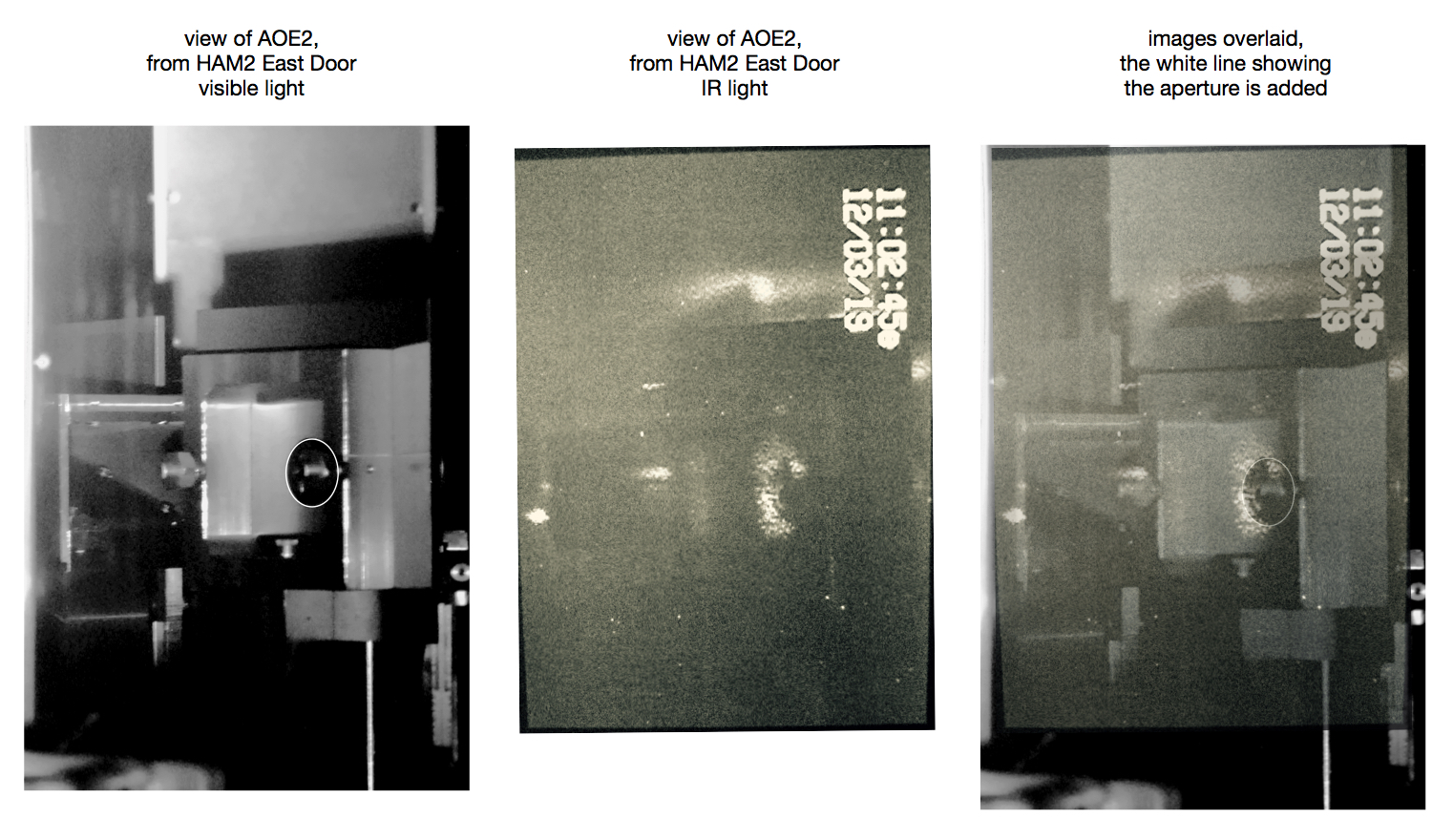

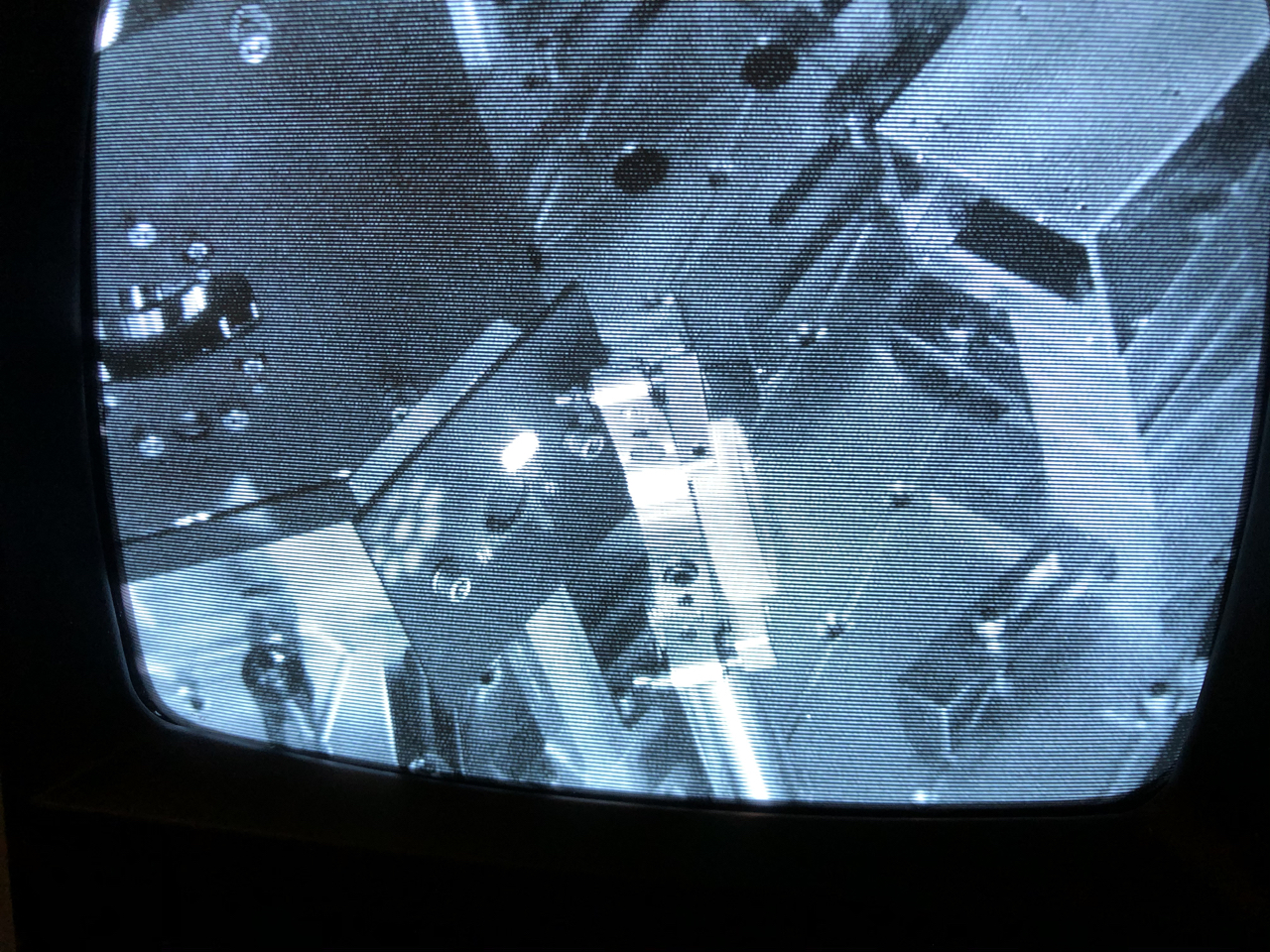

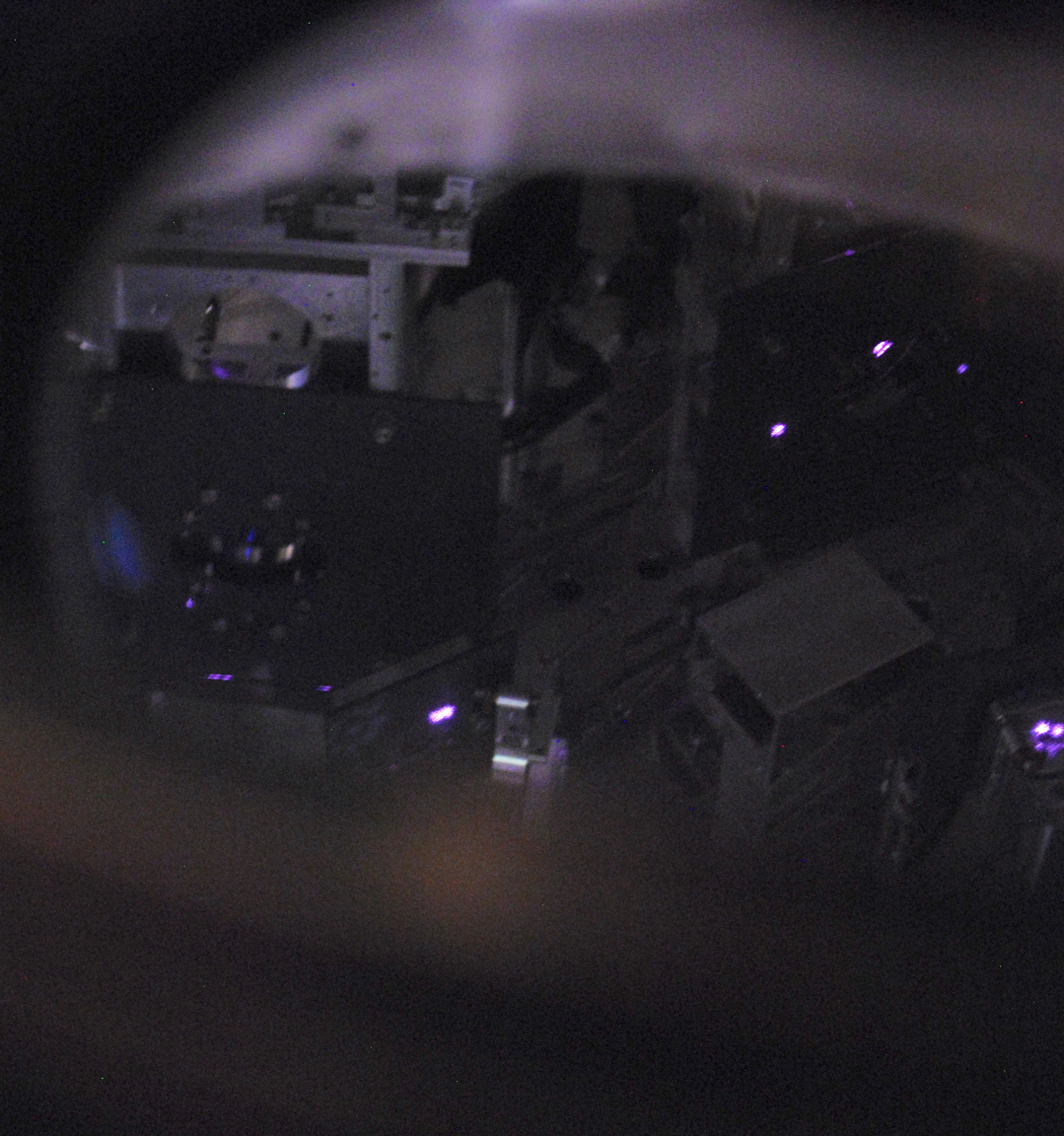

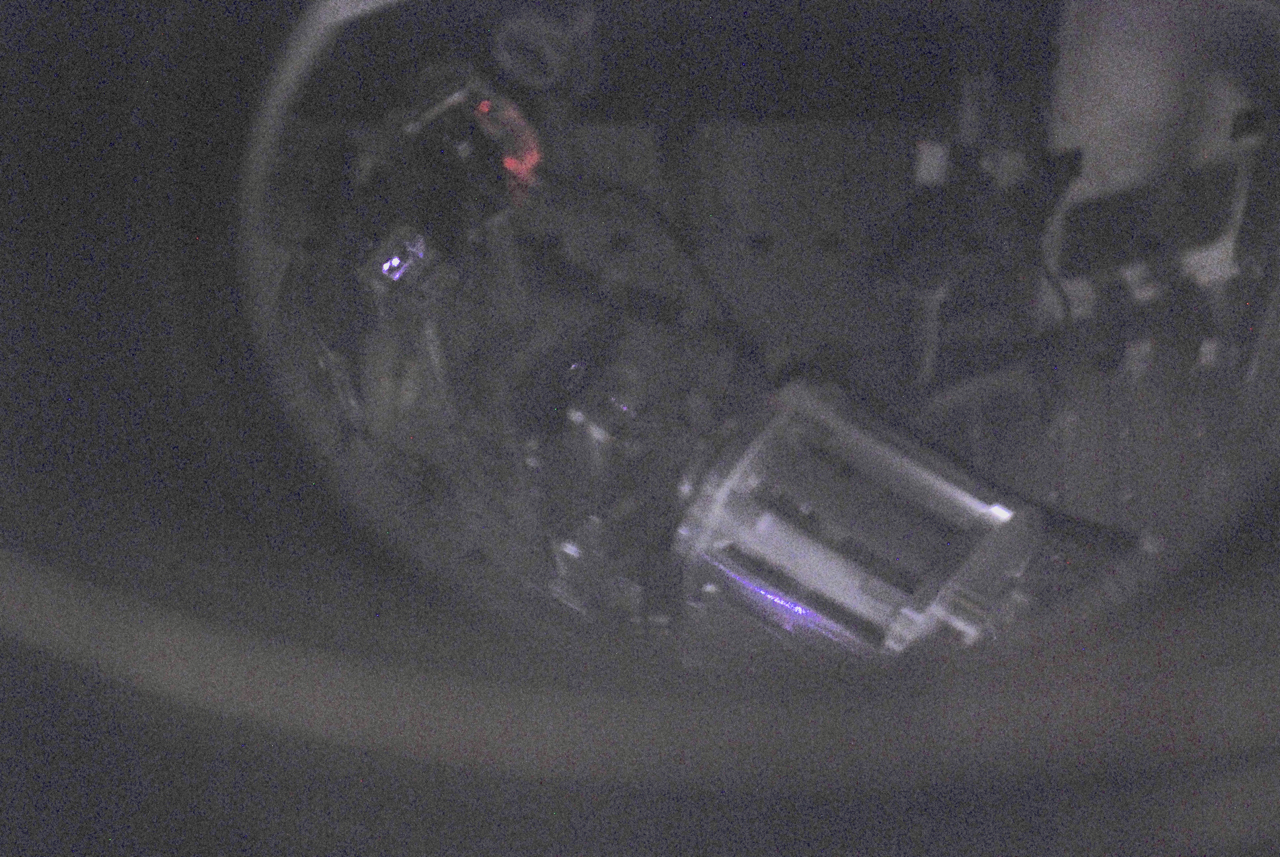

Attached images were taken from both the East door and top viewport, and show AOE2, and the input to the IO FI, including CW1.

TITLE: 12/13 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 114Mpc
INCOMING OPERATOR: Camilla
SHIFT SUMMARY:  locked in Observed all shift
LOG:

• 13-12-19 00:21 Gerardo at EX, heading into the EX builiding mechanical room
• 13-12-19 00:56 Gerardo leaving EX
• 13-12-19 01:15 Gerardo at EY, heading into the EY building mechanical room
• 13-12-19 01:38 Gerardo leaving EY, heading to MY
• 13-12-19 03:25 Gerardo back from MY

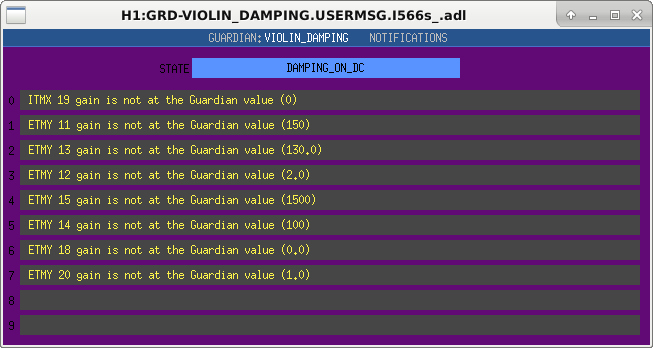

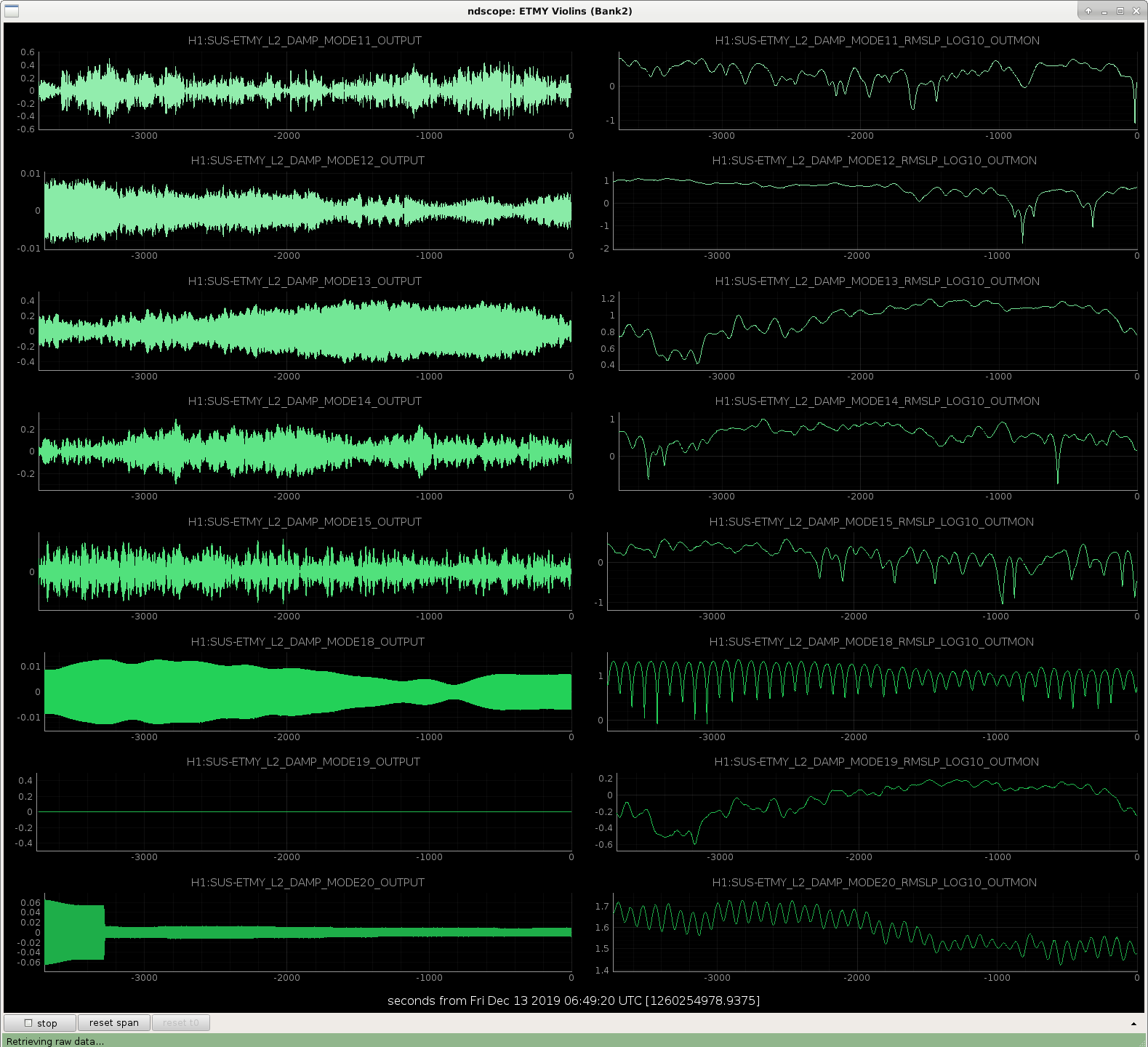

• 13-12-19 05:55 set ETMY violn damping gains for stable running, and have been OK since, so handing off to Camilla
  • asked Camilla to watch ETMY violins, violins are stable, gains are non-standard

TITLE: 12/13 Owl Shift: 08:00-16:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Observing at 51Mpc
OUTGOING OPERATOR: Cheryl
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 16mph Gusts, 12mph 5min avg
    Primary useism: 0.05 μm/s
    Secondary useism: 0.84 μm/s
QUICK SUMMARY: We have some high sustained winds ~20mph and raised microseism. Otherwise all fine, locked 15h35m.

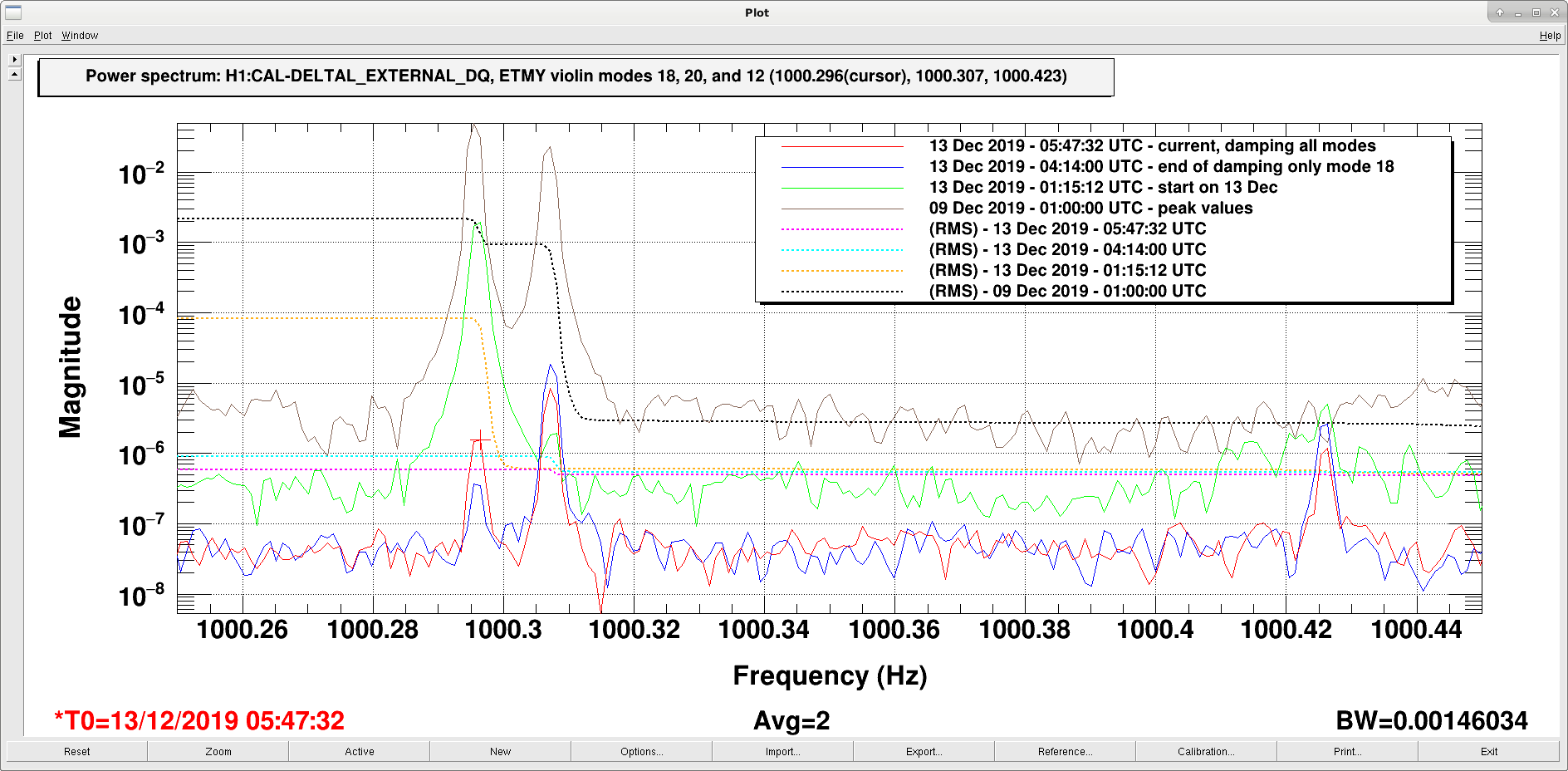

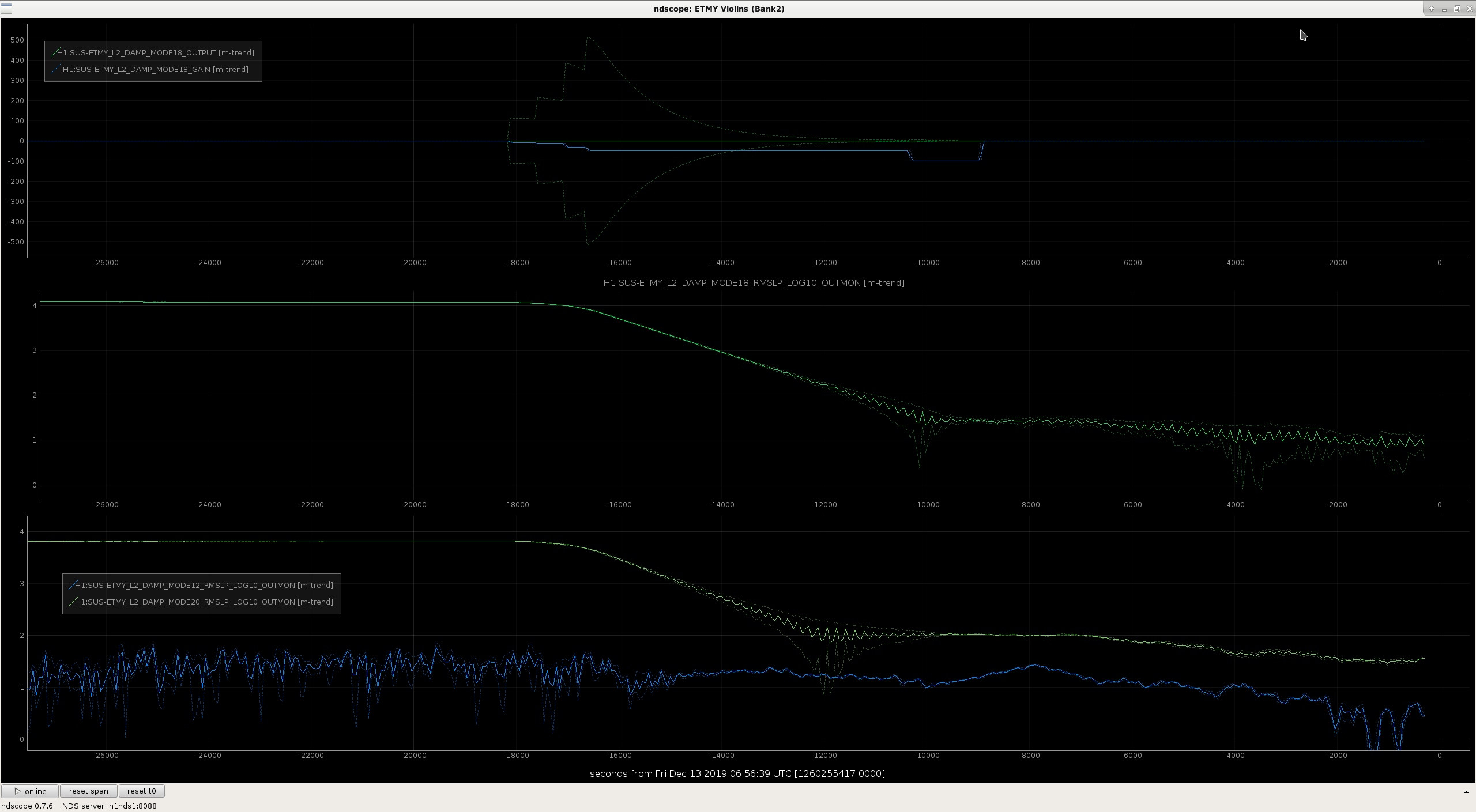

I damped ETMY violin modes 18, 20, and 12, and all are below 1e-5.

• 01:15:12 UTC - started damping
  • eventually turned all gains except mode 18 and mode 12
  • mode 18 gain sat at -60 most of the time
  • toward the end of damping mode 18, I increased the gain to -100, and mode 12 started to ring up
• 04:14:00 UTC - ended my focus on damping mode 18
• 04:37 UTC - all ETMY violin mode damping turned off, as a test, since all peaks were small
• 04:44 UTC - started turning damping back on, with lower gains, looking for a stable combination for all gains
• 05:44 UTC - restored damping to mode 15, all modes damping
• 05:55 UTC - it's not visible in the monitor output for mode 20, but in the spectra I could see mode 20 ringing up, so lowered it's gain from 1.0 to 0.2
• 05:55 UTC - last gain change
• 07:25 UTC - ETMY violins have been stable

H1 has been in Observe for 7 hours, useism is above 0.5um/s and steady, winds have spiked to 40mph, currently between 5mph and 20mph.

Following up from the last alog.

With the UIM dyanamics filter ready I propagated it through a set of new tagged sus models. I made a set of three to help make an informed decision on how to treat the new UIM dynamics - the complication being that there appears to be dynamics around the violin modes. I have split off a second tagsusdynamicalmodel.m so I don't interfere with livingston using the file.

I have created the following files using /ligo/svncommon/SusSVN/sus/trunk/Common/MatlabTools/tagsusdynamicalmodel_h1.m

/ligo/svncommon/SusSVN/sus/trunk/Common/SusModelTags/Matlab/

quadmodelproduction-rev9944_ssmake4pv2eMB5f_fiber-rev8442_h1etmx-rev10093_h1etmx_options-rev10093_released-2019-12-12.mat
quadmodelproduction-rev9944_ssmake4pv2eMB5f_fiber-rev8442_h1etmx-rev10090_h1etmx_options-rev10090_released-2019-12-12_noUIMdyn.mat
quadmodelproduction-rev9944_ssmake4pv2eMB5f_fiber-rev8442_h1etmx-rev10093_h1etmx_options-rev10093_released-2019-12-12_noviolins.mat

And from these I have generated the following files using /ligo/svncommon/CalSVN/aligocalibration/trunk/Common/pyDARM/matlab_scripts/export_AAAI_SUS.m:

/ligo/svncommon/CalSVN/aligocalibration/trunk/Common/pyDARM/matlab_scripts/

H1susdata_O3_new.mat
H1susdata_O3_new_noUIMdyn.mat
H1susdata_O3_new_noviolins.mat

Using these I can compare before are afters, namely:

In the case when I plotted against no violins, the MATLAB removes the highest most zero in the UIM dynamics, making the TF look like its going down more than it should be (an effective extra 1/f term). This is a problem in the current workflow that takes the tagged model and splits it up into low frequency terms and the violin terms, where I'd need to add a separate operation that takes the tagged model that has no violin modes to split off these dynamics. Looks like I will have to rethink.

Also the low frequency features are being changed by a bit - seems even matlab has its limits of tolerance when it comes to how many poles and zeros it can play with at a time.

I think a better approach is to have the dynamics added into the "H1susdata_O3" matrix directly by export_AAAI_SUS.m, and make no changes to the tagged susmodels as they stand. At the end of the day I am always drawing from the same file into which I have saved my dynamics... I can just do that later down the line even for the foton file.

TITLE: 12/13 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 34Mpc
OUTGOING OPERATOR: Ed
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 8mph Gusts, 4mph 5min avg
    Primary useism: 0.05 μm/s
    Secondary useism: 0.76 μm/s
QUICK SUMMARY: H1 is locked in Observe, useism is on the high side, and we've had some spikes in wind up to 20mph is the last hour.
