TITLE: 11/29 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Lock Acquisition
OUTGOING OPERATOR: Jim
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 13mph Gusts, 9mph 5min avg
    Primary useism: 0.06 μm/s
    Secondary useism: 0.24 μm/s
QUICK SUMMARY: IFO unlocked for no apparent reason ~2hours ago. Will try inital alignemt again, but green arm alignment seems way off.

TITLE: 11/29 Day Shift: 16:00-00:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Lock Acquisition
INCOMING OPERATOR: Camilla
SHIFT SUMMARY:
LOG:
22:00 Lockloss, no clear cause

Trying to relock, but the Y arm green refused to lock, ALS_YARM said "green input alignment off". Whatever the issue was, it was bad enough I couldn't even do initial alignment. Called Keita, and he got into the Y ALS screens, had to adjust H1:ALS-Y_PZT2_TRIG_THRESH_ON down to get some loop to come on. Handing off to Camilla now, trying to get ALS locked.

You might have noticed the strange gap in the wind trend ndscope covering the time h1seib3 was down (plot 3). This is because when h1seib3's general cores went offline, the mx_stream process (which sends the front end data to the DAQ) stopped running. This in turn caused problems for all the front ends which share the same ethernet port on the DAQ data concentrator. This is why most of the corner station frontend models went into DAQ data error (plot 2), and why it was critical to fix the problem quickly. One of the models so affected was the external EPICS data collector h1edc running on h1susauxh34 (plot 1). So all slow data was also frozen at the last received value.

TITLE: 11/28 Owl Shift: 08:00-16:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Observing at 116Mpc
INCOMING OPERATOR: Jim
SHIFT SUMMARY: Quiet shift, locked for almost 8 hours. no issues to report.

Locked for almost 4 hours, wind is slowly calming down.

After a hard fought battle with wind and computer crashes, their efforts paid off and we are Observing! Range is slightly below nominal at ~114Mpc.

There were some SDF diffs for ISIITMX that I accepted since the model was recently brought back up, but perhaps the SEI team can look into why these are different.

LOCKLOSS_SHUTTER_CHECK node was in the SHUTTER_FAIL when I got here, and we were already at high power by the time I noticed. It looks like the check that it makes on the HAM6 GS13 didn't register a kick. I trended this and found that the GS13 channel was just noise during the time that the h1seib3 computer was down. ISC_LOCK was in NLN the entire time as well. I wrote off the shutter test failure to be related to the computer crash, though I'm a bit confused why this channel would be affected by the h1seib3 computer.

I then confirmed that our other fast shutter checking node, FAST_SHUTTER, had a successful test before going to high power. This is a check that it does every lock attempt, so it was reassuring to see that it passed the test for this lock try. With the fast shutter confirmed working, I took the LOCKLOSS_SHUTTER_CHECK node manually to HIGH_ARM_POWER, and then went to Observing.

TITLE: 11/28 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Corrective Maintenance
INCOMING OPERATOR: TJ
SHIFT SUMMARY: Still unlocked from SEIB3 computer crash. Now looking better. Wind high.
LOG:

• 23:16 Lockloss see alog 53530
• 01:19 Robert out to EY and EX
• 02:21 Observing
• 02:50 SEIB3 computer crashed, (we stayed in observing!)
• 02:56 Dave remotely took it out of the Dolphin network.
• 02:26 Lockloss
  • Lots of the IFO didn't realize it was unlocked yet so we turned LSC controls off.
• 03:11 SEIB3 is back online (computer restarted)
• 03:20 Untripped ITMX watchdogs (HEPI and ISI 1 & 2)
  • First requested the DAMPED STATE, making sure everything was okay before requesting FULLY_ISOLATED
• 03:24 SEI_CONF changed to RECOVER_SC before back to WINDY (this was done as requested by a user message)
• 03:40 Manually opened green shutters
  • Interesting that PREP_FOR_LOCKING doesn't check that these are closed.
• 03:46 in LOCKING_ARMS_GREEN, WFS did opposite of expected and made ALS worse! Had to restore offsets a few times.
• 04:29 Started Inital Alignment
• 05:21  Stalled in ALIGN_IFO AQUIRE_PRX. Called Jenne, realized we had left the LSC control filter bank off.
• 05:26 Skipped INITIAL ALIGN from step OFFLOADEDING_MICH_BRIGHT to SRC_ALIGNING as got stuck.
• 05:31 Initial Complete
• 08:04 Leaving IFO with TJ after 14 locklosses finally looking like it's about to lock. Wind still at 20-30mph.

TITLE: 11/28 Owl Shift: 08:00-16:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Corrective Maintenance
OUTGOING OPERATOR: Camilla
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 28mph Gusts, 21mph 5min avg
    Primary useism: 0.11 μm/s
    Secondary useism: 0.29 μm/s
QUICK SUMMARY: Higher winds and a bit of snow. Currently relocking at increase power after h1seib3 crash.

J. Kissel

We're continuing to have trouble acquiring lock after the SEIB3 computer crash (LHO aLOG 53533). I'm reasonably confident it's because of the obscene amounts of constant wind, but I'm nervous that it may also not be helping that we've decreased the effective range of the H1 SUS ETMX UIM/L1 actuators with the recent "permanent" change to turn on one stage of low pass (LHO aLOG 53528).

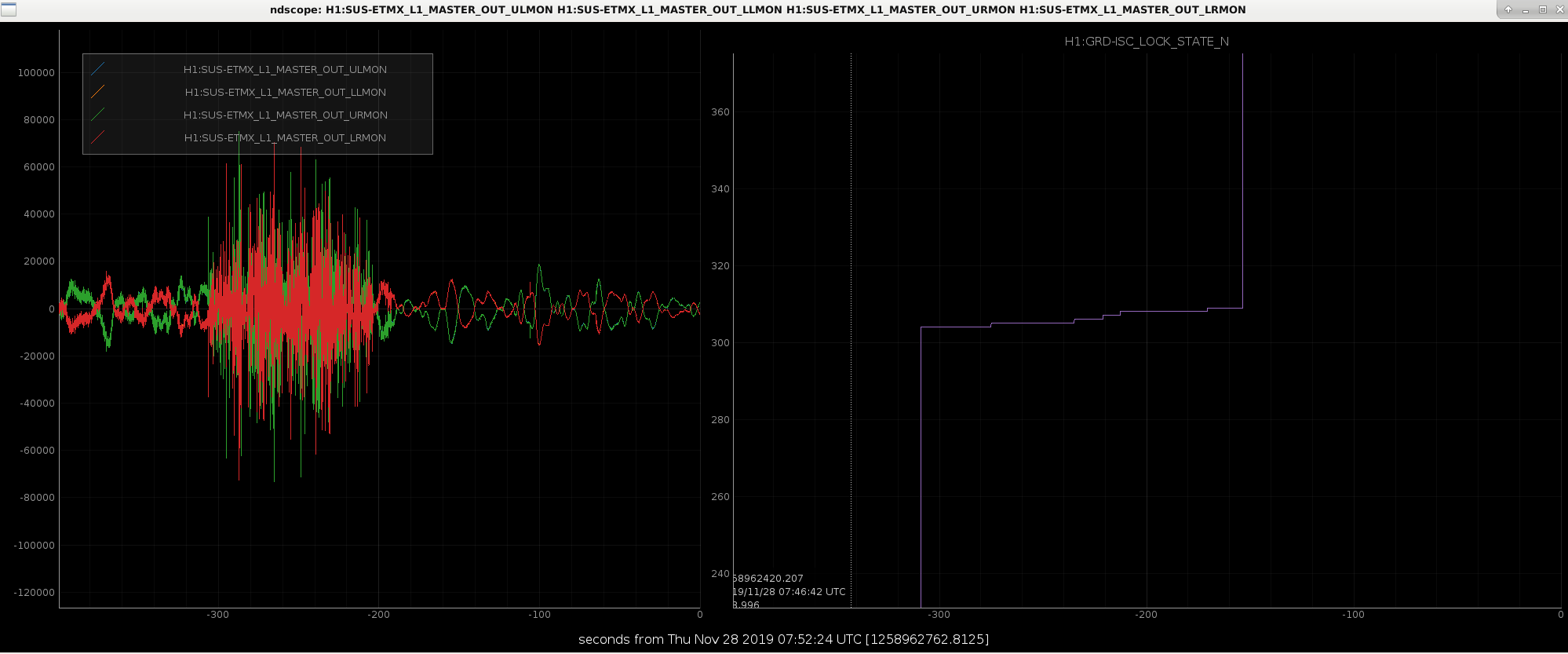

In order to make the call as to whether you *need* to revert it, watch a live time series of the ETMX L1 requested DAC output on an ndscope, over a ~80 second timescale during any acquisition sequence:
    ndscope -s H1:SUS-ETMX_L1_MASTER_OUT_UL_DQ H1:SUS-ETMX_L1_MASTER_OUT_LL_DQ H1:SUS-ETMX_L1_MASTER_OUT_UR_DQ H1:SUS-ETMX_L1_MASTER_OUT_LR_DQ

If these channels are regularly spiking above 2^18 ~ 131000 counts at various points during the acquisition sequence, then we need to revert.

Here's how one would revert it:
(1) Upon the next lock loss, hold the ISC_LOCK guardian in DOWN.
(2) Change the coil driver state, using the following terminal command:
    caput H1:SUS-ETMX_BIO_L1_STATEREQ 1.0
(3) Resume lock acquisition as normal, but
(4) Make it "permanent" by editing line 50 of the ALS_DIFF guardian code:
    change
    ezca['SUS-ETMX_BIO_L1_STATEREQ'] = 2 # Switched to requesting "one low pass on" from "no low passes on" (JSK 2019-11-27)
    to
    ezca['SUS-ETMX_BIO_L1_STATEREQ'] = 1 #Jeff's change didn't work, back to the drawing board.
(5) Save the changes, and load the modified ALS_DIFF guardian code.

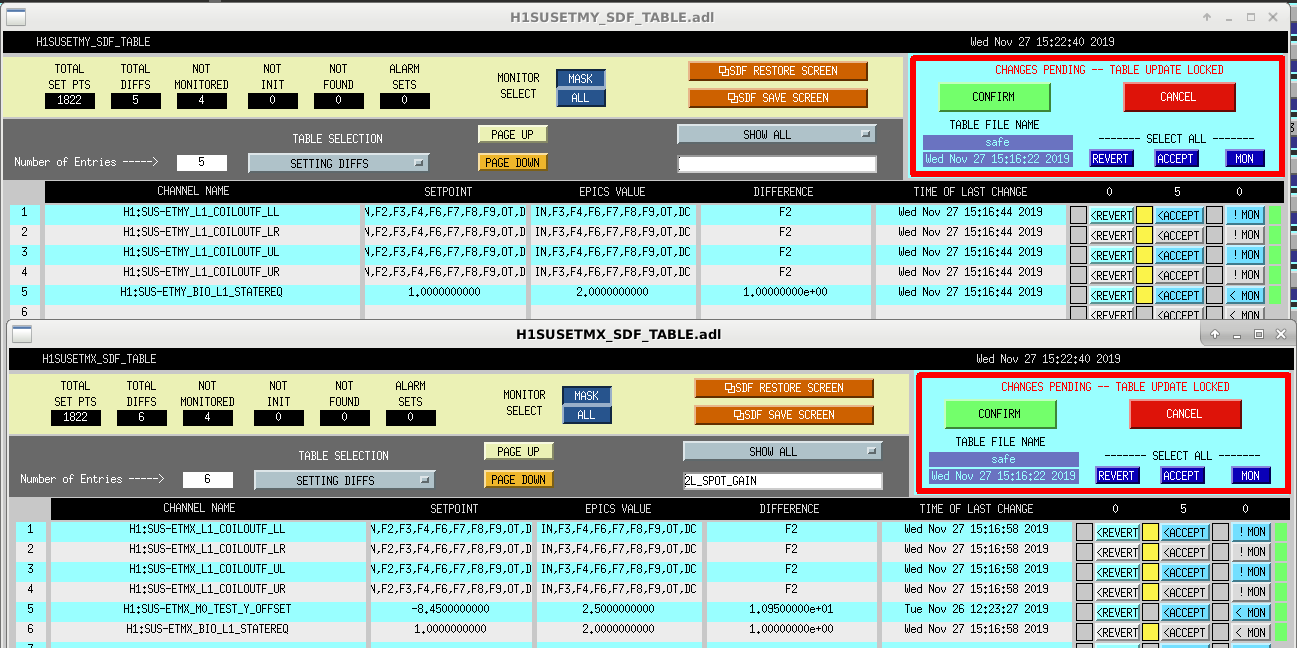

(6) Once you get to nominal low noise, you'll have SDF DIFFs to accept; they'll look like the opposite of the attached screen shot, referencing "FM2" and the above mentioned BIO state request channel.
(7) aLOG that you've reverted the settings.

h1seib3 has suffered a general core crash, meaning the models are still running (h1iopseib3, h1isiitmx and h1hpiitmx) but the DAQ data from itself, and most of the other SUS, SEI and PSL front ends are invalid (see attached). The only recourse is to reboot h1seib3. In preparation for this, I took this machine out of the Dolphin fabric (which killed the lock). Jeff is in the MSR taking a photo of the console and rebooting h1seib3 via the front panel reset button.

• 23:16 Lockloss (while Jim was Operator) We had winds up at 50mph so this is though to be why
  • 21 Locklosses in total before NLN I think the wind had a lot to do with this, other things to note:
  • 00:32 Stuck in FIND_IR as ALS_DIFF was not moving forward from LOCKED state as ALS_COMM not searching close enough to its's threshold. This was fixed by Jenne who found that the QPD offsets (for TR_X/Y_PD_B_SUM) were not correctly being refreshed.
  • Jeff was testing edited UIM low pass filters for ETMX so we were watching whether locklosses were effected by this. alog 53528
• 00:15 Stopped for CHECK_MICH_FRINGES after 15 minutes of DRMI/PRMI
  • changed BS Pitch 192.34 to 191.86
  • also tried aligning PRMI by moving PRM PIT -1463.5 to -1433.7 and PRM YAW 424.8 to 407.7 (not in the "Operator intervention thresholds" but Jeff and Jenne were teaching me)
• 01.33 Cleared OM1 and OM2 filter histories as these were saturated.
• 02:21 NLN and Observing

[J.Kissel, T.Mistry]

After the calibration measurement were complete, I went to the X end and powered on and off the NCAL optical encoder system in 20 intervals. The interferometer was in Nominal Low Noise (NLN) at the after the calibration measurements. The motivation of this was to investigate whether the encoder would cause glitches and having known on and off times within the same lock stretch may indicate if this is the case. The first figure attached shows the encoder signal from the channel H1:CAL-NCALX_ENCODER_VELOCITY_OUT_DQ. When the encoder system is powered off, the channel measures 80 +/-1 DAC counts. When the encoder system is turned on, the channels measures 6932 +/-1 (approx 4V). A follow up invesitgation, in addition with investigation from LHO alogs 53503,53441 and 53396. A time log of the activities as taken by J.Kissel are as follows:

1258926919 NLN (Timesh arriving at end station, Jenne feedforward off time stops, Robert still somewhere in/around the YVEA with Wifi and phones ON doing camera recordings of test mass glint, wind fence crews are driving around at EY, audible within the YVEA).
    21:55:01 UTC

1258927033 Timesh calls for first go in
    21:56:55 UTC

1258927169 +/-15V power supply to mini-field rack Flipped ON. Begin first 20 minutes of ON data.
    21:58:59 UTC
    (XVEA Lights were left ON)

1258927372 lights OFF now
    22:02:34 UTC

1258928389 Timesh begins to head in to turn off NCAL power supply (with lights remaining off)
    22:19:31 UTC

1258928508 power supply flipped OFF
    22:21:30 UTC

1258928589 Timesh calls back to say he's done turning OFF NCAL.

1258929539 Timesh heads back in to turn NCAL ON

1258929649 NCAL powered ON
    22:40:31 UTC

1258930068
    22:47:30 UTC
    Keita OKs leaving the NCAL ON, as long as we are committed to showing that it doesn't matter.
    Timesh goes in to garb room to clean up.

1258930168 Timesh leaves EX
1258930425 IFO handed over to Robert for his tests.
