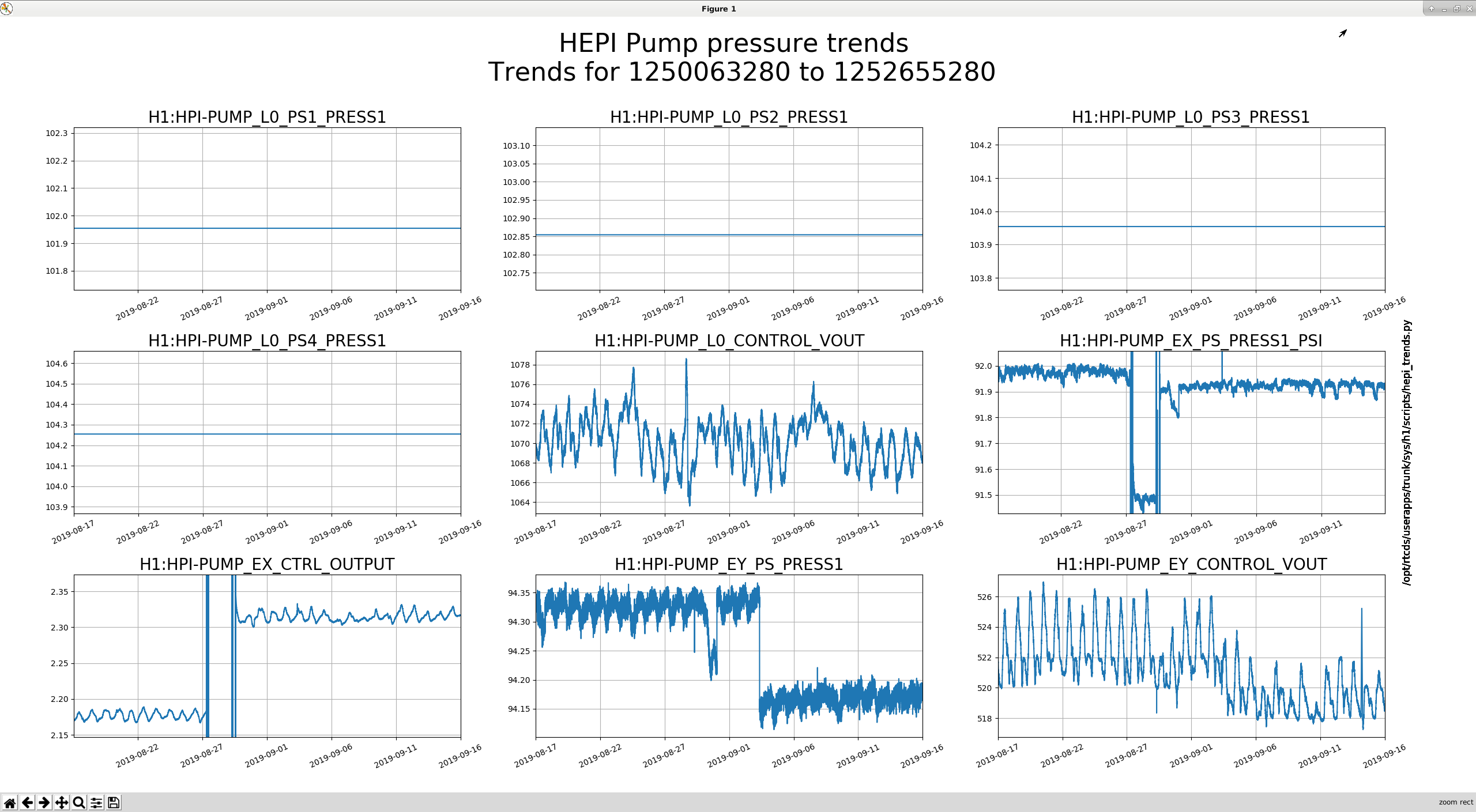

HEPI pump trends for 45 days attached, pump trends look OK when compared to Corey's alog 51368, and Hugh's alog 51617.

Plots are all the same data, just produced with different programs.

• first plot was produced with OPS WEEKLIES
• second plot was produced with ndscope
  • I created the ndscope template and created a new directory, file is here:
  • /ligo/home/ops/Templates/ndscope/HEPI_Pump_Trends.yml
• third plot was produced with dataviewer
  •  I saved a backup of the old template, updated the working template with new EX channels, files are here:
  • /ligo/home/ops/Templates/Dataviewer/HEPIPumpTrends_2016.xml
  • /ligo/home/ops/Templates/Dataviewer/HEPIPumpTrends.xml

TITLE: 09/16 Owl Shift: 07:00-15:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Observing at 115Mpc
OUTGOING OPERATOR: TJ
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 15mph Gusts, 13mph 5min avg
    Primary useism: 0.02 μm/s
    Secondary useism: 0.16 μm/s
QUICK SUMMARY:  Hi in Observe, a bit of wind at the Corner Station, about 20mph, around 06:55UTC, Horizon Air flew over the X arm, the cloud ceiling is low, so they were flying under the clouds, lower than usual.

TITLE: 09/16 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 117Mpc
INCOMING OPERATOR: Cheryl
SHIFT SUMMARY: Locked for 9 hours, no issues or activity to report.

Locked and observing for 5 hours. No issues to report.

TITLE: 09/15 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 117Mpc
OUTGOING OPERATOR: Travis
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 15mph Gusts, 11mph 5min avg
    Primary useism: 0.10 μm/s
    Secondary useism: 0.14 μm/s
QUICK SUMMARY: 1+hour lock, wind is calming back down but a storm is looming in the distance.

TITLE: 09/15 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 112Mpc
INCOMING OPERATOR: TJ
SHIFT SUMMARY:  Took an extra long time to get relocked for reasons that aren't clear.
LOG:

17:23 Lockloss, cause unclear

Initial alignment completes without operator intervention.

Consistently losing lock at ENGAGE_ASC_FOR_FULL_IFO similar to what was noted in aLog 51942.  It seems that near the end of this state, INP1 Y and SRC2 Y are pulled away from 0 (these were most noticeable at least).  Called Keita and he is looking into it and will return my call shortly.  Winds are 20-30 mph during this relocking, so probably not helping.

Tried waiting at PREP_ASC for a few minutes a couple of times with no luck.  About the 6th lock attempt, it finally made it past ENGAGE_ASC, but lost it at INCREASE_POWER as the buildups started to decrease.

Getting alot of SUS saturation verbal warnings (IY, IX, EY, EX, OMC) in ENGAGE_SOFT_LOOPS.

21:45 Observing, just needed Keita's moral support

TITLE: 09/15 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 102Mpc
OUTGOING OPERATOR: Jeff
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 17mph Gusts, 11mph 5min avg
    Primary useism: 0.02 μm/s
    Secondary useism: 0.12 μm/s
QUICK SUMMARY:  Observing for the past 8 hours.  No issues to report.

   All quiet on the LHO observing front. Environmental conditions are good. The range is around 114.0Mpc. No problems to report at this time.

TITLE: 09/15 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 115Mpc
INCOMING OPERATOR: Jeff
SHIFT SUMMARY: Just got back to observing. I spent around an hour trying to get DRMI to lock. It would catch for a few seconds, with good power, but then it would drop it. The camera flashes didn't look fantastic so I kept trying to adjust SRM and even SR2 , but improving the camera flashes seemed to make the DRMI aquisition worse. I eventually caved and ran just and SRC alignment. I was able to get a locked DRMI quite quickly after this, but it lost lock immediately after the DRMI steps. Reaquiring again took 10min. Then it seemed to have no issues all the way up. CALCS rounding errors are the only SDF diffs.
LOG:

• 2352 Out of Observing to damp EMTY violin mode.
• 0011 Observing
• 0420 Lock loss
• 0650 Observing

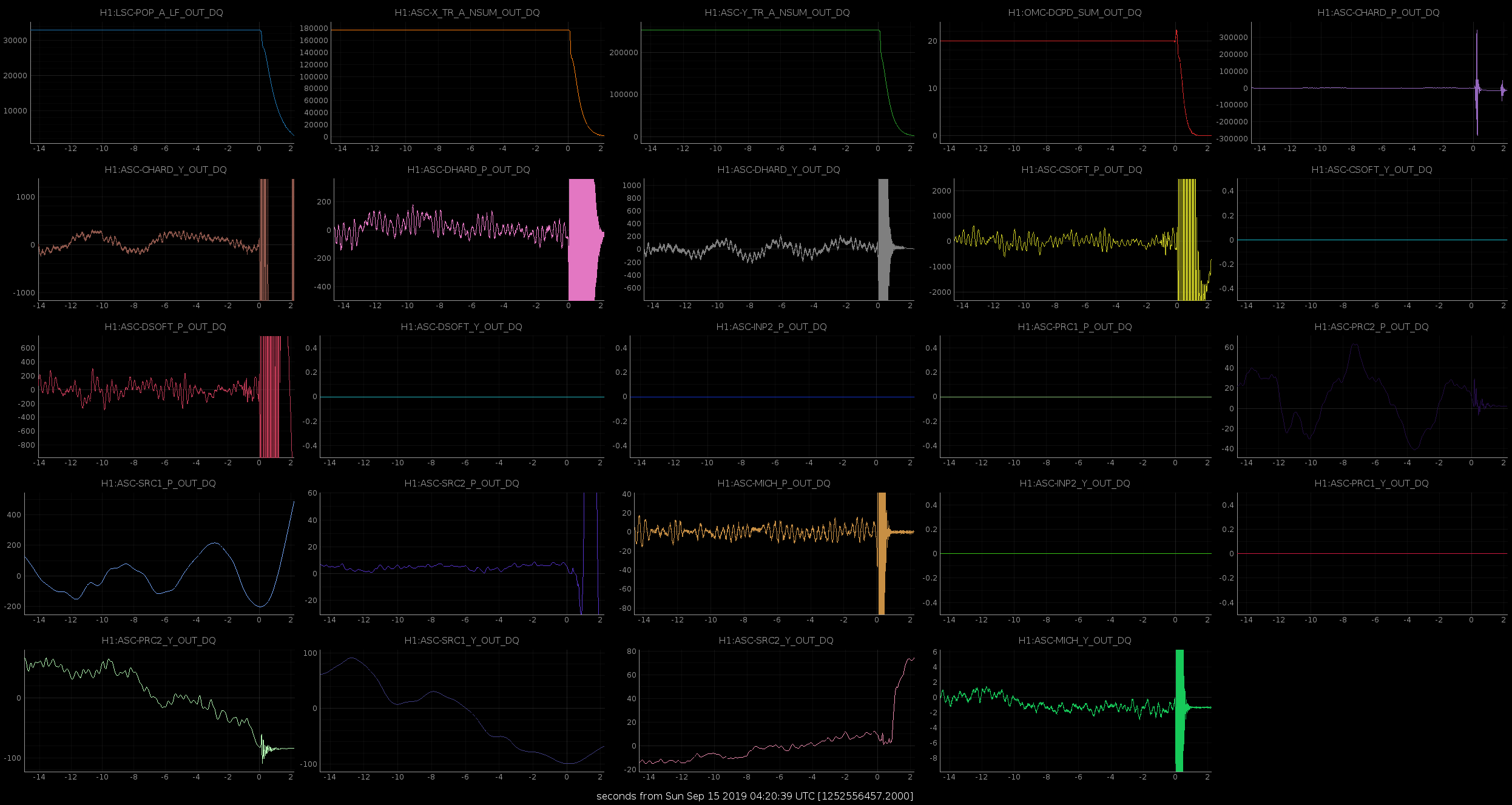

Ending an almost 29 hour lock. Seemed very sudden, no obvious cause.

Earlier today I had noticed that the LSB sewage lift station control panel was alarming as if the tank was full (HIGH-HIGH) -> As found, the white lamp on the control panel was illuminated, the audible alarm was beeping, the switch for PUMP 1 = OFF, the switch for PUMP 2 = AUTO, and the PUMP RUNNING lamp was off -> I switched PUMP 2 to HAND and the PUMP RUNNING lamp, then, illuminated green.  I let the pump run for 3 minutes and then switched back to AUTO.  After this, the white lamp remained illuminated, the PUMP RUNNING lamp went off and the audible alarm stopped.  Later, I repeated the AUTO->HAND->AUTO switch cycle exercise only this time the PUMP RUNNING lamp remained on while left in AUTO.  After several minutes, I de-energized the panel via the main local ON/OFF switch.  I had discussed the issue earlier with Bubba.

As is now, the lift station pump(s) will remain off (i.e. the tank won't empty) until Bubba et. al. come in on Monday.

1752 hrs. local -> Leaving site now.

Out at 2352 UTC

ETMY mode 2 (505.0794) snuck up on me during the tour. I took the Violin_Damping guardian to Damping_On_Simple and applied the gain that it had previously and it seems to be damping well, but not very fast.

TITLE: 09/14 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 111Mpc
OUTGOING OPERATOR: Travis
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 8mph Gusts, 5mph 5min avg
    Primary useism: 0.02 μm/s
    Secondary useism: 0.09 μm/s
QUICK SUMMARY: Locked for 24 hours, calm environment, tours on site.

TITLE: 09/14 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 110Mpc
INCOMING OPERATOR: TJ
SHIFT SUMMARY:  Observing for the entire shift.  No issues.
LOG:

16:37 SEI to EQ mode for Timor-Leste quake

18:19 SEI back to WINDY

20:40 Kyle to MX

20:57 Kyle back, working in high bay terminating cables

20:30-21:30 3 tour groups through CR

TITLE: 09/14 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 115Mpc
OUTGOING OPERATOR: Jeff
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 4mph Gusts, 3mph 5min avg
    Primary useism: 0.01 μm/s
    Secondary useism: 0.11 μm/s
QUICK SUMMARY:  Locked for 15.5 hours, Observing for 7 hours.
