H1 continues to be locked from Niko's shift (just under 11hrs).

COMPLETED:  Non-Observing measurements this morning for ~2hrs (Sheila, JeffK)

This Afternoon Plan:  Currently H1's in Observing, but we are waiting to coordinate going out of Observing with L1 ( for PEM work & Injections).  Will only do this when L1 is out of Observing (and when Virgo remains in Science/Observing).  This was discussed/approved with Keita.

S. Dwyer, J. Kissel

We've repeated Monday's measurements (see LHO aLOG 51393) of the IFO's DARM Opto-mechanical Response (Sensing Function) Vs. SRCL Offset now at the "July" spot positions (where Monday's were at the "August" positions -- see attachments to LHO aLOG 51436 for what this means in terms of A2L gains).

There is similar drastic impact on the sensing function.

See attached: 2019-08-21_H1_100ctSRCLOffset_sensingFunction_referenceModel_vs_allMeasurements.pdf
I'm again using the "No Spring" loop model, which has
      H_c   Optical Gain              3.13e6 [ct/m]
      f_cc  Cavity Pole Frequency     411 [Hz]
and *no* optical spring from SRC detuning, in order to emphasize / better quantify the effects of either actual detuning or remaining L2A2L issues.

In the July Spot positions, with a 100 ct SRCL offset, both of these effects are minimized, and the sensing function appears quite flat, where the other three configurations have interesting features. In fact, the cavity pole frequency also best matches the model at 411 Hz in the July positions and with a 100 ct offset, where the other configurations have lower frequency (the worst being 395 Hz from Monday's Aug positions and no SRCL offset [determined by "by-hand" fitting from LHO aLOG 51393]).

Looking at the phase, my preliminary interpretation of these data are that
    (a) Changing the spot position moves the detuned spring frequency to lower frequency but keeps the detuning Q / amplitude level about the same, and
    (b) Adjusting the SRCL offset reduces "the amount" (the Q and amplitude) of detuning.

I'm not yet ready to say this is definitively true, since -- in the beginning of O3 up to July 31, the low-frequency response was bouncing around from week to week (see LHO aLOG 50498), which may be a result of the L2A2L issues. Monday's measurement of Aug spot positions with 100ct SRCL offset show evidence of the "unphysical" phase turn-up and funky magnitude response, yet today's July spot positions, with no SRCL offset don't appear reproduce the unphysical issues -- when we would expect them to be quite similar to all previous O3 sensing function measurements before the spot move.

More to come, I'm sure...

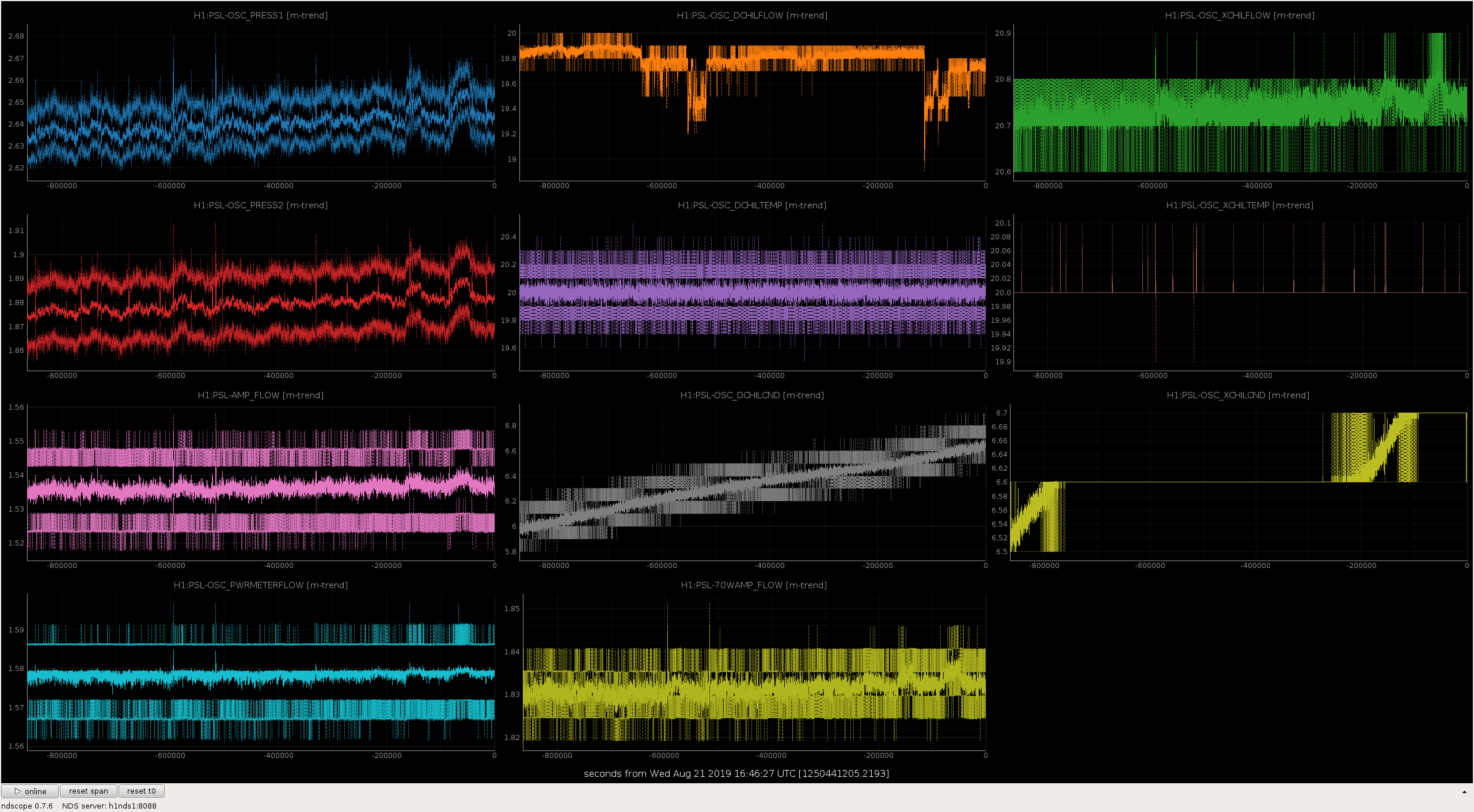

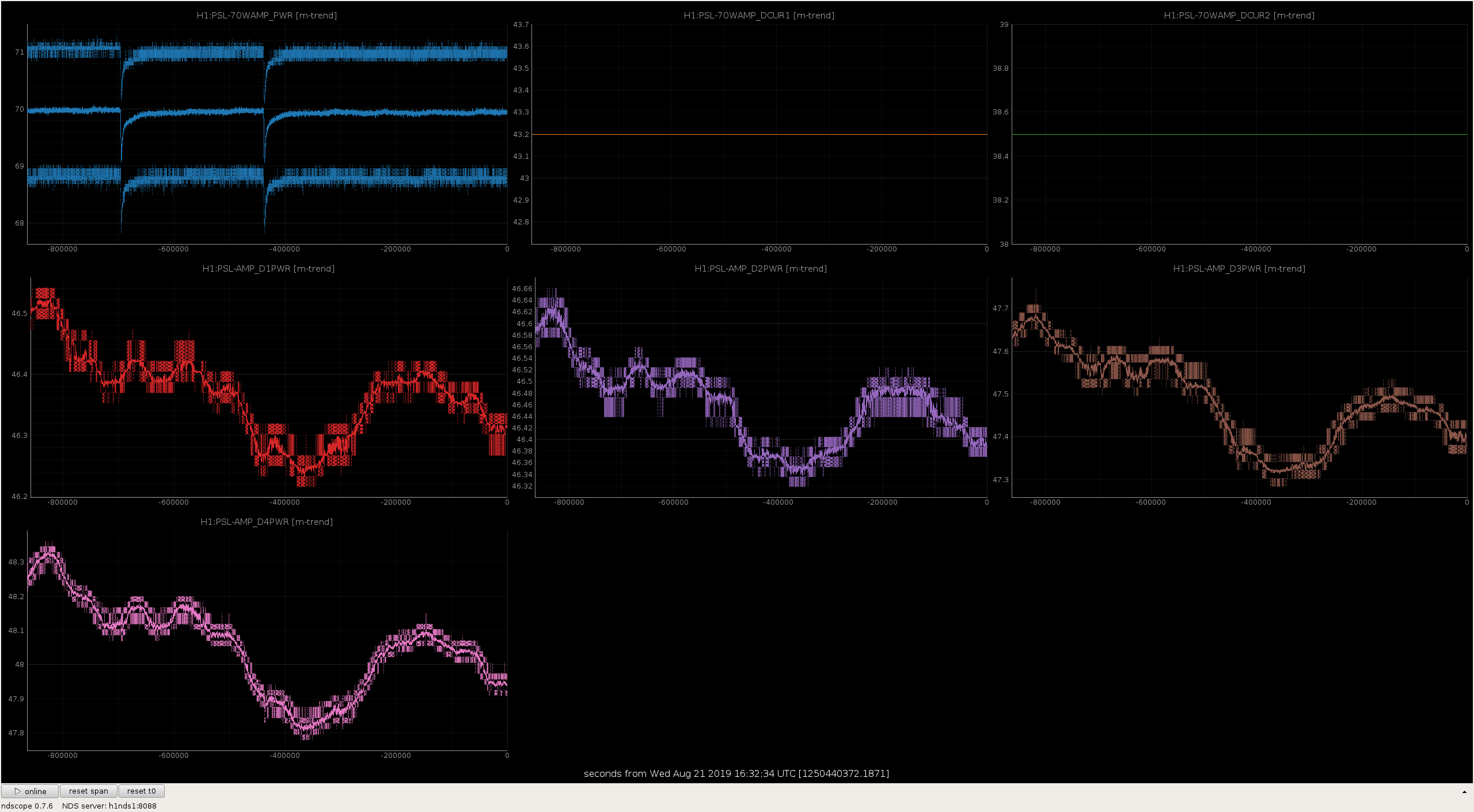

• Crystal Chiller:  added 200mL
• Diode Chiller & both filters looked OK.

J. Kissel for J. Driggers and N. Lecoeuche

After Jenne's re-work of the ISC_LOCK guardian code (see LHO aLOG 51426), we lost lock at 1250407425 (Aug 21 2019 07:23:27 UTC). Niko then loaded the guardian changes (after a few more bug fixes), and ran through the newly minted -- and very slow! -- ENGAGE_SOFT_LOOPS steps which brings the spot positions from centered, out wide in yaw, up in pitch, and then back over in yaw to land back in the old pre-August, "July" spot positions. See LHO aLOG 51433 for Niko's summary of activity.

Other than the length of the ENGAGE_SOFT_LOOPS state, everything seemed to have run smoothly, and is currently running smoothly (though the microseimm and EQ band are pretty high at the moment).

Thus, at the start of this observation segment -- started 1250414457 (Aug 21 2019 09:20:39 UTC) -- now (and hopefully "for good") has the pre-August, "July" O3 spot positions, and we've finally recovered from the initial alignment reference loss.

Sheila and I will be characterizing the IFO today in these reverted spot positions (in similar fashion to LHO aLOG 51393 and LHO aLOG 51394).

I attach BEFORE (first) vs AFTER (second) screenshots of the initial alignment references and spot positions.

TITLE: 08/21 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 114Mpc
OUTGOING OPERATOR: Niko
CURRENT ENVIRONMENT:
    SEI_CONF state: EARTH_QUAKE
    Wind: 15mph Gusts, 11mph 5min avg
    Primary useism: 0.06 μm/s
    Secondary useism: 0.22 μm/s

In the last 12hrs microseism has made a big jump above the 50th percentile.  And Niko passed on info about an incoming EQ which is a Mag6.0 south of Australia (I've recently transitioned to the SEI EARTHQUAKE state).
QUICK SUMMARY:

In Niko's hand-off he mentioned being able to RELOAD ISC_LOCK to take H1 to its new spots (i.e. alignment we liked pre-camera bump). Range has been hovering around 111-117Mpc for the last 6+hrs of lock/observing.

On the Menu today:  Non-OBSERVING time for characterization of our new spot location state (which will involve a suite of measurements such as calibrations, SQZ stuuf, etc.).  This was tentatively scheduled for 9am and JeffK is going to confirm with Keita with this plan.

TITLE: 08/21 Owl Shift 07:00 – 15:00 (00:00-08:00), all times posted in UTC

STATE of H1: Observing

INCOMING OPERATOR: Corey

SHIFT SUMMARY: Early lockloss, followed by loading/quickly troubleshooting ISC_LOCK, running initial alignment, and relocking. Locked and Observing for a little under 6 hours.

LOG:

07:00 (00:00) Start of shift

07:10 (00:10) ‘all’ button on Guardian nodes not working.

07:23 (00:23) Lockloss a few seconds after large ETMX_L3 glitch. Loaded ISC_LOCK, but there’s some kind of error.

07:35 (00:35) Some nested dictionaries weren’t closed off in lscparams.py. Load successful, starting re-lock (‘all’ works now as well). AS AIR looks off-center

08:02 (01:02) Starting an initial alignment

08:26 (01:26) Initial alignment complete, starting to relock

09:17 (02:17) At NLN (much time spent in ENGAGE_SOFT_LOOPS)

09:20 (02:20) Accepting sdf changes, going to Observing

15:00 (08:00) End of shift

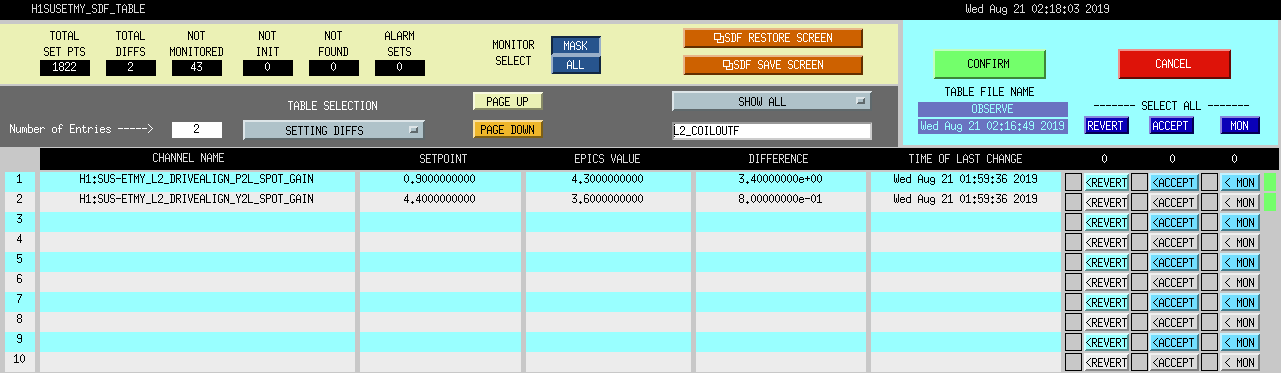

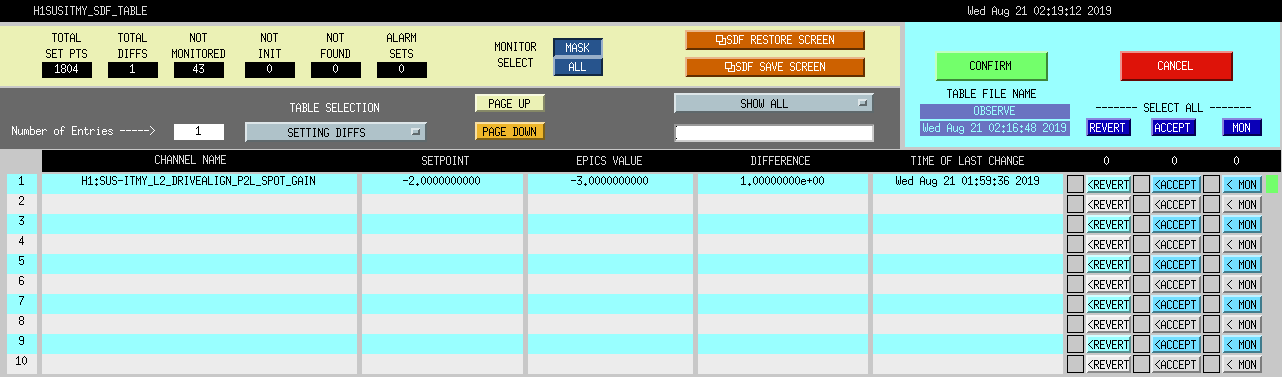

Accepting the sdf changes (attached) to go into Observing.

Ops Shift Transition: 08/21/2019, Owl Shift 07:00 – 15:00 (00:00-08:00) - UTC (PT)

State of H1: Locked

Intent Bit: Observing

Weather: 0-20 mph wind

Primary 0.03 – 0.1Hz: 0.01 um/s

Secondary 0.1 – 0.3Hz: 0.1 um/s

Outgoing Operator: Jeff

Quick Summary: Locked and Observing for 8 hours, wind is up slightly from earlier.

   Smooth shift so far. No Issues or problems to report. Environmental conditions are good. The range is currently 116.6Mpc.

[Jenne, JeffK]

We discovered a bug in the guardian code that was modified today, that ended up with us locking at the August spot positions rather than our goal of the July positions.  Since we really do want to go to the July positions, I have prepared the guardian to do so, although there is also a backup plan in there so that if it doesn't work, the operator can revert and just lock at the July positions.  This should only be necessary in case of lockloss tonight, as commissioners will address this more fully in the morning.  But, if we lose lock, we'd (Jeff, Keita, and I) like the operators to try locking at least once with the new code.

The new version of ISC_LOCK's ENGAGE_SOFT_LOOPS now has 12(!) counter steps.  Half of these are convergence checkers, so we can probably clean this up at some point, but for now I've just extended the methodology that we'd been using.

• We should acquire lock near the centers of the optics.  This is where initial alignment will leave things.
• The ADS soft loops will come on and move to a set of positions called "around absorber position A".
  • This is the same as the August positions, with the exception of ITMY Yaw, which is a large value so that we move the spot to the side of the point absorber.
• After convergence, the ADS soft loops will change to a set of positions called "around absorber position B".
  • This is the same as the above, with the large ITMY yaw position, but the ITMY pitch position moves up to the July (high of center) side of the point absorber.
• After this converges, the ADS soft loops will change to a set of positions called "full power".
  • This is the same ITMY pit position as above, but brings ITMY yaw back to its nominal centered position.  Also sets all other spot positions to their July places.
• After convergence, move on with lock acquisition sequence.

To use this code, if we lose lock, the operator will need to load ISC_LOCK.

If this code does not work ("not work" will likely look like power buildups falling low, and then lockloss), open up lscparams.py  Try at least once, maybe twice if it looked like it almost worked.  Comment out lines 249 through line 287 in lscparams.py.  Uncomment lines 289 through line 332.  Load ISC_LOCK.  This replaces positionA, positionB, and FullPower all with the August positions, so should effectively be the same as we've been doing the last several lock acquisitions.

lscparams.py can be found by:   >>> cd /opt/rtcds/userapps/release/isc/h1/guardian/   Or, the edit button from the guardian screens often brings it up automatically.

If there is an error in ISC_LOCK and it's not an obvious thing that you're able to diagnose and fix, you can revert to the recent version from the svn (both lscparams.py and ISC_LOCK.py).  You can also call me at any time tonight, and I'll help.

J. Kissel, for H. Radkins, M. Ross, and J. Warner.

Thanks to the work of the seismic team today (see LHO aLOG 51417 and LHO aLOG 51421), after watching the BRS X signal for a few hours, we've found it to be glitch free -- so we've resumed including it in the ETMX ISI's sensor correction leading up to and including the current observation ready segment, and plan to continue to include it until further notice.

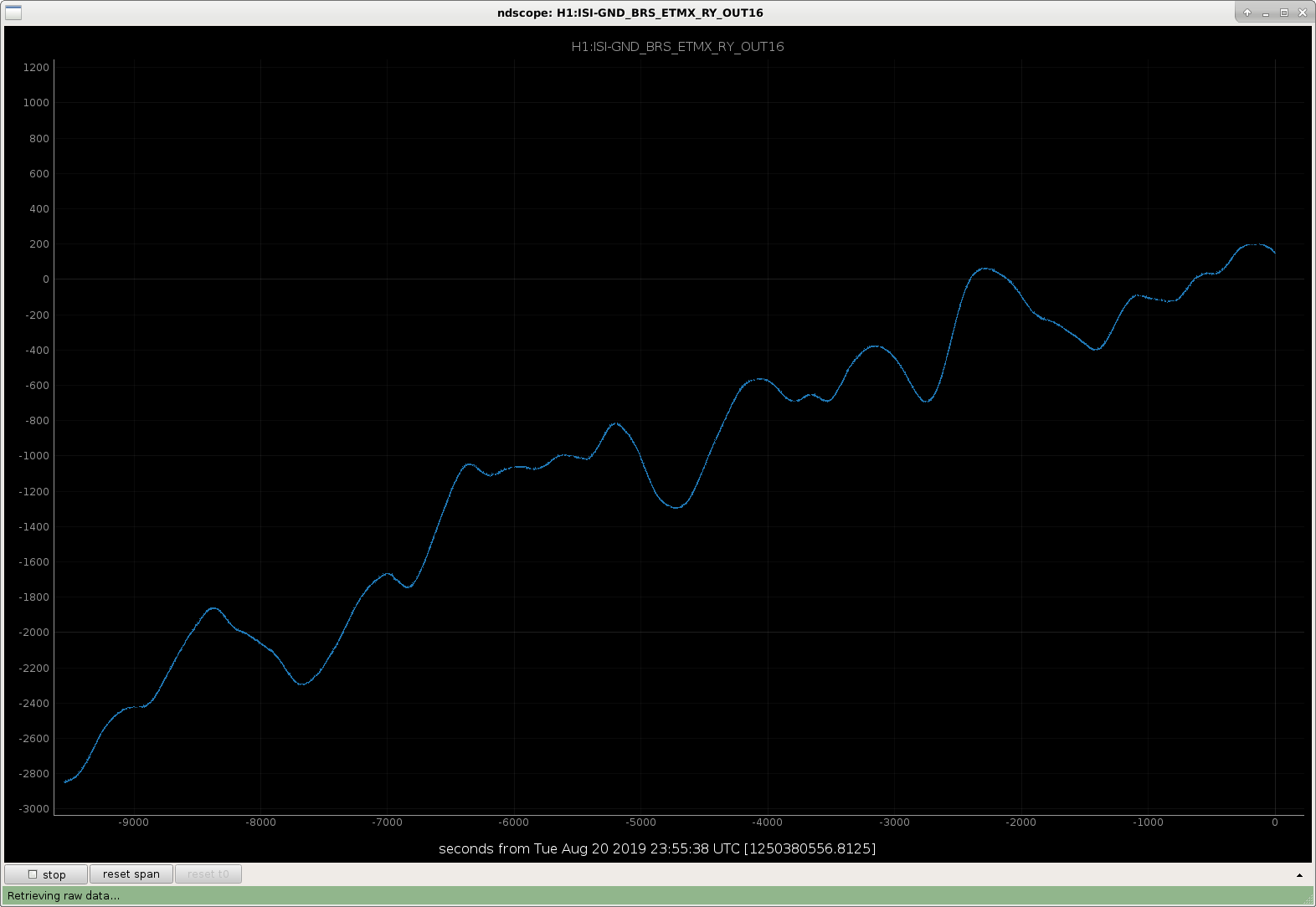

Attached is a live stream of the last 10000 seconds of BRS X signal. It is glitch free. The "DC" value is still evolving with a very long time-constant which we suspect to be the normal ~12 hour thermal recovery time-constant after opening the thermal enclosure, unraveling some of the additional BRS vacuum chamber thermal shielding, etc. during today's deBUGging.

This should close out FRS Ticket 13417.

S. Dwyer, J. Jones, J. Kissel, T. Shaffer

Just a few notes on the things out of the ordinary during today's maintenance recovery:
    (1) Upon finishing initial alignment (to the now-standard "zeroed / centered" spot positions for acquisition), we had a good bit of trouble with ALS COMM. Found the COMM beat note was "low" at -9 dBm, though we've been skating by at this level for a few days. Thinking it was similar to the DIFF beatnote, we first adjusted the position of PR3. However, after having done so, MICH, PRMI, and DRMI were getting zero flashes (which makes sense, since initial alignment requires PR3 to be in a fixed position, and the IFO alignment is sensitive to PR3 position at the 0.25 - 0.5 urad level, and that's how much we had to move it). So, instead, we revert the PR3 position, and adjusted the position of the ALS / POP in-vacuum steering mirror via picomotor. The units aren't calibrated, but the COMM beat note was highest ~ -5 dBm with an X & Y position of the picomotor adjusted by a few 10s of counts.

    (2) PRMI ASC did an excellent job of recovering a rather gross looking PRMI after that -- nice work!

    (4) We had programmed in the July spot positions a priori, so we have now steered their instead of the "August" positions after turning on ENGAGE_SOFT_LOOPS, but this also went relatively smoothly.
        EDIT: There was a typo in the modified guardian code -- we're still in the August spot positions

    (3) Once we got in to full IFO resonance and began turning on FULL IFO ASC -- every suspension started saturating. Found that the DHARD P control signal was very large (even though the error signal was small), so reduced the gain from standard -50 to -30. (And then later reverted).
        EDIT: Our suspicion is that this problem was a result of the ISC_LOCK bug in spot position placement. The code had us going from "centered" to "July" to "August" in rapid succession -- and this path takes us *through* the point absorber.

    (5) The OMC_LOCK guardian had trouble recognizing there was light going in to the OMC, needed to re-request "DOWN" of the OMC_LOCK guardian before it successfully locked the OMC. TJ & Sheila will look into to modifying the Guardian so it takes care of this hiccup on its own.

The only "problems" were (1), (3), and (5). We attribute (1) to the lingering collection of issues associated with the initial alignment reference lost in early August, and not a "fault" of maintenance day activity. (3)'s cause is still unclear, but not yet terribly abnormal that the FULL IFO ASC struggles a bit to pull the alignment of the IFO in from the initial alignment references after a maintenance day. EDIT: (3)'s cause was the errant attempt at reverting spot positions.

Started recovery (initial alignment) at 19:12 UTC.
Recovered to nominal low noise by 21:44 UTC, and we've agreed to do a bit of commissioning (restoring OMC ASC offsets to correspond with the new spot positions, and further 48 Hz feature research) and calibration (to capture the new spot position impact).

TITLE: 08/20 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Commissioning
INCOMING OPERATOR: Jeff
SHIFT SUMMARY: Recovered from maintenance and locked at NLN. See Jeff K's alog for more details with recovery.
LOG:

• 1501 Chris to LVEA for FAMIS tasks
• 1503 Kyle to LVEA to start staging equipment for hammer drilling
• 1506 lock loss
• 1506 Vanessa to EX
• 1513 Karen to EY
• 1514 Cheryl to LVEA to transition to laser safe
• 1517 Bubba and contractor to LVEA near HAM5/6
• 1522 Richard back
• 1529 LVEA is laser SAFE
• 1530 Gerardo and Tyler to LVEA
• 1548 Hugh, Michael R to EX for BRS work
• 1548 Chris out of LVEA heading to all out buildings
• 1551 Dick to LVEA to PSL racks
• 1552 Fil to CER for 60Hz rack isolation
• 1552 Cheryl out
• 1555 Jim to EX
• 1601 Vanessa from EX to LVEA
• 1601 Gerardo, Tyler out. Gerardo to MX
• 1604 Jeff J, Charlie to LVEA to join Bubba
• 1608 Nutsinee to LVEA near HAM6
• 1610 Richard to LVEA to check on access control
• 1611 Karen done at EY
• 1619 Richard out
• 1625 Norco at gate heading to tank 76
• 1637 Chris done
• 1650 Rahul to EX to join SEI crew
• 1651 Gerardo back
• 1652 Norco at gate for tank 79
• 1706 Jeff K to LVEA to check on status of crews
• 1710 Adrian, Matt to LVEA to stage vibrometer
• 1715 Nutsinee out, SEI crew + Rahul back
• 1735 Richard to EY to check on access control
• 1739 Adrian, Matt out
• 1750 Gerardo, Tyler done. Gerardo to MX
• 1753 Hugh, Jim to LVEA to look at H2 tube
• 1753 Richard from EY to EX
• 1759 Chandra to LVEA
• 1802 Bubba and contractor out
• 1802 Chris to LVEA
• 1809 Chris out
• 1811 Chandra out
• 1815 Richard back from EX, heading into the LVEA
• 1825 LVEA laser Hazard
• 1834 Daniel, Nutsinee to LVEA to start SQZ work
• 1847 Gerardo back
• 1856 Jeff K to LVEA to check on crew
• 1905 Pepsi truck at gate
• 1905 Fil out
• 1908 Marc, Matt out
• 1916 Kyle out
• 1918 Dick out
• 1920 Richard to EY
• 1921 Matt to CER
• 1926 Matt out
• 1932 PEM crew, Daniel to LVEA
• 1937 Corey out, LVEA swept
• 1941 PEM crew out
• 1945 Richard back
• 2145 Reached NLN, starting 1 hour of commissioning
• 2225 PEM crew out to LVEA and sweeping LVEA

We have moved our interferometer spot positions back to those we had before the change on the ~1st of August. See alog 51262 for a summary of why several indicators that the July spots were better for the IFO.

We have done this by modifying the powerup A2L spot position gains in the lscparams guardian file, so that we will still acquire lock with the beams roughly centered on the optics, but once we start engaging the soft loops we change the A2L gains and go to the final 37W spots, then power up.

Also, I have reverted the OMC ASC QPD setpoints back to their values from the July time, undoing alog 50973. Hopefully we will see a marked reduction in the number of low frequency glitches.  The OMC ASC setpoints were saved in both observe and safe snap files.

I have updated the GPR HDF5 files for use in computing response function uncertainty.

Scripts used to produce the HDF5 files:
trunk/Runs/O3/H1/Scripts/Uncertainty/process_allmeas_writeGPRHDF5_model20190416-A.py   r8224
trunk/Runs/O3/H1/Scripts/Uncertainty/process_allmeas_writeGPRHDF5_model20190416-C.py   r8228

GPR HDF5 files for use by RRNom.py:
trunk/Runs/O3/H1/Results/Uncertainty/O3_H1_A_GPR_20190416_multi.hdf5   r8186
trunk/Runs/O3/H1/Results/Uncertainty/O3_H1_C_GPR_20190416_multi_nofsQcorr_fmin30Hz_lengthscaleZp5.hdf5   r8230

Note that there is a new file to use for the GPR of the optical plant. The reason for the change is that below 30 Hz, the MCMC does a poor job fitting the data. This impacts the fit for optical gain and coupled cavity pole frequency (see G1901479, slides 10, 11, and 19), which need to be correctly fit in the frequency range of importance. Also, currently C00 and C01 do not correct for any spring frequency or quality factor Q, so we should not be correcting our measurements by these values--our systematic error at low frequency will naturally expand because of this.

Actuation and sensing MCMC values for the reference model remain the same, as per our procedure.

S. Karki, J. Kissel

Sudarshan is working on processing the high-frequency roaming PCALX line that has been sweeping through the DARM data above 1 kHz throughout the run. In order to facilitate that processing, and to pick up where Pep left off I report the times at which the sweep restarted during the run thus far, determined by a trend of the requested frequency channel, H1:CAL-PCALX_PCALOSC1_OSC_FREQ. We should consider a modification of the HIGH_FREQ_LINES guardian such that we have a less GUI way to gather this information in the frames.

For now, I give you the dates of the repeat to-date at H1 via ndscope trends and cursoring:

    2019-04-01 16:00 UTC Starts at 3001.3 Hz. Start of the run (spends a long time at 3001.3 Hz until bug fix, see aLOG below).
    2019-04-15 21:27 UTC Re-start at 3001.3 Hz LHO aLOG 48505
    2019-04-19 23:22 UTC Re-start at 3001.3 Hz
    2019-04-24 23:51 UTC Re-start at 3001.3 Hz
    2019-04-28 19:08 UTC Re-start at 3001.3 Hz
    2019-05-05 01:16 UTC Re-start at 3001.3 Hz
    2019-05-07 17:22 UTC Re-start at 4001.3 Hz More bug-fixes, no running nominally LHO aLOG 49064
    2019-05-15 22:40 UTC Re-start at 4001.3 Hz
    2019-05-31 06:54 UTC Re-start at 4001.3 Hz
    2019-06-10 17:07 UTC Re-start at 4001.3 Hz
    2019-06-18 13:34 UTC Re-start at 4001.3 Hz
    2019-06-27 22:08 UTC Re-start at 4001.3 Hz
    2019-07-06 03:20 UTC Re-start at 4001.3 Hz
    2019-07-15 13:10 UTC Re-start at 4001.3 Hz
    2019-07-25 17:16 UTC Re-start at 4001.3 Hz
    2019-08-03 11:55 UTC Re-start at 4001.3 Hz
