J. Freed, S. Dwyer
Yesterday we did damping loop injections on all 6 BOSEMs on the PR3 M1. PR3 shows quite alot of coupling in the 10-25Hz range. This is a continuation of the work done previously for ITMX, ITMY, and PR2
As some signals were quite strong, instead of gain of 750, gains of 300 and 600 were collected (300 is labled as low_noise). Also, this time injections were performed in diaggui instead of awggui
The plots, code, and flagged frequencies are located at /ligo/home/joshua.freed/20241021/scrpts. While the diaggui files are at /ligo/home/joshua.freed/20241021/data. This time, 600 gain data was also saved as a reference in the diaggui files (see below), saved in 20241021_H1SUSPR3_M1_OSEMNoise_T3.xml
pr3.png Shows all results for PR3 with the top half being at 300 gain and the bottom being at 600 gain. All sensors showed strong coupling in 10-25Hz range at 600 gain. [LF, RT, T2, T3] showed strong coupling in 10-25Hz range at 300 gain. [SD, T1] instead showed some coupling in the 46-48Hz range at 300 gain. I am unsure if this is signifficant or another noise source while the test was performed.
Because of the failure of the CNS power supply at EX, which was the same age as the power supply at EY, and because of some glitches starting to occur with GPS 1 PPS signal from the CNS at EY, I replaced the power supply for the CNS at EY.
relevant alogs here:
https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=80742
https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=80537

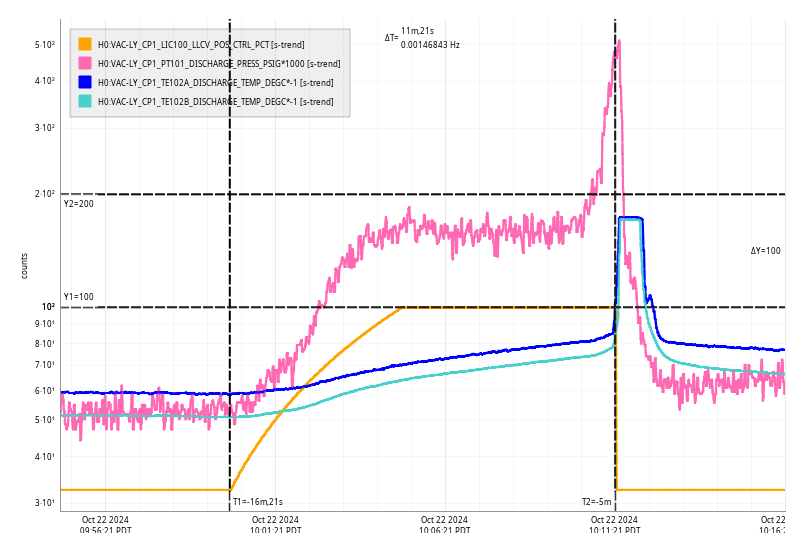

Tue Oct 22 10:11:21 2024 INFO: Fill completed in 11min 17secs
Gerardo confirmed a good fill curbside.
FAMIS 31056

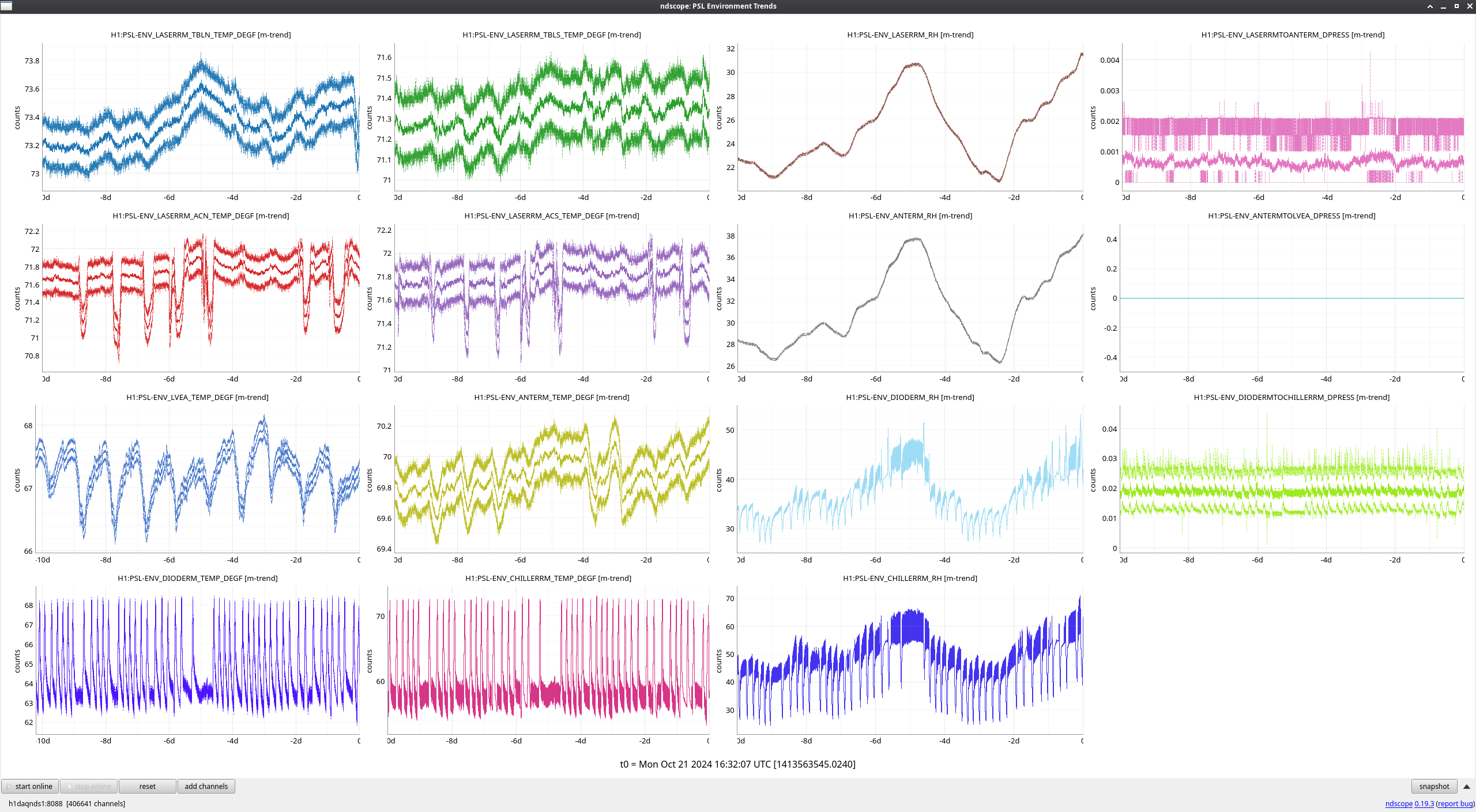

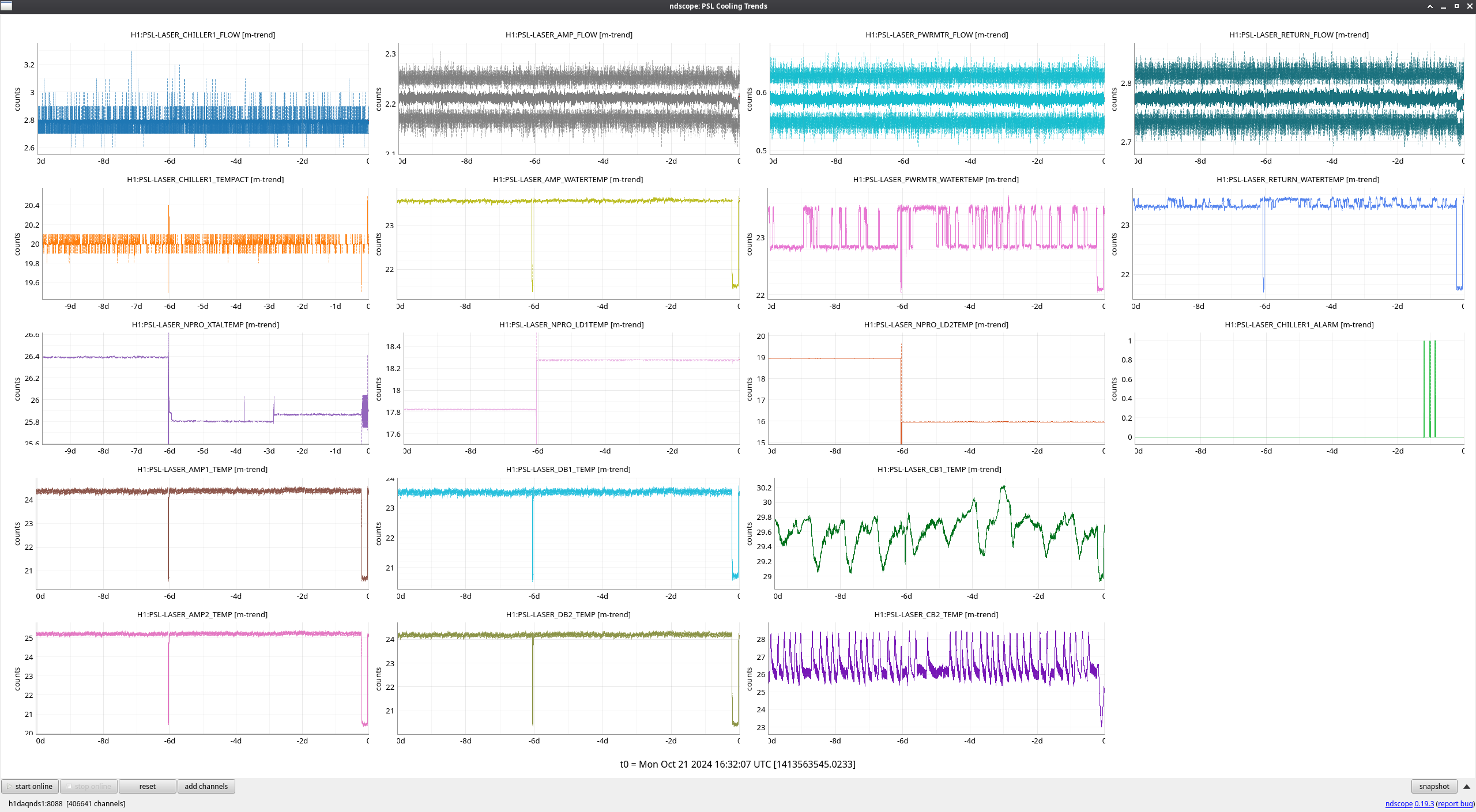

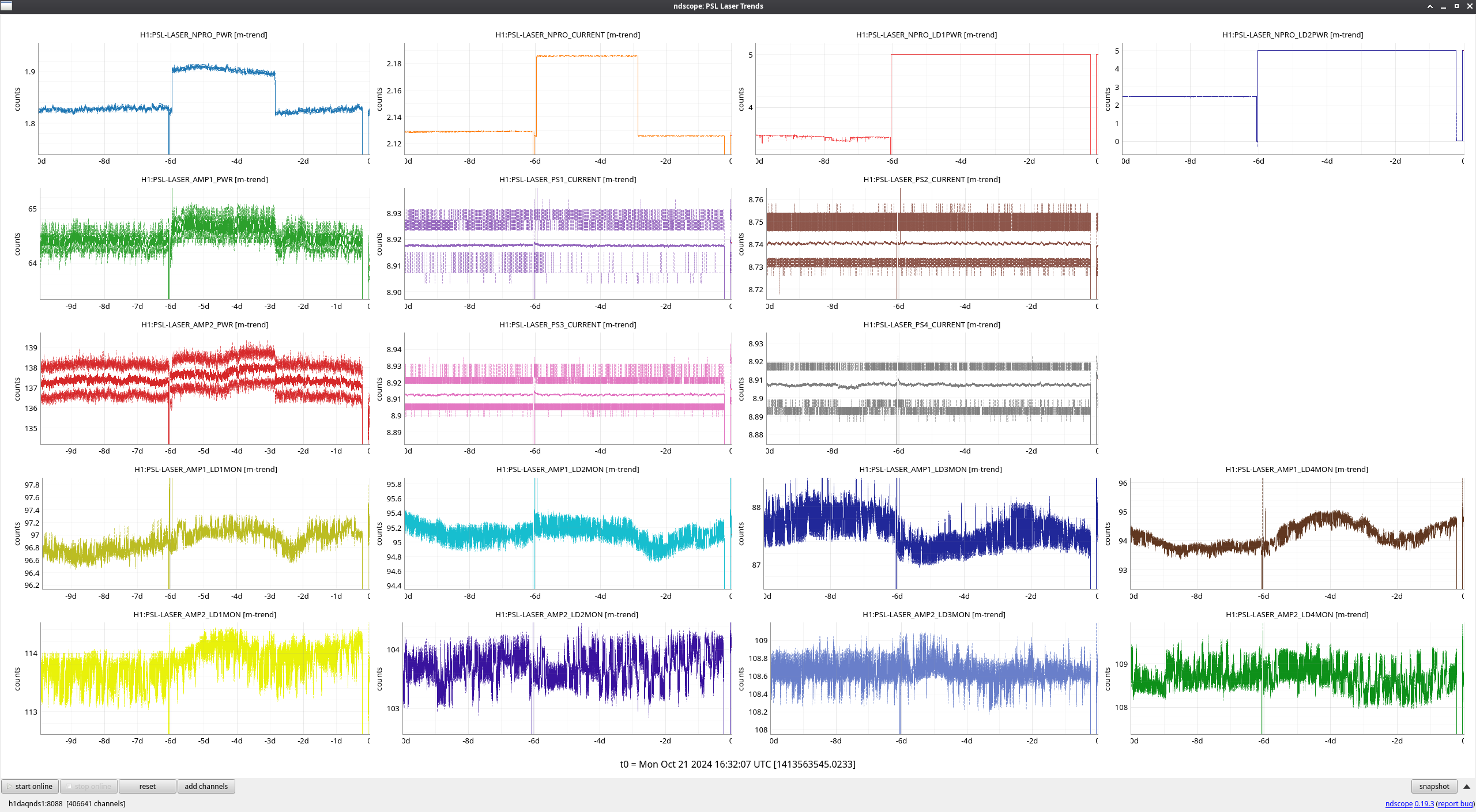

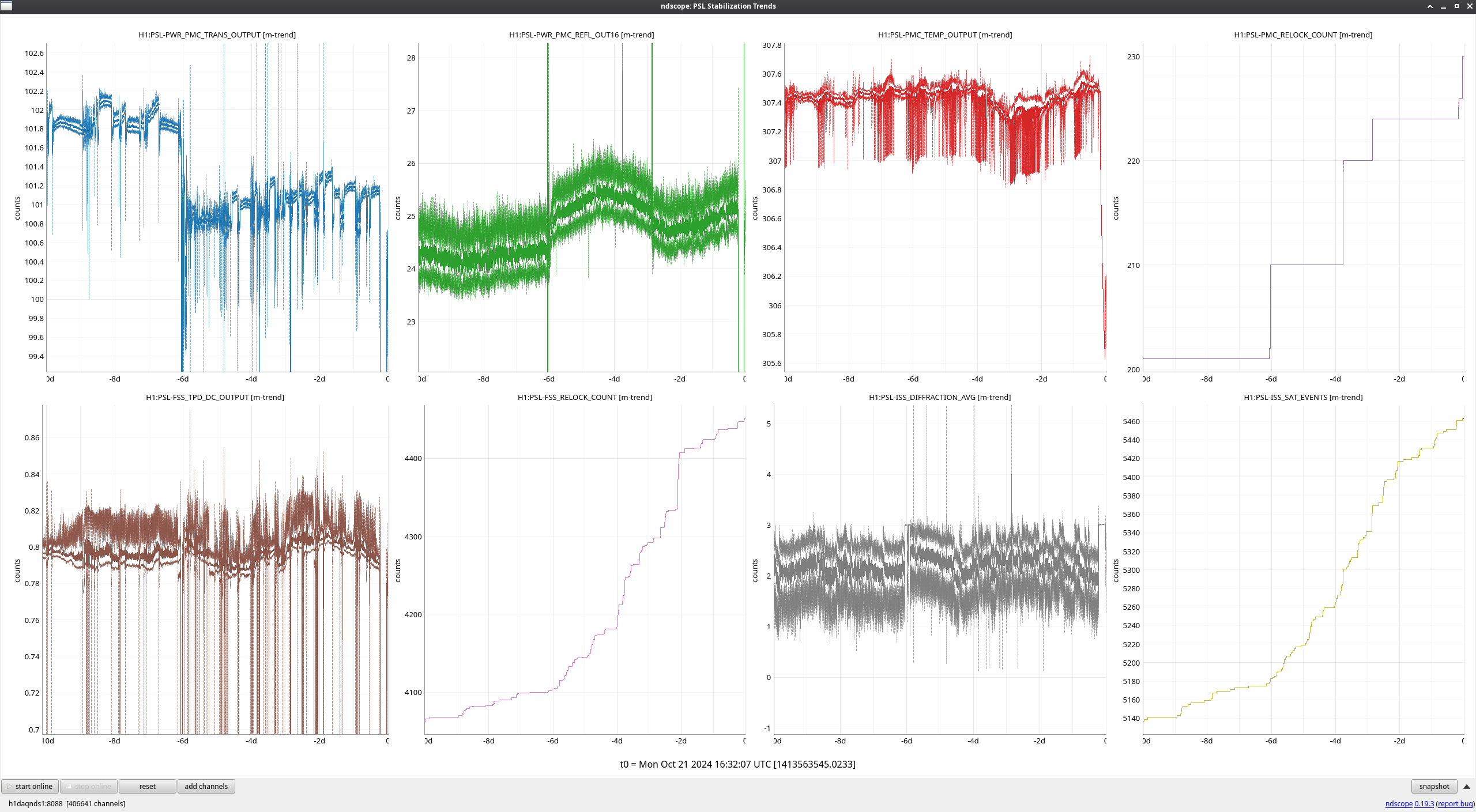

Several things have happened in the past week that show on these trends:
TITLE: 10/22 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Lock Acquisition
OUTGOING OPERATOR: TJ
CURRENT ENVIRONMENT:
SEI_ENV state: CALM
Wind: 6mph Gusts, 4mph 3min avg
Primary useism: 0.01 μm/s
Secondary useism: 0.13 μm/s
QUICK SUMMARY:
IFO is LOCKING (but not for long). We have an 8 hr maintenance day today, expecting the following activities:
Workstations were updated and rebooted. This was an os packages update. Conda packages were not updated.
I was left in charge of the IFO with directions from Camilla on how to take us into observing and set TJ to the owl operator. There was a lockloss just as I was about to click "observe", approx 12:21 UTC.
Elenna, Camilla
Ran the automatic DARM offset sweep via Elenna's instructions (took <15 minutes):
cd /ligo/gitcommon/labutils/darm_offset_step/
conda activate labutils
python auto_darm_offset_step.py
DARM offset moves recorded to /ligo/gitcommon/labutils/darm_offset_step/data/darm_offset_steps_2024_Oct_21_23_37_44_UTC.txt
Reverted the attached tramp sdf diffs afterwards, see attached. Maybe the script needs to be adjusted to automatically do this.
I just ran Craig's script to analyze these results. The script fits a contrast defect of 0.742 mW using the 255.0 Hz data and 0.771 mW using the 410.3 Hz data. This value is lower than the previously 1 mW on July 11 (alog 79045), which matches up nicely with our reduced frequency noise since the OFI repair (alog 80596).
I attached the plots that the code generates.
This result then estimates that the homodyne angle is about 7 degrees.
Last year I added some code to plot_darm_optical_gain_vs_dcpd_sum.py to calculate the losses through HAM 6.
Sheila and I have started looking at those again post-OFI replacement.
Just attaching the plot of power at the anti-symmetric port (ie. into HAM 6) vs. power after the OMC as measured by the DCPDs.
The plot is found in /ligo/gitcommon/labutils/darm_offset_step/figures/ and is also on the last page of the pdf Elenna linked above.
From this plot we can see that the relationship between the power into HAM 6 (P_AS) is related to the power at the output DCPDs as follows.
P_AS = 1.220*P_DCPD + 656.818 mW
Where the second term is light that will be rejected by the OMC + that which gets through the OMC but is insensitive to DARM length changes.
The throughput between the anti-symmetric port and the DCPDs is 1/1.22 = 0.820. So that means 18% of the TM00 light that we want at the DCPDs is lost through HAM 6.
TITLE: 10/21 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Commissioning
INCOMING OPERATOR: TJ (remote)
SHIFT SUMMARY:
IFO is in NLN and COMISSIONING as of 14:40
A lot happened today, mostly related to two brief power outages taking down a few systems. Here's the summary (times in UTC).
Power Outage Story Start (alog 80791)
Pre-Shift:
11:15:48 Local: PSL downed (PMC High Voltage, HAM6 PZT High Voltage, NPRO tripped), Ryan called after 15 mins in READY. Ryan C and Jason troubleshoot, figuring out that it can’t be fixed remotely. OWL alog 80782 They hopefully go back to sleep. IFO in MAINTENANCE.
11:52 Local: Power Glitch 2, the sequel. IFO can’t lock, stays downed.
Shift Start:
14:30: I arrive and realize the PSL has no power and that NDS is being slow. I read the alog and mattermost and saw that Ryan C (OWL Ops) was called and troubleshooting.
14:45: Dave gets on TS and figures out that it was indeed a power glitch (alog bla bla) that took down 2 front end channels, the PMC Hi-Voltage, the NPRO (tripping), HAM6 PZT and potentially caused some NDS troubles. Confusion ensued about what should and shouldn’t have gone down over such a glitch.
15:00: Jonathan joins, goes into the MSR and checks the UPS, and confirms that this had gone on battery for the 2 outage times. This further confirms us that there was definitely bad sitewide power, so it went on battery back-up.
15:00: By now, Dave and Jonathan have understood the outage effects apart from 2 front-end channels going down during the outages, and auto-rebooting shortly thereafter. The two culprits are SUSAUXH2, SUSAUXEX. These aren’t on the UPS so CDS is still confused as to why those went down. Dave cleared the CDS overview alerts and CDS is investigating.
15:05: Fil joins and turns the HAM6 PZT and PMC Hi-Voltage back on.
15:10: Ryan S joins and turns on the PSL, allowing us to lock.
Power Outage Story End, Normal Locking Start:
15:25 Guardian begins initial alignment but FSS glitch (unrelated rabbit hole) happens so we relock the IMC and continue.
16:00 Initial alignment ends and we begin locking! High guardian state LL and alignment issues requiring initial alignment happen, delaying us further (but not for too much longer!)
18:07: NLN Acquired, IFO OBSERVING
19:55: Lockloss alog 80798 (Not PSL, unknown cause).
21:15: Trucks on the move in prep for Earthmoving.
21:40: NLN Acquired, IFO COMISSIONING
23:30: Shift End, Still comissioning
LOG:
Start Time | System | Name | Location | Lazer_Haz | Task | Time End |
---|---|---|---|---|---|---|
16:36 | SAFE | HAZARD | LVEA | YES | !!!!!LVEA IS LASER HAZARD!!!! | 03:16 |
17:39 | FAC | Karen | MY | N | Technical cleaning | 17:39 |
17:39 | FAC | Karen | Wood Shop | N | Technical Cleaning | 17:56 |
18:25 | PSL | Jason, Ryan S | Optics Lab | Local | Preliminary PSL Optics Reconnaissance | 18:42 |
21:25 | FAC | Earth Movers (TM) | Staging Building Behind | N | Earth Move Prep | 22:25 |
21:26 | PSL | Jason, Ryan S | Optics Lab | Local | Spare NPRO Work | 22:26 |
Sheila, Vicky, Camilla
We have turned back on the SQZ angle servo using the ADF at 322Hz. Last briefly tried while testing ADS alignment in ADS in 80194. Turned on ADF and used 'python setADF.py -f 322'. Then set H1:SQZ-ADF_OMC_TRANS_PHASE to get H1:SQZ-ADF_OMC_TRANS_SQZ_ANG close to zero and checked by stepping the SQZ angle that there is a zero crossing in the ADF measured SQZ angle, plot attached.
The servo adjusts the SQZ angle (H1:SQZ-CLF_REFL_RF6_PHASE_PHASEDEG) via keeping the ADF measured angle (H1:SQZ-ADF_OMC_TRANS_SQZ_ANG) at zero. Setpoint can be adjusted using the ADF phase (H1:SQZ-ADF_OMC_TRANS_PHASE).
Tagging Detchar: ADF is now on at 322Hz. It was turned all the way off in 79573 by Alan. We can adjust the frequency 50-500Hz if there is a better place for a line.
Note to operators: if you want to run SCAN_SQZANG, the ADF servo will now overwrite the sqz angle. So BEFORE going back to FREQ_DEP_SQZ you'll want to tweak H1:SQZ-ADF_OMC_TRANS_PHASE (via sqz overview > ADF) to make H1:SQZ-ADF_OMC_TRANS_SQZ_ANG close to zero. Or you can tweak H1:SQZ-ADF_OMC_TRANS_PHASE (via sqz overview > ADF) until the SQZ BLRMs/ DARM is best.
Trends of the ADF servo stabilizing the SQZ angle overnight. Looks good: the ADF SQZ ANGLE servo can hold the maximum squeezing level throughout the lock! Last night was running with the ADF SQZ angle servo + SQZ-IFO AS42 ASC together.
In the first lock of the screenshot, the ADF SQZ ANGLE servo is not yet running, and the squeezing level drifts quite a bit (~0.5-1 dB in ~2 hours, and ends up un-optimal). In the last 2 locks, the ADF SQZ ANGLE servo is running and successfully stabilizes the SQZ angle, though the 2 locks from last night stabilize at different SQZ angles (weird?). Note SQZ ASC is running in both of these locks, so it seems like ASC + ADF SQZ ANG servo work well when used together.
Naoki looked at sqz trends with/without the ADF servo before in LHO:75000. Looking at sqz trends for yesterday, the ADF servo stabilized the SQZ angle in the first ~25 minutes. Then over the first ~2 hours, the ADF servo needed to move the CLF_RF6 demod phase by 5-10 degrees to hold the SQZ angle stable. This implies something like, the optimal injected squeezing angle changed by about 2-5 degrees during IFO thermalization.
Also noting a reference to LHO:77292, where Naoki does an On/Off test with the ADF line at 322 Hz.
Checked against the 68139 list, can see that 322Hz is a good frequency for CW. We will look at trying to add this ADF line to the _CLEAN or _NOLINES subtractions.
Lockloss most likely due to PSL FSS Glitch. ASC and IMC lost lock within 63ms of one another, which is suspect. However, it seems AS_A lost lock first, so it might not be FSS related - unsure. Plots below.
No FSS tag on the lockloss tool
Tagging OpsInfo: I've added an ndscope template to the lockloss select tool that provides some good channels to look at to help determine if it was caused by the PSL glitches. Running it for this lockloss, I would say this does not look like an "FSS glitch" lockloss (see attached).
Mon Oct 21 10:13:00 2024 INFO: Fill completed in 12min 56secs
Jordan confirmed a good fill curbside.
We had two site-wide power gltiches at 04:15:48 and 04:52:39 PDT Mon 21oct2024.
Both were seen in CS and EX MAINSMON channels. EX saw voltage drop for all three phases, CS saw this for two phases. Voltage drop persisted for about 3 cycles and then recovered.
h1susauxh2 and h1susauxex rebooted on the first glitch at 04:15, their models restarted around 04:17. No other model restarted at these times. There were no IPC errors and no long cpu-runs. We currently don't know why these two susaux machines rebooted by themselves.
Opened FRS32411
Notes from Fil:
The HAM6 PZT had to be restarted
Work on Beckhoff DAC power monitors
Both GC and CDS UPS units switched to battery backup power for both of these times. The GC unit sent email notifications, the CDS unit did not.
GC was on battery for 5 seconds, CDS for only 1 second.
FMC-EX_MAINS Channels seeing the outage at the reported times.
Outage 1: 4:15:48
Outage 2: 4:52:39
Vicky, Sheila
Summary: Today we learned that frequency independent anti-squeezing is a very good way to determine which sign the homodyne angle is.
Background: I've been working on using code from Vicky's repo and the noise budget repo to do some checks of a quantum noise model, this is in a new repo here.
Details about how this model is made:
The first attached plot illustrates how these models and plots are made. It starts with a no squeezing time, and an esitmate of non quantum noises from the noise budget, (dark gray, this one is from Elenna's recent run of the noise budget: 80603 ) and an estimate of the arm circulating power along with other parameters set in a quantum parameters file in the same format that is used by the noise budget. It fits the readout losses by adding a gwinc model of quantum noise with the noise budget estimate of other noises, and adjusting the readout losses of the gwinc model, this is done from 1.5-1.8kHz in this case.
Based on this readoutlosses we get a model of quantum noise without squeezing, and subtract that from the no squeezing trace to get an estimate of the non-quantum noise. This is enough different from the noise budget one that I've used that as the estimate of the non-quantum noise for the rest of the traces.
By subtracting this subtraction estimate of the non-quantum noise, it estimates squeezing in dB, and finds a median level of dB from 1.5-1.8kHz for anti-squeezing and squeezing. This should be the same with and without the filter cavity, but in this data set there is slightly more anti-squeezing in the time without the filter cavity, so I've used FIS and FIAS to estimate the nonlinear gain and total efficiency for squeezing. The nonlinear gain is translated into generated squeezing for gwinc, and the injection losses for squeezing are set so that the injection efficiency* readout efficiency = total squeezing efficieny.
With this information we can generate models for anti-squeezing and squeezing traces, but fitting the squeezing angle to minimize or maximize quantum noise. Then for the mid angle traces, the squeezing angle is fit to minimize the residual between the data and the quadrature sum of the subtraction estimate of non quantum noise and the model. We can then look at these plots and try manually changing parameter in the quantum parameter file.
Homodyne angle:
We've been stumped for a while about the excess noise we see with low frequency anti-squeezing, in 79775 I went through old alogs and see that we've had this mismatch of model with our data for a long time. Today we tried flipping the sign of the homodyne angle and see that low frequency anti-squeezing is much closer to fit both with and without the filter cavity. Compare the 2nd and 3rd attachments to see this.
We still have more work to do on this model, including adding in the additional traces near squeezing and near anti-squeezing that Camilla took, and checking if it can give us any information about arm power (it doesn't seem very useful for that), or the mode mismatches.
I neglected to mention that this is based on the nice data set that Camilla collected here: 80664, and that three is more work to be done with this, checking SRC detuning, mode mismatch, and including the +/- 10 deg data.
Sumary: seems the current (+) side of DARM is better for FDS, although it is opposite of our previous quantum noise models. But given the current sign is actually better for DARM, the model error doesn't really matter, and it's not really worth changing signs.
The wrong HD angle sign seems to be why none of our quantum noise models, despite fitting all other SQZ angles well, have ever fit FIAS properly. We will update our quantum noise models for the noise budget. Attached are some quantum noise models and DARM plots for Camilla's recent SQZ dataset lho80664.
Plots with optimal FDS (optimal fc detuning) for both signs of the homodyne angle: showing 1st just the quantum noise models without adding back non-quantum noise (NQN), and 2nd showing QN models + NQN.
Third attachment (3rd) shows a wider range of homodyne angles, from +15 deg to -10 deg. So far the code for these plots is living here.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Altogether this is making progress on the quantum noise models for the noise budget!
Summarizing updates and what we're learning:
Vicky, Sheila
Based on the fit of total squeezing efficiency and nonlinear gain (which is based on subtracted SQZ and ASQZ from 1.5-1.8kHz), and known losses from loss google sheet, we can infer some possible maximum and minimum arm powers using the no squeezing data.
The first attachment shows the same plot as above, but with the latest jitter noise measured by Elenna in 80808 We noticed this afternoon that there is a problem with the way these jitter noises are being added in quadrature by the noise budget, but we haven't fixed that yet. In this data set, we have 15.1dB of anti-squeezing and 5.1dB of squeezing from 1.5-1.8kHz, we can use the Aoki equations to solve for nonlinear gain of 14.6 and total efficiency eta for squeezing of 73%. Since the known readoutlosses are 7.3% and the known squeezer injection losses are 8.8%, this gives us a minimum readout efficency of (eta/(1-known injection loss) = 79% and a maximum of 1-known readout loss = 91.2%. Using the level of noise between 1.5-1.8kHz with no squeezing (and an estimate of the non quantum noise) we can use these max and min readout efficencies to find min and max circulating powers in the arms.
These arm power limits will be impacted by our estimate of the non-quantum noise, the homodyne angle, and the SRC detuning. With 0 SRC detuning, and a homodyne angle of 7 degrees, this resutls in a range of arm powers of 324-375kW. the estimate of non-quantum noise is the most important of these factors, while SRC detunings large engouh to change these estimates significantly seem outside the range that is allowed by other squeezing mesurements.
I've run the comparison of the model to different squeezing configurations for the low and high range and the nominal parameters (0 SRC, 7 degrees homodyne angle). Frequency independent squeezing and both types of mid squeezing are sensitive to the arm power from 50-100Hz, this comparison shows that the low end of the arm power range seems to have slightly too little arm power and the high range slightly too much. However these frequencies are also sensitive to homodyne angle and SRC detuning.
I ran the noise budget injections for frequency noise, input jitter (both pitch and yaw) and PRCL. All injections were run with CARM on one sensor (REFL B). The cable for the frequency injection is still plugged in as of this alog, but I reset the gains and switches so we are back on two CARM sensors and the injection switch is set to OFF.
All injections are saved in the usual /ligo/gitcommon/NoiseBudget/aligoNB/aligoNB/H1/couplings folder under Frequency_excitation.xml, IMC_PZT_[P/Y]_inj.xml, and PRCL_excitation.xml.
I realized an intensity noise injection might be interesting, but when I went to run the template for the ISS excitation, I was unable to see an excitation. I think there's a cable that must be plugged in to do this? I am not sure.
*********Edit************
Ryan S. sent me a message with this alog that has notes about how intensity noise injections should be taken. Through this conversation, I realized that I had misread the instructions in the template. I toggled an excitation switch on the ISS second loop screen, when I should have instead set the excitation gain to 1.
I was allowed another chance to run the intensity injections, and I was able to do so, using the low, middle, and high frequency injection templates in the couplings folder.
Also, the Input jitter injections have in the past been limited to 900 Hz, because the IMC WFS channels are DQed at 2048 Hz. However, the live IMC channels are at 16 kHz, so I edited the IMC injection templates to run up to 7 kHz, and use the live channels instead of the DQ channels. That allowed the measurements to run above 900 Hz. However, the current injections are band-limited to only 1 or 2 kHz. I think we can widen the injection band to measure jitter up to 7 kHz. I was unable to make those changes because we had to go back to observing, so this is future to-do item. I also updated the noise budget code to read in the live traces instead of the DQ traces.
Unfortunately, in my rush to run these injections, I forgot to transition over to one CARM sensor, so both the intensity and jitter measurements that are saved are with CARM on REFL A and B.
I ran an updated noise budget using these new measurements, plus whatever previous measurements were taken by Camilla in this alog. Reminder: the whole noise budget is now being run using median averaging.
I used a sqz time from last night where the range was around 165 Mpc, starting at GPS 1412603869. Camilla and Sheila took a no-sqz data set today starting at 1412607778. Both data sets are 600 seconds long. I created a new entry in gps_reference_times.yml called "LHO_O4b_Oct" with these times.
To run the budget:
>conda activate aligoNB
>python /ligo/gitcommon/NoiseBudget/aligoNB/production_code/H1/lho_darm_noisebudget.py
all plots found in /ligo/gitcommon/NoiseBudget/aligoNB/out/H1/lho_darm_noisebudget/
I made one significant edit to the code, which is that I decided to separate the laser and input jitter traces on the main DARM noise budget. That means that the laser trace is now only a sum of frequency noise and intensity noise. Input beam jitter is now a trace that combines the pitch and yaw measurements from the IMC WFS. Now, due to my changes in the jitter injections detailed above, these jitter injections extend above 900 Hz. To reiterate: the injections are still only band-limited around 2 kHz, which means that there could be unmeasured jitter noise above 2 kHz that was not captured by this measurement.
One reason I wanted to separate these traces is partly because it appears there has been a significant change in the frequency noise. Compared to the last frequency noise measurement, the frequency noise above 1 kHz has dropped by a factor of 10. The last time a frequency noise injection was taken was on July 11, right before the OFI vent, alog 79037. After the OFI vent, Camilla noticed that the noise floor around 10 kHz appeared to have reduced, as well as the HOM peak heights, alog 76794. She posted a follow-up comment on that log today noting that the IFO to OMC mode matching could have an effect on those peaks. This could possibly be related to the decrease in frequency noise. Meanwhile, the frequency noise below 100 Hz seems to be about the same as the July measurement. One significant feature in the high frequency portion of the spectrum is a large peak just above 5 kHz. I have a vague memory that this is approximately where a first order mode peak should be, but I am not sure.
There is no significant change in the intensity noise from July, except that there is also a large peak in the intensity noise just above 5 kHz. Gabriele and I talked about this briefly; we think this might be gain peaking in the ISS, but its hard to tell from alog measurements if that's possible. We think that peak is unlikely to be from the CARM loop. We mentioned the ISS theory to Ryan S. on the off-chance it is related to the current PSL struggles.
The other significant change in the noise budget is the change in the LSC noise. The LSC noise has reduced relative to the last noise budget measurement, alog 80215, which was expected from the PRCL feedforward implementation. Looking directly at the LSC subbudget, PRCL has been reduced by a factor of 10, just as predicted from the FF performance. Now, the overall LSC noise contribution is dominated by noise from MICH. Between 10-20 Hz, we might be able to win a little more with a better MICH feedforward, however that is a very difficult region to fit because of various high Q features (reminder alog).
Just as in the previous noise budget, there is a large amount of unaccounted-for noise. The noise budget code uses a quantum model that Sheila and Vicky have been working on extensively, but I am not sure of the status, and how much of that noise could be affected by adjustments to the model. Many of the noisy low frequency peaks also appear very broad on the timescale of the noise budget plot. We could try running over a longer period of time to better resolve those peaks.
Between 100-500 Hz there are regions where the sum of known noises is actually larger than the measured noise. I think this is because the input jitter projections are made using CAL DELTA L, but the overall noise budget is run on CALIB CLEAN where we are running a jitter subtraction.
I believe these couplings were pushed to aligoNB repo in commit bcdd729e.
I reran the jitter noise injections, trying to increase the excitation about 2 kHz to better see the high frequency jitter noise. The results were moderately successful; we could probably push even harder. The results indicate that jitter noise is with a factor of 2-3 of DARM above 1 kHz.
I have attached the updated DARM noise budget and input jitter budget. I'm also attaching the ASC budget (no change expected) just because I forgot to attach it in the previous post.
