Carlos, Jim The raw minute trend writing has been restarted on h1tw0. Old raw trend files were removed.
A. Urban, on behalf of the calibration group
Around GPS second 1166295017 (2016 Dec 20 10:50 AM Pacific), I restarted the primary and redundant GDS calibration pipelines at Hanford. This restart picks up a software update to gstlal-calibration-1.1.3 (see https://alog.ligo-la.caltech.edu/aLOG/index.php?callRep=30528) which is not expected to have any effect on the output of the GDS online pipeline (it primarily affects the DCS pipeline in offline mode). The filters have also not changed from their previous configuration; see https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=32389.
In preparation for the holiday break, the timing setup in the EE lab was powered down. Since the timing signal comes from the master fanout in the MSR, timing overview MEDM screen showed an error, change in configuration. Error was cleared by Jim B.
J. Kissel Grabbed this week's charge measurements. The effective bias voltage (as gauged by the angular actuation strength) is still hovering around zero thanks to the idea Sheila implemented flipping the bias signs when the IFO isn't using the respective ESD; programmed into the ISC_LOCK guardian on ETMX on 2016 Nov 03 (see LHO aLOG 31172), and for ETMY on 2016 Nov 28 (see LHO aLOG 31929). I highly recommend LLO try out a similar scheme if and when they discharge their effective bias voltage back to zero. Also, re-reminding myself and/or anyone who has time: resurrect comparison between longitudinal actuation strength and angular actuation strength, a. la. LHO aLOG 24241.
Took a couple of thermal images of the pre-modecleaner body. The images are attached.
The shot of the ceiling was to get a reference for the room temperature.
Looks like the pre-modecleaner body is around 24.6 degC, except where the two Kapton
heaters are located and the piezo.
As per yesterday morning's meeting. The alignment to the reference cavity was touched up.
Mostly vertical adjustment, consistent with moving the beam up. I feel the alignment could
be a little better but stopped in the interest of time.
For reasons unknown to me, it seems that the alignment into the pre-modecleaner changed
whilst I was in the enclosure. At least the reflected spot camera image looked like it moved
to the left.
Evan G., Aaron V. I have checked a new filters file into the calibration SVN for offline (C01) calibration. The filters were made using revision #3987 using the script /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/O2/H1/Scripts/TDfilters/H1_run_td_filters_1165799036.m The file can be found here: /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/O2/GDSFilters/H1DCS_1165799036.npz In order to achieve agreement with GDS calibration, it was necessary to add a delay of 2 16kHz clock cycles to the actuation filters. Evan G. is reviewing the DARM model codes to determine where this timing discrepancy originated. The attached plots include: 1) h(t) spectrum from CALCS and DCS 2) ASD ratio (DCS / CALCS) 3 - 5) plots of filters and errors
These filters have been removed from the SVN. They were replaced by those discussed in https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=32965 For information on why this was necessary see https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=32907
J. Kissel Title says it all. Will take about an hour while L1 is down.
Actuator measurements complete. Data committed and exported to: /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/O2/H1/Measurements/FullIFOActuatorTFs/2016-12-20/ 2016-12-20_H1SUSETMY_L1_iEXC2DARM.xml 2016-12-20_H1SUSETMY_L1_PCAL2DARM.xml 2016-12-20_H1SUSETMY_L2_iEXC2DARM.xml 2016-12-20_H1SUSETMY_L2_PCAL2DARM.xml 2016-12-20_H1SUSETMY_L3_iEXC2DARM.xml 2016-12-20_H1SUSETMY_L3_PCAL2DARM.xml Got half-way through the PCAL2DARM sweep for the sensing function then the IFO broke lock. Not the end of the world. Templates saved anyways, in case it does: /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/O2/H1/Measurements/SensingFunctionTFs/ 2016-12-20_H1DARM_OLGTF_4to1200Hz.xml 2016-12-20_H1_PCAL2DARMTF_4to1200Hz.xml Analysis to come, but preliminary results from the DTT templates themselves indicate that there has been very little change in the L2 stage response. *phew*! Since we were able to get these full IFO measurements out of the way, and it happens to be maintenance day, I still think it prudent for us to go down to EY an remeasure the poles and zeros of the new PUM coil driver box, however, unless we decide to revert the driver back. Evidence (i.e. the BNS range) from the ~2 hours of data before I got here seems to point to not too much of a change in glitch rate. Note, my estimate of "about an hour" was an *underestimate* if I were to have stuck with the plan of only measuring L2/PUM. However, because L1 called to say they're start maintenance early, I just went for the whole calibration suite shebang.
The OSB parking lot is slippery as a skating rink out there. Exercise caution.
10:44:24UTC
Even more reason to have that sleeping trailer back!!
TITLE: 12/20 Eve Shift: 00:00-08:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Corrective Maintenance
INCOMING OPERATOR: Ed
SHIFT SUMMARY: After two attempts of initial alignments, the alignment looks okay now. First lock attempt I went all the way to PRMI LOCKED without a problem (until I moved a wrong optic and broke lock, that optic was moved back). Now it won't even get passed Locking ALS. It kept breaking lock at ALS DIFF. I followed Jenne's document and checked ETMX ESD settings. Everything looks fine.
After Jeff and I struggled to get a good Y-arm alignment earlier this evening due to weird fringes, I managed to get rid of them by moving BS in yaw (this is after I put it back to where it was -20 hours ago which I thought was a good alignment). This make senses if the ALS camera locate in the corner station (is it?). It's a small victory of the night. Now moving on.
Meanwhile more earthquakes from Greece and Papua New Guinea have arrived.
5.1M Vanuatu
Was it reported by Terramon, USGS, SEISMON? Yes, Yes, No
Magnitude (according to Terramon, USGS, SEISMO): 5.1, 5.1, NA
Location (according to Terramon, USGS, SEISMON): Port-Olry, Vanuatu
Starting time of event (ie. when BLRMS started to increase on DMT on the wall): ~4:30 UTC
Lock status? Unlocked
EQ reported by Terramon BEFORE it actually arrived? Terramon page loaded AFTER the earthquake has arrived.
6.4M Solomon Islands
Was it reported by Terramon, USGS, SEISMON? Yes, Yes, No
Magnitude (according to Terramon, USGS, SEISMO): 6.4, 6.4, NA
Location (according to Terramon, USGS, SEISMON): Kirakira, Solomon Islands
Starting time of event (ie. when BLRMS started to increase on DMT on the wall): 4:48 UTC
Lock status? Unlocked
EQ reported by Terramon BEFORE it actually arrived? Terramon page loaded AFTER the earthquake has arrived.
6.7M Solomon Islands (Terramon only)
Was it reported by Terramon, USGS, SEISMON? Yes, No, No
Magnitude (according to Terramon, USGS, SEISMO): 6.4, NA, NA
Location (according to Terramon, USGS, SEISMON): Kirakira, Solomon Islands
Starting time of event (ie. when BLRMS started to increase on DMT on the wall): 5:09 UTC
Lock status? Unlocked
EQ reported by Terramon BEFORE it actually arrived? Terramon page loaded AFTER the earthquake has arrived.

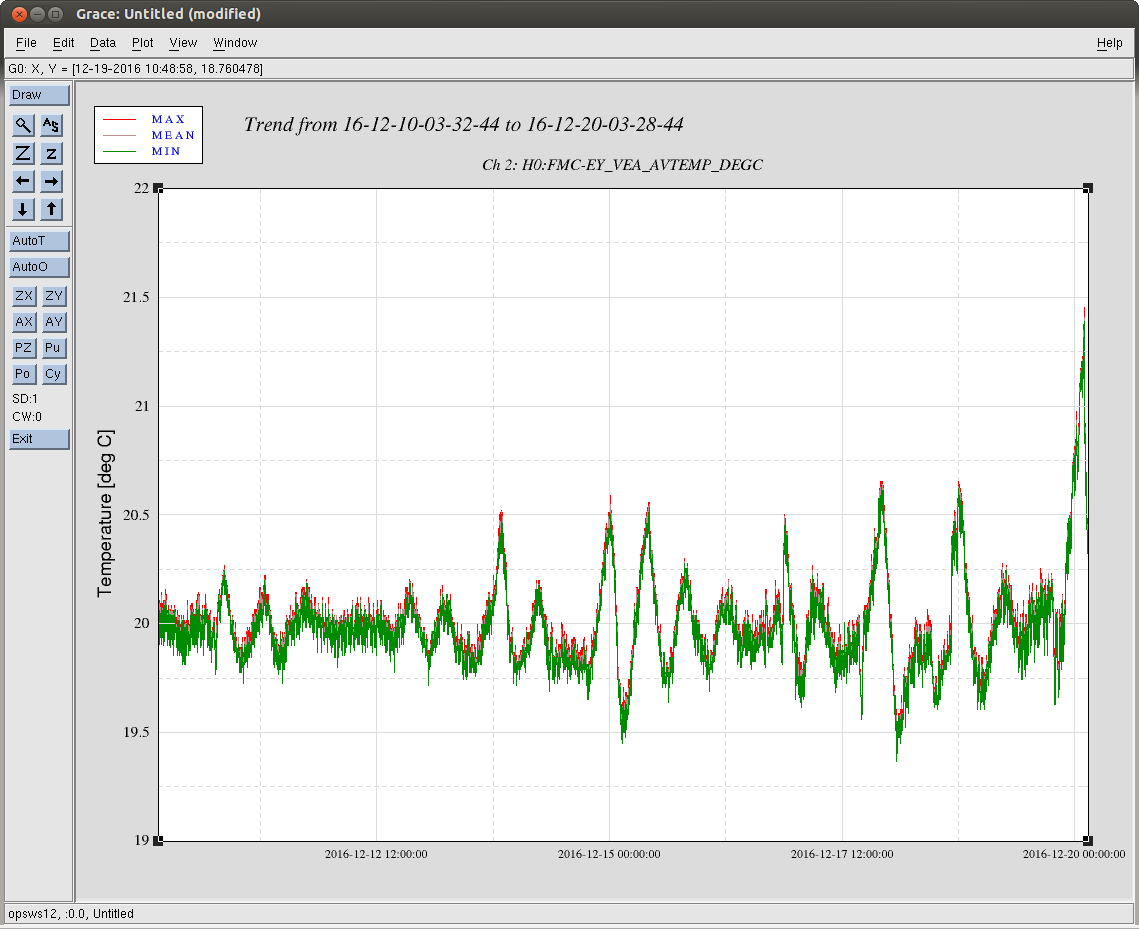

J. Kissel, N. Kijbunchoo We're on level three distraction from what we believe is our potentially main issue/problem: - (Level 1) We started hoping to return to nominal low noise ASAP to test whether the ETMY PUM/L2 stage coil driver swap has improved the recent plague of glitches, and/or changed that stage's coil balancing, length-to-pitch plant, or actuation strength. - (Level 2) We then had trouble with ALS losing lock constantly before finding IR. So, we spent a few hours just going through ALS locking steps one at a time in hopes to find a specific problem. This go us no where, and as per typical, we got lucky once and made it past all the way up through COIL_DRIVERS after DC_READOUT and POWER UP. We saw an oscillation in IFO signals eventually lead to a lock loss. - After failing again at ALS, we decided it must be initial alignment (given evidence of low green power from the X Arm). - (Level 3) Once finished with the first round of initial alignment (which took particularly long because SR2 was in the wrong spot), we found the Y-arm totally hosed in alignment. Now, Nutsinee and I are just chasing our tails with the Y arm green locking, likely because of the 2 [deg] C temperature swing of the YVEA after the chiller failure. I'm going home, Nutsinee's just going to wait it out until the temperature returns to normal.

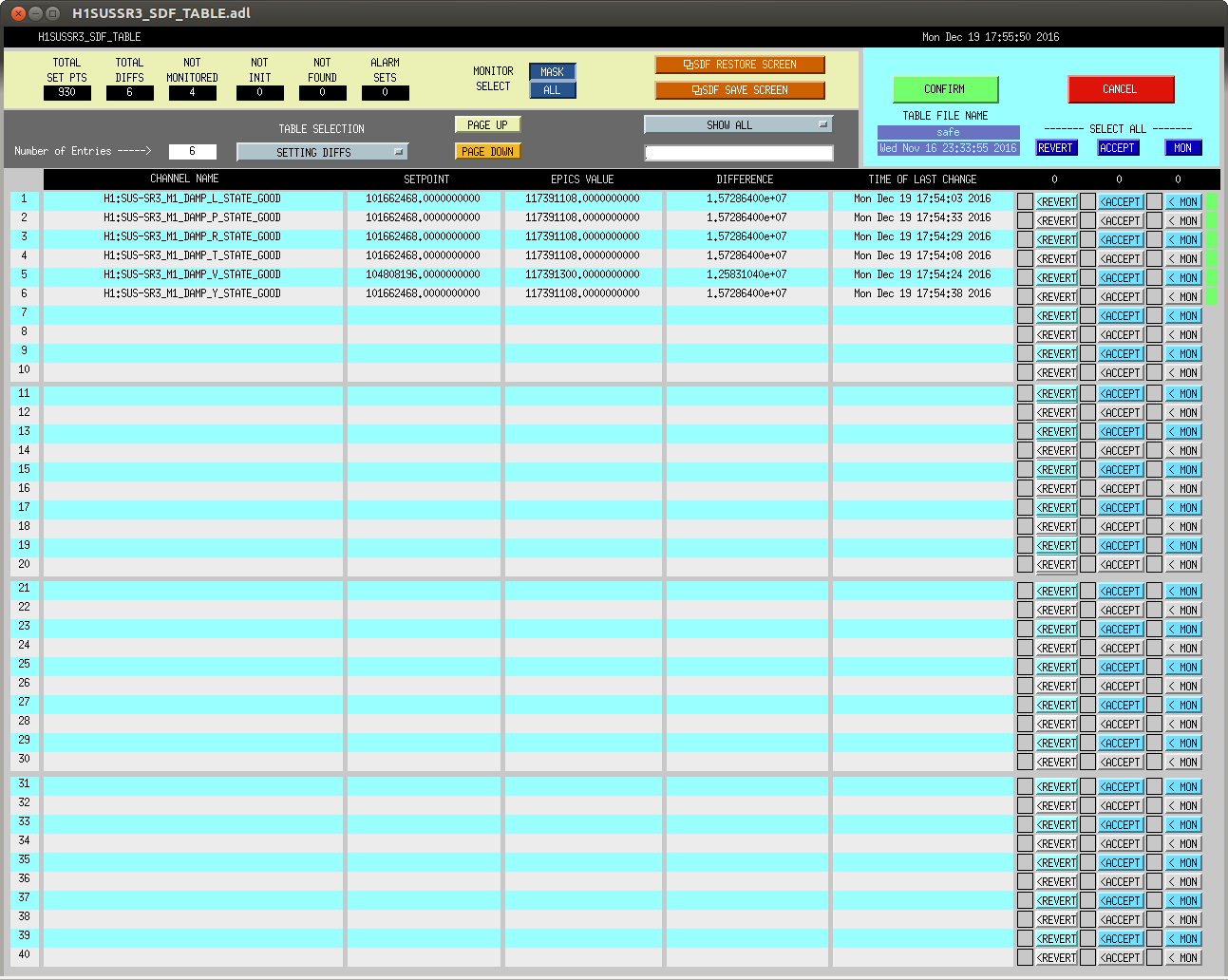

J. Kissel While Nutsinee and I were trying to debug why SRCL would not trigger during SRY initial alignment sequence, I noticed that SR3's ODC vector showed red. As I've seen in several suspensions, it was the comparison between a user-entered-but-rarely-paid-attention-to "H1:SUS-SR3_M1_DAMP_[DOF]_STATE_GOOD" channel that was not set to match the current state of the filters, "H1:SUS-SR3_M1_DAMP_[NOW]_STATE_NOW." This appears to have gone bad on Nov 17 2016 00:26 UTC (Nov 16 2016 16:26:00 PST), when Sheila added highest vertical and roll mode notches for the HLTS -- see LHO aLOG 31553. Fixed now. Doesn't matter, but one less bit of red to distract people. Changes have been accepted in the SDF system in both the SAFE and OBSERVE.snaps.
