The file /ligo/cds/lho/h1/camera/H1-VID-CAM17.ini was modified to change from
Frame Type = Mono12
to
Frame Type = Mono8
Now the tiff image files are not 32 bit and can be read. Note: cameras 18, 19 and 21 also have Mono12 defined.

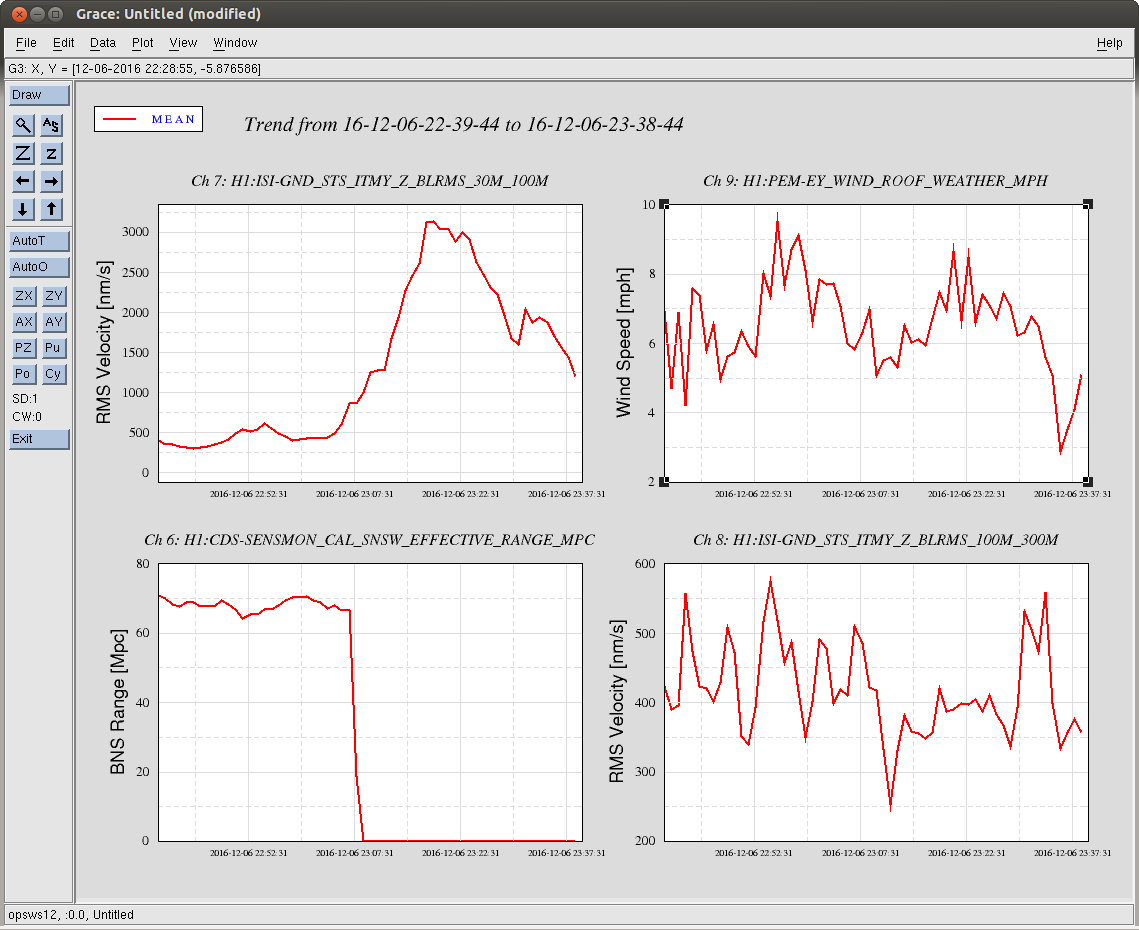

J. Kissel, J. Bartlett Another impressive show by the SEI / ISC team in which the IFO rode through sustained ~0.5-1 [um/s] BLRMS EQ band (30-100 mHz) motion, during ~75 percentile, ~0.5 [um/s] microseism (100-300 mHz BLRMS), and 5-10 [mph]. A good study for future reference of what we can withstand. The lock loss occurred @ 2016-12-06 23:07:33 UTC after about 1.5 hours of EQ evidence on site as recorded by the BLRMS This was the survival of several ~6.0 mag EQs in a row, 5.8 [mag] Scarborough, Trinidad and Tobago 6.4 [mag] Reuleuet, Indonesia 4.3 [mag] Scarborough, Trinidad and Tobago As per Sheila and Jim's recommendation (see LHO aLOG 32086), we've used the SEI_CONF manager node to move platforms to the LARGE_EQ_NOBRSXY state after the IFO unlocked. This moves that HAMs to using no sensor correction ("SC_OFF"), and the BSCs to "BLEND_Quite_250_SC_None." We will restore the configuration to the nominal "WINDY" configuration, once the EQ band falls below 1 [um/s] BLRMS.
Rode through a 5.8Mag EQ near Trinidad, OK. Primary microseism peeked at just a little over 1.0um/s. Lost lock at 23:08 due to 6.2Mag EQ near Indonesia. Primary microseism peeked at 7.0um/s. Holding the IFO in down until the microseism improves. Jeff K. switched to LARGE_EQ_NOBRSXY after the Lockloss.
| Work Permit | Date | Description | alog/status |
| 6388.html | 2016-12-06 11:18 | Power cycle the /ligo file system server, it is reporting errors. This will freeze all CDS workstations and many servers for about 10 minutes. Front ends and DAQ should be unaffected. | 32247, 32249, & 32250 |
| 6387.html | 2016-12-06 10:49 | Rana is going to give a tour to a guest during the maintenance window. | |
| 6386.html | 2016-12-06 10:23 | Vent annulus volume between 2K input Mode Cleaner tubes A and B. Connect annulus ion pump hardware and pump with rotating shaft vacuum pumps until ion pump can maintain unassisted. Can be done limited to maintenance days until complete | 32254 |
| 6385.html | 2016-12-06 09:53 | Install OS and setup Conlog on conlog-master and conlog-replica machines in the MSR. | |
| 6384.html | 2016-12-05 17:31 | Now that the IMC ASC model is running at high frequencies, we can include jitter injections to 7kHz in our noise budget. This is a quick (10 minute) measurement injecting pitch and yaw on the IMC PZT. | |
| 6383.html | 2016-12-05 13:50 | At both end stations: disconnect WAP ethernet cables from switch and re-activate switch port to permit future use of WAP during O2 when needed. [“WAP” = wireless access point] | 32201 & 32342,& 32250 |
| 6382.html | 2016-12-05 13:39 | Add second camera capture card in h1hwsmsr and see if we can capture two images without interference between each other. | 32250 |
| 6381.html | 2016-12-05 12:18 | Replace the TCSY Flow meter. Turn TCSY laser off, valve out piping volume, remove yellow paddle wheel flow meter, install new one (same version/model number). Check flow, get laser going again - will need to stabilize. | |
| 6380.html | 2016-12-05 12:05 | Insert zp(160,16) for all four segments of ETMX oplev. See https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=32115 | 32199 |
| 6379.html | 2016-12-05 11:57 | To search for a permanent solution for the ISS first loop, we will make the following temporary change in the optical configuration for the ISS box. This shouldn't impact on the H1 noise or stability performance because the ISS box is used only for monitoring purpose. We will swap mirror M32 with a low reflective mirror (R~a few %). This will reduce the amount of the light entering the ISS box from approximately 400 mW to ~10 mW. In addition, we will place an extra beam dump (a black hole type) to dump the transmission behind M32. Once the mirror is swapped, we will adjust the half wave plate in the ISS box to maximize the p-polarizing light falling on the PDB photo detector. | 32206 & 32215 |
| 6378.html | 2016-12-05 11:31 | ECR1600364 add 5 slow channels to DMT broadcaster to help with ETMX ESD diagnostics by detchar. | 32195 & 32212 |
| 6377.html | 2016-12-05 08:58 | Isolate PT180 from site vacuum volume and pump with temporarily connected rotating shaft pumps to compare gauge drift behavior. Requires work at height via ladder also LASER SAFE in LVEA | 32185, 32209, & 32260 |
| 6376.html | 2016-12-05 08:57 | Clean the PSL enclosure Anti-Room and Laser Room. Peter K. will escort and assist | 32183 |
| 6375.html | 2016-12-05 08:40 | Adjust the reference cavity periscope alignment because the reference cavity transmission has fallen by ~1/3rd. | 32183 |
| 6374.html | 2016-12-05 07:55 | ECR: Add a 16 kHz DAQ channel to monitor the RIN in reflection | 32191 & 32212 |
| 6373.html | 2016-12-05 07:54 | ECR: Increasing processing rate of ASCIMC model | 32192 & 32212 |
| 6372.html | 2016-12-05 07:12 | Install new High Voltage supplies for the ESD Replacing the Kepco units. This should stop the random tripping that has occurred in the past. | 32186 |
| 6371.html | 2016-12-05 07:09 | Replace analog camera with GigE camera removed from ISCT6. Use same network path so no switch work is required. | 32197 & 32212,& 32245 |
| 6370.html | 2016-12-04 12:02 | Update calibration on the DMT to gstlal-calibration-1.1.0-v1 and restart it during next maintenance or opportunity on 12/5 or 12/6 at LHO. * Bug fix to make the output of primary and redundant pipeline identical * Additional coherence gating in the kappa_tst calculation | 32188 |
| 6369.html | 2016-12-02 15:15 | Try some different ST2 & ST1 configurations during high microseism and wind. Specifically, try changing ST2_CONF nodes to 250_SC_A and see if there is any improvement in IFO controls. Requires consideration of impact on science segments. Transitions, testing to be done only during single IFO time. | 32147 |
| 6368.html | 2016-12-02 12:01 | Continue with schedule of roaming high-frequency calibration line from PCALX to establish high-frequency calibration uncertainty. Switching frequencies will only occur in either Single IFO time or when IFO is down, otherwise we should be observation ready. Detchar will continue to be informed. We expect to complete the schedule in ~1 week, and then line will be turned off until further notice. | 32179 |
| 6367.html | 2016-12-01 11:29 | I will build a new guardian machine on a fast front end computer using Debian 8 as OS, the long term plan is move the guardian process and nodes into this new machine gradually. We will move all the process offline without interruption on the current production server. | |
| 6366.html | 2016-11-30 16:43 | memory usage on h1guardian0 has increased significantly over the past few weeks. At the next opportunity we will increase it from 12GB to 48GB. | 32112 |
| 6365.html | 2016-11-30 12:45 | fix bug discussed in bug report 1062 and alog 31996 and comments | |
| 6364.html | 2016-11-30 08:16 | Restart h1hwsmsr computer. |
(see WP #6377) Having not asked for permission, I am now asking for forgiveness! It was my intention to shut down the temporary pump setup @ BSC8 at the end of maintenance today. Instead, I have left the setup running. Obviously, we will shut it down if/when directed to do so. As is, we have just this morning entered in to the "pressure region of interest" for our long-term gauge drift data collection. The nature of the problem doesn't lend itself to 4 hours per week of data collecting. Recall that ON/OFF tests of this setup while in a locked "Low Noise" IFO state produced nothing of interest to the PEM folks just prior to the start of O2.
~1630 - 1635 hrs. local -> Kyle in and out of LVEA At the request of others, I shut down the setup at PT180/BSC8. This included isolating PT180, each of the three vacuum pumps and de-energizing all of the related components. The ladder which had been left up against BSC8 was also removed. NOTE: PT180 is left isolated from the site vacuum volume and all pumping sources. As such, PT180's indicated pressure value does not represent the pressure at BSC8 etc. and will be rising until further notice.
Keita, Rana, Evan
After refocusing the HAM5 camera, we see in full lock that there are at least two ghost beams hitting the SRM composite mass. These ghost beams move when CPY (but not CPX) is moved.
The attached plots show the DARM spectrum for different CPY alignments. There is no obvious sweet spot, but perhaps we will find one by looking at some long-term DARM BLRMS.
This image shows the HAM5 camera with the nominal CPY alignment (-150 µrad in pitch, 0 µrad in yaw). The two bright, vertically aligned spots on the left-hand side are the CPY ghost beams.
Also, the take snapshot button for camera 17 just saves blank images.
Here are 2 other old alogs that are relevant if you are worried about scatter from CPs:
Robert saw scattering from CPY in the PR2 camera: 31243
I saw that 6 times higher drive was needed on CPX than CPY to make noise show up in DARM, and the noise that did show up was clear fringe wrapping shelves for CPX and a broad shelf for CPY. 30979
CPY scattering seemed like it is not an immediate problem since the drive reuiqred to see noise in DARM was 100 um at the error point of the damping loop at 0.1 Hz. I don't know the gain of the damping loop, but assume that it is not less than -20 dB at 0.1 Hz, so that we are pushing the mass at least 10 um, probably more. This should be larger than the normal path length modulation. It would be good to look at what the gain of the damping loop actually is to see if this is really a much larger path length modulation than what we would normally expect.
SRC model shows that CPY is installed parallel to HR surface of ITMY (misalignment angle of 0.07 degrees). This number gives a vertical offset of the ghost beam on SR2 of 2 cm and on SRM of 10 cm. This is how I read the camera image. One might also suggest that the plate is misaligned even further from the nominal position — by 0.14 degrees. In this case ghost beams swap and we can’t tell a difference.
Laser Status:
SysStat is good
Front End Power is 34.4W (should be around 30 W)
Front End Watch is GREEN
HPO Watch is GREEN
PMC:
It has been locked 0.0 days, 4.0 hr 49.0 minutes (should be days/weeks)
Reflected power is 13.54Watts and PowerSum = 72.45Watts.
FSS:
It has been locked for 0.0 days 1.0 hr and 18.0 min (should be days/weeks)
TPD[V] = 3.587V (min 0.9V)
ISS:
The diffracted power is around 4.966% (should be 5-9%)
Last saturation event was 0.0 days 4.0 hours and 49.0 minutes ago (should be days/weeks)
(Kyle, Gerardo)
Installed annulus ion pump hardware at the H2 input mode cleaner tube. The entire system is ready to be pump down and turned on next maintenance day.
Notes about installation: we vented, the already vented annulus space, installed all hardware, pump, controller and managed to pump it down to 4.2x10^-05 torr, then maintenance period was over.
Items to complete next maintenance day: pump the system down, leak check and turn ion pump on.
Work done under WP#6386.

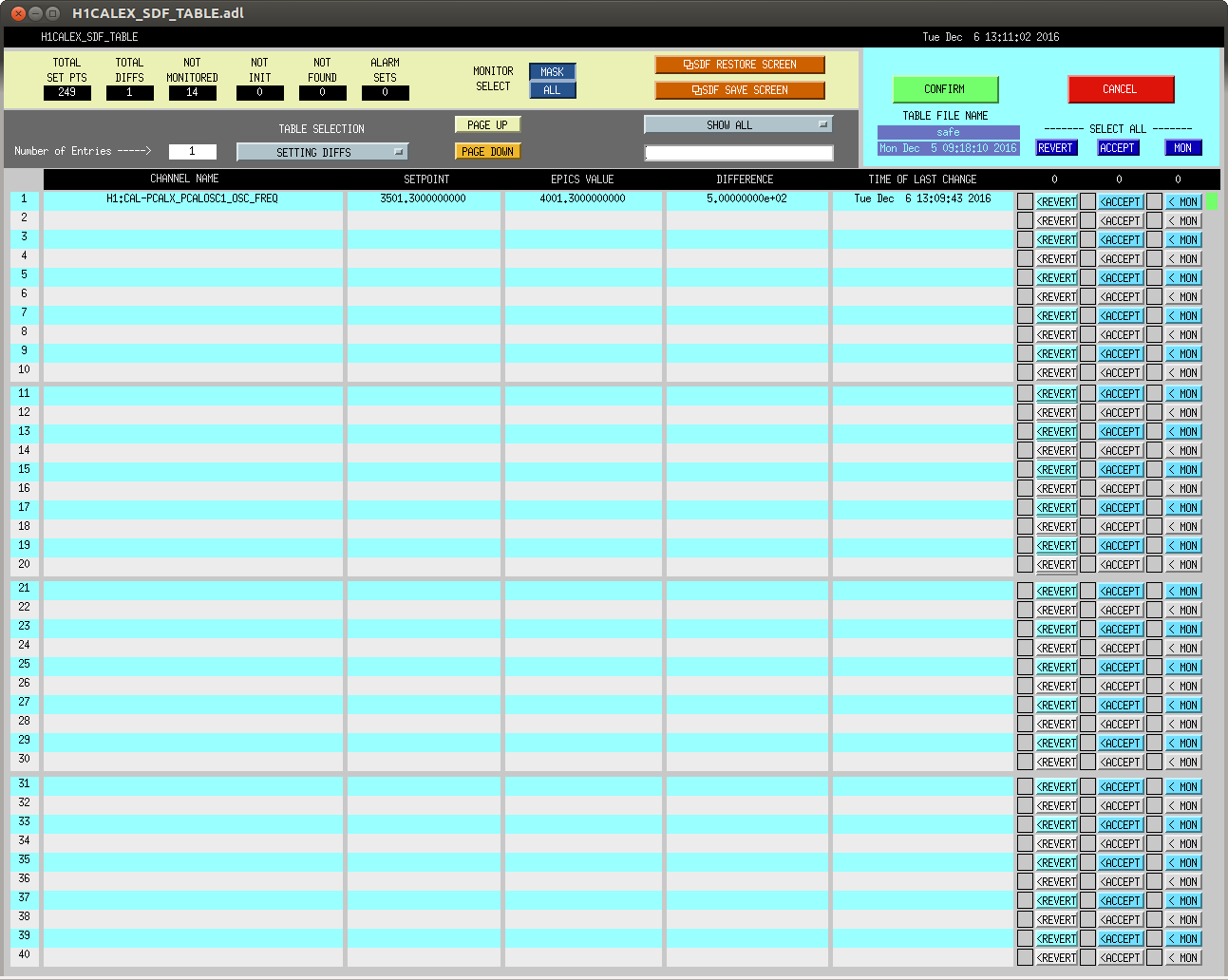

J. Kissel Continuing the schedule of roaming PCALX line. We'll run this line for one more day, so that we get two points at 4001.3 Hz with a 30 [W] IFO to check consistency between the two repeats of the schedule, and then shut off the line until further notice. Frequency Planned Amplitude Planned Duration Actual Amplitude Start Time Stop Time Achieved Duration (Hz) (ct) (hh:mm) (ct) (UTC) (UTC) (hh:mm) --------------------------------------------------------------------------------------------------------------------------------------------------------- 1001.3 35k 02:00 39322.0 Nov 28 2016 17:20:44 UTC Nov 30 2016 17:16:00 UTC days @ 30 W 1501.3 35k 02:00 39322.0 Nov 30 2016 17:27:00 UTC Nov 30 2016 19:36:00 UTC 02:09 @ 30 W 2001.3 35k 02:00 39322.0 Nov 30 2016 19:36:00 UTC Nov 30 2016 22:07:00 UTC 02:31 @ 30 W 2501.3 35k 05:00 39322.0 Nov 30 2016 22:08:00 UTC Dec 02 2016 20:16:00 UTC days @ 30 W 3001.3 35k 05:00 39322.0 Dec 02 2016 20:17:00 UTC Dec 05 2016 16:58:57 UTC days @ 30 W 3501.3 35k 05:00 39322.0 Dec 05 2016 16:58:57 UTC Dec 06 2016 21:09:56 UTC ~15:00 @ 30 W 4001.3 40k 10:00 39322.0 Dec 06 2016 21:09:56 UTC 4301.3 40k 10:00 39322.0 4501.3 40k 10:00 39322.0 4801.3 40k 10:00 39222.0 5001.3 40k 10:00 39222.0 Frequency Planned Amplitude Planned Duration Actual Amplitude Start Time Stop Time Achieved Duration (Hz) (ct) (hh:mm) (ct) (UTC) (UTC) (hh:mm) --------------------------------------------------------------------------------------------------------------------------------------------------------- 1001.3 35k 02:00 39322.0 Nov 11 2016 21:37:50 UTC Nov 12 2016 03:28:21 UTC ~several hours @ 25 W 1501.3 35k 02:00 39322.0 Oct 24 2016 15:26:57 UTC Oct 31 2016 15:44:29 UTC ~week @ 25 W 2001.3 35k 02:00 39322.0 Oct 17 2016 21:22:03 UTC Oct 24 2016 15:26:57 UTC several days (at both 50W and 25 W) 2501.3 35k 05:00 39322.0 Oct 12 2016 03:20:41 UTC Oct 17 2016 21:22:03 UTC days @ 50 W 3001.3 35k 05:00 39322.0 Oct 06 2016 18:39:26 UTC Oct 12 2016 03:20:41 UTC days @ 50 W 3501.3 35k 05:00 39322.0 Jul 06 2016 18:56:13 UTC Oct 06 2016 18:39:26 UTC months @ 50 W 4001.3 40k 10:00 39322.0 Nov 12 2016 03:28:21 UTC Nov 16 2016 22:17:29 UTC days @ 30 W (see LHO aLOG 31546 for caveats) 4301.3 40k 10:00 39322.0 Nov 16 2016 22:17:29 UTC Nov 18 2016 17:08:49 UTC days @ 30 W 4501.3 40k 10:00 39322.0 Nov 18 2016 17:08:49 UTC Nov 20 2016 16:54:32 UTC days @ 30 W (see LHO aLOG 31610 for caveats) 4801.3 40k 10:00 39222.0 Nov 20 2016 16:54:32 UTC Nov 22 2016 23:56:06 UTC days @ 30 W 5001.3 40k 10:00 39222.0 Nov 22 2016 23:56:06 UTC Nov 28 2016 17:20:44 UTC days @ 30 W (line was OFF and ON for Hardware INJ)
Unplugged an unused extension cord (maybe two). Turned off a power strip that a computer was plugged into. The computer appeared off but I wanted to make sure. The left door on the left table enclosure behind the black laser safe curtains near the H1 PSL is unlocked. I did not have a key with me to lock it. Went through the PSL science mode check list hanging next to the air handling controls for the H1 PSL enclosure. Did nothing for the H2 PSL enclosure. Was not certain of the procedure for checking ISC table fans. Did not hear humming. The pump near BSC8 is still running. There is a tall ladder against BSC8. Made sure both card readers were off.
6388 Power cycle cdsfs0
Jim, Dave, Ryan, Carlos:
cdsfs0 (NFS server for /ligo) was powered down, RAID controller card and cables inspected, and powered back up between 11:42 and 12:02 PDT. This is the first action in an investigation of recent periods of /ligo unavailability.
6383 outbuilding WAP disconnects
Carlos, Jim, Dave:
The WAP ethernet cables were disconnected from the local switch at all outbuildings (EX, EY, MX, MY). These switch ports were then reactivated, permitting future use of CDS WiFi if the cables were to reconnected to local switch port #12.
6382 MSR TCS Hartmann Wavefront Sensor
Nutsinee:
The problem of the ITMX HWS image being glitched by running the ITMY camera could not be reproduced. If this problem re-appears, we will install a second camera card in h1hwsmsr. For now, no further action will be taken.
looking at the logs on cdsfs0 over the past week, here are the number of times an error is reported which could have lead to /ligo being unavailable for a short period of time:
Wed Nov 30 04:43
Wed Nov 30 05:51
Wed Nov 30 18:37
Wed Nov 30 20:50
Fri Dec 2 04:40
Mon Dec 5 03:48
Mon Dec 5 14:52
Mon Dec 5 16:17
Mon Dec 5 17:32
Mon Dec 5 19:15
Tue Dec 6 10:42
Maintenance activities are complete. Reset Fiber Polarization on X-Arm. Starting relocking.
After detecting failures on /Ligo, We power off CDSFS0, review all cable connections and verified that the controller card was plugged correctly on the board, after power back on we manually remounted and exported /Ligo. We also verified all workstations were connected again.
Richard, Patrick, Evan
We refocused the SRM digital camera (cam17) while watching IR flashes on the SRM. The camera aperture was also stopped down a bit.
WP 6383 Carlos, Jim The wireless access points at EX and EY have been unplugged and the switch ports turned on. To reactivate the WAP for CDS access, the red ethernet cable will need to be plugged in to the switch as outlined in the VEAsWirelessAccess page in the CDS Wiki. Please remember to disconnect it when done!
I've unplugged both mid stations as well.
Not sure of the cause yet, everything seemed all good and normal. Running lockloss plots now though and I'll update if I find anything.
But don't worry, we are back to Observing at 10:36 UTC.
I haven't seen anything of note for the lockloss. I checked the usual templates, with some screenshots of them attached.
This seems like another example of the SR3 problem. (alog 32220 FRS 6852)
If you want to check for this kind of lockloss, zoom the time axis right around the lockloss time to see if the SR3 sensors change fractions of a second before the lockloss.
J. Kissel, B. Weaver, T. Sadecki Just for reference, I include a lockloss that was definitely *not* caused by the SR3 glitching for future comparison and distinction of whether this SR3 glitch has happened or not. Also, remember, although the OPS wiki's instructions suggest that one must and can only use lockloss2, not everyone has the alias yet for this more advanced version. You can make the plots, and do everything you need with the more basic version: lockloss -c /ligo/home/ops/Templates/Locklosses/channels_to_look_at_SR3.txt select It would also be great to get the support of @DetChar on this one. The fear is that these glitches begin infrequently, but get successively more frequent. Once they do, we should consider replacing electronics. The fishy thing, though, is that LF and RT are on separate electronics chains, given the cable layout of HAM5 (see D1101917). Maybe these glitches are physical motion? Maybe with statistics of two, it's unclear whether it's that LF and RT just *appear* to be the culprit whether it may be a random set of OSEMs glitching.
See my note in alog 32220, namely that Sheila and I looked again and we see that the glitch is on the T1 and LF coils, which share a line of electronics. The second lockloss TJ started with in this log (12/06) are somewhat unconclusively linked to SR3 - no "glitches" like the first one 12/05, but instead all 6 top mass SR3 OSEMs show motion before lockloss.
Sheila, Betsy
Attached is a ~5 day trend of the SR3 top stage OSEMs. T1 and LF do have an overall step in the min/max of their signals which happened at the time of that lockloss which showed the SR3 glitch (12/05 16:02 UTC)...
