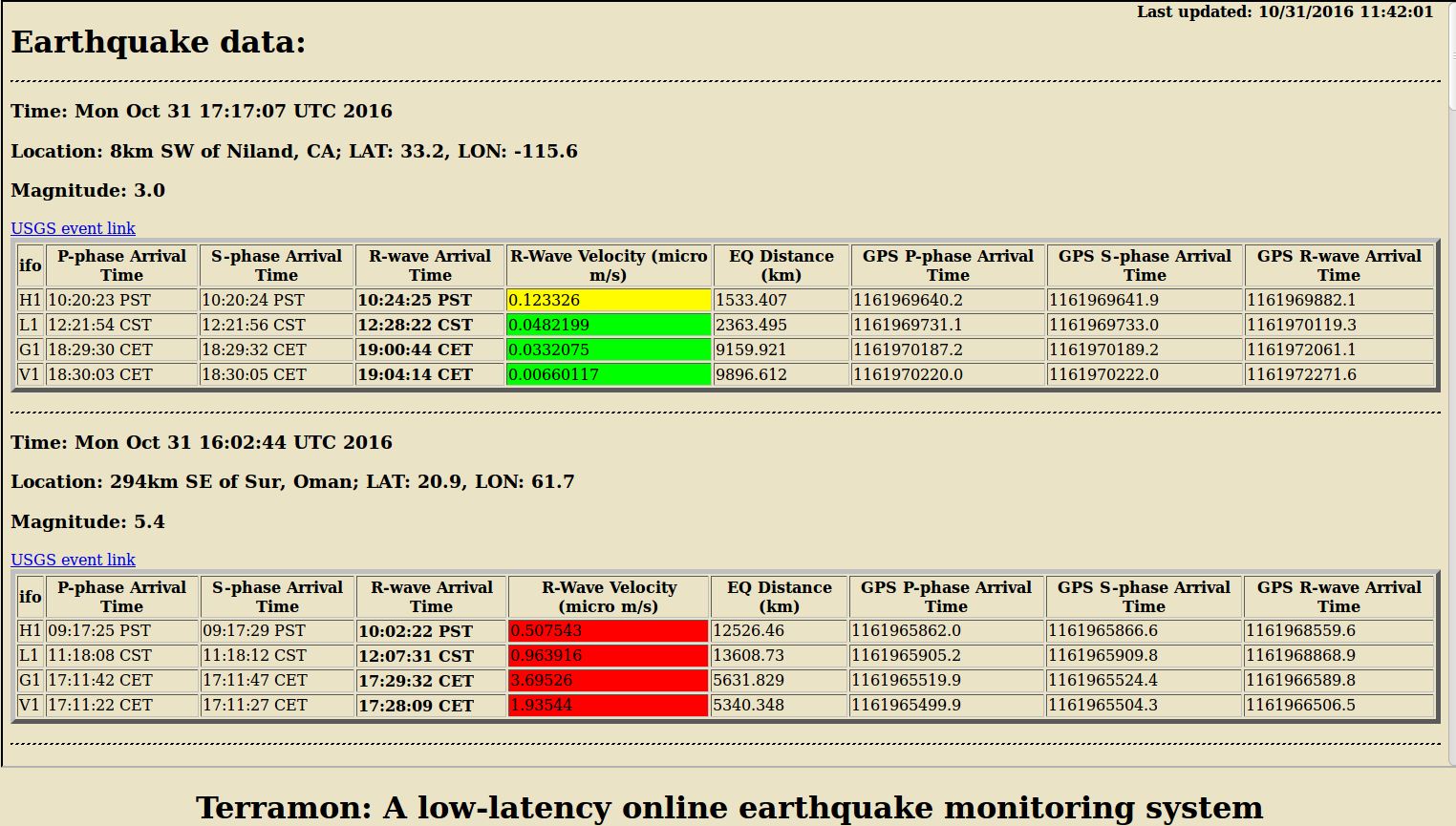

On the attached snap of the Terramon window, the second event is a largesh EQ in Middle East. The EQ distance to H1 is 1000km shorter than the distance to L1 but the computed site velocity is 1/2 at H1 versus L1. Is this one of those cases where the waves arrive first from opposite directions and so the crust encountered is different for the travelling surface waves? Interesting info I'm sure everyone wants to know. I see a similar descrepency for the G1 and V1 velocities but those waves are certainly travelling on the same direction. Maybe it is just the local site geology being taken into account? HunterG? Thanks-H
Hey Hugh!
Apologies for the late response. I'm going to paraphrase what Michael Coughlin told me in a recent discussion.
We have historically attributed the different behavior to the sites themselves rather than to any particular selection effect from LHO and LLOs location relative to most EQs. Amplitude as a function of EQ direction dependence would be interesting to look at, as we essentially fit it away by only taking distance into account. Might be a good summer project for someone.
--Hunter
Last Friday (28 Oct.) and now today (31 Oct.), I unfortunately run across this error when trying to make a hardware injection test: 2016-10-31T17:47:43.17850 INJ_TRANS JUMP: AWG_STREAM_OPEN_PREINJECT->INJECT_CBC_ACTIVE 2016-10-31T17:47:43.17898 INJ_TRANS calculating path: INJECT_CBC_ACTIVE->INJECT_SUCCESS 2016-10-31T17:47:43.17943 INJ_TRANS new target: RAMP_GAIN_TO_0 2016-10-31T17:47:43.18017 INJ_TRANS executing state: INJECT_CBC_ACTIVE (101) 2016-10-31T17:47:43.18292 INJ_TRANS [INJECT_CBC_ACTIVE.enter] 2016-10-31T17:47:43.18413 INJ_TRANS [INJECT_CBC_ACTIVE.main] USERMSG 0: INJECTION ACTIVE: 1161971300.000000 2016-10-31T17:47:43.18625 2016-10-31T17:47:43.18632 *** Break *** write on a pipe with no one to read it 2016-10-31T17:47:43.18639 awgSetChannel: awg_clnt[124][0] = NULL 2016-10-31T17:47:43.18646 Error code from awgSetChannel: -5 2016-10-31T17:47:43.22723 INJ_TRANS [INJECT_CBC_ACTIVE.main] File "/opt/rtcds/userapps/release/cal/common/guardian/INJ_TRANS.py", line 549, in main 2016-10-31T17:47:43.22726 self.hwinj.stream.send(self.hwinj.data) 2016-10-31T17:47:43.22727 2016-10-31T17:47:43.22770 INJ_TRANS [INJECT_CBC_ACTIVE.main] File "/ligo/apps/linux-x86_64/gds-2.17.9/lib/python2.7/site-packages/awg.py", line 621, in send 2016-10-31T17:47:43.22772 2016-10-31T17:47:43.22772 self.append(data, scale=scale) 2016-10-31T17:47:43.22773 INJ_TRANS [INJECT_CBC_ACTIVE.main] File "/ligo/apps/linux-x86_64/gds-2.17.9/lib/python2.7/site-packages/awg.py", line 599, in append 2016-10-31T17:47:43.22774 2016-10-31T17:47:43.22774 self.open() 2016-10-31T17:47:43.22775 + ": " + awgbase.SIStrErrorMsg(ret)) 2016-10-31T17:47:43.22775 INJ_TRANS [INJECT_CBC_ACTIVE.main] File "/ligo/apps/linux-x86_64/gds-2.17.9/lib/python2.7/site-packages/awg.py", line 584, in open 2016-10-31T17:47:43.22776 2016-10-31T17:47:43.22777 INJ_TRANS [INJECT_CBC_ACTIVE.main]can't open stream to H1:CAL-PINJX_TRANSIENT_EXC: Error setting up an awg slot for the channel 2016-10-31T17:47:43.24578 INJ_TRANS JUMP target: FAILURE_DURING_ACTIVE_INJECT 2016-10-31T17:47:43.24605 INJ_TRANS [INJECT_CBC_ACTIVE.exit] 2016-10-31T17:47:43.32248 INJ_TRANS JUMP: INJECT_CBC_ACTIVE->FAILURE_DURING_ACTIVE_INJECT 2016-10-31T17:47:43.32252 INJ_TRANS calculating path: FAILURE_DURING_ACTIVE_INJECT->INJECT_SUCCESS 2016-10-31T17:47:43.32253 INJ_TRANS executing state: FAILURE_DURING_ACTIVE_INJECT (300) 2016-10-31T17:47:43.32253 INJ_TRANS new target: WAIT_FOR_NEXT_INJECT 2016-10-31T17:47:43.32254 INJ_TRANS [FAILURE_DURING_ACTIVE_INJECT.enter] 2016-10-31T17:47:43.32780 INJ_TRANS [FAILURE_DURING_ACTIVE_INJECT.main] ezca: H1:CAL-PINJX_TRANSIENT_GAIN => 0.0 2016-10-31T17:47:45.47968 INJ_TRANS [FAILURE_DURING_ACTIVE_INJECT.main] ezca: H1:CAL-PINJX_TINJ_OUTCOME => -4 2016-10-31T17:47:45.48415 INJ_TRANS [FAILURE_DURING_ACTIVE_INJECT.main] ezca: H1:CAL-PINJX_TINJ_ENDED => 1161971282.48 2016-10-31T17:47:45.52790 INJ_TRANS [FAILURE_DURING_ACTIVE_INJECT.run] USERMSG 0: ERROR Chris Biwer suggested a simple test that I think worked: >>> import awg >>> import numpy >>> stream = awg.ArbitraryStream('H1:CAL-PINJX_TRANSIENT_EXC', 16384, 1161970100) >>> timeseries_data = numpy.zeros(10) >>> stream.send(timeseries_data) Warning, couldn't open log file Aborting Logging because SIStrLog call failed -4 Warning, couldn't open log file Chris B. and Dave Barker have been notified of this issue.
J. Kissel
Admiring the work of the SEI and ASC teams, we've just lost lock on a really impressive lock stretch in which we had ~40 mph winds, ~70th percentile microseism, and a 5.4 Mag earhtquake in the horn of Africa and survived. It would be most excellent it DetChar can compare amplitudes of ISC control signals, check out the beam rotation sensor tilt levels, the ISI platform sensor amplitudes, take a look at optical lever pitch and yaw compared with ASC signals etc.
Start: Oct 31 2016 16:15:05 UTC
End: 17:37-ish UTC
Winds and some ground BLRMS (showing microseism and the earthquake arrival) for this lock stretch. We survived at least one gust over 50mph before losing lock. No one changed seismic configuration during this time.
For the record, the units of the above attached trends (arranged in the same 4-panel format as the plot) are
([nm/s] RMS in band) [none]
([nm/s] RMS in band) [mph]
Thus,
- the earthquake band trend (H1:ISI-GND_STS_ITMY_Z_BLRMS_30M_100M) shows the 5.3 [mag] EQ peaked at 0.1 [um/s] RMS (in Z, in the corner station, between 30-100 [mHz]),
- the microseism (again in Z, in the corner station, H1:ISI-GND_STS_ITMY_Z_BLRMS_100M_300M) is averaging 0.25 [um/s] RMS between 100-300 [mHz] (which is roughly average, or 50th percentile -- see LHO aLOG 22995), and
- the wind speed (in the corner station) is beyond the 95th percentile (again, see LHO aLOG 22995) toward the end of this lock stretch, at 40-50 [mph].
Aside from Jordan Palamos' work in LHO aLOG 22995, also recall David McManus' work in LHO aLOG 27688, that -- instead of a side-by-side bar graph, shows a surface map. According to the cumulative surface map, with 50th percentile winds and 95th percentile winds, the duty cycle was ~30% in O1.
So, this lock stretch is not yet *inconsistent* with O1's duty cycle, but it sure as heck-fy looks promising.
To recover our alignment after the PSL work that happened last week, IM3 was moved pretty significantly (alog 30910). For the last week or so, it has been regularly running extremely close to the edge of the actuation range for LL and UR. The MasterOut channels are around 126,000 counts, but the front end model outputs are above 130,000. It would be great if someone from DetChar could have a look and make sure that we're not causing ourselves trouble by operating so close to the DAC edge here. Note that the VoltMon channels for these two OSEMs are totally railed, so they will not be useful for looking at - I don't know if those are a regular part of the detchar scripts.
This will reduce unnecessary HEPI slow system movement. This movement could be causing creek and maybe slow albiet minor alignment changes.
When both the ISI and HEPI Isolation loops are closed, the first step is to measure the free hanging position so the loop starts with zero DC shift. Once the loop is fully engaged, the "Target Reference Location" is ramped into the loop to put the alignment of the platform to a repeatable place. This restoration of position happens for all HEPIs and the HAM ISIs. The BSC ISIs do not restore a Target position; no evidence to show now, but we don't see large shifts or wanderings of the BSC ISI positions.
Okay, for the HEPIs, the Vertical and Horizontal Pringle modes are overconstrained dofs of the HEPI platforms--8 actuators with 6 degrees of freedom. As such these isolation loops are not DC coupled as are all the other dofs X Y Z RX RY & RZ. As such though, the restoration of a Target position into the AC coupled loop puts a large step into the loop and drives. Attached are 30 day trends showing four ITMX HEPI trips. The large step up on the horizontal Actuator drives are the restoration of the old target position of 900nm (upper right trace.) This HP measurement is literally a distortion of the platform, some taken up by the soft Actuator connection and some by actual stress in the platform. I would be most worried about yaw alignment shifts but there are none evident in the optical levers. Given the length of this trend plot though, most of the optical lever data here may be in-loop. There is probably some ASC output I could trend for that.
The bottom line is that since these are AC coupled loops and over some time, the offsets are AC'd out of the loop, why put them in in the first place. Start the loop in the free hanging location like all loops and let this AC loop slowly go where it will. We don't expect them to go much of anywhere. Just avoid the potential problems no matter how minor.
I propose all HEPI Pringle loops be removed from the Target location restoration list (Guardian chamber edits.) This has been discussed in the weekly SEI subsystem call and principals agree.

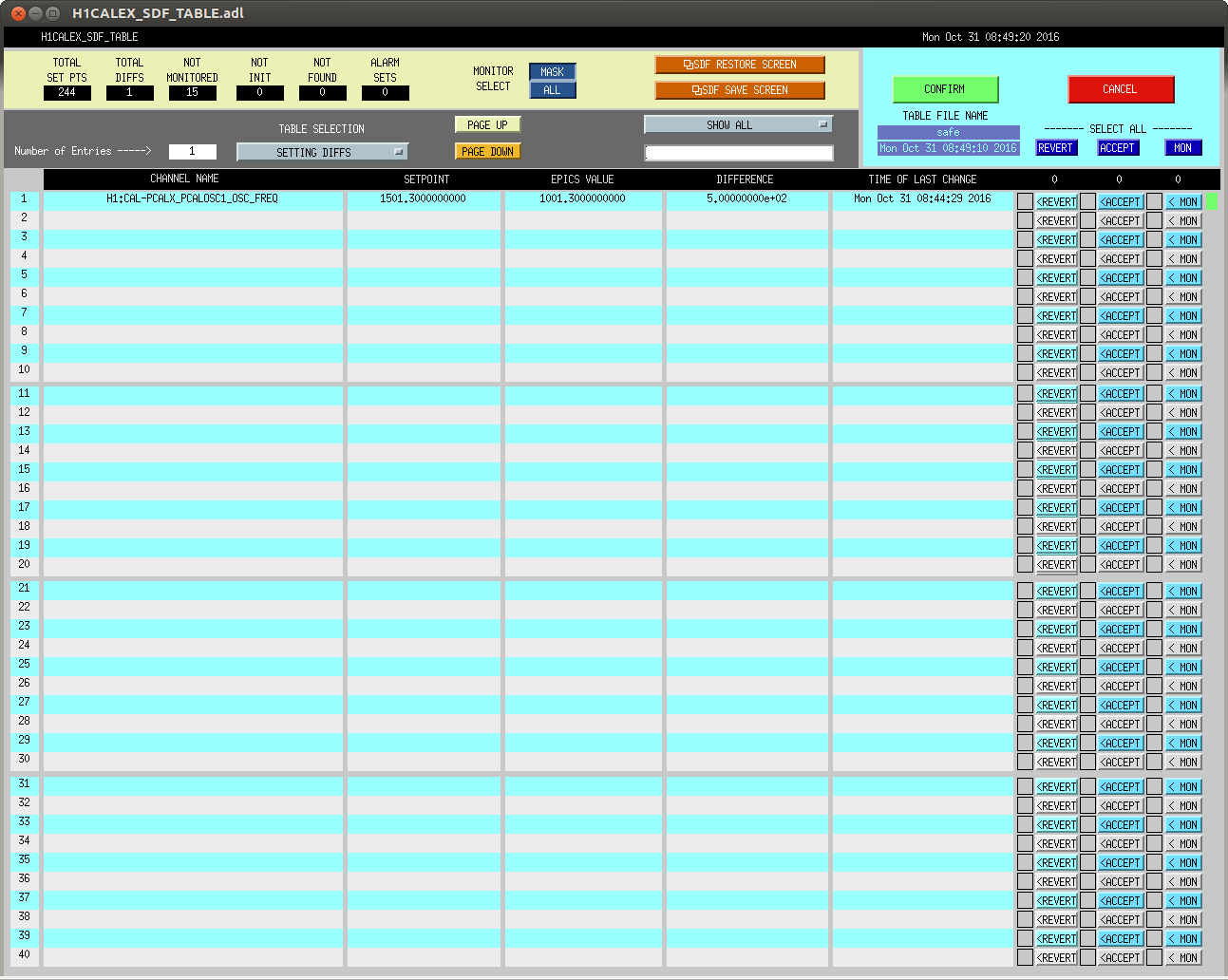

J. Kissel for S. Karki I've moved the roaming high frequency calibration line driven by PCAL X from 1501.3 to 1001.3 Hz at Oct 31 2016 15:44:29 UTC (1161963886, 08:44:29 PDT). Note, O2 reference measurements for PCALX will be taken tomorrow, we should be sure to scale any results to those measurements. Here's the status: Frequency Planned Amplitude Planned Duration Actual Amplitude Start Time Stop Time Achieved Duration (Hz) (ct) (hh:mm) (ct) (UTC) (UTC) (hh:mm) --------------------------------------------------------------------------------------------------------------------------------------------------------- 1001.3 35k 02:00 39322.0 Oct 31 2016 15:44:29 UTC 1501.3 35k 02:00 39322.0 Oct 24 2016 15:26:57 UTC Oct 31 2016 15:44:29 UTC ~week @ 25 W 2001.3 35k 02:00 39322.0 Oct 17 2016 21:22:03 UTC Oct 24 2016 15:26:57 UTC several days (at both 50W and 25 W) 2501.3 35k 05:00 39322.0 Oct 12 2016 03:20:41 UTC Oct 17 2016 21:22:03 UTC days @ 50 W 3001.3 35k 05:00 39322.0 Oct 06 2016 18:39:26 UTC Oct 12 2016 03:20:41 UTC days @ 50 W 3501.3 35k 05:00 39322.0 Jul 06 2016 18:56:13 UTC Oct 06 2016 18:39:26 UTC months @ 50 W 4001.3 40k 10:00 4301.3 40k 10:00 4501.3 40k 10:00 4801.3 40k 10:00 5001.3 40k 10:00
TITLE: 10/31 Owl Shift: 07:00-15:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Lock Acquisition
INCOMING OPERATOR: Ed
SHIFT SUMMARY:
Locked for most of the shift. 4753Hz line was slowly ringing up so I reconfigured the damping filter. Range were up and down likely due to wind. Lockloss seems to coincide with ~40 mph wind gust. PI mode18 rang up once, flipped the phase sign and never saw it again. Verbal alarm complains about TCSY chiller flow towards the end of shift but this is bogus. As Kiwamu requested I also increased CO2 power thoughout the shift, 90 minutes at a time.
LOG
08:33 Increased CO2X from 0.2W to 0.3W, CO2Y from 0W to 0.1 W
9:18 Got an unknown external call
10:04 CO2X 0.3-->0.4W, CO2Y 0.1-->0.2W
11:35 CO2X 0.4-->0.5W, CO2Y 0.2-->0.3W
13:06 Co2X 0.5-->0.6W, CO2Y 0.3-->0.4W
13:40 Intent bit dropped for a second due to Guardian code load
14:11 Lockloss. SRC1 suddenly ran away. Coincide with ~40mph wind gust but this happened before earlier in the shift without breaking the lock.

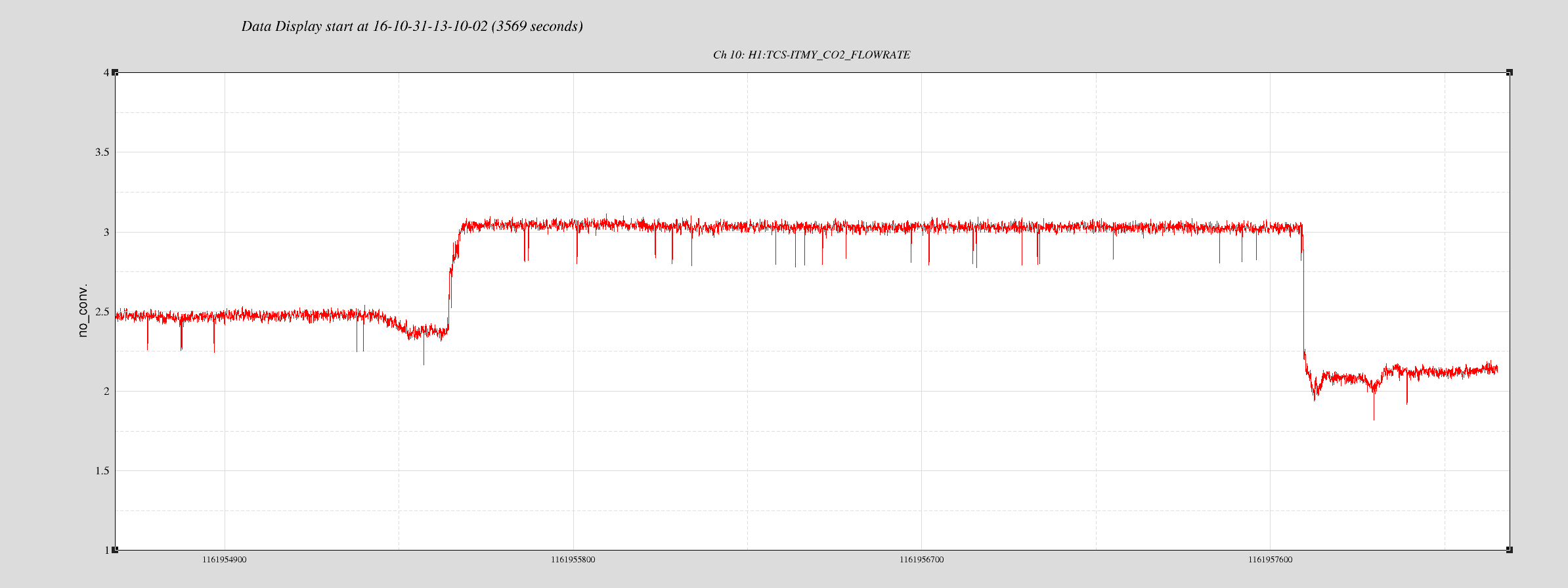

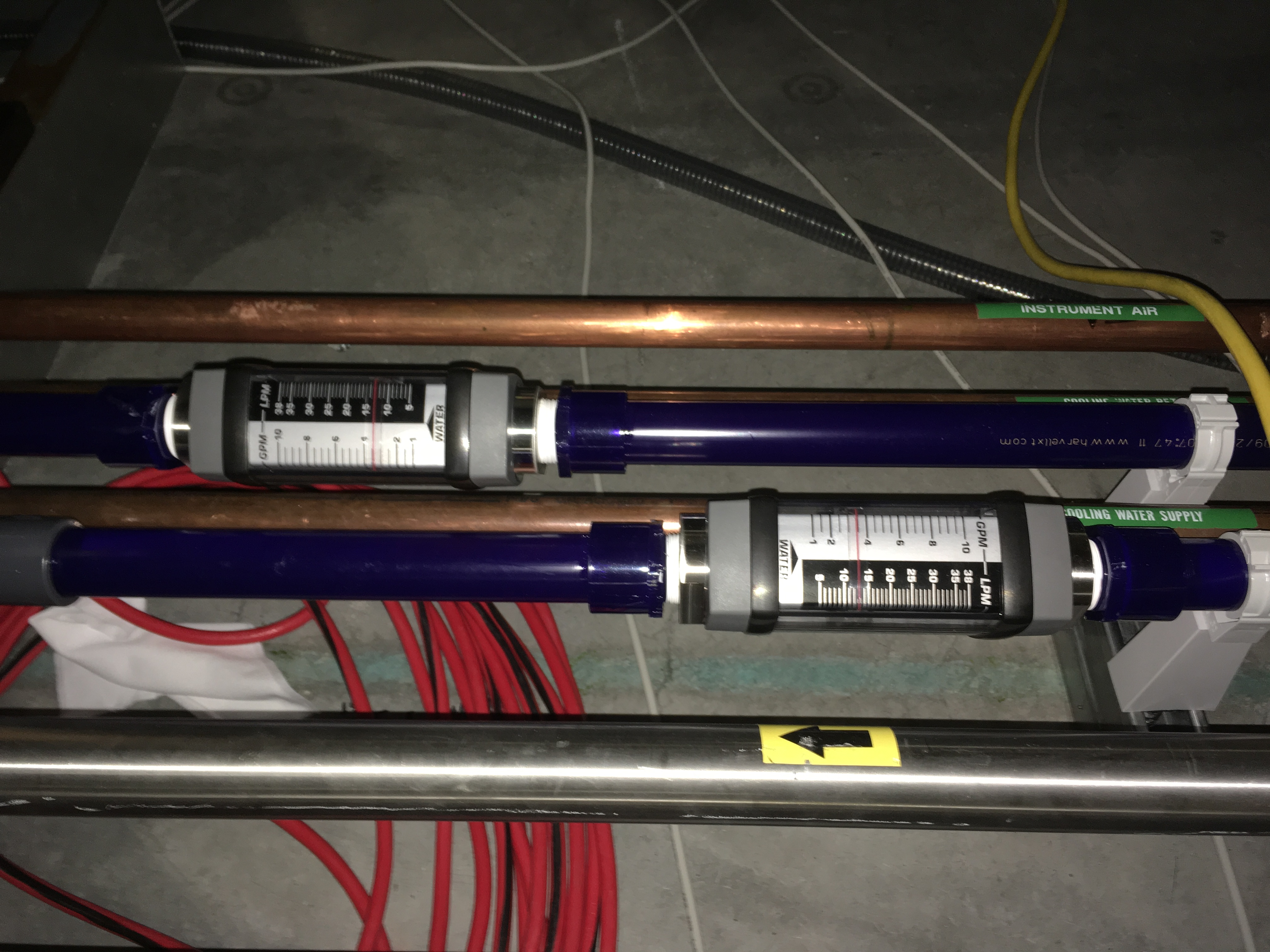

Got a verbal alarm complaining about TCSY chiller flow so I went out to check the chiller on the mezzanine. At the TCSY chiller itself reported flow rate to be ~4Gpm. I also went out and check the mechanical flow meter in the LVEA and it appeared to be reporting >3Gpm. I don't know why the flow channel (H1:TCS-ITMY_CO2_FLOWRATE) is reporting something bogus.
The mode is made of two lines, 4735.05 Hz and 4735.09 Hz. Not sure why I didn't see this before. I increased the BP to be 1 Hz wide so the phase change between the two lines are not too far apart. Now damping at -60 deg phase, 0.02 gain.
Robert and I tried using Stefan's PR2 move and PR3 move states while Robert had a shaker on near HAM2. We ddin't suceed in reducing the noise at the injection frequency, but we did find some POP offsets that gave us better recycling gain:
We got a recycling gain of 33 (35 according to the transmission QPDs) with POP A at -0.24 for pit, and -0.26 for yaw. This didn't have much of an impact on the noise once I reran a2L.
For now I'm leaving the offsets at the values we have been using (0 for Pit, 0.44 for yaw offset) because that is the position where we can power up without a braodband lump from 200Hz -1kHz. With the higher recycling gain we didn't get a lump, but we did start to have coherence with DBB QPD1Y.
A quick request for operators:
Let's try a test of running the a2l test every lock. If you see that the low frequency noise is degrading over the course of a long lock, you can rerun it to see if that helps.
As a reminder:
get to nominal low noise
go to userapps/isc/common/scripts/decoup/
type: ./a2l_min_LHO.py
8 lines around 20 Hz will appear in the spectrum and slowly get turned off one by one as the script becomes satisfied that it is done with each optic.
I did a scattering scan for the entire site, including mid-stations, with a focus on the 50-200 Hz region and on sites that had previously been identified as potential scattering sites in scattering photos (e.g. https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=9564 https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=8281). The worst locations were between the chamber and the gate valve at the end stations (probably similar to what has been seen at LLO) and the input arm, especially between HAM2 and HAM3. The scattering at these three locations was close to showing, or showing in DARM, I can not be sure yet, study of these sites is ongoing. At EY I put black glass in each of the ports, which did not change the scattering peaks I was enhancing with a shaker. I thought the difference with LLO might be that there were no aluminum blocks in any of the LHO ports, so I inserted one in each of the ports but this did not make the coupling worse. We should try black glass at all ports simultaneously, and there are some other tests I would like to do.
At the input arm, the scattering noise, enhanced with a shaker, was clearly modulated with a 0.02 Hz yaw injection at PR2. I observed the input arm through multiple ports and found two spots that especially concerned me, both visible with the digital cameras after I adjusted them: the baffle in front of PRM (see photo) and around PR3.
TITLE: 10/30 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Commissioning
INCOMING OPERATOR: Jim
SHIFT SUMMARY:
Robert had H1 for a good chunk of the day & Jenne had it for a lock or two. Other than that, just working on keeping H1 up for commissioners.
LOG:
Whoops---just dropped out of lock. at 18:40 (11:40am).
Taking IMC to MISALIGNING state so Robert can do some non-locked measurements.
To prevent splashing of light,
no fibers shutters, EY swapped, see alog 30624.
State of H1: relocking
Shift Details / Activites:
Notifications:
We chose to set the AlignIFO node ready for locking the arms in LockingArmsGreen. Since the Down state is mostly stuff to stop actuation when we lose lock, we don't touch the AlignIFO node in that state. Once you get to LockingArmsGreen, immediately after Ready, the ISC_LOCK guardian will set the AlignIFO node appropriately.

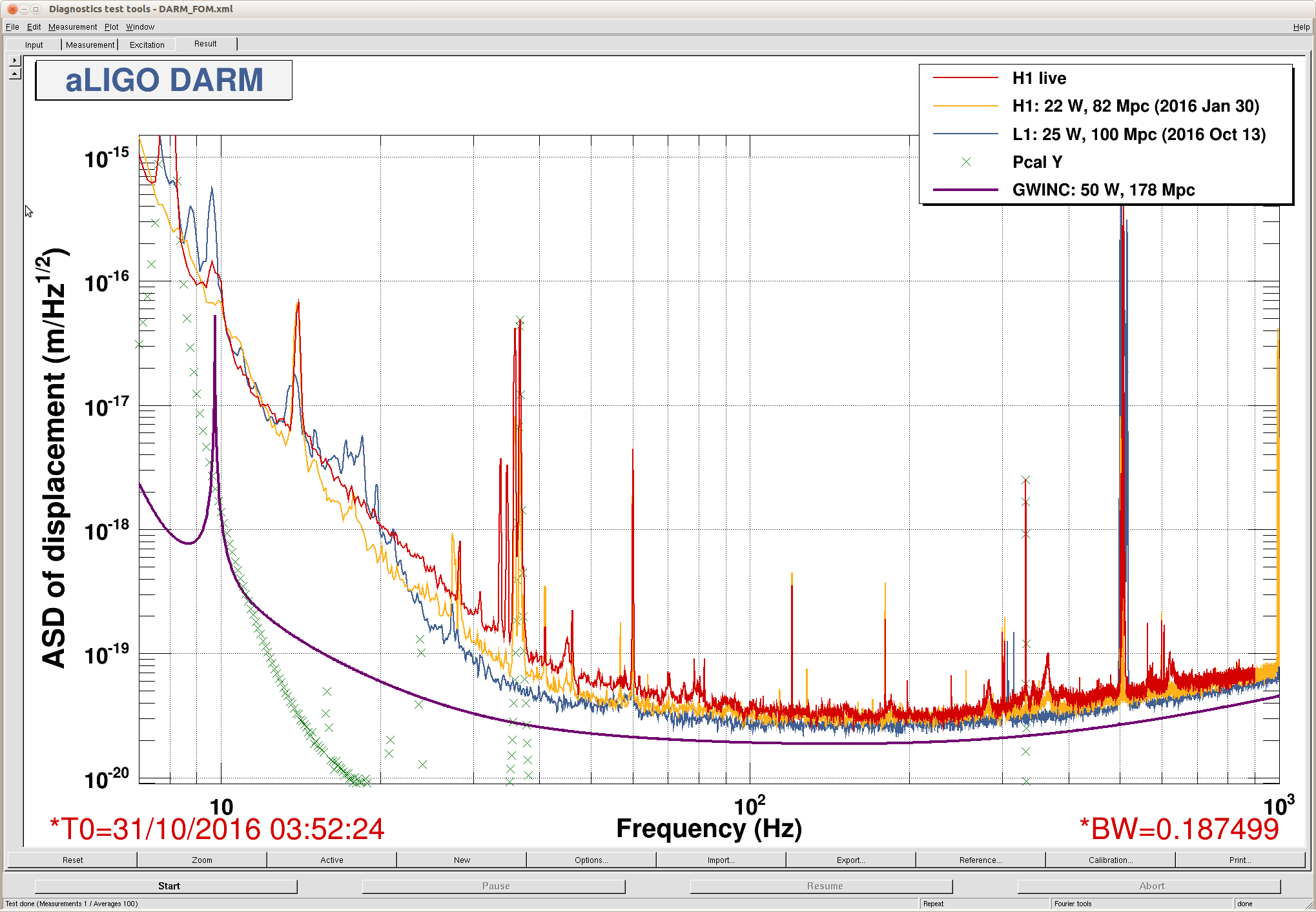

J. Kissel With hints of improvement last night from Sheila (see LHO aLOG 30947) on reducing the most egregious ~41 Hz peak in DARM (which is known to be the HSTS roll modes, a.k.a R3), I launched a campaign of adding similar ~1 Hz wide notches to all HSTS suspensions' local damping loops (M1_DAMP) at both the highest roll mode and highest vertical modes (a.k.a V3 at ~27.5 Hz). The filter designs are V3 notch: FM8 "SB27.5" ellip("BandStop",4,1,60,27.05,28.05)gain(1.12202) [Input -- Always On; Output -- Ramp; Ramp Time -- 2 sec] R3 notch: FM9 "SB40.9" ellip("BandStop",4,1,60,40.4,41.3)gain(1.12202) [Input -- Always On; Output -- Ramp; Ramp Time -- 2 sec] where I've made sure that the lowest and highest frequency V3 modes (coincidentally both IMC mirrors: MC1 @ 27.38 Hz, MC2 @ 27.74 Hz) faLL within the stop band of the notch (and I've confirmed that this is true with Sheila's R3 notch design as well). Further, the V3 notch causes a phase loss of only 2.2 [deg] at 10 Hz, so it will not impact any of the damping loop's phase margins. To confirm, I've spot checked SR2's local damping open loop gain tfs just to be sure. Indeed all DOFs are still quite stable (and quite poorly tuned, as expected). During the campaign I found that PRM, MC1, and MC3's "ellip50" standard low-pass filters were not engaged, so I engaged them. I've greened up all ODC status lights, and then accepted all of the changes in the SDF system -- V3 filters ON, R3 filters ON, ellip50 filters ON, and Correct Damp State. While haven't had an uber-long lock stretch since I've turned on all of these notches, I was at least able to grab 5 averages of a 5 [mHz] BW ASD and compare against the long data set from last night. The notches appear to have done their job -- a large fraction of the modes have been squashed and don't show up in DARM anymore. Success! The SR2 damping loop open loop gain TF templates have been committed here: /ligo/svncommon/SusSVN/sus/trunk/HSTS/H1/SR2/SAGM1/Data/ 2016-10-28_2223_H1SUSSR2_M1_openloop_L_WhiteNoise.xml 2016-10-28_2223_H1SUSSR2_M1_openloop_P_WhiteNoise.xml 2016-10-28_2223_H1SUSSR2_M1_openloop_R_WhiteNoise.xml 2016-10-28_2223_H1SUSSR2_M1_openloop_T_WhiteNoise.xml 2016-10-28_2223_H1SUSSR2_M1_openloop_V_WhiteNoise.xml 2016-10-28_2223_H1SUSSR2_M1_openloop_Y_WhiteNoise.xml
Following up with another extremely long lock stretch from over the weekend (new data starts at 2016-10-31 07:00 UTC), it looks like I've definitely killed several of the resonances, such that they don't substantially appear in the DARM noise. However, the MC2 V3 mode @ 27.7642 Hz and what remains of the PR2 R3 mode @ 40.935 Hz are still as bad as they were before. This likely means these modes are getting excited via non-local control. The ISC control is a likely culprit for MC2, because the V3 mode is abnormally high and may be out of range of a generic notch. Further the IMC cross-over is around 15 Hz, so notching these frequencies is more difficult (i.e. there's currently no notches for the M3 stage length control of the IMC). We'll continue to poke around looking for poorly notched loops.
