Ops Shift Log: 10/24/2016, Owl Shift 07:00 – 15:00 (00:00 - 08:00) Time -  UTC (PT)
State of H1: IFO is locked at 26.9W, with 69.6MPc.
Intent Bit: Observing
Wind: Gentle to Moderate Breeze (8-18mph)
0.03 – 0.1Hz: EY at 0.01um/s, EX at 0.07um/s, CS at 0.09um/s
0.1 – 0.3Hz: All around 0.3um/s
Outgoing Operator: Nutsinee
Incoming Operator: Ed

Activity Log: Time - UTC (PT)
07:00 (00:00) Take over from Nutsinee
08:55 (01:55) PI Mode-18 ringing up. Changed Phase from -100 to -350 to suppress the ring up
09:00 (02:00) PI Mode-28 ringing up. Changes Phase from 60 to -80 to suppress the ring up
11:13 (04:13) PI Mode-18 ringing up. Changed Phase from -350 to -200 to suppress the ring up
15:00 (08:00) Turn over to Ed


Shift Details:
Support: Sheila (by phone)
Shift Summary: IFO locked in NOMINAL_LOW_NOISE	 for the past 2 hours. All appears normal. PI Mode-18 started to ring up. Changed Phase from -100 to -350 to suppress it. Mode-28 is elevated bit still below 1. Changes it’s phase from 60 to -80 to suppress the ring up.
IFO has been locked in Observing mode all shift. Environmental conditions are good. The wind has dropped off to near zero and microseism is low. The 0.1-0.3 band has been ringing up for the past two hours, but is still below 0.5um/s.

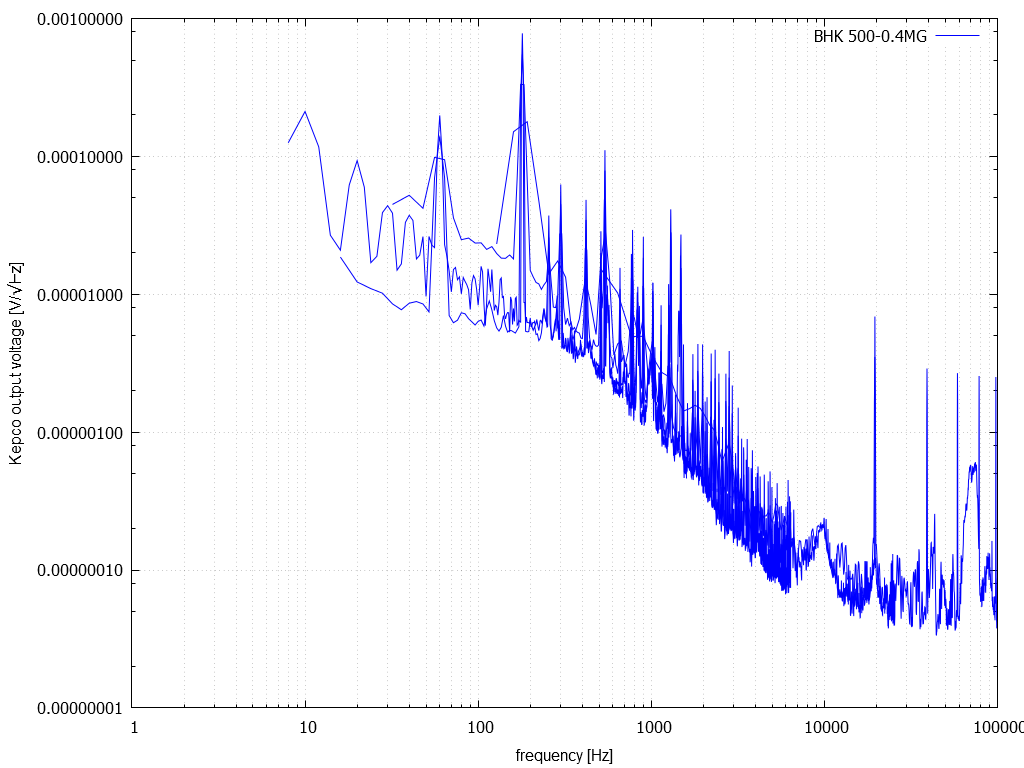

Attached is the voltage noise spectrum of the Kepco BHK 500-0.4MG power supply that provides the high
voltage for the pre-modecleaner and injection locking.

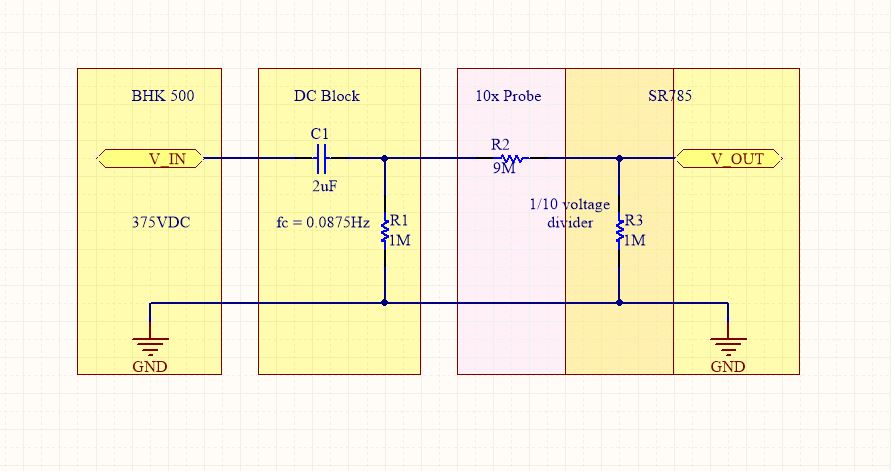

    I need to check with Marc to see what the voltage monitor divider ratio was.

TITLE: 10/23 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing
INCOMING OPERATOR: Jeff B.
SHIFT SUMMARY: Commissioning most of the evening. We were down for a bit due to an earthquake. No problem locking tonight. Intent bit has been set.

LOG:

2:41 Daniel and Stefan going to end stations to bang on the beam tube

~3:50 Daniel, Stefan back.

6:36 Intent bit set. Enjoy the data!

Sheila, Terra

We changed the bias on ETMX and watched the 60Hz and 120 Hz lines in DARM. The 60 Hz line was reduced by 50% by switching from +400V to -400V, which the 120Hz line was reduced by almost a factor of 2.  Apparent changes in other parts of the spectrum weren't reproducible.

We set it back to +400V

Daniel, Stefan,

With the interferometer in a decent noise state at 25W, we went to both end stations with a calibrated rubber mallot (actually a shovel a rubber cover on the handle).

We first shuttered the PCAL lasers because we didn't want to short-circuit scatter measurments.

Upon banging the vacuum vessel the noise increased in a fairly broadband manner. On top of that some individual beaks at ~90Hz and ~110Hz also were rung up.

The worst spot in both end stations was the periscope supporting PCAL and camera. ETMX seemed to be slightly more sensitive.

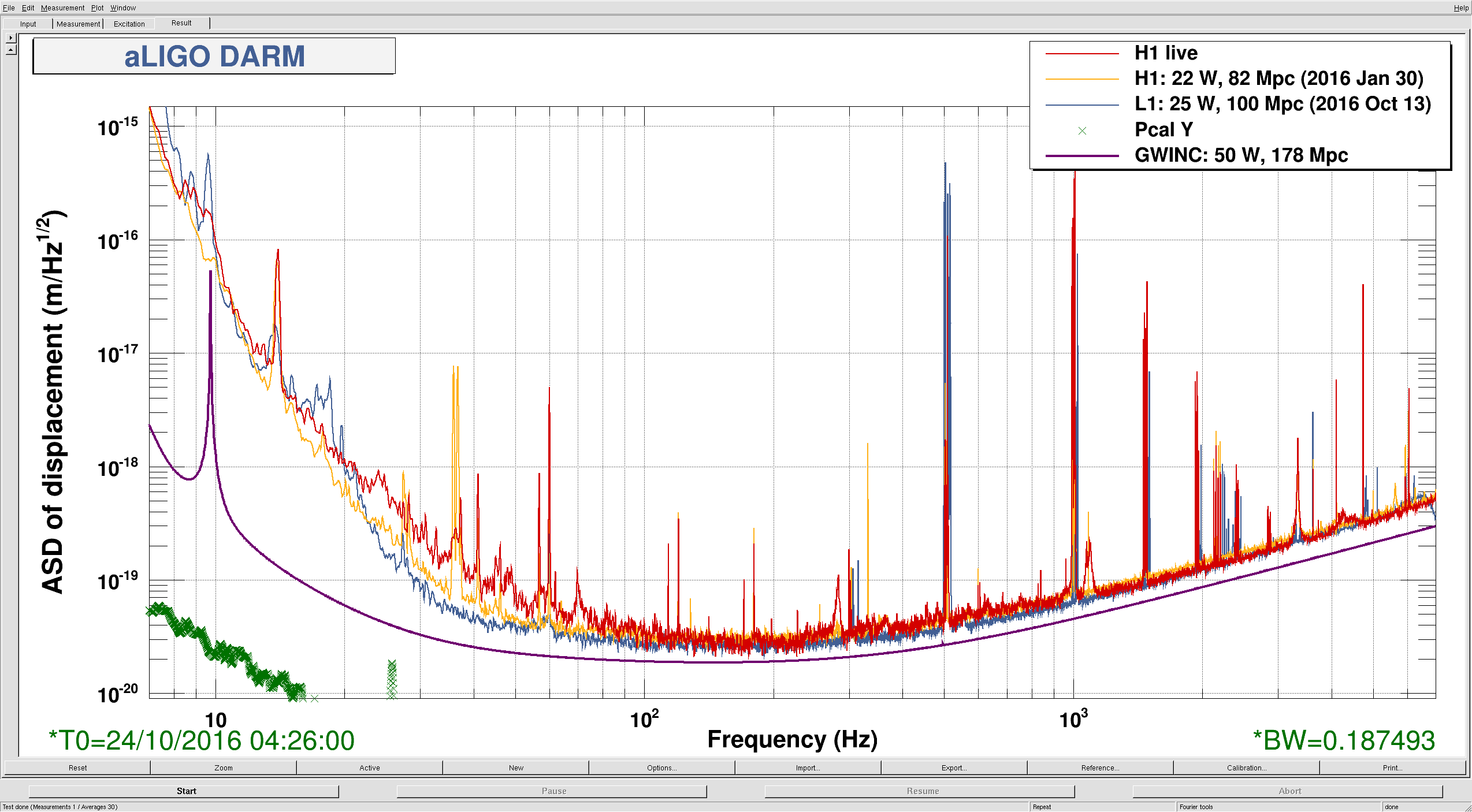

Attached is a reference spectrum showing the sensitivity when we did the injections, including references from the best H1 the recent best L1.

POP_A_RF9_I to SRCL matrix element is no -0.025. This cleaned up at least the SRCL error point a little. THe change is in the guardian.

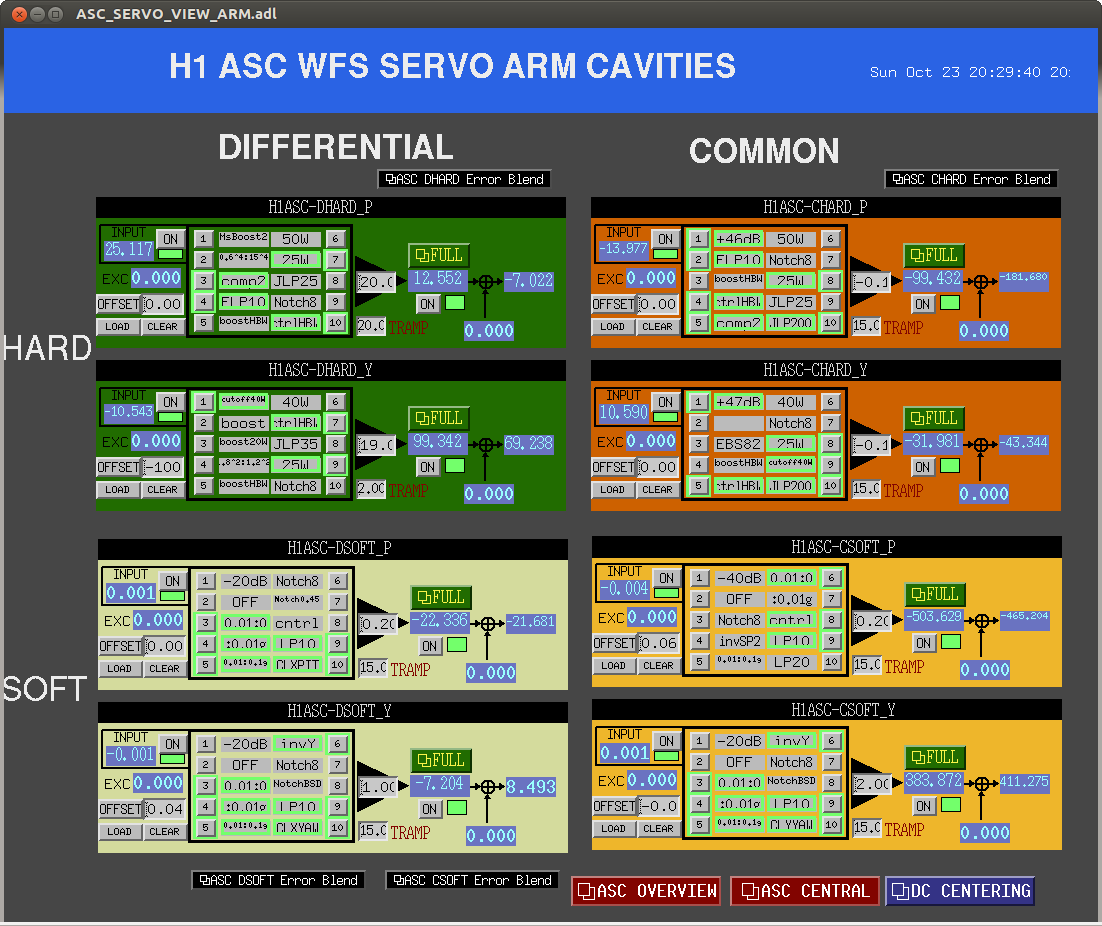

We've been locked at 26 Watts looking at low frequency noise, so just to make things easier I cut the HARD pit loops off a little bit lower.

I lowered the gain of DHARD P from 30 to 20, I lowered CHARD P from -0.15 to -0.14.  I replaces the JLP25 filters with second order elipticals at 10 Hz.  I put this in the guardian to happen when we are locked below 45 Watts.

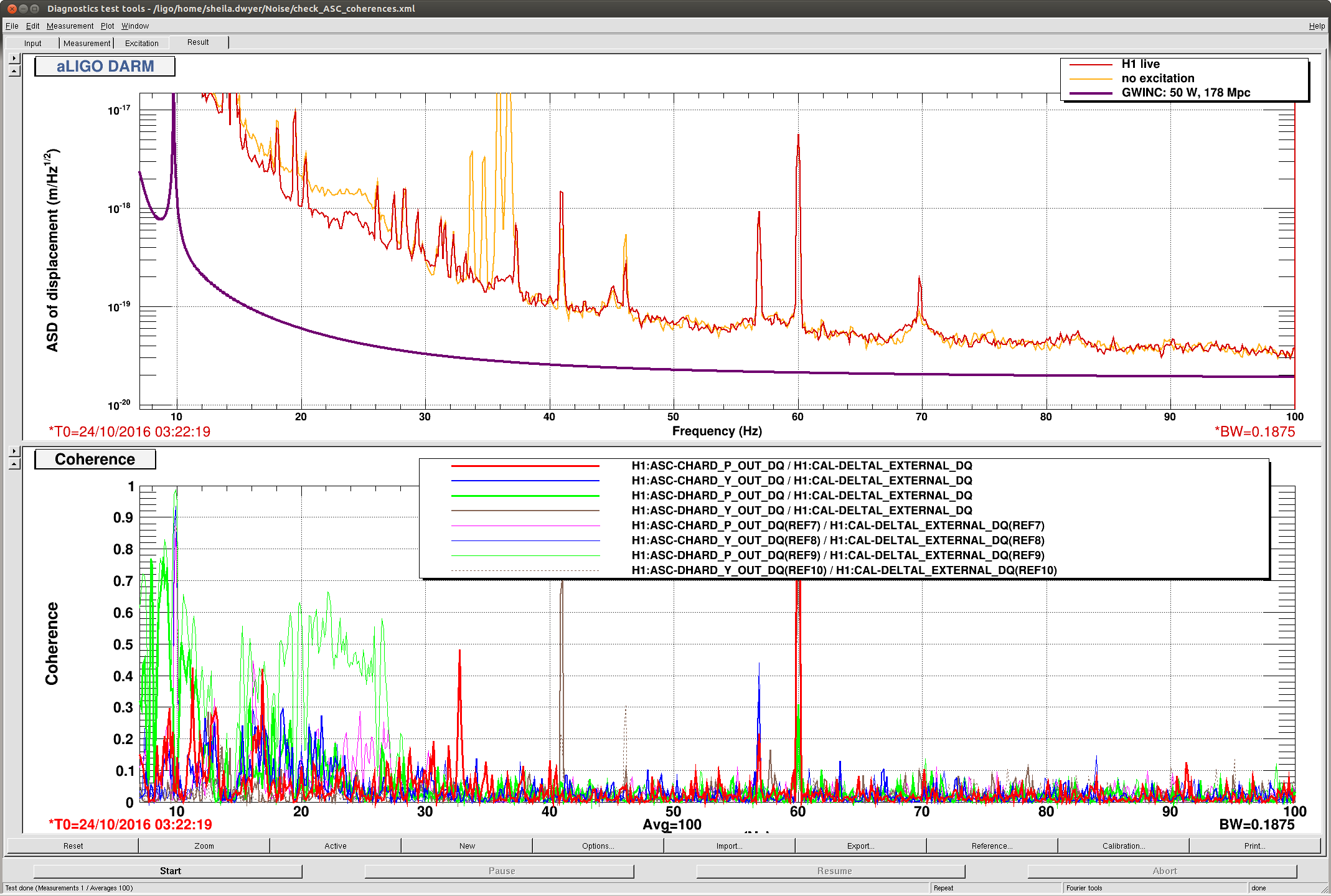

This helps DARM from about 15-27 Hz.  In the attached screenshot you can see how DARM and the coherences changed.

In the past few weeks and months it has been becoming increasingly clear that we are limited by beam jitter when going to higher power. The beam jitter requirements were derived assuming an rms misalignment of the test masses of 10^-9 rad rms in units of divergence angle or beam radius; see T0900142. The coupling mechanism is through the symmetric alignment matrix which mixes TEM₀₀ and TEM₁₀ modes. This transforms jitter in the first order mode back to zeroth order where it beats against the carrier field to produce an intensity fluctuation. This mechanism is independent of the OMC, since the intensity noise is generated in the interferometer. The jitter requirement into the input mode cleaner is:

We can compare this with the measurement from alog 30237 in the attached pdf. The solid olive curve represents the requirement which is a factor of 10 below the level (dashed olive line) one would expect the noise to be visible in the gravitational wave readout at full power and assuming a 10^-9 rms misalignment.

The following observations can be made:

• Even during O1 we have observed the periscope peak to be a factor of a few above the noise level. This would indicate the the assumption of a 10^-9 rms misalignment is about right for a cold interferometer. Keep in mind that the rms includes any static offset errors.
• In the current laser configuration (HPO on with ~5 l/m cooling flow) we are above the requirement for all frequencies between 50 Hz and ~1 kHz; typically by a factor of a few and a factor of ~40 in the worst case.
• The first order jitter out of the HPO meets the requirements. We would need a close to 2 orders of magnitude larger coupling to see the HPO jitter around 500 Hz.
• At high power with thermal loading the coupling typically gets worse—presumably because of higher order modes introducing a larger misalignment.
• It is basically impossible to explain the observed jitter coupling from the HPO using the exact same mechanism.

Possible alternative explanations to the visible HPO jitter in the gravitational wave readout at 50 W input:

• An unlikely Gouy phase conspiracy where the jitter after the PMC couples much weaker than the HPO jitter. In principle, the rms misalignment angle and spot position could be far different from each other. However, this would require two orders of magnitude difference and a required Gouy phase accuracy of ~1°.
• The HPO might also generate second order jitter at the TEM₂₀, TEM₁₁ and TEM₀₂ modes. This second order jitter would couple with arm cavity curvature and beam size mismatch back into the zeroth order mode. Under thermal load it is unlikely that we have a match at the 10^-9 level of beam size and curvature. It could be 100 times larger easily.
• Some other unknown mechanism—even so direct coupling through intensity noise, frequency noise or error point offset in the reflection port have essentially been ruled out.

16:44 Begin bringing back IFO from computer crash.

17:06 Begin aligning/locking process

17:48 on the hone with Dave Barker about a ALS_XARM guardian node I was having trouble restarting. Ezca connection error to H1:ALS-X_WFS_SWITCH channel

22:00 Damping ITMY bounce mode. Flipped sign on gain and added .1 gain

22:40 damped PI mode 27 by flipping the sign and then adding 30 degrees to the phase.

22:58 PI Mode 27 needed another sign flip

22:47 NLN ≈60MPc. Handing off to Nutsinee

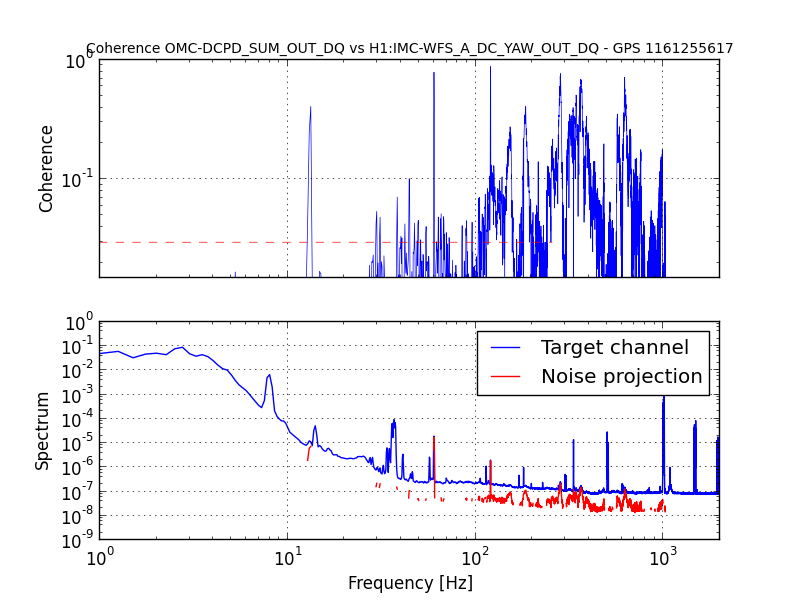

BruCo report for last night lock can be found here:

https://ldas-jobs.ligo.caltech.edu/~gabriele.vajente/bruco_1161255617/

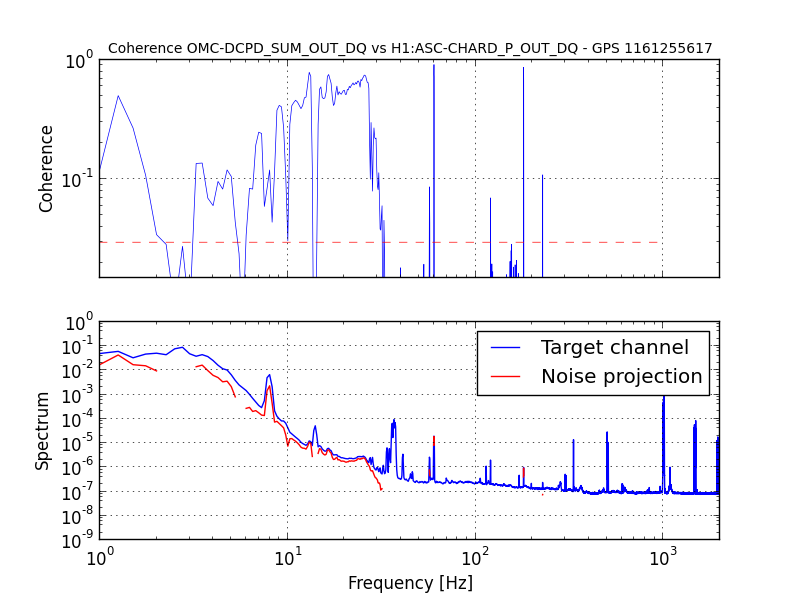

• Below 30 Hz CHARD_P is the clean winner (fig. 1)

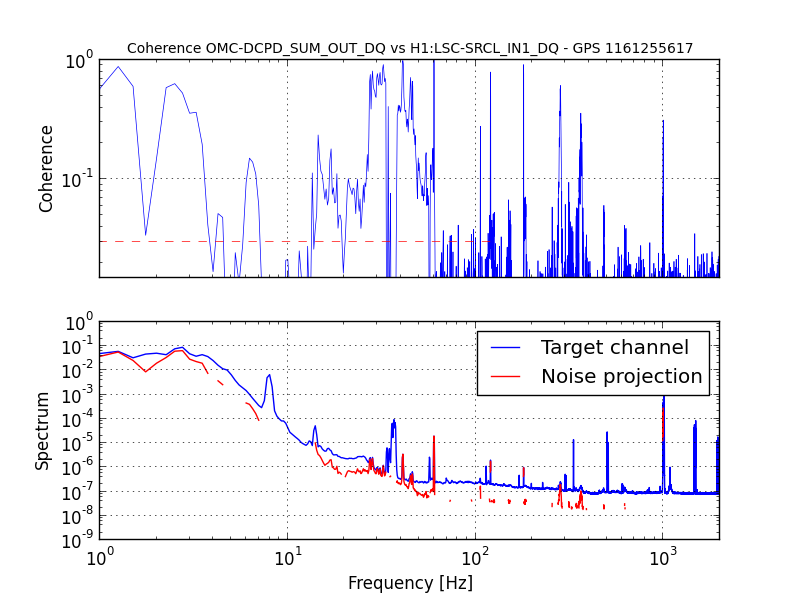

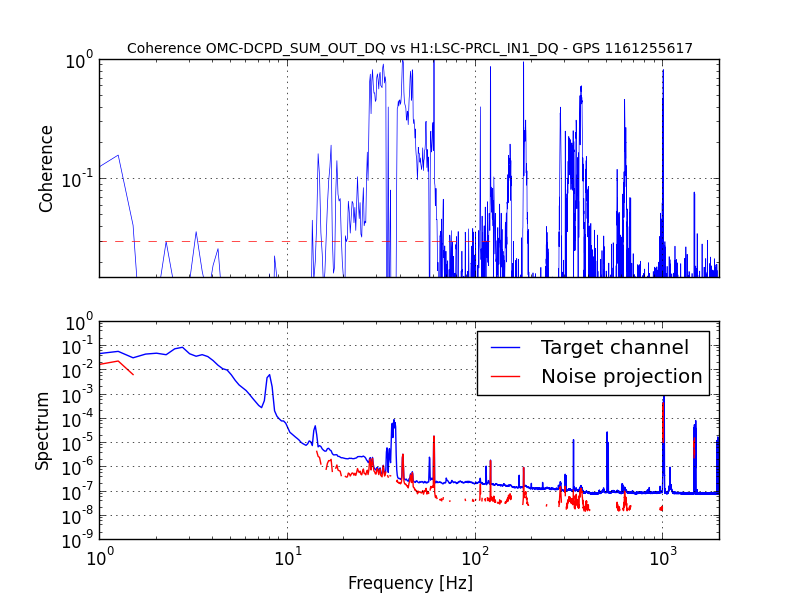

• in the 30-50 Hz region PRCL/SRCL have large coherence (fig. 2 and 3)
• above that, the usual IMC WFS, although with lower coherence than in the past (fig. 4)

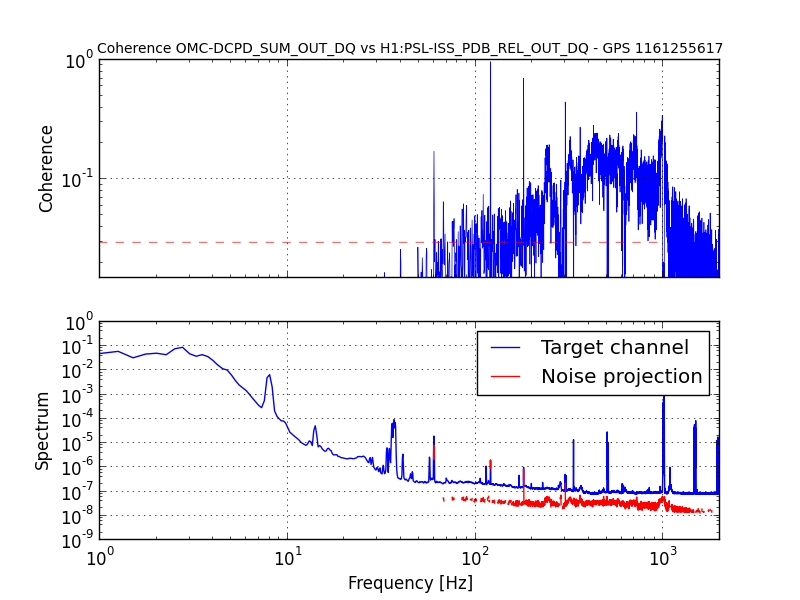

• at high frequency some hints of "intensity noise", since there is coherence with ISS_PDB (fig. 5)

Ed, Sheila

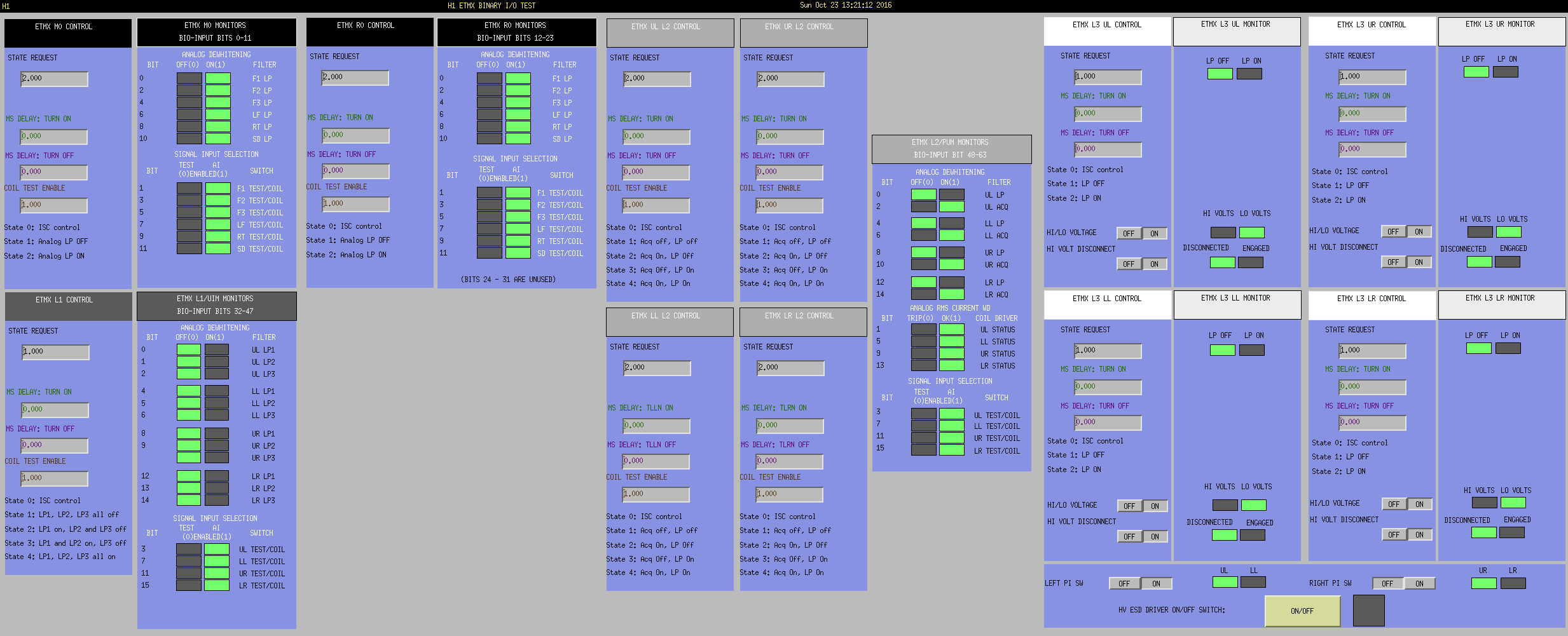

Trouble with LOCKING_ALS sent us looking for HV settings on ETMX. It seemed that the L3 stages were set to LO volts rather than HI. We believe what happened when we toggled the L3 LL HI/LO control that the state of the UL changed as well. We're also not sure why SDF didn't grab this change and we couldn't find it in SDF with a search.

This morning started with a smorgasboard of troubles. Patrick aLogged what happened there. After we seemingly got everything back up there were still some lingering issues with connections/channels that were finally resolved through a half-dozen or so phone calls with Dave Barker. His aLogs should show the gory details. I'm finally tying to get things re-aligned so I can get this ship sailing again.

Existing MEDMs continued to be connected to h1iscex, but no new connections were possible. Also I was unable to ping or ssh to h1iscex on the FE-LAN. This also meant that the Dolphin manager was unable to put this node into an offline state. The only recourse was to put SUS-EX and SEI-EX into a safe state and remotely power cycle h1iscex via its IPMI management port. As expected, this in turn glitched the attached Dolphin nodes in the EX-Fabric (h1susex and h1seiex). I restarted all the models on these two systems and Ed is now recovering EX.

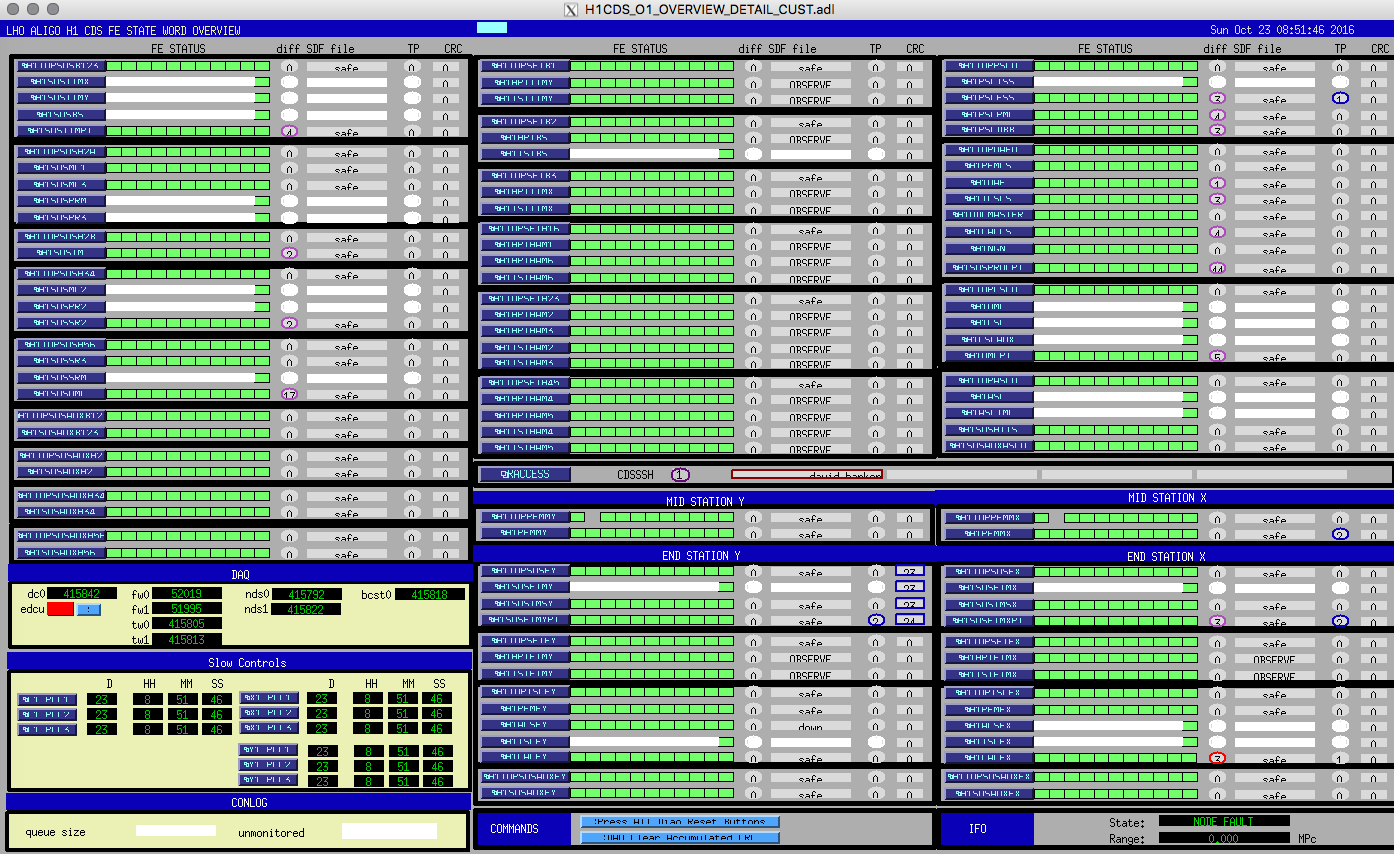

at approximately 07:50 PDT this morning the /opt/rtcds file system (served by h1fs0) became full. This caused some front end epics processes to segfault (example dmesg output for h1susb123 shown below). Presumably these models epics processes were trying to do some file access at this time. The CDS overview is attached showing which specific models had problems. At this point guardian stopped running because it could not connect to critical frontends. Lockloss_shutter_check also reported an NDS error at this time (log shown below), further investigation is warrented since h1nds0 was running at the time.

On trying to restart h1susitmx, the errors showed that /opt/rtcds was full. This is a ZFS file system, served by h1fs0. I first attempted to delete some old target_archive directories, but ran into file-system-full errors when running the 'rm' command. As root, I manually destroyed all the ZFS Snapshots for the month of May 2016. This freed up 22.3GB of disk which permitted me to start the failed models.

Note that only the model EPICS processes had failed, the front end cores were still running. However in order to cleanly restart the models I first issued a 'killh1modelname' and then ran 'starth1modelname'. Restarting h1psliss did not trip any shutters and the PSL was operational at all times.

I've handed the front ends over to Patrick and Ed for IFO locking, I'll work on file system cleanup in the background.

I've opened FRS6488 to prevent a re-occurance of this

[1989275.036661] h1susitmxepics[25707]: segfault at 0 ip 00007fd13403c894 sp 00007fffb426b9a0 error 4 in libc-2.10.1.so[7fd133fda000+14c000]

[1989275.045095] h1susitmxepics used greatest stack depth: 2984 bytes left

[1989275.086076] h1susbsepics[25384]: segfault at 0 ip 00007f2a5348e894 sp 00007fff908c88e0 error 4 in libc-2.10.1.so[7f2a5342c000+14c000]

[1989275.127643] h1susitmyepics[25166]: segfault at 0 ip 00007f5905a59894 sp 00007fff20f878d0 error 4 in libc-2.10.1.so[7f59059f7000+14c000]

2016-10-23T14:51:50.62907 LOCKLOSS_SHUTTER_CHECK W: Traceback (most recent call last):

2016-10-23T14:51:50.62909   File "/ligo/apps/linux-x86_64/guardian-1.0.2/lib/python2.7/site-packages/guardian/worker.py", line 461, in run

2016-10-23T14:51:50.62910     retval = statefunc()

2016-10-23T14:51:50.62910   File "/opt/rtcds/userapps/release/isc/h1/guardian/LOCKLOSS_SHUTTER_CHECK.py", line 50, in run

2016-10-23T14:51:50.62911     gs13data = cdu.getdata(['H1:ISI-HAM6_BLND_GS13Z_IN1_DQ','H1:SYS-MOTION_C_SHUTTER_G_TRIGGER_VOLTS'],12,self.timenow-10)

2016-10-23T14:51:50.62911   File "/ligo/apps/linux-x86_64/cdsutils/lib/python2.7/site-packages/cdsutils/getdata.py", line 78, in getdata

2016-10-23T14:51:50.62912     for buf in conn.iterate(*args):

2016-10-23T14:51:50.62912 RuntimeError: Requested data were not found.

2016-10-23T14:51:50.62913

Started Beckhoff SDF for h1ecatc1 PLC2, h1ecatx1 PLC2, and h1ecaty1 PLC2 by following the instructions at the end of this wiki: https://lhocds.ligo-wa.caltech.edu/wiki/UpdateChanListBeckhoffSDFSystems

controls@h1build ~ 0$ starth1sysecatc1plc2sdf
h1sysecatc1plc2sdfepics: no process found
Specified filename iocH1.log does not exist.
h1sysecatc1plc2sdfepics H1 IOC Server started
controls@h1build ~ 0$ starth1sysecatx1plc2sdf
h1sysecatx1plc2sdfepics: no process found
Specified filename iocH1.log does not exist.
h1sysecatx1plc2sdfepics H1 IOC Server started
controls@h1build ~ 0$ starth1sysecaty1plc2sdf
h1sysecaty1plc2sdfepics: no process found
Specified filename iocH1.log does not exist.
h1sysecaty1plc2sdfepics H1 IOC Server started

Plot 1 shows the DC signals of all 4 I segments of ASA36. Note that seg 3 is ~2.5 times larger than the others.

Plot 2 shows the updated AS_A_RF36_I matrix - the gains for seg 3 have been dropped to -0.4 from -1.

Plot 3 shows the resulting error signal - it now cresses zero where the buildups and couplings for SRCL are good.

Closed the SRC1 PIT and YAW loops with a gain of 10, and input matrix element of 1. I will leave this setting for the night - although it is not in guardian yet.

TITLE: 10/22 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Commissioning
INCOMING OPERATOR: Patrick
SHIFT SUMMARY:

• ITMY bounce mode has been a bit of a problem so watch out and be ready to flip the sign of the gain (Guardian turns on 0.1, this seems to be ringing up the mode). I'm not sure where would be the best place to put this in the Guardian so it will have to be done by hand for now.
• PI Mode 28 came on once and changing phase didn't make a different to Terra made a new filter for it (the frequency of the mode has moved far from the existing BP filter).
• During the night we lost lock at PREP_TR_CARM. The state appears to be putting too much of an offset to both LSC-TR_X and Y QPD and the IFO never find IR again until the offset was put back. If you have Check IR problem and LSC-TR_X (and Y)_NORM appears to be flashing at negative values, check LSC_TR_X(and Y)_QPD_B_SUM_OFFSET. If it's negative trend it back to when it was still good. Then caput that value back to the channel(s).
• DRMI locking -- When locking DRMI, increase LSC PRCL2 gain by a factor of 2 (original gain is 1, so make it 2). Once the DRMI is locked lower it back to 1. Worked twice. I assume this works for PRMI as well if the flashing appears to be good but the loop won't catch lock. Thanks Stefan for the trick.
• Soon as the clock turned midnight I got a verbal alarm telling me there's a new remote user. There's no name. Just "root". Root only logged on for less than a minute or so and left. Is it an interferometer ghost?

Keita, Sheila, Kiwamu

This afternoon Keita and I did another test of opening and closing DBB shutters, since Keita realized that there are multiple shutters that matter.  The results are in the screen shot.  We only see two shutters on the PSL layout, (SH01 in the 35 W path to the DBB and SH02 in the 200W path) and on the photos documenting the table, but there must be a third shutter, perhaps inside the DBB box. We did not test switching to the 35W beam because that caused a lockloss last night. Apparently the shutters used here are Thorlabs SH05, which has an aluminum blade according the the thorlabs website.

When changing between shutter states today we saw a broad band change in the DARM noise throughout our 200Hz-1kHz lump, (this is a little different from what we saw last night).  However, we saw 3 different noise states in DARM depending on the shutter requests, shown in the attachment.

We guess that the shutter which is controlled by the epics channel "PSL-DBB_SHUTTER_DBB" is inside the DBB box itself and not on the layout.  It is hard to explain the table above.  For example, if no beam is selected, and both beams are really blocked before they reach the DBB, why would closing the shutter inside the DBB matter?

Kiwmau and I went inside the PSL, placed beam dumps in the paths to the DBB.  We placed a "black hole" beam dump (no cone in the middle) in the HPO path (a 250 mW beam between M3 and M12 on the layout).  Looking at that beam with an IR card, we could see a corona around it, pictures will be attached to this alog.  This corona is scattered around, hitting the black baffle near the DBB apperature and other things.  We also placed a black glass beam dump upstream of the front end laser beam path the the DBB, just before the shutter.

Update:

After waiting out the Japanese earthquake, we relocked.  The lump was smaller in the first moments of the lock.  After a few minutes the peaks reappeared, but the peaks still changed when we opened and closed the shutters, in a way that is repeatable although the plot is confusing since the overall level of noise was changing probably with the thermal state.  (each time we opened the shutter, things got worse than they had been).

We do not understand how changing the shutter state impacts the DARM noise, although we think we have ruled out scattered light.   Kiwamu thought that perhaps the change in the noise could be due to the change in the diffracted power when we move the shutter (see Keita's alog 30679). We tried a test of changing the diffracted power, which unlocked the IFO.  It could also be through the same electrical coupling that means the diffracted power changes when we open the shutter.
