Unsuccessful at damping ITMX 15520 Hz PI several times tonight (previously seen here and here). We find that larger damping drive does not equal greater damping: When this mode was test driven and damped after the thermal transient at 50 W, a best gain and phase was found for damping. When the mode began to ring up later, increasing gain (by some large amound but still under saturation) or flipping sign and/or changing phase only resulted in faster ringup. This is true when still far below DAC saturation levels. It seems as if there is some gain sweet spot that must be found.
--- --- ---
We had three occasions to damp ITMX 15520 Hz mode during the night. During the first, I successfully damped and it then rerang up (perhaps due to offset adjustments?) and lost lock. During the second and third I was not able to damp the mode and avoided lockloss only by decreasing power 50 W --> 25 W.

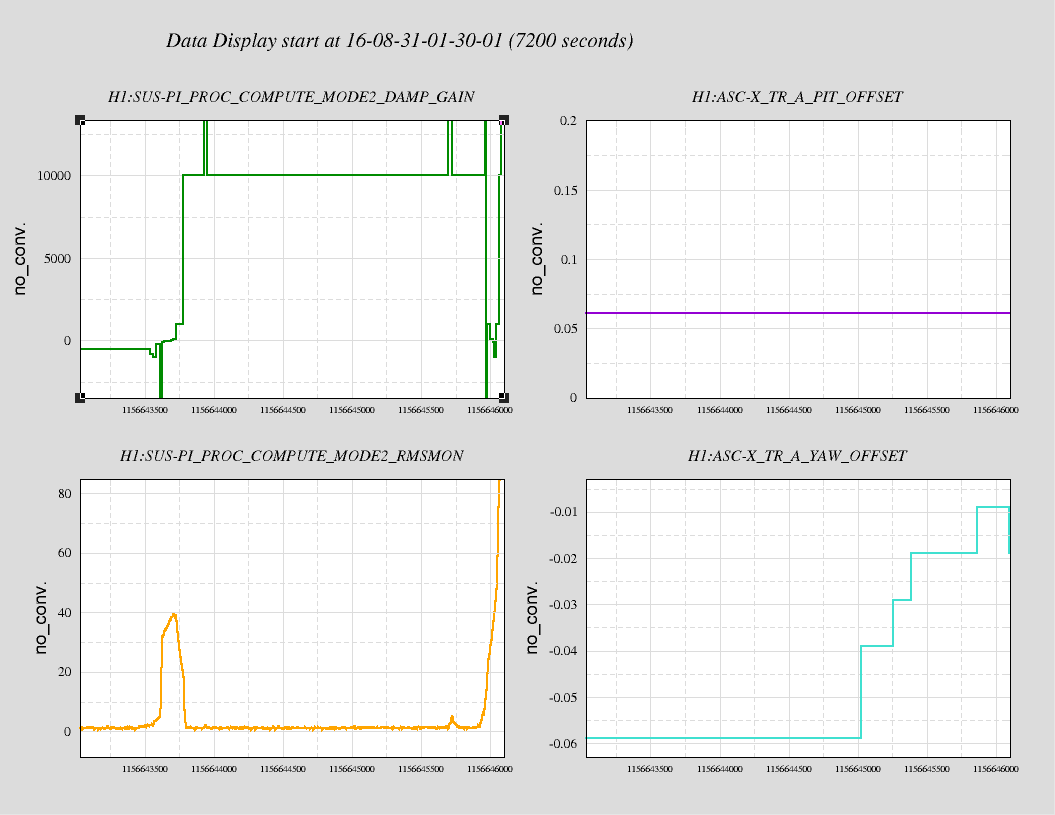

Below you see the mode first ring up and my gain trial and error response until I settle at 10000 and the mode is fully damped. Soon after, you see the mode ring up again right after the yaw offset step from ~ -0.02 --> -0.01. Note we started with a small negative gain so I just assumed we had actually been ringing up the mode the past few days.

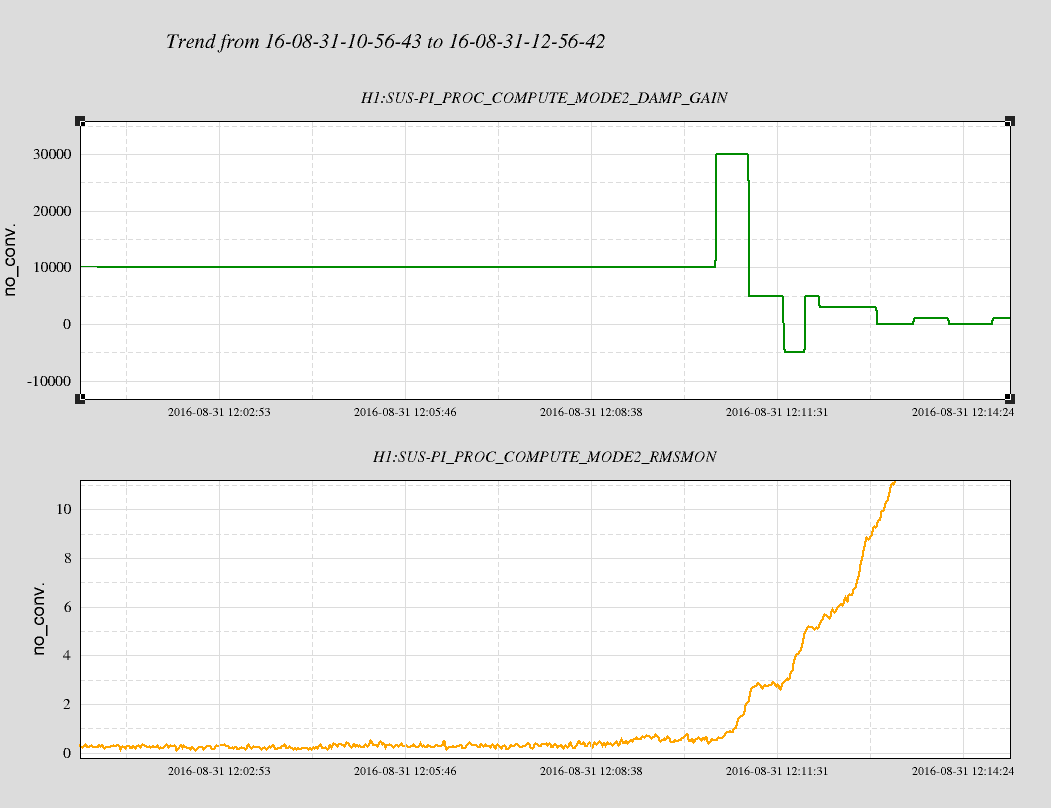

During the second 50 W lock, damping was already running at the gain and phase settings that were effective at damping the first ring up above (+10000 gain, -60deg). Despite this, you see the mode slowly rising ~3 hours into the 50 W lock and my gain adjustments trying to damp. Note that here I start with some mostly successful positive gain (i.e. shallow slope) yet both raising the gain and flipping the gain sign cause the mode to ring up. I tried phase changes at this point too but existing was best. I avoided lockloss by decreasing power to 25 W, allowing mode to ring down enough to damp, then powering back up. I also rechecked my gain and phase at 50 W (post thermal transient time) and it would still drive and damp with a very steep slope. Still, an hourish later the mode began to ring up. I found similar behavior in the third attempt as the second and had to decrease power to avoid lockloss.
Things to note:
Things to try:

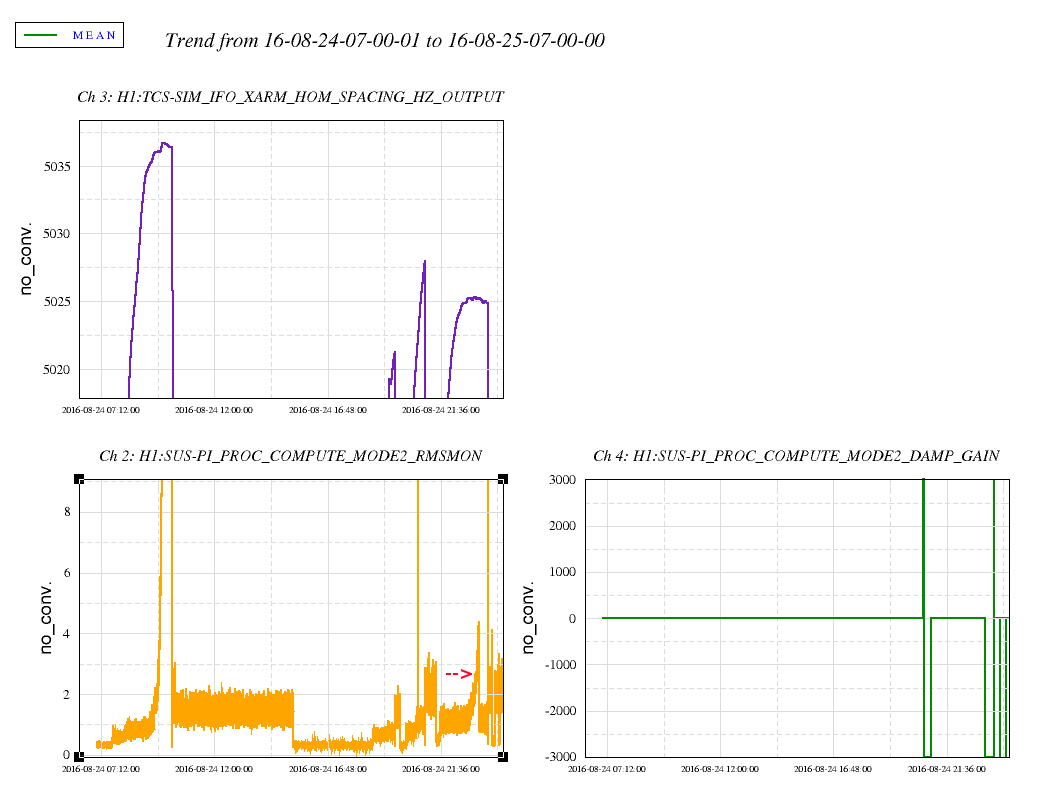

I've plotted the HOM spacing (H1:TCS-SIM_IFO_XARM_HOM_SPACING_HZ_OUTPUT) from the TCS simulator vs the RMS of the 15520Hz PI mode. It seems to be ringing up consistently when the simulated HOM spacing edges up over 5034Hz.

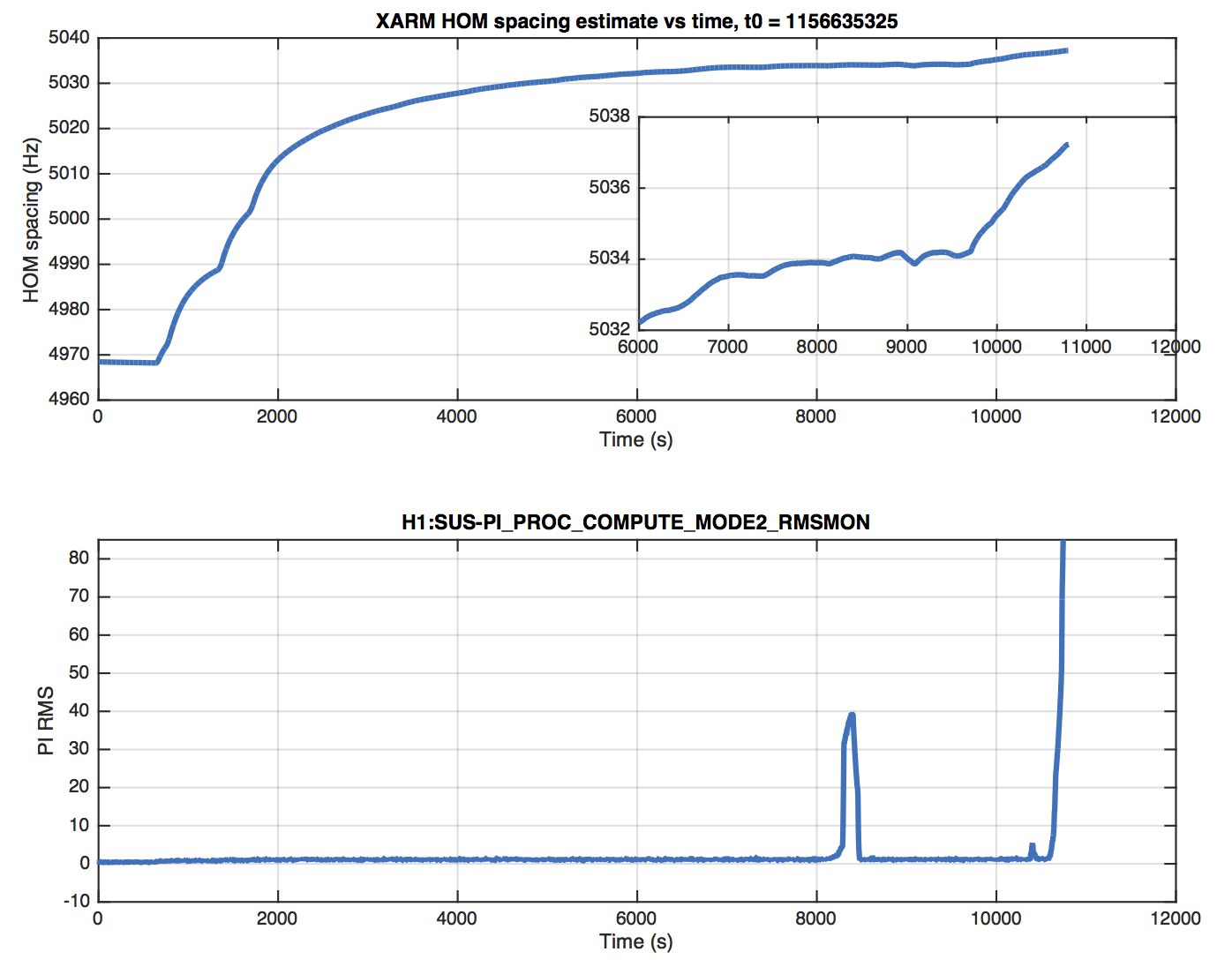

The first plot shows the HOM spacing at the same time that Terra sees and tries to damp the mode. You can see the HOM spacing edge up over three hours as the surface curvature is becoming flatter. The 15520 mode starts to ring up and then Terra is able to damp it. It looks like the subsequent yaw offset increased the power in the arm very slightly which has, in turn, increased the heating of the optic. The estimated HOM spacing increases, most likely increasing the parametric gain of the 15520Hz mode in the process.

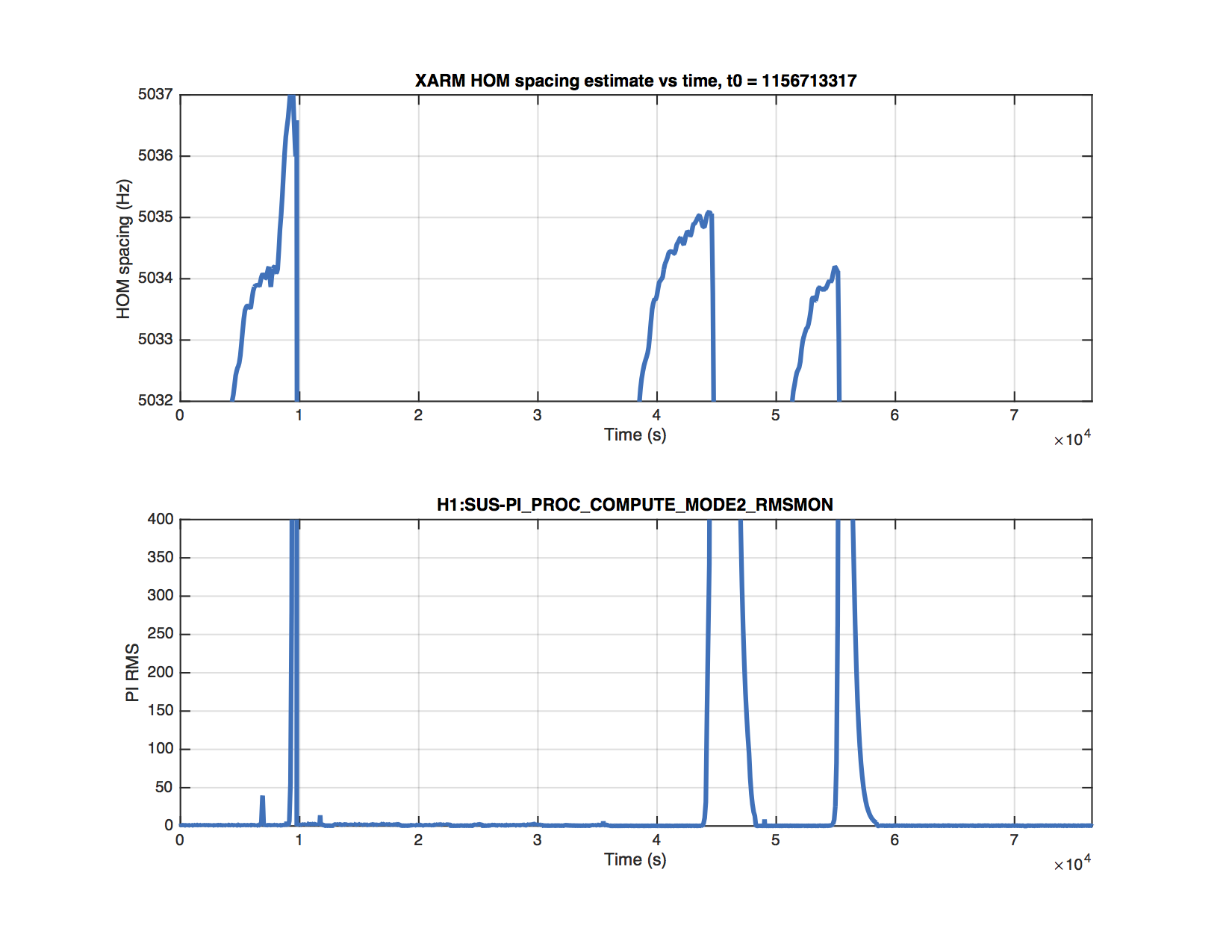

The second plot shows the HOM spacing over a larger time frame (19 hours) and the associated RMS of the 15520Hz mode. Every time the HOM spacing reaches 5034Hz, the mode starts to ring up.
Some notes:
In fact, it's not too much of a stretch to use the parametric gain of the modes in conjunction with the simulated HOM spacing to continually update the total absorbed power in the arms.
Thanks Aidan.
I've attached a look at the HOM spacing during two times that this same mode rang up while no damping was being applied (DAMP_GAIN = 0), unlike the times you looked at. First time the mode rang up when HOM spacing was about the same as you found, 5035. Second (indicated with red arrow), rang up around 5025. Both locks were 50 W.

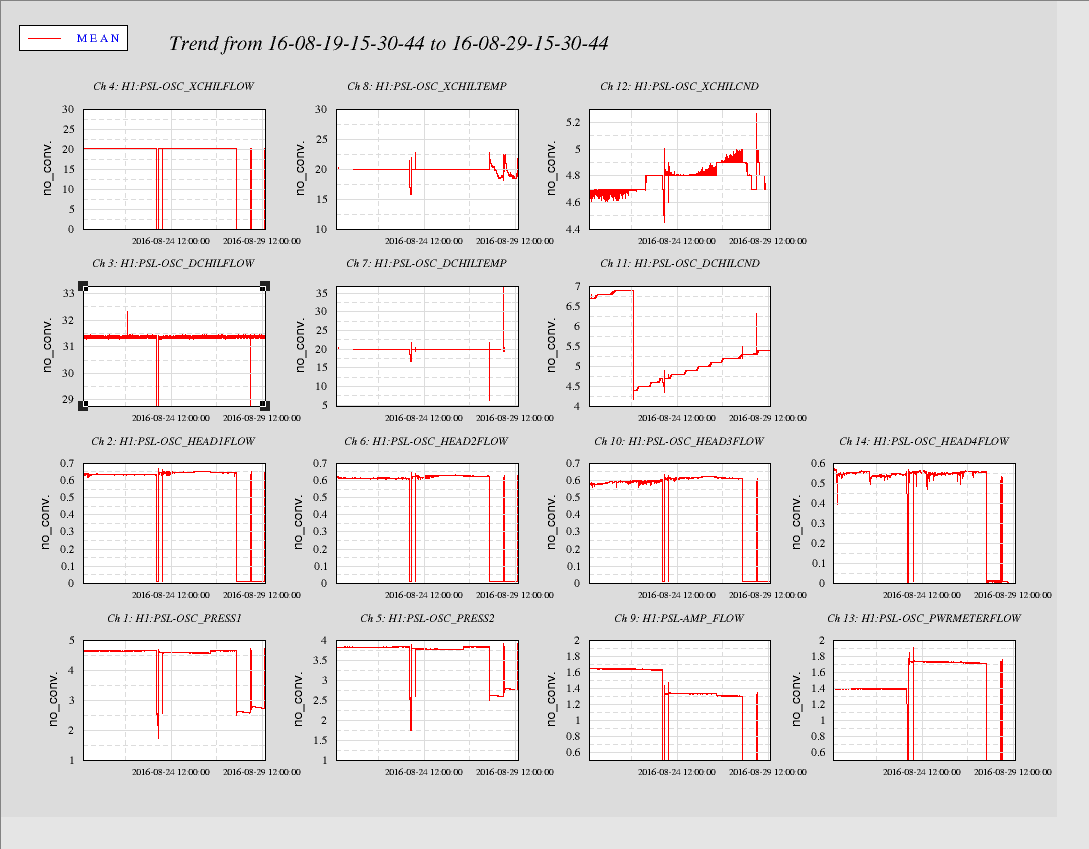

Added 100 mL H2O to crystal chiller.
This completes FAMIS task 6486.
Work Permit | Date | Description | alog |
6130.html | 2016-08-30 10:58 |
Activity: Crane the following: scissor lift next to BSC4 (northwest corner) and turbo pump cart. Install new hot ion gauge assembly on existing valve near top of BSC4. Need to pump down small air volume using a pump cart. Area of Activity: VE, BSC4, install hot ion gauge |
29387 |
6129.html | 2016-08-29 15:37 | Activity: Replace, repair, and/or reconfigure semi-permanent cleanroom curtains in LVEA and both end stations. | |
6128.html | 2016-08-29 13:45 | Activity: Move the clean room that is currently located on south side of output arm a few feet away from the tube to allow for curtain repair and then return the clean room to the original location. | |
6127.html | 2016-08-29 12:50 | Activity: Install and configure a new DMT to EPICS bridge so that we will continue to reflect the DMT signals (range) into EPICS in near realtime after the AUTH/LIAM project updates the authentication server infrastructure. | |
6126.html | 2016-08-29 11:43 | Activity: Activity: Connect output of Inficon guage (HAM6) to a safety interlock in the CER Mezzanine. Interlock enables/disables the high voltage power supplies to the Fast Shutter and PZTs. This will involve shutting down the associated HV supplies. Will coordinate with vacuum team when connecting/disconnecting to vacuum gauge. A safety interface relay chassis D1400047 will be installed on top of rack in CER. | |
6125.html | 2016-08-29 11:40 | Activity: Reconfigure h1fw1 to match h1fw0. * new executable (daqd build on h1fw0) * new configuration Configure h1fw2 to run the old build (currently on h1fw1) for now. | |
6124.html | 2016-08-29 10:52 |
Activity: Re-epoxy 2 seismometers to the floor near where the HAM6 doors are stored during a vent. They were removed during the HAM6 vent, and need to be re-installed. Area of Activity: NN array, LVEA floor |
29385 |
6123.html | 2016-08-29 08:50 |
Activity: ETMy oplev maintenance. Power cycle ETMy oplev AA chassis. This is to hopefully solve the issue where the oplev is reporting the optic moving by > +-0.5 urad while locked, which shouldn't be possible. Tweak ETMy oplev laser power to address laser glitching. No view ports will be exposed during this work. Area of Activity: ETMy Optical Lever |
29386 |
6122.html | 2016-08-26 10:26 | Activity: Fix some errors in h1psliss model and restart. Some testpoint names are changed so this needs a DAQ restart. | |
6121.html | 2016-08-25 16:16 |
Activity: Turn on remote access controls during business hours. This will limit remote ssh access to CDS to users who have approved work permits and have been granted access by the operator. The purpose of this to test the remote access control system, by allowing operators to administer the system and to condition the remote users to acquiring a work permit and coordinating with the operator prior to remotely accessing CDS. At this time it is proposed that this system only be enabled 8am - 4pm Monday-Friday while there is typically operator coverage. During O2 this could be enabled 24x7. As users will be locked out of CDS until coordinating with the operator, it is expected that there will be increased support requests until users and operators get used to the workflow. Documents: T1500529 |
|
6120.html | 2016-08-24 13:56 | Activity: Add dolphin network card to PSL Add 3rd loop ISS Model changes to ISS and LSC | |
Older Permits | |||
6089 | 22:36, 30 August 2016 | Annulus Ion Pump Cables Pulled and Landed | 29405 |
6119 | 09:30, 30 August 2016 | GC core router will be removed and replaced | 29382 |
5986 | 09:56, 30 August 2016 | HEPI Pump Station #1 back in service | 29384 |
Sheila Kiwamu Terra
TITLE: 08/31 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Commissioning
INCOMING OPERATOR: None
SHIFT SUMMARY: Commissoining and an earthquake.
LOG:
Today the AIP cables for Beam Manifold 122, 136, 192 and 196 were landed.
BM122 and 136 go from the H1 input and output mode cleaner tubes to the vacuum rack located along the X-arm, also known as LX.
BM192 and 196 go from the diagonal input and output mode cleaner tubes to the vacuum rack located along the Y-arm, also known as LY.
These cables communicate the pressure at the annulus joints to the racks.
Note:Today while landing cables at the rack for BM192 and 196, power to PT180 was removed (2x), after landing the AIP wires power was restored to PT180.
Work permit 6089 was closed.

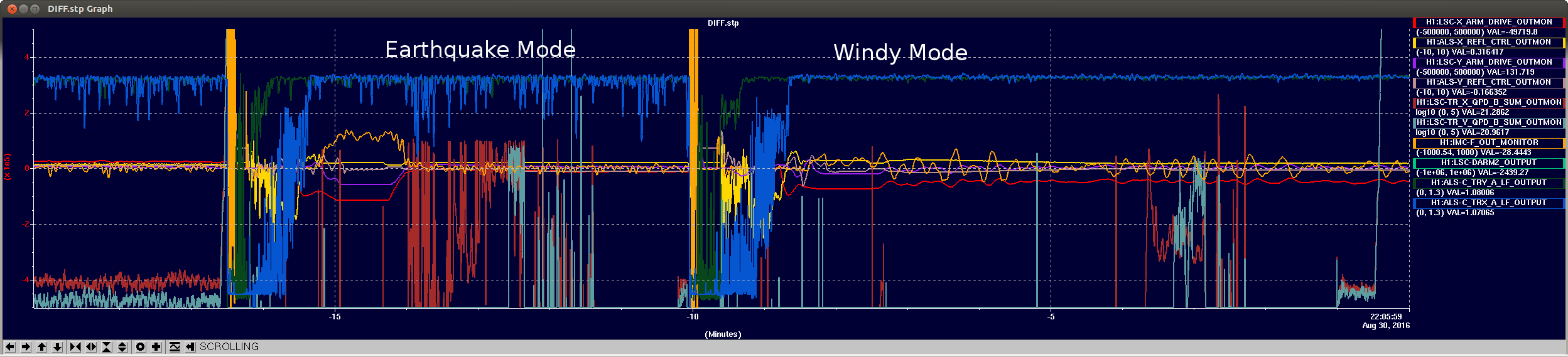

6.7 in Papua New Guinea shook us about for a few hours. We put the SEI configuration to EarthQuake and then tried locking after a handful of minutes and it looked like it was doing well, getting us to SWITCH_TO_QPDS before losing lock. When the seismometers looked low enough and we still could not lock, we tried switching back to WINDY and then we immediately noticed a difference and made it all the way to DC_READOUT.
Perhaps the EarthQuake configuration is not as good as we previously thought.
Jeff K, Chris Whittle

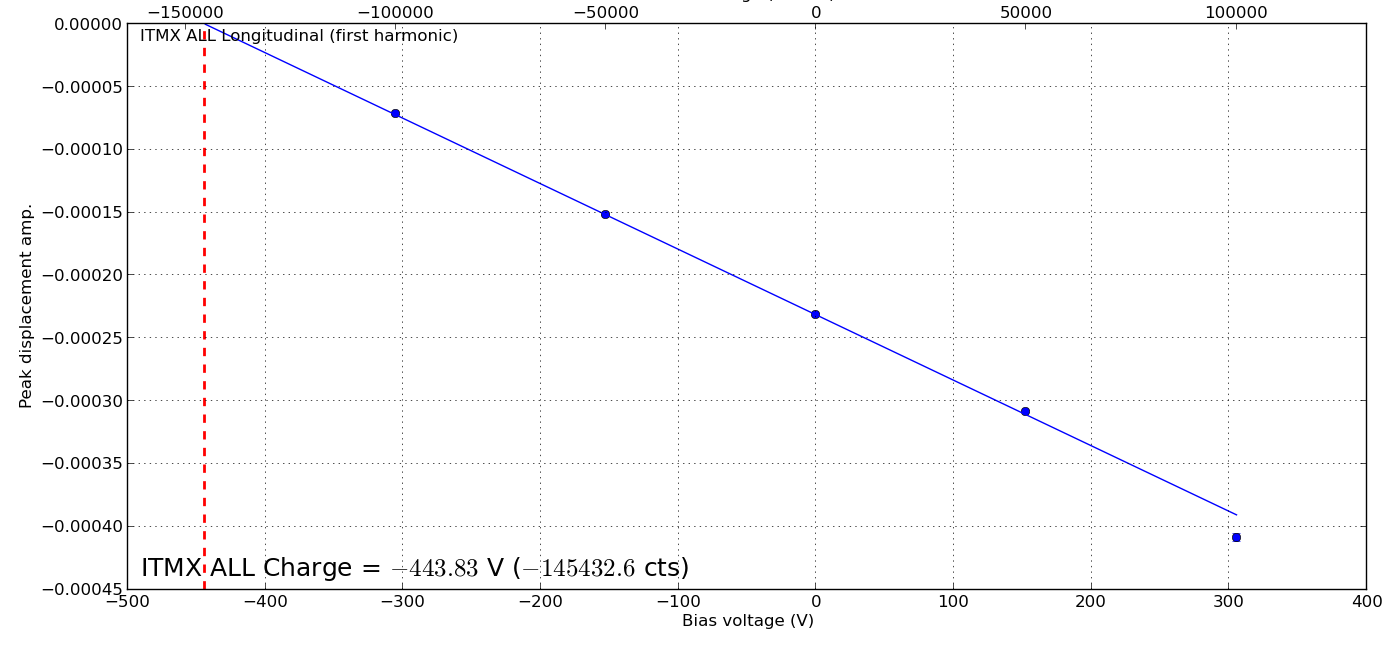

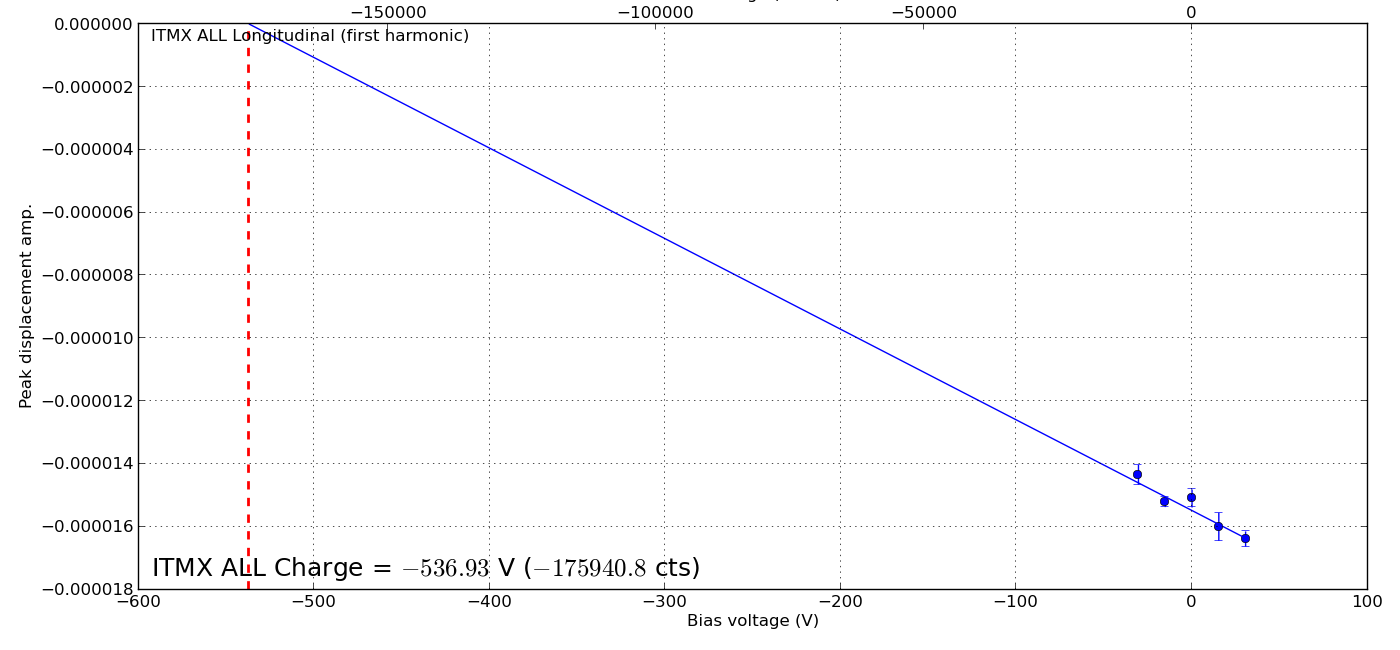

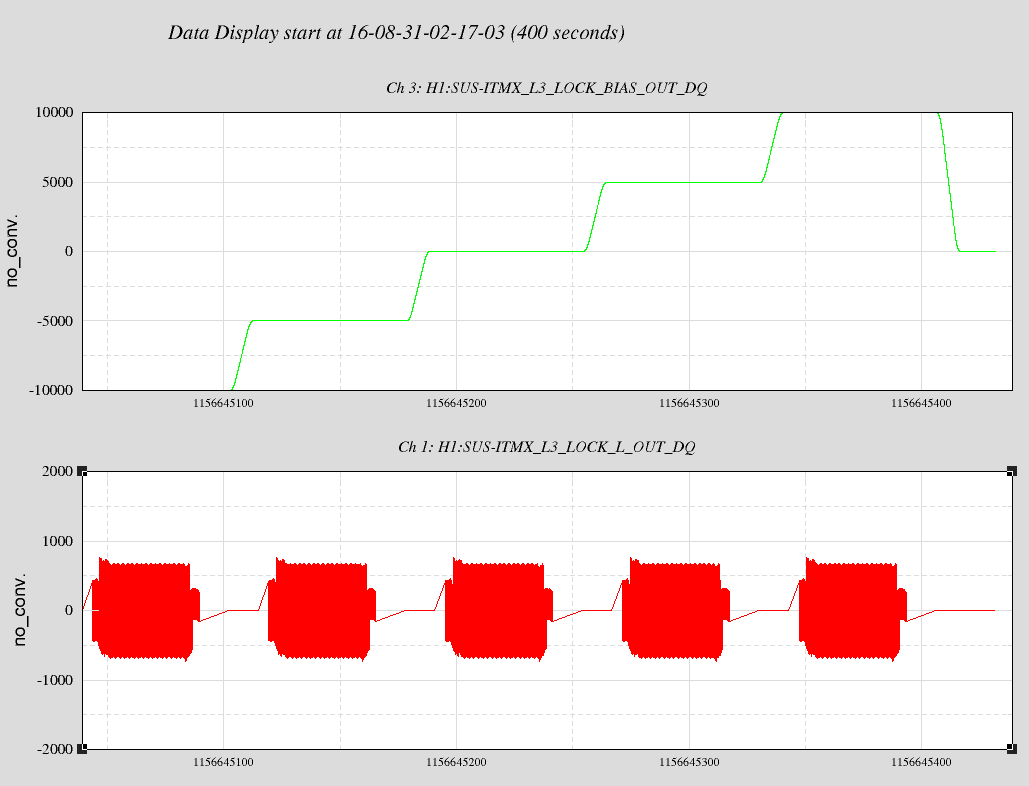

We used the interometer uptime to test the ITM charge measurement script by taking data for ITMX. With the previously used excitation frequency of 20.1 Hz being used for other measurements, we opted for an excitation at 11.5 Hz. At this frequency, we found an excitation amplitude of 1k counts to be sufficient for a good SNR. We have taken data at bias voltages between -10k and 10k counts, but have yet to perform post-processing.
We additionally tested whether flipping the analog voltage out switches to the quadrants had any effect on the locked interferometer. No effects were observed for flipping on/off quadrant voltages in various orders. This test was performed on just ITMX and with no actual output voltage to the quadrants.

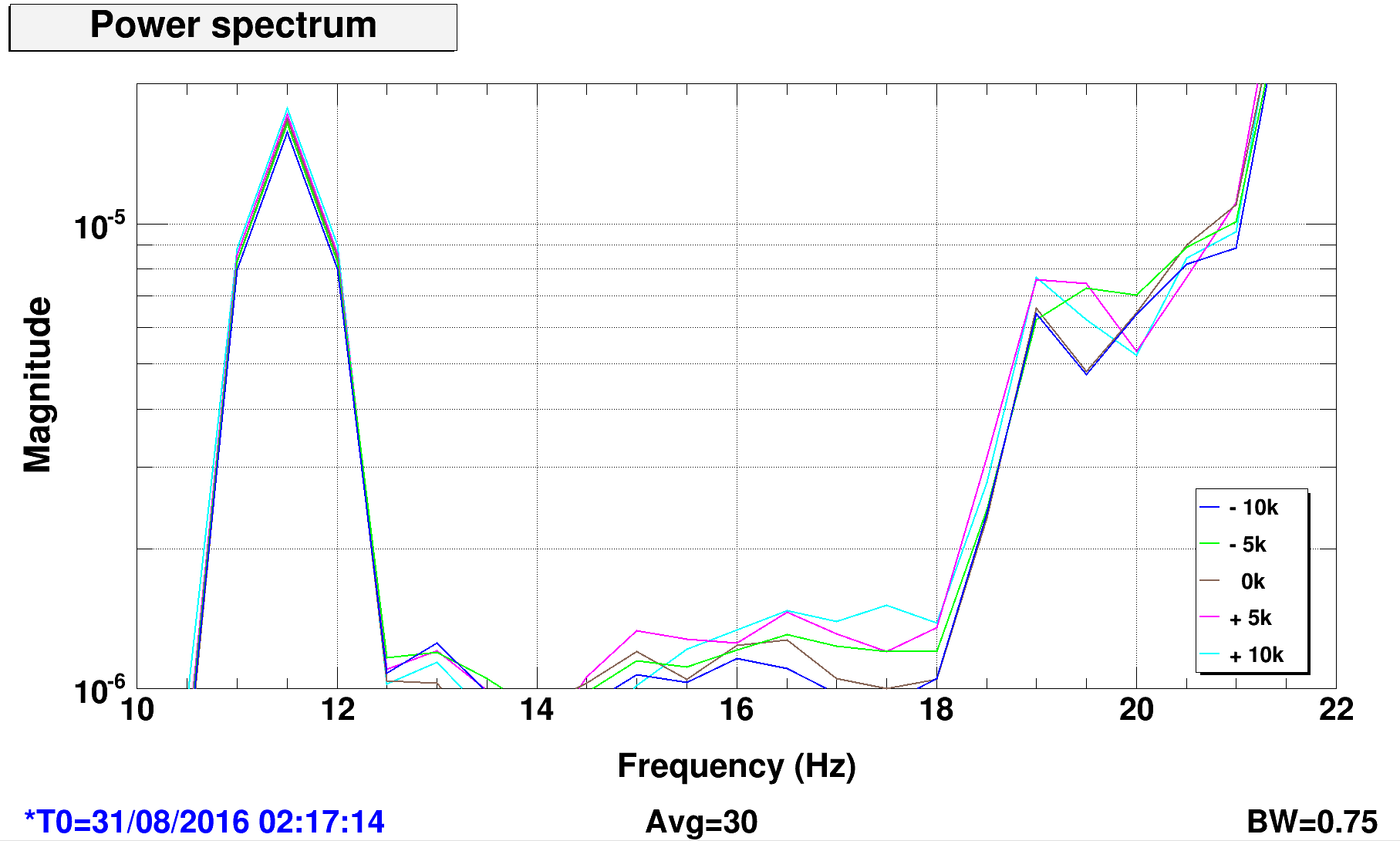

Plotting the PSD for each of the tested bias voltages (see here) shows almost identical peaks in DARM for each bias voltage. I confirmed that the voltages being driven at the time were as expected (see here).

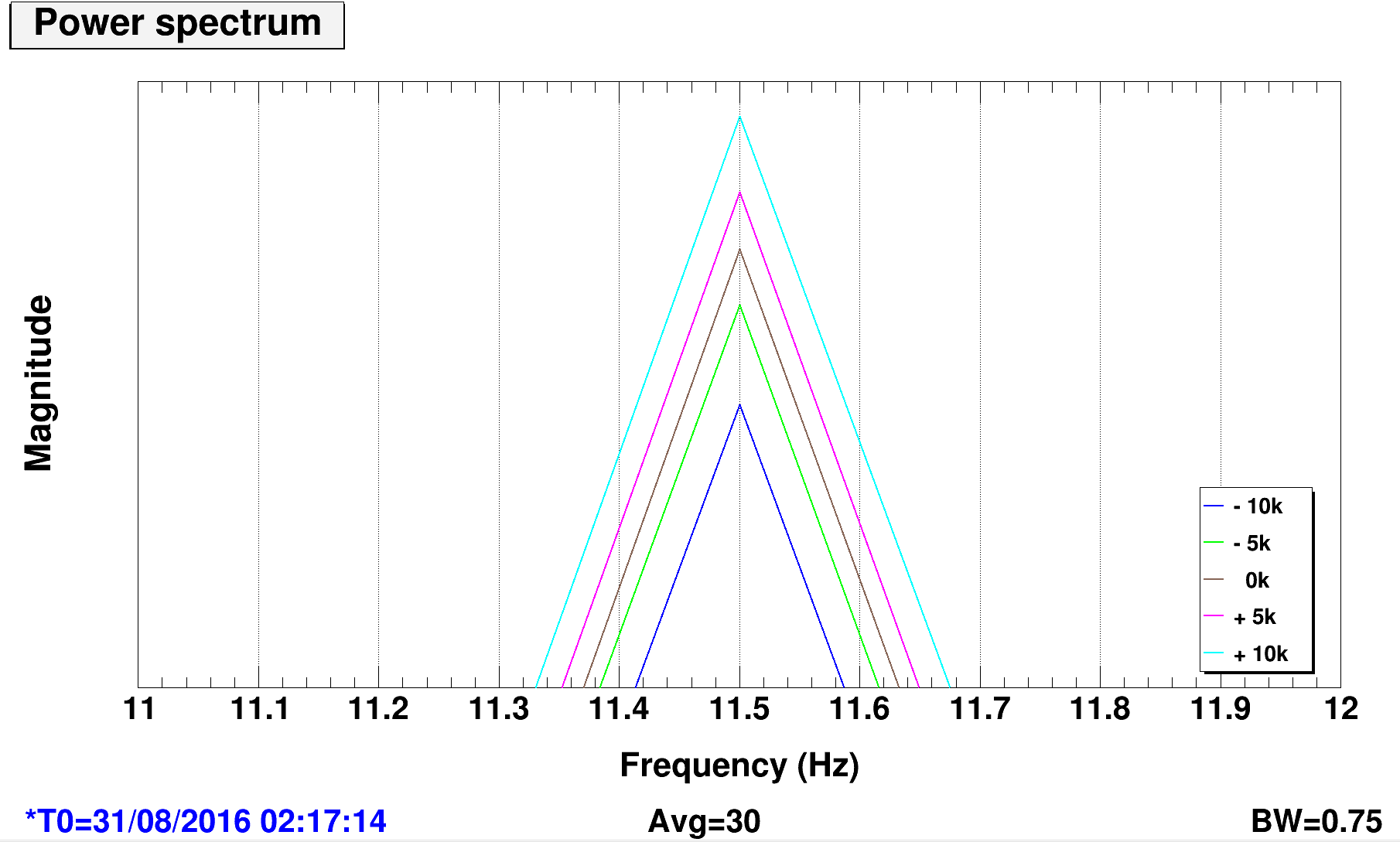

Zooming in on the PSD (see here) shows a peak ordering that seems consistent with a zero crossing at a large negative bias voltage. This is inconsistent with previous measurements, which found a zero crossing at 3k for ITMX. I will repeat these measurements later, covering the full range of bias voltages.
The same measurement was repeated sweeping over a larger range of bias voltages (up to ±100k counts). Attached are plots of the DARM response as a function of bias voltage for both sets of measurements. Both are consistent with a zero crossing at a large negative bias voltage.

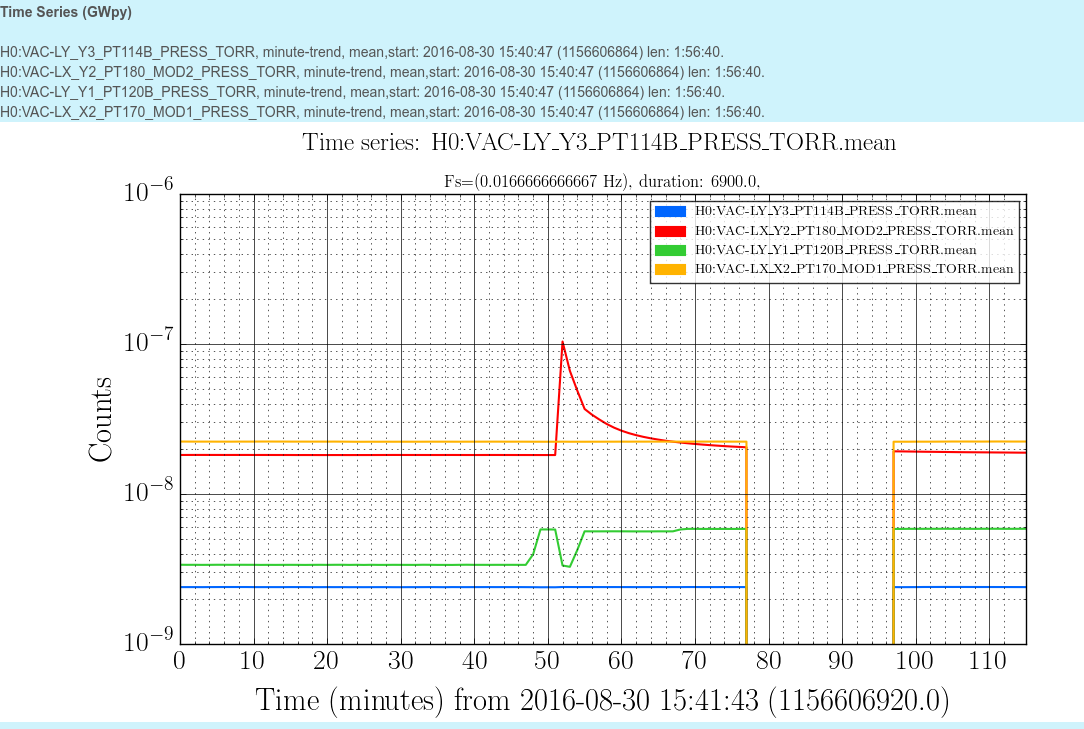

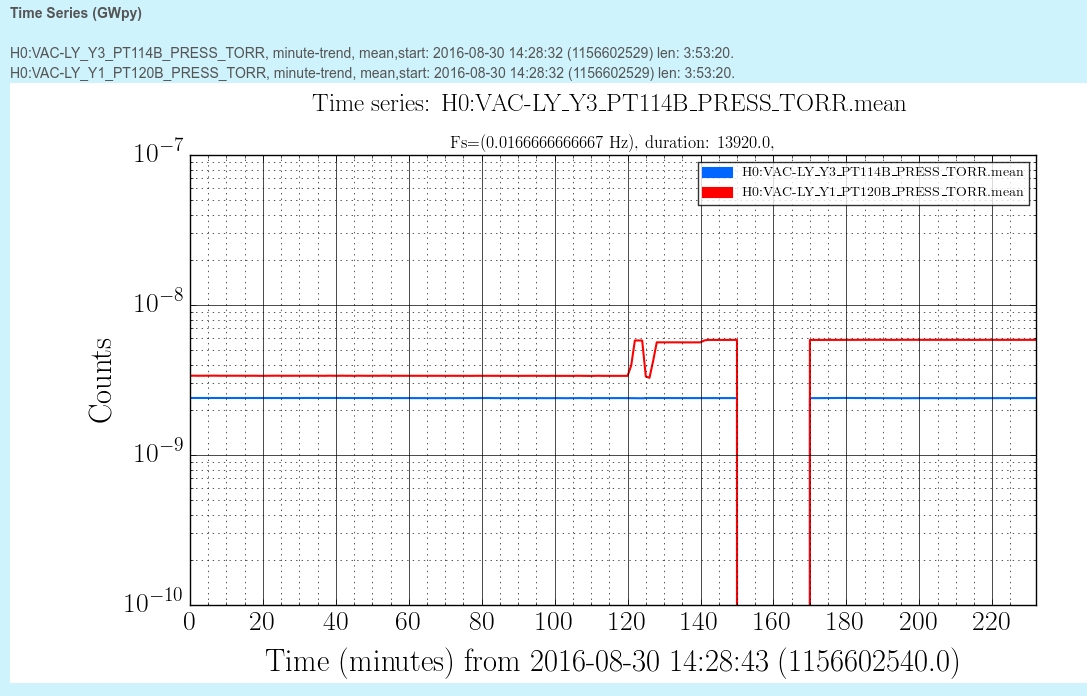

Expecting PT120 to be 3 x 10-9 torr -> Don't see logged activity to explain -> am on road and not able to trend data etc.
Probably gauge problem since 114 did not follow.
Some more gauges -
Pressure change was due to incorrect wiring of PT-120 during Beckhoff transition and was brought to light when Gerardo incorporated signal wiring for AIPs and needed to turn off PT180 this week. Pressure reading now is correct (and the same as it was in Q2 2016). We should check other gauges to be sure they are wired properly and reading correct pressures. Wearing laser safety glasses contributes to issues like this because visibility is compromised.
J. Kissel In short: The ETM ESD bias signs have now been flipped. After whining about it since ER9, I've commissioned why the bias sign flipping had caused the ALS DIFF control to go unstable (and subsequently DARM once we get onto ETMY): controlling the loop gain sign beyond the ESD linearization just doesn't work. As such, I've restored all settings for both test masses to their successful settings back in April -- namely that from LHO aLOG 26826. As such, we've returned to the aesthetically displeasing but functional method of controlling the DARM loop sign in the DRIVEALIGN matrix. We still have yet to assess the impact on PI damping. ---------------------- Explicit details for the next time this becomes confusing: ETMX (1) Changed H1:SUS-ETMX_L3_LOCK_INBIAS from -9.5 [V] to +9.5 [V] (2) Changed H1:SUS-ETMX_L3_DRIVEALIGN_L2L_GAIN from +1.0 to -1.0 H1:SUS-ETMX_L3_DRIVEALIGN_L2P_GAIN from +0.021 to -0.021 H1:SUS-ETMX_L3_DRIVEALIGN_L2Y_GAIN from +0.007 to -0.007 (3) Changed H1:SUS-ETMX_L3_ESDOUTF_LIN_FORCE_COEFF from -124518.4 to +124518.4 (4) Made sure all H1:SUS-ETMX_L3_ESDOUTF_??_GAIN fields are +1 always, all the time, as before. (No changes need to the calibration model since we don't use ETMX in our lowest noise state.) ETMY (5) Changed H1:SUS-ETMY_L3_LOCK_INBIAS from +9.5 [V] to -9.5 [V] (6) Changed H1:SUS-ETMY_L3_DRIVEALIGN_L2L_GAIN from +30.0 [V] to -30.0 [V] (7) Changed H1:SUS-ETMY_L3_ESDOUTF_LIN_FORCE_COEFF from +124518.4 to -124518.4 (even though ETMY doesn't use linearization). (8) Made sure all H1:SUS-ETMX_L3_ESDOUTF_??_GAIN fields are +1 always, all the time, as before. (9) Changed H1:CAL-CS_DARM_FE_ETMY_L3_DRIVEALIGN_L2L_GAIN from +30 to -30 (10) Changed H1:CAL-CS_DARM_FE_ETMY_L3_ESDOUTF_UL_GAIN from -1 to +1, where it should remain always, all the time, as before. (11) Changed H1:CAL-CS_DARM_FE_ETMY_L3_ESDOUTF_LIN_FORCE_COEFF from +124518.4 to -124518.4 (even though ETMY doesn't use linearization). I've also redone (essentially reverted) the DOWN state in the ISC_LOCK guardian with respect to the ETM ESD settings, such that steps 2-3, and 6-11 are done automatically if a user does steps 1 and 5. Once we figure out the impact on PI damping, we'll code these up in the DOWN state of the ISC_LOCK guardian as well. Finally, I've accepted these changes into the H1SUSETMX down.snap (to which its safe.snap is a soft link) H1SUSETMY down.snap (to which its safe.snap is a soft link) H1CALCS safe.snap and OBSERVE.snap. SDF systems.
I have flipped PI ETM damping gain signs and confirmed successful damping many many times now. I've added a bias flip check to the SUS_PI guardian under the PI_DAMPING state; this will choose sign of gain based on sign of ETM bias.
Not that this is a surprise or anything, but I was noticing that the light on the OMC trans camera changes noticeably as the IFO thermalizes.
I've temporarily increased the exposure of the camera to 7000 (usually 569). You can't see much at 2W, but you start to see it at 20W and 35W - again not so surprising. What is perhaps more interesting is the way the light there changes after we've been at 50W for a while. The titles of the attachments include how long we were at each power. All images were taken during the same lock, so the 2 min at 50W image is after 5 min at 20W, and then 5 min at 35W, so it's not straight 2W->50W on this acquisition.
Since the original images are .tiffs, I've included a screenshot of all 6 images. Top row, left to right: 2W, 5min@20W, 5min@35W. Bottom row, left to right: 2min@50W, 6min@50W, 30+min@50W.
From the picture @2min 50W, I could see that this mode is probably one of the 9th-order modes.
I made the attached HOM map, based on the transverse mode spacing (TMS) of this OMC, measured during the final test.
It is likely that this 9th order mode is +9MHz sideband.
In order to try to push this mode away from the resonance, you can tune the DC voltage of the OMC PZT.
There must be two or three carrier TEM00 resonances in the OMC PZT range (0~100V) as one FSR corresponds to ~40V of the PZT voltage.
Choose the lowest voltage one. The DC voltage of the PZT changes the curvature of an OMC mirror and then the TMS by about 10ppm/V.
(Increasing the PZT voltage will not give us a good solution. It causes 10th -45MHz (cyan) mode comes into the resonance.)
You may already be at the lowest resonance, or the lowering the operating PZT voltage may not be enough to push the resonance away.
If this resonant HOM is still problematic, we need to reduce the leakage 9MHz sidebands from the interferometer.
[Sheila, Jenne]
We now lock the OMC on the carrier with the lowest PZT voltage possible, which is about 20V. We used to be locking with about 60V. It's not yet clear if this is enough of a change - we need to do some intensity noise coupling measurements with both lock points.
Here are some camera images though. Recall that in the last alog (29395) we spent some time at medium PSL powers before going up to 50W, so the total IFO thermal state isn't the same when we first arrive at 50W. The top row of images is from one lock, and the second row is from a different lock, although the times since arriving at 50W are accurate in the image titles. Top left is 2W DC Readout, then just after getting to 50W, then 2 min and 5 min at 50W. In a different lock the second row shows 35 and 45 minutes after arriving at 50W.
Posting Jenne's pictures for comment above
Elli (remotely), Kiwamu
Today, I spent a few hours to get an SRC gouy phase measurement done. I was able to finish a first round of measurement.
The data will be analyzed by Elli remotely.
[The set up]

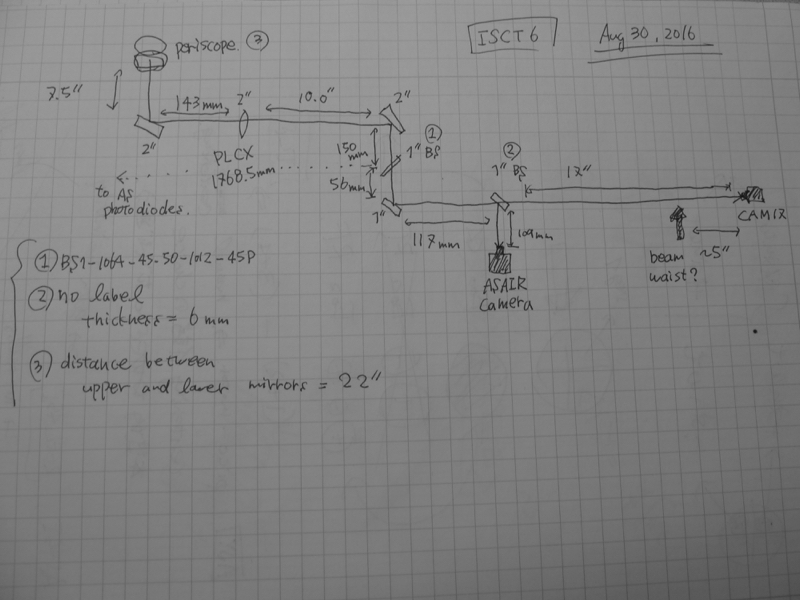

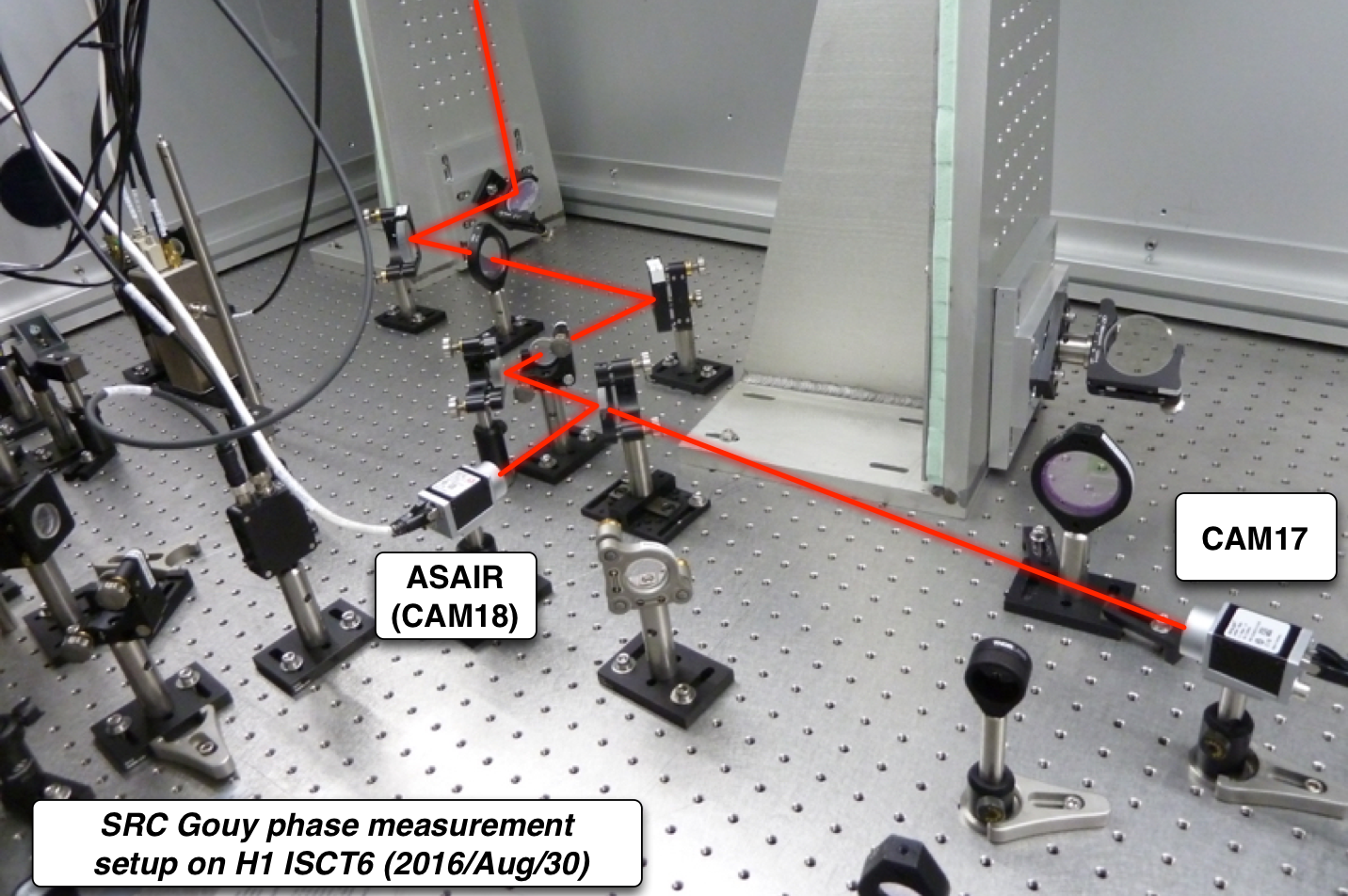

The first attachment shows a simplified layout of ISCT6 for the measurement.
It seems that the set up have been almost unchanged except for CAM17 which seems to be further away from the beam splitter in front by a couple of inches (see previous setup in 25510). This shift could be due to the re-alignment activity that Koji and I did 20 days ago (29030). We might have shifted the CAM17 position because it was in the way of the OMC reflection path. Nevertheless, the alignment of the beam onto CAM17 was already good from the beginning and I need a slight touch on a steering mirror to get the beam centered on CAM17.
Additionally, some more pictures are available at ResouceSpace.
[The measurement]
As opposed to the previous method, the method we tried today is an AC measurement or some kind of lock-in technique where we excite an optic (e.g. BS or PR2) at a non-zero frequency. Our hope is that it is going to get rid of undesired effects from slow drift of suspensions' alignment.
Laser power into IMC = 25 W
IFO configuration = single bounce with ITMY aligned (i.e. ITMX misaligned)
CO2Y = 287 mW
ITMY ring heater = 0.5 W (0.25 W for upper and lower segments each)
- The first measurement
Started at 18:10:42 UTC (Aug/30/2016)
Ended at 18:20:42 UTC (Aug/30/2016)
Excitation to SUS-BS_M1_OPTICALIGN_Y_EXC
Frequency 0.2 Hz
Excitation amplitude 5 urad
- The second measurement
Started at 18:28:20 UTC (Aug/30/2016)
Ended at 18:38:20 UTC (Aug/30/2016)
Excitation to SUS-PR2_M1_OPTICALIGN_Y_EXC
Frequency 0.2 Hz
Excitation amplitude 20 urad
[Detailed settings]
I adjusted the exposure time so that none of the pixels saturate while keeping high intensity counts. This ended me up with an exposure time of 700 (usec, I believe) for ASAIR (CAM18). Doing the same adjustment, I set that of CAM17 to 1000 usec. Also the followings are the camera settings that I used.
-CAM18 setting
[Camera Settings]
Camera Name = H1 AS Air (h1cam18)
maxX = 659
maxY = 494
Exposure = 3000
Analog Gain = 100
Auto Exposure Minimum = 150
Name Overlay = True
Time Overlay = True
Calculation Overlay = True
Do Calculations = True
Auto Exposure = False
Calculation Noise Floor = 25
Snapshot Directory Path = /ligo/data/camera
Frame Type = Mono12
Number of Snapshots = 1
Archive Image Minute Interval = 0
Archive Image Directory = /ligo/data/camera/archive/
[No Reload Camera Settings]
Base Channel Name = H1:VID-CAM18
Camera IP = 10.106.0.38
Multicast Group = 239.192.106.38
Multicast Port = 5004
Height = 480
Width = 640
X = 0
Y = 0
- CAM17 settings
[Camera Settings]
Camera Name = (h1cam17)
maxX = 659
maxY = 494
Exposure = 3000
Analog Gain = 100
Auto Exposure Minimum = 150
Name Overlay = True
Time Overlay = True
Calculation Overlay = True
Do Calculations = True
Auto Exposure = False
Calculation Noise Floor = 25
Snapshot Directory Path = /ligo/data/camera
Frame Type = Mono12
Number of Snapshots = 1
Archive Image Minute Interval = 0
Archive Image Directory = /ligo/data/camera/archive/
[No Reload Camera Settings]
Base Channel Name = H1:VID-CAM17
Camera IP = 10.106.0.37
Multicast Group = 239.192.106.37
Multicast Port = 5004
Height = 480
Width = 640
X = 0
Y = 0
[The data]
All the data that I took can be found in kiwamu.izumi/Public/measurements/20160830_SRCgouy/data/
The relevant time series are saved with dtt and therefore they are in xml format. The camera images were recorded for each measurement and they are saved in avi format.
By the way, there was one thing I did not understand.

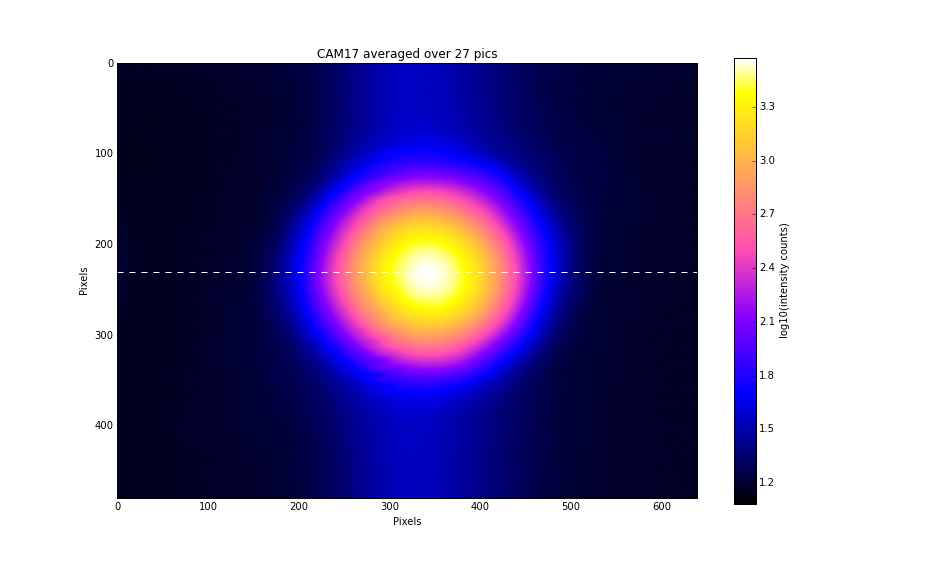

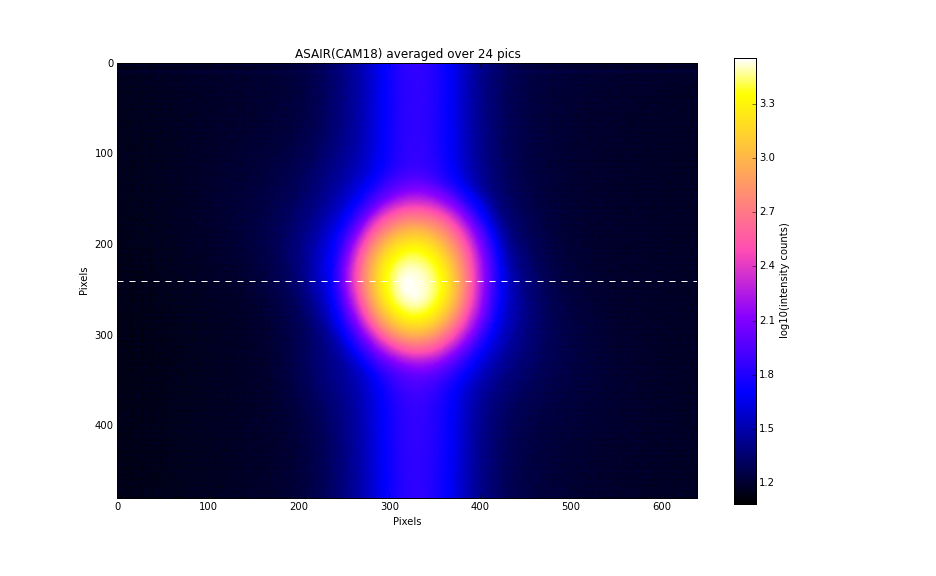

The beam size as seen by AS AIR was smaller than that seen by CAM17. According to a coarse beam scan with a laser card and my eyes, the waist location seems to be roughly 5 inches upfront of CAM17. This made me expect that the beam size would be larger at AS AIR, but it was not. To double-check the beam sizes, I checked the beam profile of the beams on AS AIR and CAM17 using their images. The below are the camera images.

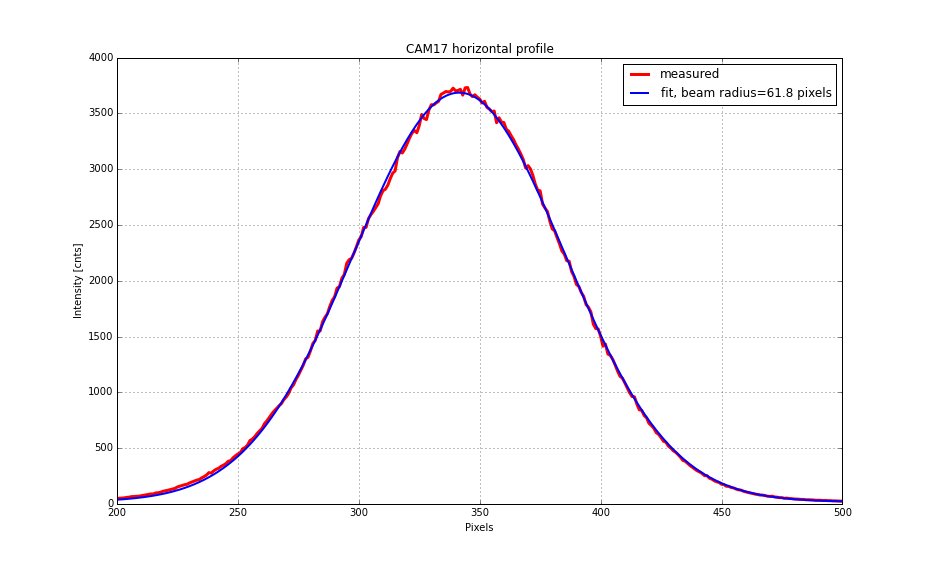

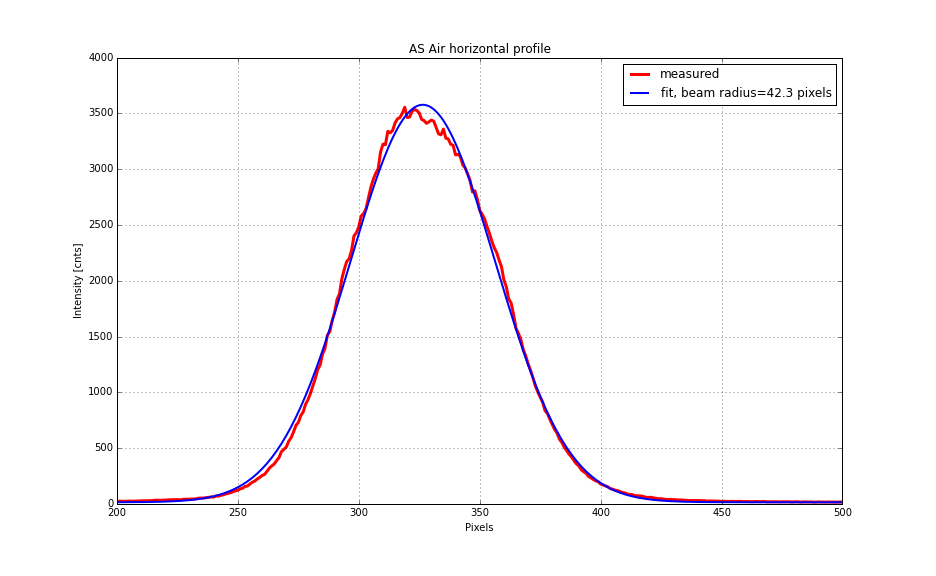

And the below are the horizontal profile of the above images (along the white dashed line).
According to my Gaussian fit, the beam radius on AS AIR is 43 pixels while the one on CAM17 is 62 pixels. So indeed the beam size on AS AIR is larger than CAM17 for some reason. I am not sure if this has been true in the past. Or maybe my coarse beam scan with a laser card was not precise enough.

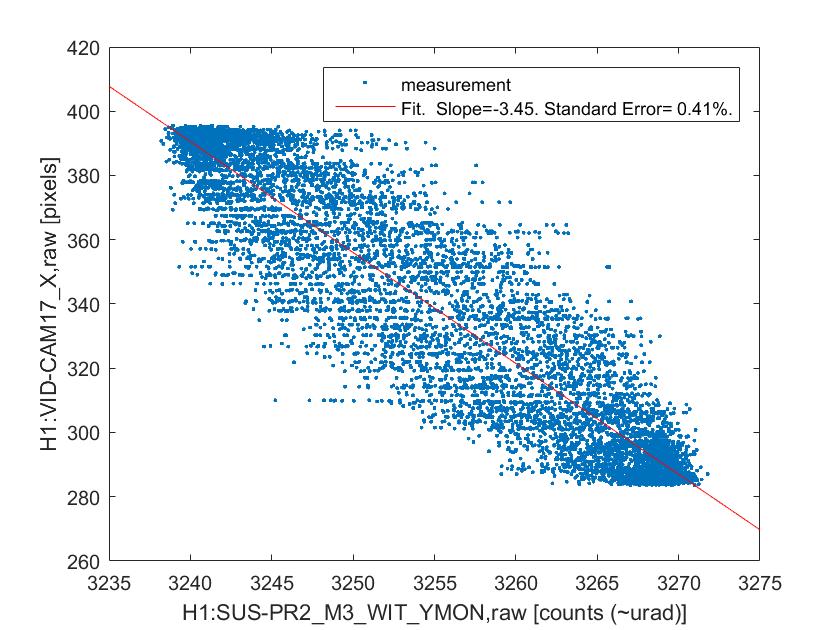

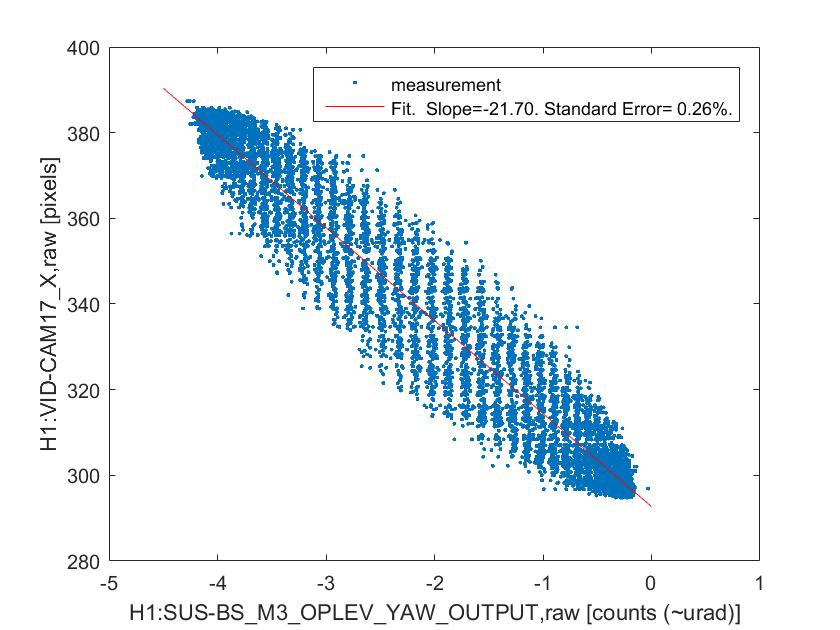

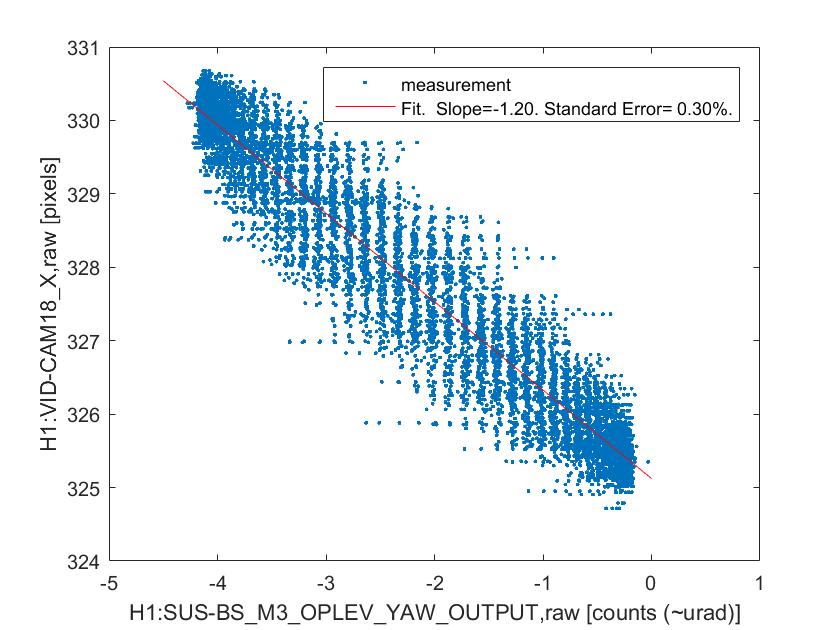

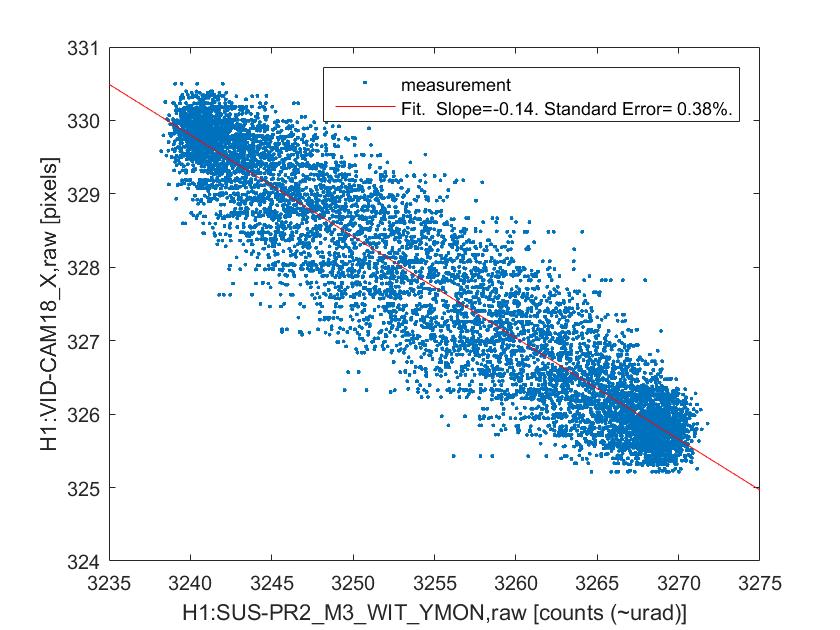

I've made some time domain plots of camera centroid location vs optic location. The camera centroid is calculated across the entire image, we can improve this by fitting a gaussian beam to the images. The optic location is the oplev readout for the BS exitation, and the M3 witness sensor for the PR2 excitation. Ive fit a linear fit to these plots, and calculated an error on the slope from the covariance matrix, see attached. I really should have done this analysis in the frequency domain for better signal-to-nosie, so I'll follow this up.
This measurement looked at spot motion on IST6 cameras for a straight shot through the SRC. We need a second measurement of the spot motion of the beam that has made a round trip of the SRC, and then we can calculate the SRC gouy phase. The errors on this first part of the measurement indicate we should be able to measure the gouy phase to +/-10deg (and with further data processing I think we can reduce these errors a bit), which could let us know if the gouy phase is way off the design value. Looking at the quality of this data, I think it is worthwhile doing the follow-up measurement.
That said, there are a few things about these plots I don't understand. FIrstly there is a lot of scatter for what I was expecting to be a linear relationship, what is going on there? Secondly, two of the graphs cam18BS and cam17PR2 have these sharp edges like some clipping was going on. Maybe this would be removed by using fitting rather than the image centroid to track the location of the beam?

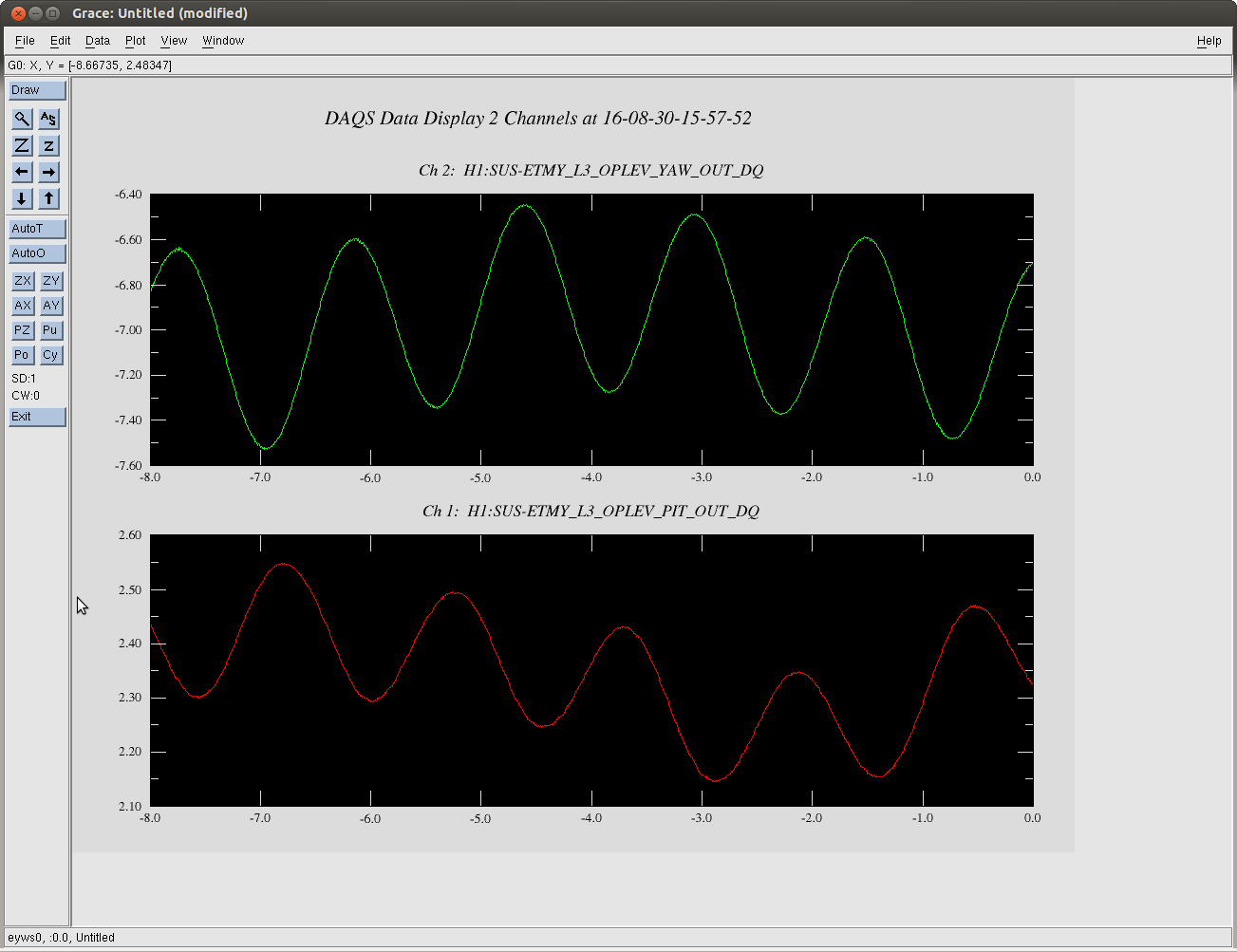

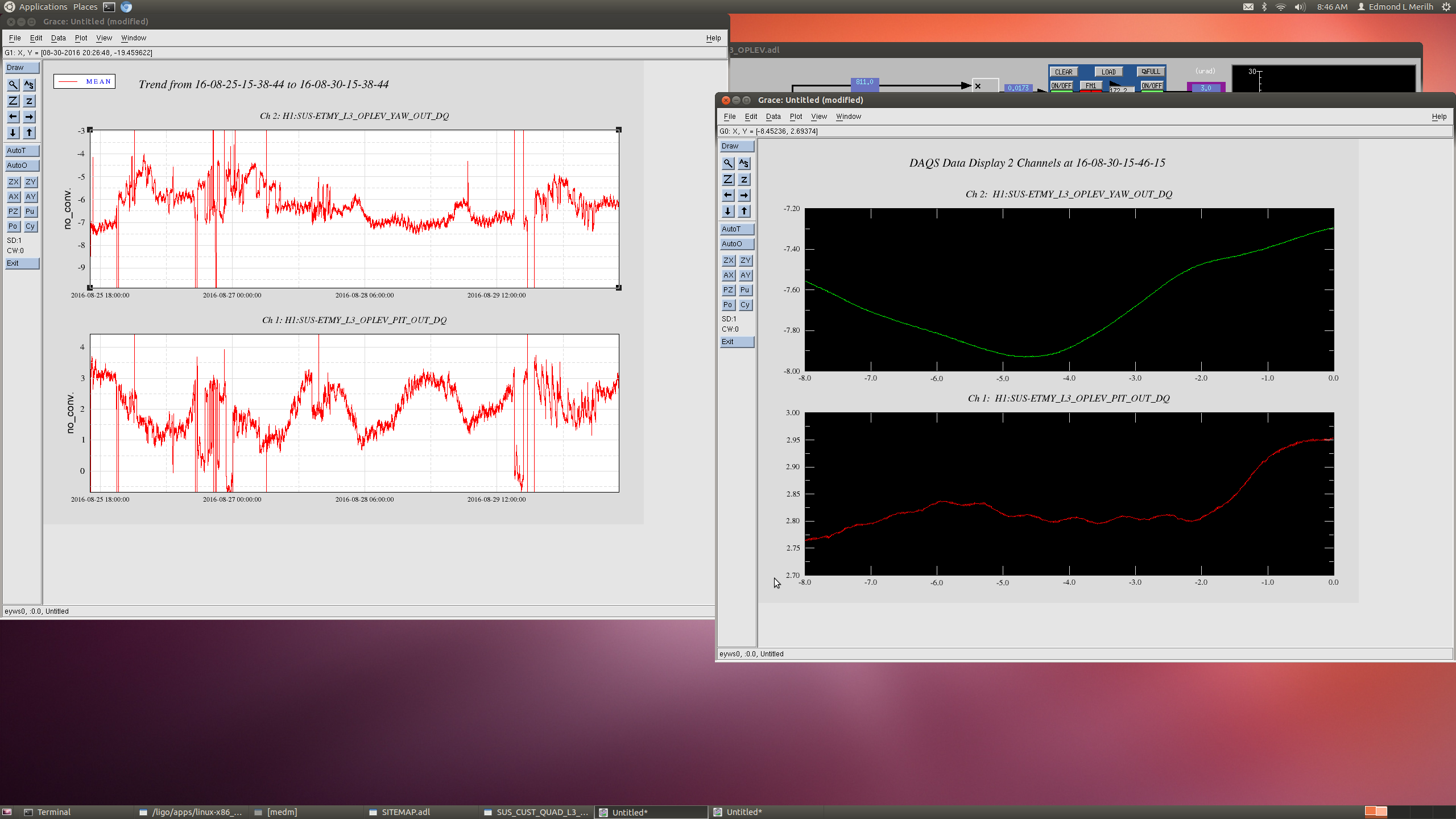

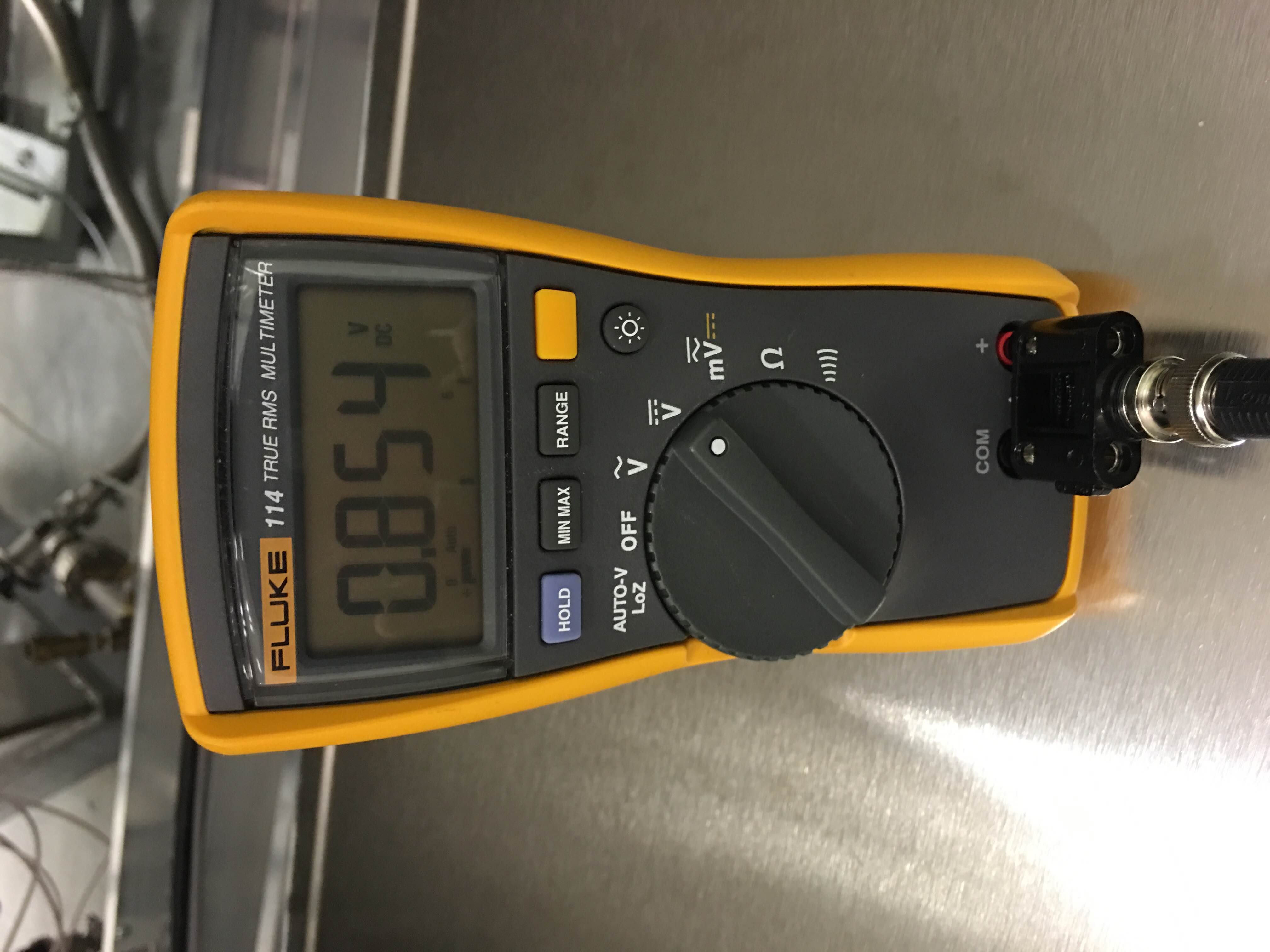

This morning at about 16:00UTC I made some adjustment to ETMY oplev as per WP #6123. I've included some photos of a 5day trend as well as a before and after 5 the AA reset. THe output power was increased by 7mV in an attempt to stop glitches. I don't know if the after reset pic is of any use as the suspension hadn't quite settled down.

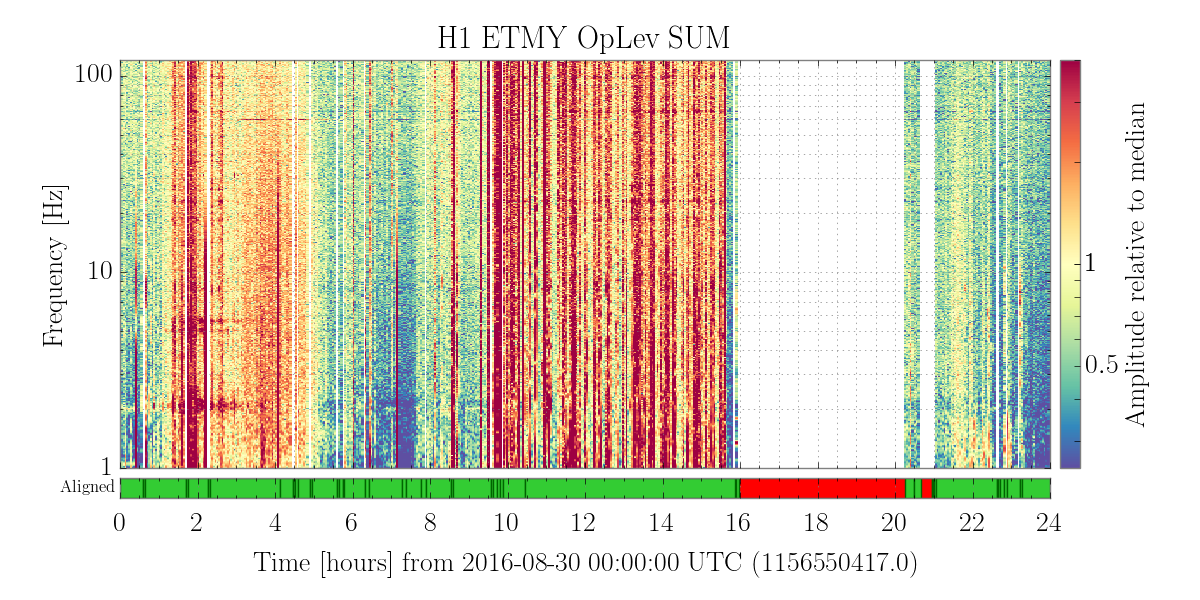

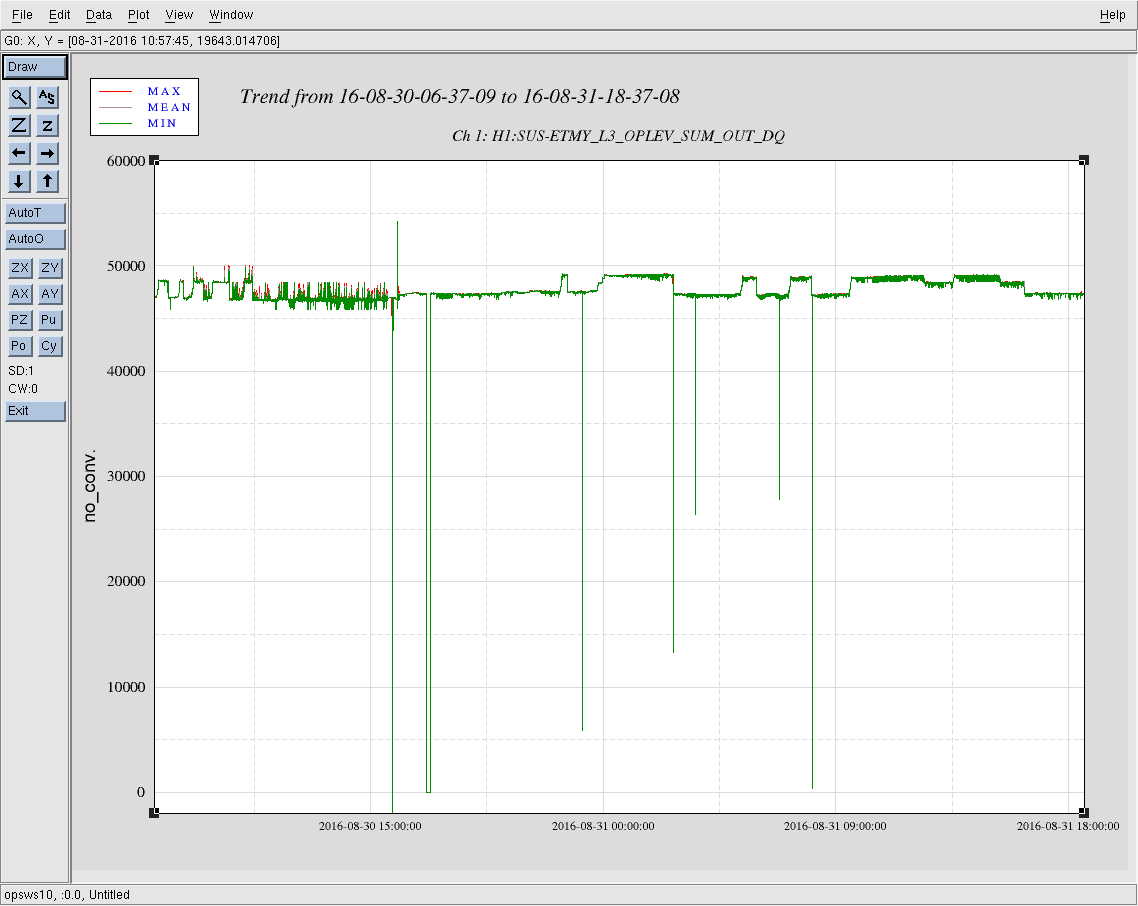

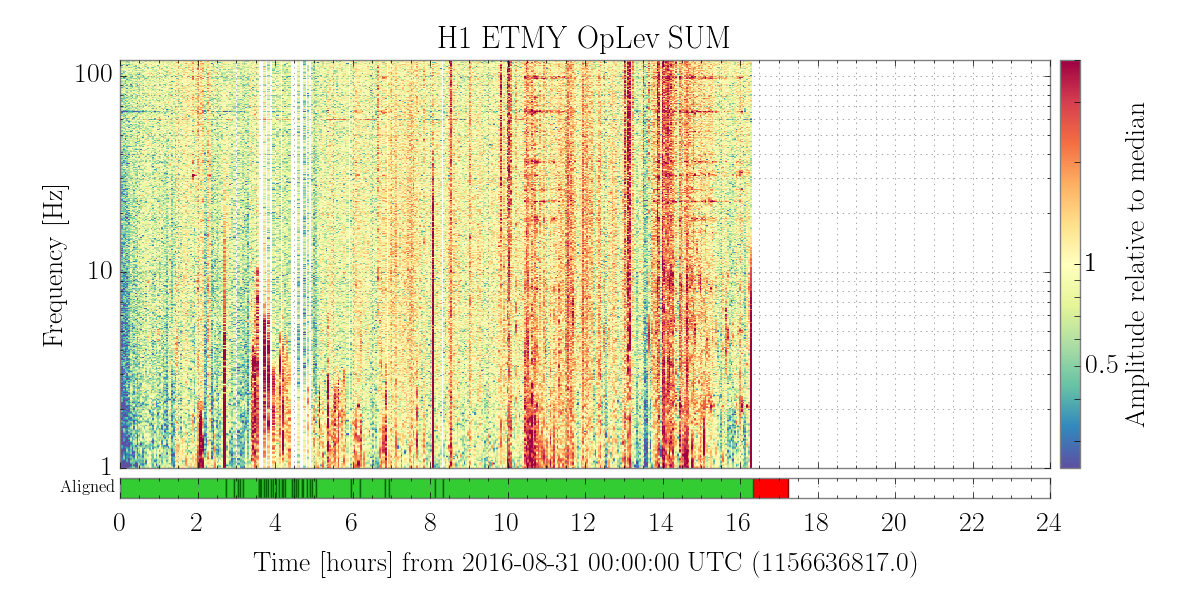

1st attachment is a 1.5-day second trend of the ETMy SUM signal. It is clearly seen that after Ed reset the oplev AA chassis the signal is much quieter. Residual noise is likely caused by laser glitches. The glitching has improved with Ed's adjustment of the laser power, but it appears a further tweak is necessary (see the last 2 attachments; 1st is before adjustment, 2nd is after. Taken from the DetChar summary pages.).

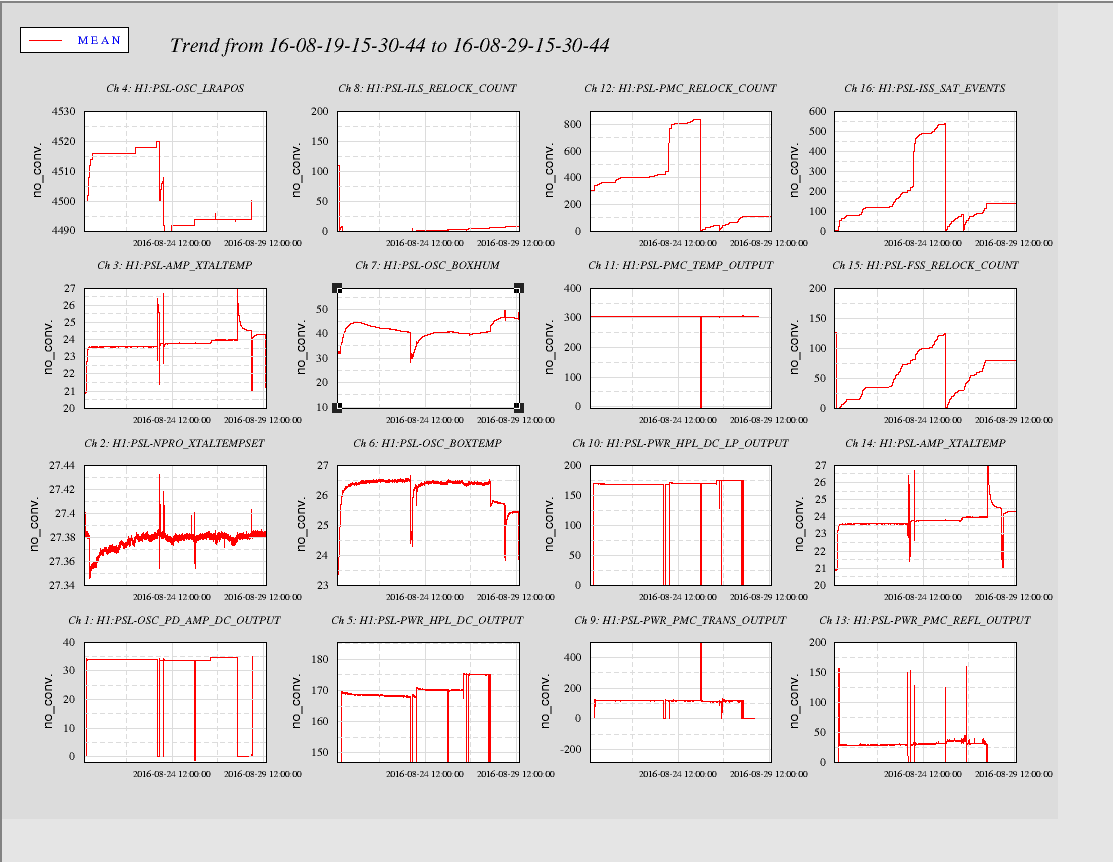

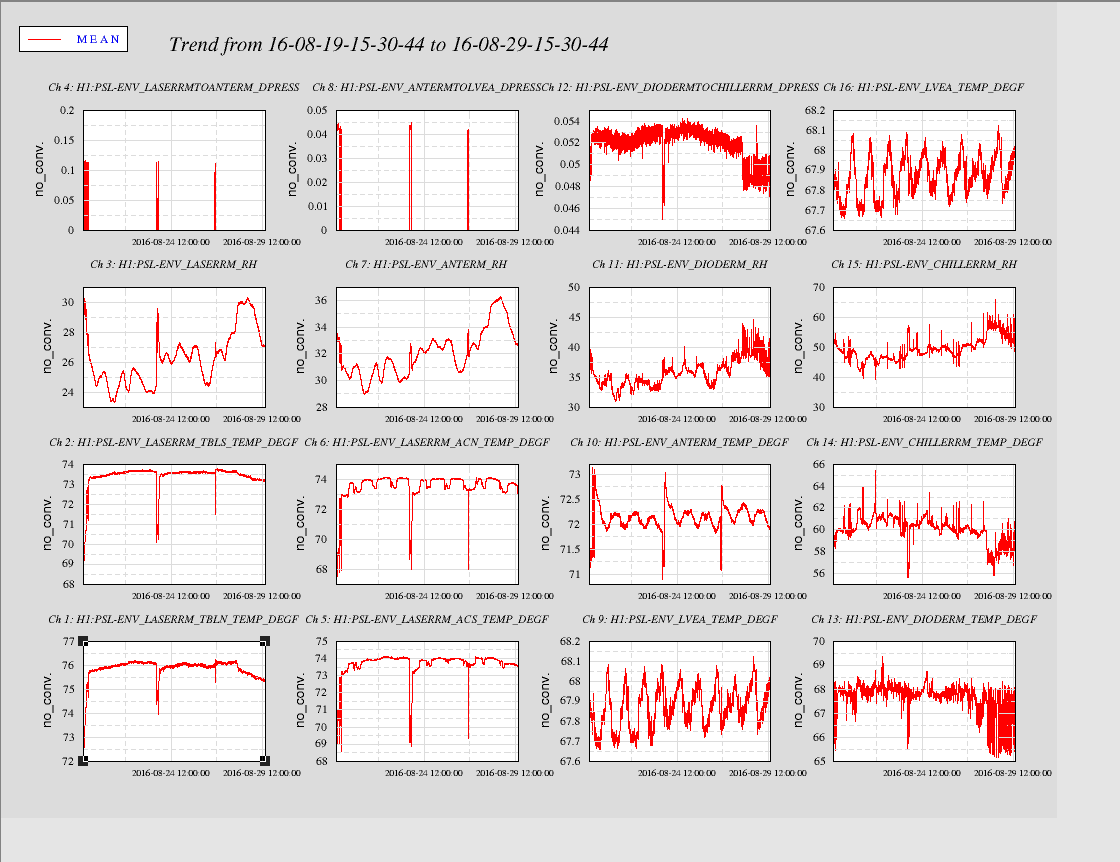

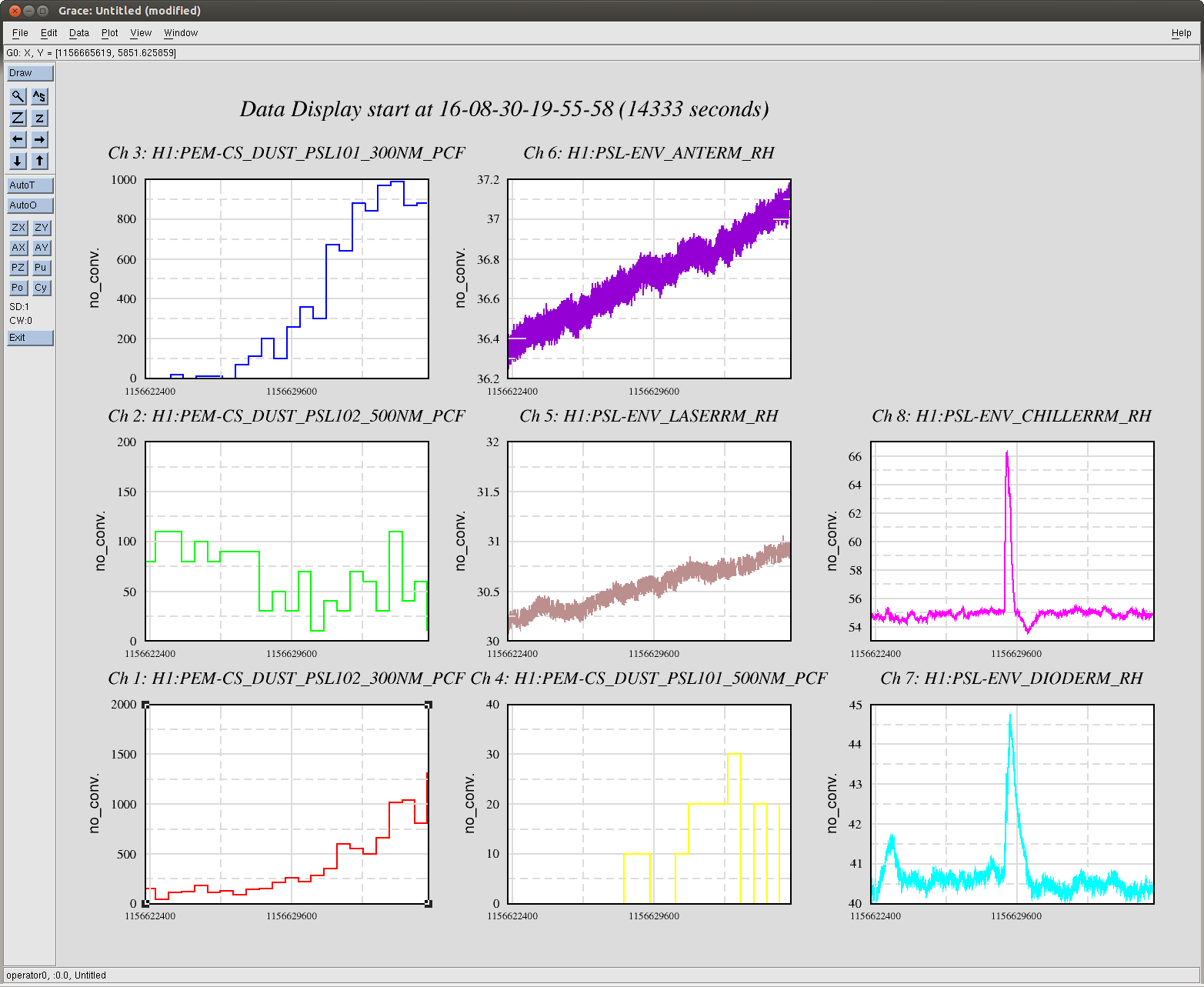

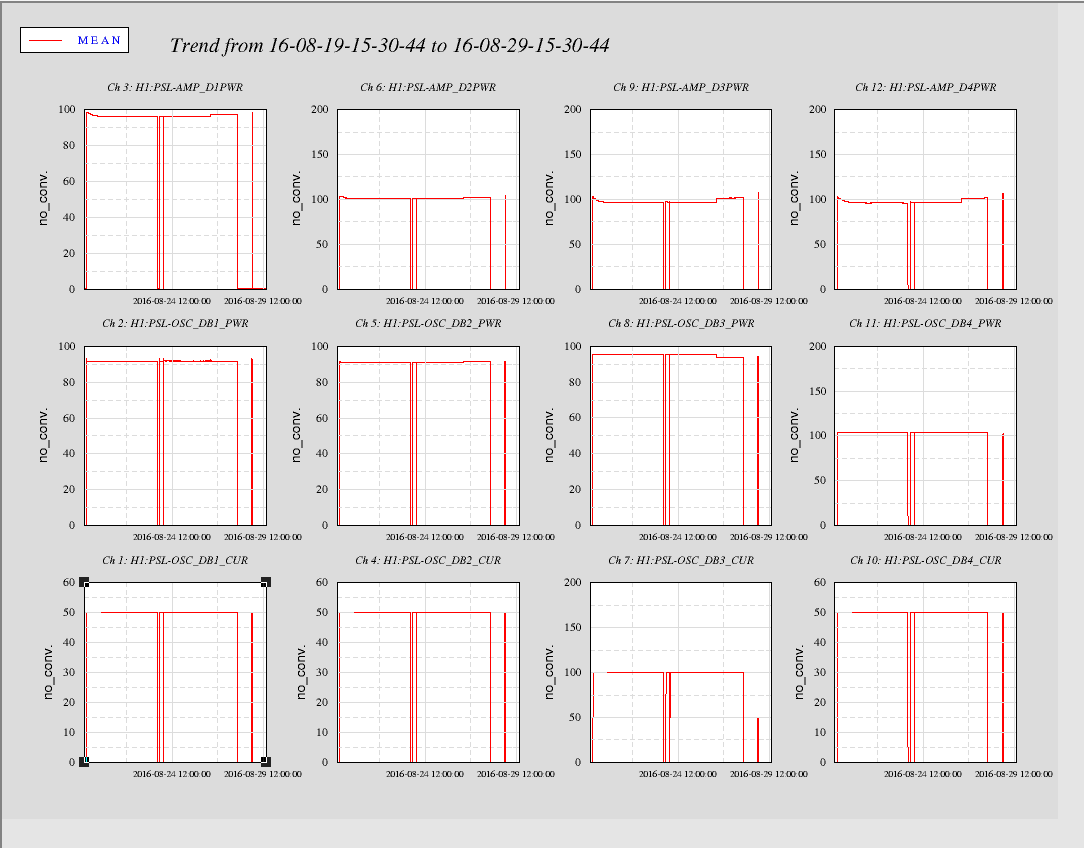

PSL Team currently investigating the lastest tripping of the LASER. The trends don't really show any strangeness until AFTER the interlock trip. 29356
