Lockloss @ 09/08 21:45UTC after 4.5 hours locked

Currently Observing at 158Mpc nd  have been Locked for 2.5 hours. Quiet day with nothing to report

Lockloss @ 09/08 15:21UTC after 17:39 locked

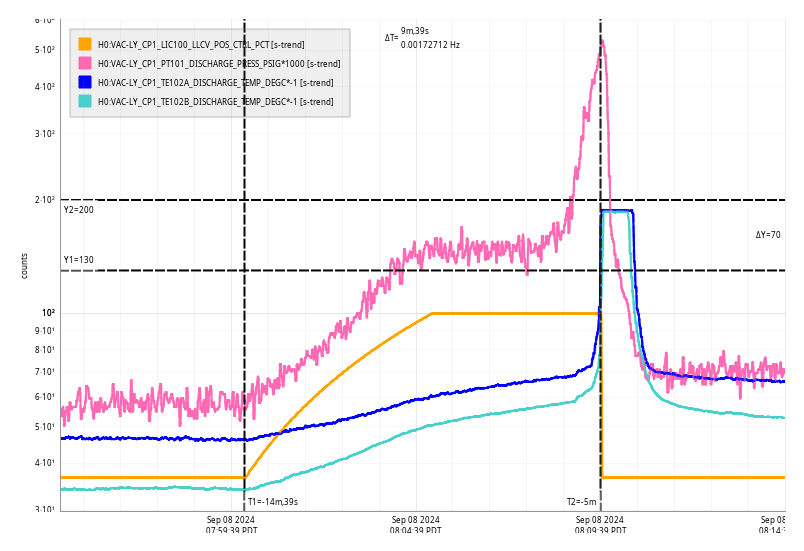

Sun Sep 08 08:09:39 2024 INFO: Fill completed in 9min 35secs

TITLE: 09/08 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Observing at 152Mpc
OUTGOING OPERATOR: Ryan S
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 9mph Gusts, 5mph 3min avg
    Primary useism: 0.01 μm/s
    Secondary useism: 0.08 μm/s
QUICK SUMMARY:

Observing at 158Mpc and have been Locked for almost 17 hours. Everything looking normal, but the dust monitor alarm for the optics lab was going off so I'll make sure we don't have more sand appearing in there.

TITLE: 09/08 Eve Shift: 2330-0500 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Observing at 152Mpc
INCOMING OPERATOR: Ryan S
SHIFT SUMMARY:

IFO is in NLN and OBSERVING as of 21:52 UTC (7hr 20 min lock) with some minor squeeze exceptions. Otherwise, very smooth day with 0 locklosses during my shift.

The squeezer has been acting up today:

23:04 UTC COMISSIONING: Squeezer was far from optimal and while still observing, we were only getting 120ish MPc range. As such, Oli and I went into temp comissioning to run the temperature optimization script before trying to relock it. While this was happening, Naoki called and said he thought it was a Pump ISS issue and then took hold of IFO to fix it. He was successful and we were back to obsering at our recent 155ish MPc. OBSERVING again as of 23:27 UTC

01:53 UTC COMISSONING: Squeezer unlocked, sending us into comissiong but within a few minutes it relocked again automatically. I was watching it do so. We were OBSERVING again as of 01:58 UTC.

Other:

We successfuly rode through a 6.0 mag EQ from Tonga. EQ mode triggered successfully.

Dust is high in the Optics Lab - I was told by Oli yesterday that there's a strange acummulation of sand by a dust monitor and that some measures were taken to remove the sand though perhaps more has built up. The 300NM PCF monitor is at RED alert and the 500NM PCF monitor is at YELLOW.

LOG:

None

TITLE: 09/07 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Commissioning
INCOMING OPERATOR: Ibrahim
SHIFT SUMMARY: We have been Locked for close to 2 hours. Not currently Observing because Naoki is trying to adjust some squeeze stuff since our range is really bad right now. Quiet day with one lockloss and easy relocking
LOG:

14:30UTC Observing and Locked for 7:47hrs
15:28 Plane passes overhead
15:38 Superevent S240907cg
18:30 Left Observing to run calibration sweep
19:04 Calibration measurements finished, back into Observing
19:36 Lockloss

20:20 We started going through CHECK_MICH_FRINGES for the second time so I took us to DOWN and started an initial alignment
20:41 Initial alignment done, relocking
21:41 NOMINAL_LOW_NOISE
    - OPO couldn't catch, I lowered opo_grTrans_setpoint_uW to 69 in sqzparams, reloaded OPO, locked the ISS, and then adjusted the OPO temperature a bit until SQZ-CLF_REFL_RF6_ABS was maximized. Accepted new temperature setpoint and went into Observing
21:52 Observing
23:04 Left Observing to run sqz alignment

TITLE: 09/07 Eve Shift: 2330-0500 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Observing at 136Mpc
OUTGOING OPERATOR: Oli
CURRENT ENVIRONMENT:
    SEI_ENV state: SEISMON_ALERT
    Wind: 13mph Gusts, 6mph 3min avg
    Primary useism: 0.04 μm/s
    Secondary useism: 0.09 μm/s
QUICK SUMMARY:

IFO is in NLN and OBSERVING as of 21:52 UTC

We have another installment of transfer functions for the BBSS. These were taken on August 30th and results can be found in $(sussvn)/BBSS/X1/BS/SAGM1/Results/2024-08-30_2300_tfs/ and I've attached the pdf. We've been dealing with the mystery of the F1 OSEM on M1 drifting downwards sometimes (see 79941 - very important info), and through we believe that the drift does not affect the transfer functions, we still want to make it clear that this measurement was taken shortly after adjusting for the drift, and over the next few days we confirmed that it was still drifting down. We also did a comparison by plotted this measurement set next to the set from July 12(79181), which was close to when the new (shorter by 9mm) wire loop was installed, and which was a time where we did have F1 drift, although in that case the measurements were taken over a week after F1 started the drift, so it had already travelled most of the way down that it was going to travel (drifts down in an exponential decay-like fashion). I also added the measurements from back in January when we completed the first iteration75787. It's interesting to see how the July and August Pitch TFs line up with each other around 1Hz as compared to the January measurement and the model. The location of this peak depends heavily on the distance between the M1 blades and the center of mass of M1, so this shift makes sense since the M1 blade heights have been changed since the initial build in January, and the current model doesn't yet reflect this change (comparison of how d1 changes the model with this measurement also plotted).

Lockloss @ 09/07 19:36UTC after nearly 13 hours Locked

Currently Observing right around 160Mpc and have been Locked for 12.5 hours. We dropped Observing a little while ago to run a calibration sweep, but we've been back Observing for over half an hour now.

Calibration measurements run. Before starting measurements we had been Locked for 11:45mins. calibration monitor ss

Measurements completed, but we got this error in simulines - not sure if this exact error is already known about but I thought it wouldn't hurt to attach it just in case.

Broadband (18:30 - 18:35UTC)

Output file:

/ligo/groups/cal/H1/measurements/PCALY2DARM_BB/PCALY2DARM_BB_20240907T183023Z.xml

Simulines (18:38 - 19:01UTC)

Output files:

/ligo/groups/cal/H1/measurements/DARMOLG_SS/DARMOLG_SS_20240907T183846Z.hdf5

/ligo/groups/cal/H1/measurements/PCALY2DARM_SS/PCALY2DARM_SS_20240907T183846Z.hdf5

/ligo/groups/cal/H1/measurements/SUSETMX_L1_SS/SUSETMX_L1_SS_20240907T183846Z.hdf5

/ligo/groups/cal/H1/measurements/SUSETMX_L2_SS/SUSETMX_L2_SS_20240907T183846Z.hdf5

/ligo/groups/cal/H1/measurements/SUSETMX_L3_SS/SUSETMX_L3_SS_20240907T183846Z.hdf5

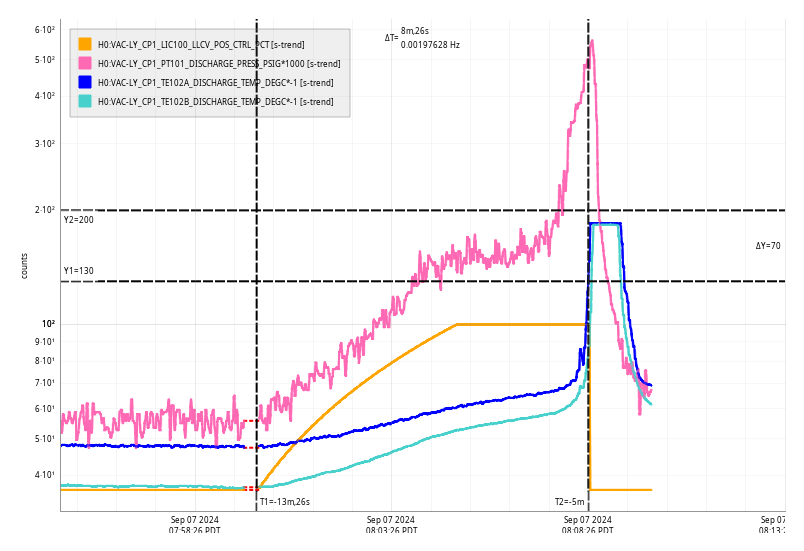

Sat Sep 07 08:08:26 2024 INFO: Fill completed in 8min 23secs

TITLE: 09/07 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Observing at 157Mpc
OUTGOING OPERATOR: Ryan S
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 5mph Gusts, 3mph 3min avg
    Primary useism: 0.01 μm/s
    Secondary useism: 0.09 μm/s
QUICK SUMMARY:

Currently Observing and have been Locked for almost 8 hours. Nice change compared to the past 24+ hours of short locks.

TITLE: 09/07 Eve Shift: 2330-0500 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Lock Acquisition
INCOMING OPERATOR: Ryan S
SHIFT SUMMARY:

IFO is ALIGNING (Initial Alignment)

We have been experiencing weirdly short locks <2hrs for the last 5 locks. While locking itself is easy and automatic, it seems that as we approach the 1.5 hr mark, the HAM6 ISI gets saturated (at least in my 3 locks in last day or so). Additionally, PI 24 has been ringing up but damping slower than in the last few shifts. Moreso, we're getting ALS locklosses with no immediately apparent reason (No EQs and no Microseism). I've had to do an intiial alignment for both my lock acquistions. The last one happened 30 minutes before shift-end but I plan to investigate it in tomorrow's shift.

LOG:

None

TITLE: 09/06 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Lock Acquisition
INCOMING OPERATOR: Ibrahim
SHIFT SUMMARY: Lots of locklosses but pretty easy relocks
LOG:

14:30 Observing and Locked for 30 mins
15:53 Lockloss after almost 2 hours locked https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=79946
16:06 Lockloss from TRANSITION_DRMI_TO_3F, starting initial alignment
16:29 Initial alignment done, relocking
17:20 NOMINAL_LOW_NOISE
17:23 Observing

18:51 Lockloss after 1.5 hours https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=79949
    - Had to restore ETMY and TMSY to values from previous lock's LOCKING_ARMS_GREEN, and then had to still touch them up to get ALSY to lock
20:14 Observing

22:27 Lockloss after 2.25 hours https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=79954
22:28 Started an initial alignment
    - Couldn't get to SRC_ALIGN, so I went to ACQUIRE_SRY and then moved SRM to minimize the error signals in SRC1. Then SRC locked and offloaded fine
22:56 Initial alignment done, relocking

23:42 NOMINAL_LOW_NOISE

Lockloss @ 09/06 22:27UTC after 2:13 hours locked. Not sure why these locks have been so short.

Ibrahim, Oli, Jeff, Betsy, Joe, Others

Summary:

• The BBSS Pitch Degree of Freedom is slowly drifting downwards in counts. This indicates a pitch instability in M1. We think it's the M1 Blade heights.
• The drift can be seen in Pitch only, showing up on the F1 OSEM only, the only OSEM above the center of mass on the face.
• We know it is not the electronics nor the OSEM itself. We took F1 out for a few days and there was no drift at its OLV.
• We know it's not the diurnal temp-sag which is day-to-day (as some prev. alogs believed)
• This is not a new issue and has happened consistently since the last RAL visit with one configuration exception (see below).

Relevant Alogs:

alog 79079: Recent Post-TF Diagnostic Check-up - one of the early discoveries of the drift and pitch instability.

alog 79181: Recent M1 TF Comparisons. More recent TFs have been taken (found at: /ligo/svncommon/SusSVN/sus/trunk/BBSS/X1/BS/SAGM1/Data on the X1 network). We are waiting on updated confirmation of model parameters in order to know what we should correctly be comparing our measurements to. We just confirmed d4 a few days ago following the bottom wire loop change and now seek to confirm d1 and what that means with respect to our referential calibration block.

alog 79042: First investigation into the BOSEM drift - still operating erroneously under the tmperature assumption.

alog 79032: First discovery of drift issue, originally erroneously thought to be part of the diurnal temperature driven suspension sag (where I though that blades sagging more than others contributed to the drift in pitch).

Hypothesis:

We think that this issue is related to the height of the blades for these reasons:

1. The issue was fixed when we lowered all blades from the calibration block's "nominal" or zero by -1.5mm with all 4 blades roughly close to this number (avg -1.5mm)
2. The issue came back when we attempted to fix the S-shaped M1 blade tip by correcting the extra swivel it needed to have in order to stay at the same height. (Joe recommendation to Betsy)
3. Oli and Jeff have a d1 investigation in alog 76071 overlays different P to P model TFs when the blade heights are above/below their physical D (called FD in the attached plots).
   1. Interestingly, there is a new mode at roughly 1.9Hz when d is above the model's physical D by +-4mm. This mode is confirmed to not be cross coupling. Our recent TFs don't have them but TFs with the drift earlier do - I think this is a red herring.
   2. More clearly, the attached file shows overlays from different d1 sizes (Pitch).
4. While the F1 blades are at an avg height of -1.5mm below nominal calibration block height, the spread between the individual blades is higher than before, with the problematic "soft/S" blade measuring at only -1mm. There's another blade at -1.8mm. This is the only difference between our current drifty -1.5mm avg and the non-drifty -1.5mm avg is the spread of each indiv. blade height. At this point, I'm interested in seeing how the spread of individual blades affects the drift effect in addition to just an everage d1 drop - could it be a combo of these effects? We can investigate the latter by playing with the model and the former by emperically measuring the drift itself.

Our Units:

We need to know how the calibration block converts to model parameters in d1 and whether that's effective or physical d1 in the model. Then we can stop using referential units.

To further investigate, we have questions:

1. What is the "sensor calibration block" calibrated to? Physical D (Center of Mass to blade tip) or Effective D?  What are these values? We just want to find a model way to test parameters rather than the cal block or the shim methods to our model since right now we're going off potentially old information.
2. Could differences between the 4 individual blades be causing a drift this stark? (i.e. it's not a net d1 height issue but a blade to blade height issue or a combo). I'm thinking this may be the case since we have two equal net heights (-1.5mm avg) with the only difference being the spread of the indiv. heights.

Attachments:
