Samantha Callos, Genevieve Connolly, Robert S.

The 24-36 Hz region of DARM has a high density of vibration peaks, possibly coupling through the HAM1 to CHARD to DARM path. The plot shows several periods over the run, including the April-high sensitivity period that is also used on the DARM figure of merit.  Over the past summer Genevieve, Sam and I have identified several of these peaks (identifications to come) and they tend to be pumps, fans, and other typical motor-driven sources. The coupling of most of the peaks seems a little higher at the end of last week than over other periods in the run, though the 30th was considerably better than the 29th.

There is a bump disturbance in the H1 strain spectrum that is degrading the noise in the vicinity of the Crab pulsar. Attached are zoomed-in ASDs from recent dates (drawn from this CW figure of merit site). That band was pretty stable in O4a, but has been unstable in O4b. I can see hints of the bump as early as the end of March 2024 (see calendar navigation to sample dates).

I have poked around in Fscan plots and tried the handy-dandy Carleton coherence mining tool, but saw no obvious culprit PEM channels. Is there a new motor running somewhere (or an old motor with a drifting frequency)?

Attachments:

Sample ASD snippets from August 1, September 1 & 2, along with a snippet from the end of O4a on January 16.

The red curve is from one day of averaging, and the black curve is the run-average up to that date.

The vertical bars show the approximate band of the Crab pulsar during the O4 run (taking into account Doppler modulations and long-term spin down).

Lockloss @ 09/04 15:24UTC from unknown cause

There is a new vacuum section on the CDS Overview (see attached). The new widget (medm.ligo_system_status()) combines the related display button and the RED/GREEN LED into a single rectangular block.

Clicking on any of the blocks (VACSTAT, VAC SDF, CP1 FILL) opens the related display for that system.

The colour of the block gives the system status: BLACK text on GREEN block = Nominal, WHITE text on RED block = non-nominal or error.

I plan on replacing all the LED+related pairs with this new widget on the overview.

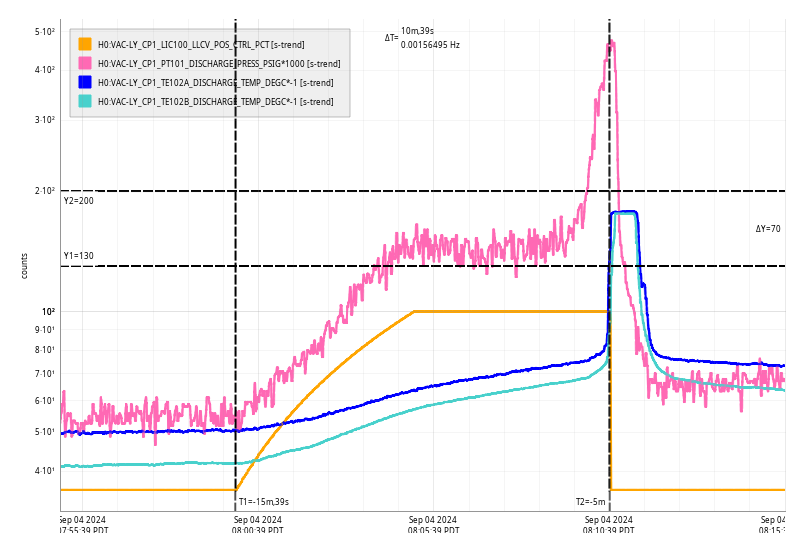

Wed Sep 04 08:10:39 2024 INFO: Fill completed in 10min 36secs

TITLE: 09/04 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Observing at 145Mpc
OUTGOING OPERATOR: Ryan S
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 2mph Gusts, 1mph 3min avg
    Primary useism: 0.01 μm/s
    Secondary useism: 0.08 μm/s
QUICK SUMMARY:

Observing and have been Locked for over an hour. Wind is low and everything else looks good.

TITLE: 09/04 Eve Shift: 2330-0500 UTC (1630-2200 PST), all times posted in UTC
STATE of H1: Observing at 146Mpc
INCOMING OPERATOR: Ryan S
SHIFT SUMMARY:

IFO is in NLN and OBSERVING as of 01:40 UTC (3hr 20 min lock)

Very calm shift with an uknown-cause lockloss at the very start, Recovery required initial alignment but was otherwise fully automatic.

PI 24 rang up twice, once alerting verbal but both times was able to get damped relatively quickly. This occured in within the first hour or so of NLN.


LOG:

No LOG

Closes FAMIS 26006. Last checked in alog 79772.

ITMY ST1 and ST2 (page 9) are markedly less noisy in the 1-10Hz range. A 1.1Hz peak in ITMY ST1 is a bit higher magnitude than it was last week. No other week to week changes.

Oli, Ibrahim

Closes FAMIS 28369. Last checked in alog 78994. These have skipped a few weeks due to the vent (inability to lock).

Analyses completed by Oli and plots/alog by me. I have been told that ITMX's plot weirdness is known, looked into and/or expected.

Closes FAMIS 28452. Last checked in alog 28451

The plots attached show H1 coming back after the emergency vent. Other than that, trends look normal.

TITLE: 09/03 Day Shift: 1430-2330 UTC (0730-1630 PST), all times posted in UTC
STATE of H1: Observing at 142Mpc
INCOMING OPERATOR: Ibrahim
SHIFT SUMMARY: Currently Observing and have been Locked for 4.5 hours. We were aiming to stay locked during today's maintenance period, we did lose lock but it was just from turning the BRS for the end stations off. Relocking took a while because of maintenance going on but there wasn't much intervention needed and we were back locked much earlier than we would have been if
LOG:

14:30 Locked for 2 hours and running PEM measurements
14:42 Observing

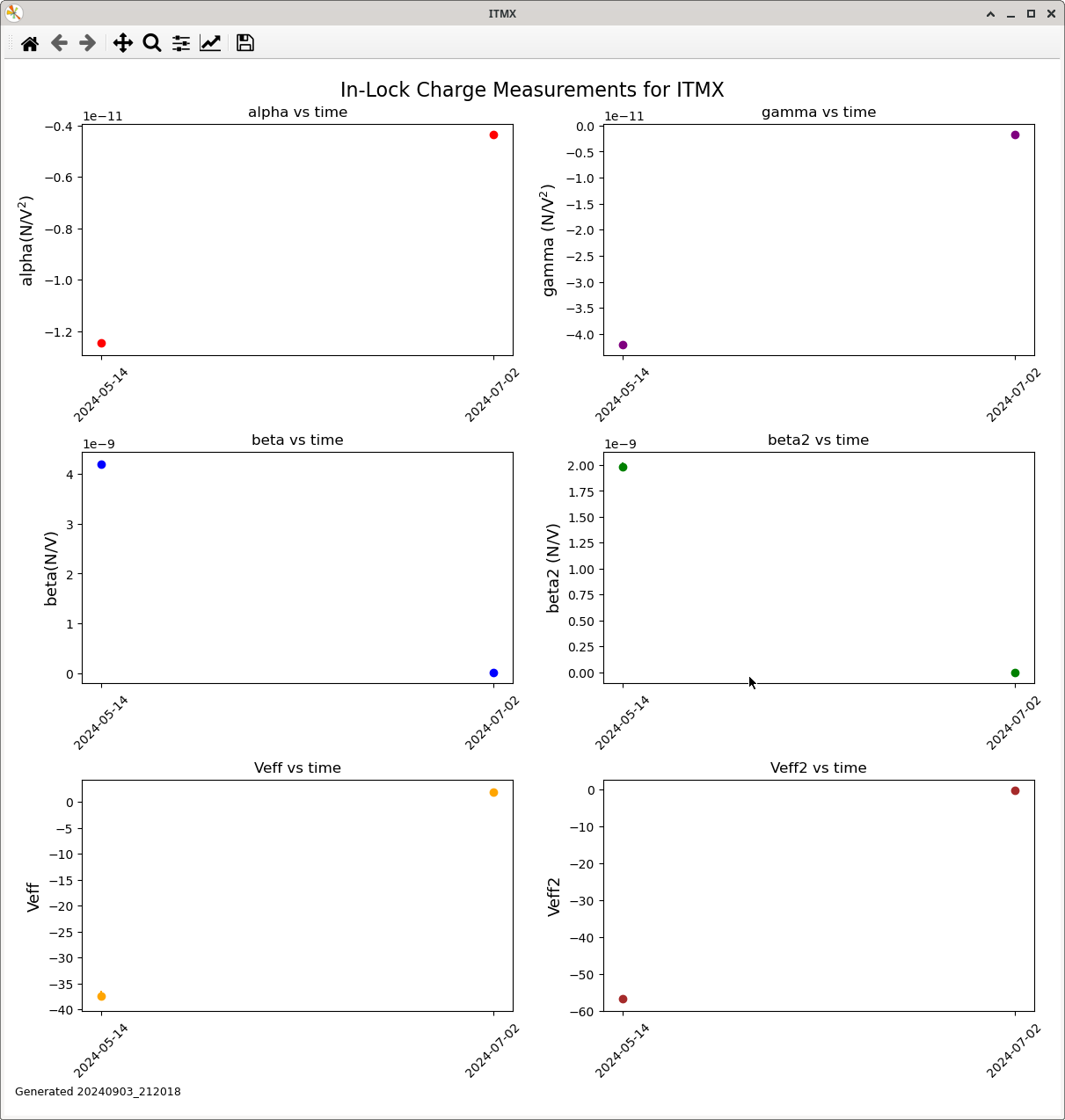

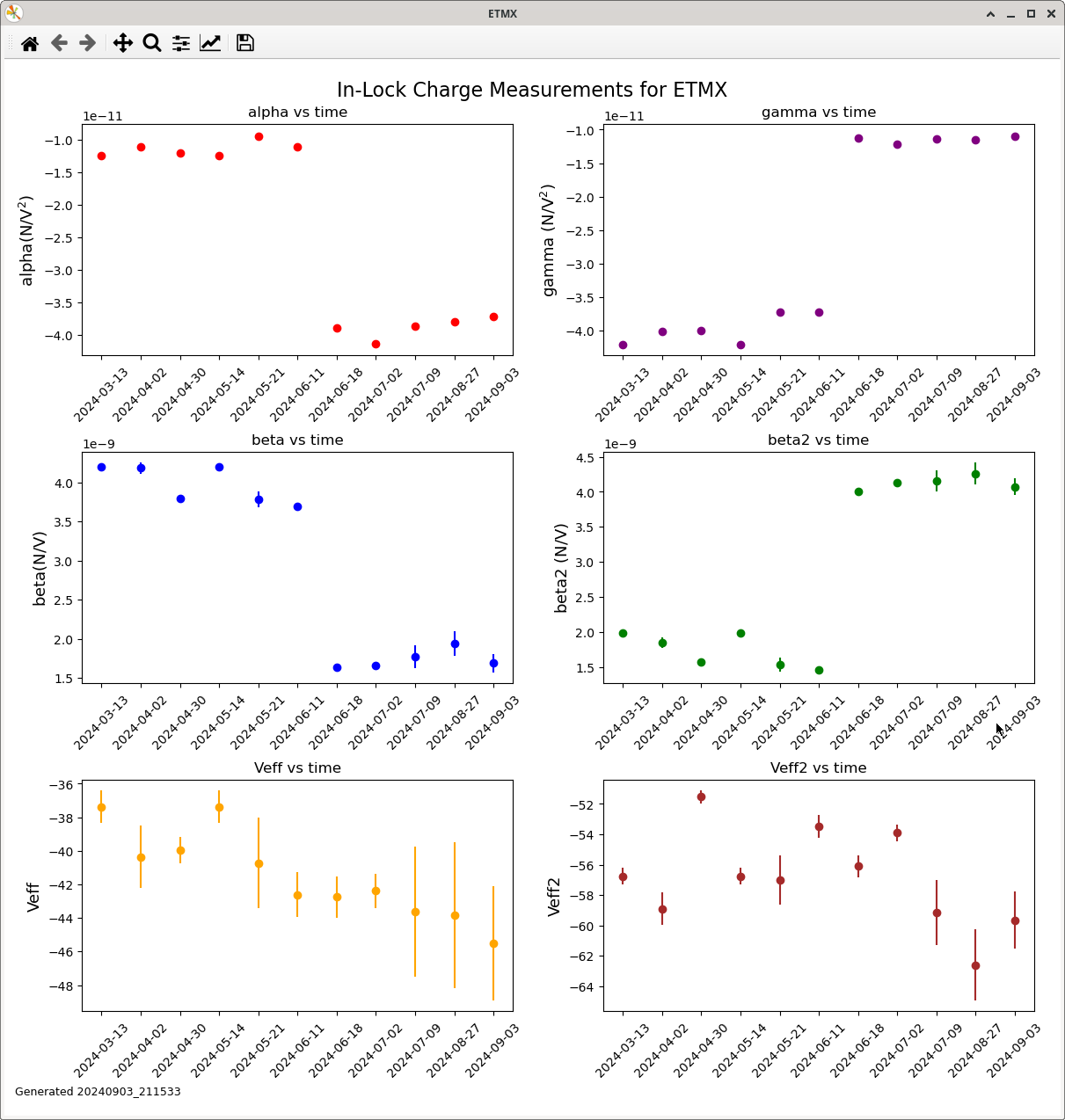

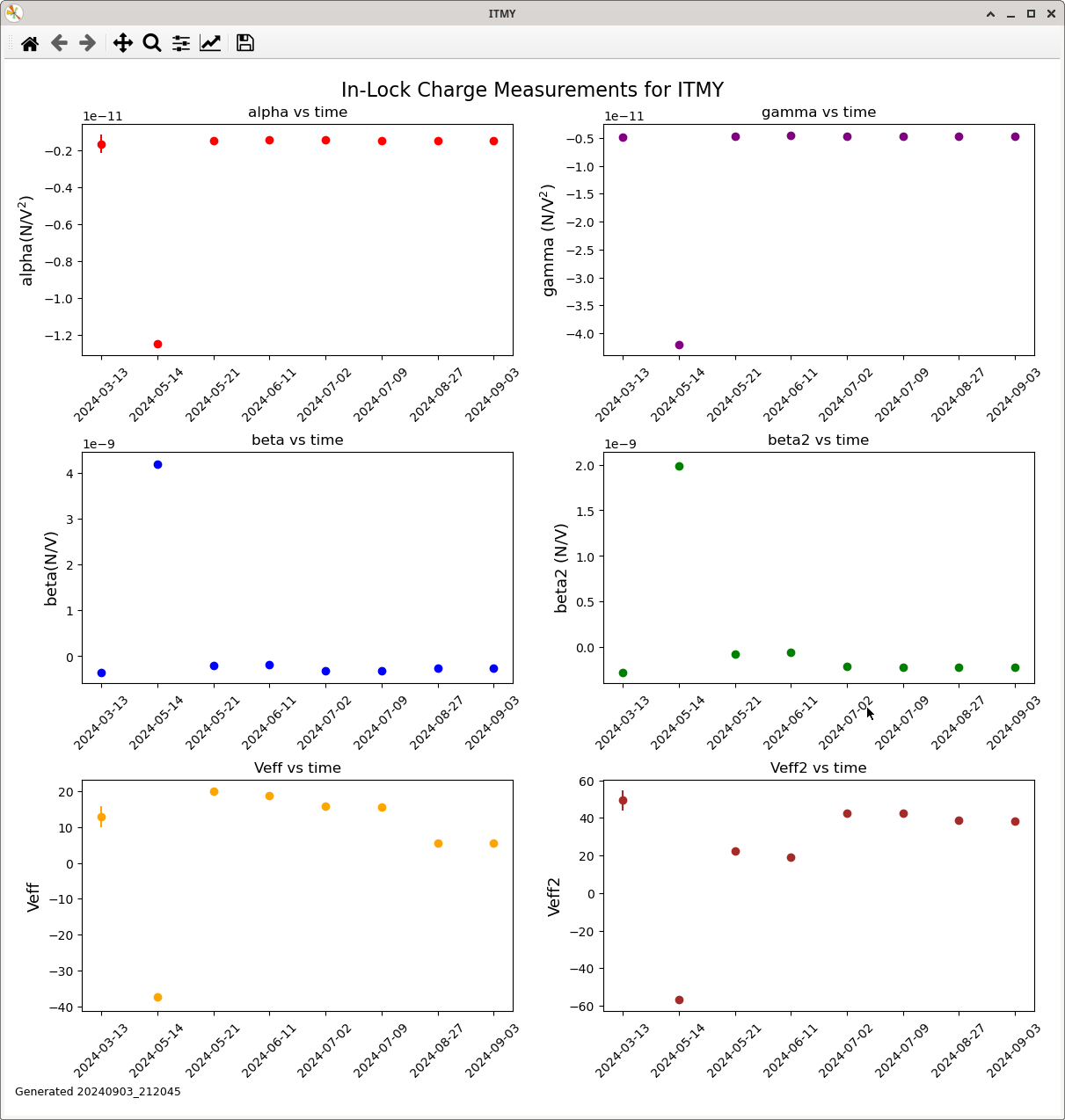

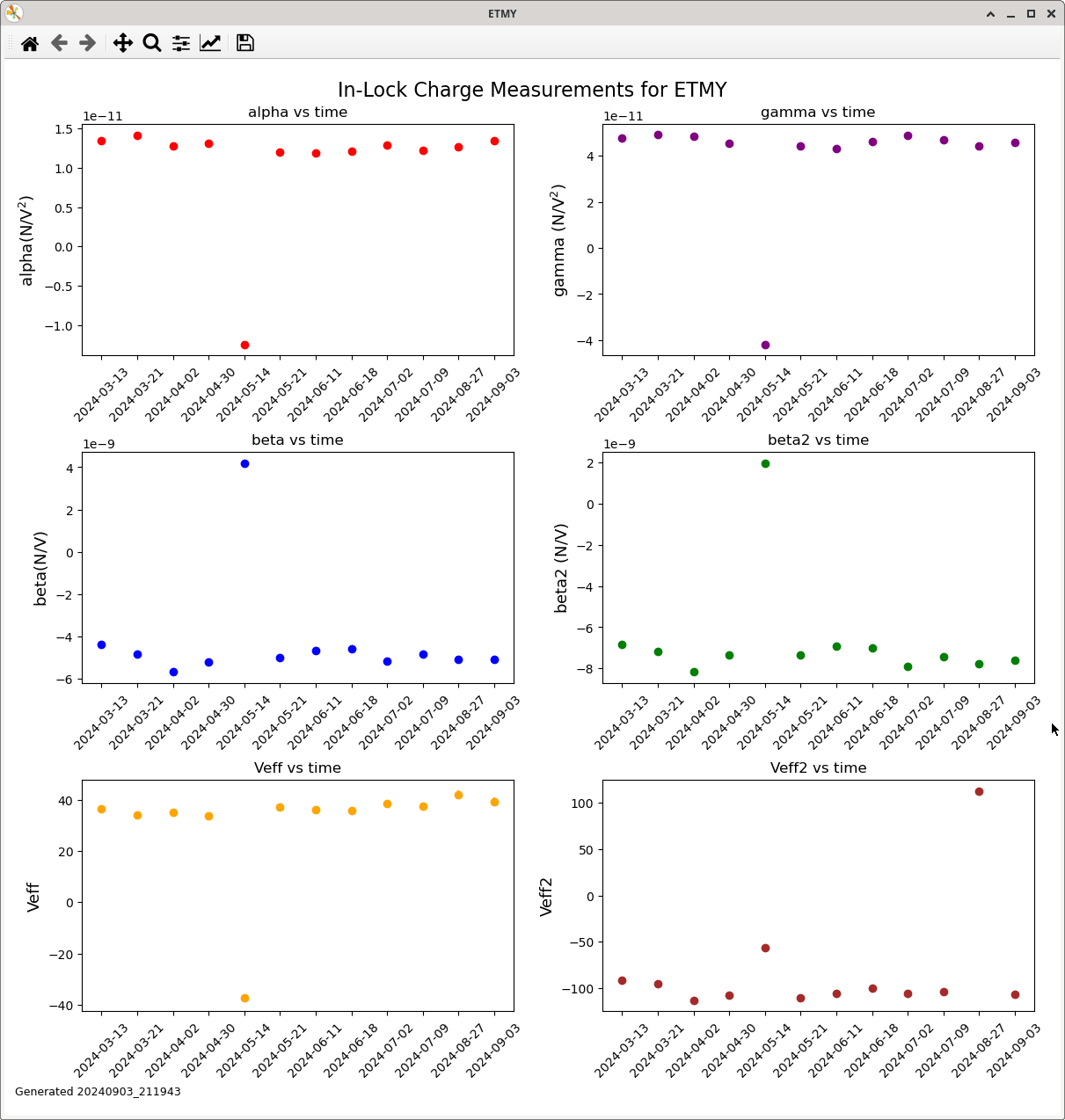

14:45 Out of Observing for In-Lock SUS Charge measurements
15:03 Into Observing

15:20 Lockloss 25s after changing SEI_CONF to NOBRSXY_WINDY
- Locklosses from LOCKING_ALS x5 due to motion
16:06 Started an initial alignment
- ISI ETMX/Y ST2 SC changed from SC_OFF to CONFIG_FIR - immediately easier to lock ALS
16:32 Initial alignment done, relocking
16:38 Lockloss from ACQUIRE_DRMI_1F
16:49 Lockloss from CARM_150_PICOMETERS
17:18 Lockloss from LOWNOISE_ASC
17:56 Lockloss from CARM_OFFSET_REDUCTION
18:05 Stayed in DRMI_LOCKED_CHECK_ASC and adjusted SRM
18:12 Lockloss from DARM_TO_RF
18:55 NOMINAL_LOW_NOISE
19:05 Put squeezing back in, Observing

TITLE: 09/03 Eve Shift: 2300-0800 UTC (1600-0100 PST), all times posted in UTC
STATE of H1: Observing at 143Mpc
OUTGOING OPERATOR: Oli
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 17mph Gusts, 15mph 5min avg
    Primary useism: 0.02 μm/s
    Secondary useism: 0.10 μm/s
QUICK SUMMARY:

IFO is in NLN and OBSERVING 19:05 UTC

Nothing else to report

On Aug 30 the office area airhandler was shut down and turned on at the following times (UTC):

Off: 19:33

On: 19:38

Off: 19:43

On: 19:55

Off: 19:33:00

On: 19:38:30

Off: 19:43:00

On: 19:55:00

Off: 00:28:00

On: 00:38:00

Sam, Robert, Genevieve

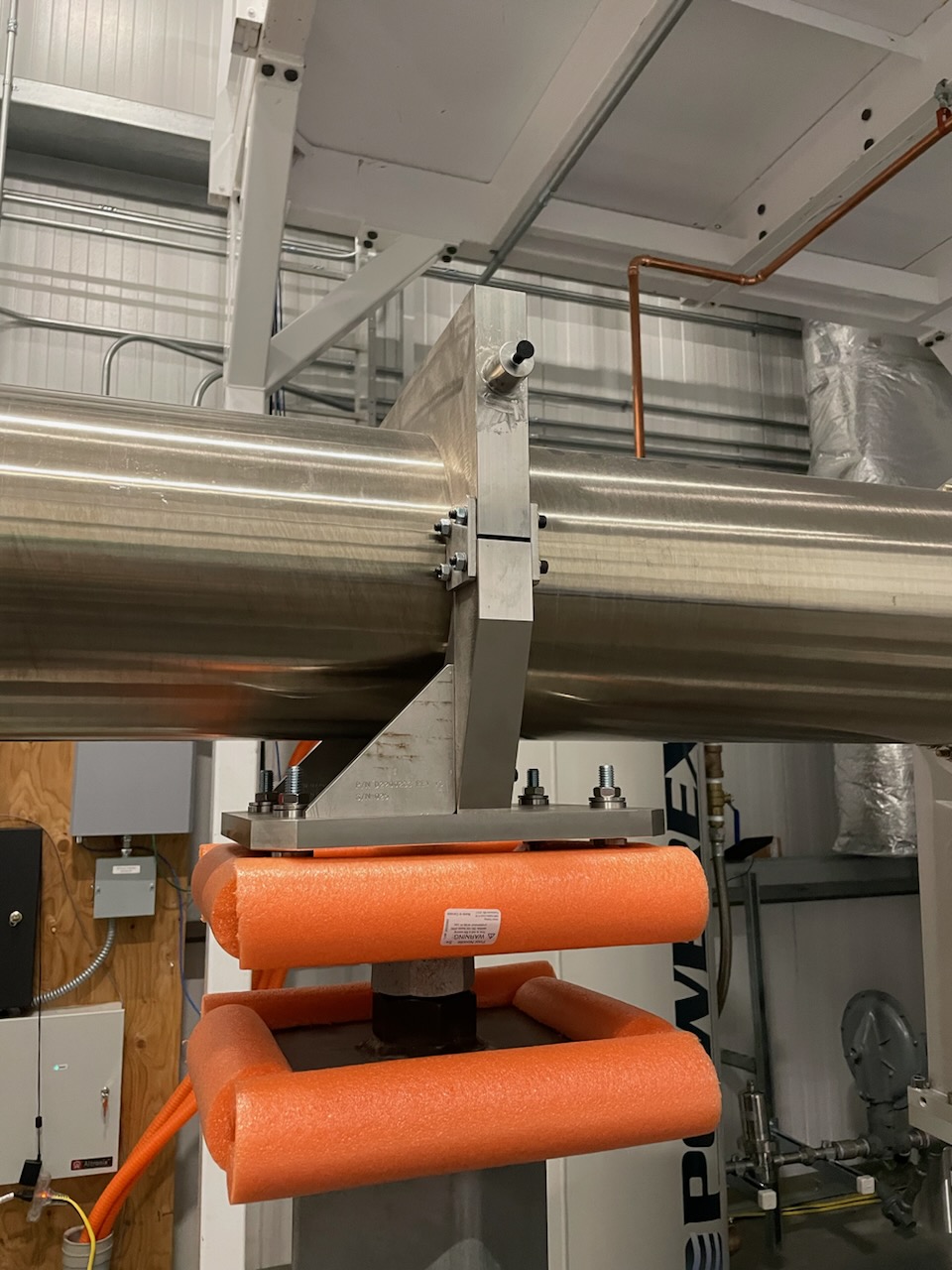

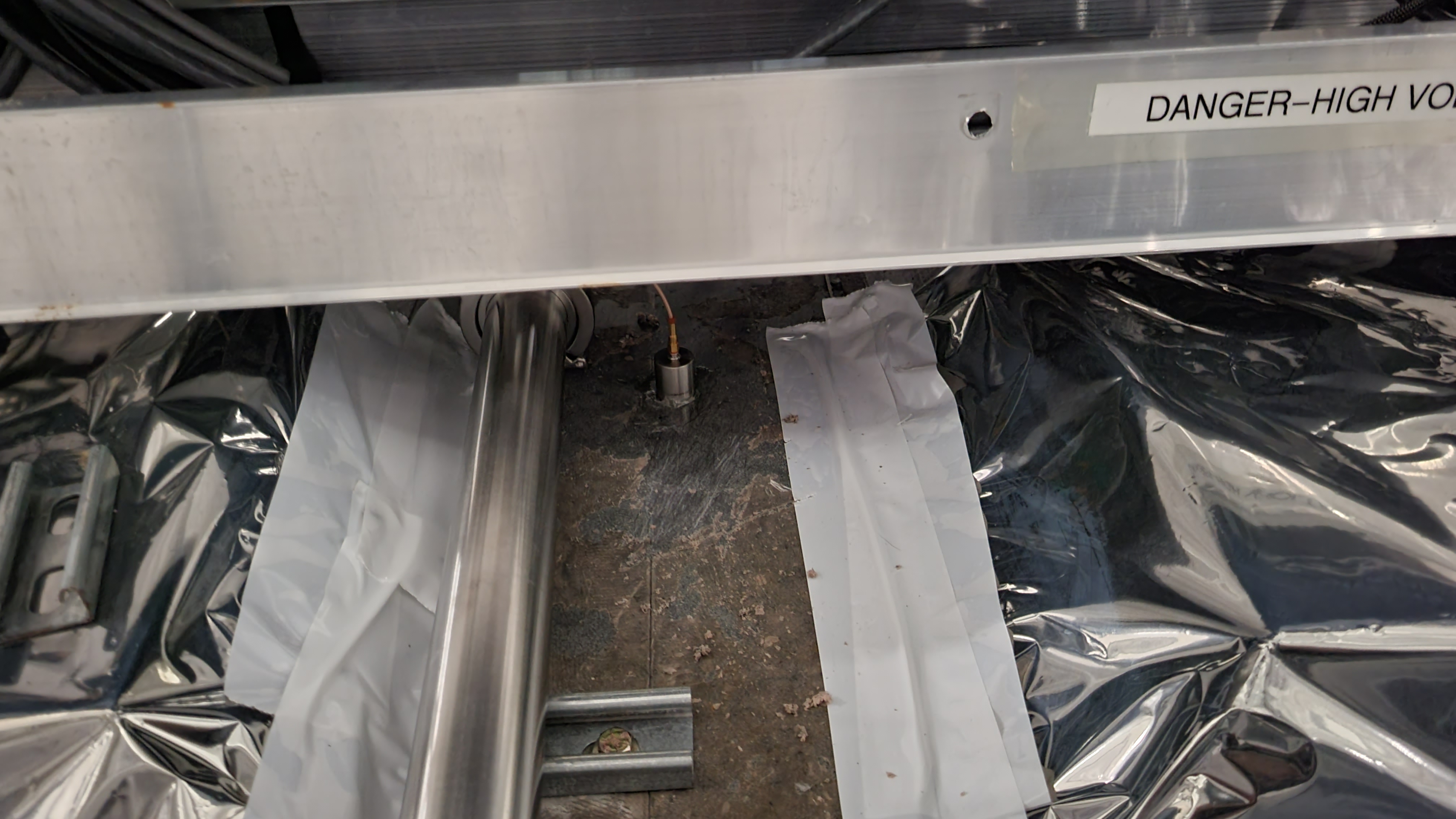

On Aug 21 we installed an accelerometer on the floor under HAM8 (H1:PEM-FCES_ACC_VEA_FLOOR_Z_DQ) and one on the beamtube (H1:PEM-FCES_ACC_BEAMTUBE_FCTUBE_X). These channels will be up and running once Fil has had a chance to run some cables. On Aug 27 we reconnected the three HAM8 accelerometers (H1:PEM-FCES_ACC_HAM8_FC2_Z, H1:PEM-FCES_ACC_HAM8_FC2_Y, H1:PEM-FCES_ACC_HAM8_FC2_X) whose cables were previously mixed up. All of these accelerometers are now connected to the correct channels.

I've written a script, /opt/rtcds/userapps/release/sqz/h1/scripts/switch_nom_sqz_states.py, which will change the nominal states of the SQZ Guardian nodes to be used when it's decided that H1 will observe without SQZ, a process adapted from the ObservationWithOrWithoutSqueezing wiki. This is intended to save operators time so the switch to a configuration where H1 can observe without SQZ is quick and brings us to observing promptly.

The script first commits any uncommitted changes in the SQZ Guardians to svn with an "as found" message before the nominal states are changed. Once changed, the nodes are then loaded and SQZ_MANAGER is requested to NO_SQUEEZING, which should make sure all nodes are in the state they should be.

This script also adds the 'syscssqz' model to the EXCLUDE_LIST in the DIAG_SDF node when going to the no-SQZ configuration. This is to facilitate any SDF diffs that may appear as a result of SQZ misbehaving and will allow H1 to go to observing while ignoring any diffs in this model. More models to exclude can be added in the script as desired.

Since the pysvn package used by the script to commit to svn is a Debian package not found in conda, all conda environments must be deactivated for this script to work. Hence, when running this script, utilize the 'noconda' bash script wrapper found in userscripts. Calling this script to change to the configuration where H1 will observe without SQZ would look as follows:

noconda python switch_nom_sqz_states.py without

This script can also be used to go back to the configuration where H1 is observing with SQZ; simply replace the 'without' argument when running it with 'with' and the nominal SQZ Guardian states will be changed back to normal and the SQZ models will be removed from DIAG_SDF's exclude list.

Currently Observing at 147Mpc and have been Locked for 50 minutes. We did lose lock during maintenance due to us turning off the BRSs at the end stations making us unable to hold the lock, but with Jim's help we changed ISI_ETMX/Y_ST2_SC from SC_OFF to CONFIG_FIR and that helped us relock and we were relocked by 19:05UTC. The squeezer was also able to be fixed so we are also squeezing now.

As per WP 12069 I have installed a new system in the daq-2 rack slot 39, above the existing router.

I have hooked it up to the admin vlan and have ipmi enabled on it.  This is all of the network connectivity that will be enabled today.  I have installed a solar flare 10g card into the system for its eventual connection to the core switch.  I had to replace one power supply which had failed.  I pulled the replacement power supply from a spare unit on the shelves.

Install notes:
 * I am installing the same version of vyos on this router as is used on the current router.
   * the test stand log from the last time I did this (https://alog.ligo-la.caltech.edu/TST/index.php?callRep=15381).
 * I created a bootable thumb drive from the install iso and booted into a live image mode.
 * After booting to the thumbdrive and logging in I issued the 'install image'
   * select the local disk (sda)
   * automatically partition to a 40GB size
 * Default settings otherwise
 * After install, issue the reboot command.

To transfer the config over, I formatted a usb thumb drive as a ext4 filesystem and mounted it to /mnt.  I then entered config mode, issued a 'save config_3_sep_2024' and exited out.  I copied the /config/config_3_sep_2024 file to /mnt and unmounted mnt.  After moving the drive to the new router, I became root, mounted /mnt copied the new config file to /home/vyos/config_3_sep_2024 and changed it's ownership to the vyos user.  At this time I also updated the config to have the correct hw mac addresses for this box. Then as the vyos user I entered config mode, issued a 'load /home/vyos/config_3_sep_2024', then 'commit', then 'save' to make the config persists.

I rebooted to make sure the config was properly saved.  It took me two tries as the first time I only committed the change and did not save it.

I have installed an optic on the router and powered it of.  I will provide documentation for the operator on how to switch over to this router if there is a failure.  The basic procedure is:

 * power off the old router (rack 5, slot 37) using the power button on the front
 * go to the back of the rack
   * move the pink cable from the older router to the the new one (the port is labeled GB1 on both systems).
   * move the fiber from the older router to the new one (there is presently only 1 optic in each so there should be no confusion).
 * go back to the front of the rack and power on the new router (rack 5, slot 39) using the power button on the front.

While Oli was relocking I went to ISCT1 and checked the centering on POPAIR B (motivated by the observation that the POP18 is low compared to before the vent, as well as the DC light on this diode 79663).  The beam wasn't well centered on the diode, and I've moved it to be more centered while the IFO was locked at 22W on PRM (this didn't make much difference in the powers at 22W).  This did improve the powers on POP18 after power up by about 15-30%, but it doesn't recover us to the power levels we had in the earlier part of O4b.  It seems that the degradation started around May 15.  We might want to go to the table to check for clipping upstream (today I only touched the mirror in front of POP AIR B), or think about if we need to touch that pico motor.

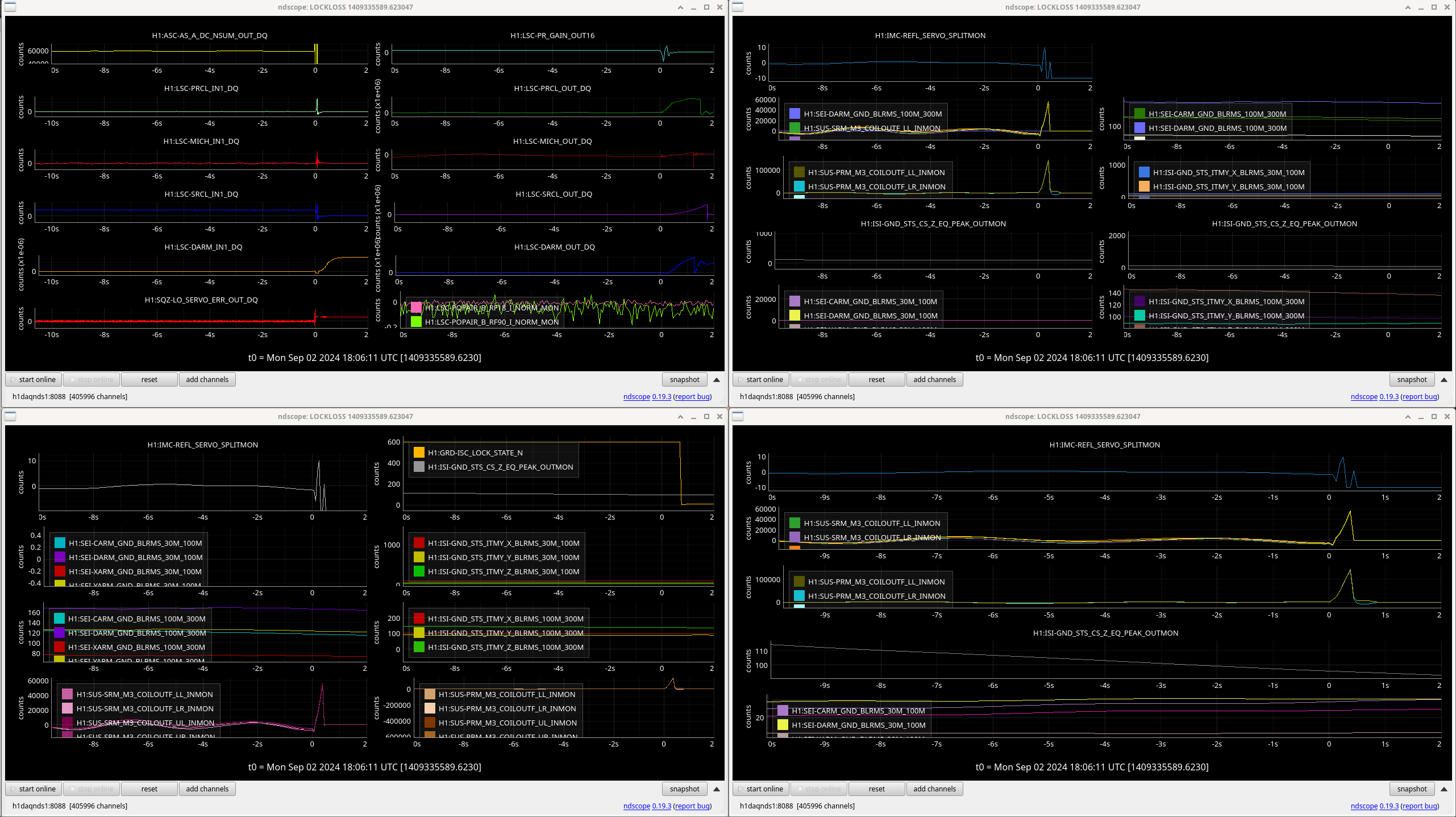

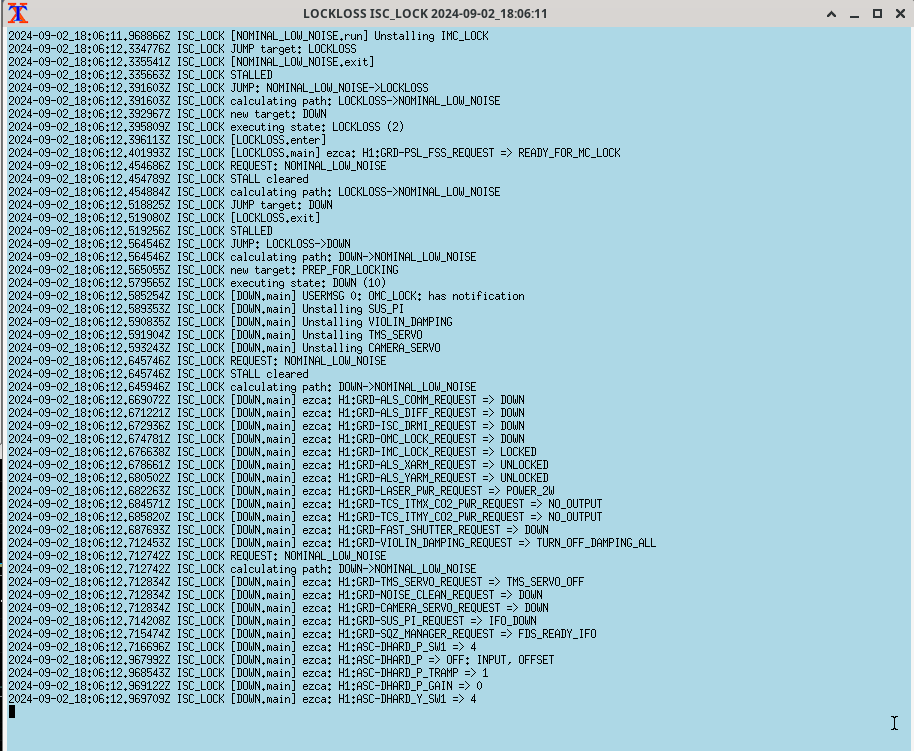

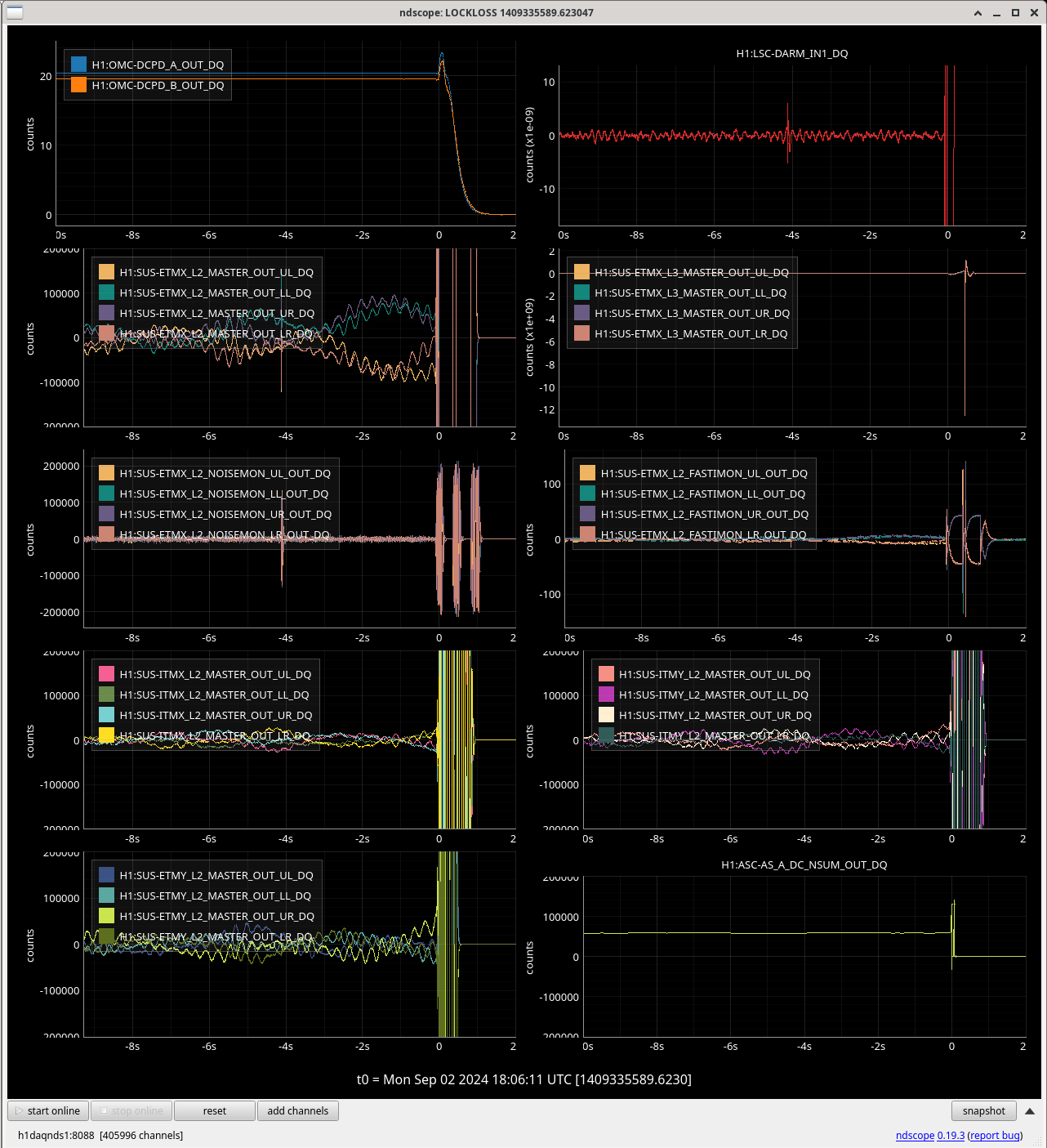

Lockloss page

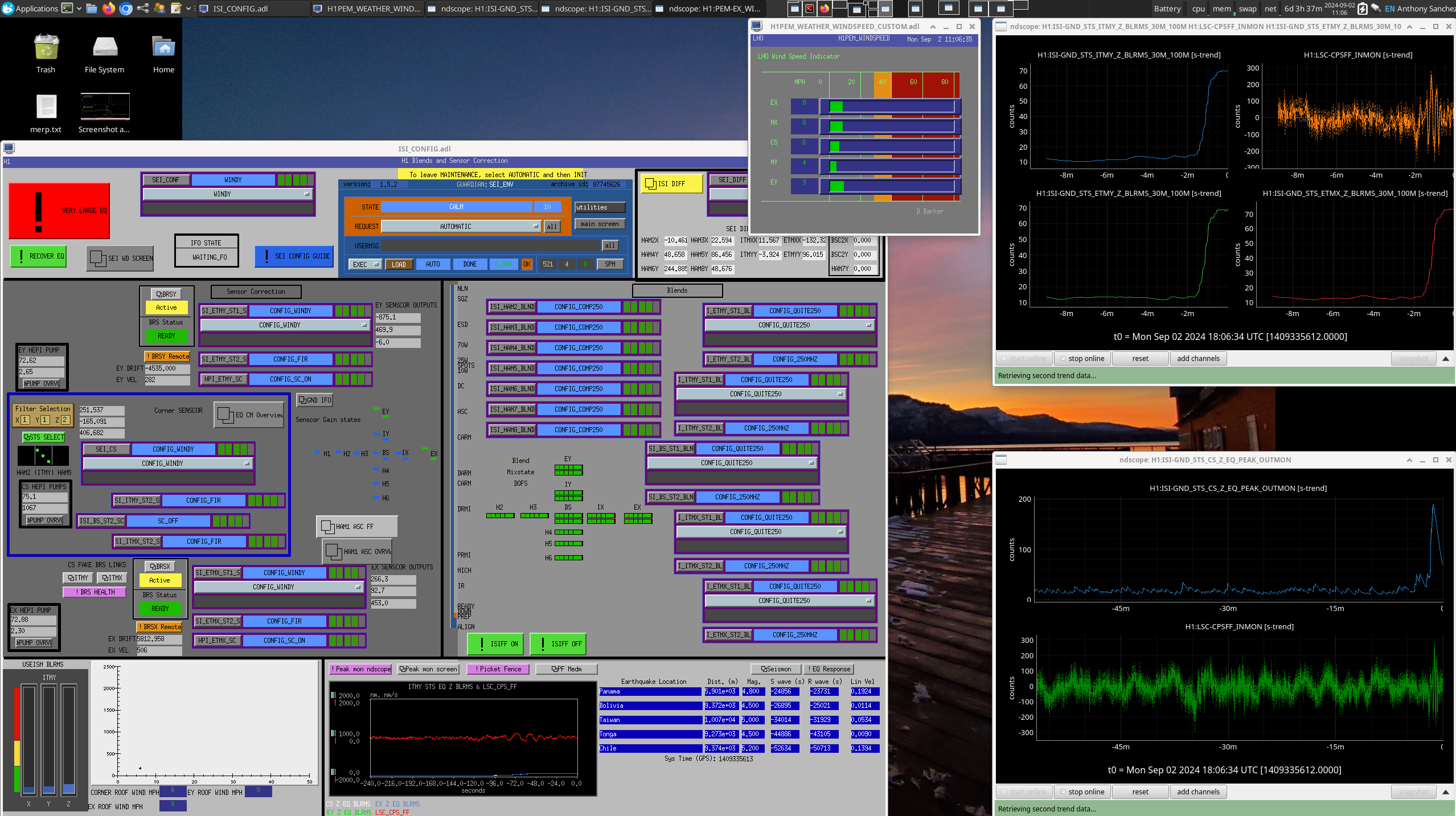

No warning or notice of an Earthquake was given it was a sudden small spike in ground motion.

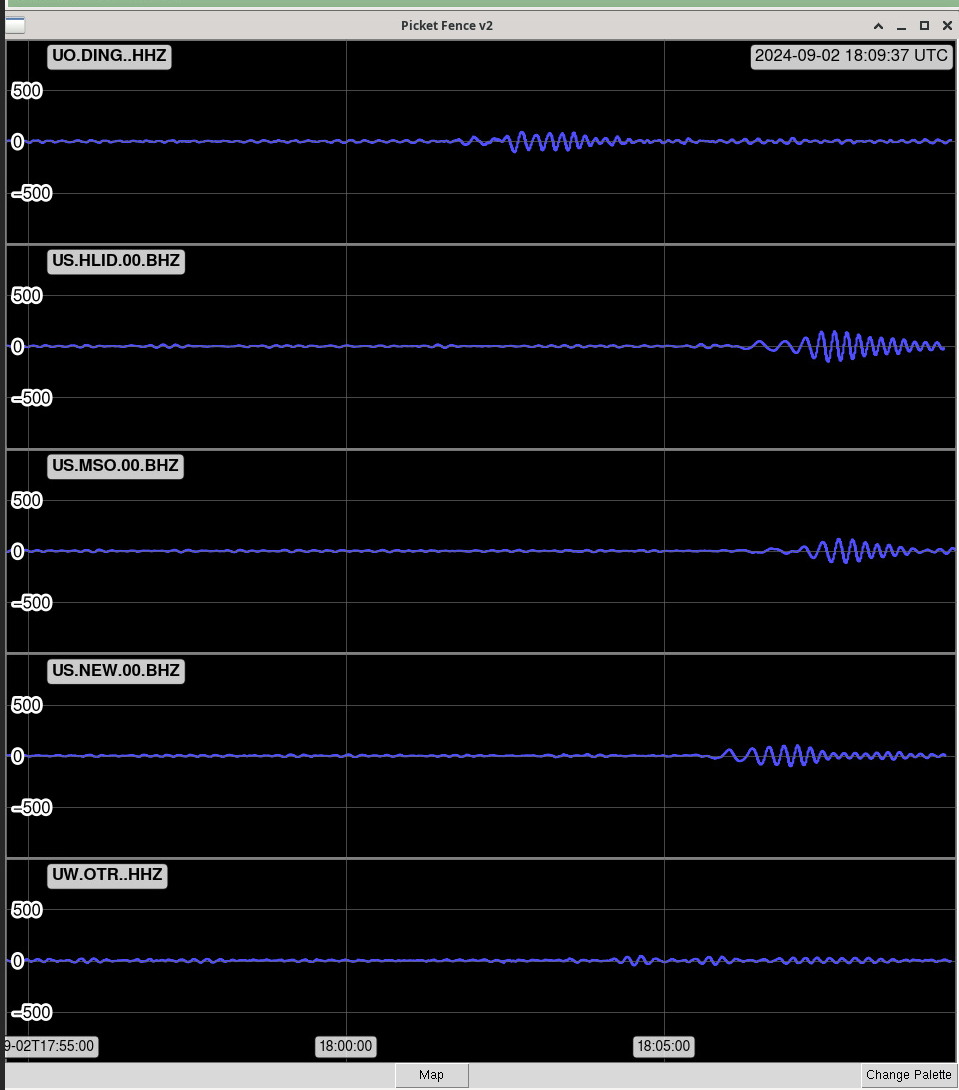

It was Observed in Picket fence.

USGS didn't post this right away, but it was a M 4.2 - 210 km W of Bandon, Oregon right off the coast.

I took ISC_lock to Initial Alignment after a lockloss at check miche fringes.
Relocking now.
