There is still some noise seen in DARM <70Hz, but not as bad as before. I am also not seeing the oscillations like before, or at least not yet. Something is not healthy though...
Range: 71Mpc
H1:LSC-POP_A_LF_OUTPUT started to get a few hz oscillation in it, and the noise in the DARM spectrum < 100Hz picked up a bit.
Had to run through an initial alignment, and then lost it a few times on the way up. The wind is still staying below 20mph, the useism is still trending down, CW inj running, lights are off, LLO is down.
I was having issue keeping the IMC locked, I looked at the PLS status and the chiller alarm was red. I went in to check it out and the bottom of the chiller was in error with "Low Level", the top seemed to be hovering around the Max line. I am not sure if the bottom is seperate from the top, but I added 200mL of water to the bottom. Alarms all good now.
Not sure of the cause yet, the control signals didn't show any signs of struggle, winds <20mph, useism 0.8um/s.

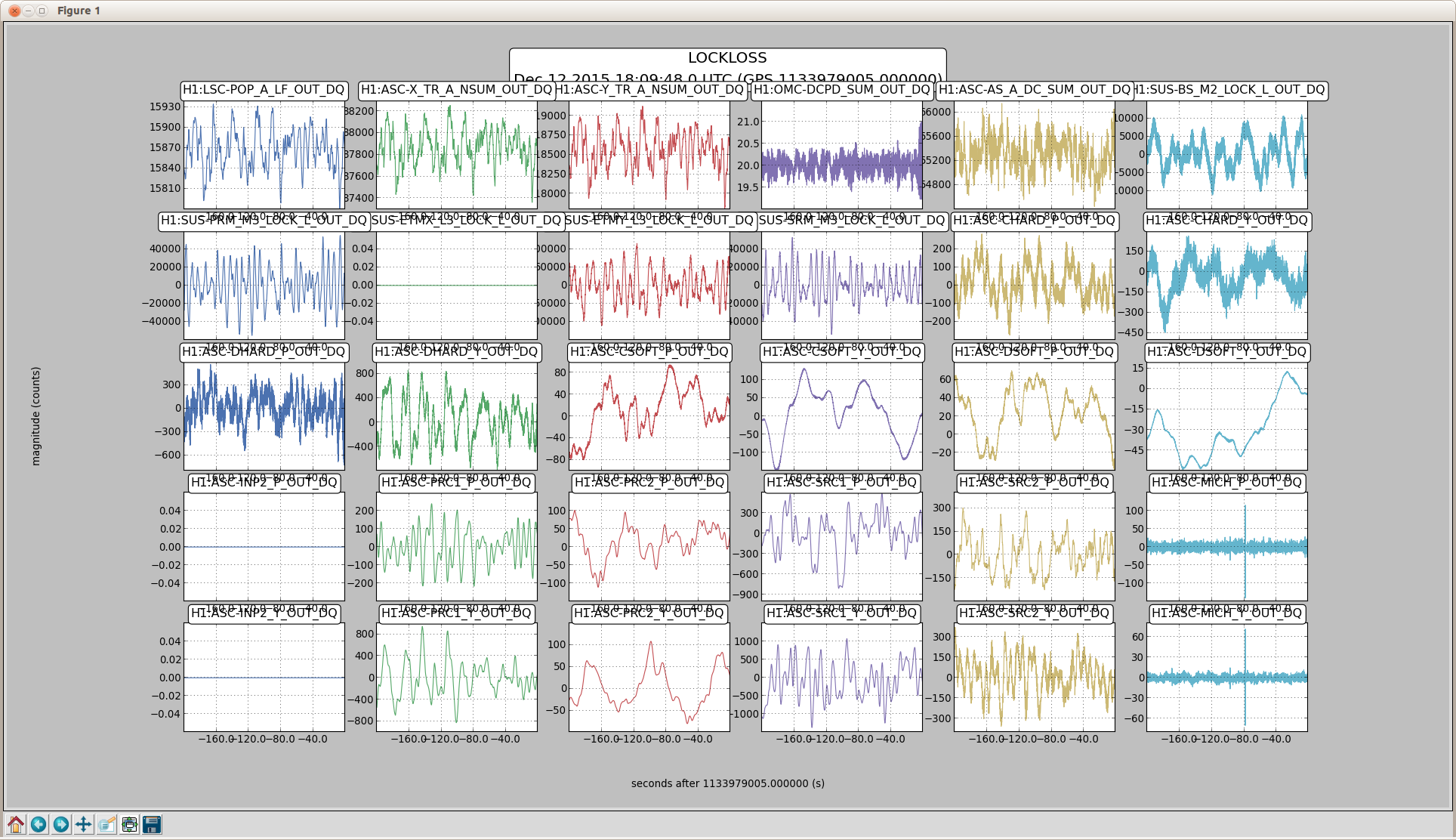

Generic Lockloss tool set of plots, not showing anything useful (at least not to me).

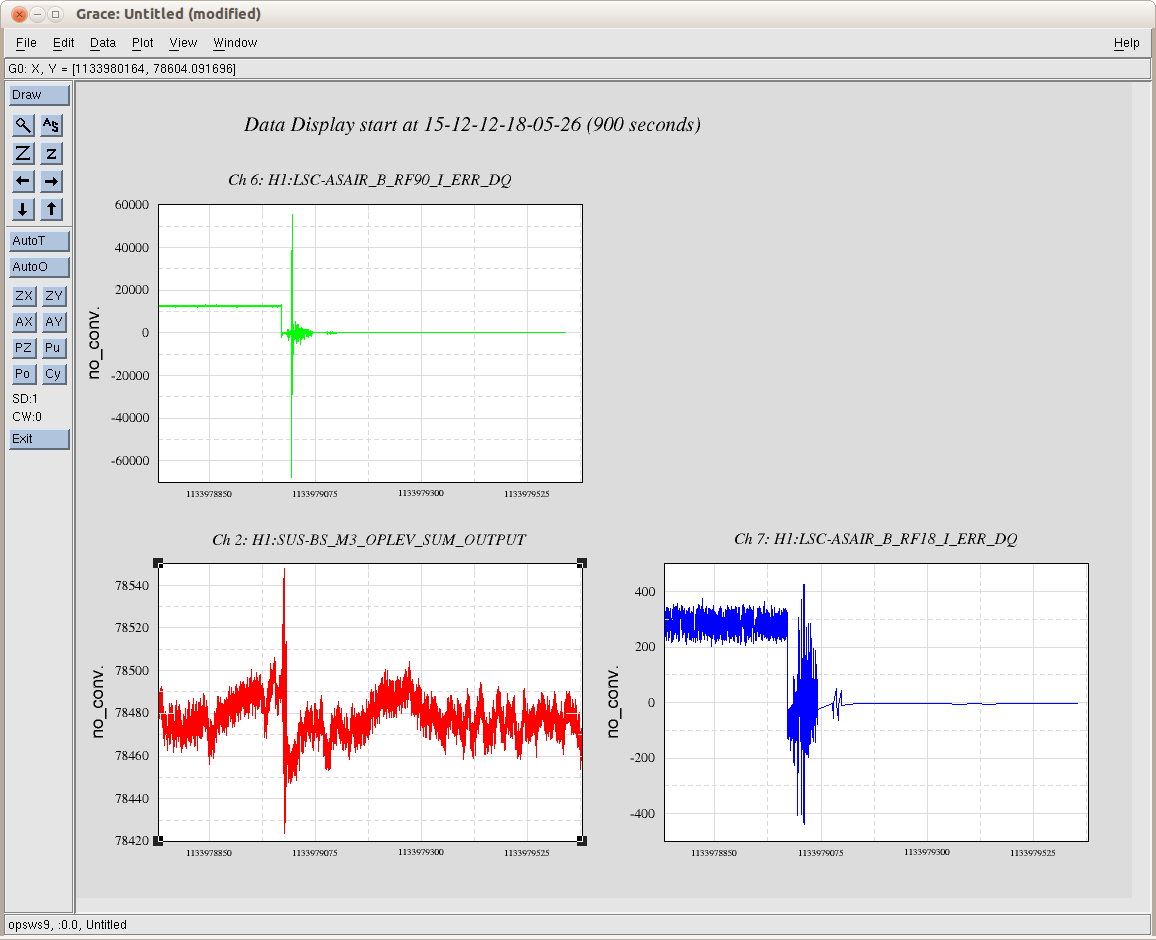

Vern told me to keep an eye on the BS Oplev, so here are some plots with the ASAIR powers and the Oplev sum out. Not sure which one caused the other one, if any.
LLO is down due to high wind, Robert is jumping on this opportunity to do some PEM injections.
Back to Observing for a bit. Robert wants to get another test ready, in the mean time we will observe. LLO is still down and out from wind.
TITLE: "12/12 DAY Shift: 16:00-00:00UTC (08:00-16:00 PDT), all times posted in UTC"
STATE Of H1: Observing at 78Mpc for 12hr
OUTGOING OPERATOR: Travis
QUICK SUMMARY: Wind is on the rise peaking just above 22mph for now, the useism is trending down at 0.9 um/s, all else seems calm.
Title: 12/12 Owl Shift 8:00-16:00 UTC (0:00-8:00 PST). All times in UTC.
State of H1: Observing
Shift Summary: Locked for my entire shift, 12+ hours total. A handful of ETMy saturations. Microseism is slowly coming down, currently ~0.6 um/s. Wind is picking up a bit to ~15 mph. There is a H1SUSETMX timing error on the CDS overview screen that can be cleared next time we are out of Observing.
Incoming operator: TJ
Activity log: None
Locked in Observing for ~9 hours. A couple of ETMy saturations. No other issues.

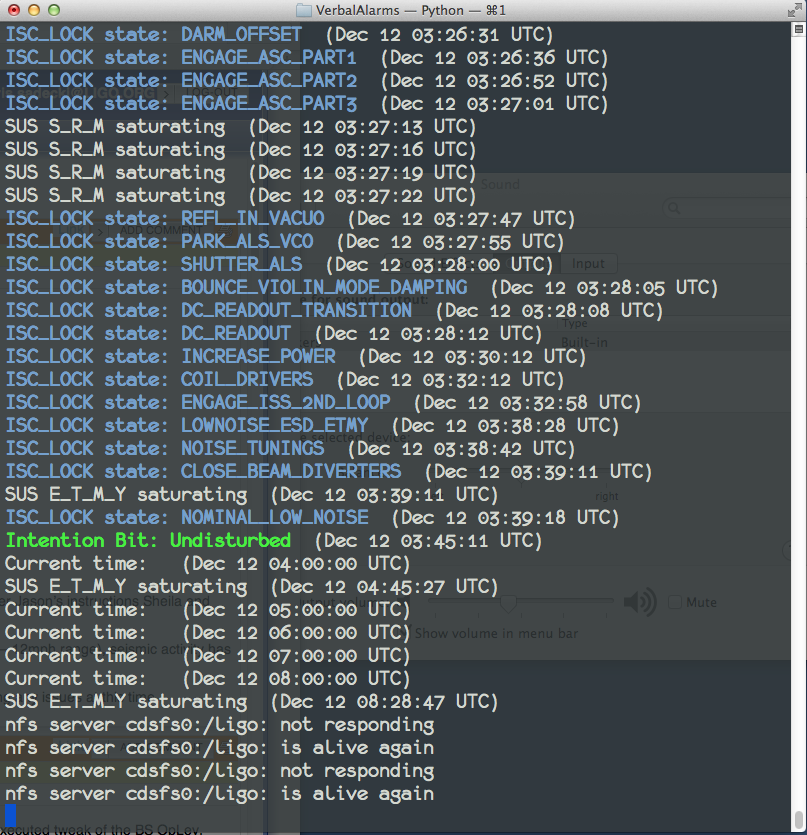

I noticed a couple of errors that showed up in the VerbalAlarms window running on the Alarm Handler computer. These were not announced verbally by VerbalAlarms. See attached screenshot.
There were 2 more of these errors (one set of not responding/alive again) ~10:00 UTC.
I see three errors on cdsfs0 for this morning which resulted in the raid card being reset.
Dec 12 00:17:51 cdsfs0 kernel: [306069.208085] sd 0:0:0:0: WARNING: (0x06:0x002C): Command (0x8a) timed out, resetting card.
Dec 12 01:23:42 cdsfs0 kernel: [310009.835370] sd 0:0:0:0: WARNING: (0x06:0x002C): Command (0x2a) timed out, resetting card.
Dec 12 02:57:34 cdsfs0 kernel: [315627.297842] sd 0:0:0:0: WARNING: (0x06:0x002C): Command (0x8a) timed out, resetting card.
Here is a full set of logs for the 01:23 event:
Dec 12 01:23:42 cdsfs0 kernel: [310009.835370] sd 0:0:0:0: WARNING: (0x06:0x002C): Command (0x2a) timed out, resetting card.
Dec 12 01:23:45 cdsfs0 snmpd[1716]: Connection from UDP: [10.20.0.85]:53320->[10.20.0.11]
Dec 12 01:24:13 cdsfs0 kernel: [310040.313376] 3w-9xxx: scsi0: AEN: INFO (0x04:0x005E): Cache synchronization completed:unit=0.
Dec 12 01:24:13 cdsfs0 kernel: [310040.433071] 3w-9xxx: scsi0: AEN: INFO (0x04:0x0063): Enclosure added:encl=0.
Dec 12 01:24:45 cdsfs0 snmpd[1716]: Connection from UDP: [10.20.0.85]:54550->[10.20.0.11]
Dec 12 01:25:01 cdsfs0 CRON[13730]: (root) CMD (command -v debian-sa1 > /dev/null && debian-sa1 1 1)
Dec 12 01:25:03 cdsfs0 kernel: [310090.356268] 3w-9xxx: scsi0: AEN: INFO (0x04:0x0029): Verify started:unit=0.
Dec 12 01:25:03 cdsfs0 kernel: [310090.385280] 3w-9xxx: scsi0: AEN: INFO (0x04:0x0029): Verify started:unit=1.
Dec 12 01:25:03 cdsfs0 kernel: [310090.385714] 3w-9xxx: scsi0: AEN: INFO (0x04:0x0029): Verify started:unit=2.
Note that this problem is not related to the recent /ligo is 100% full error (it has about 220GB of disk free).
Looks like most NFS clients rode through these restarts without logging any system errors. Presumably they were short outages and perhaps only computers which were actively trying to access the file system at the time are reporting the error.
Please contact me over the weekend if the errors show up again.
Activity Log: All Times in UTC (PT) 00:00 (16:00) Take over from Ed 00:43 (16:43) Vern & Sheila – Into the LVEA to tweak BS OpLev 00:43 (16:43) GRB Alert – Ignore due to IFO down 01:32 (17:32) GRB Alert – Ignore due to IFO down 03:39 (19:39) NOMINAL_LOW_NOISE 22.0W, 79Mpc 03:45 (19:45) In Observing mode 08:00 (00:00) Turning over to Travis End of Shift Summary: Title: 12/11/2015, Evening Shift 00:00 – 08:00 (16:00 – 00:00) All times in UTC (PT) Support: Sheila, Jenne, Vern, Hugh Incoming Operator: Travis Shift Detail Summary: Reestablished lock and observing at 03:45 (19:45). Biggest problem seemed to be a glitching BeamSplitter OpLev laser. Per Jason’s instructions Sheila and Vern, made a power adjustment to the OpLev laser, which helped to quiet the glitching. For the past 4 hours, the IFO has been locked in observing mode. Power is 21.9W, with a range of 82.5Mpc. The wind has calmed down a bit (7 – 12mph range), seismic activity has been holding steady around 0.07um/s. Microseism remains around 1.0 – 0.8um/s, however the amplitude may be decreasing a bit. In general, the second half of the shift has been good for observing. The instrument has been stable and environmental conditions are not causing any issues at this time.
IFO has been locked and in Observing mode for the past 30 minutes. Lock was regained by the valiant efforts of Sheila and Jenne and a well executed tweak of the BS OpLev. Wind is now a solid moderate breeze (up to 18mph) and rising. Seismic and microseism continue at the elevated rates of the past 24 plus hours.
SRC2 P also had this same oscillation, and PR2 and SRM looks like they were affected by it.

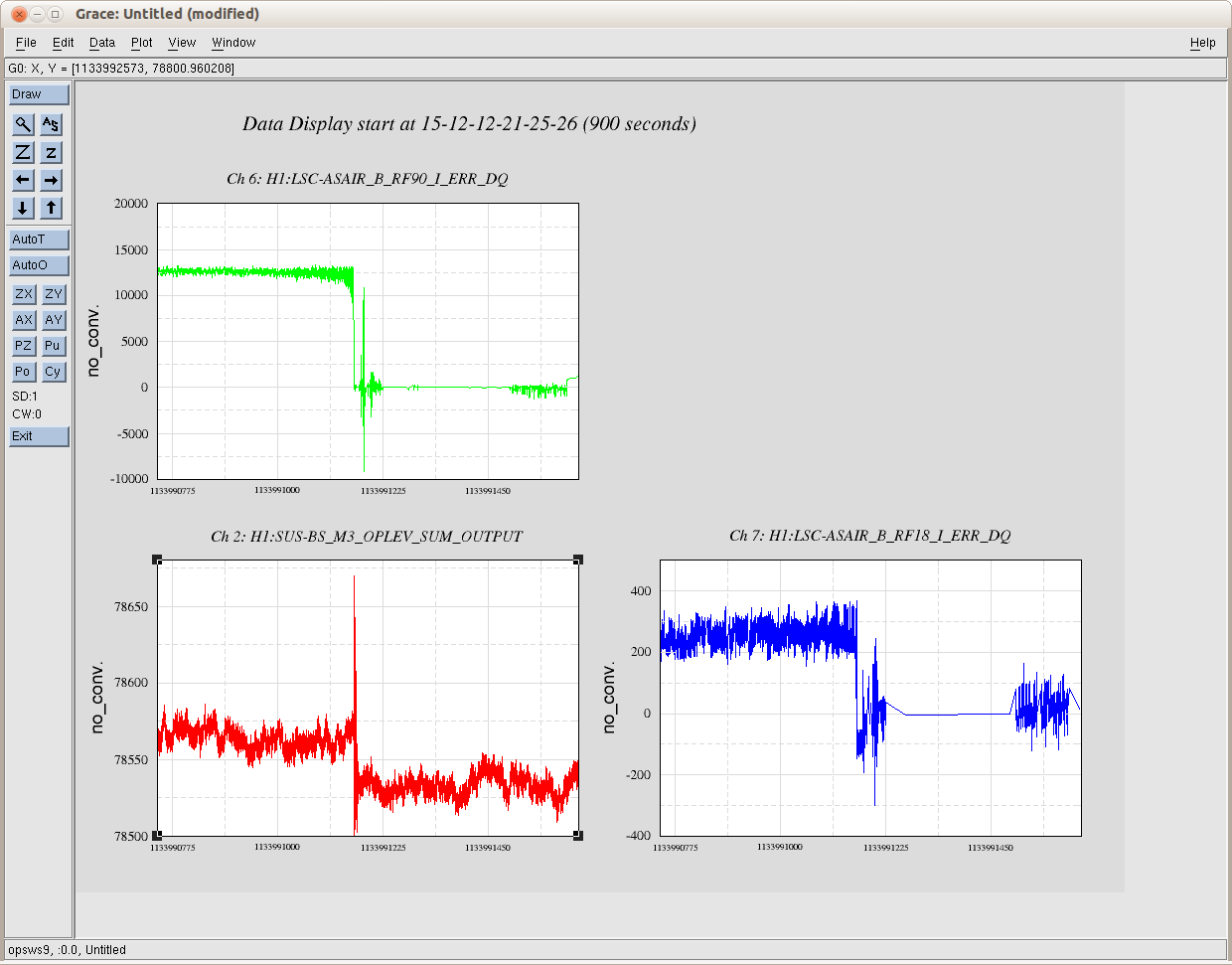

Vern told me to keep an eye on the BS Oplev, so here is a quick trend of that with some ASAIR powers. I am not sure if it is a glitch seem in the BS or if it is just from the lockloss itself.
