H1 ISC
gabriele.vajente@LIGO.ORG - posted 18:01, Saturday 15 August 2015 (20556)
Lock losses investigation

We had four lock losses from nominal low noise state this afternoon. At least three of them seem to be caused by a suddend excursion in DARM correction, which leads to a saturation of the ESD. The reason is yet unclear.

Images attached to this report
H1 ISC
gabriele.vajente@LIGO.ORG - posted 18:01, Saturday 15 August 2015 - last comment - 09:08, Monday 17 August 2015(20555)
Noise at the PSL periscope peaks due to OMC misalignment

I alrady noticed yesterday that the DARM noise at the periscope peaks (200-400 Hz) was high at the beginning of the lock and then reduced over time.

The first attached plot shows a BLRMS of DARM around those peaks, starting right after reaching the low noise state. There is a clear reduction of the noise over time. The second plot shows that on a similar time scale, the OMC alignment output signal changed, mostly ANG_Y.

This seems to confirm the idea that input beam jitter at the periscope peaks is converted into intensity noise by an OMC misalignment, which changes over time.

To confirm this, I move the OMC angular loops during full lock, adding offsets of few tens of counts to the POS and ANG loops. The third plot shows the steps in the control signals. I was able to reduce the BLRMS by adding an offset of -40 to the ANG_Y loop. The fourth plot compares the DARM spectrum with (red) and without (blue) the ANG_Y offset. I should have increased the offset more. Unfortunately, I noticed that the output was hitting the limit of 300 and I stupidly increased it to 1000: but since the loop was integrating, I broke the lock since I suddenly increased the output from -300 to -1000.

However, the experiment confirms that the noise at the periscope peaks changes in amplitude with the OMC alignment, which is not optimal.

Images attached to this report
Comments related to this report
jenne.driggers@LIGO.ORG - 00:34, Monday 17 August 2015 (20577)

I am not 100% sure what value Gabriele meant to leave, but I have accepted in SDF (Sheila and I are in process of clearing a bunch of diffs in SDF) the value of -30 for ANG_Y for the OMC.  I'll check with Gabriele about what value he meant to leave (his alog seems to indicate -40, but we found it at -30).

daniel.hoak@LIGO.ORG - 03:28, Monday 17 August 2015 (20583)ISC

Since we're using the QPD loops to align the OMC, it's probably better to record any change in the alignment in the QPD offsets.  I forget the channel names at the moment, but these are the offsets in the OMC QPD channels (not the same channels in the ASC models).  If the offsets are stored in the ANG and POS loops, they will have to be turned off if/when we switch to the dither alignment.  If they are recorded in the QPD filter banks it is one less thing to think about.

To summarize the OMC alignment: the QPD offsets have been tuned so the OMC is well-aligned in the low power state.  In this state, the dither error signals should be zero.  We know that as the power is increased, the QPD offsets are no longer a good alignment, especially in pitch -- this is according to the dither error signals.  We suspect the misalignment is due to some junk light that shifts the nominal alignment position on the QPDs.  Unfortunately, the misalignment is large enough that engaging the dither loops in the high power state saturates the drive to the OMC SUS.  This is why we have stuck with the QPD alignment for now...we should find a solution before O1 that allows us to use the dither loops.  The last time the alignment scheme had any attention was in late May.

Needless to say, do remember to check the drives to the OMC SUS OSEMs when changing the alignment settings, they may saturate!

gabriele.vajente@LIGO.ORG - 09:08, Monday 17 August 2015 (20595)

The offsets I left (-30) is better than 0, but not the optimal one yet. It's better to check the OMC alignment again

H1 ISC
stefan.ballmer@LIGO.ORG - posted 17:21, Saturday 15 August 2015 (20557)
No Data !?!

Why do I get a No Data report from DTT and dataviewer when I ask for H1:ODC-MASTER_CHANNEL_OUT_DQ ?
(dataviewer knows about second trend, but not full data...)
LHO General
thomas.shaffer@LIGO.ORG - posted 16:04, Saturday 15 August 2015 (20554)
Ops Day Shift

Log:

Times in UTC (PST)

1743 (1043) Nominal Low Noise

1752 (1052) Robert heading to Yarm  injecting dust

1810 (1110) Lockloss (A bit of seismic activity maybe?)

1828 (1128) Robert baack

1922 (1222) Nominal Low Noise

1925 (1225) Robert off to inject again

1929 (1229) Lockloss (Nothing obvious from the lockloss tool, seismic was low, wind is low, I'm not sure what caused it)

1958 (1258) Nominal Low Noise

2029 (1329) Lockloss (Terramon predicted an earthquake to arrive at 1335 PST, maybe it was off a bit)

2208 (1508) Nominal Low Noise

2214 (1514) Robert to Y arm for dust injections

2244 (1544) Lockloss

H1 GRD
thomas.shaffer@LIGO.ORG - posted 10:27, Saturday 15 August 2015 - last comment - 23:55, Saturday 15 August 2015(20552)
Fixed a few things in the new ENGAGE_ASC states logic

When I got here this morning, Nutsinee was reporting that the ISC_LOCK Guardian would get stuck in a few places. Here is what I found and my solutions to them:



ENGAGE_ASC_PART2

Issue: If this state is requested it would get stuck due to self.skipflag returning True. The next time that the run() method would execute, it would jump to the next condition, which would not allow for further movement in the state path when requested.

Solution: I added an extra condition to check if the self.skipflag is True, then return True. This allows for foward movement after a request is put in, while still looking for what it needs to.

ENGAGE_ASC_PART3

Issue: Not all of the logic would run from the run() method, and would get stuck in this state. There are several steps in this method that wait for a timer, do something, then set another timer and wait, before doing more. Problem was that while it would wait for the timer to run out, it would still run through the first step of the logic which included setting the timer. So the timer was set again and again.

Solution: Added a checkpoint flag (self.cp1) so the timer is not set and reset.

ENGAGE_ASC_PART(all)

Issue: No lockloss check decorator in its run() methods!!! Very dangerous, especially since these are requestable states.

Solution: Added the decorator



I hope we are not pushing the commissioners too hard and they are getting sleep...

I have tested this and it has gone through a few times, but now I'm losing lock when it get to DC_READOUT. On to the next mystery!

Comments related to this report
sheila.dwyer@LIGO.ORG - 23:55, Saturday 15 August 2015 (20561)
Sorry! I thought I tested these, but I guess there were still bugs
H1 General
nutsinee.kijbunchoo@LIGO.ORG - posted 08:58, Saturday 15 August 2015 - last comment - 09:16, Saturday 15 August 2015(20550)
Owl Shift Summary

All time in UTC

07:00 IFO locking. Wind below 20 mph.

07:23 Dale came to notify that the Star Party is over.

08:04 Lock loss. 6.6M earthquake in Solomon Islands.

10:21 Another 5.0M earthquake in Indonesia.

11:00 Started relocking. DRMI won't lock after 10 minutes. I did the SRM misalignment and adjust the beam splitter. Everything went smoothly.

         Trouble with ENGAGE_ASC_PART3 for the rest of the night. Please refer to alog20548.

15:00 TJ arrived and tried to lock. He ran into the same problem with ENGAGE_ASC_PART3 and lost lock at REFL_IN_VACUO.

Comments related to this report
thomas.shaffer@LIGO.ORG - 09:16, Saturday 15 August 2015 (20551)

Found a few issues with the logic in the new ENGAGE_ASC states. Currently fixing them and will post and alog when I know they work.

H1 ISC
nutsinee.kijbunchoo@LIGO.ORG - posted 05:54, Saturday 15 August 2015 - last comment - 06:43, Saturday 15 August 2015(20548)
Trouble getting through ENGAGE_ASC

Guardian just spent 40+ minutes in ENGAGE_ASC_PART3 state. DSOFT and CSOFT kept switiching back and forth between "ON:INPUT" and "OFF:FM2". I set the ISC_LOCK to manual and skipped to the next step, lost lock shortly of course. Now I'm stuck at ENGAGE_ASC_PART2 with Guardian message "POP A has a large offset. Align by hand." but abs(ASC-POP_A_PIT_IN1) and abs(ASC-POP_A_YAW_IN1) is already less than 1 (conditions for the Guardian to move on to the next state). Still trying to figure out what to do.

Images attached to this report
Comments related to this report
nutsinee.kijbunchoo@LIGO.ORG - 06:43, Saturday 15 August 2015 (20549)

I checked to make sure that the conditions to get pass ENGAGE_ASC_PART2 were met, set ISC_LOCK to manual and moved to ENGAGE_ASC_PART3. DSOFT and CSOFT were in the conditions they were supposed to be (input on, correct gains) but Guardian seems to have trouble moving on (the same loop as before). I paused it and manually copied-pasted the code to Guardian terminal. Then manually select REFL_IN_VACUO. Soon lost lock at PARK_ALS_VCO.



Well, I tried.....

H1 ISC (ISC)
gabriele.vajente@LIGO.ORG - posted 01:00, Saturday 15 August 2015 (20547)
CHARD and A2L

The low frequency sensitivity (below 50 Hz) was coherent with CHARD PIT and YAW. I tried to retune the A2L, first using Hang's script: I had to fix a bug in the function call (number of steps passed as double instead of integer). The script ran, but made the coupling much worse. So I tried to measure by hand the couplings, injecting lines at 21 Hz. A the end of the day I got a performance similar to what I could get reverting to the A2L coefficients of one day ago. So I reverted to the old coefficients.

At 0:53 LT I reduced CHARD PIT and YAW gains by 20 dB, and as expecetd the noise got better. However, the low frequency is non stationary.

H1 ISC (DetChar, ISC, PSL)
gabriele.vajente@LIGO.ORG - posted 00:54, Saturday 15 August 2015 - last comment - 10:41, Saturday 15 August 2015(20544)
PSL periscope peaks after IMC alignment retuning

The first plot shows the situation at the beginning of a full power, low noise lock. The ISS second loop is closed. After the re-tuningof the IMC offsets, the periscope peaks are no more visible in either the in-loop or out-of-loop ISS second loop signals.  This is very good.

However, the first plot shows that the peaks were, at that time, still visible in the DARM spectrum, together with some coherence with the periscope accelerometer. So, there is residual beam jitter that does not generate intensity noise anymore, but that is transmitted to the IFO input and couples to the OMC transmitted power.

The second plot shows the situation after a while we were locked in low noise. The peaks are no more visible in DARM: so something in the IFO drifted in the right direction (probably some thermally induced drift) and now jitter is no more converted by an IFO misalignment into intensity noise. This is something interesting to investigate in the future over long lock stretches.

Images attached to this report
Comments related to this report
matthew.evans@LIGO.ORG - 10:41, Saturday 15 August 2015 (20553)

OMC alignment?  This will convert jitter to DARM...

H1 General
edmond.merilh@LIGO.ORG - posted 00:00, Saturday 15 August 2015 (20546)
Ops Summary - Evening Shift



ALL TIMES IN UTC

Summary:

H1 GRD (GRD, ISC)
sheila.dwyer@LIGO.ORG - posted 23:51, Friday 14 August 2015 (20545)
changes to ASC engaging in guardian

Ed, Gabriele, Sheila

We had three locklosses in a row while engaging ASC.  I've rearranged the ASC_ENGAGE state in the gaurdian, breaking it into three separate states.

ENGAGE_ASC part1 does the set up, turns on CHARD, checks the recylcing gain.  If the recycling gain is OK, it engages PRC2 and INP1, other wise it gives a message to align by hand and will not move on.  This logic was in the old state, but it did not stop to wait for by hand alingment.  Once the recyclcing gain is high enough, the guardian will engage PR2 and INP1, so the user may want to pause the gaurdian if aligning by hand.

ENGAGE_ASC_PART2 increases the gain for the SRC loops, this part used to be done after engaging PRC1 but we tested this and it is fine.  Then it checks the POP offsets, and if they are small enough it engages the PRC1 loop.  Otherwise it gives the user a message again, and keeps checking the offsets.  It will move on if the drop below the threshold, so if you are aligning by hand you may want to pause the guardian.

ENGAGE_ASC_PART3 engages the SOFT loops.  There is a place hoder here to check the offsets and not engage if they are too large.  I put this in because sometimes we are loosing lock when engaging these loops, however based on the last lockloss it wasn't obvious how to set a threshold, so currently there is no check, they will always be turned on.  As we collect some data while running next week we can look at these locklosses and set an appropriate threshold.

The main motivation for doing this is because the checks that we had previously written weren't really being used (the guardian would move on, just leaving the PRC loops off, but this might not be obvious to the user).  A secondary benefit is fewer blocking calls so that we will check for locklosses in places where we used to miss them.

We tested this once, but did parts of the PART2 state by pasting into the command line.  The only untested change is turning on the ITM offloading to the top mass in when we first turn on DHARD.  Now we are both turning on the offloading and setting it to the full gain in the state DARM_WFS.  (lines 1052 to 1056 used to be near the end of the engage ASC state).  #guardbomb

The other thing to note is that the OFFLOAD_ALIGNMENT state generators are no longer requestable.  I've been slowly trying to reduce the number of requestable states so that we have options that we need in the drop down menu, and fewer options that shouldn't be used.

H1 ISC
sheila.dwyer@LIGO.ORG - posted 20:27, Friday 14 August 2015 (20543)
ALS X WFS gains increased

Our X arm green WFS took extremely long to converge (up to 8 minutes.)  While it was too windy to lock this afternoon gabriele and I increased the gain of ALS-X_WFS_DOF_1 and 2 by a factor of 3, now things should be faster.  A factor of 10 gain was too much, the loops became unstable.

We probably have not been waiting long enough for these loops to converge while doing inital alingment, hopefully things will go better now that they are a little higher gain.  However, it is still a good idea to watch the control signals to see when the converge.  Ed has put templates called XARM_GREEN_WFS and YARM_GREEN_WFS in ops/Templates/StripTools that can be used for this.

H1 CAL (CAL, ISC)
jeffrey.kissel@LIGO.ORG - posted 19:48, Friday 14 August 2015 - last comment - 16:20, Sunday 16 August 2015(20542)
ALS DIFF VCO / PLL Open Loop Gain Modeled to better than 1% and 1 [deg]
J. Kissel, J. Driggers, C. Cahillane, K. Izumi

I've taken the data that we took last Sunday of the ALS DIFF PLL Open Loop Gain TF and Boosts (from LHO aLOG 20363), built a model of the loop. Given the precision of the measurement, I can make a model the reporoduces the boost filters and the PLL OLGTF to within 1% and 1 [deg]. The most important outcome of this is the ability to characterize the frequency dependence of the low-pass filter just before the VCO. The nominally z:p = 40:1.6 VCO Filter is actually a z:p = 1.05:40 Hz filter. This means that, in using the ALS DILL PLL CTRL signal, prior estimates of overall actuation strength of the QUADs (i.e. LHO aLOH 18711) was over estimated by (1.6-1.05)/1.6 = 34%. This potentially explains some of the discrepancy we saw when comparing the three methos, PCAL, Free Swinging Michelson, and ALS DIFF VCO in LHO aLOG 18767.

Of course, as you know, we plan remeasure all methods and make the comparison again.

Details:
------------------------------------
Here're the final answer numbers of the model:
                                                   Traditionally Quoted "Nominal" Values            This Model's Fit Values
Phase Frequency Discriminator (PFD)                        z:p = (none):(0Hz)                   z:p = (none):(0Hz, 450kHz)
Voltage Contolled Oscillator (VCO)                         z:p = 40Hz:1.6Hz                     z:p = 40Hz:1.05Hz
Phase Locking Loop (PLL) Control Common Gain               26 [dB]                                                     25.5 [dB]
Phase Locking Loop (PLL) Control Boost Filter 1            z:p:k = 20kHz:2kHz:0dB               z:p:k = 1.9kHz:1.89kHz:0dB
Phase Locking Loop (PLL) Control Boost Filter 2            z:p:k = 2kHz:40Hz:0dB                z:p:k = 1.95kHz:38.55Hz:-0.2dB

------
Attached are figures demonstrating the progression and precision of the model.
pg1 : The final answer, showing the model of the ALS DIFF PLL Open Loop Gain TF from 0.1 Hz to 1e6 Hz.
pg2 : PLL Control Boost Filter 1; a comparison between measurement, model with fit parameters, and nominal parameters
pg3 : PLL Control Boost Filter 2; a comparison between measurement, model with fit parameters, and nominal parameters
pg4 : PLL OLGTF, with out the boosts engaged
pg5 : PLL OLGTF, with boosts engaged
pg6 : A comparison between fit residuals and nominal residuals with measurement.
pg7 : A confirmation that the closed loop gain, G / 1+G, of the ALS DIFF PLL is indeed 1.0 to better than 0.1% out to 1 kHz.

------
Perhaps it is of interest for the scrutinous to focus on pg 6, where I compare the residuals, and it'll illustrate my motivations for the fit paramaters, and my quoting that we trust their values to such high precision.
Question 1: Why d'you think the magnitude uncertainty is less that 1%, when clearly the boost OLG measurement residual falls by 15% with frequency below 1 kHz, and the unboosted measurement residual falls by 10% with frequency below 100 Hz?
     Recall that at these frequencies, below 1 kHz and 100 Hz for the boosted and unboosted measurements, respectively there is a rediculous amount of loop suppression. As such, given that the phase residual holds up well to fitted poles, and has little affect on the magnitude residual, I suspect that the measurement magnitude drops with frequency as the suppression increases due to very-small, non-linear, in-loop voltage affects.

Question 2: Why do you think there's an 450 kHz pole in the PFD when you've only measured up to 100 kHz?
     I played around with the very-high-frequency response for a while. Of course, a pole is the only high-frequency tool one has to affect the magnitude residual, and 450 kHz was a good balance between the fitted time delay, and the frequency of the pole. Both the 800 [ns] and 450 kHz pole are "plausible." Inside the PFD, there is a fast chip, that the data sheet claims is good up to 100 kHz, but that doesn't mean much, because you don't know what rolloff filter was chosen. 800 [ns] would correspond to a few hundred meters of cable length difference, so it's not that. But if I see a consistent ~230 [ns] delay in the indepednent measurements of the boost filters, it's not crazy to think that the whole phase-locking-loop accrues 800 [ns].

------
The analysis script that built this model is commited to the CAL SVN here:
/ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/PreER8/H1/Scripts/ALSDIFF/ALSDIFFModel_PreER8.m
and the plots live here:
/ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/PreER8/H1/Results/ALSDIFF/2015-08-09_H1ALSDIFF_PLL*.pdf
Non-image files attached to this report
Comments related to this report
jeffrey.kissel@LIGO.ORG - 16:20, Sunday 16 August 2015 (20570)
Sheesh -- you'd figure I'd get the most important sentence in the aLOG right.

Of course, I mean to say:
The nominally z:p = 40:1.6 VCO Filter is actually a z:p = 40:1.05 Hz filter.
The pole is at 1.05 Hz.

Thanks for the catch, Matt.

Further, in the table, I make another typo:
                                                   Traditionally Quoted "Nominal" Values            This Model's Fit Values
Phase Frequency Discriminator (PFD)                        z:p = (none):(0Hz)                   z:p = (none):(0Hz, 450kHz)
Voltage Contolled Oscillator (VCO)                         z:p = 40Hz:1.6Hz                     z:p = 40Hz:1.05Hz
Phase Locking Loop (PLL) Control Common Gain               26 [dB]                                                     25.5 [dB]
Phase Locking Loop (PLL) Control Boost Filter 1            z:p:k = 20kHz:2kHz:0dB               z:p:k = 19kHz:1.89kHz:0dB
Phase Locking Loop (PLL) Control Boost Filter 2            z:p:k = 2kHz:40Hz:0dB                z:p:k = 1.95kHz:38.55Hz:-0.2dB


Thanks for that catch, Bram.

This is what I get for writing such an entry at 8p on a Friday, and then immediately leaving for an off-the-grid public outreach event for the weekend!

Are we any where closer to being able to edit aLOGs past 24 hours?
H1 General (DetChar)
robert.schofield@LIGO.ORG - posted 18:59, Friday 14 August 2015 (20541)
Site anthropogenic noise injections and call for DetChar help

In order to determine how sensitive we are to activities at the site, and to help set rules for the O1 run, I injected human disturbances as recorded in the table below. DetChar, can you run these times to see if there are events detected in DARM for these activities? My timing should be good to within a second.

Injection

Time of first injection

Aug. 12 UTC

Injection spacing (seconds)

Injection session duration and number of injection (seconds, number)

Truck (3808) horn at OSB recieving

15:09:00

5

30, 6

Truck (3808) horn at 2k electronics room building

15:09:00

5

30, 6

Truck (3808) sudden braking near 2k electronics building

15:16:00

5

30, 6

Quick human moves in the optics lab next to the input arm

15:23:00

5

60, 12

Human jumps in the change room

15:25:00

5

60, 12

Silver van horn, 2k electronics building area

17:04:00

5

30, 6

Silver van sudden brakes 2k electronics building area

17:05:00

5

30, 6

Silver van horn, high-bay area

17:08:00

5

30, 6

Siler van brakes high-bay area

17:10:00

5

30, 6

Car door slams, patio area

17:13:00

5

30, 6

Corolla car horn, parking area

17:16:00

5

30, 6

H1 ISC
stefan.ballmer@LIGO.ORG - posted 16:48, Friday 14 August 2015 - last comment - 18:10, Friday 14 August 2015(20539)

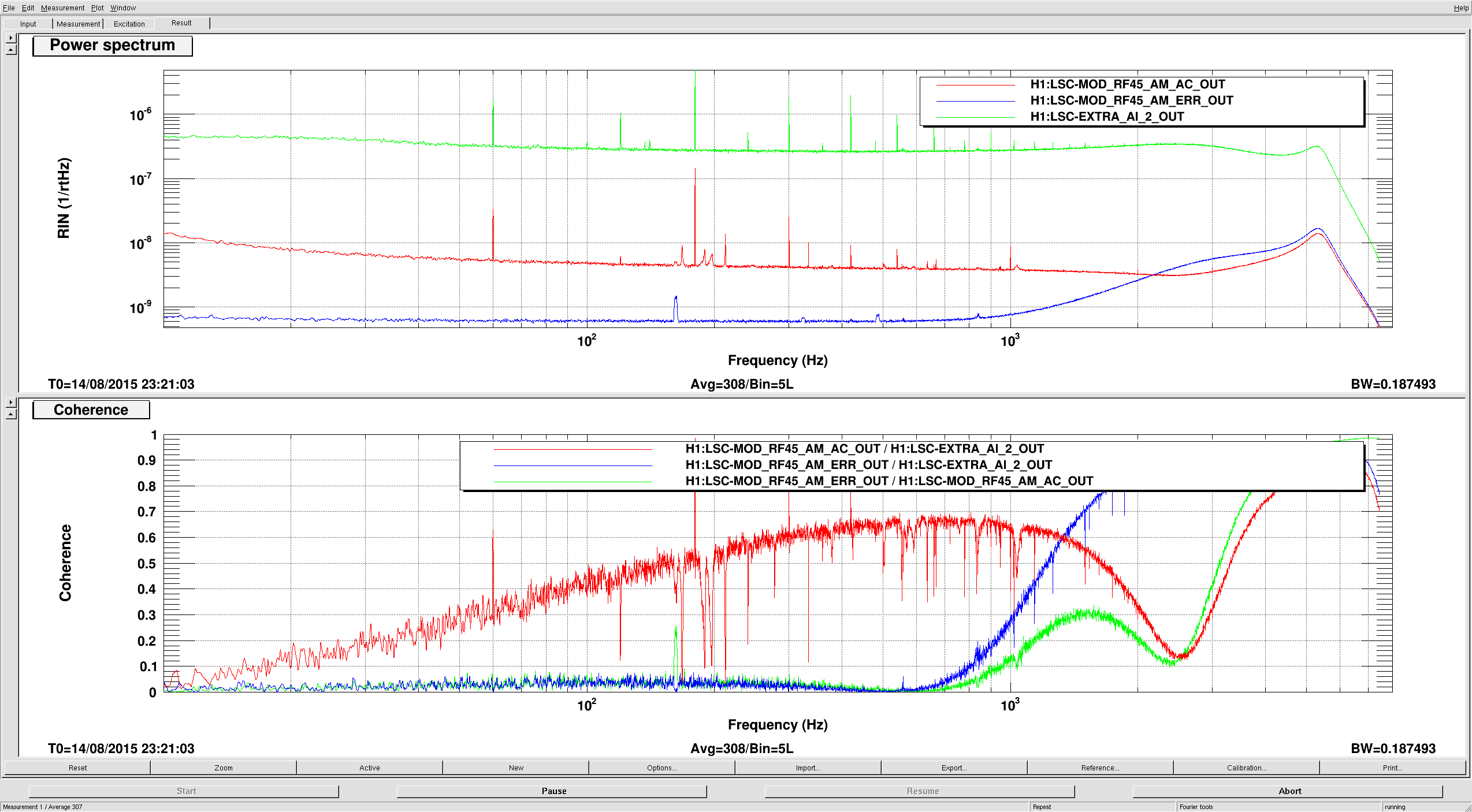

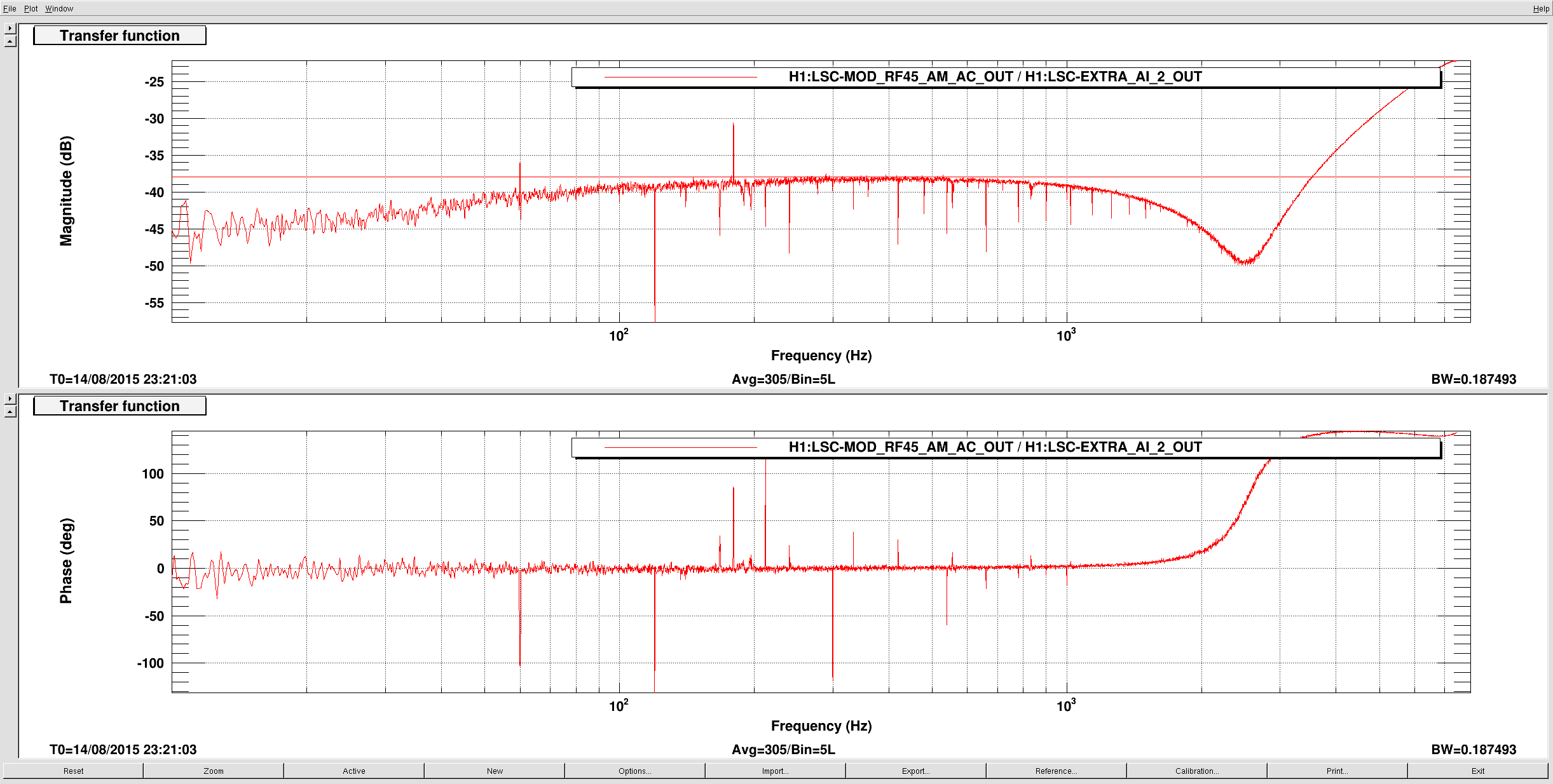

Comparison of pre- and post-EOM driver oscillator RIN
Daniel, Stefan

Puzzled by Evan's elog on the still persisting broadband noise (alog 20524), we hooked up the pre-EOM driver 45MHz RIN monitor again (plot 1)

- Interestingly, the out-of-loop RIN monitor is still coherent with the pre-EOM driver input (just 38 dB lower), although there is a sign flip below ~2.5kHz (plot 2 shows the transfer function).
Images attached to this report
Comments related to this report
stefan.ballmer@LIGO.ORG - 18:10, Friday 14 August 2015 (20540)
Robert, Daniel, Stefan

Installed cable from PSL rack to EOM driver test excitation. This will allow us to measure the (driven) 45MHz oscillator RIN transfer function once the winds die down.

We hooked the drive up to EXTRA_AO_2, and verified the drive works. We can measure the TF during the next lock.

(Work permit 5434)
H1 SEI
jim.warner@LIGO.ORG - posted 16:30, Friday 14 August 2015 (20538)
Comparison of LLO and LHO HAM1 HEPI performance

There is some suspicion that motion of the HAM1 table is contributing to CHARD noise. I learned today that LLO is using some inertial isolation on their HAM1 HEPI platform (i.e. they are blending L4Cs & IPSs, and use that signal for feedback control). I've started looking in to doing this here, but I wanted to see what kind of gains we could maybe expect from such a scheme. The two attached plots are (first image) LH0's HAM1 L4Cs versus our ground, and (second image) LLO's HAM1 L4C's versus their ground. A few points:

  1. X at low frequencies at both sites sucks. I suspected sensor correction, my third image is an on/off comparison. X is a lot better with it off (blue is sensor correction off, red is on, green and brown are the grounds). We are getting hammered by wind right now but the performance is equally bad without sensor correction). I remember turning HAM1 sensor correction on a while ago, and did a measurement where I thought it was making an improvement at the time, so I'm not sure what happened here. Y is not as bad, but I've turned it off as well.

  2. At 1 hz LHO is doing almost as well as LLO because our ground is quieter. Yay us.

  3. The real improvement would come between 1-10hz, where LLO is moving less by ~1.5 orders of magnitude. This will mean installing blends, which is an easy copy paste with foton. Or if LLO was nice they'd send a mat file with a zpk. It wil also mean that we would need to redesign the isolation loops for a UGF above where we want isolation. Right now they are probably 2hz loops, I would guess that LLO's are probably 10-15.

The 2 actions I want to do before 01 are:

      1. turn off X/Y sensor correction... which is done. I'll look at the filters and see if I can find whats wrong, but for now I would expect to leave this off. Z sensor correction seems to work fine.

      2. Install the LLO blends and see if they make things better at least a little better around 1 hz, and not make things worse at low frequency. I would like to do this Monday.

After that I can look at redesigning the isolation loops, or maybe just copy LLO's, but I would worry that the higher frequency parts of the plant may be different.

Images attached to this report
Displaying reports 63061-63080 of 83076.Go to page Start 3150 3151 3152 3153 3154 3155 3156 3157 3158 End
