TITLE: 03/26 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Commissioning
INCOMING OPERATOR: Oli
SHIFT SUMMARY: Maintenance day activities concluded just before noon and we made it back to low noise at 21:11 UTC. Since then there have been detchar injections, PEM inj, PRM/PR2 spot centering.

• First lock attempt
  • Ran an initial alignment, no issues
  • Made it up to Transition_to_ETMX before it lost lock. Violins were a bit high on ETMX, but can't say that this was the cause.
• 2nd
  • Waited at 2W DC to damp violins a bit before moving on

LOG:

Following instructions in this google doc and here's a past alog70817 to reference running as well.

I started the injections the first time at 1395523038, but ran into an HTTP error when trying to upload the event to GraceDb. I also had forgotten to turn off the PCALX lines and Robert had a shaker going on during part of that time as well. Scrap this one.

Second round with PCALX lines off, no shaker injections, and still ran into the HTTP error at the end of the injections. Start time of these - 1395523842.

Looking at the PCAL AOM, it seems that it has had a lower voltage for ~1 hour before these were ran. PCAL team is currently looking into this and if it would have affected these injections.

Naoki, Nutsinee

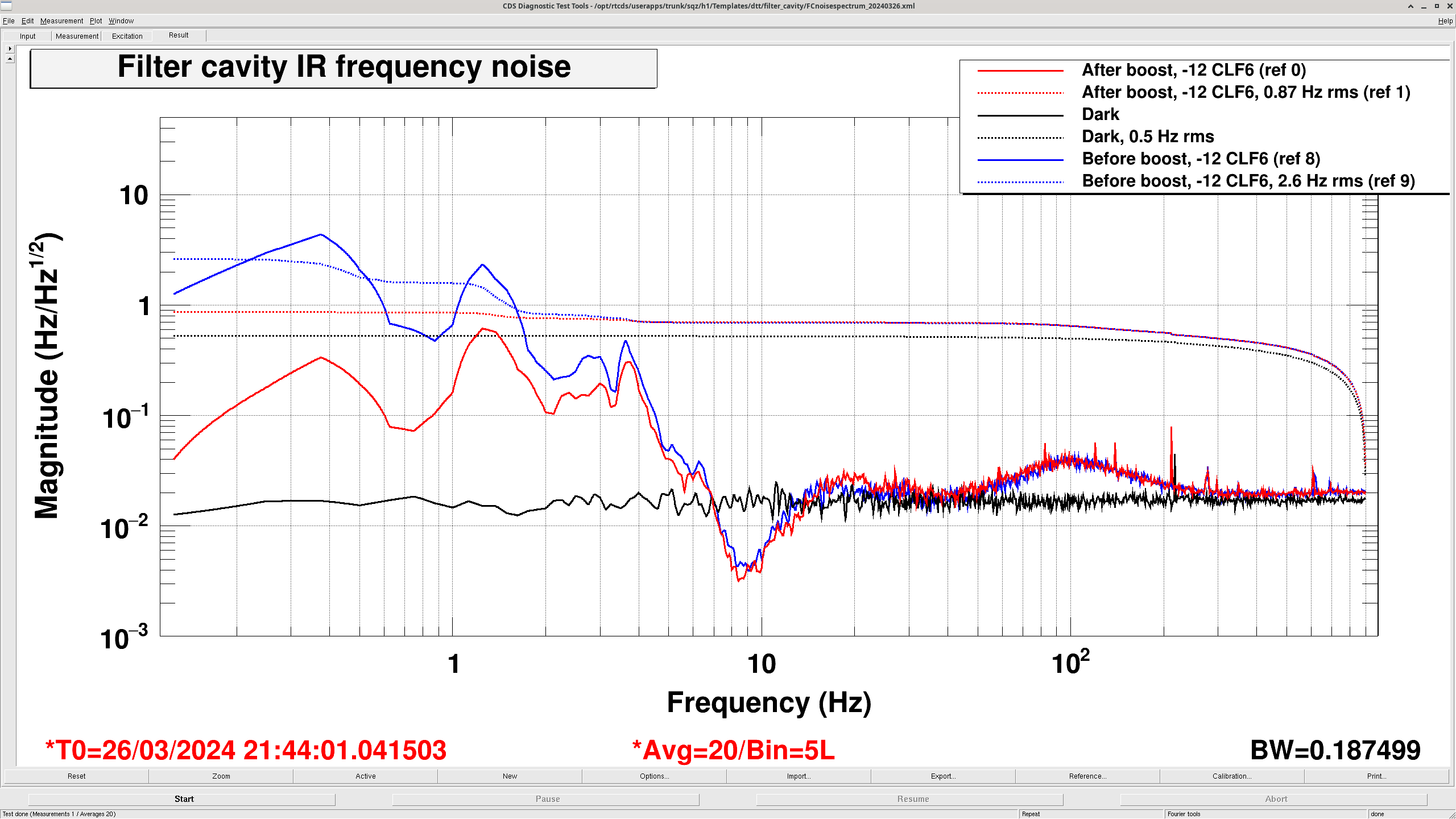

Since we see the 0.4 Hz motion in FC IR error signal, we added a boost filter for FC IR. The new boost filter is p0.1z5 and it is in FM9 of FC_LSC_DOF2. The first attachment shows the improvement of FC IR error signal with the boost filter. The rms is reduced by a factor of 3. We modified the SQZ_FC guardian to add this filter as follows.

line 393: ezca.switch('SQZ-FC_LSC_DOF2','FM1','OFF','FM2','OFF','FM3','OFF','FM9','OFF') #disable IR sus boost

line 424: ezca.get_LIGOFilter('SQZ-FC_LSC_DOF2').only_on('FM1','FM2','FM3','FM4','FM5','FM6','FM9','FM10','INPUT','OUTPUT','DECIMATION')

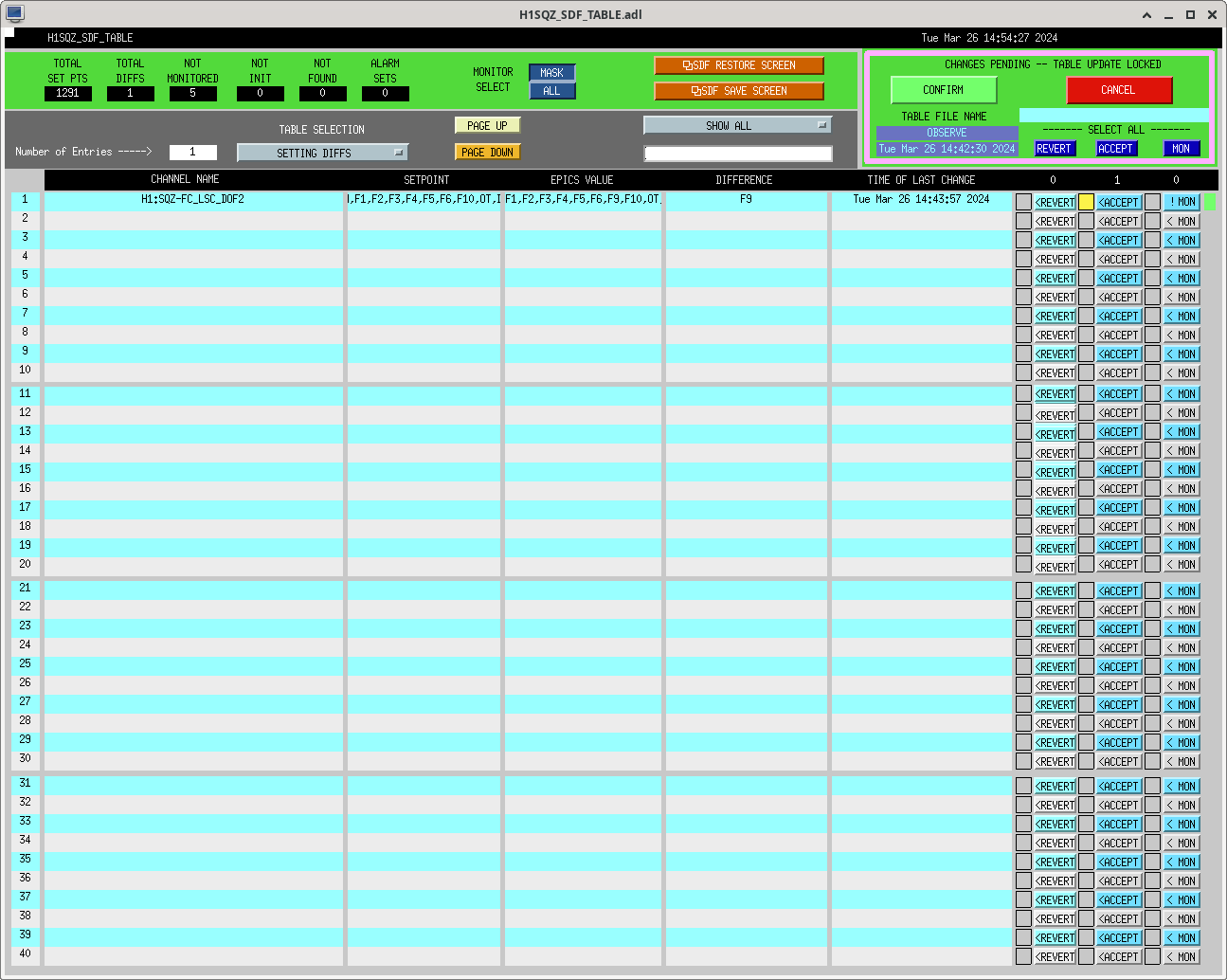

The SDF is accepted as shown in the second attachment.

I noticed in the summary pages spectrogram that the low frequency sensitivity was changing during one of the A2L step experiments (this is ETMX ITMX test).

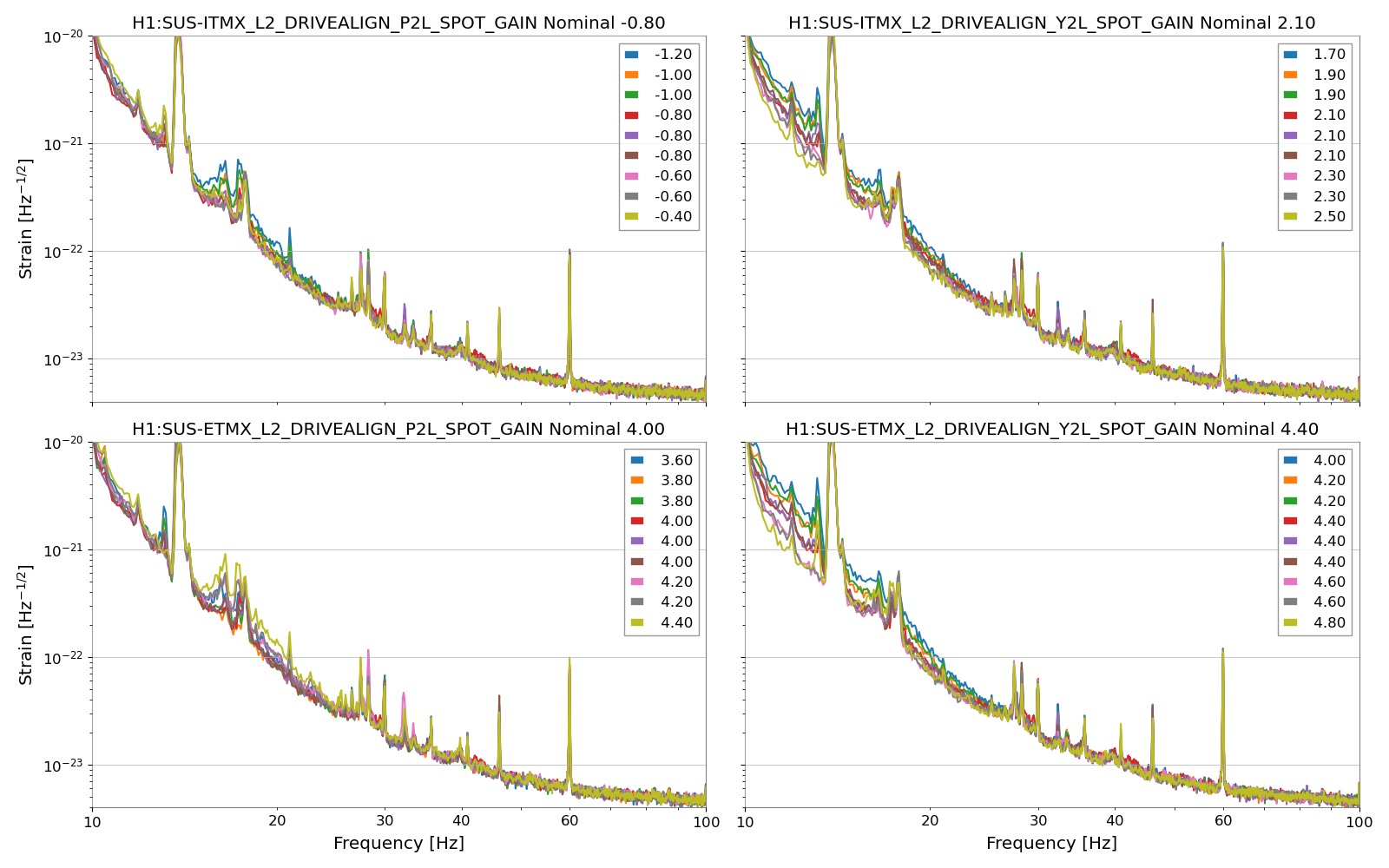

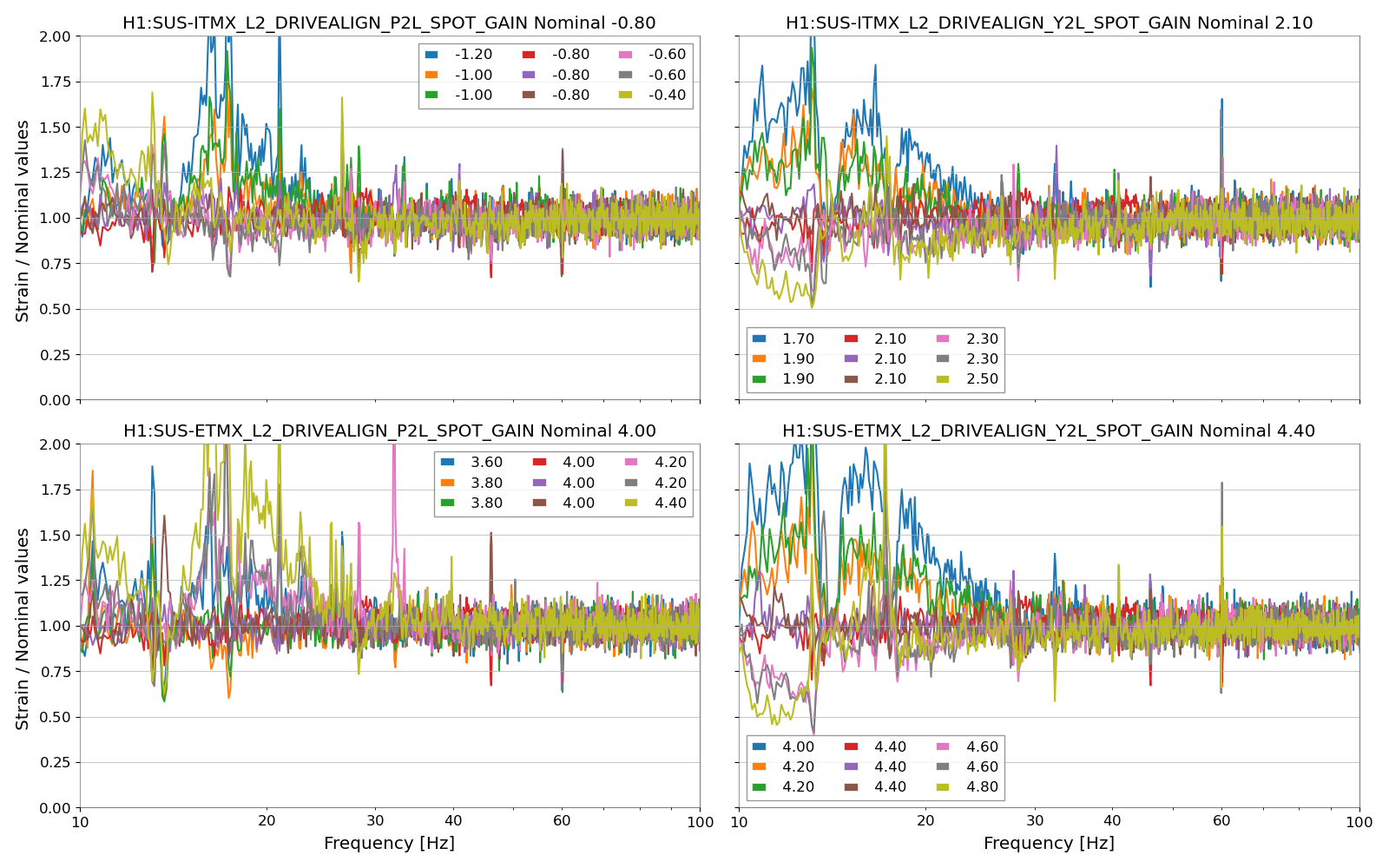

The first plot shows the strain spectrum (GDS-CALIB_STRAIN_CLEAN) for 900 seconds for each available step of P2L and Y2L for the x arm. Some steps were repeated twice. In each panel, the title shows what A2L gain is being changed, and what's the nominal value. The second plot shows the ration of strain spectrum for a given A2L gain over the averaged strain spectrum with the nominal A2L value. So lower than one means the A2L value is improving the sensitivity.

There is evidence that yaw values away from nominla make the nosie below 30 Hz better.

TJ, Camilla, WP 11746, LLO did in LLO#14419

• Data set A: No mask. Razor blade 2 3/8" downstream of the center of the annular mask
• Data set B: Annular mask in mask. Razor blade 2 3/8" downstream of the center of the annular mask
• Data set C: No mask. Razor blade 10 7/8” upstream of the center of the annular mask

J. Kissel
ECR E1700387
IIET 9392
WP 11743

After
    - yesterday's front-end code model prep (LHO:76696),
    - TJ and I's prep for front-end code installation (LHO:76703), and
    - Dave's code installation (LHO:76706)
I spent the rest of the morning filling in the upgraded watchdog infrastructure for the HAM Triples, i.e. MC1, MC2, MC3, PRM, PR2, PR3, SRM, SR2, SR3, FC1, and FC1.

 All HAM Triples' WD RMS MAX thresholds have been set to 150 [um_RMS]
As with the QUADs and Beam Splitter -- please feel free to edit as we gain more experience with normal things that happen during IFO operation.

The following has been committed / was affected by today's upgrade.

MEDM SCREEN MODS
/opt/rtcds/userapps/release/sus/common/medm/hxts/
        SUS_CUST_HXTS_M1_WD_OSEMAC_RMSLP.adl
        SUS_CUST_HXTS_M2_WD_OSEMAC_RMSLP.adl
        SUS_CUST_HXTS_M3_WD_OSEMAC_RMSLP.adl

        SUS_CUST_HXTS_WD.adl

        SUS_CUST_HLTS_OVERVIEW.adl
        SUS_CUST_HSTS_OVERVIEW.adl

FOTON FILE MODS
/opt/rtcds/userapps/release/sus/h1/filterfiles/
        (all of the above mentioned foton filter files)

SDF FILE MODS
/opt/rtcds/userapps/release/sus/h1/burtfiles/
        (all relevant _safe.snap and _OBSERVE.snap files)

GUARDIAN MODS
/opt/rtcds/userapps/release/sus/common/scripts/
    sustools.py

Attached are my detailed notes.

This morning I took the OPLEV charge measurements on both ETMX and ETMY suspensions. I will post the results below after processing the data.

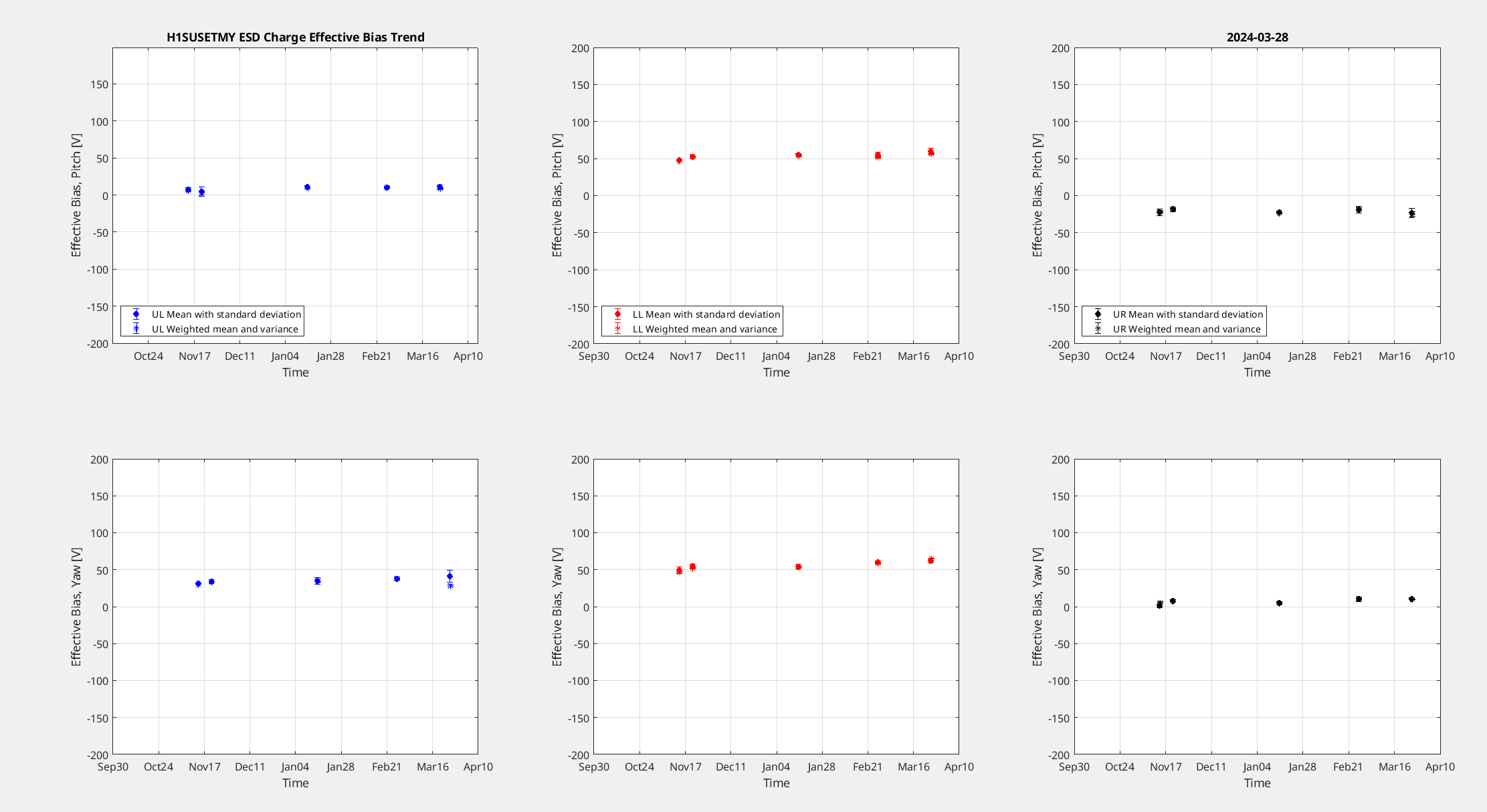

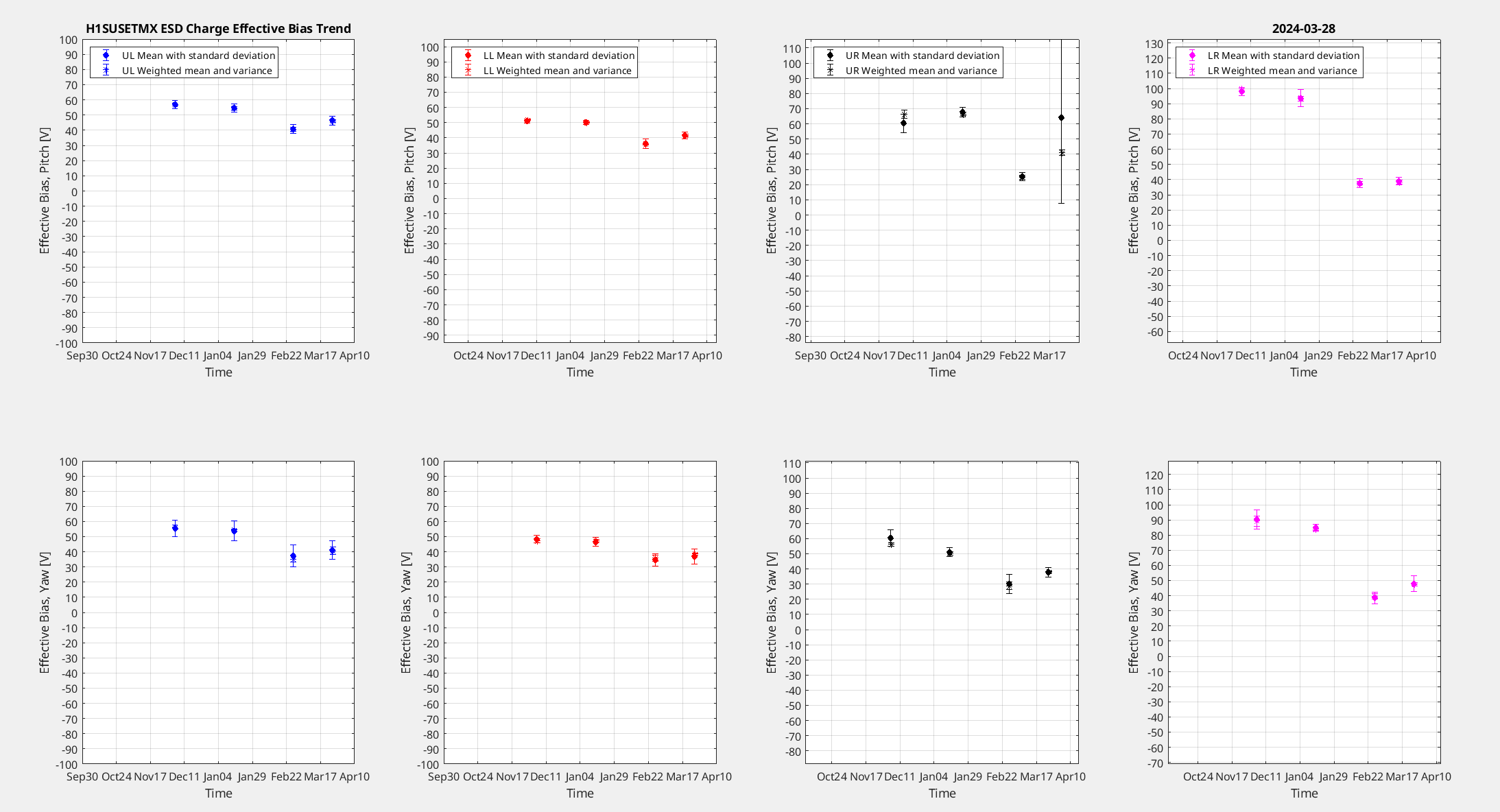

Both the suspensions were restored to their nominal state after the measurements were complete.

Later, Jeff flipped the sign on ETMX ESD bias voltage once the above measurements were done.

TITLE: 03/26 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Preventive Maintenance
INCOMING OPERATOR: Oli
SHIFT SUMMARY:

Covered the morning for TJ while he did TCS work & here are the activities from when I was in the chair.
LOG:

• Technical cleaning:  Karen done @EY 1629, Kim.Emma done @EY.FCES
  • 1724 LVEA cleaning (karen.kim).  1816-Karen OUT.
• Lights catwalk
• 1525-1827 Taking over Ops for TJ (corey)
• 1530 Transitioning LVEA to HAZARD
• 1535 FARO (jason, ryanc)
  • 1540 tyler joining
• 1535-1656 EY accelerometer (fil)
  • 1553 marc joining
• 1541 tcsx beam profiling (tj, camilla)
• 1545-1751 Purge air (loud) on in LVEA for x-beam manifold test (gerardo)
  • 1607 janos joining
  • 1714 Shutting down test. (janos)
• 1600 PEM injection set-up (robert)
• 1613-1750 EX.EY sus charge (rahul)

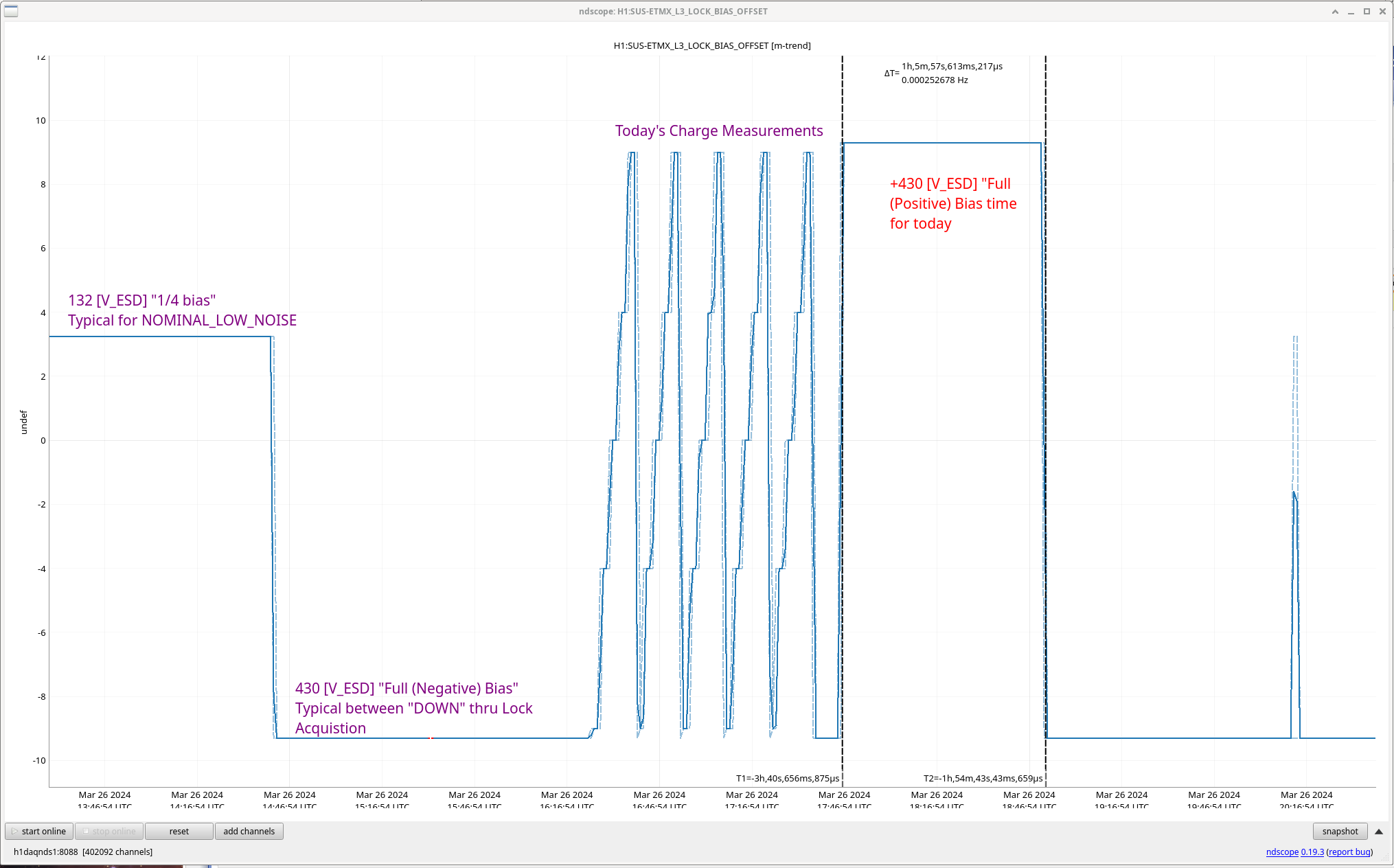

  • 1744 EX had its ESD offset put at a POSITIVE value (to help peck away at cutting down charge) [jeffk]
• 1615-1806 oplev cabling at ex.ey (fernando)
• 1623 LN2 truck at EY's cp7
  • 1659 LN2 truck at corner's cp1
• 1735-1745 Field trip in Control Room
• 1749-1758 Squeezer rack measurement (nutsinee)
  • 1813 Returning
  • 1816 HAM7 watchdog trip (ops note: let Jim know!)
• 1750-1813 itmx cps investigations in control room & on floor (jim)
• 1815 PEM set-up & channel checks at EX.EY (robert)

Tue Mar 26 10:09:35 2024 INFO: Fill completed in 9min 31secs

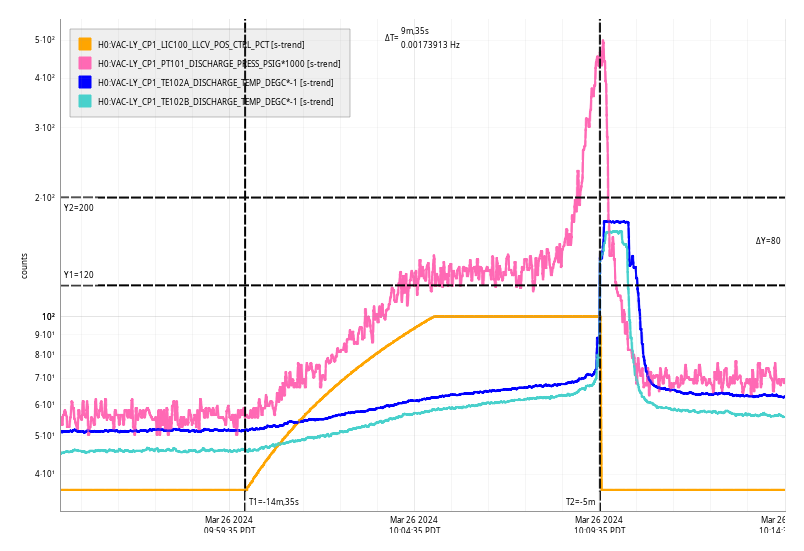

TCs started lower, so I restored the trip temps to -120C (as shown on plot)

WP11786

Jeff, Joe, Jonathan, Dave

A new h1calcs model was installed, this adds two slow channels

++: slow channel H1:CAL-CALIB_REPORT_HASH_INT added to the DAQ
++: slow channel H1:CAL-CALIB_REPORT_ID_INT added to the DAQ


A DAQ restart was required.

WP11743 SUS DACKILL removal

Jeff, Oli, TJ, Dave:

This morning we installed new HAM SUS and ISI models:

h1susmc[1,2,3], h1suspr[m,2,3], h1sussr[m,2,3], h1susfc[1,2], h1isiham[2,3,4,5]

All required a DAQ restart.

J. Kissel
ECR E1700387
IIET 9392
WP 11743

Tomorrow, we continue on the adventure towards upgrading the suspension watchdog systems that Oli, Dave and I have been chugging along on for the previous two weeks (see, eg, LHO aLOGs 76305, 76269 and 76545).
This week, we're tackling a big chunk -- all of the HAM triple suspensions, both large and smal, i.e. the 7 HSTS and 2 HLTS.

Note :: these are the final suspensions that are hooked up to their respective ISIs, so this should be the last major upgrade.

As such I've:
    In the SUS model library parts,
    - Converted the BLRMS trigger generating systems to include a trust-worthy RMS calculation, coupled with a down-stream low-pass filter,
    - Removed all evidence of the USER DACKILL watchdog aggregator system
    - While I was there, I removed remaining evidence of the long-defunct / depricated "online detector characterization" ODC system, long since replaced by guardian state information
    On the top level SUS models,
    - Removed all evidence of the USER DACKILL watchdog aggregator system
    - Removed the IPC sender of the USER DACKILL to the respective ISI
    - Verified that the removal of library block output ports didn't botch any of the top level connections, reconnecting and re-organizing as needed
    On the top level of the ISI models,
    - Replaced the IPC receiver of the USER DACKILL watchdog from all respective SUS

which impacts all of the following models:

    Top Level ISI               Top Level Optic     Governing Library Part
    h1isiham2.mdl               h1susmc1.mdl        HSTS_MASTER.mdl
                                h1susmc3.mdl        HSTS_MASTER.mdl
                                h1suspr3.mdl        HLTS_MASTER.mdl
                                h1susprm.mdl        RC_MASTER.mdl

    h1isiham3.mdl               h1susmc2.mdl        MC_MASTER.mdl
                                h1suspr2.mdl        RC_MASTER.mdl

    h1isiham4.mdl               h1sussr2.mdl        RC_MASTER.mdl

    h1isiham5.mdl               h1sussr3.mdl        HLTS_MASTER.mdl
                                h1sussrm.mdl        RC_MASTER.mdl

    (no change to isiham7)      h1susfc1.mdl        HSTS_MASTER.mdl

    (no change to isiham8)      h1susfc2.mdl        HSTS_MASTER.mdl

In addition, some of the lower level SUS library parts were also impacted,
    SIXOSEM_T_STAGE_MASTER.mdl
    FOUROSEM_STAGE_MASTER.mdl
    FOUROSEM_STAGE_MASTER_OPLEV.mdl

All of the above model changes have been committed to the userapps SVN repo in revs 27310, 27311, 27312, and 27313.


We aimed to do A2L steps over the weekend, 15 minutes/step  76630, 76683, but as Elenna points out with the camera servos running the beam spot stayed static on the mirror while the mirror actuation point changed.

Looking at data from A2L tuning in April 2023 68384 attached plot, A2L steps are ~0.4 for a change of around 2 in the camera offset  (TRAMP 120s). We'll keep around the steps same as the weekend: +/- 1.0 per 15 minutes to up to +/-2.0 in the H1:ASC-CAM_{PIT,YAW}{1,2,3}_OFFSET channels during observing with nominal TRAMPs extended from 10s to 120s. These offsets are already unmonitered in sdf as reset each lock, I unmonitered the TRAMPs.

These offfsets vary up to 3 counts lock to lock, see attached plot. Set based on ADS converging.

Script saved in /ligo/gitcommon/labutils/beam_spot_raster/camera_servo_offset_stepper.py  Scheduled to run if we're in NLN via tmux session on cdsws26 at:

• 6pm - 10pm on CAM1 (BS => CAM1 => PRM)
• 10pm to 2am on CAM2 (ETMX => CAM2 => ITMX, ETMX)
• 2am to 6am  on CAM3 (ETMY => CAM3 => ITMY, ETMY)

Tony will be here during the first set so can cancel the others if there is any issues.

J. Kissel, L. Dartez
ECR E2400103
IIET 30760
WP 11786

To better coordinate and confirm the front end portion of the calibration pipeline and the GDS portion running on the DMT machines remain in sync in terms of calibration model installed, which is necessary for good calibration, we are adding two slow 16 Hz EPICS channels to the h1/l1calcs models (so both LLO and LHO) that will be added to the GDS broadcaster list so the GDS calibration pipeline can read them. These are H1/L1:CAL-CALIB_REPORT_ID_INT and H1/L1:CAL-CALIB_REPORT_HASH_INT.

Louis and I created the top-level EPICs records today; see attached screenshot.

The change has been committed to the userapps SVN under:
    /opt/rtcds/userapps/release/cal/h1/models/
        h1calcs.mdl          committed at rev 27307.


It's in no way a complicated add to the model, but I've ran a test compile of the h1calcs.mdl on the build machine anyways just to check. The test compiled succeeded without issue.

Jason, Filiberto, Fernando.

Per the WP11763

Motor/Brake cable identification was perfromed for the TIMX/ITMY/BS OPLevers. The provisional Medm was tested as well. We took advantage of this opportunity to complete the internal wiring in the BS OPLEver with the inclusion of the RJ9 patches.

The WP will remain open to perform the activity in ETMX/ETMY next Tuesday.
