L. Dartez, J. Kissel

More details to come, but as of 2023-08-31 19:10:00 UTC (12:10 PDT), we've updated several corners of the calibration for the first time since Jun 21 2023 (see LHO:70693) in order to:
    - Update the static model of the test mass actuation strength, to better match the current time-dependent-correction factor value (because it had gotten large enough that approximations used in all TDCF calculations would have started to breakdown) (LHO:72416)
    - Update the "DARM loop modeled transfer functions at calibration line frequencies" EPICs records in order to account for the new DARM2 FM8 boost (LHO:72562 and LHO:72569)
    - Update the sensing function (only a little bit) because we're now regularly operating with OM2 "hot" as of 2023-07-19 (LHO:72523)
    - start using the newly re-organized pydarm librarianship, including the use of new simulines-measured IFO sening and actuation function data. (aLOG pending)
    - fixed an unimpactful bug in the front-end computed version of the live measured response function systematic error, in which the local oscillator frequency for the demod that was demodulating the recently changed 102.13 to 104.23 Hz calibration had not been updated. (to be commented below)

The exciting news is that, with all the metrics we have on hand, these calibration updates made everything better.

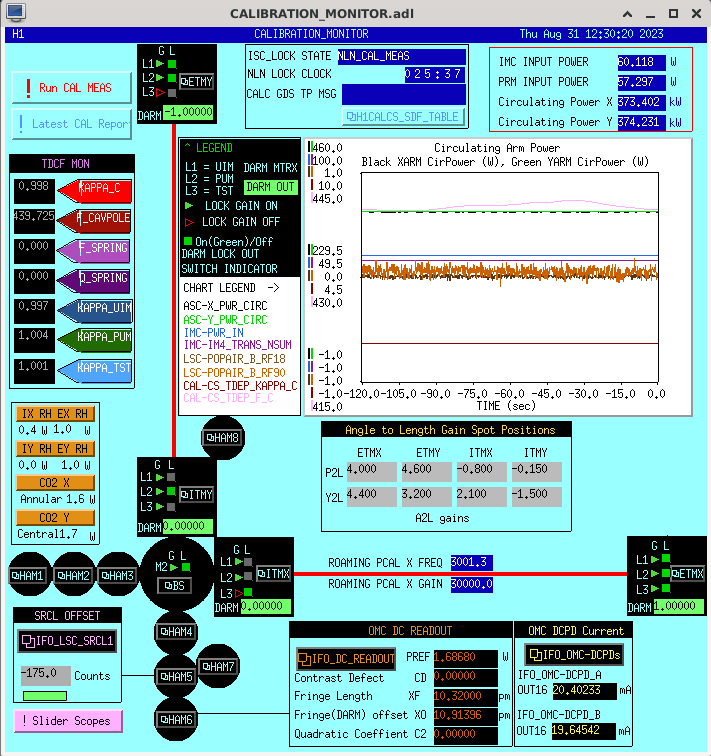

    - 1st attachment: at the boundary of the change, we see the "relative" time-dependent correction factors change rapidly from non-unity values to unity values (and the cavity pole doesn't change, as expected).
    - 2nd attachment: at the boundary of the change, we see the front-end computed live measured response function systematic error goes from large values to values close to unity magnitude and zero phase.

We're still tracking down some bugs in the *modeled* systematic error budget that has been broken since yesterday, Aug 20 2023 19:50 UTC *and* we're not sure if the *GDS* processed live measured response function systematic error is running yet, but we'll keep you posted.

The comments below will also contain some updated details on the process for this update.

Following the usual instructions on the wiki, I took a broadband measurement followed by the simulines.

Start time:

PDT: 2023-08-31 12:35:20.025399 PDT
UTC: 2023-08-31 19:35:20.025399 UTC
GPS: 1377545738.025399


End time:

PDT: 2023-08-31 12:57:25.118313 PDT
UTC: 2023-08-31 19:57:25.118313 UTC
GPS: 1377547063.118313

2023-08-31 19:57:24,730 | INFO | File written out to: /ligo/groups/cal/H1/measurements/DARMOLG_SS/DARMOL
G_SS_20230831T193521Z.hdf5
2023-08-31 19:57:24,760 | INFO | File written out to: /ligo/groups/cal/H1/measurements/PCALY2DARM_SS/PCA
LY2DARM_SS_20230831T193521Z.hdf5
2023-08-31 19:57:24,771 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L1_SS/SUS
ETMX_L1_SS_20230831T193521Z.hdf5
2023-08-31 19:57:24,782 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L2_SS/SUS
ETMX_L2_SS_20230831T193521Z.hdf5
2023-08-31 19:57:24,793 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L3_SS/SUS
ETMX_L3_SS_20230831T193521Z.hdf5

While running initial alignments, we have been getting saturations for OM1 and OM2 when running through the DOWN state of ALIGN_IFO. These have been traced back to the yaw integrators for each suspension's top mass not being properly cleared. Since it seems like the integrators are, in fact, being cleared but then immediately filled up again, I've moved the clear integrators step to be the last step done in the DOWN state and added a one second wait timer right before it. This hopefully gives more time for everything to settle before the top mass integrators are cleared, but we'll see the next time an initial alignment is run.

ALIGN_IFO has been loaded and changes committed to svn.

All dust monitor pumps are operating within temp and pressure specs.

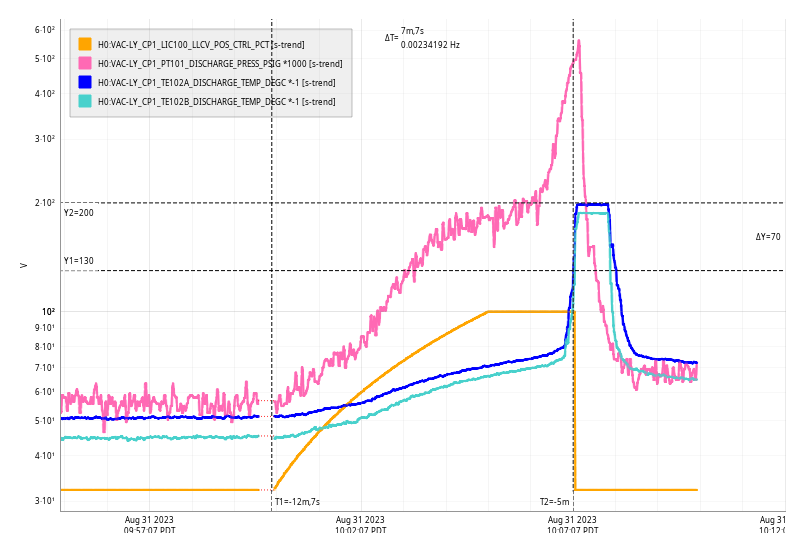

Thu Aug 31 10:07:07 2023 INFO: Fill completed in 7min 3secs

TITLE: 08/31 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 154Mpc
OUTGOING OPERATOR: Austin
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 8mph Gusts, 5mph 5min avg
    Primary useism: 0.01 μm/s
    Secondary useism: 0.11 μm/s
QUICK SUMMARY: Locked for 21 hours. PR2, SR2, MC2 saturation at 1132 UTC, but no obvious seismic or other enviromental noise a that time.

CDS overview - OK

Below is the summary of the DQ shift for the week of 21-27 August 2023

• Average range during observing was 140-152 Mpc. The duty cycle each day was M 95.8%, Tu 69.9%, W 75.7%, Th 100%, F 92.9%, Sa 71.4%, Su 86.0% for an average for the week of 85.5%. The long observing period from 22:55 UTC on 23 Aug to 20:19 UTC on 25 Aug of 45h 24m occurred during a record O4 lock of 60h 29m (see aLog 72446).
• The h(t) spectrogram looks clean although the line from 511 Hz violin mode fundamental (and sometimes higher harmonics) are visible and strong at the start of observing periods arising from an unlocked state. This is also true for the 102 Hz line.
• The squeezer (SQZ) system apparently caused the lock loss at 22:59 UTC on 21 August (see aLog 72363)
• As expected, there was excess ground motion during an unlocked period due human acitivity on Tuesday maintenance day.
• H1:PEM-EX_VMON_ETMX_ESDPOWER48_DQ was the hVeto Round 1 or 2 winner every day as it has been throughout O4. ETMX OPLEV channels (e.g., H1:SUS-ETMX_L3_OPLEV_YAW_OUT_DQ) also appeared frequently. On 22 Aug, the HVeto Round 1, Winner was H1:IMC-WFS_B_Q_YAW_OUT_DQ which seemed somewhat unusual. On 23 Aug, another uncommon winner was H1:PSL-ISS_PDB_REL_OUT_DQ. The rest of the week did not show any of these unusual channels.
• On 25 and 26 Aug, SEI/BLRMoverview data missing after 22:00 UTC. On 27 Aug, it stops (at least so far) at 20:00 UTC. This is probably true also for other SEI pages.
• One or both (all frequencies and up to 500 Hz) of the glitchgram and glitch rate plots did not complete starting on 24 Aug.
• A brief increase in the lowest SNR glitch rate was observed on 24, 25, and 27 Aug but only for the high frequency plot.
• A lock was ended due to the failure of a chiller on 25 August (see aLog 72369)
• LASSO picked out 2 potentially interesting channels that appear to correlate with the range drop : H1:HPI-HAM2_ISO_Y_OUT16 and H1:HPI-ITMY_TWIST_FB_Y_INMON. The first of these had many additional channels correlated with it. Both channels seemed to change with the range drop beginning at about 16:30 UTC on 26 August.
• A peculiar noise feature during Observing at about 14:10 UTC on 22 Aug looks like a possible injection.
• FScan Observing shows the number of lines was highest (higher than on 20 Aug) on 21 Aug but below the threshold and fluctuated at lower values throughout the week. Five combs were visible from 21 Aug through 25 Aug. Six combs were visible on 26 - 27 Aug. (It should be noted that the Interactive Spectrum plots do not load for those with slow internet.)

The complete DQ shift report may be found here.

TITLE: 08/31 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 154Mpc
INCOMING OPERATOR: Austin
SHIFT SUMMARY:

Very quiet evening with one candidate event, S230831e. H1 was locked and observing for the whole shift; current lock stretch is at 13 hours.

LOG:

No log for this shift.

State of H1: Observing at 151Mpc

H1 has been locked for 9 hours and observing the whole shift. One candidate event two hours ago, S230831e, quiet evening otherwise.

Elenna, Gabriele, Camilla

This afternoon we updated the MICH Feedforward, it is now back to around the level it was last Friday, comparison attached. Last done in 72430. Maybe need to be done so soon because of the 72497 alignment changes on Friday.

The code for excitations and analysis has been moved to /opt/rtcds/userapps/release/lsc/h1/scripts/feedforward/

Elenna updated in guardian to engage FM1 rather than FM9 and sdf accepted. New filter attached. I forgot the accept this in h1lsc safe.snap and will ask the operators to accept MICHFF FM1 when we loose lock or come out of observe(72431), tagging OpsInfo.

Attached is a README file with instructions.

FAMIS 26055, last run in alog 72310

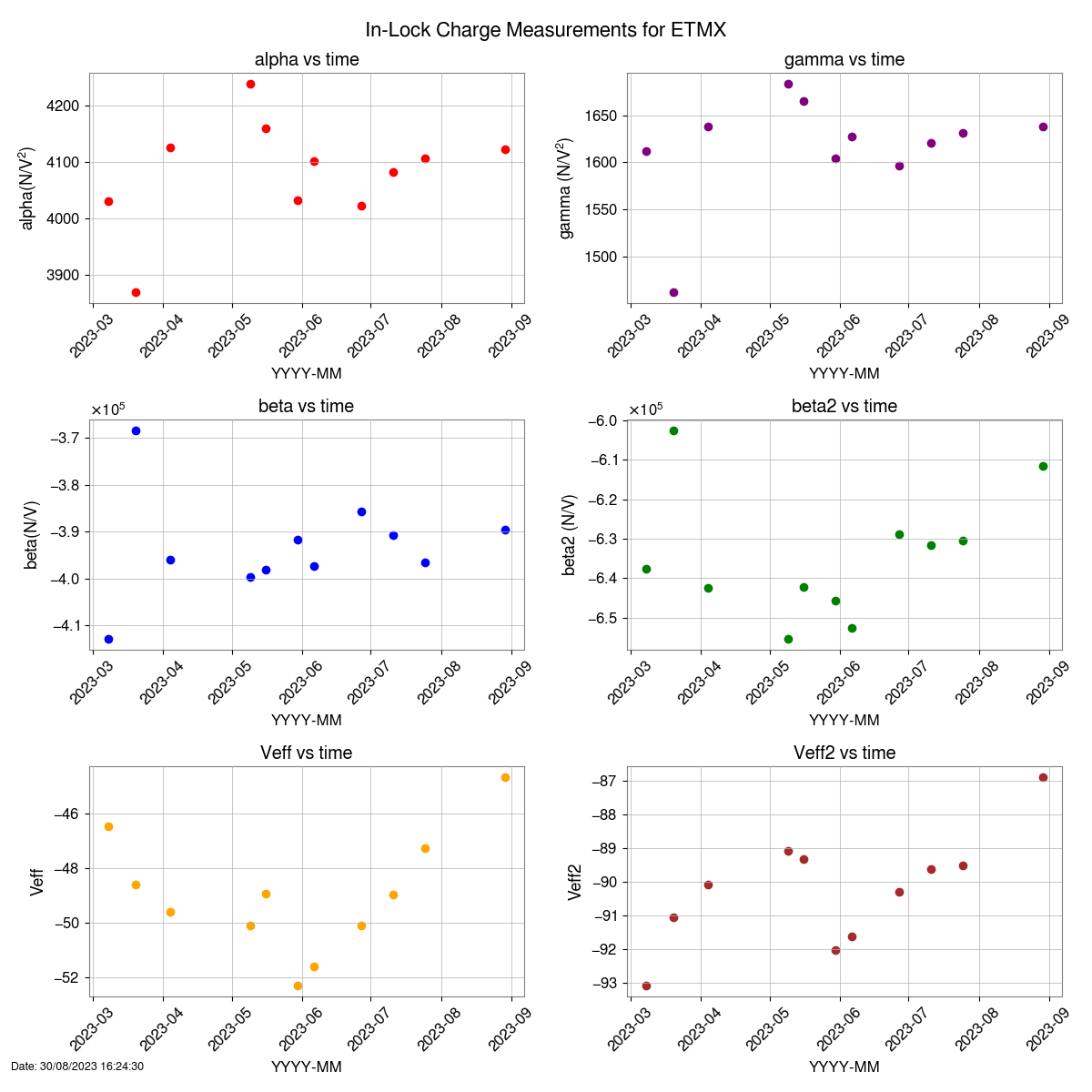

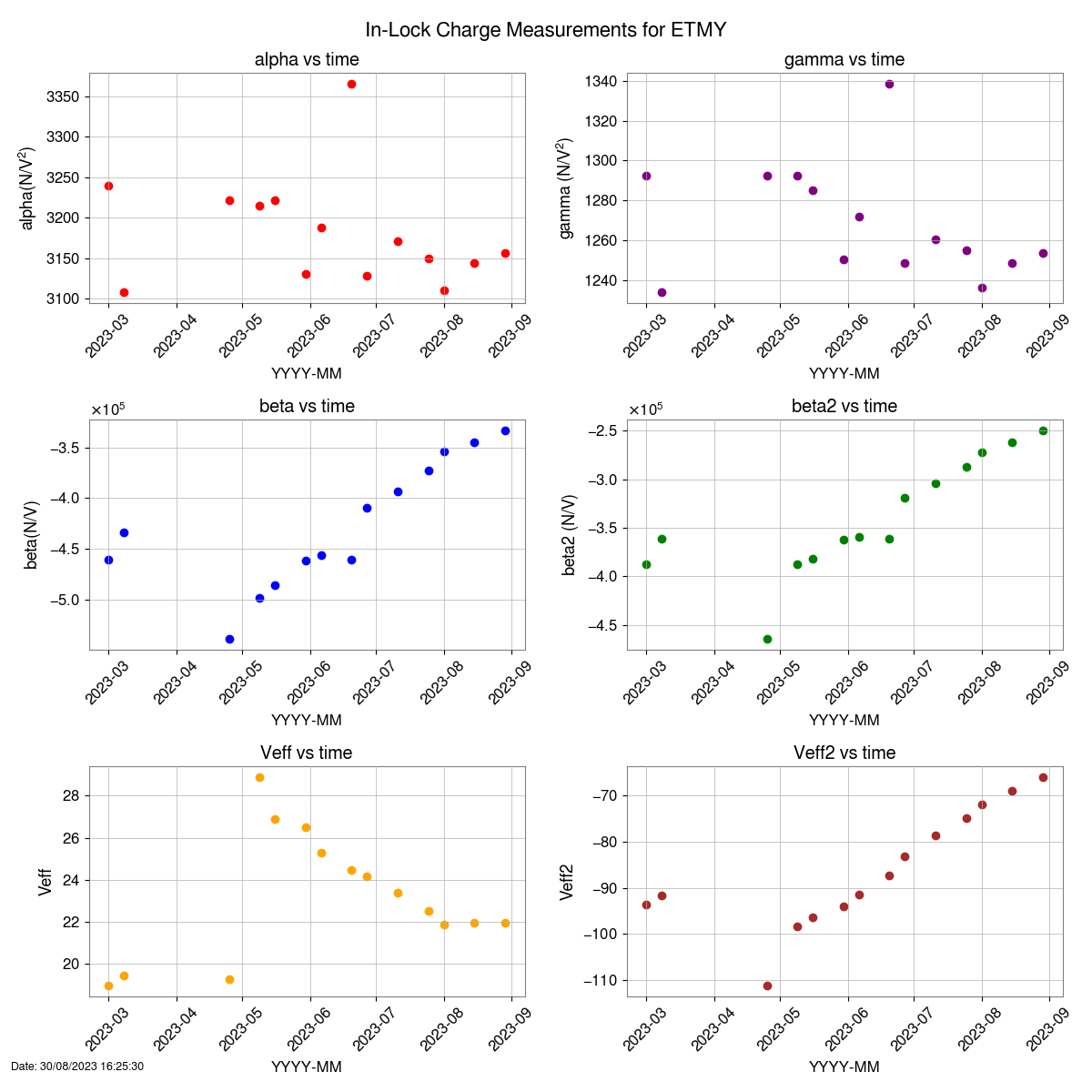

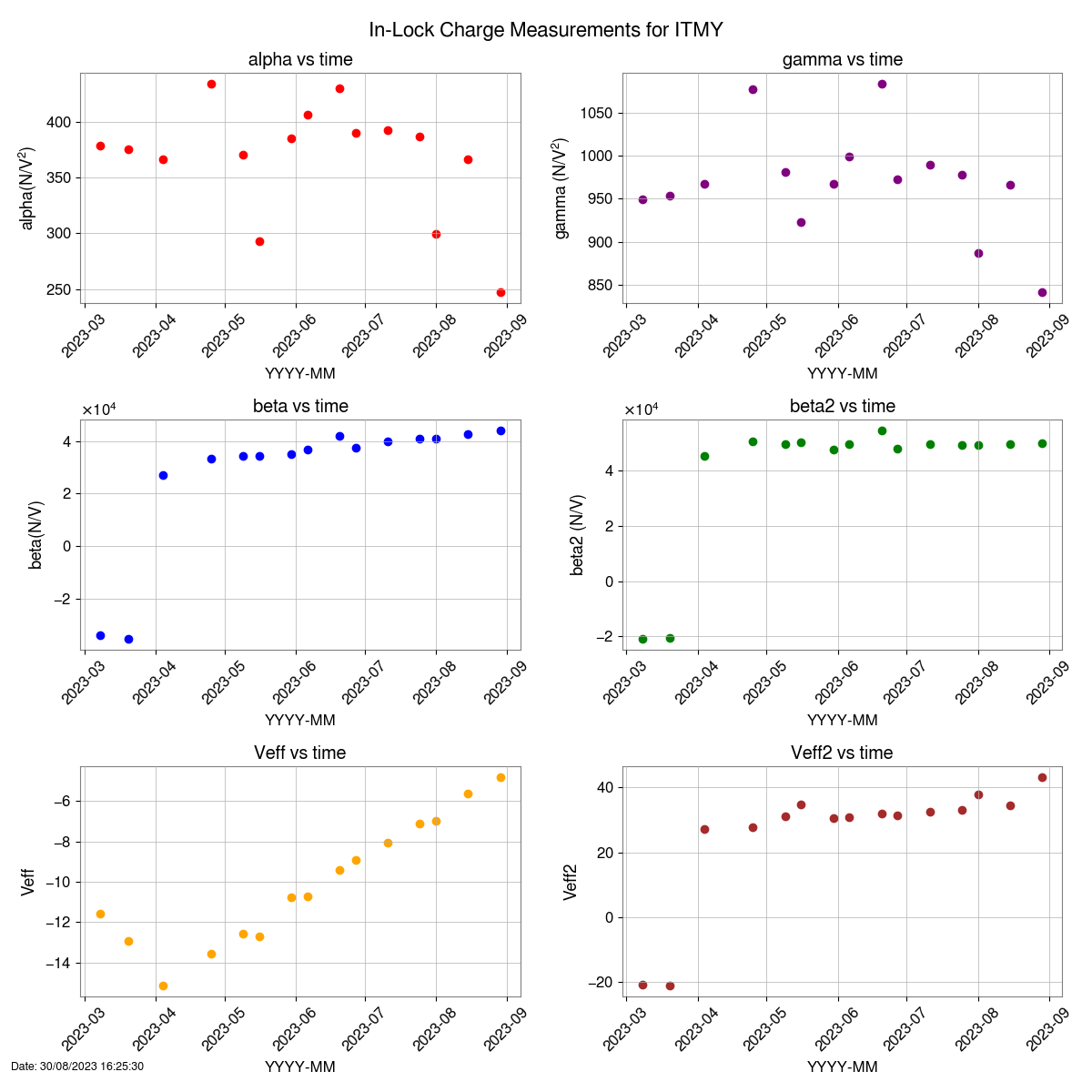

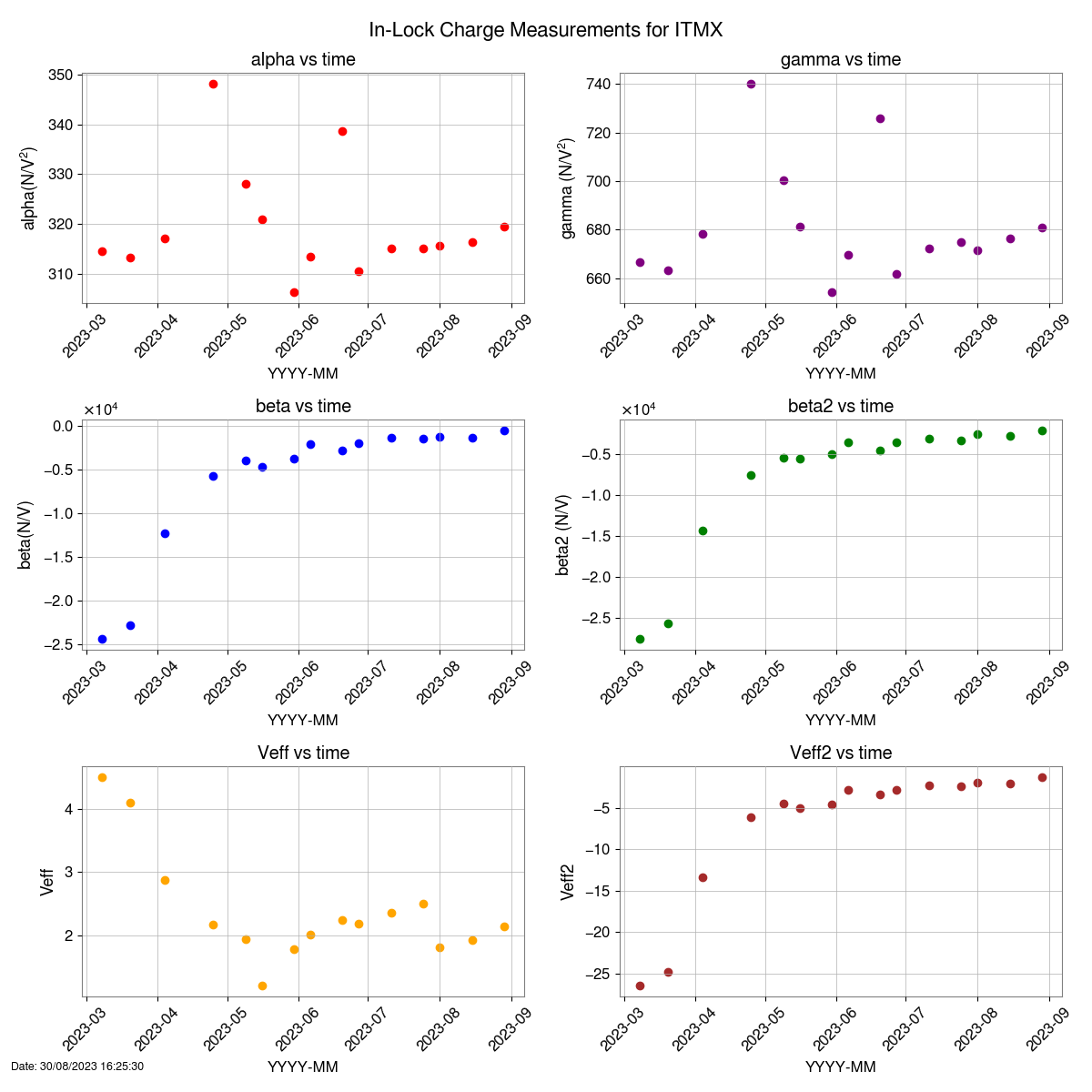

Most V_eff values are trending upwards while a few are staying flat, with ETMX's increase being the most dramatic (more noticeable likely because the ETMX measurement has not been run in over a month according to this week's plot).

Vicky, Naoki, Sheila

Summary: We tried to improve squeezing by walking alignments, this wasn't sucsesful.  We did see that we were able to increase the ADF IQ SUM while decreasing sqz, which we didn't understand.

Since we saw a small improvement in sqz on the homodyne yesterday after moving ZM3, today we tried to move the filter cavity axis to see if we could reduce clipping while injecting sqz into the IFO.  We injected the ADF and set offsets on the FC green trans green QPD A, and watched for higher ADF.  The QPD offset didn't have much of an effect itself, we did however see a 10% increase in the ADF IQSUM channel while the AS42 loops had a large transient because of our QPD step.

We were able to recreate the higher ADF IQ SUM by setting an offset of -0.3 in AS_A_RF42_YAW, but this didn't visibily improve the squeezing or range (we tried switching the offset back and forth several times, the initial improvement wasn't reproduced).

We did some further steps, and saw that we could increase the ADF IQ SUM even further, but that the squeezing level was reduced with the higher ADF.  We wondered if we were being confused by a change in the squeezing angle.  We checked the sqz angle with and without the yaw offset engaged, rotating the sqz angle didn't explain the difference we saw with the alignment offset.

After regenerating the NonSENS c-code and restarting the h1bos and h1oaf models yesterday, I tried some new cleaning during our commissioning time this afternoon.  Now I can get all 3 of LSC, Jitter, and Laser noise subtraction all to work, with no mysterious minus signs needed.

Attached is my DTT 'NonSENS budget' from a time when we were still in commissioning.  The blue is the CALIB_STRAIN_NOLINES channel, and red is CALIB_STRAIN_CLEAN.  The black is the sum of all the other colors' noise estimates.  This LSC subtraction was from a time before the MICH FF was retuned, so it may not have as big an effect were I to turn it on now that MICH FF was updated.

TITLE: 08/30 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 150Mpc
OUTGOING OPERATOR: Ryan C
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 16mph Gusts, 12mph 5min avg
    Primary useism: 0.05 μm/s
    Secondary useism: 0.07 μm/s
QUICK SUMMARY: H1 started observing about 15 minutes ago after the ADC issue was fixed. Wind is not as bad as yesterday.

• All systems look good

TITLE: 08/30 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 149Mpc
INCOMING OPERATOR: Ryan S
SHIFT SUMMARY:

Lock#1:

Lockloss at 16:18UTC

The squeezer kept losing lock all morning, and the ISS saturated.

Lock#2:

After some investigation while we were relocking it was found that FC1 was having troubles, Fil power cycled the chassis and then swapped the coil driver and satellite box for a spare. But none of these actions were successful to fix the issue.

We required NLN at 17:52, but we stayed out of Observing while the FC1 investigation/work was ongoing. It was narrowed down to an issue with the T3 BOSEM on FC1. An old (2011) ADC card ended up being swapped for a new one (2021) which was the root of issue! Fil swapped back the original coil drivers and satellite box. Alog72558 documenting the process

I took a broadband and simulines calibration measurement during the investigation time, then a second one later on in the afternoon.

Back into Observing at 22:46UTC after squeezer commissioning and MICHFF testing.

LOG:

I ran a 2nd calibration sweep today, starting with broadband:

/ligo/groups/cal/H1/measurements/PCALY2DARM_BB/PCALY2DARM_BB_20230830T212846Z.xml

Simulines:

2023-08-30 21:58:00,615 | INFO | Commencing data processing.
2023-08-30 21:58:56,567 | INFO | File written out to: /ligo/groups/cal/H1/measurements/DARMOLG_SS/DARMOLG_SS_20230830T213653Z.hdf5
2023-08-30 21:58:56,585 | INFO | File written out to: /ligo/groups/cal/H1/measurements/PCALY2DARM_SS/PCALY2DARM_SS_20230830T213653Z.hdf5
2023-08-30 21:58:56,611 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L1_SS/SUSETMX_L1_SS_20230830T213653Z.hdf5
2023-08-30 21:58:56,636 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L2_SS/SUSETMX_L2_SS_20230830T213653Z.hdf5
2023-08-30 21:58:56,661 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L3_SS/SUSETMX_L3_SS_20230830T213653Z.hdf5

GPS start: 1377466629.697354

GPS stop: 1377467954.983395

I ran a calibration sweep this afternoon, starting with the broadband:

/ligo/groups/cal/H1/measurements/PCALY2DARM_BB/PCALY2DARM_BB_20230830T190736Z.xml

Simulines:

2023-08-30 19:36:43,647 | INFO | File written out to: /ligo/groups/cal/H1/measurements/DARMOLG_SS/DARMOLG_SS_20230830T191430Z.hdf5
2023-08-30 19:36:43,663 | INFO | File written out to: /ligo/groups/cal/H1/measurements/PCALY2DARM_SS/PCALY2DARM_SS_20230830T191430Z.hdf5
2023-08-30 19:36:43,674 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L1_SS/SUSETMX_L1_SS_20230830T191430Z.hdf5
2023-08-30 19:36:43,684 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L2_SS/SUSETMX_L2_SS_20230830T191430Z.hdf5
2023-08-30 19:36:43,696 | INFO | File written out to: /ligo/groups/cal/H1/measurements/SUSETMX_L3_SS/SUSETMX_L3_SS_20230830T191430Z.hdf5

GPS start: 1377458086.806734

GPS stop: 1377459422.017018

The nominal value of the squeezer laser diode current was change to 1.863 from 1.95. The tolerance is unchanged at 0.1. Looking at trends we sometimes read a value just below 1.85 leading to a failed laser condition which in turn triggers a relocking of the squeezer laser. However, since we are already locked, all we see is the fast and commen gains ramping down and up.

Since the results from yesterday's quarter bias test (66810) seem inconsistent with Wensday's test (66751), I'm trying a repeat of the test with lines on and off so that we can have the same number of averages for all these configurations.

• full bias, lines off (NLN_CAL_MEAS) 19:49 UTC 1/14/2023 reference 46-50
• full bias, calibration and ADS lines on but awg lines off, 18:09:32 UTC 1/14/2023 reference 51-55
• 1/4 bias, calibration and ADS lines on (Awg lines still off) 18:33:30 UTC reference 56-60
• 1/4 bias, lines off 18:50 UTC reference 61-65

The SRCL cleaning probably needs retuning because of the ring heater change, we've got pretty high SRCL coherence up to 50Hz right now.  This does reproduce that the noise is higher with 1/4 bias, and the result doesn't seem to depend on having the lines on or off.  For now I've left the IFO with all the lines back on and full bias, Robert will try some injections in a little while.  I'll add a plot to this alog later on.
