F. Mera, M. Pirello

Continuing with WP11193

7 - Installed segregated +24V run from VDC-C2 U34 RHS to SQZ-C1 for the OMC IO Chassis.  This conductively isolates the OMC IO Chassis +24V power from the Beckhoff SQZ +24V power.

8 - Replaced VDC-C2 U24 RHS -18V Kepco which supplies -18V to ISC-C1 & ISC-C2.

H1 VDC Rack Drawing D2300167

This concludes WP11193

J. Kissel, E. von Reis, T. Shaffer,
WP 11219

In prep for the suddenly needed replacement of the corner-station to end-station "CDS RFM" dolphin card, which has a non-zero risk of crashing all end-station models, we've
    - Accepted the ETMX / TMSX, ETMY / TMSY alignment sliders in the SDF system
    - Brought the ETMX / TMSX, ETMY / TMSY SUS guardians to DAMPED
    - Brought the EX and EY SEI guardian managers to ISI_DAMPED_HEPI_OFFLINE

D. Barker, J. Kissel, T. Shaffer

In prep for round 2 of Power Supply Work for the LSC, ASC, SQZ, OMC Rack (i.e. ISC-C1 and SQZ-C1 racks)  (WP 11193, LHO:69652, LHO:69631), I've asked Dave to power down the h1asc0, h1lsc0, and h1omc0 IO chassis, safely removing those IO chassis / front-end computers from the Dolphin network fabric before shutting them down in an orderly fashion.

The h1omc0 IO chassis power, in the SQZ-C1 rack, is being replaced with its own segregated supply, so it *definitely* needed to be brought down and out in an orderly fashion.

On the other hand, the h1lsc0 and l1asc0 IO chassis, in the ISC-C1 rack, are powered by +/-24 V. Marc's work with ISC-C1 was replacing / improving / upgrading the +/- 18V power supply, which powers "only" the AA and AI chassis in ISC-C1 (see D1001427). So taking down h1lsc0 and h1asc0 was a mere precautionary measure because this kind of rack work tends to glitch the electrical ground of rack, which glitches the IO chassis timing system (or does other things nasty to the IO chassis), which kills the IO chassis, and if the chassis / computer are not brought out of the Dolphin network fabric, then it can glitch the whole collection of corner station station computers. So I took the precaution.

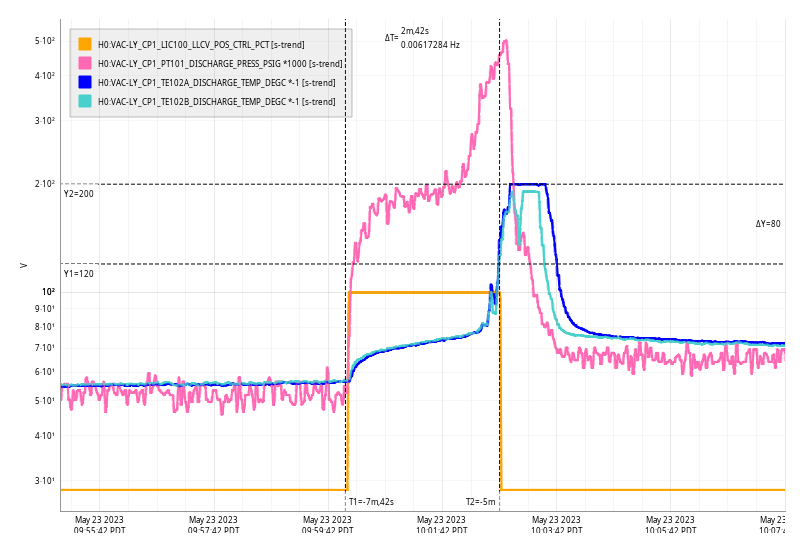

Tue May 23 10:02:42 2023 INFO: Fill completed in 2min 42secs

WP11208

Dan, Erik, Jonathan, Dave:

I've started the ZPOOL scrub of FW0's file system. We are monitoring to see if it slows file access like it did last scrub run in April. If it causes issues we will stop it, otherwise we will let it run. It is expected to take 4 days.

J. Kissel, T. Shaffer

We've not yet done a quantitative study on how the CAL_AWG_LINES guardian's eight "thermalization characterization" calibration lines (PCALY driven at freq=[8.925, 11.575, 15.275, 24.5] Hz, and DARM1_EXC driven at freq=[8.825, 11.475, 15.175, 24.4] Hz) substantially pollute parts of the detector sensitivity, but given that we "should have enough data" from the past few weeks to fullfil the current plan of how to handle what systematic error the detuned SRC brings in to the calibration during thermalization (see, e.g. LHO:69796), we've turned off the CAL_AWG_LINES guardian calibration line excitations.

Here's what "turning off" looks like:
    - Requested the CAL_AWG_LINES guardian to IDLE. (Because this guardian is not robust against computer crashes [LHO:69688], that made the guardian go into error, so we hit "RELOAD" to re-initialized it, and confirmed that the PCALY and DARM1_EXC test points have disappeared). Not it sits in IDLE, with none of its lines driven.
    - We've changed the NOMINAL_STATE to "IDLE" (rather than LINES_ON)
    - Committed CAL_AWG_LINES code changes the changes to cal/h1/guardian/CAL_AWG_LINES.py, now at rev 25692.
    - We've removed the following lines from the ISC_LOCK guardian, and reloaded the guardian as of 2023-05-23 16:24 UTC
         ISC_LOCK    Actual Code                             Context Notes
         Line #
         43          CAL_AWG_LINES                           # In the list of managed nodes
         5475        nodes['CAL_AWG_LINES'] = 'LINES_ON'     # In ISC_LOCK's LOWNOISE_LENGTH_CONTROL state, in the "run" portion, making sure the lines were on on the way up during every lock acquisition sequence
         5899        nodes['CAL_AWG_LINES'] = 'IDLE'         # In ISC_LOCK's NLN_CAL_MEAS state, in the "main" portion, turning these OFF during calibration measurements
         5923        nodes['CAL_AWG_LINES'] = 'LINES_ON'     # In ISC_LOCK's NLN_CAL_MEAS state, in the "run" state, turning them back ON when returning from NLN_CAL_MEAS to NOMINAL_LOW_NOISE
    - Set the CAL_AWG_LINES guardian's MANAGER to "AUTO" by hitting the H1:GRD-CAL_AWG_LINES_MODE button.
    - Committed the ISC_LOCK guardian code to the userapps/isc/h1/guardian/ to the svn. (just before my "removal" commit was rev 25693, removed commit is rev 25699.)

We have *not* stopping or disabling the node, just in case we *don't* have enough data and we want to bring this back online occasionally.

J. Kissel, T. Shaffer

In order to aide recovery later today post round two of changing out the power supplies for the ISC racks (WP 11193, LHO:69652, LHO:69631), TJ and I offloaded the MC WFS to their suspension's alignment and input PZT sliders (while the IMC is locked, use IMC_LOCK guardian, request MCWFS_OFFLOADED).
Then, to make sure it sticks across computer reboots, we accepted them in each computer's safe.snap SDF file.
    - Because alignment sliders are not monitored in SUS SDF systems, for the IMC SUS, MC1, MC2, and MC3, this means changing the SDF view to FULL_TABLE, and accepting OPTICALIGN*OFFSET values,
    - for the input PZTs, which live in the h1ascimc front-end model, we merely accepted them in the SETTINGS_DIFFS list, because these *are* monitored.

Neither SUS nor PZTs offset changes were that large, but it'll help.

WP11211

FRS27187

Fil, Dave:

h1seih16 is fenced from Dolphin and powered down. Fil is replacing the 2nd ADC

TITLE: 05/23 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Preventive Maintenance
CURRENT ENVIRONMENT:
    SEI_ENV state: MAINTENANCE
    Wind: 3mph Gusts, 1mph 5min avg
    Primary useism: 0.01 μm/s
    Secondary useism: 0.13 μm/s
QUICK SUMMARY: Ryan almost had the IFO recovered after the dolphin trip last night, but was stuck getting the OMC locked. There was little to no light on the QPDs, but we could find the carrier, though with lower power.

Maintenance work started, as soon as I transitioned to Maintenance mode in SEI_ENV we lost lock maybe 30 seconds later.

TITLE: 05/23 Owl Shift: 07:00-15:00 UTC (00:00-08:00 PST), all times posted in UTC
STATE of H1: Lock Acquisition
SHIFT SUMMARY:

Lock#1:

After waiting out EQ mode, I had to adjust Yarm by hand, Yarm unlocked during check_ir and killed it

Lock#2:

constant SRM saturations after engage DRMI_ASC, DRMI lockloss tripped HAM5 ISI again

Lock #3:

Lost it at check IR while trying to find COMM by hand

Lock#4:

Decided to an an init align, init align went into error (GREEN_ARMS), reloading the node fixed it. SRC align caused SRMs saturations

PRMI locked, but AS AIR spot looked terrible, same SRM sats and HAM4/5 ISI trip during DRMI, trending the OM OSEMs and SR3 OPLEV, they don't seem to have moved much over the past day (SR3 was a little different in pitch, so I tapped its slider to adjust)

Lock#5:

Went into a manual initial alignment for the SRC, went to SRC_ALIGN which saturated, then I went to SR2 align offloaded it then went to PREP_SRY and adjusted SRM quite a lot in P (~200microrads) & Y (~150 microrads) while watching the AS AIR image and the INIT ALIGN IR ndscope. Offloaded SRC then went back to down

The OMC was having a lot of trouble locking itself, maybe due to the high violins? Tried to find it by hand, unsuccesful swept through a few times and never found the carrier. I also tried clearing the history as suggested by this doc and following Jennes alog, neither were sucessful, with Jennes alog method without whitening I couldn't get any coherance so I was probably on a locked on a sideband? I searched and searched for the carrier. A few more attempts later I almost found it? around an offset of 18, I had 26 coherence indices but "TF phase is weird" message was in the grdlog from the TUNE_OFFSETS state and the code wasn't able to reconcile it and it sadly cycled back to down. The peaks all seemed very small, an alignment issue? But I'm not sure where, I rechecked all the OMs, OM2 was off by 40 microradians, I tried to adjust it but it didn't help.

Handing off to TJ

LOG:

Workstations and Wall Displays were updated and rebooted.

• Spend the first hour in EQ mode, struggling to lock Yarm from this
• Was unable to get past DRMI, some other small issues (Yarm struggling, COMM IR not being found)
  • Ended up running 2 initial alignments
  • Checked OM alignments, SR3, SRM, tried restoring SRM sliders to a previous lock
  • Ended up doing a manual initial alignment of the SRC and maually adjusted SRM ~300 microradians in P and ~150 in Yaw which fixed the AS AIR image
• Currently relocking at FIND_IR

With the Dolphin Crash at around 8pmPT, for H1, it primarily affected the Corner Station's SUS & SEI (but not every chamber).  After Dave restored the CDS side of things, we worked on bringing back the SUS and then the SEI (with Rahul and Jim).  Some notes:

• PSL appeared to not be affected by the Dolphin Crash (with RefCav & PMC remaining locked)
• The IMC locked (although it was with a bright IMC REFL spot)
• Various Corner Station chambers appeared to not be affected by the crash (i.e. HAM1, HAM7, HAM8)
• Started a bit positive and thought I could jump right into an Initial Alignment, but there was no green light for x & y.
• At this point, I looked at pit/yaw sliders for optics and worked on restoring them.
• Since not ALL SUS were affected by the Dolphin Crash I went one by one restoring suspensions.  I used Time Machine and also did individual Restores of optics via the IFO COMPACT ALIGN medm.
• In hindsight, I should have restored ALL optic sliders vs going one by one.
• Sliders restored to ~01:00utc (during the lock from earlier in the shift & before the Dolphin Crash).

ALIGNMENT #1:

• GREEN X-Arm:  This took several iterations/pauses, mainly because Green X-arm was low.  I restored sliders to where they were when locked, and touched up ETMx & TMSx the best I could with UNLOCKED flashes, but only could manage about flashes up to 0.6 (which is not high enough to trigger a lock for the X-arm).  I even tried tweaking ITMx a little.  But since I was getting nowhere, I backed out everything and eventually restrored ITMx/ETMx/TMSx back to their slider values when locked.
  • This seemed to help, as I finally had flashing above 0.6.
  • I then let INCREASE FLASHES take over, and it eventually locked Green X-arm.
  • Along the way, I feel like I caused issues with this alignment because I would interrupt INCREASE FLASHES so that I could touch up alignment while UNLOCKED.  I also ran the DOWN script with ALIGN_IFO at various points here.  Which might have complicated things....

INIT_ALIGN Errors:

• The INIT_ALIGN guardian ended up going into ERROR several times during the night for me.

INPUT ALIGN:

• X-arm would not lock, and since the Alignment checklist says to adjust PR2, I saw that its sliders were off.  Once they were taken to a good time Xarm would show flashes and eventually lock (but it was also touchy).  If Xarm would break lock, it would take down the IMC.  However, the x-arm did stay locked enough to complete INPUT ALIGN.
• See below for the errors in the log.

Once INPUT ALIGN was completed, I continued with ALIGN_IFO to complet the Initial Alignment (I did not use INIT_ALIGN because it wasn't working for me---due to the ERRORs).

LOCKING:

• Green arms locked up fine.
• FIND IR mostly went fine.
• DRMI locked fast, but quite a bit of movement was seen on AS_AIR
• SRM Saturations were on Verbal the whole time when DRMI locked.
• There was a lockloss a few steps after DRMI.
• And both HAM4 & HAM5 ISIs tripped at the lockloss.

Since I was worried the alignment was not run correctly due to the INIT ALIGN error, I decided to run another alignment letting ALIGN IFO use INIT ALIGN.

ALIGNMENT #2:

Mostly a straightforward alignment, BUT for SRC ALIGN:  There were SRM saturations via Verbal---not a good a sign.  These saturations would continue even after offloading.  So something had to be amiss---I must have missed something from the crash.

Since it was almost midinght, I went for another lock, and sadly, H1 made it through DRMI, but it continued to have SRM saturations and at the lockloss the HAM4 & HAM5 ISIs tripped again.  This is when I handed off to Ryan.

Additional NOTE:

• I have not looked at IMC PZTs at all, because I assumed that since the PSL seemed minimally affected and since the MC REFL spot was improved after MC1/2/3 sliders were restored---I just assumed the PZTs were fine.  But in addition to the noted SRM saturations, there have also been MC2 saturations.

Here Is the INIT_ALIGN error:

2023-05-23_06:26:02.156247Z INIT_ALIGN [LOCKING_GREEN_ARMS.main] timer['y_locked_but_no_wfs'] = 0
2023-05-23_06:27:02.154391Z INIT_ALIGN [LOCKING_GREEN_ARMS.run] timer['x_not_locked'] done
2023-05-23_06:27:02.156131Z INIT_ALIGN [LOCKING_GREEN_ARMS.run] timer['y_not_locked'] done
2023-05-23_06:28:41.334397Z INIT_ALIGN W: Traceback (most recent call last):
2023-05-23_06:28:41.334397Z   File "/usr/lib/python3/dist-packages/guardian/worker.py", line 494, in run
2023-05-23_06:28:41.334397Z     retval = statefunc()
2023-05-23_06:28:41.334397Z   File "/usr/lib/python3/dist-packages/guardian/state.py", line 246, in __call__
2023-05-23_06:28:41.334397Z     main_return = self.func.__call__(state_obj, *args, **kwargs)
2023-05-23_06:28:41.334397Z   File "/usr/lib/python3/dist-packages/guardian/state.py", line 246, in __call__
2023-05-23_06:28:41.334397Z     main_return = self.func.__call__(state_obj, *args, **kwargs)
2023-05-23_06:28:41.334397Z   File "/opt/rtcds/userapps/release/isc/h1/guardian/INIT_ALIGN.py", line 130, in run
2023-05-23_06:28:41.334397Z     nodes[f'ALS_{xy}ARM'] = 'INITIAL_ALIGNMENT_OFFLOADED'
2023-05-23_06:28:41.334397Z NameError: name 'xy' is not defined
2023-05-23_06:28:41.335859Z INIT_ALIGN [LOCKING_GREEN_ARMS.run] USERMSG 0: USER CODE ERROR (see log)
2023-05-23_06:28:41.388535Z INIT_ALIGN ERROR in state LOCKING_GREEN_ARMS: see log for more info (LOAD to reset)
2023-05-23_06:28:54.822757Z INIT_ALIGN LOAD REQUEST
2023-05-23_06:28:54.827322Z INIT_ALIGN RELOAD requested.  reloading system data...
2023-05-23_06:28:54.872241Z INIT_ALIGN module path: /opt/rtcds/userapps/release/isc/h1/guardian/INIT_ALIGN.py
2023-05-23_06:28:54.872241Z INIT_ALIGN user code: /opt/rtcds/userapps/release/isc/h1/guardian/ISC_library.py
2023-05-23_06:28:54.872552Z INIT_ALIGN user code: /opt/rtcds/userapps/release/isc/h1/guardian/lscparams.py
2023-05-23_06:28:54.872552Z INIT_ALIGN user code: /opt/rtcds/userapps/release/sys/h1/guardian/timeout_utils.py
2023-05-23_06:28:55.722360Z INIT_ALIGN RELOAD complete
2023-05-23_06:28:55.723769Z INIT_ALIGN W: RELOADING @ LOCKING_GREEN_ARMS.run

Gabriele and I have fit some new filters for the LSC feedforward based on measurements taken recently in a thermalized interferometer. These fits look reasonable and we think they are ready for testing. I am hesitant to put them in the guardian because the last time we tried this we made the noise worse and also caused a lockloss because of some unexpected high frequency behavior. We don't think that will happen again, but I want to be able to supervise the test.

If someone enterprising wants to check it out, the new filters are FM9 of the MICH FF and SRCL FF bank. They should be engaged with a gain of 1. It would be nice to see how they perform at the start of the lock and after thermalization.

We've known for a while that when we inject laser frequency noise, we see significant downconversion in DARM, together with the expected linear coupling. In particular, when injecting band-limited laser frequency noise in the kHzs region, we see noise in the 100s Hz region getting worse.

Over the past few days I did a few noise and line injections to characterize this coupling. A more detailed analysis will follow, but here are some observations:

• only laser frequency noise between 4000 and 4500 Hz causes visible down-conversion in DARM
• injections out of this band don't show a measurable non-linear coupling into DARM
• there is also a non-linear effect visible in the REFL signal itself: when injecting high frequency lines, there are lines appearing in REFL SERVO ERR at lower frequencies
• the low frequency noise that appears in DARM scales quadratically with the amplitude of the high frequency noise injected in the laser
• when injecting lines in the laser frequencies, we see lines in DARM and REFL SERVO ERR at the difference of frequencies, meaning that this is a quadratic effect involving laser frequency nosie alone. This seems to indicate that the idea that the downconversion is due to the OMC dither line is not correct

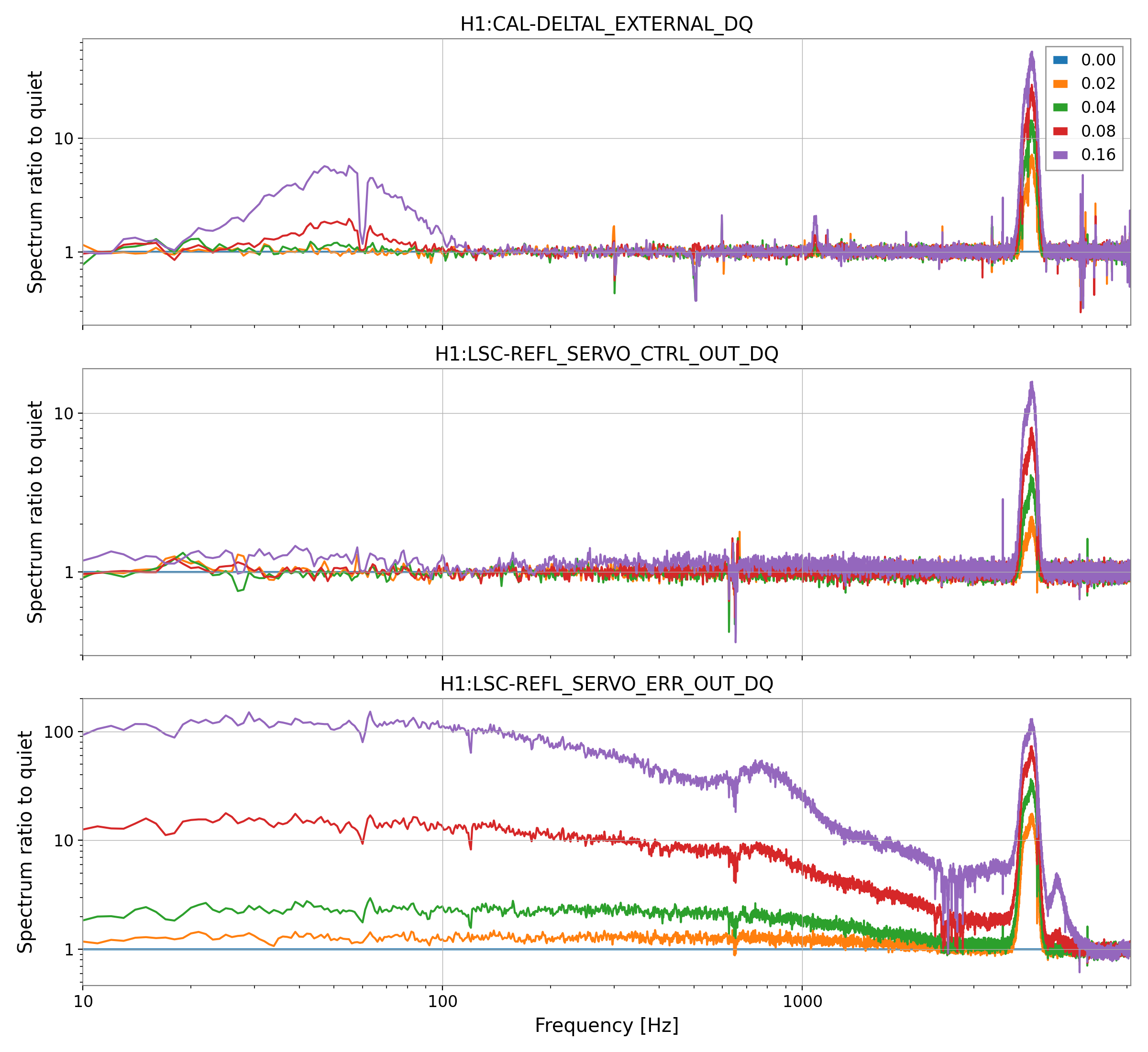

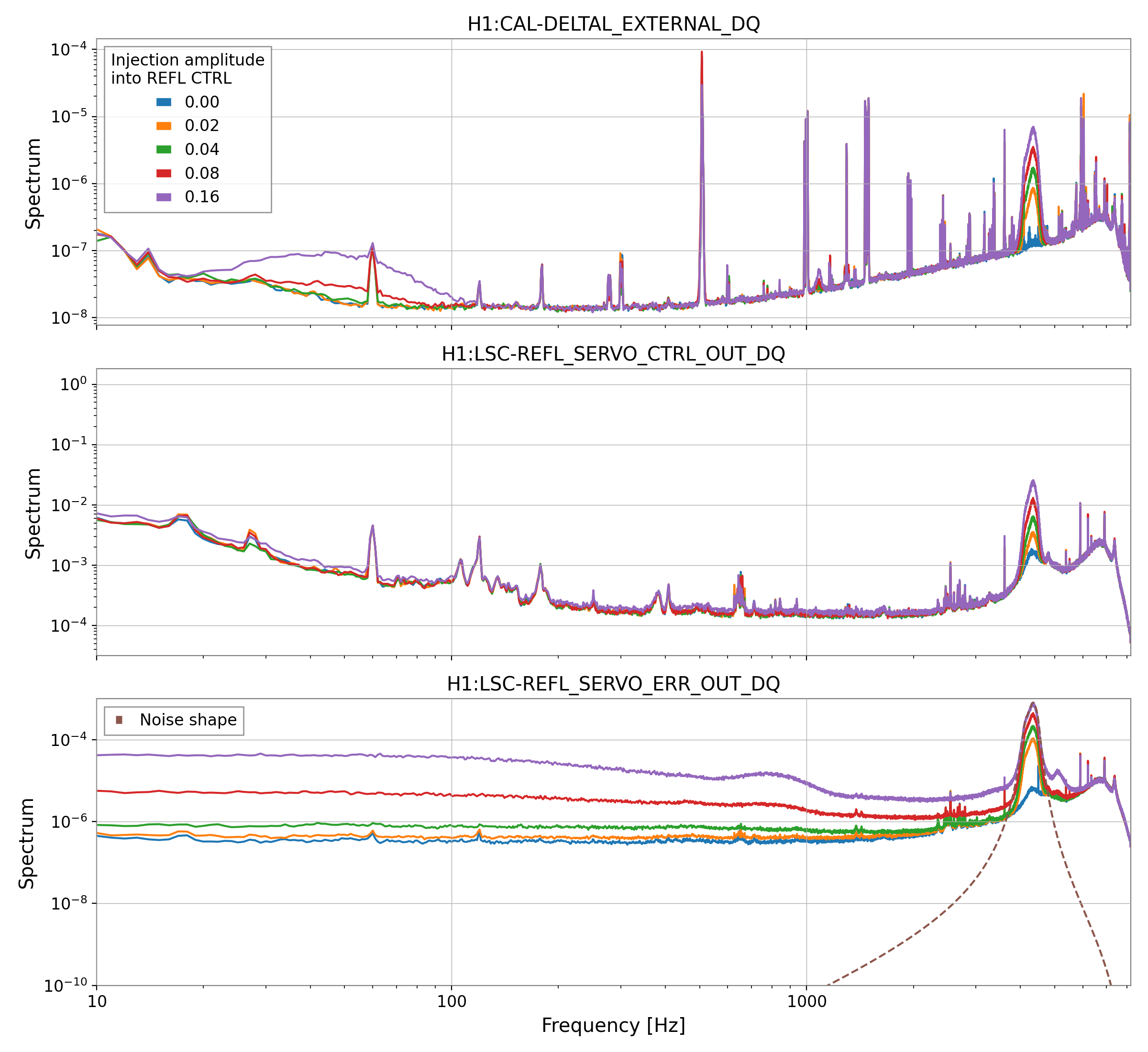

The first two plots attached show the effect of injecting noise that mimicks the shape of the 4.3 kHz bump visible in CARM. The first one shows the spectra, the second plot shows the ratio to the quiet time. It's clear that the 100 Hz bump in DARM scales quadratically. It also seems that the downconversion effect is not large enough to be worrisome at this level.

The third plot shows what happens when I injected several lines at high frequency. The red dots shows the lines I injected, while the green Xs shows all the differences in the frequencies. All excess lines in DARM and REFL ERR are marked with a green X, so we see that the coupling is quadratic and does not involve any other line.

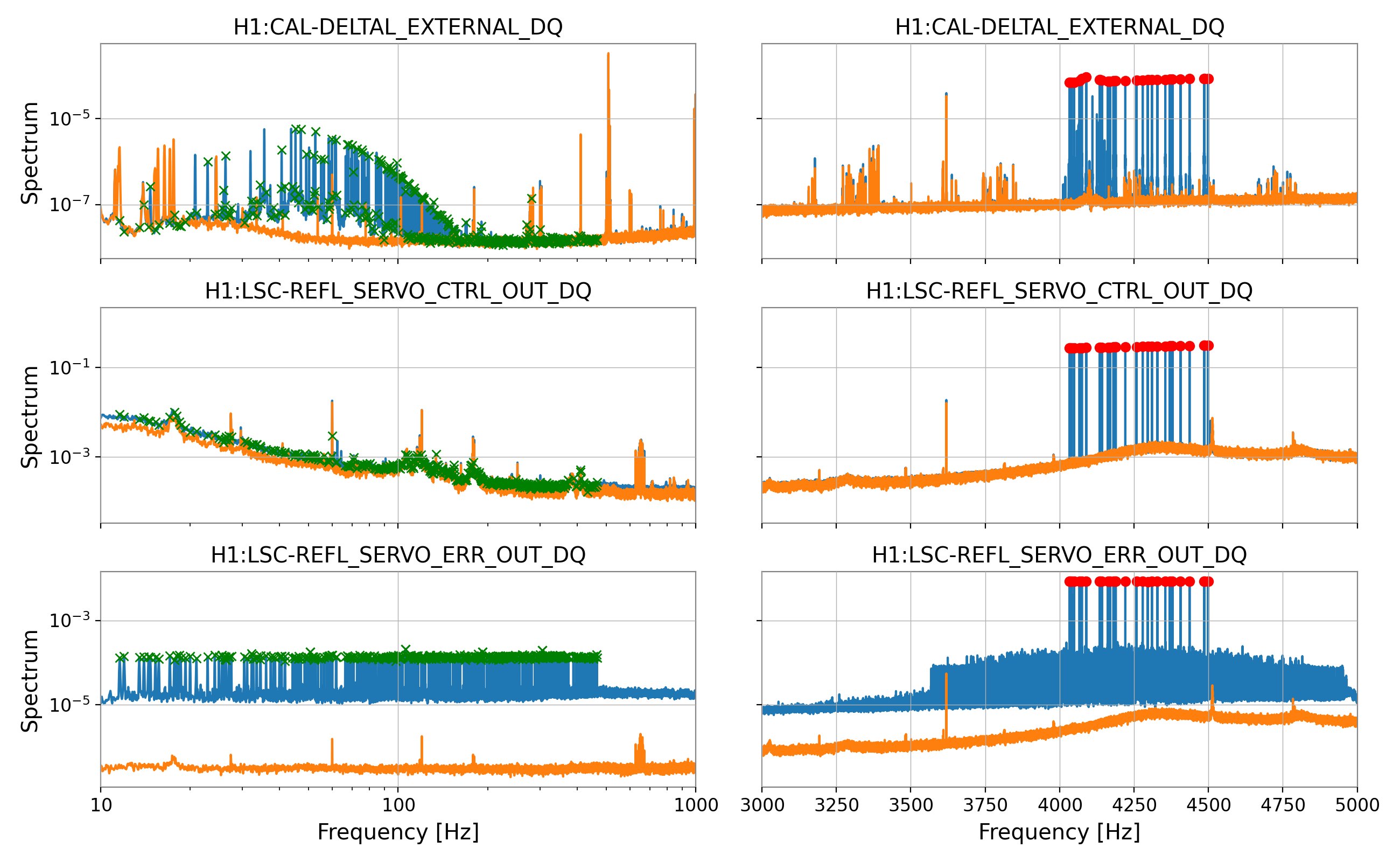

The last plot shows that line injections at frequencies outside the 4 - 4.5 kHz band don't produce significant downconversion in DARM.

In a follow up analysis, I plan to model the quadratic coupling from REFL to DARM, and build a noise projection.
