PSL Report FAMIS report:
    Laser Status:
    Front End Power is 31.95W (should be around 30 W)
    70W Output Power is 70.37W
    Front End Watch is GREEN
    70W Watch is GREEN

    PMC:
    It has been locked 6 days, 4 hr 11 minutes (should be days/weeks)
    Reflected power = 11.9Watts
    Transmitted power = 51.87Watts
    PowerSum = 63.77Watts.

    FSS:
    It has been locked for 0 days 23 hr and 22 min (should be days/weeks)
    TPD[V] = 4.38V (min 0.9V)

    ISS:
    The diffracted power is around 2.5%
    Last saturation event was 0 days 23 hours and 22 minutes ago (should be days/weeks)

    Possible Issues:  None

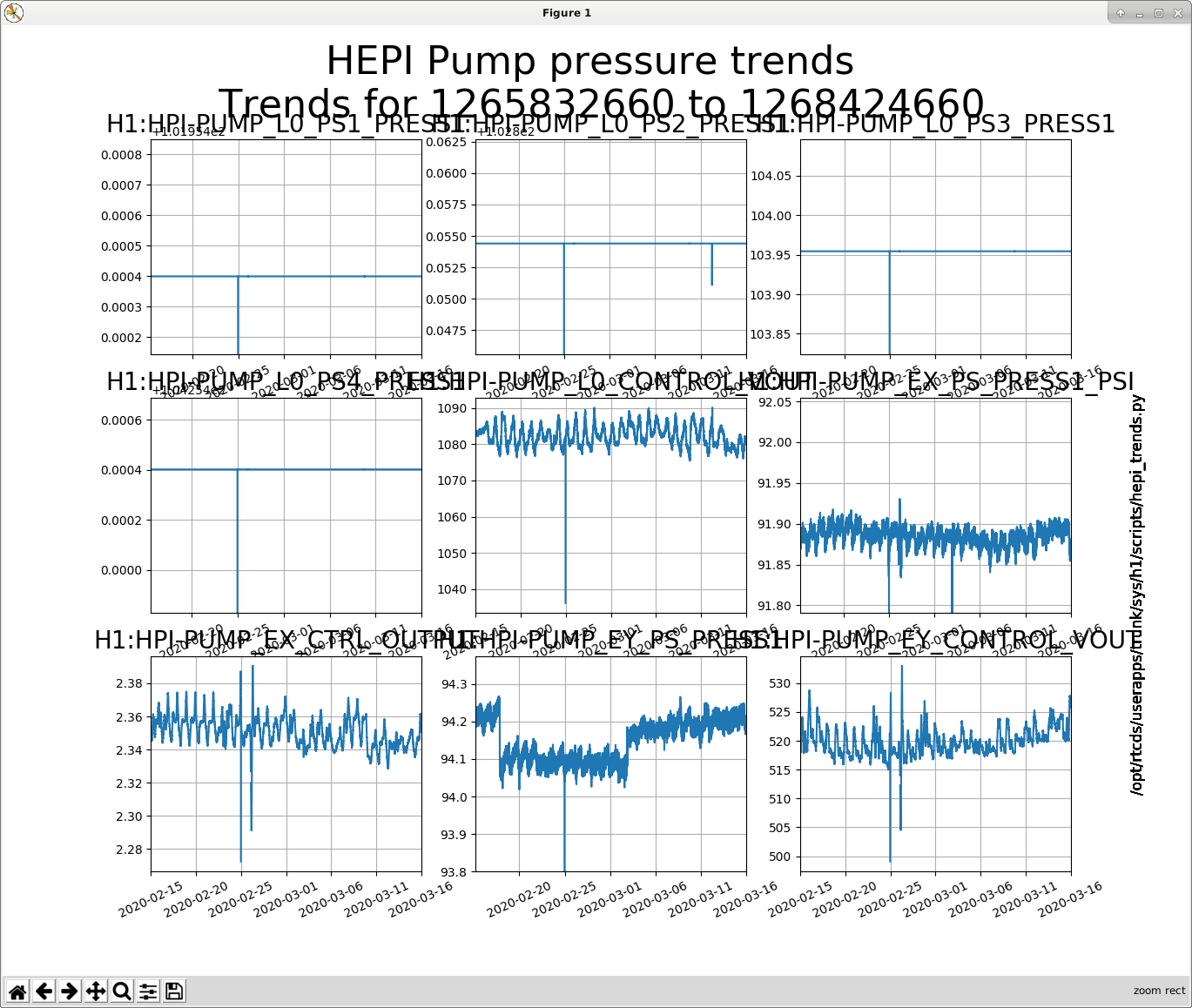

45-day trends for HEPI Pump channels.  All signals look fairly steady/flat.

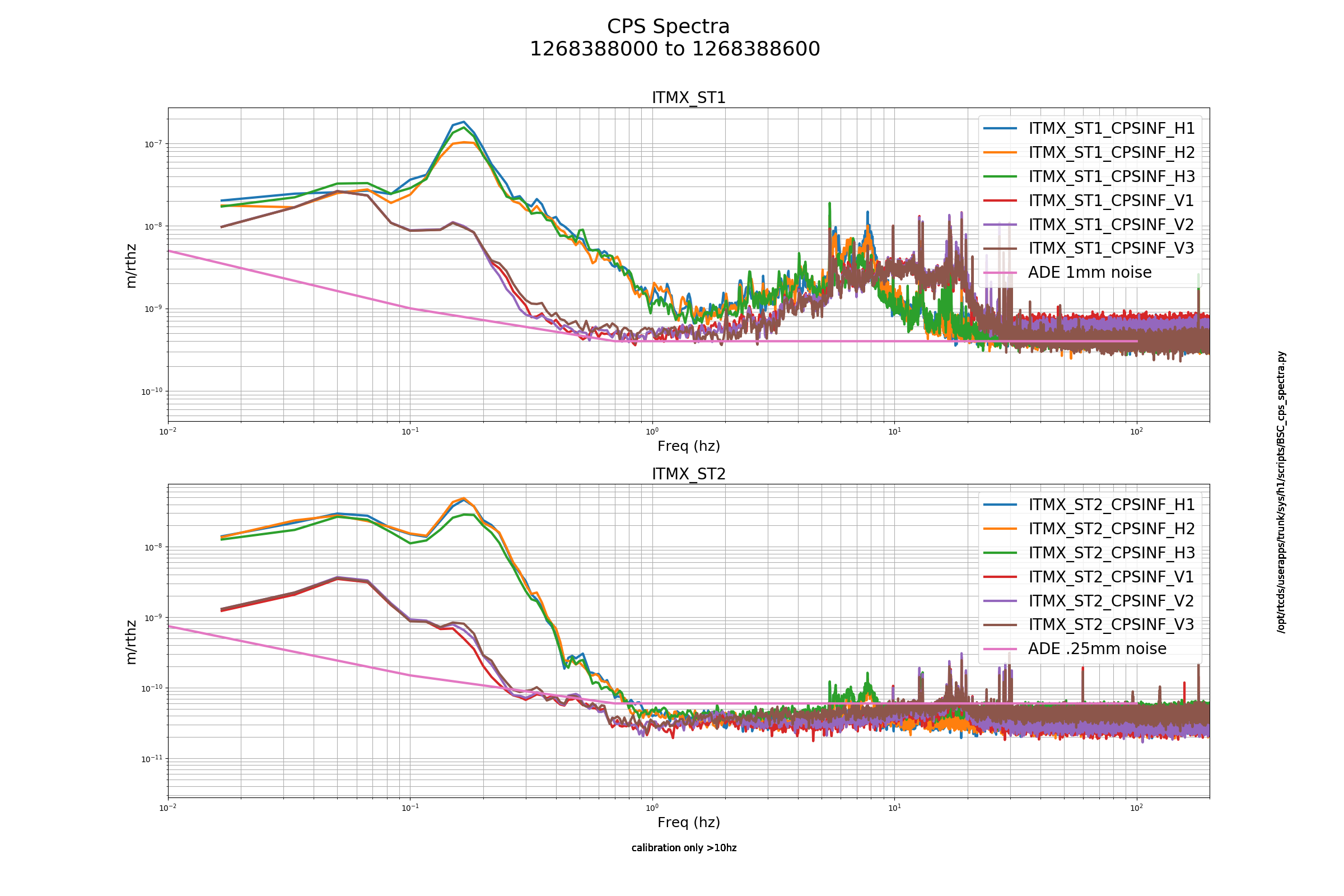

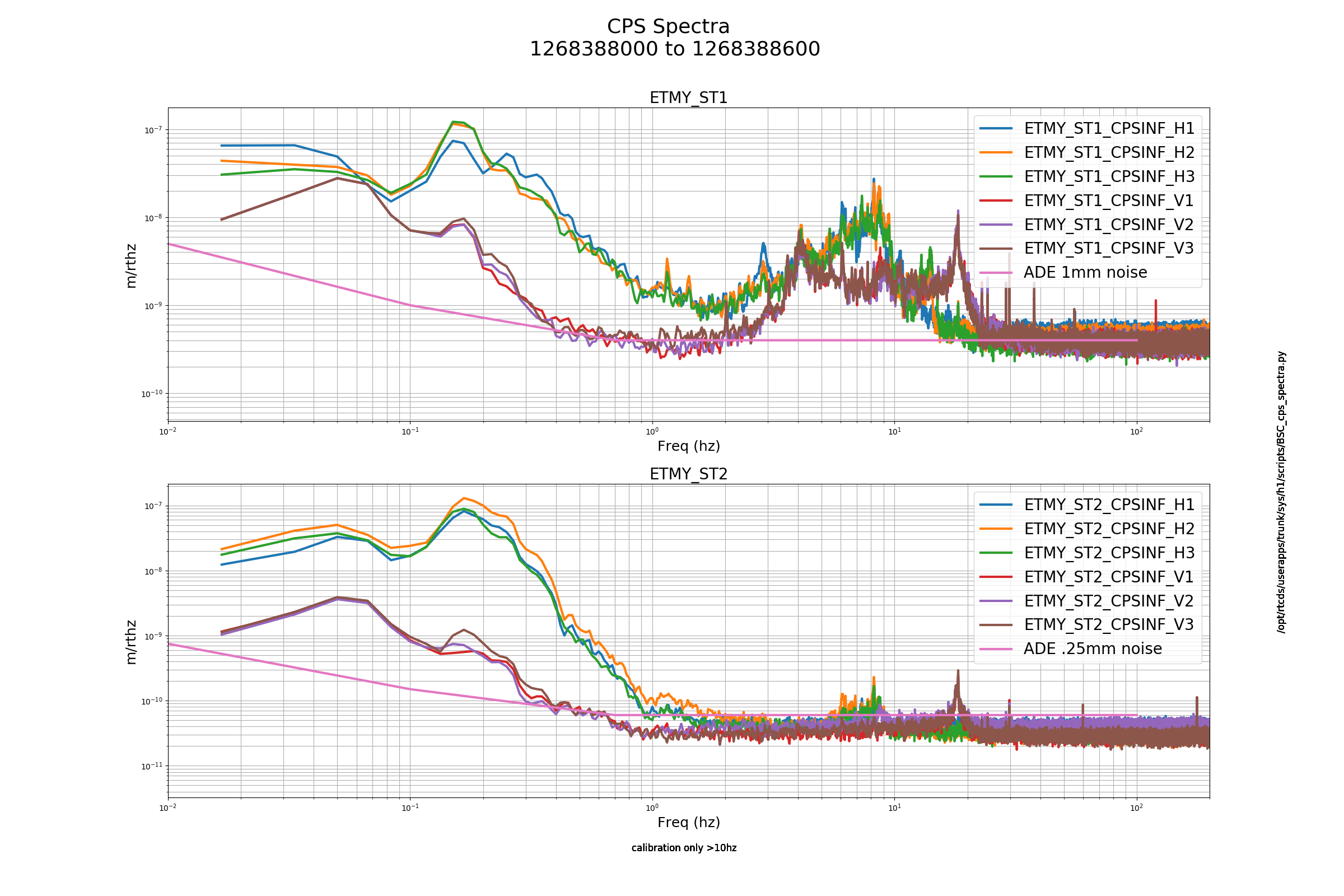

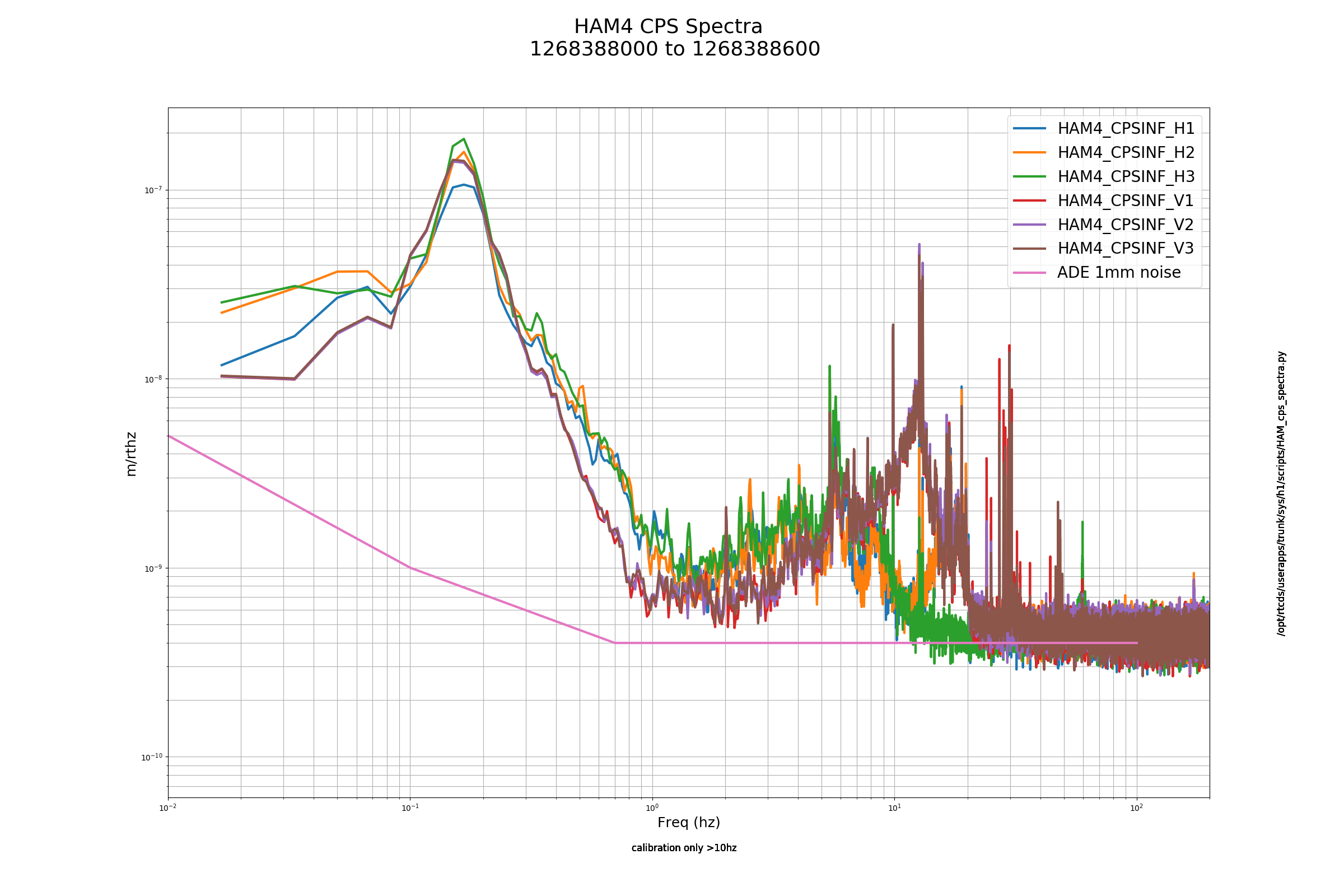

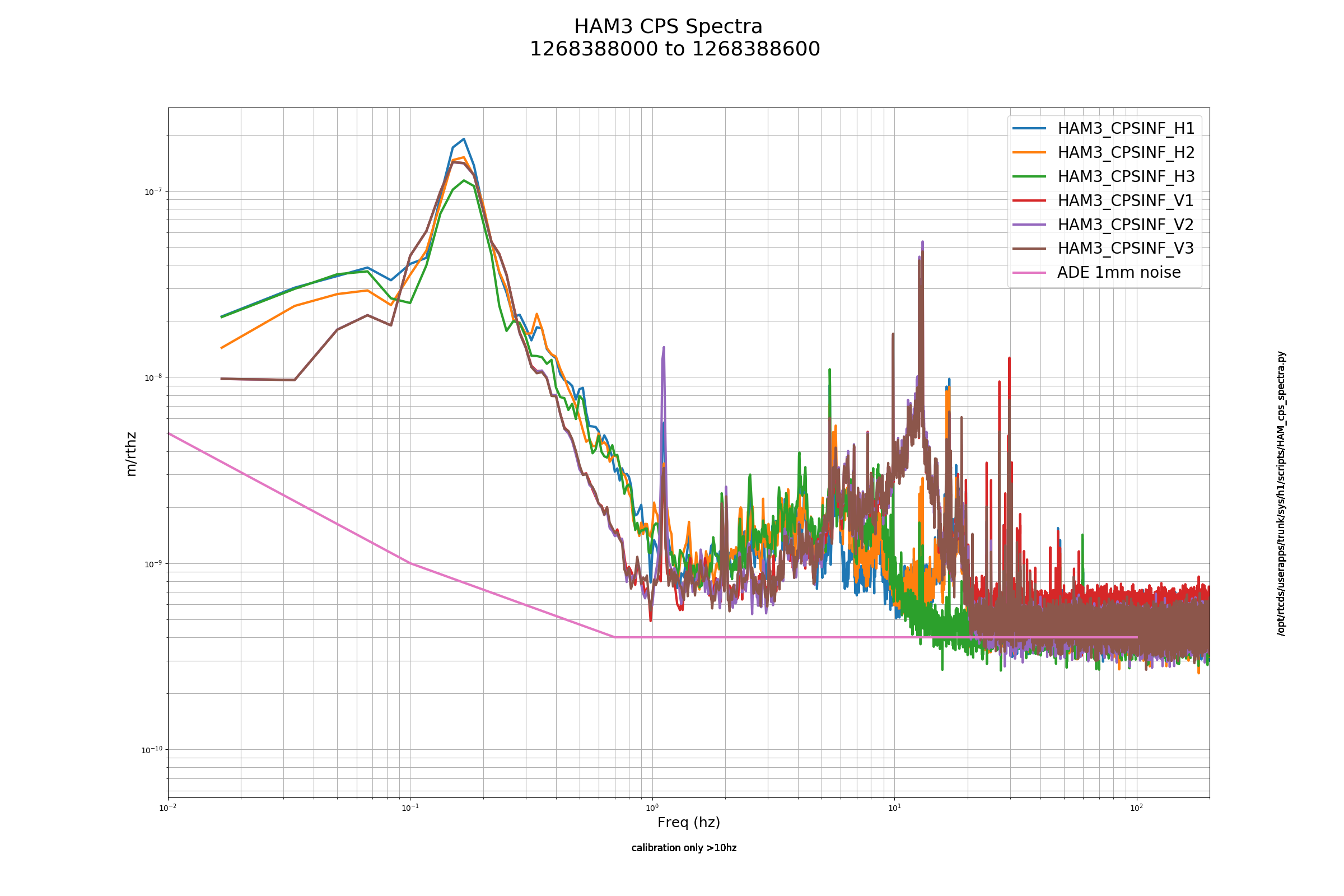

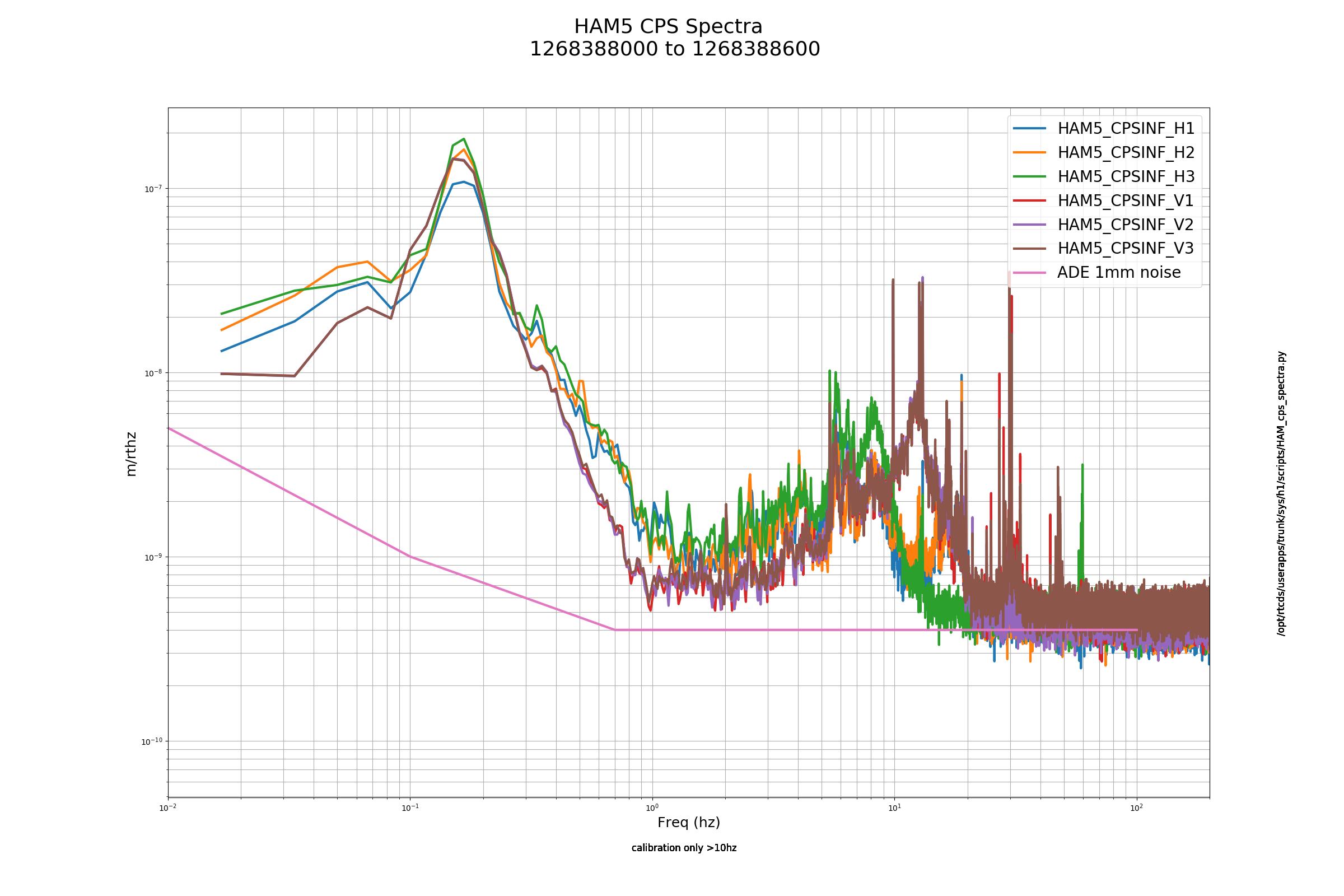

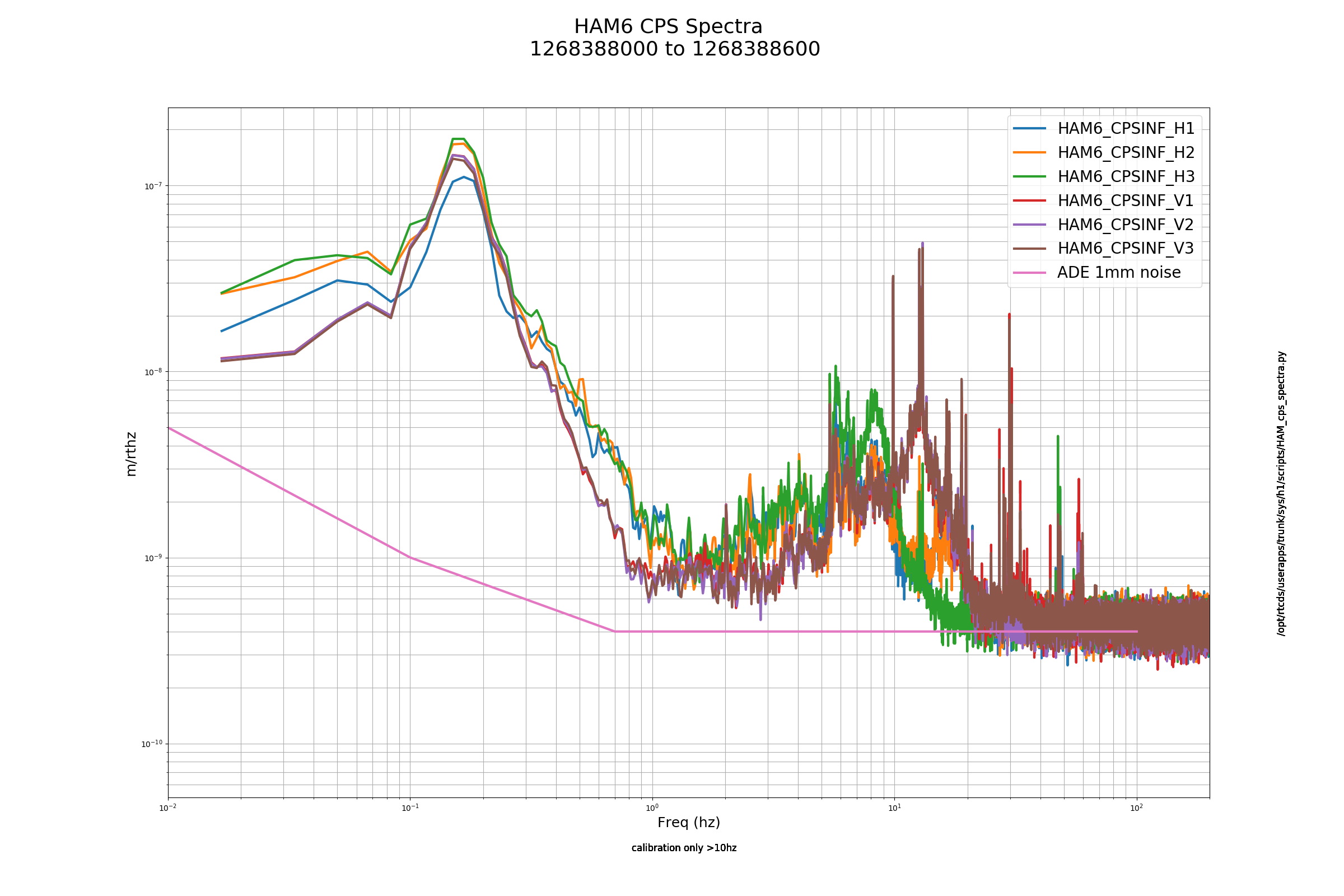

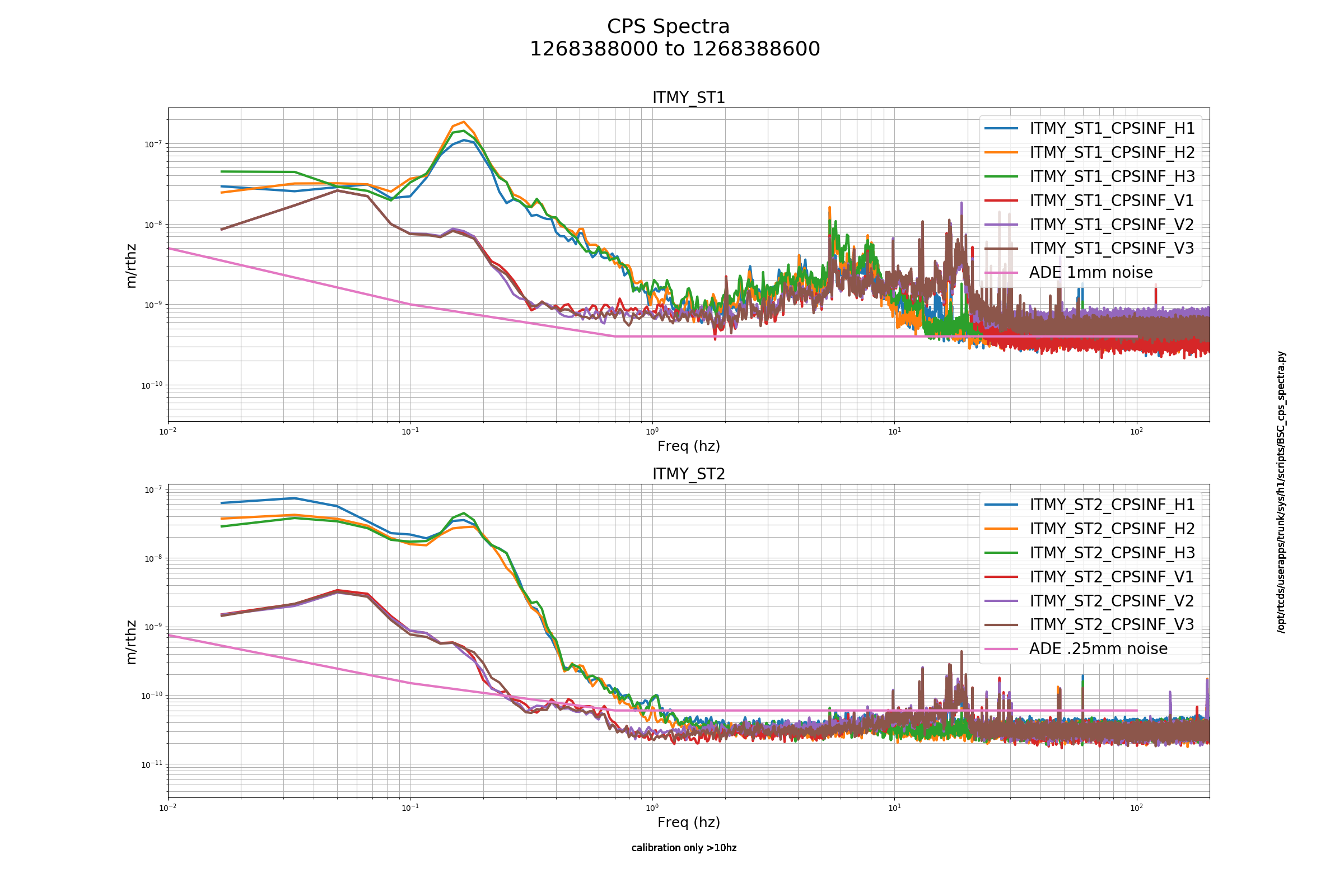

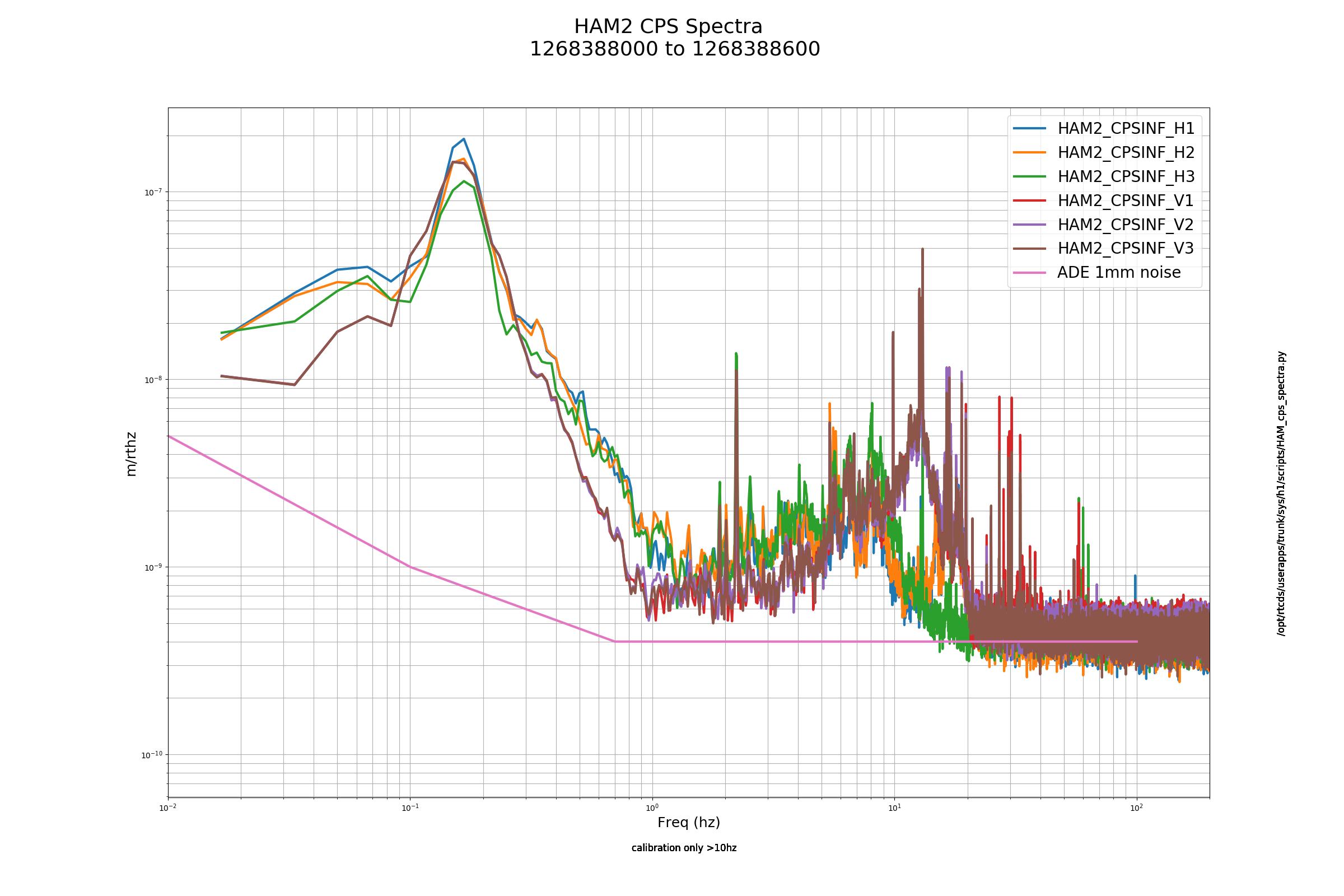

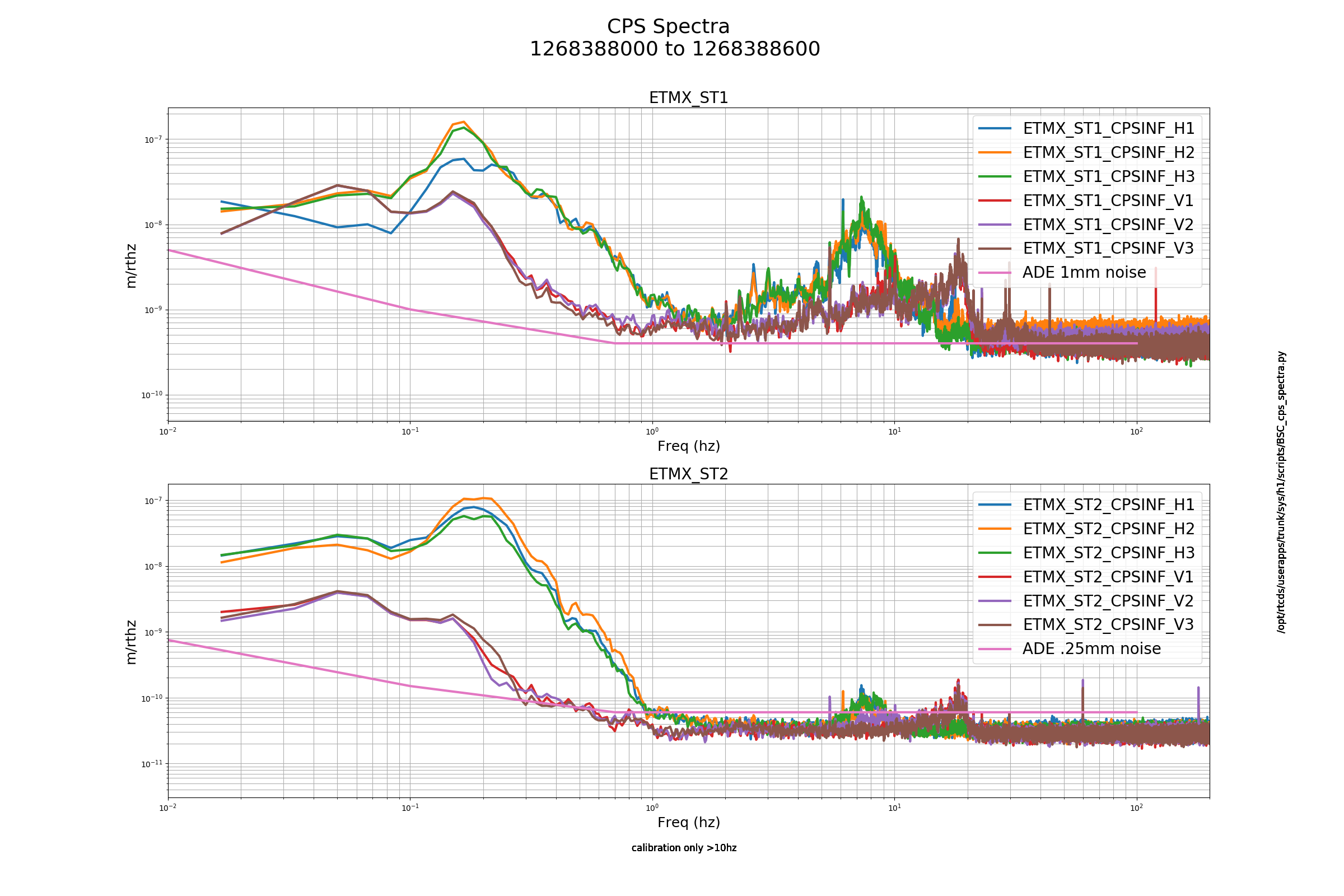

The following CPSs are listed as over threshold (all others OK & all spectra attached):

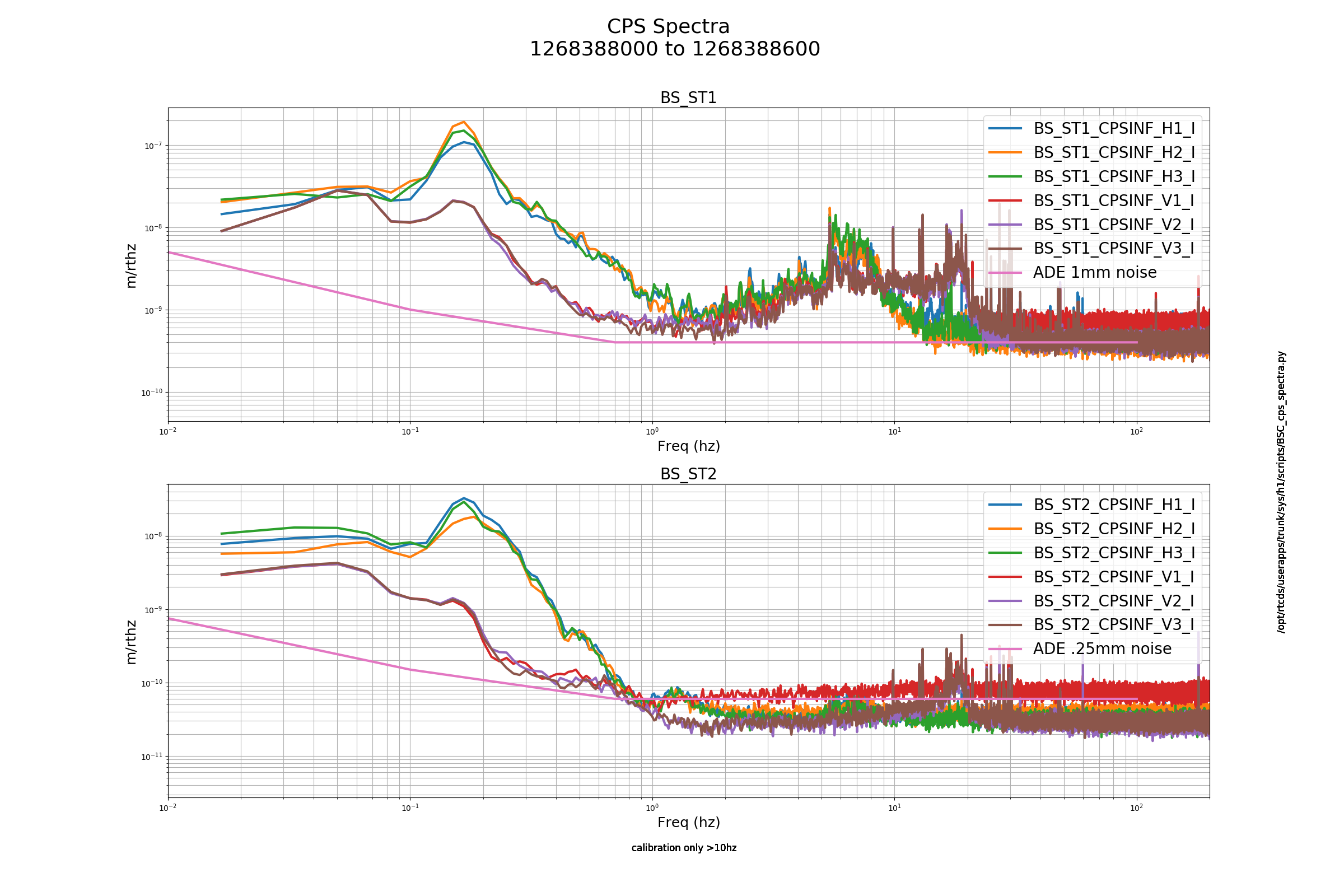

• BS_ST2_CPSINF_V1_I high freq noise is high!

* This CPS has been listed as noisy the last few weeks.

J. Kissel

I've gathered the full, regular calibration measurement suite today -- importantly -- *after* the OMC whitening chassis' filter configuration change (see LHO aLOG 55620).

These measurements may end up being the reference measurements for a future calibration model parameter set.

Data is committed here
    /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/O3/H1/Measurements/FullIFOSensingTFs/
        2020-03-16_H1_DARM_OLGTF_LF_SS_5to1100Hz_15min.xml
        2020-03-16_H1_PCALY2DARMTF_LF_SS_5t1100Hz_10min.xml

        2020-03-16_H1_PCALY2DARMTF_BB_3min.xml    << Contains before (reference) and after (live) OMC whitening filter change.
              "Before change" measurement started at 2020-03-16 18:30:31 UTC,
              "after changes" started at 2020-03-16 18:35:14 UTC.

    /ligo/svncommon/CalSVN/aligocalibration/trunk/Runs/O3/H1/Measurements/FullIFOActuationTFs/
        2020-03-16_H1SUSETMX_L1_iEXC2DARM_8min.xml
        2020-03-16_H1SUSETMX_L1_PCAL2DARM_5min.xml
        2020-03-16_H1SUSETMX_L2_iEXC2DARM_12min.xml
        2020-03-16_H1SUSETMX_L2_PCAL2DARM_6min.xml
        2020-03-16_H1SUSETMX_L3_iEXC2DARM_12min.xml
        2020-03-16_H1SUSETMX_L3_PCAL2DARM_6min.xml

Analysis to come.

Richard, Patrick

Richard notified me that the medm was unresponsive. I logged into the screen session on opslogin and found this error message:

CAS: client cdsdell5.cds.ligo-wa.caltech.edu:57744 disconnected because "No route to host"
Exception in thread Thread-1:
Traceback (most recent call last):
  File "/usr/lib/python2.7/threading.py", line 801, in __bootstrap_inner
    self.run()
  File "/usr/lib/python2.7/threading.py", line 754, in run
    self.__target(*self.__args, **self.__kwargs)
  File "h1_unifi_ioc.py", line 199, in scan
    json_response_data = r.json()['data']
  File "/usr/lib/python2.7/dist-packages/requests/models.py", line 850, in json
    return complexjson.loads(self.text, **kwargs)
  File "/usr/lib/python2.7/json/__init__.py", line 339, in loads
    return _default_decoder.decode(s)
  File "/usr/lib/python2.7/json/decoder.py", line 364, in decode
    obj, end = self.raw_decode(s, idx=_w(s, 0).end())
  File "/usr/lib/python2.7/json/decoder.py", line 382, in raw_decode
    raise ValueError("No JSON object could be decoded")
ValueError: No JSON object could be decoded

I restarted the code and will look into it.

J. Kissel, J. Driggers

More to come, but OMC Whitening Configuration change (using 1 whitening stage instead of 2 whitening stages and a low pass) is in testing now.

Quick answer from PCAL to DELTAL EXTERNAL broaband TF shows ~1.0-1.5% frequency dependent addition systematic error with the new configuration.
Magenta is nominal configuration (2 whitening stages and a low pass), and red is test configuration.

Sweeping now...

Cheryl noted last night that the seismic system transitioned to earthquake last night without warning. This actually happened twice last night, I think the two attached earthquakes from USGS were the culprits. They were far enough away that we should have gotten some warning (5600 km, the closest seismon will give us early warning for is about 2000 km), but maybe the fact they were out in the middle of the ocean delayed the USGS reports. The later one is still on seismon, and gets a deceptive eq response "score", falling well into the blue region, so a good reminder to be kind of skeptical about what the plot tells you. Still, SEI_ENV caught both earthquakes and transitioned properly, and we stayed locked for both earthquakes.

Second attached plot shows SEI_ENV (in blue) jumping from CALM (index 10) to EARTHQUAKE (index 20), as both earthquakes cross 1000 nm/s on peakmon (in yellow). SEI_CONF (green) goes from WINDY to EARTH_QUAKE both times, in the IFO stayed locked for both earthquakes. It's possible that we could have ridden both of these earthquakes out without doing anything, but these earthquakes were both on the top end of the kind of earthquakes we were able to ride out for O2 before we had an actual earthquake control scheme. Both of these earthquakes would have been a challenge for a person to first realize what was happening, then make the decision to switch the seismic system before the earthquakes had come and gone.

- 68.5% duty cycle with a consistent range between 115-118 Mpc, with the exception of ~ 85 Mpc between 08:30-12:20 on Friday.
- On Friday, the ETMY violin modes rung up to exceptional levels until lock loss, dropping the range, creating n*500 Hz glitches, and also low frequency scatter (as confirmed by hveto). This is due to the violin guardian begin turned off earlier in the day. This is all documented in aLog 55578 and responses.
- Earthquakes and wind were the causes of several lock losses.
- H1:LSC-POP_A_LF_OUT_DQ was a round winner every day of this shift and was effective at removing glitches from the "tail" (high SNR). Of all of the channels that picked up high SNR triggers, these triggers were usually extremely loud glitches.

The complete DQ Shift documentation is available here.

TITLE: 03/16 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 117Mpc
OUTGOING OPERATOR: Corey
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 11mph Gusts, 7mph 5min avg
    Primary useism: 0.02 μm/s
    Secondary useism: 0.28 μm/s
QUICK SUMMARY:  Observing for 16.5 hours.  No issues to report.

TITLE: 03/16 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 118Mpc
INCOMING OPERATOR: Corey
SHIFT SUMMARY: H1 in Observe, SEI in Earthquake, switched on it's own
LOG:

• 02:49 UTC - airplane heard in the CR
• quiet shift, righ up until the end when an EQ arrived, SEI switched to EQ on it's own
  • I looked for the EQ and didn't see anything close
  • I found only one in the Atlantic that seems remotely possible as the source
    • M 4.9 - Reykjanes Ridge
    • Time: 2020-03-16 06:33:11 (UTC)
    • Location: 59.865°N 30.006°W
    • Depth: 10.0 km

These violin modes cannot be damped without changing the dampig filters: EMTY modes 6, 12 and 20, and ITMX mode 2

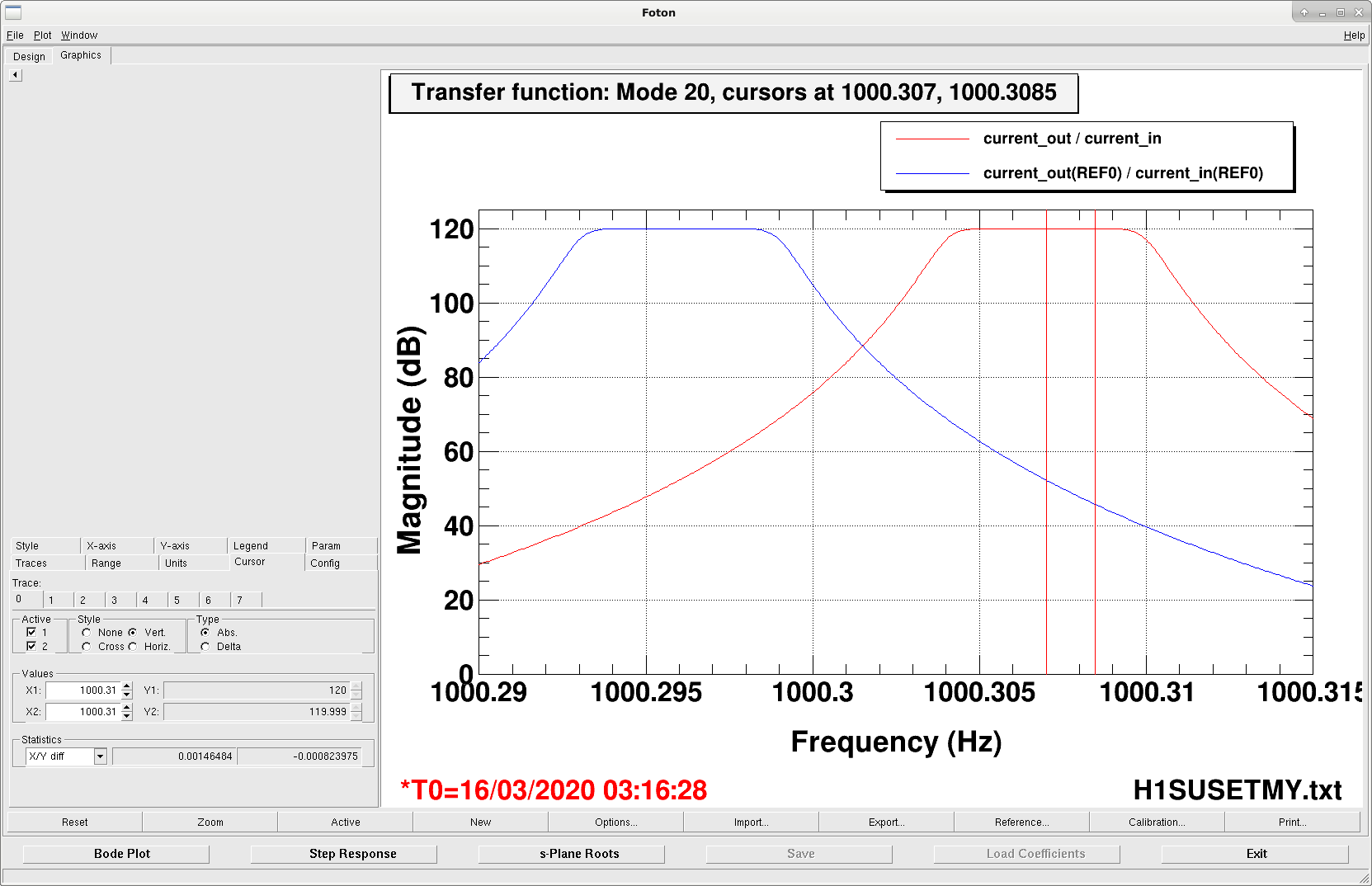

For ETMY we are currently damping ETMY mode 11, and mode 18, but mode 12 is only being prevented from ringing up, and is consistantly in DARM, however the bigger issue is that the mode 12 filter crosses the mode 20 peak, so it is currently impossible to damp both modes 12 and 20, thus mode 20 has gone undamped.  For ETMY modes 1 and 6, the mode 6 peak is not in the flat top of it's damping filter (though not far from the flat top), so it seems that mode 6 may have shifted down in frequency, and while mode 1 filter seems ok in foton, it's not possibe to damp both modes 1 and 6 at the same time, so both filters are a priority.   Currently ITMX mode 2 peak is damped enough to not ring up, but it's filter overlaps other 504Hz peak damping filters, so without a filter change, the mode 2 peak cannot be damped.  On ITMX, modes 2, 3, and 4 filters are updated to reduce their interfearance.

attached: 1) ETMY modes 11, 18, 20, 12 (left to right) current, 2) ETMY modes 11, 18, 20, 12 (left to right) new, 3)ITMX modes 2, 3, 4 current, 4)ITMX modes 2, 3, 4 new, 5) ETMY modes 1, 6, current, 6)  ETMY modes 1, 6, new, 7) text file, ETMY filters old and new, 8) text file, ITMX filters old and new

H1 in Observe, winds below 20mph, temperatures around 35.6F, aka 2.0C.

TITLE: 03/15 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 116Mpc
OUTGOING OPERATOR: Camilla
CURRENT ENVIRONMENT:
    SEI_CONF state: WINDY
    Wind: 19mph Gusts, 13mph 5min avg
    Primary useism: 0.09 μm/s
    Secondary useism: 0.19 μm/s
QUICK SUMMARY: H1 is locked in Observe

TITLE: 03/15 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 118Mpc
INCOMING OPERATOR: Cheryl
SHIFT SUMMARY: Long lock acquisition- I expect that the optics were quite misaligned as we have had a pretty long lock strength and some dramatic temperature changes.
LOG:

• 17:53 Lockloss see alog alog 55601 for details
  • ALS_Y arm started with no light on it and went into fault after I adjusted sliders to lock the y-arm as the QPDs weren't centered.
• 21:09 Robert out to EY to take photos
• 21:45 Initial alignment started
• 21:53 FSS looses lock during initial alignment, but relocked itself within 70s. YAY!
• 22:03 Initial alignment complete
• 22:40 Robert back from EY.
• 22:44 Observing

TITLE: 03/15 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 114Mpc
INCOMING OPERATOR: Corey
SHIFT SUMMARY: Locked in Observe, range trending downward, no obvious reason
LOG:

• 01:31 UTC - airplane
• Violin mode ITMY mode 12 gain is at +60 and damping
  • nominal is 1500, but guardian usually sets the gain to zero
