After the Initial Alignment, the outlook looked better with H1 making it all the way to DRMI on its own (no PRMI tweaks needed). But it had multiple locklosses before OFFLOAD DRMI ASC.
Did a small alignment tweak via PRMI & this got me a little further and even through a noisy stretch for the PR Gain & POP16 (see attached).
But overall, have not had much luck. The winds have steadily been increasing (steady in the 20s & approaching gusts in 40s). I am marking OBSERVATORY MODE from Locking to WINDY.
OH, and we also had some South Pacific quakes roll in, so I'm in the EARTHQUAKE state as well.
I'm going to wait out the EQ a little and then return to locking in a bit.
And now a 7.3 EQ is inbound within the hour, & Seismon recommends LARGE_EQ state. So this will prevent locking until it passes.
In the meantime, I'm returning to locking DRMI & trying to get past it with the high winds which have remainded steady over 20mph for the last 4-5hrs. (Just had another DRMI lockloss.)
And now a 7.3 EQ is inbound within the hour, & Seismon recommends LARGE_EQ state. So this will prevent locking until it passes.
In the meantime, I'm returning to locking DRMI & trying to get past it with the high winds which have remainded steady over 20mph for the last 4-5hrs. (Just had another DRMI lockloss.)
Had a lockloss at 23:32utc (4:32pm PDT). Nothing obvious, but it was windy. Thought I would let H1 relock on its own, but it's been over an hour, and have tried various things, and am now going for an alignment (I've not done an alignment in several weeks!).
NOTES:
FRS: 13111
TITLE: 06/23 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 116Mpc
OUTGOING OPERATOR: Jim
CURRENT ENVIRONMENT:
Wind: 21mph Gusts, 15mph 5min avg
Primary useism: 0.10 μm/s
Secondary useism: 0.09 μm/s
Seeing winds hovering in the 20mph range. Other than wind, have somewhat calmed down after the earthquakes earlier in the day.
QUICK SUMMARY:
H1's been locked/observing around 16.25hrs and with a range just around ~114Mpc.
TITLE: 06/23 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 113Mpc
INCOMING OPERATOR: Corey
SHIFT SUMMARY:
LOG:
There was a 4.1 eq off the coast of California at the end that got a verbal notification, but it wasn't big enough to need a change of modes.
TITLE: 06/23 Owl Shift 07:00 – 15:00 (00:00-08:00), all times posted in UTC
STATE of H1: Observing
INCOMING OPERATOR: Jim
SHIFT SUMMARY: Started shift with high wind and an incoming EQ, rode through it and soon everything was quiet. Observing for 8 hours.
LOG:
07:00 (00:00) Start of shift
07:38 (00:38) Switching to EQ mode for 5.7 from Tonga area
07:57 (00:57) Switching back to windy
11:03 (04:03) GRB (E339648). Trigger duration too long.
15:00 (08:00) End of shift
Quiet shift so far, wind died down after about an hour, seismic activity has been low. Locked and Observing at ~117 Mpc.

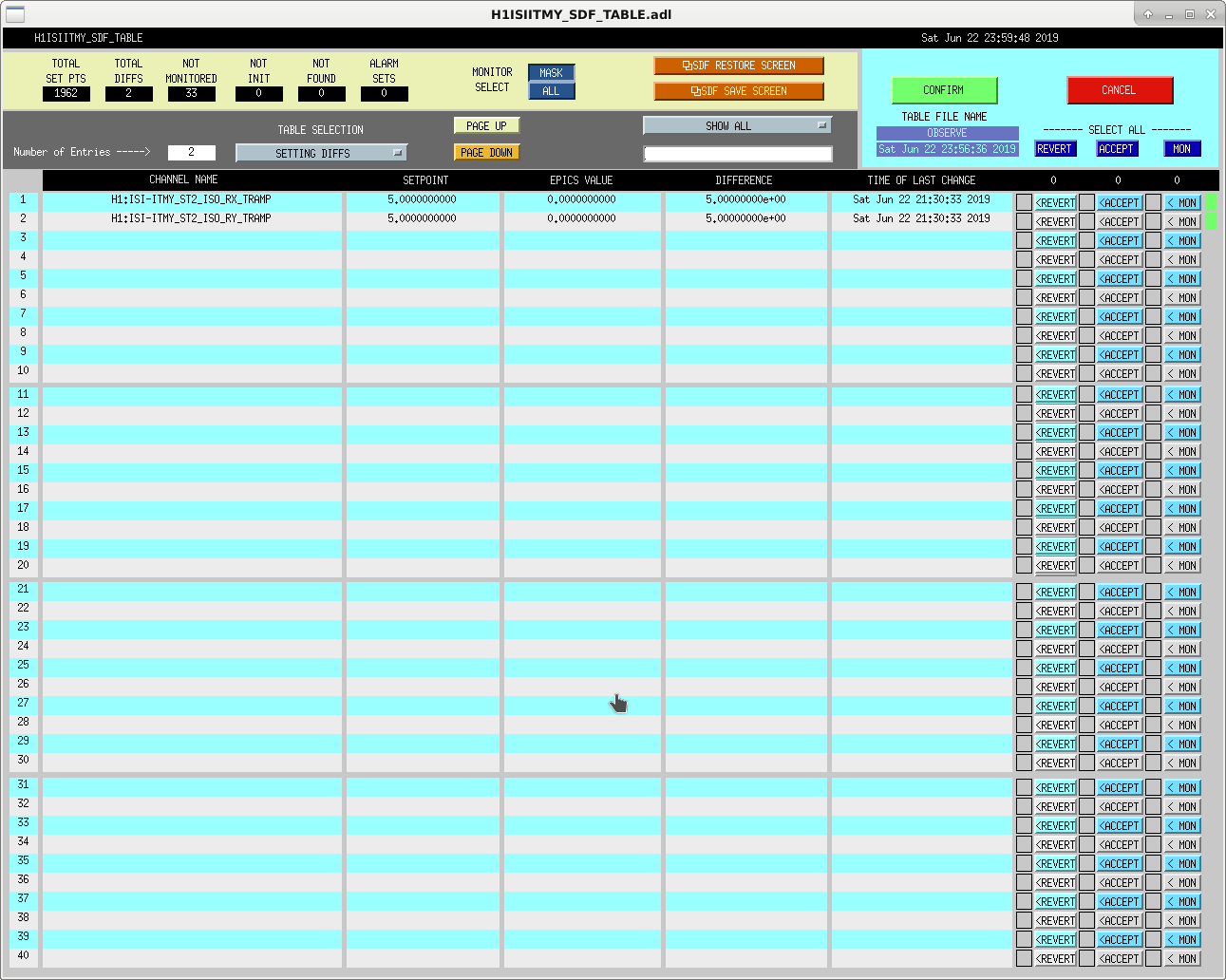

Accepted ISI ITMx and ITMy SDF TRAMP diffs. See screenshot for ITMy diffs (ITMx were the same corresponding channels).
Ops Shift Transition: 06/23/2019, Owl Shift 07:00 – 15:00 (00:00-08:00) - UTC (PT)
State of H1: Locked
Intent Bit: Observing
Weather: 10-40 mph wind
Primary 0.03 – 0.1Hz: 0.02 um/s
Secondary 0.1 – 0.3Hz: 0.1 um/s
Outgoing Operator: Travis
Quick Summary: Travis had just reached NLN when I arrived. Wind is showing up strong in the ASC channels, and there’s an incoming earthquake, so we may not stay locked for long
TITLE: 06/23 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 111 MPc.
INCOMING OPERATOR: Niko
SHIFT SUMMARY: Just got back to Observing as Niko's shift starts. Winds are still high 30s with gusts to over 40mph.
LOG: Previous aLogs.
See screenshot for error midway up the log. All I did was reload INIT_ALIGN guardian and it seemed to move on fine. Maybe needs more investigation.
This is a case of too many managers trying to both use ALIGN_IFO. I have commented out the unstall_nodes decorator in ISC_LOCK's inital_alignment state. The INIT_ALIGN node is already unstalling what it needs to, and INIT_ALIGN shouldn't need to be unstalled.
Sorry about that. I added that unstall nodes because we had seen the IMC guardian become stalled during Init align. Does Align IFO manage the IMC and unstall it when it looses lock?
Ah, no it doesn't. I'll change ISC_LOCK to check on that, and I'll triple check the other nodes.

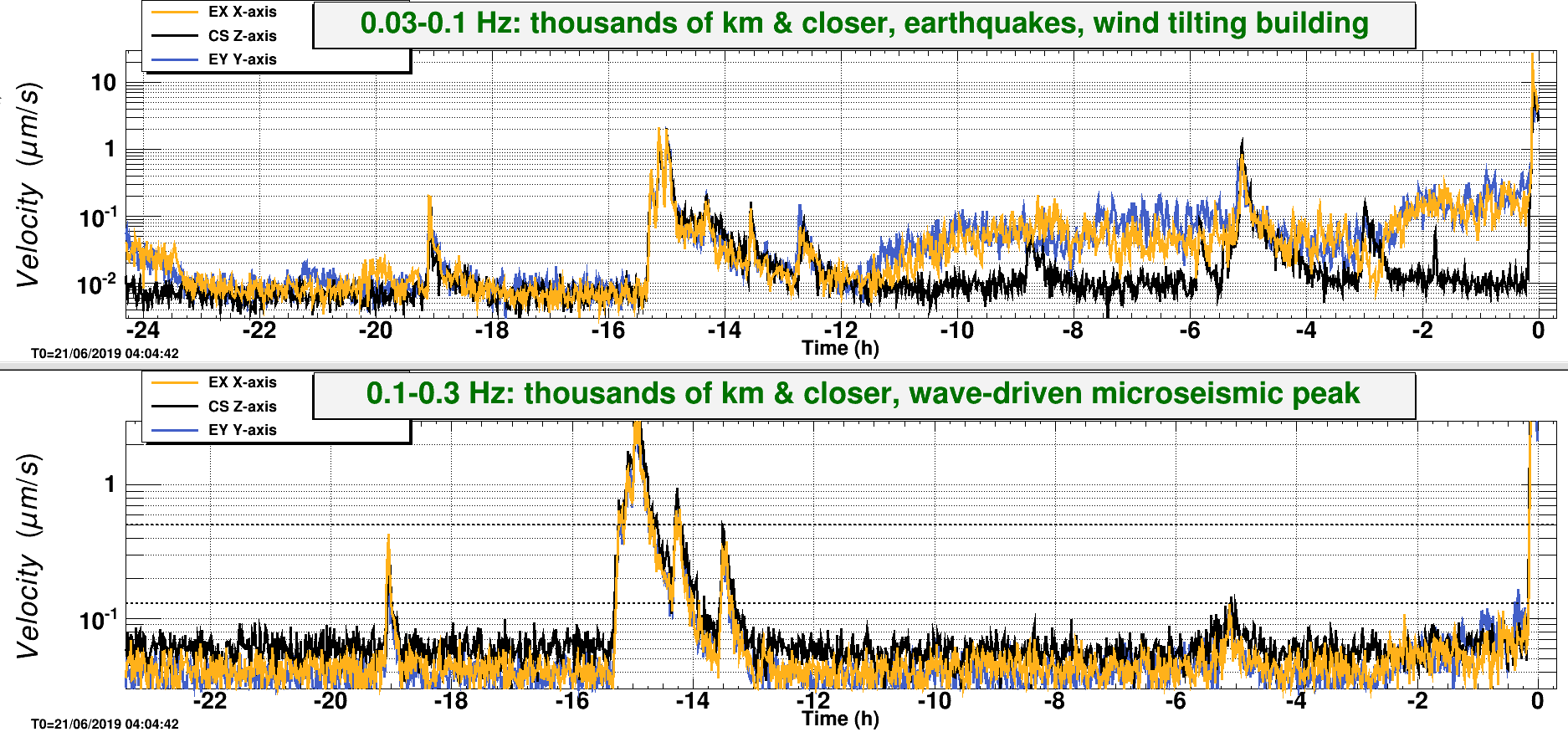

Due to 5.9 EQ in Canada. Lost lock before SEISMON reported the EQ due to proximity. 0.03-0.1 and 0.1-0.3 Hz FOM on the wall is currently off the chart. Nearly all ISIs were tripped before I could transition to EQ mode.
EQ has rang down sufficiently.
TITLE: 06/22 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 114Mpc
OUTGOING OPERATOR: Jim
CURRENT ENVIRONMENT:
Wind: 16mph Gusts, 13mph 5min avg
Primary useism: 0.26 μm/s
Secondary useism: 0.09 μm/s
QUICK SUMMARY: Still locked in Observing but riding through an EQ that took LLO down.
TITLE: 06/22 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 115Mpc
INCOMING OPERATOR: Travis
SHIFT SUMMARY: Nothing all day, then Guatemala starts shaking as Travis arrives
LOG:
22:51 Earthquake from Guatemala arrives, switching to SEI_CONF earthquake
TITLE: 06/22 Owl Shift 07:00 – 15:00 (00:00-08:00), all times posted in UTC
STATE of H1: Observing
INCOMING OPERATOR: Jim
SHIFT SUMMARY: Quiet night until a 5.4 EQ off the coast of Oregon knocked us out of lock. Got to Observing right before the shift ended.
LOG:
07:00 (00:00) Start of shift
08:50 (01:50) GRB (E336865). Trigger duration too long, no stand down.
11:44 (04:44) SQZ lost lock, taking us out of Observing
11:45 (04:45) Squeezing, back to Observing
12:49 (05:49) 5.0 EQ off the Oregon coast knocked us out of lock
14:07 (07:07) EQ’s have rung down, starting re-lock
14:54 (07:54) Locked, going into Observing
15:00 (08:00) End of shift

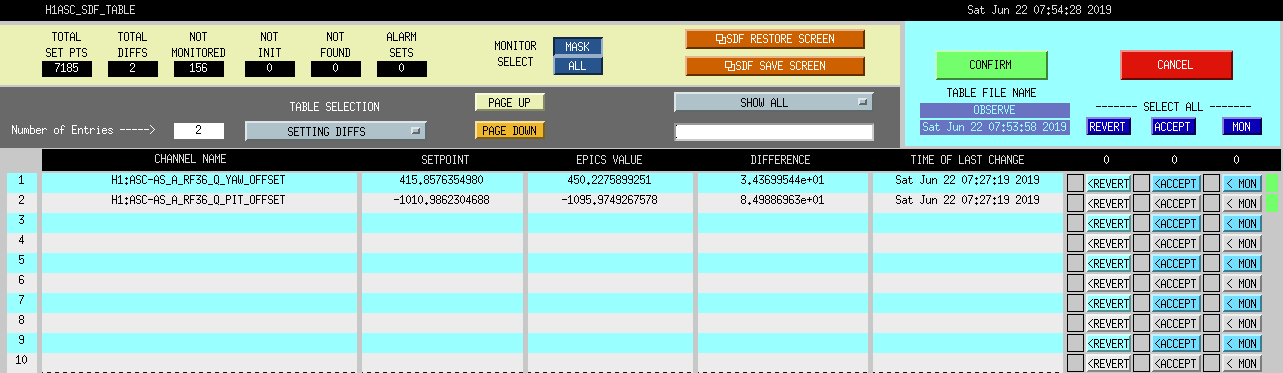

Accepting the attached sdf changes to go into Observing
Quiet shift so far. Wind is low, not much seismic activity. One GRB that did not meet standards for stand down.
Ops Shift Transition: 06/22/2019, Owl Shift 07:00 – 15:00 (00:00-08:00) - UTC (PT)
State of H1: Locked
Intent Bit: Observing
Weather: 0-10 mph wind, light rain
Primary 0.03 – 0.1Hz: 0.01 um/s
Secondary 0.1 – 0.3Hz: 0.1 um/s
Outgoing Operator: Travis
Quick Summary: Locked for 18.5 hours, observing for 8 hours. No known issues.
TITLE: 06/22 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 117Mpc
INCOMING OPERATOR: Niko
SHIFT SUMMARY: In Observing for the entire shift.
LOG: Nothing to report.
Here are some MC_F spectra.
Modal analysis of the reference cavity can be found at the 40m wiki.
Here is the same spectrum with updated calibration. I neglected the 2 poles around 15kHz (Change 3 in E1900103).
The calibration for MC_F is:
In transmission of the IMC the cavity pole at 8.8kHz needs to be added.
