Sheila, TJ, Lisa Here is a quick summary of the work that happened this week in the optics lab to start populating the VOPO Injection Platform. We: * located all of the VIP components (thanks to Betsy and others!) * gathered and cleaned all of the optics that are needed (picture) * started assembling the optomechanics * started gathering parts to set up the laser path to make measurements of the SQZ Faraday throughput and isolation So..all good. Note: All of the OFI parts that were sitting on the table have been grouped in a corner of the table.
Following the PR3 issues over the weekend, Jeff and I noticed some minor issues with the SWWD MEDM screens.These were:
the three HAM suspension OSEM face/top channels labeled F instead of T
some ADC monitors on the 4-to-1 screen had copy-paste errors
Quad suspensions did not show the ADC reordering (left-right-side are actually side-left-right on these systems)
I corrected these errors, which required some ADL changes and some macro substitution TXT file changes.
Screenshot attached.
FRS 8220

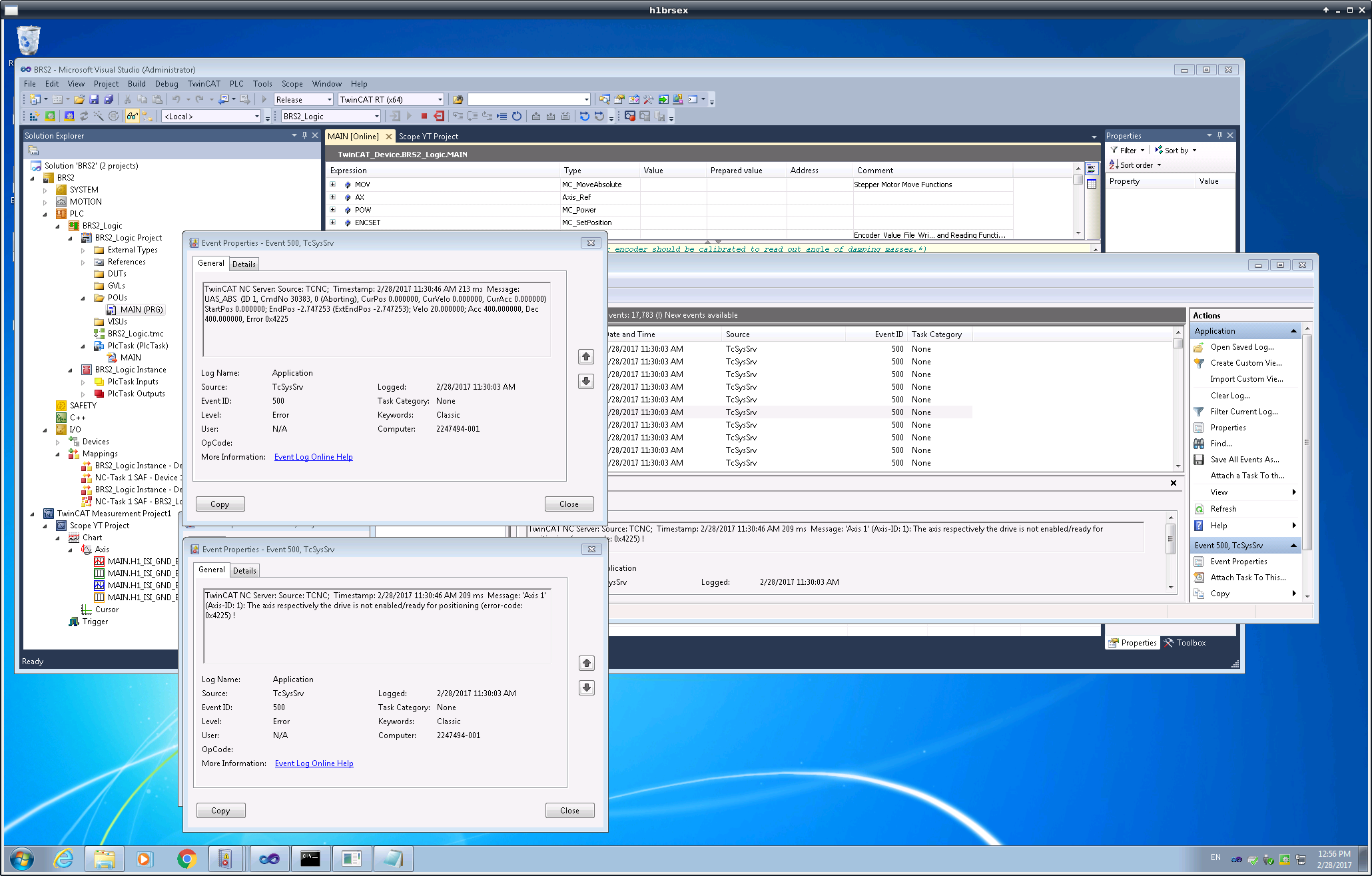

Looking at the screen, I see "Error code 13 ~~~MYSTERY ERROR~~~ Go Google "ADS Return Codes" So I did. ADS return codes are from Beckhoff - error 13 is "Port Not Connected"
Once the IOCs were started the corresponding SDF systems crashed. This is unusual behaviour, but we have seen it before. I restarted the SDF processes as user controls on h1build
starth1sysecaty1plc1sdf
starth1sysecaty1plc2sdf
starth1sysecaty1plc3sdf
I think we now have a fix for that in RCG 3.4 and beyond. Due to EPICS sequencer changes, I had to re-write the EZCA parts in our front-end sequencer code so they are now robust against the (remote) IOC going offline/online. This will fix the problem when the PSL Beckhoff OPI<->EPICS IOC is restarted, causing the non-real-time part of the PSLISS model to stop. Thinking about this, it may also apply in this case, where we communicate with a remote IOC on the IFO Beckhoff TwinCAT<->EPICS IOCs
I measured the laser power at the base of the periscope this morning. The power meter was located
in front of the mirror directing the beam upwards.
With an Ophir PD300-3W-SH power meter (S/N 171141, P/N 1Z02411), the highest value measured
over a ~2 minute interval was 160.4 mW.
With an Ophir 20C-SH power meter (S/N 1711175, P/N 7Z02602), the highest value measured over
a ~ 2 minute interval was 169 mW.
Both readings were taken using a 10 second average, with the zero offset removed using the
Vega display unit.
J. Kissel, S. Pai Siddhesh and I B&K Hammer'ed the new MC2 and PR2 Scrapper Baffles, SR2 Cage, and of Primary/Final/Large? in-vac TCS Steering Mirrors in BSC2. More details, pictures, and results to follow. Notes for myself later: - SR2 cage accelerometer was oriented with X Y Z aligned with the IFO global coordinates. - All other measurements had acc Y aligned with IFO Y, and acc Z aligned with IFO X.
Adding an oldy-but-goldy picture of MC2 (background) and PR2 (foreground) taken by Conor Mow-Lowry the day of this BnK exercise. The picture is taken from the -Y HAM 3 door, so IFO +X and the beam splitter is to the right, and +L for both suspensions is to the left as their HR surfaces point back toward HAM2 (to the left). Critical to today's yak shaving: the OSEM measuring Transverse at the top mass (M1) stage is toward the camera for both suspensions, i.e. in their +T direction, which means it's the "SIDE," or SD OSEM, per E1100109 (rather than the OPPOSITE SIDE, or OS). (yak-shaving: while putting together the derivation of the OSEM2EUL matrices in G2402388), I'm reminded that some HSTS were assembled with the Transverse sensor on in the OS position, and I'm on the hunt as to which ones -- and making sure the (SD to T) & (T to SD) element OSEM2EUL & EUL2OSEM matrices, respectively, are correctly -1.0 if SD and +1.0 if OS.) MC2 and PR2's OSEM2EUL matrix value H1:SUS-[MC2,PR2]_M1_OSEM2EUL_2_6 is correctly -1.0.
Correction: To the 20:39 (12:39) entry - Siddhesh was with Jeff K. not Brijesh.
Today, Travis and I used the red visible AUX laser to final align the ITMY elliptical baffle and the BS AR and HR baffles. (Note, we had already done the BS baffles and the ITMX but wanted to check and document. Note, the front back, and center targets of the elliptical baffle boxes do not all exactly line up, but the tolerance is 7mm so we are center to better than that on all of them.
Also, note, the BS baffles do not look very centered on the mounting to the BS structure, but the beam is centered thru the baffle, so can't do much about that.
Pictures are attached.
ITMX Elliptical baffle front and back targets.
ITMY Elliptical Baffle front and back targets.
BS HR Baffle side position wrt to mounting screws and target pix.
BS AR Baffle position (sorry, no target pic).
View ~on beamline ITMX elliptical to BS AR and down to PR3. Likely better pix coming...
View ~on beamline ITMX elliptical to BS AR and down to PR3. Likely better pix coming...
View ~on beamline ITMY elliptical to BS HR and down to SR3. Likely better pix coming...
This afternoon, while helping Jason install the new AWC optics, I worked on routing the AOSEM cables for the OFI. Hugh had preassembled the D1000225 SRS cable to the D1000234 Quadrapus cable and mounted it in a cable table bracket. So all I had to do was route it all on the table, plug it into the feedthru and start connecting AOSEMs. I've plugged in 1 AOSEM and will start looking at medms next.
