Naoki, Vicky

At 25W, holding at REDUCE_RF45_MODULATION_DEPTH before MAX_POWER, we did a quick anti-sqz/sqz measurement to see if we could loosely infer sqz losses with the IFO relatively cold. We did not see clearly more squeezing here at lower power / colder ifo, as we have in the past, e.g. 66877. We weren't able to easily engage ASC here (it was before move_spots), but slider values are similar to when IFO was last locked and a little bit of walking alignment didn't make a big difference, so we left ASC off.

Looking at DARM (based on GDS), and the SQZ BLRMS, we can read the sqz levels:

• Anti-sqz:  DARM ~ +13.0 dB,   BLRMS 5,6~ 13 dB
• SQZ:     DARM ~ -3.9 dB,     BLRMS 5,6~ -4 dB

which are surprisingly consistent to what we have at full power, e.g. the recent sqz dataset in 71902 with IFO at 60W and thermalized in full lock.

Thoughts:
  -- I'm not sure what it means that now we have similar amounts of squeezing with the IFO at low and high power.
  -- For this test, we left PSAMS at 200V/200V and didn't try walking PSAMS, though in 66877 we saw better squeezing with a cold IFO and lower PSAMS.
  -- The slope of DARM at high ~kHz frequencies seems to be slightly different between 25W and 60W? From the dtt, compare red dashed = "60W no sqz" & cyan line = "25W FDS". Here, the lock sequence was at REDUCE_RF45_MODULATION_DEPTH, so before lownoise length control and laser noise suppression.

We then measured NLG ~ 11.05. In the sqz dataset 71902 we did not separately measure NLG, but given that the NLG has remained consistently accurate with the Feb 2023 NLG calibration, so we can re-affirm that trusting the calibration is probably okay, assuming opo temperature is well-tuned. For comparison, NLG calibration suggests NLG=11 (gen sqz ~ 14.75dB) with opo_trans=80uW.

• max_ir = 0.0081
• min_ir = 0.00022
• no_pump_ir = 7.1e-4
• dark = -2.5e-5

J. Kissel, J. Warner

Given the lovely "natural experiment" of the Aug 25th 2023 ~3.2 [deg F] / 1.8 [deg C]  temperature increase "impulse" over 4 hours at EY (see LHO:72444 and LHO:72428), I wanted to understand both
    (a) How the IFO handles it / what caused the lock loss
    (b) Document the levels and time-scales of alignment change that resulted in bad alignment for *several* lock stretches -- indeed *days* after the impulse.

We often wave our hands saying things like "well, the vacuum system acts like a low pass filter, with a time constant of [[insert hand-waivers favorite time-scale on the order of hours]]." I wanted to see if we could quantify that, and if not, add a bit more clarity to how complicated the situation is.

To do so, I looked at the Y End Stations' signals in Z, RZ, PIT, and YAW that are either
    (1) out of loop, or
    (2) when in-loop -- the loop's feedback control output using the "classic trick" of approximating G/(1+G) ~ 1, where G >> 1, such that (plant) * CTRL = out-of-loop signal as though the loop wasn't there.

Those sensors include
    - HPI ST1 ISO OUT (which are the IPS, under DC-coupled feedback control) -- calibrated into nano- meters or radians
    - ISI ST1 ISO OUT (which are the CPS, under DC-coupled feedback control) -- calibrated into nano-
    - ISI ST2 ISO OUT (which are the CPS, under DC-coupled feedback control) -- calibrated into nano-
    - SUS ETMY M0 LOCK OUT (i.e. the WFS, under DC-coupled global ASC control) -- calibrated into micro- meters or radians
    - SUS ETMY M0 DAMP IN (which are "out-of-loop" because the local damping loops are AC-coupled) -- calibrated into micro-
    - SUS TMSY M1 DAMP IN (equally "out-of-loop")  -- calibrated into micro-
    - ETMY L3 Optical Levers -- calibrated into micro-
(I'm pleasantly surprised at how well they all agree, to the ~0.25 micro- kind of level that I have for these trends.)

I conclude:
    (I) The IFO Yaw is most impacted by the SEI system's RZ motion, due to the Z to RZ cross-coupling of the radially symmetric system of triangular ISI blade springs, as the blades sag from temperature increase
        (i) The total SEI system's yaw swung ~2 [urad] during the excursion dominated by ISI ST1,
        (ii) The SUS ETMY and SUS TMSY follow this input in common, and
        (ii) ISI ST1 takes the longest time to recover alignment --  then trending over *days* slowly back to pre-impulse equilibrium -- and still not yet there as of Aug 28
    (II) The IFO Pitch most impacted by the ETMY and TMSY SUS system's expected Pitch and Vertical sag from temperature increase.
        (i) The IFO's global alignment drives the pitch of ETMY, which drifted *down* in pitch over ~10 [urad] before losing lock, presumably from running out of range
        (ii) The ASC signals seem to slowly drive the ETMY off into-the weeds trying to recover the original, pre-impulse, alignment, causing *eventual* subsequent lock losses as it pushes the optic *past* the pre-impulse alignment position
        (iii) The TMS, which does not have global control, pitches a similar amount, ~14 [urad] in the *opposite direction, up* in pitch, and also taking *days* to get back the original value (somewhat alleviated )
        (iv) The fact that the Sus-point blades are the *same* for the QUAD and TMS, they're the biggest blades in either SUS, and the order of pitching is about the same implies to me that the pitching is dominated by the upper, Sus-point blades.

I attached the trends that drive me towards these conclusions.
Give yourself time -- I've stared at these all afternoon to come to these conclusions. And honestly, I *still* don't think I've looked at enough plots (e.g. I don't show the ETMY alignment sliders that are the operators and/or initial alignment drives trying to make up for the SEI blades yaw and SUS blades pitch).

I also attach a .txt file that goes into more detail about how I calibrated the various CTRL signals, including where I got the transfer function values that are scaling the trends that you see.

Lockloss @ 23:20, DCPD saturation right before, cause unknown.

TITLE: 08/28 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 145Mpc
INCOMING OPERATOR: Austin
SHIFT SUMMARY:
Quiet shift until the noisy earth rolled a Mag7.1 Earthquake to H1.  Made it back to Low Noise (but then it just lost lock).

(Jim discovered LVEA lights were on...probably had been for several days!)

LOG:

• 1500 Vacuuming (w/ Shopvac) in Mechanical Room (to vacuum water out of an air handler drain pan)
• 1506 H1 back to Observing (after 1152 lockloss)
• 1548-1622 Optics Lab cleaning (karen)
• 1659-1931 MX cleaning (cindi)
• 1934 Hanford automated message received about siren testing around ~1pm PT/local time.
• 2002:  M7.1 EQ from indonesia verbal warning
  • 2016 Lockloss around when S-wave passed
• 2040-2052 HAM1 guardian for in-air L4Cs (jim)
• 2052-2113 Installing a new in-air L4C under HAM1 (jim)
  • Lights were left ON in lvea!  (probably since Wed or Tues)
  • Jim did a walk through the LVEA to make sure no one else was out there and then turned OFF the lights in the LVEA & CER (which were also left ON)
• 2101-2108 Grabbing wipes in Cleaning Area (travis)
• 2130 Begin locking post-EQ
  • LOCK#1:
    • X&Y green needed INCREASE FLASHES (did not need to deal with ALSy WFS like Austin had to)
    • took to PRMI & locked (after small BS pitch adjustments)
    • But DRMI did not lock (even with good flashes), so returned to PRMI.
    • DRMI locked on 2nd attempt within 4min!  Woo Woo!
    • Held at REDUCE RF45 MODULATION DEPTH, so Vicky & Naoki could do Squeezer work in the control room.
    • Handing off to Austin.

TITLE: 08/28 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Commissioning
OUTGOING OPERATOR: Tony
CURRENT ENVIRONMENT:
    SEI_ENV state: SEISMON_ALERT
    Wind: 14mph Gusts, 10mph 5min avg
    Primary useism: 0.06 μm/s
    Secondary useism: 0.12 μm/s
QUICK SUMMARY:

- H1 is holding off at REDUCE RF45 for SQZ work

- SEI looks to have mostly recovered from the EQ earlier

- CDS/DMs ok

After H1's longest lock of O4 thus far (60hr29min Lock from 8/23(wed) 1020amPT -- 8/25(fri) 11pmPT), H1 has has been finicky with locking and also has had a degrading inspiral range.

The primary issue prior to this lockloss was the EY temperature increase of 3+degF due to FAILURE of Chiller Pump #1 at EY.  From about 10am-5pm the temperatures were NON-nominal (but H1 remained locked this whole time(!) as ASC maintained the pointing for EY during this HUGE temperature swing).

With that said about the temperature drift, and at TJ's request, wanted to also list Commissioning changes which occured during the 2.5days of the lock.

(Times in PT)

Aug23 (Wed)

• 1020amLocal:  H1 60hr lock BEGINS
• HAM1 in-air ground L4C HEPI Feedforward filter + gain change (332pm alog 72393, Jim)
• PCALY 17.1Hz Cal Line Amplitude Reduced (355pm alog 72394, Louis)

Aug24 (Thurs):  Nothing in alog

Aug25 (Fri)

• 10am-5pm EY Chilled Water Pump #1 FAILED & temperature in the LVEA drifts on order of 3 degrees farenheit over the cours of most of the day shift. (530pm alog 72444, tyler)
• MICH Feedforward filter change (2pm alog 72430, gabriele)
• HAM1 in-vac L4Cs ASC FF filters updated (324pm alog 72432, Elenna)
• ~11pmLocal H1 60hr lock ENDS

Aug26 (Sat)

• Lockloss recovery late Fri night & Sat morning (before midnight Fri, alog 72440, Austin, Tony)
  • dither script run
  • changing sliders to a previous initial alignment of gps time 1376843785 (finally helped with ALSy)
  • turning off ALSy WFS for 5 secs at beginning of lock (alog 72460)

Last Tuesday (Aug 21, 2023) Rick and I went down to the EX station while the IFO was still locked.
We asked the operator to turn off BRS sensor correction (Sitemap-> ISI_CONFIG ->SEI_CONF ->WINDY_NO_BRSX). This was to allow us to gentley walk to the other side of the beam tube to access the PCAL Transmitter module.

Once there Rick and I opened the Tx enclosure and blocked the Outer ( Lower ) PCAL beam at GPStime: 1376752360

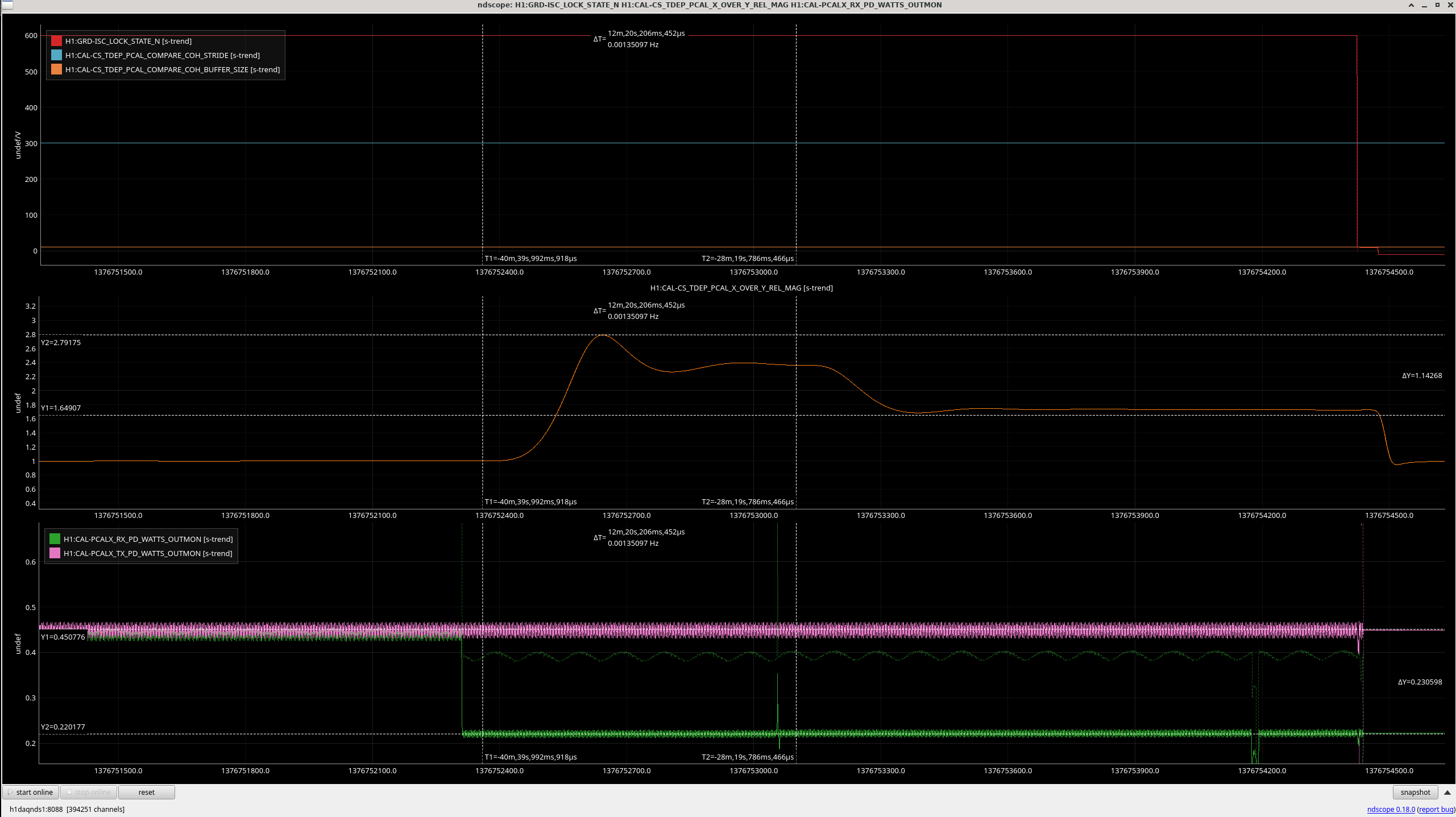

We saw the following motion of the PCAL channel :  H1:CAL-CS_TDEP_PCAL_X_OVER_Y_REL_MAG .
We did expect this to go up and then settle down. We were suprised by how long it took to settle down.
At GPStime 1376753100 we blocked the inner (Upper) beam was blocked.
That seems to last uninteruppted until GPStime: 1376754170

At 1376754420 ISC_LOCK went to from NOMINAL_LOW_NOISE to DOWN and signals the the start of the End station measurments made that day.

More analysis coming soon.

The nominal value of the squeezer laser diode current was change to 1.863 from 1.95. The tolerance is unchanged at 0.1. Looking at trends we sometimes read a value just below 1.85 leading to a failed laser condition which in turn triggers a relocking of the squeezer laser. However, since we are already locked, all we see is the fast and commen gains ramping down and up.

2016 H1 lost lock due to 7.1 south pacific earthquake.

We rode through the P & S waves....the R wave is still about 30+min away and it will be "spicy" ~Jim W.

I have taken H1 to IDLE....while we wait for the R wave to pass & for the planet to calm down after that.

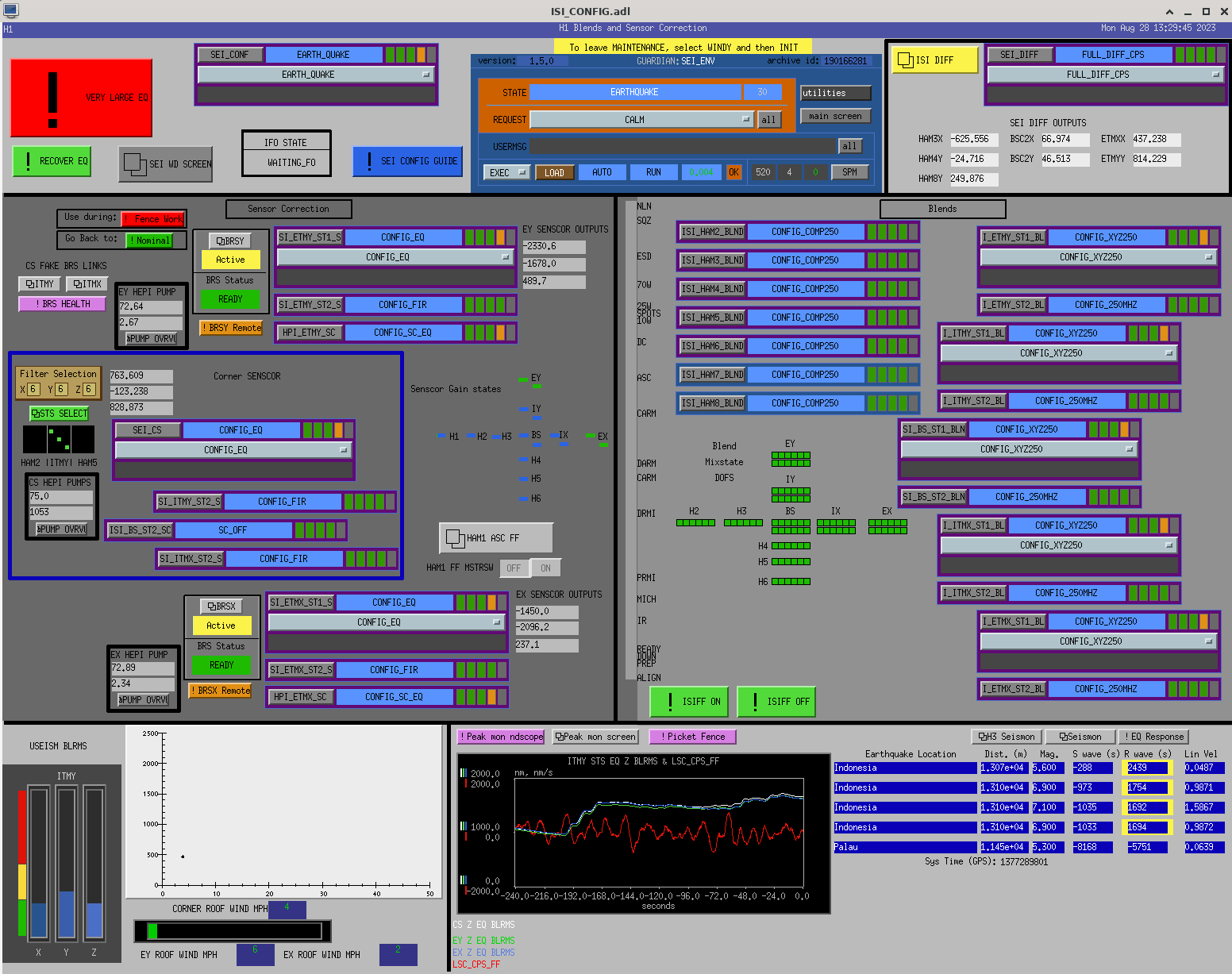

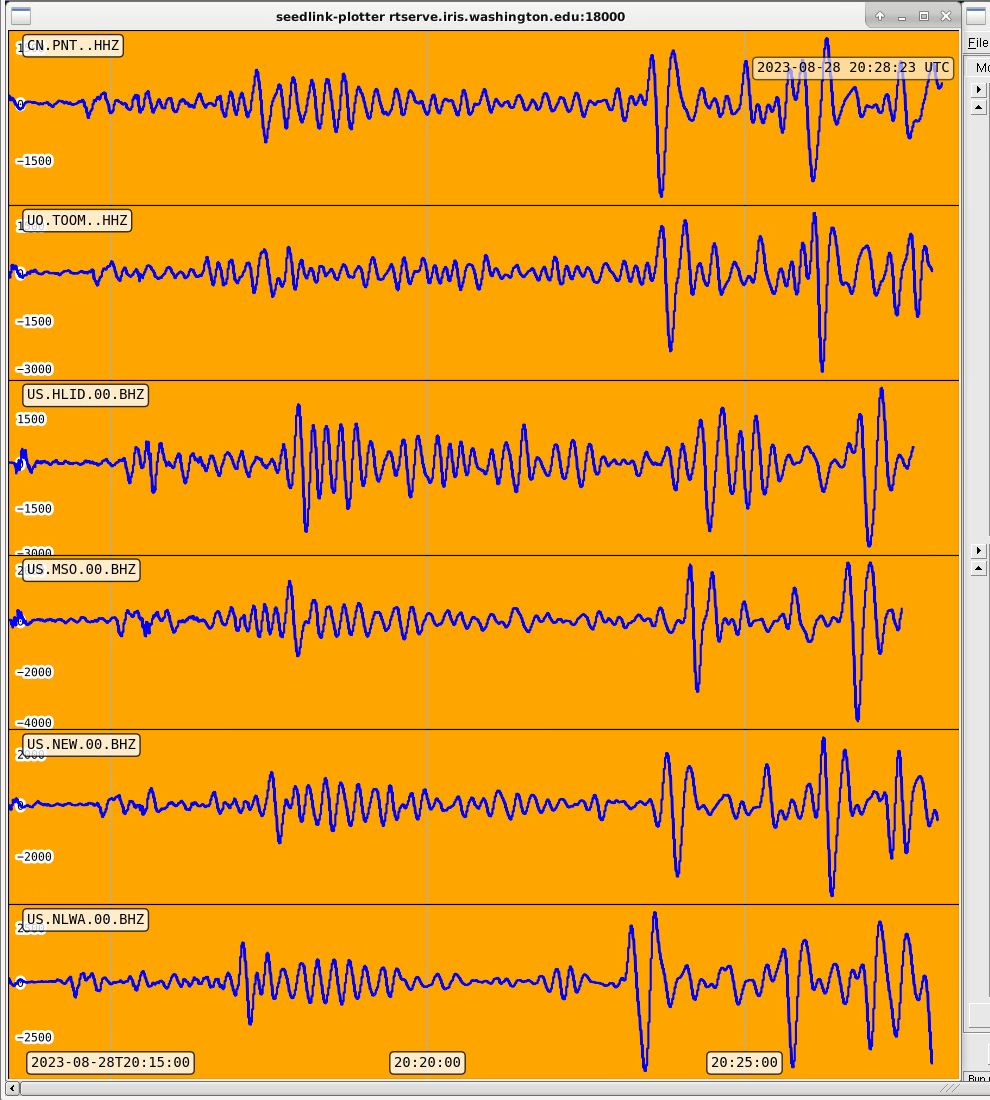

Attached are some screenshots Tony snapped.

Closes FAMIS 21128

•  TCS X
  • Before: 29.5
  • After: 30
  • Added: 60 ml
• TCS Y
  • Read 10.1, did not add any water.

The cup in back corner of mezzanine was empty

Mon Aug 28 10:10:25 2023 INFO: Fill completed in 10min 20secs

Travis confirmed a good fill curbside.

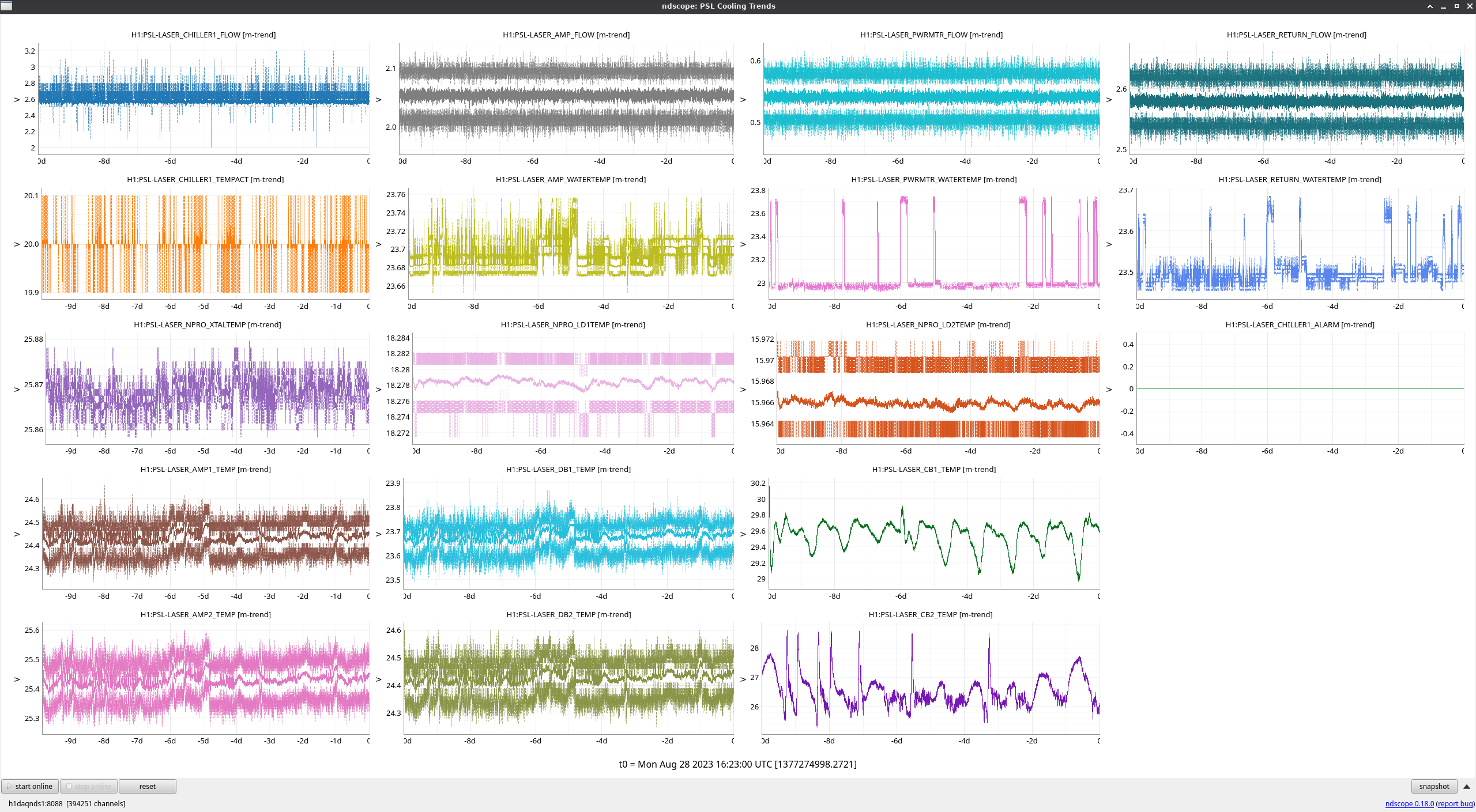

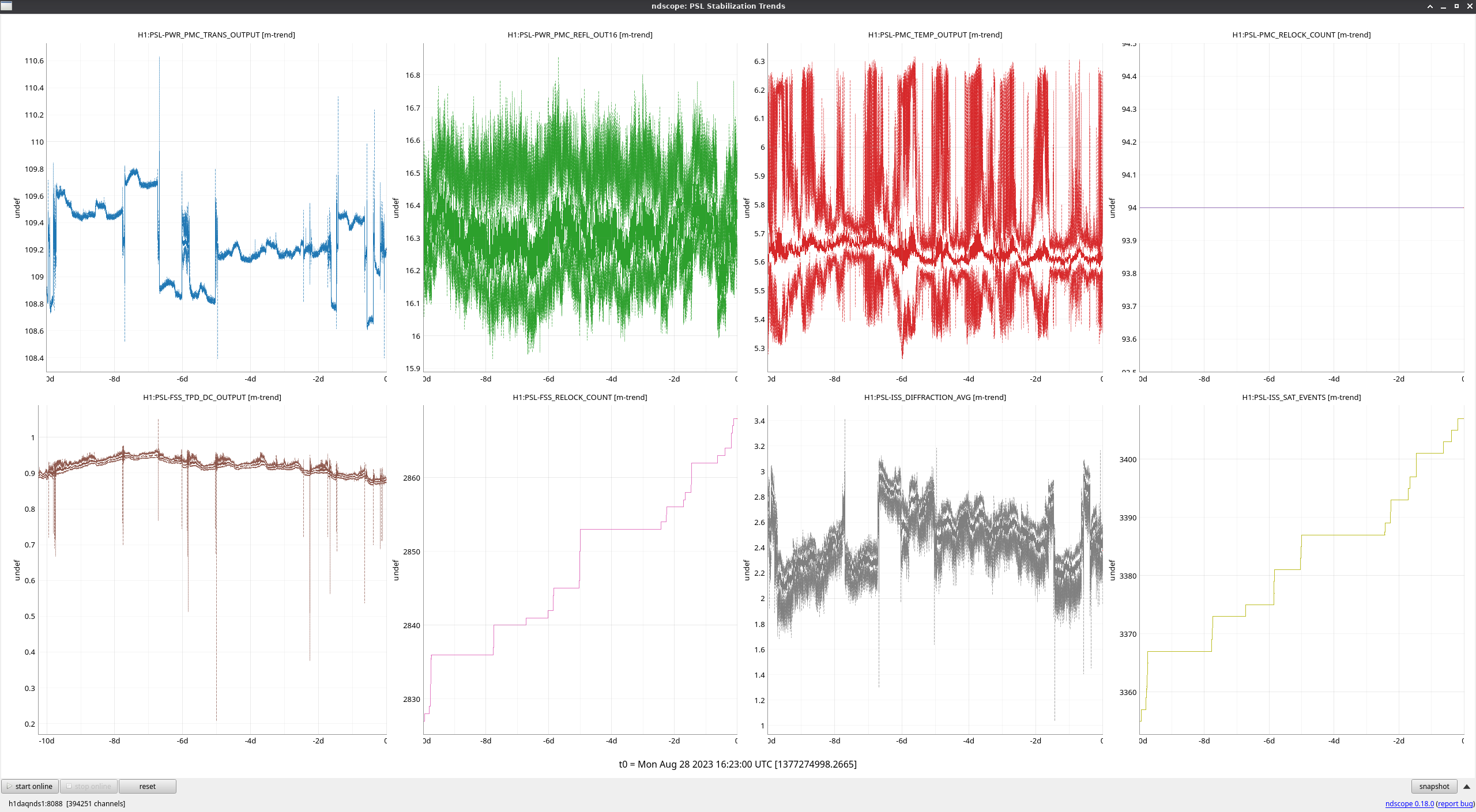

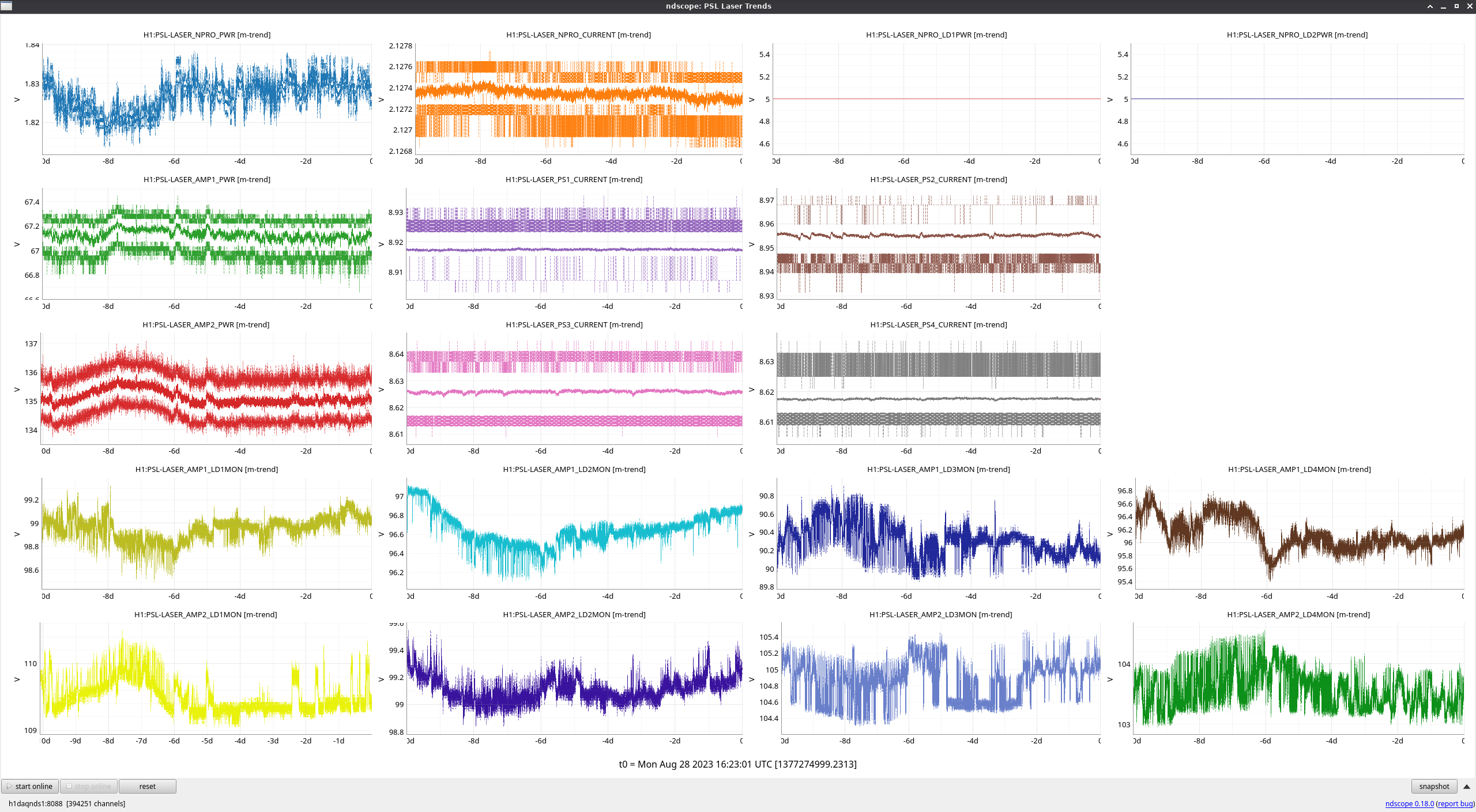

FAMIS 19991

Jason was in the anteroom last Tuesday for inventory, which is seen by the environmental trends. Since then, the differential pressure between the anteroom and the laser room has been elevated, but not alarmingly so.

Well pump is running to replenish the fire water tank. The pump will run for 4 hours and automatically shut down.

At 9:45am local time Chiller 1 at End Y went into alarm for "Evaporator Water Flow Lost". When I arrived at the EY chiller yard I observed that neither chiller was running but chilled water pump 1 was continuing to run. I noted the alarm and headed for the mezzanine above the AHU's to asses what the supply and return pressures were nearest the evaporator coil.

Immediately I read 0 (or what I thought was 0) at the return line. This would generally indicate that there has been enough glycol loss within the system that makeup is necessary via the local tank (though I've never seen it get to 0). Until I read that both supply lines were at an alarming 140psi (normal operating pressures for all 4 supply and return float around 30). I immediately phoned Richard to have him command the chilled water pump 1 off to stop the oversupply of chilled water. For reasons not clear to me the disable command via FMCS Compass was not taken at the pump.

I went back to the chiller yard and observed that 1: the pump had not been disabled and 2: pressures at the pump were at around 100psi (normal operating for the current frequency is about 50).

Following that, I manually threw the pump off at the VFD to prevent further runaway of the system. Between the time of noting 140psi and manually throwing the pump off, the system pressure increased to 160psi.

After a thorough walk-down of the system, I elected not to utilize our designed redundancy in chiller 2 and chilled water pump 2 as I was still unaware what was causing the massive overpressure at all supply and return lines. It was also found that the return line was not actually at 0, but instead had made a full rotation and was pegged on the backside of the needle (all of these need replacement now).

Macdonald-Miller was called on site to help asses what the issue might be. Given that there was recent incursions to flow via R. Schofield the strainer was the primary point of concern. We flushed the strainer briefly at the valve and noted a large amount of debris. after a second flush, much less/next to none was noted. This alleviated the system pressure substantially.

The exact cause of the fault and huge increase of pressure is still not clear. There are a number of flow switches at the chiller. Bryan with Mac-Miller suspects part of the issue may live there, and we are going to pursue this further during our next maintenance window. Work was also performed at the strainer within the chiller where rubber/latex-esque debris was found. Work on Chiller 1 to continue but for now the system and end station is happy on chiller2/CHWP2. Looking at the FMCS screen shows temp's have normalized as of the writing of this log.

T. Guidry B. Haithcox. R. Thompson C. Soike R. McCarthy

J. Kissel, for T. Guidry, R. McCarthy

Just wanted to get a clear separate aLOG in regarding what Corey mentioned in passing in his mid-shift status LHO:72423:

The EY HVAC Air Handler's chilled water pump 1 of 2 failed this morning 2023-08-25 at 9:45a PDT, and thus the EY HVAC system has been shut down for repair at 17:35 UTC (10:35 PDT). The YVEA temperature is therefore rising as it equilibrates with the outdoor temperature; thus far from 64 deg F to 67 deg F.

Tyler, Richard, and an HVAC contractor are on it, actively repairing the system, and I'm sure we'll get a full debrief later.

Note -- we did not stop our OBSERVATION INTENT until 2h 40m hours later 2023-08-25 20:18 UTC (13:18 PDT), when we've gone out to do some commissioning.

TITLE: 08/25 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 147Mpc
OUTGOING OPERATOR: Tony
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 14mph Gusts, 11mph 5min avg
    Primary useism: 0.05 μm/s
    Secondary useism: 0.07 μm/s
QUICK SUMMARY: H1 has been locked for 46 hours.

• All systems look good; a few earthquakes rolling through this morning but wind is low

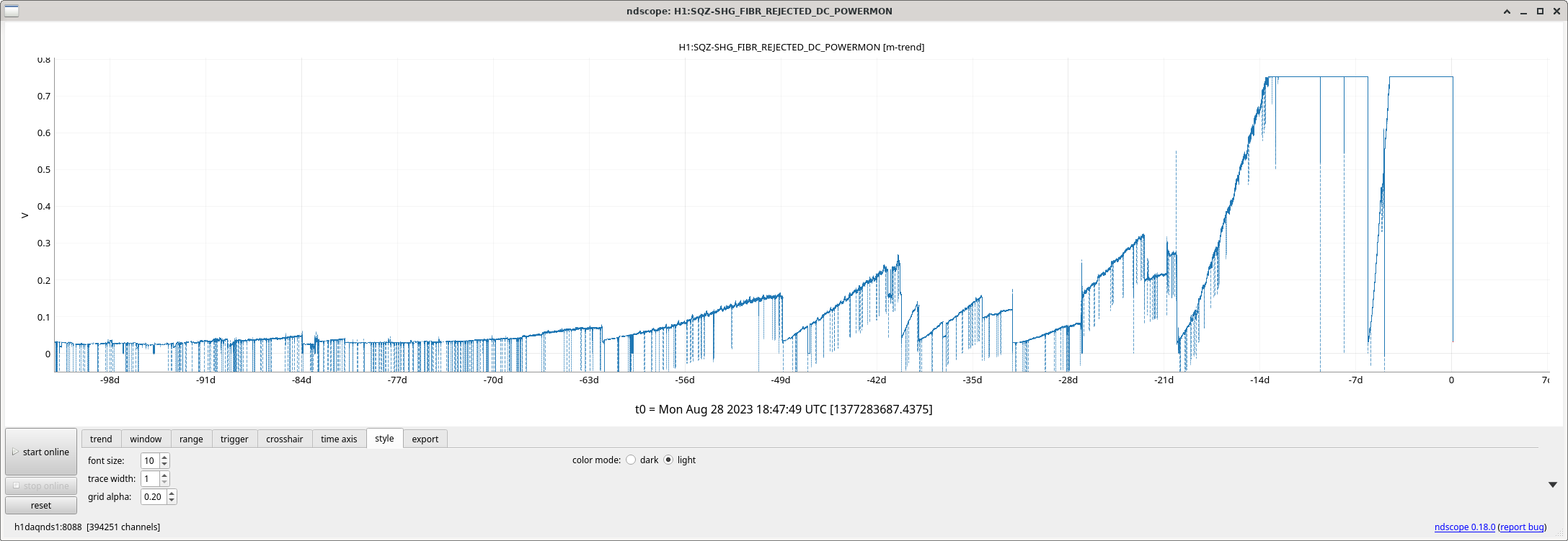

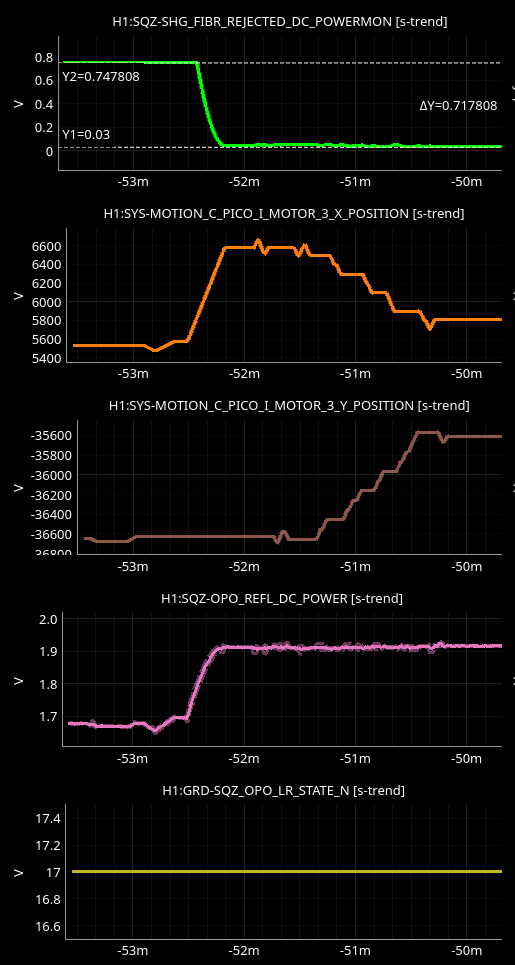

Naoki noticed the pump fiber rejected PD (in ham7, rejects pump fiber light that comes out in the wrong polarization) was saturated, so today I re-aligned the pump fiber polarization using sqzt0 pico's (described recently also in 71761).

I'm not sure why pump fiber needs to have its input polarization readjusted so often; I checked the CLF fiber and FCGS fiber, and they both seemed relatively well-aligned despite having not adjusted those in a while. Especially this time, it seems the fiber polarization got misaligned more quickly than before.

Genevieve, Lance, Robert

To further understand the roughly 10Mpc lost to the HVAC (https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=72308), we made several focussed shutdowns today. These manipulations were made during observing (with times recorded) because such HVAC changes happen automatically during observing and also, we were reducing noise rather than increasing it. The times of these manipulations are given below.

One early outcome is that the peak at 52 Hz in DARM is produced by the chilled water pump at EX (see figure). We went out and looked to see if the vibration isolation was shorted, it was not, though there are design flaws (the water pipes arent isolated). We switched from CHWP-2 to CHWP-1 to see if the particular pump was extra noisy. CHWP-1 produced a similar peak in DARM at its own frequency. The peak in accelerometers is also similar in amplitude to the one from the water pump at EY. One possibility is that the coupling at EX is greater because of the undamped cryobaffle at EX.

Friday HVAC shutdowns; all times Aug. 18 UTC

15:26 CS SF1, 2, 3, 4 off

15:30:30 CS SF5 and 6 off

15:36 CS SF5 and 6 on

15:40 CS SF1, 2, 3, 4 back on

16:02 EY AH2 (only fan on) shut down

16:10 EY AH2 on

16:20 EY AH2 off

16:28 EY AH2 on

16:45 EY AH2 and chiller off

16:56:30 EY AH2 and chiller on

17:19:30 EX chiller only off, pump stays on

17:27 EXwater pump CHWP-2 goes off

17:32: EX CHWP-2 back on chiller back on right after

19:34:38 EX chiller off, CHWP-2 pump stays on for a while

19:45 EX chiller back on

20:20 EX started switch from chiller 2 to chiller 1 - slow going

21:00 EX Finally switched

21:03 EX Switched back to original, chiller 1 to chiller 2

Robert did an HVAC off test. Here is a comparison of GDS CALIB STRAIN NOLINES from earlier on in this lock and during the test. I picked both times off the range plot from a time with no glitches.

Improvement from removal of 120 Hz jitter peak, apparent reduction of 52 Hz peak, and broadband noise reduction at low frequency (scatter noise?).

I have attached a second plot showing the low frequency (1-10 Hz) spectrum of OMC DCPD SUM, showing no appreciable change in the low frequency portion of DARM from this test.
