As the title says, we retuned the MICH feedforward, and the new filter performs better at all relevant frequencies.

Guardian has been updated to engage FM9 instead of FM8.

Quoting Elenna: "It's been 0 days since we retuned the LSC FF"

J. Kissel, for T. Guidry, R. McCarthy

Just wanted to get a clear separate aLOG in regarding what Corey mentioned in passing in his mid-shift status LHO:72423:

The EY HVAC Air Handler's chilled water pump 1 of 2 failed this morning 2023-08-25 at 9:45a PDT, and thus the EY HVAC system has been shut down for repair at 17:35 UTC (10:35 PDT). The YVEA temperature is therefore rising as it equilibrates with the outdoor temperature; thus far from 64 deg F to 67 deg F.

Tyler, Richard, and an HVAC contractor are on it, actively repairing the system, and I'm sure we'll get a full debrief later.

Note -- we did not stop our OBSERVATION INTENT until 2h 40m hours later 2023-08-25 20:18 UTC (13:18 PDT), when we've gone out to do some commissioning.

J. Kissel, L. Dartez

I'm attaching a plot of the DARM UGF that compares two measurements taken ~3.5 months apart. The blue trace is taken from the calibration sweep that Ryan C. took a few days ago (LHO:72392) and the orange trace is from a similar sweep taken back in May (20230506T170817Z).

The DARM loop UGF has moved from ~58Hz to ~66.4Hz and the phase margin has increased by about a degree since May.

There is no immediate need to adjust the DARM open loop gain (DRIVEALIGN_L2L gain, as mentioned in LHO:72416).


The fact that we don't see the loop dip near 20Hz is a rough indicator that the [actuation stage] crossovers are stable. I'll be following up with a more in-depth look at that.


The script used to generate the attached plot lives at: /ligo/home/louis.dartez/projects/20230825/plot_olg/plot_olg_meas.py

H1 is currently at almost 50.5hrs for a lock (current record is ~54hrs).

We are approaching 1pm with the start of 2hrs of commissioning.

We are also dealing with increasing temperatures at EY due to HVAC chilled water issues.  Contractor is on their way.

First ENDX Station Measurement:
During the Tuesday maintenace, the PCAL team( Rick Savage & Tony Sanchez) went to ENDX with Working Standard Hanford aka WSH(PS4) and took an End station measurement.
But the Upper PCAL BEAM had been move to the left by 5 mm last week. See alog https://alog.ligo-wa.caltech.edu/aLOG/index.php?callRep=72063.
We liked the idea of doing a calibration measurement with the beam off to the left just to try and see the effects of the offset on the calibration.

Because of limitations of our analysis tool which names files with a date stamp, the folder name for this non nominal measurement is tD20230821 even though it actually took place on Tuesday 2023-08-22.

Beam Spot Picture of the Upper Beam 5 mm to the Left on the apature
Document***
LHO_ENDX_PD_ReportV2.pdf
https://svn.ligo.caltech.edu/svn/aligocalibration/trunk/Projects/PhotonCalibrator/measurements/LHO_EndX/tD20230821/

We then Moved the PCAL BEAM back to the center, which is its NOMINAL position.
We took pictures of the beam spot.

Second NOMINAL End Station Measurement:
Then we did another ENDX Station measurement as we would normally do which is appropriately documented as tD20230822.
The second ENDX Station Measurement was carried out according to the procedure outlined in Document LIGO-T1500062-v15, Pcal End Station Power Sensor Responsivity Ratio Measurements: Procedures and Log, and was completed by noon.
We took pictures of the Beam Spot .

Martel:
We started by setting up a Martel Voltage source to apply some voltage into the PCAL Chassis's Input 1 channel and we record the times that a -4.000V, -2.000V and a 0.000V signal was sent to the Chassis. The analysis code that we run after we return uses the GPS times, grabs the data and created the Martel_Voltage_Test.png graph. We also did a measurement of the Martel's voltages in the PCAL lab to calculate the ADC conversion factor, which is included on the document .

After the Martel measurement the procedure walks us through the steps required to make a series of plots while the Working Standard(PS4) is in the Transmitter Module. These plots are shown in WS_at_TX.png.

Next steps include: The WS in the Receiver Module, These plots are shown in WS_at_RX.png.

Followed by TX_RX.png which are plots of the Tranmitter module and the receiver module operation without the WS in the beam path at all.

All of this data is then used to generate LHO_ENDX_PD_ReportV2.pdf which is attached, and a work in progress in the form of a living document.

All data and Analysis has been commited to the SVN.
https://svn.ligo.caltech.edu/svn/aligocalibration/trunk/Projects/PhotonCalibrator/measurements/LHO_EndX/tD20230822/

PCAL Lab Responsivity Ratio Measurement:
A WSH/GSHL (PS4/PS5)BackFront Responsivity Ratio Measurement was ran, analyzed, and pushed to the SVN.
The analysis of this measurement produces 4 PDF files which we use to vet the data for problems.
raw_voltages.pdf
avg_voltages.pdf
raw_ratios.pdf
avg_ratios.pdf

All data and Analysis has been commited to the SVN.
https://svn.ligo.caltech.edu/svn/aligocalibration/trunk/Projects/PhotonCalibrator/measurements/LabData/PS4_PS5/

I switched the order of the lab Measurements this time to have the Front Back Last this time to see is it changed the relative difference between FB and BF measurements.
PCAL Lab Responsivity Ratio Measurement:
A WSH/GSHL (PS4/PS5)FrontBack Responsivity Ratio measurement was ran, analyzed, and pushed to the SVN.
The analysis of this measurement produces 4 PDF files which we use to vet the data for problems.
raw_voltages2.pdf
avg_voltages2.pdf
raw_ratios2.pdf
avg_ratios2.pdf

This adventure has been brought to you by Rick Savage & Tony Sanchez.

J. Betzwieser, L. Dartez, J. Kissel

Ryan Short recently updated the control room FOM for the BNS range (LHO:72415) which now shows -- with a clear legend -- the range computed using CAL-DELTAL_EXTERNAL_DQ vs. GDS-CALIB_STRAIN_CLEAN for both H1 and L1 observatories -- see example attached.

This makes it dreadfully obvious that "L1's DELTAL_EXTERNAL range is right on top of the CALIB_STRAIN range -- but H1's is not, and DELTAL_EXTERNAL is *higher*." -- see First Attachment from the control room FOM screenshots.

The natural questions to ask then are "why?" "is something wrong with H1's calibration?"

No, there's nothing wrong.***
The discrepancy between DELTAL_EXTERNAL and CALIB-STRAIN at H1 is because the static test-mass stage actuation strength hasn't been updated since 2023-05-04 -- before the observing run started -- and it has slowly drifted due to test mass ESD charge accumulation -- and it's now at 8% larger than the May 04 2023 value. See the current value for the past 24 hours and a trend of the whole run thus far. L1's ESD strength has *not* drifted as much (see similar L1 trend), and they also regularly "fudge" their DELTAL_EXTERNAL actuator strength gains in order to get DELTAL_EXTERNAL more accurate (and they do so in a way that doesn't impact GDS-CALIB_STRAIN). H1 has chosen not to, to date.

This drift is tracked and accounted for in our "time dependent correction factor" or TDCF system for that test-mass stage actuation strength, \kappa_T -- and GDS-CALIB_STRAIN (and STRAIN_NOLINES, and STRAIN_CLEANED) all have this correction in place. Check out the Second attachment from the same day's "CAL" > "h(t) generation" summary page, and walk with me:
This plot is showing the ASD ratio (and thus roughly analogous to the magnitude of the transfer function) between all of the various stages of the calibration pipeline.
    - GDS-CALIB_STRAIN, GDS-CALIB_STRAIN_NOLINES, and GDS-CALIB_STRAIN_CLEANED are all this same from this perspective. Thus the ratio between these three channels with DELTAL_EXTERNAL in the denominator is highlighting the DELTAL_EXTERNAL is a preliminary product, and NOT corrected for TDCFs and thus there's a huge ~16% systematic difference between the two "stages" of product.
    - Recall that *all* of the four paths of the calibraion -- UIM, PUM, TST, and Sensing -- are being summed, and the cross-over frequency for these sums are all culminating around 50-200 Hz -- and in that region there's a factors of 2x to 3x gain peaking (see e.g. Figure 4 of P1900245) -- and thus the 8% drift in the TST stage strength means 16% systematic error in the DELTAL_EXTERNAL calibration.
    - However, the front-end version of the preliminary product that is corrected for TDCFs is also shown in the plot -- CFTD-DELTAL_EXTERNAL. The ASD ratio between this channel has MUCH less systematic discrepancy -- indicating that correcting for time-dependence (get it? CFTD!) does a LOT of the heavy lifting of accounting for this 8% TST drift.

Of course, these ratios of different portions of the calibration pipeline don't *really* tell you if you've *really* done the right thing in an absolute sense. They only tell you what changes from step to step. (And indeed, the CFTD-DELTAL_EXTERNAL to GDS-CALIB_CLEANED ratio still shows *some* discrepancy.)

The fact that fifth attachment, from the archive showing the constant *direct measurement* of the systematic error in the calibration -- from the absolute reference, the PCALs -- is nice and low (i.e. the transfer function is close to unity magnitude and zero phase) indicates that all of the correction for time-dependence is doing the right thing.

*** Yet. In O3, L1 suffered a lot from TST strength drift. Joe has shown repeatedly that if you let an actuator TDCF drift too far beyond 10%, then the approximation we use to calculate these TDCFs breaks down (and see Aaron's work discussing it as a motivation for P2100107). In addition, since the real ESD strength is changing -- :: -- which is corroborated by the in-lock charge measurements -- I think -- see highlighted red region of sixth attachment from LHO:72310 -- :: -- that means the DARM open loop gain TF gain is also changing.

This may impact the DARM loop stability (see e.g. LLO aLOGs 50900 and 50639). So, *eventually* we should resurrect the two things we've done in O3:
    (1) Reset the model of the static actuation strength for the TST stage to a more current value. (And thus start a new calibration epoch)
    (2) Potentially change the actual DARM loop by adjusting the DRIVEALIGN_L2L gain
    (3) Work up a solution to mitigate the drift -- perhaps doing something similar to what was done in O3, and play gains with turning on the ESD Bias voltage with the opposite sign when we're not in observing.

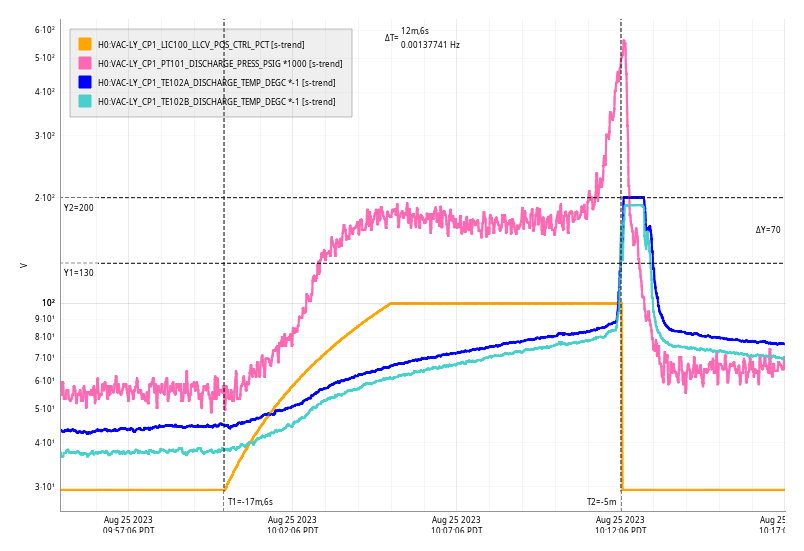

Fri Aug 25 10:12:06 2023 INFO: Fill completed in 12min 2secs

Travis confirmed a good fill curbside.

Richard has requested EY chiller alarms be bypassed while he is working on this system.

Bypass will expire:
Fri 25 Aug 2023 04:47:46 PM PDT
For channel(s):
    H0:FMC-EY_CY_H2O_SUP_DEGF
    H0:FMC-EY_CY_H2O_PUMPSTAT


This is a late entry noting my updates over the past week to the Inspiral Range FOM in the control room on nuc27's top screen; see attached screenshot. The DMT Viewer template is now showing both range calculations from LHO and LLO (from GDS-CALIB_STRAIN_CLEAN or "GDS" and from CAL-DELTAL_EXTERNAL or "the front-ends"), with the GDS range in a bolder line. It's worth noting that the GDS trace only exists while in OBSERVE, so this makes including the front-ends range necessary as well.

The DMT Viewer range template lives in: /opt/rtcds/userapps/release/cds/h1/scripts/fom_startup/nuc27/HLV-Range.xml

TITLE: 08/25 Day Shift: 15:00-23:00 UTC (08:00-16:00 PST), all times posted in UTC
STATE of H1: Observing at 147Mpc
OUTGOING OPERATOR: Tony
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 14mph Gusts, 11mph 5min avg
    Primary useism: 0.05 μm/s
    Secondary useism: 0.07 μm/s
QUICK SUMMARY: H1 has been locked for 46 hours.

• All systems look good; a few earthquakes rolling through this morning but wind is low

TITLE: 08/25 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 152Mpc
INCOMING OPERATOR: Tony
SHIFT SUMMARY: Detector still Observing and has been Locked for 37hrs 37mins.

Throughout my shift there were a few instances where a GW candidate came in on GraceDB with the EARLY_WARNING tag(but very high FAR), and then possible subthreshold GRB candidates that came in closely after would cause Verbals to announce them.

Also, around 8/25 4:36ish UTC, I noticed that the lock clock said to stand down, but there had been no alert on Verbals, and going to GraceDB, there hadn't been any GRB events in the previous couple of hours.

23:00UTC Detector in Observing and Locked for 29.5 hours

23:19 SubGRBTargeted on Verbals E432118
23:22 SubGRBTargeted on Verbals E432119
     - A bunch more SubGRBTargeted on verbals, along with some getting repeated alerts a few minutes later

23:24 Earthquake mode activated for earthquake from Japan (and from off Oregon Coast)
23:24 Back to CALM

23:39 Earthquake mode activated from another earthquake from off the coast of Oregon
23:49 Back to CALM

4:36ish - 4:43UTC lock clock says to Stand Down

LOG:

no log

We're going on 34 hours of being Locked and Observing at 147Mpc.

Genevieve and I did about a dozen scattering injections in the LVEA on July 20th and 21st. For this round of injections we inserted the retro-reflector into the guillotine port for 10 seconds, removed for 10 seconds and repeated 6 times. We are still working through the data on those but it appears as if we had some scattering noise on HAM3 in the left guillotine port. There is an increased noise source present when the reflector is inserted. I did more scattering injections yesterday on HAM3 and HAM6 during commissioning and will parse through that data soon.

Spectrograms of accelerometer on HAM3 and DARM:
-Acc
-DARM
-Stacked with red lines around the time the reflector was inserted and noise was present

TITLE: 08/24 Eve Shift: 23:00-07:00 UTC (16:00-00:00 PST), all times posted in UTC
STATE of H1: Observing at 150Mpc
OUTGOING OPERATOR: Ryan C
CURRENT ENVIRONMENT:
    SEI_ENV state: CALM
    Wind: 13mph Gusts, 9mph 5min avg
    Primary useism: 0.04 μm/s
    Secondary useism: 0.08 μm/s
QUICK SUMMARY:

Taking over for Ryan C. Detector in Observing and has been Locked for 29.5 hours. The EX Pirani pressure gauge, VAC-EX_X2_PT524B_PRESS_TORR, is still down even though it should have come back up by now (tagging vacuum team even though they know already).

L. Dartez, J. Kissel

We're investigating some issues with time-dependent correction factors (TDCFs) as computed by the front-end vs. GDS, and reminding ourselves of the parameters that define the "smoothing out" of the computation. In particular the uncertainty threshold against which the live uncertainty is compared.

Apparently, all front-end thresholds are set at 5% uncertainty.

    H1:CAL-CS_TDEP_CAVITY_POLE_F_C_GATE_UNC_THRESH       0.05
    H1:CAL-CS_TDEP_CAVITY_POLE_KAPPA_C_GATE_UNC_THRESH   0.05
    H1:CAL-CS_TDEP_D2N_SPRING_F_S_GATE_UNC_THRESH        0.05
    H1:CAL-CS_TDEP_D2N_SPRING_Q_S_GATE_UNC_THRESH        0.05
    H1:CAL-CS_TDEP_KAPPA_PUM_GATE_UNC_THRESH             0.05
    H1:CAL-CS_TDEP_KAPPA_TST_GATE_UNC_THRESH             0.05
    H1:CAL-CS_TDEP_KAPPA_UIM_GATE_UNC_THRESH             0.05
(Remember, the live uncertainty is defined by taking each calibration line's coherence, coh, with DARM_ERR, converting it to uncertainty via sqrt([1-coh]/[2*Navg*coh]), where Navg is determined by the FFT length -- see LHO:69175 for a recent review of this calculation.)

I could make up a story from my foggy memory as to why the front-end thresholds are set at 5% (and not 0.5%, like we expected -- and like what we *think* the GDS pipeline's threshold is), but I'll spare you. They've been this way since Apr 2021.

Attached is the time-series comparison between GDS (in red) and Front-end (in gray) computed \kappa_C for the 24 hour period after July 31 2023 00:00 UTC. The gray, front-end trace shows the characteristic ~3 hour thermalization transient we've come to know and love from our 76W IFO (see e.g. LHO:69796). The red trace, doesn't show this, and it's in fact frozen at the "last good value" by the GDS gating system -- because it's uncertainty threshold is much lower than 5%.

We presume that this is because the detector noise was pretty DARM bad during this time period -- see 24-hour statistics on the sensitivity in second attachment.

Following up on TJ's alog from 8/17 (72293), it was noted that a garbage truck at LSB was quite loud. The seismometers in the LVEA clearly picked up the noise, and it seems to coincide with noise in DARM. It's hard to be certain with only one signal, but it probably warrants further investigation.

Spectrogams attached of one seismometer and DARM for 2 minute time span around when noise was reported:
-Of signal
-Zoomed in with boxes on noise regions
-Stacked with some boxes around correlated noise
